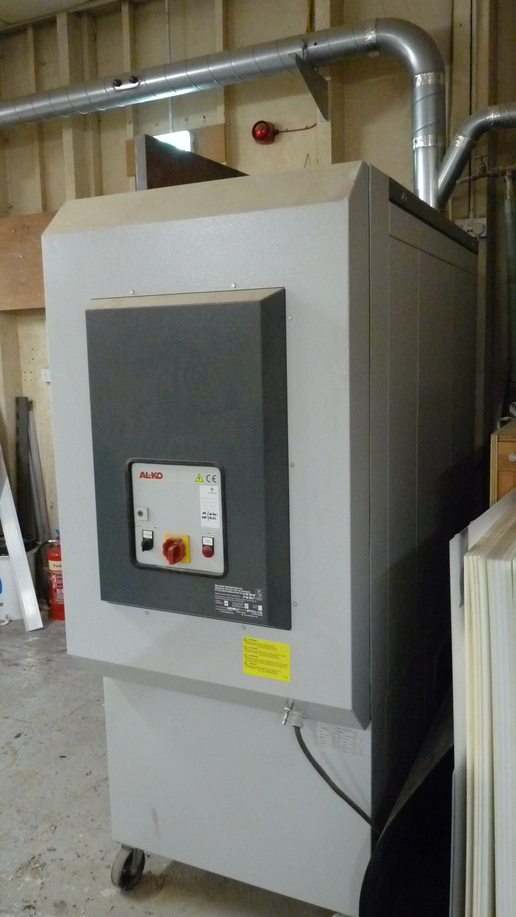

Information
Suitable both for individual extraction and as a supplement to a stationary system.
The dust extractor is suitable as a decentralised extraction unit for universal use with a wide range of materials such as wood and wood composites, paper, plastics, metal, stones, and more.
Manufactured to test mark H3 for residual dust concentration which means that dust extractors of this size can be set up directly in the working area without additional fire and explosion protection measures.
Manufacturer
Al-KO
Type

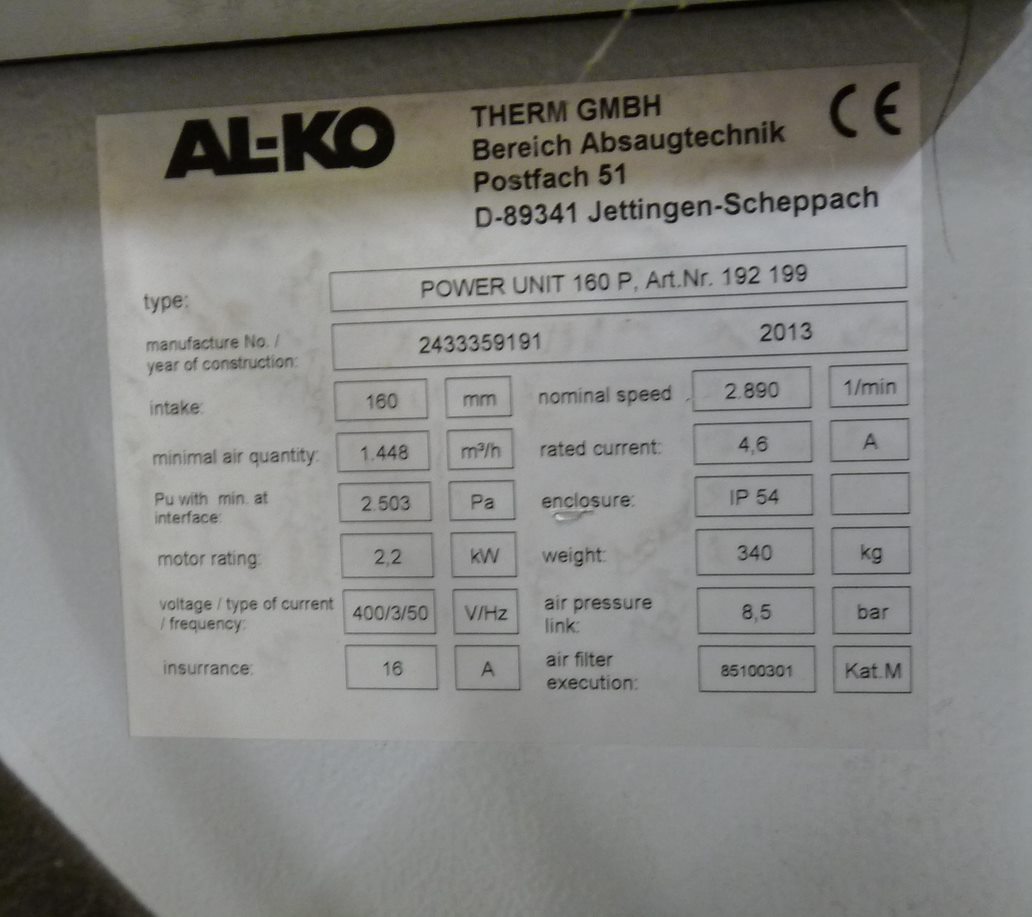

Power Unit 160P
Capacity
160 mm Intake
Max. volume flow: 2,000 m³/h
Volume flow at nozzle at 20 / 22 m/s: 1,448 / 1,592 m³/h
Filter area: 9.1 m²
Filter cleaning: Compressed air cleaning
Chip collection volume: approx.165 (241) litres
Features
Manual / Automatic Operation
Compact Unit
High suction power
Integrated pre-separator
100 % air recirculation Residual dust content < 0.1 mg/m³
Low noise
Easy emptying
Wheeled base
Power
2.2kW 4.6 amps Three Phase Electrics
Size
1580 x 830 x 2050mm 340kg
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
Ducting Available
LARGE SELECTION OF EXTRACTION DUCTING INCLUDING CLAMPS & FIXINGS FOR USE WITH THE ABOVE EXTRACTOR
Manufacturer
Wilson
Model
FX Spindle Moulder with power feed and sliding table
Capacity
Table Size: 1100 x 710 mm (43 ¼ x 28")
Spindle Diameter: 30 mm (1 1/4")
Speeds
3,000, 4,500, 6,000 & 8,000 rpm
Main Motor
5.5 kW / 7.5 HP
...
Rating Industrial
Power 1.5kW (230V 1ph)
Air Flow 2,700m³/hr
Noise Level 74dB(A) @ 3m
Filter Area 3.7m²
Particle Size 1 micron
Hose Diameter 100mm x 2 & 200mm x1
Overall L x W x H 1,000 x 670 x 1,700mm
Weight 131kg
...
