MACHINE INFORMATION AND SPECIFICATION
Model:
Used Mazak VTC800/30SR 5 Axis Vertical Travelling Column (4796)
DESCRIPTION

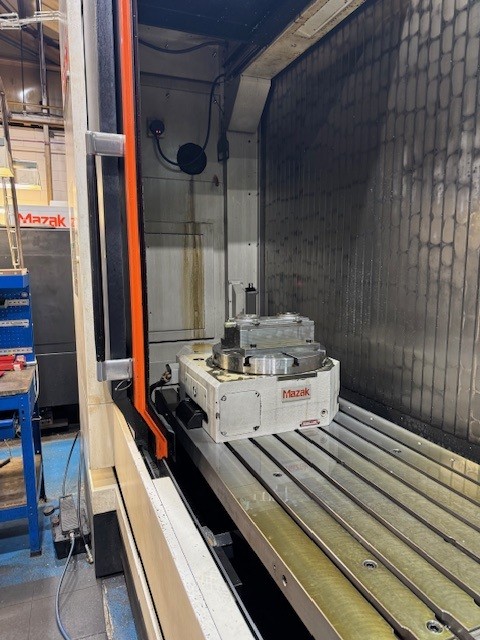

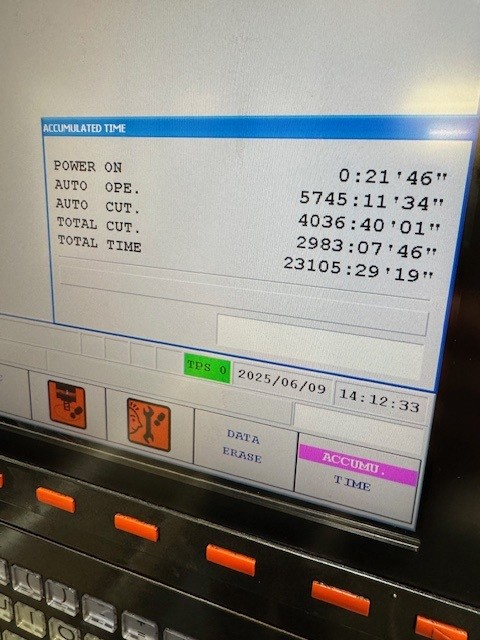

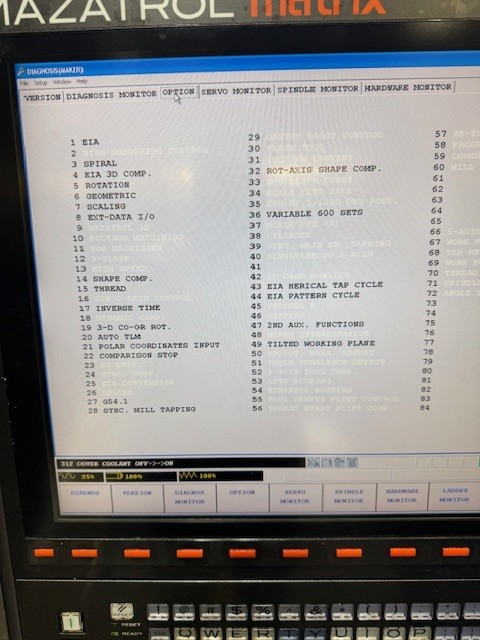

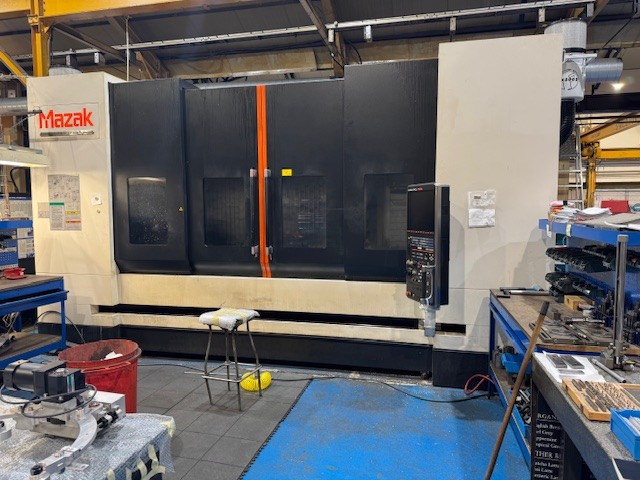

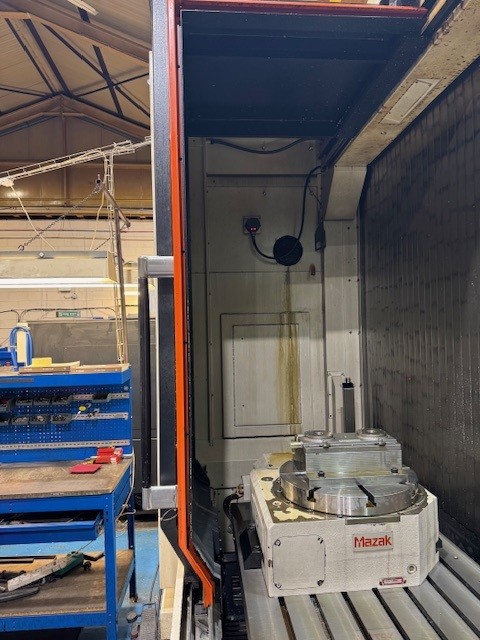

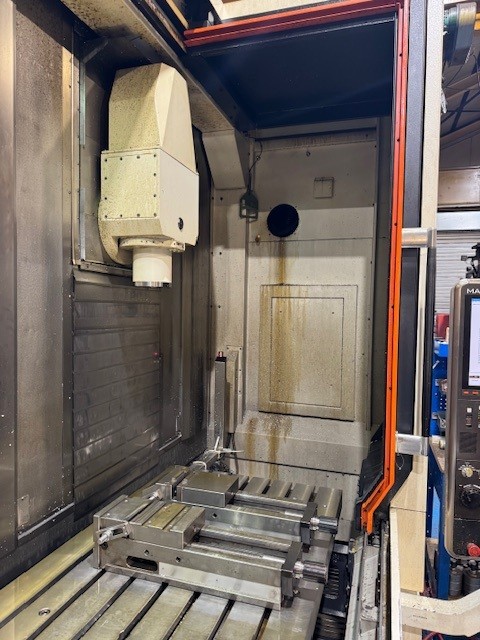

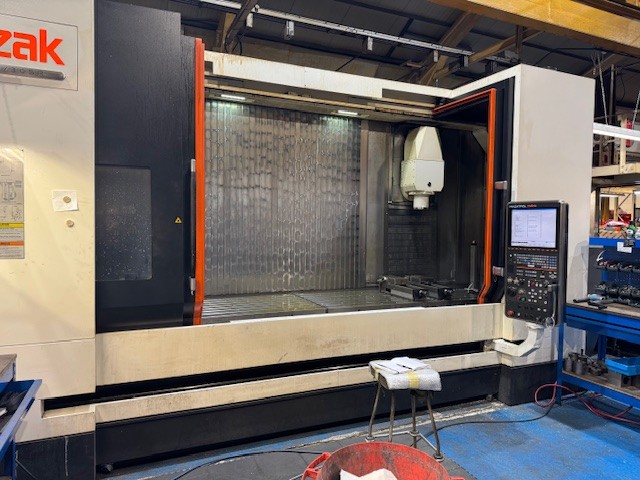

Used Mazak VTC800/30SR 5 Axis Vertical Travelling Column, 2011, s/n 229901, Mazatrol Matrix control, 4th & 5th axis, table 3500 x 820mm, trav 3000 x 800 x 720mm, Spindle head rotation +/- 110 degrees, NC Rotary Table 360,000 Degrees, 48atc, BT40 Tooling type, rapids 50m/min, 18,000rpm, High pressure coolant through spindle (15kg), Renishaw RMP60 Probe, automatic tool length measurement & breakage detection, NC4 Laser checker, swarf conveyor. Control Options - EIA, Spiral, EIA 3D Comp, Rotation, Geometric, Scaling, EXT-Data I/O, Shape Comp, Thread, Inverse Time, 3-D Co-Or Rot, Auto TLM, Polar coordinates Input, Comparison Stop, G54.1, Sync. Mill Tapping, Rot-Axis Shape Comp, Variable 600 Sets, EIA Helical Taping Cycle. EIA Pattern Cycle, 2ND Aux. Functions, Tilted Working Plane. Hours Auto Cut 4,036, Total time 23,105 hrs
