MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

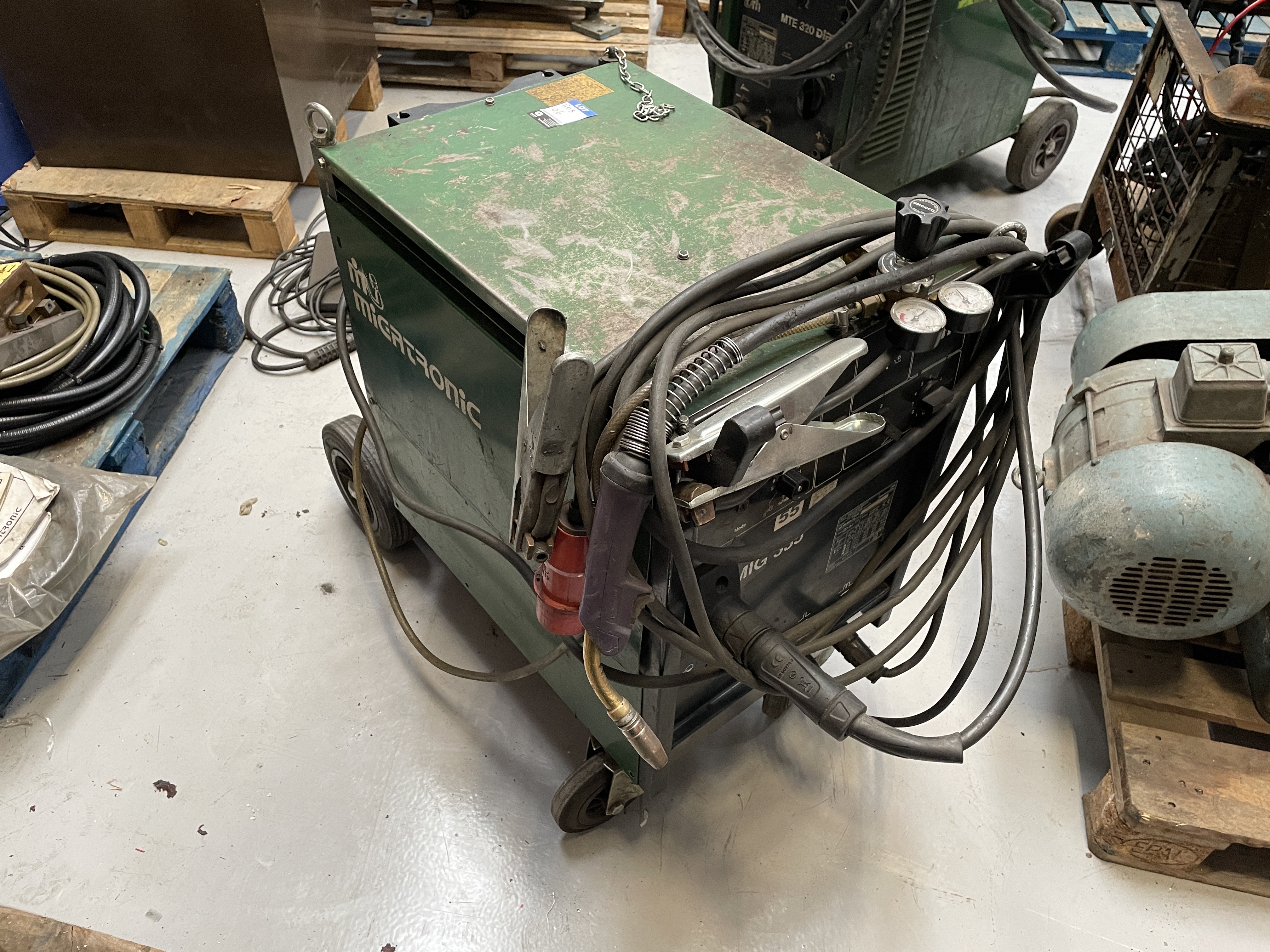

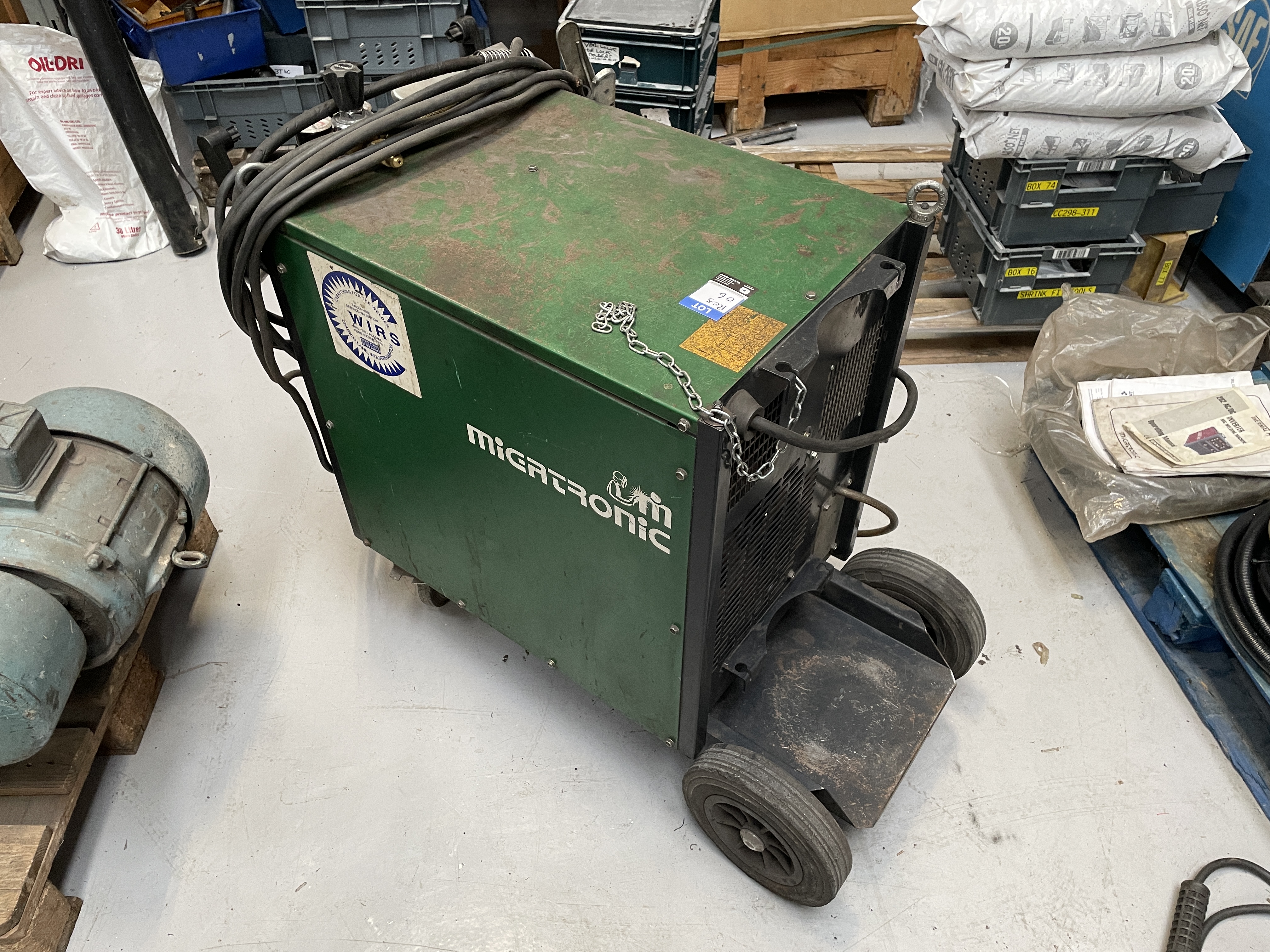

  • Migatronic MTE 335 Dialog Welder
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

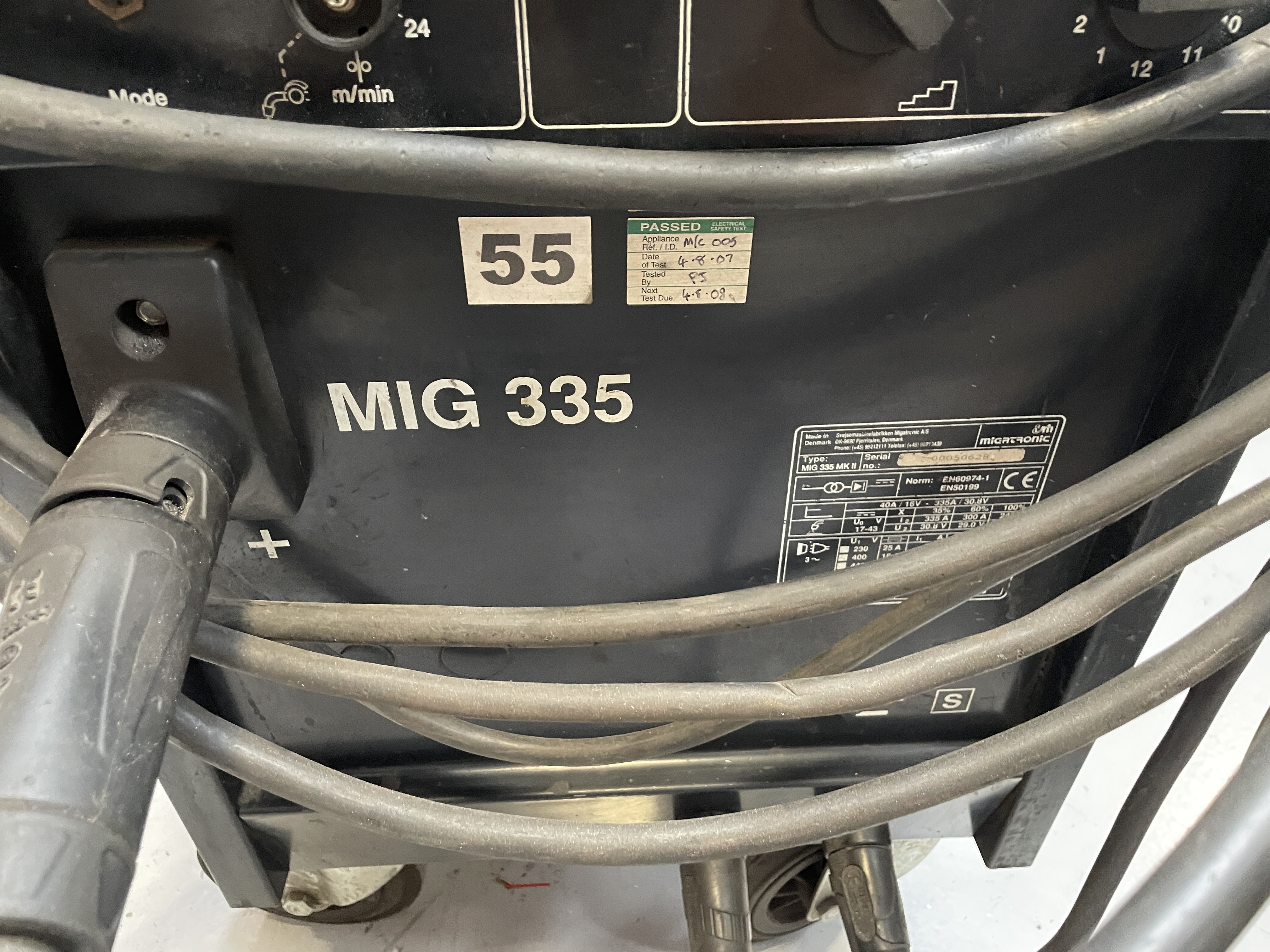

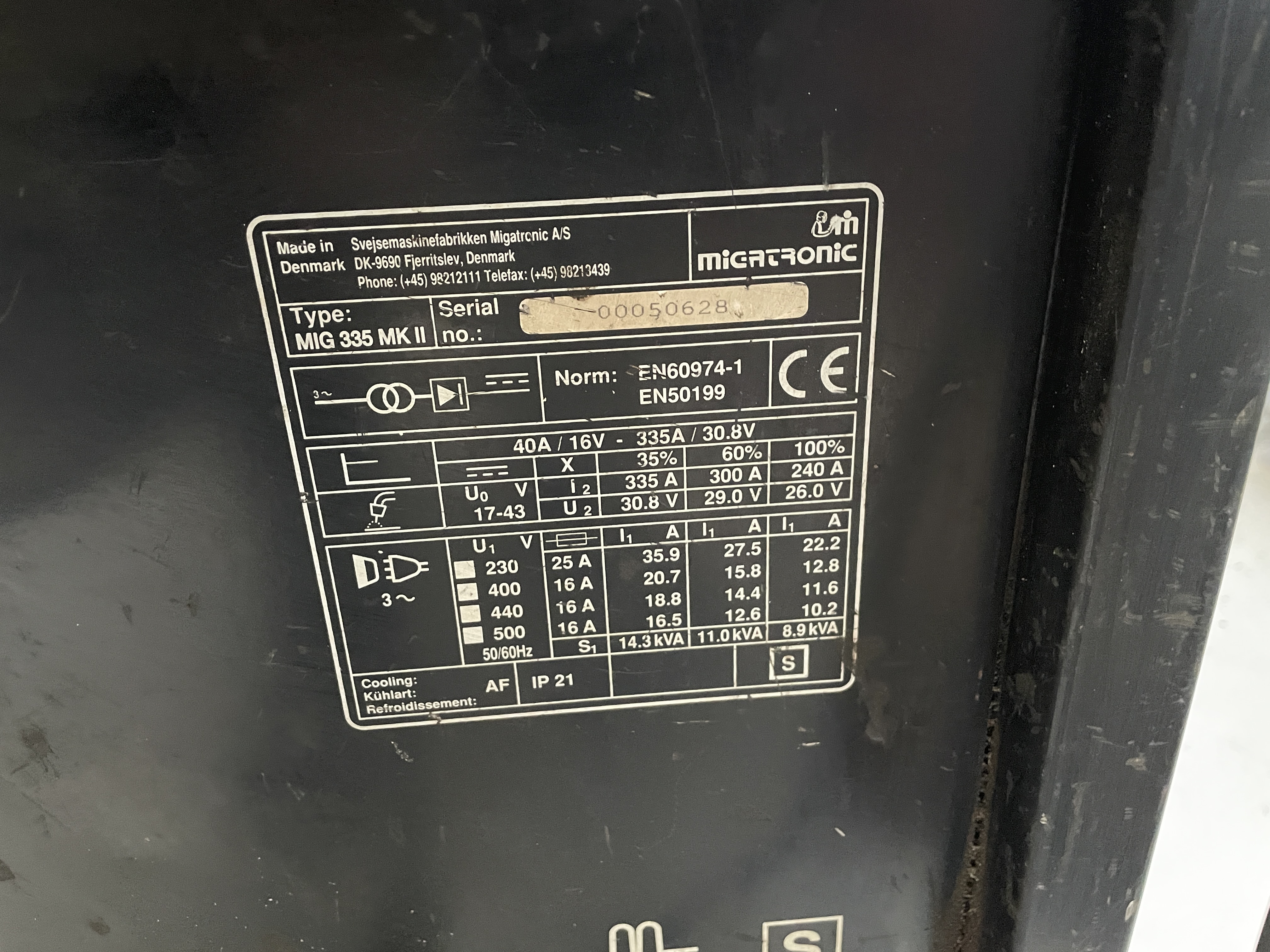

Model: MTE 335 Dialog MKII.
S/N: 000506280.
Rated output at 35% Duty Cycle: 335A / 30.8V.
Rated output at 60% Duty Cycle: 300A / 29V.
Rated output at 100% Duty Cycle: 240A / 26V.
Minimum welding current/voltage: 40A / 16V.
Open Circuit Voltage Range: 17-43V.
Cooling Type: AF (Air Forced).
Enclosure Protection Class: IP 21.
Frequency: 50/60Hz.
