MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GRINDING
  • Model:
  • SURFACE GRINDING MACHINE JAKOBSEN TYPE SJ12
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

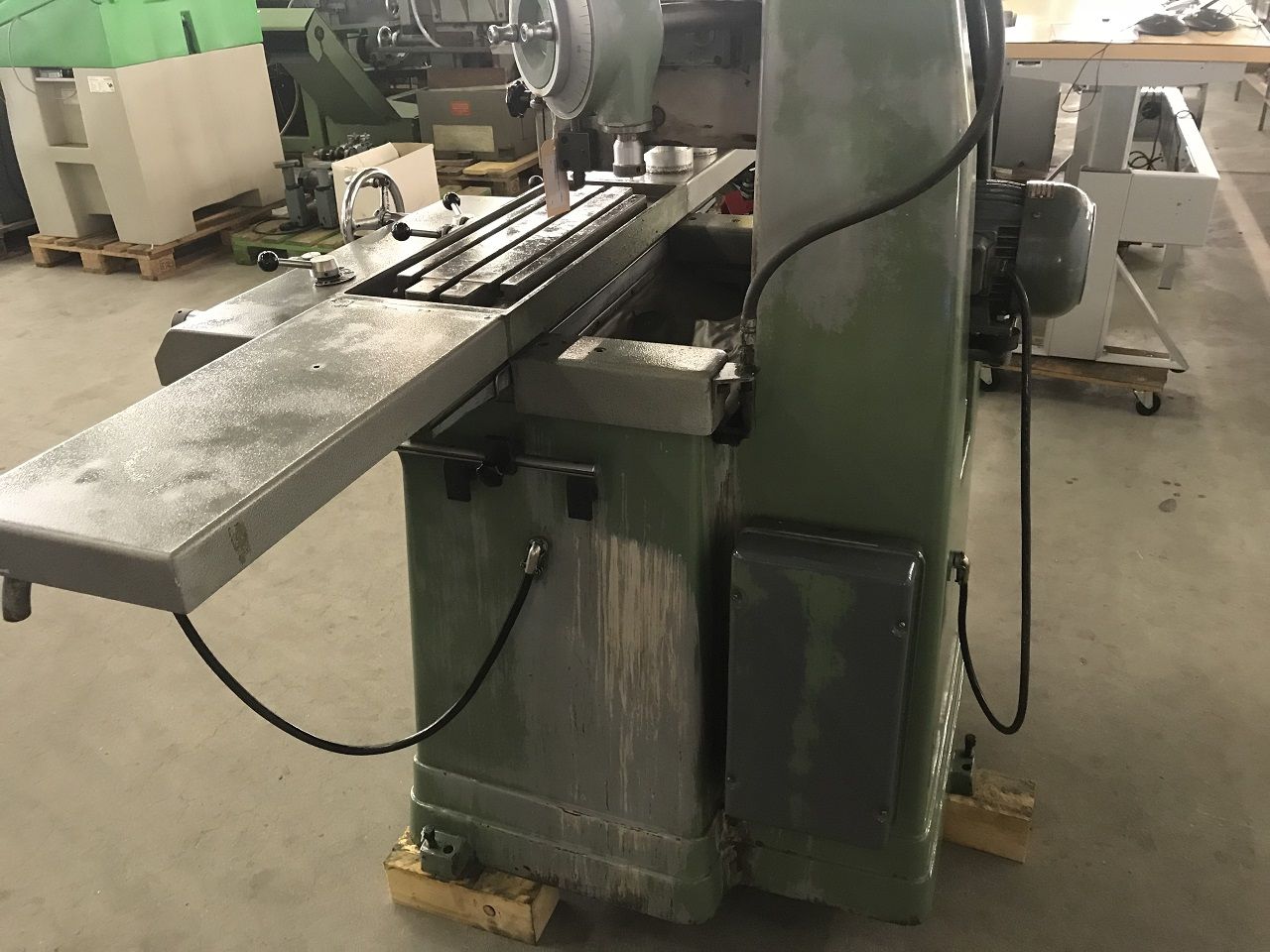

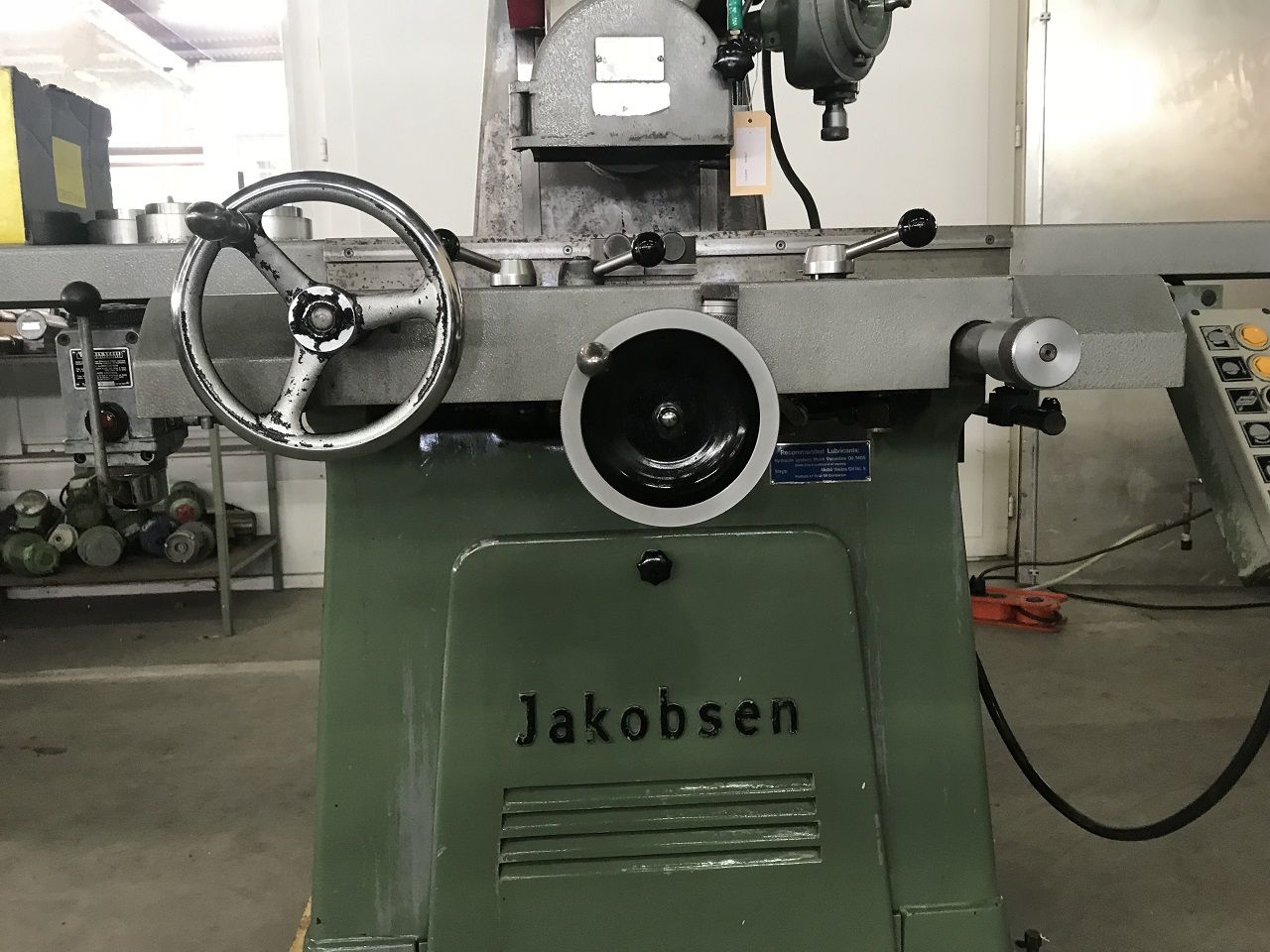

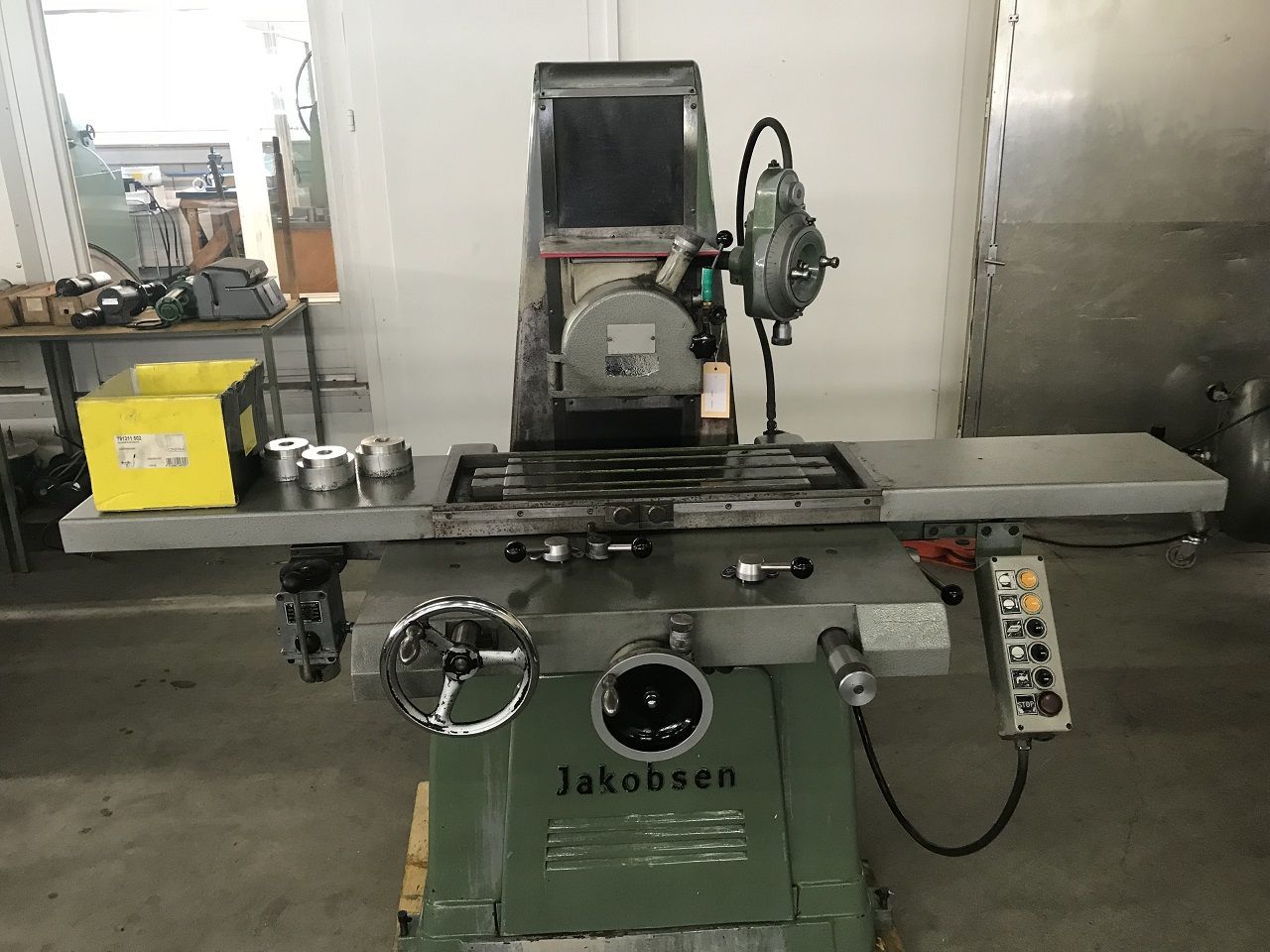

SURFACE GRINDING MACHINE "JAKOBSEN" TYPE SJ12

Reference: 2180129

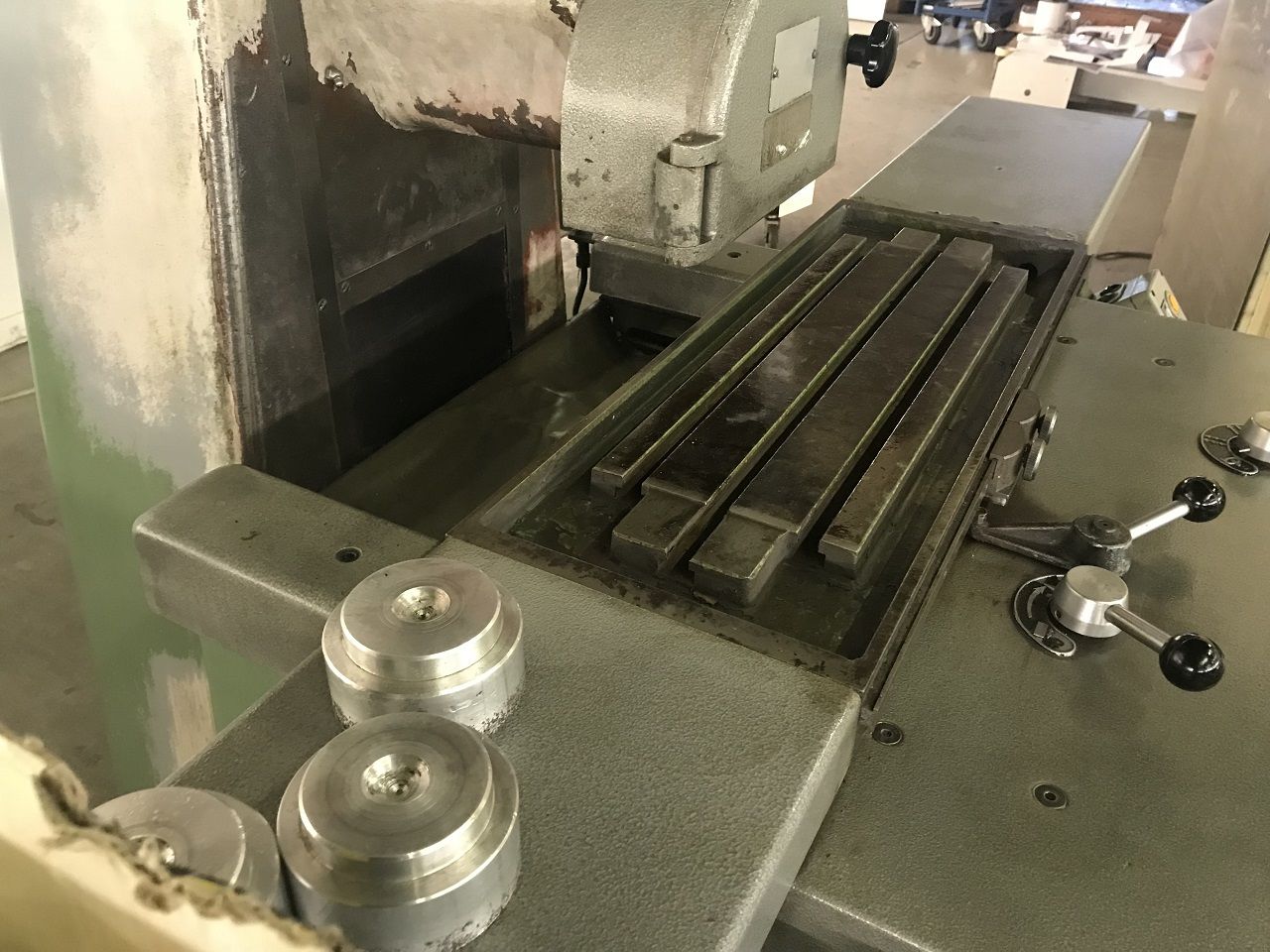

without magnetic plate



Information

Manufacturing origin Denmark
Voltage 380 / 50 / 3
Netweight 1100 kg
Dimensions 180x110x160cm
Custom position 8460.1920

TECHNICAL DATA

Grinding capacity 500 x 250 mm
extra 600 x 250 mm
Longitudinal traverse of table 500/600 mm
Cross traverse of saddle 250 mm
Max. height of wheel-centre to table surface 400 mm
Working surface of table 500 x 180 mm
extra 600 x 180 mm
Grinding wheel 200x20x76,2 mm
extra 250x20x76,2 mm
Speed of wheel spindle, RPM 50 Hz 2800
Longitudinal table speed 2-20 m/min
Cross feed, adjustable from 1-9 mm
Rapid cross feed 0-7 m/min
Vertical feed manual/automatic
Automatic down feed 0,002-0,02 mm
Rapid vertical feed automatic
Grinding wheel motor 2 HP
Hydraulic pumpmotor 1 HP
Motor for rapid vertical feed 0,35 HP
Shipping volume 3,3 m3
errors and omission excepted-data given without obligation
