MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Erie
  • Model:
  • DM Series
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

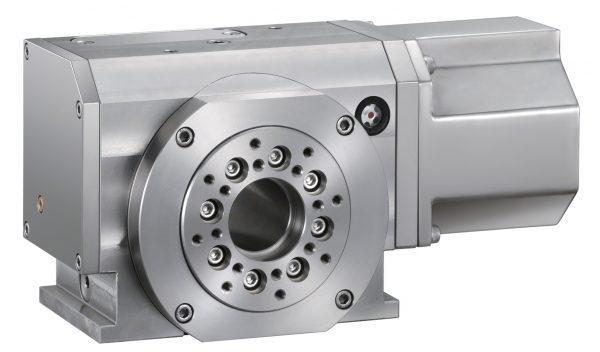

The DM series of rotary tables are completely waterproof and are designed for EDM applications. They are built from stainless steel and can be completely submerged. The DME100 table has a Fanuc absolute encoder to improve precision and is only available as a 4th axis. The DM100 is available with a Kitagawa controller or with a suitable motor to interface with a machine that has already been prepared for an additional rotary axis. Both rotary tables are compact and high precision and will greatly expand the capability of a spark or wire erosion machine. These rotary tables are available with specially designed submersible chucks and tailstocks. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
