MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FERMAT
  • Model:
  • FERMAT WRF 160, 2013
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

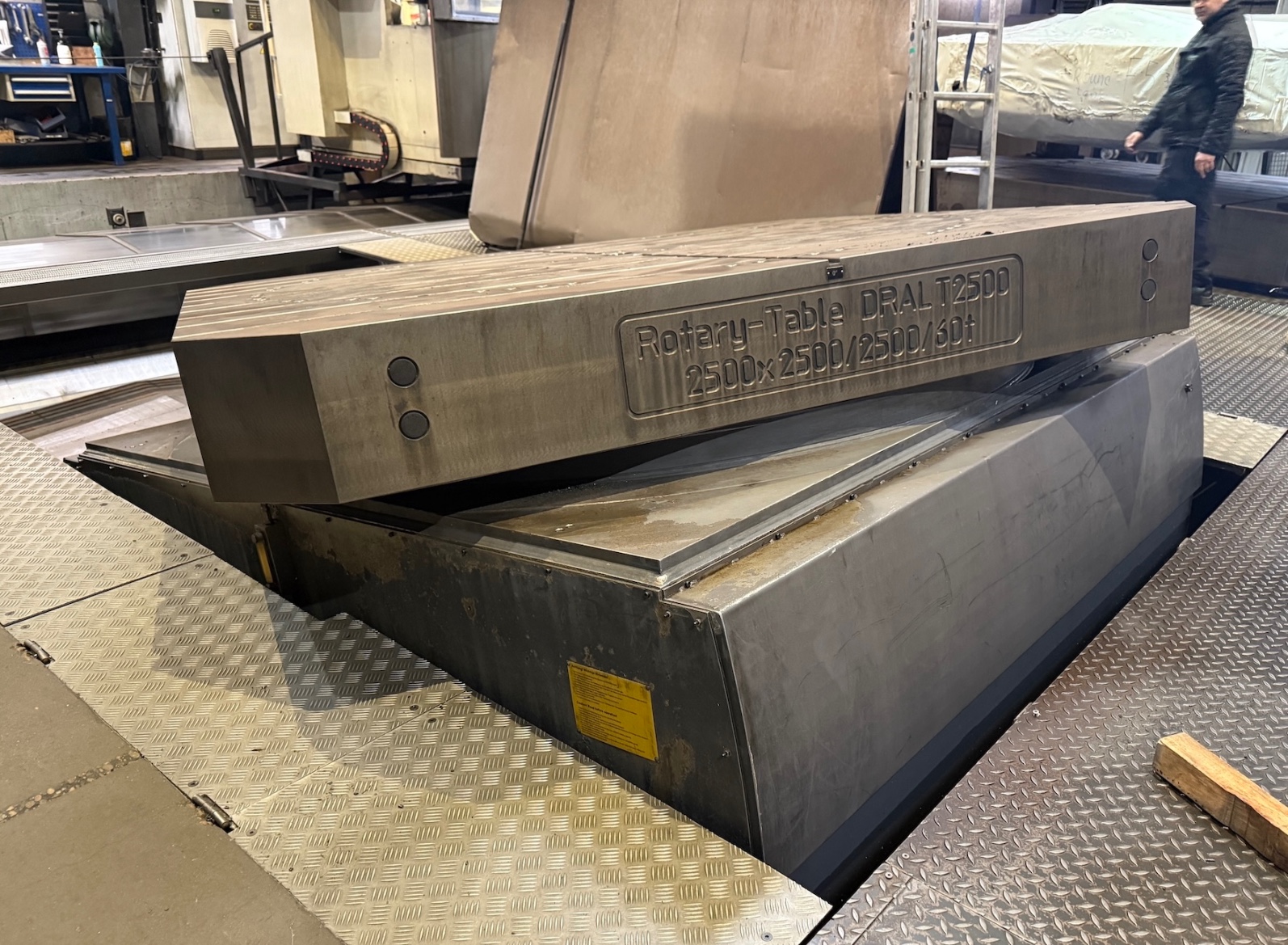

X Column travel: 13.500 mm Y Headstock vertical travel: 4.100 mm Z, Ram stroke: 1.100 mm W, spindle stroke: 1.000 mm W+Z: 2.100 mm Spindle diameter: 160 mm Spindle diameter: ISO 50 Spindle speed: 10 - 2.500 rpm Spindle motor: 60 / 80 kW Ram square section: 460 x 500 mm Automatic tool changer: 60 Tools Coolant through spindle: 30 Bars Outside Coolant: 4 Bars 1. Rotary Table size: 2.500 x 2.500 mm Table load: 60 ton C-axes: 360 000° Q-axes, tilting: 0-10° Table travel, V: 2.500 mm 2. Rotary Table size: 2.500 x 3.500 mm Table Load: 40 Ton C-axes: 360 000° Table travel, V: 2.400 mm
