MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • UNIVERSAL MILLING MACHINE SCHAUBLIN TYPE 22
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

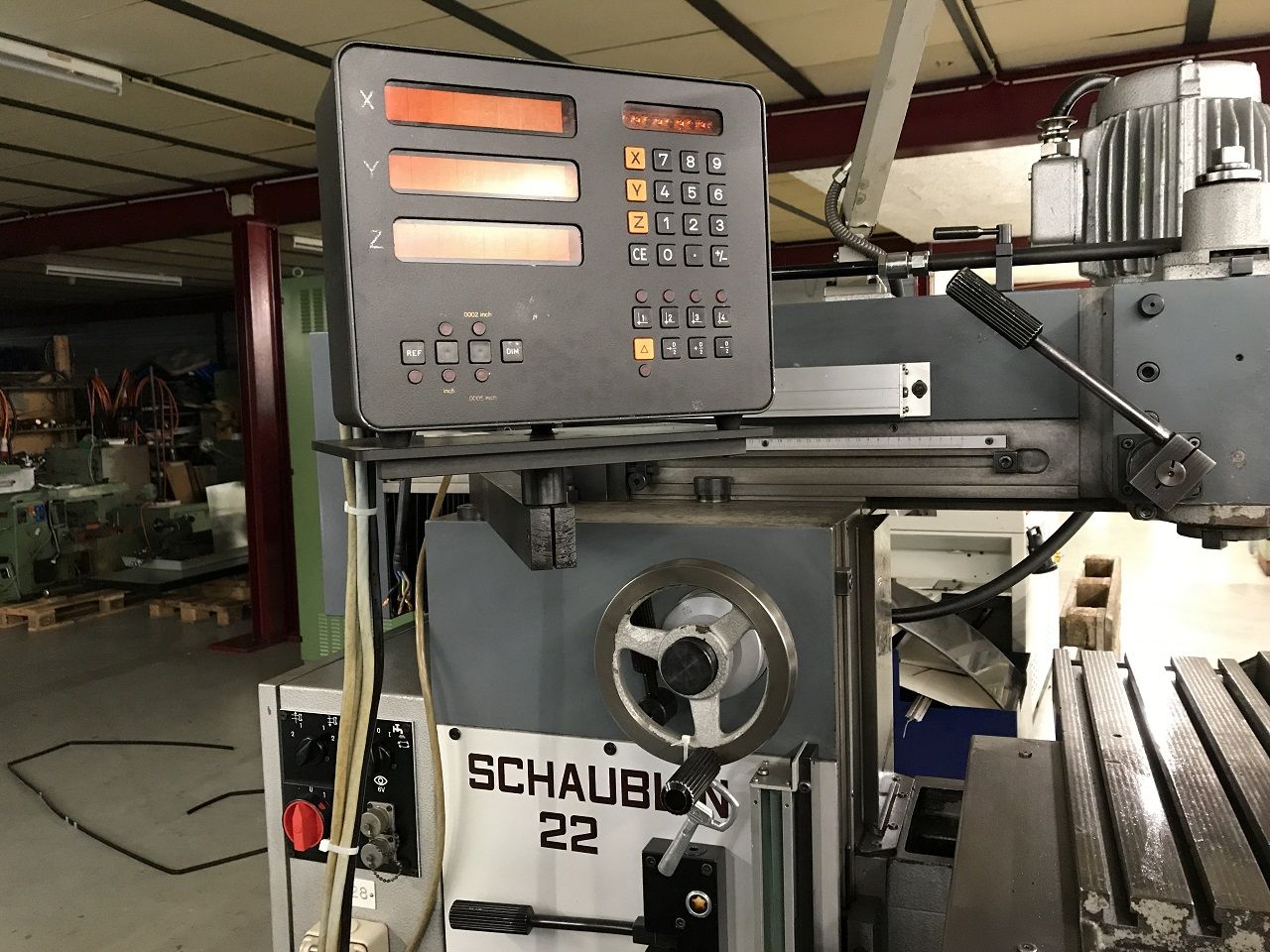

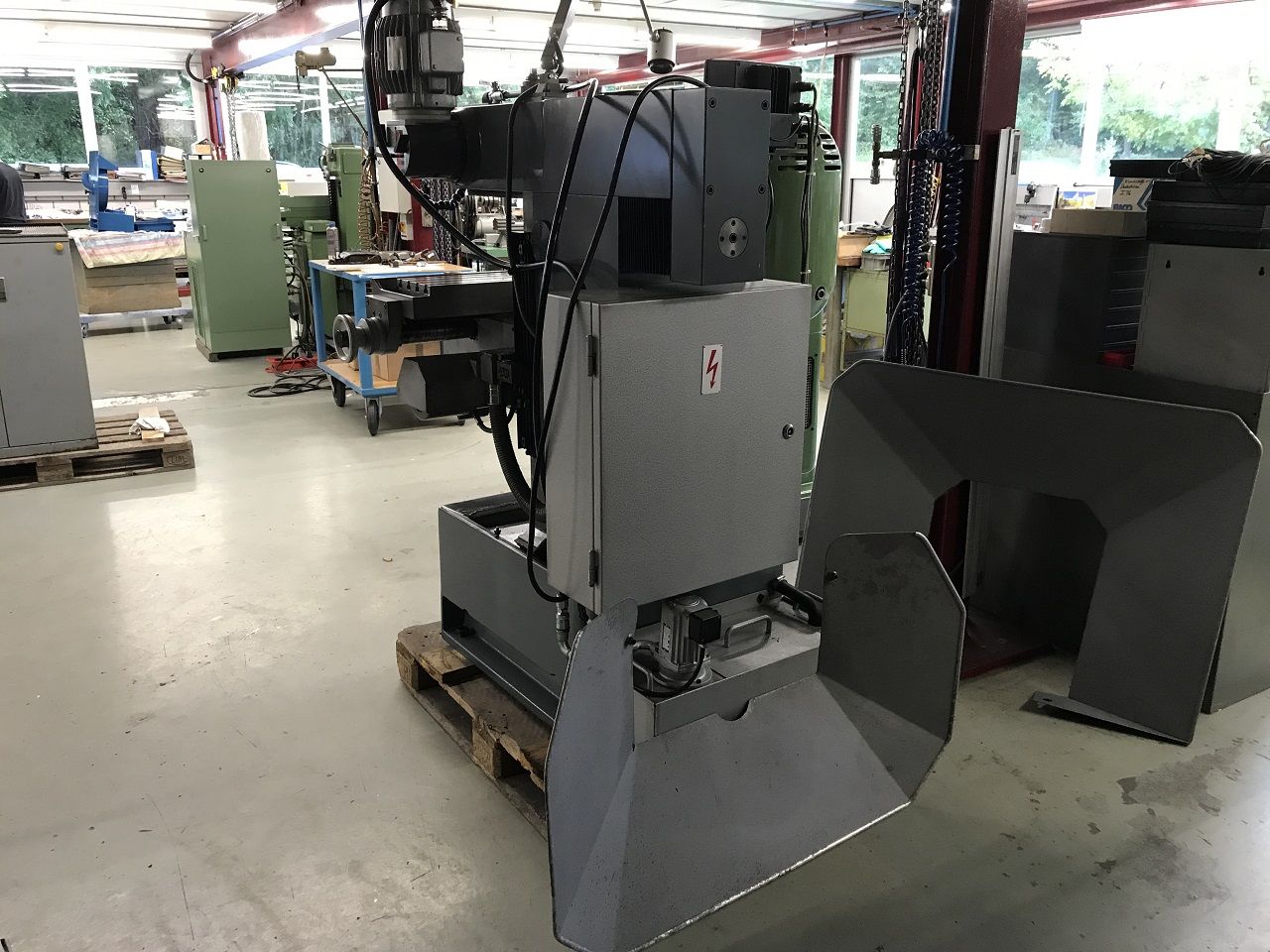

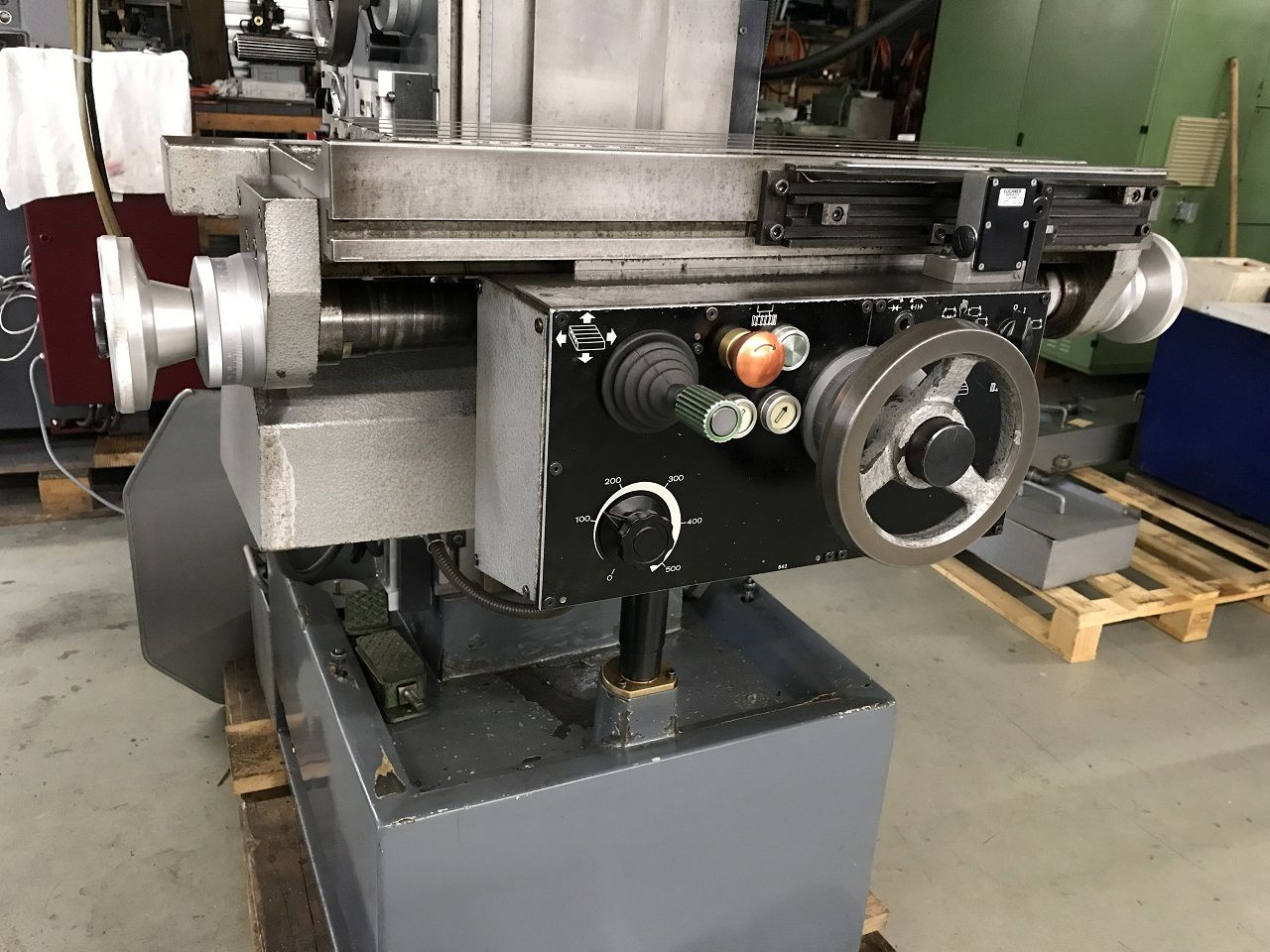

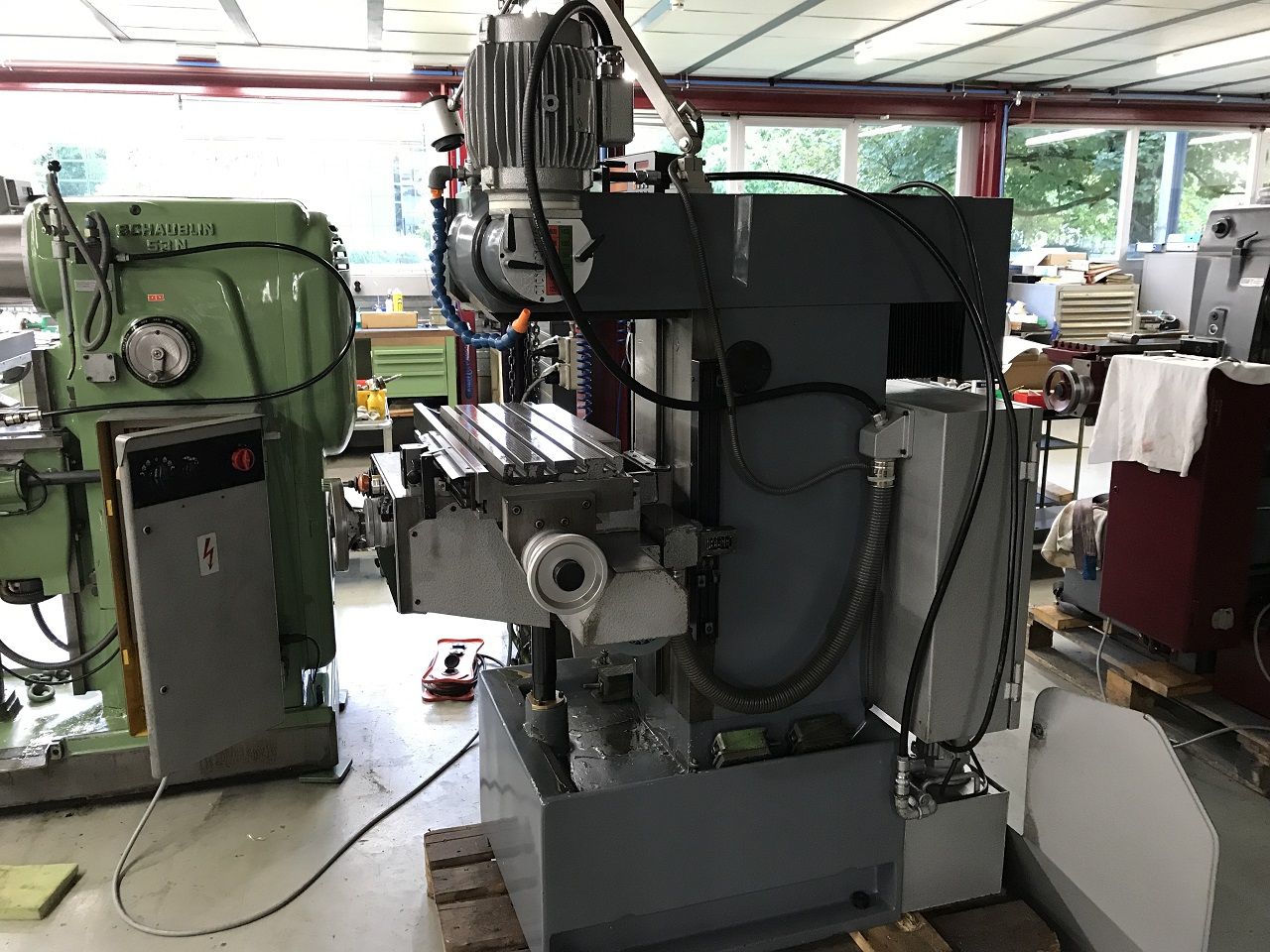

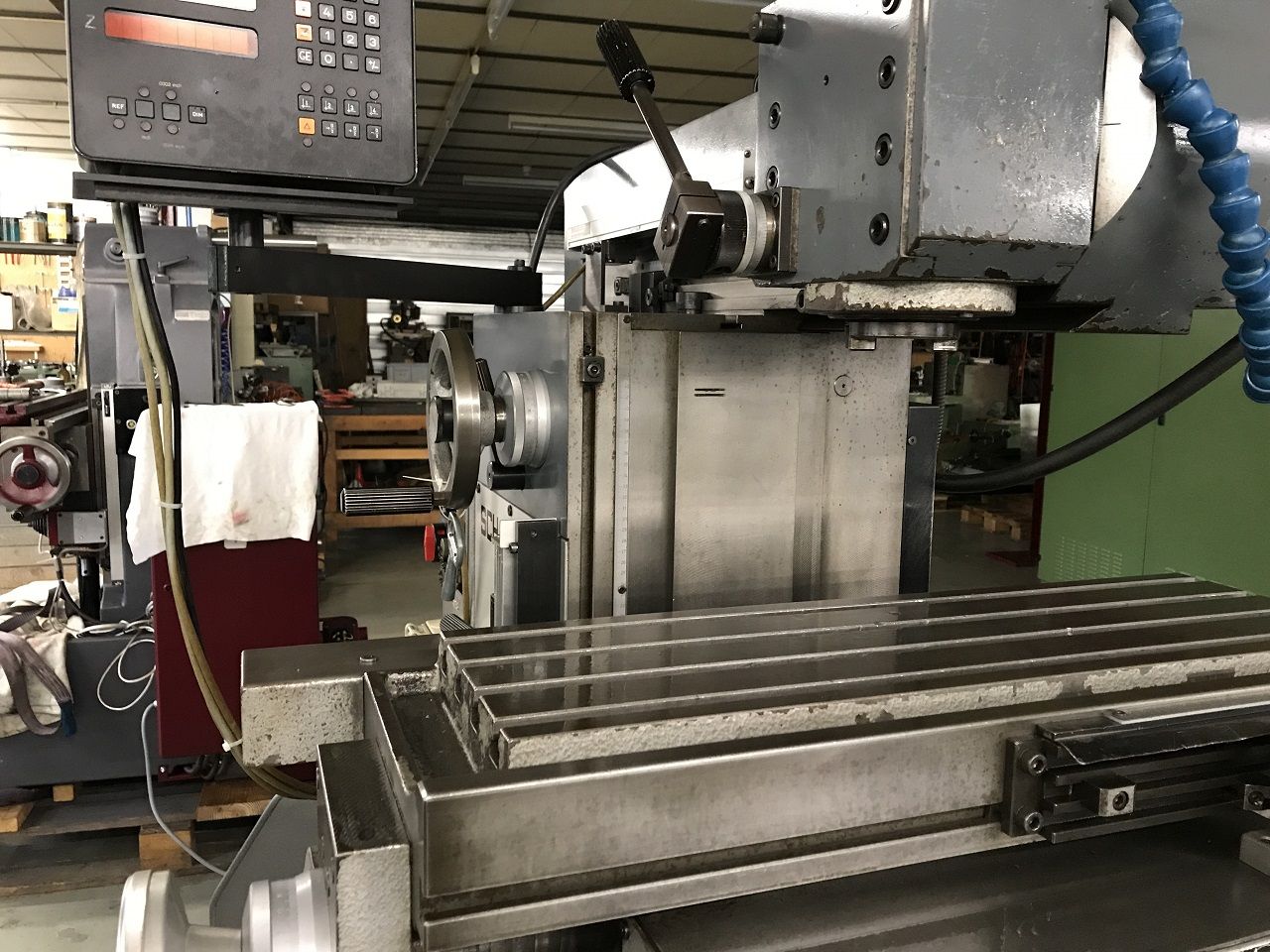

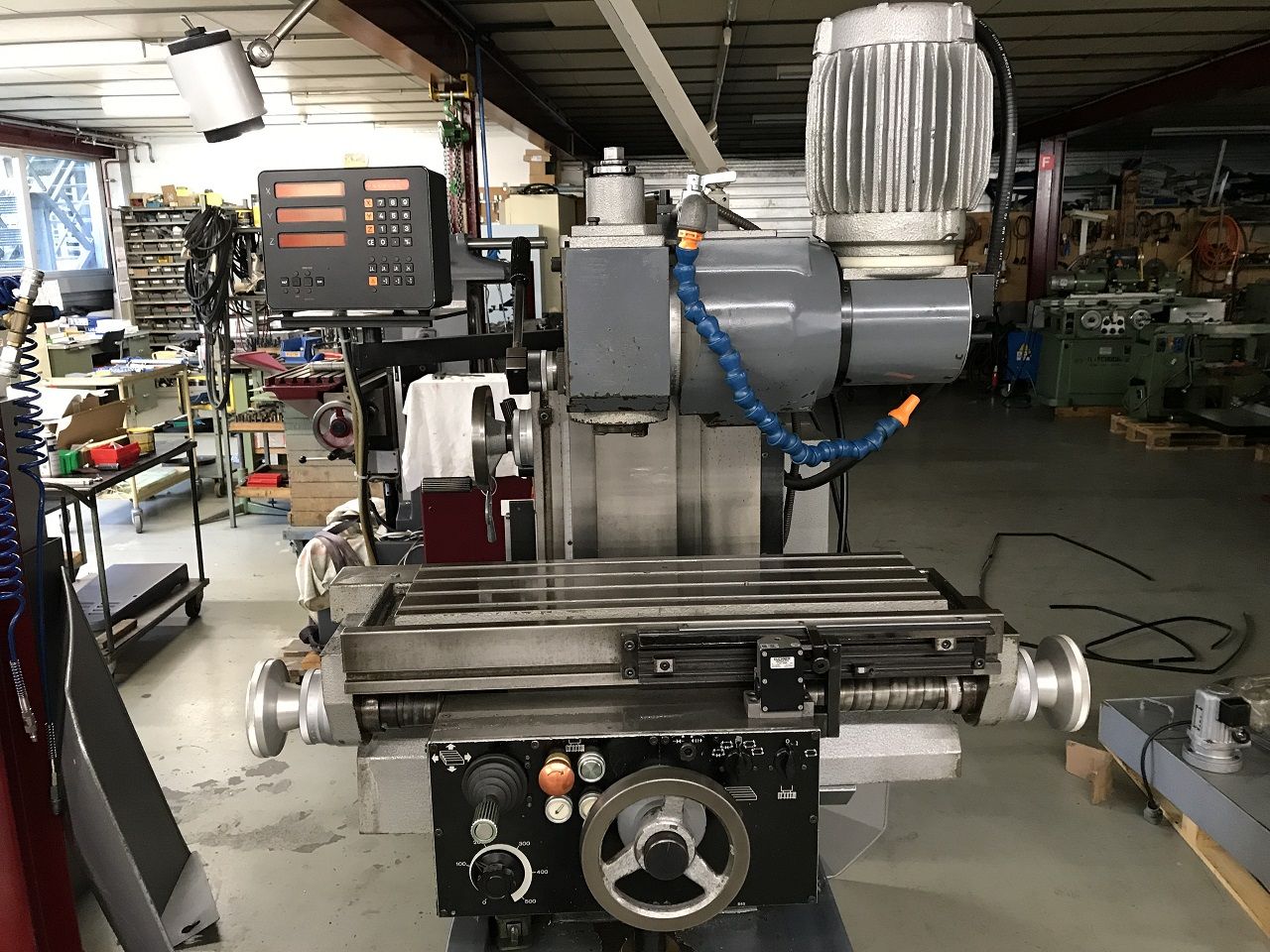

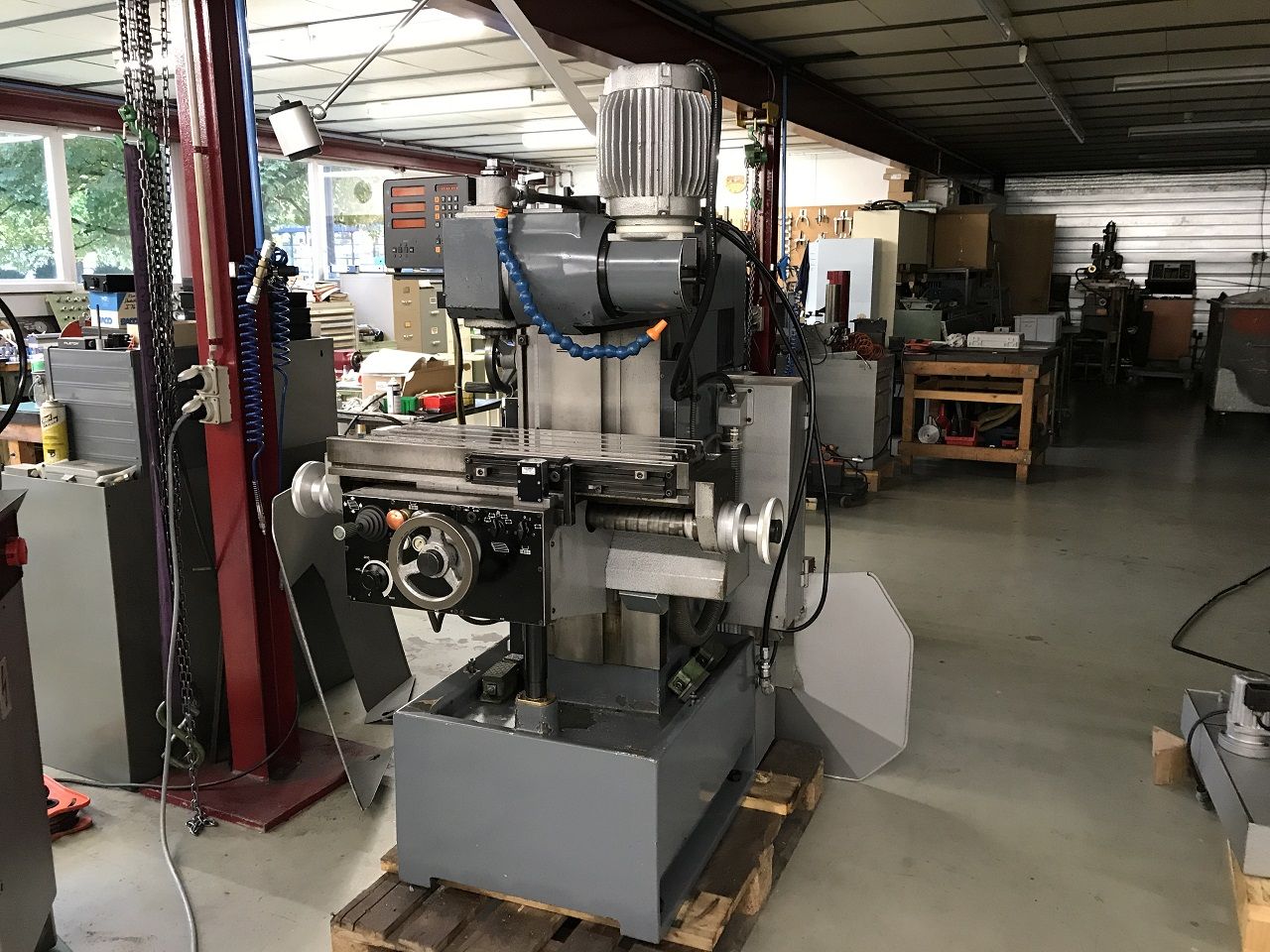

UNIVERSAL MILLING MACHINE "SCHAUBLIN" TYPE 22

Reference: 2170085

with 3-axes digital read-out Heidenhain VRZ 754B spindle ISO 30




Information

Manufacturing origin Swiss
Voltage 380V 50Hz 3ph
Net weight 950 kg
Dimensions 140x110x160 cm
Customs position 8459.2930

See more

TECHNICAL DATA

Geometrical characteristics
Working surface of table 650x250 mm
Number of T-slots 4
Width of T-slots 12-H7 mm
Distance between slots 50 mm
Spindle internal taper Iso 30 (40)
Bore through spindle 17,8 (24,8) mm
Strokes and traverses
Longitudinal stroke
- table 330 mm
- 1 turn of the handwheel is equal to a traverse of 5 mm
Vertical stroke
- knee 475 mm
- 1 turn of the handwheel is equal to a traverse of 2 mm
Transverse stroke
- spindle-head slide 400 mm
- 1 turn of the handwheel is equal to a traverse of 5 mm
Drive, motors, power feeds, coolant system
Main motor
- spindle head, 2 speeds 1500/3000 rpm
1,1 / 1,5 kW
Gearbox
- spindle head, number of speeds 12
- range 63-2800 rpm

63-90-125-180-250-355-

500-710-1000-1400-2000-

- approach-feed motor 1000 rpm / 0,55 kW
- approach feed in longitudinal traverse 2500 mm/min
- approach feed in vertical traverse mm/min
- working feed motor kW max 0,2
- range of adjustment in longitudinal traverse 4-500 mm/min
- range of adjustment in vertical traverse 1,6-200
Coolant-system motor 3000 rpm / 0,15 kW
Coolant-pump delivery 20 l/min
Tank capacity 30 l
errors and omissions excepted-data given without obligation
.
