Max Stroke
355 mm (14”)
Strokes per min
12-110
6 Speeds
Largest shaft admitted under ram
50mm (2”)

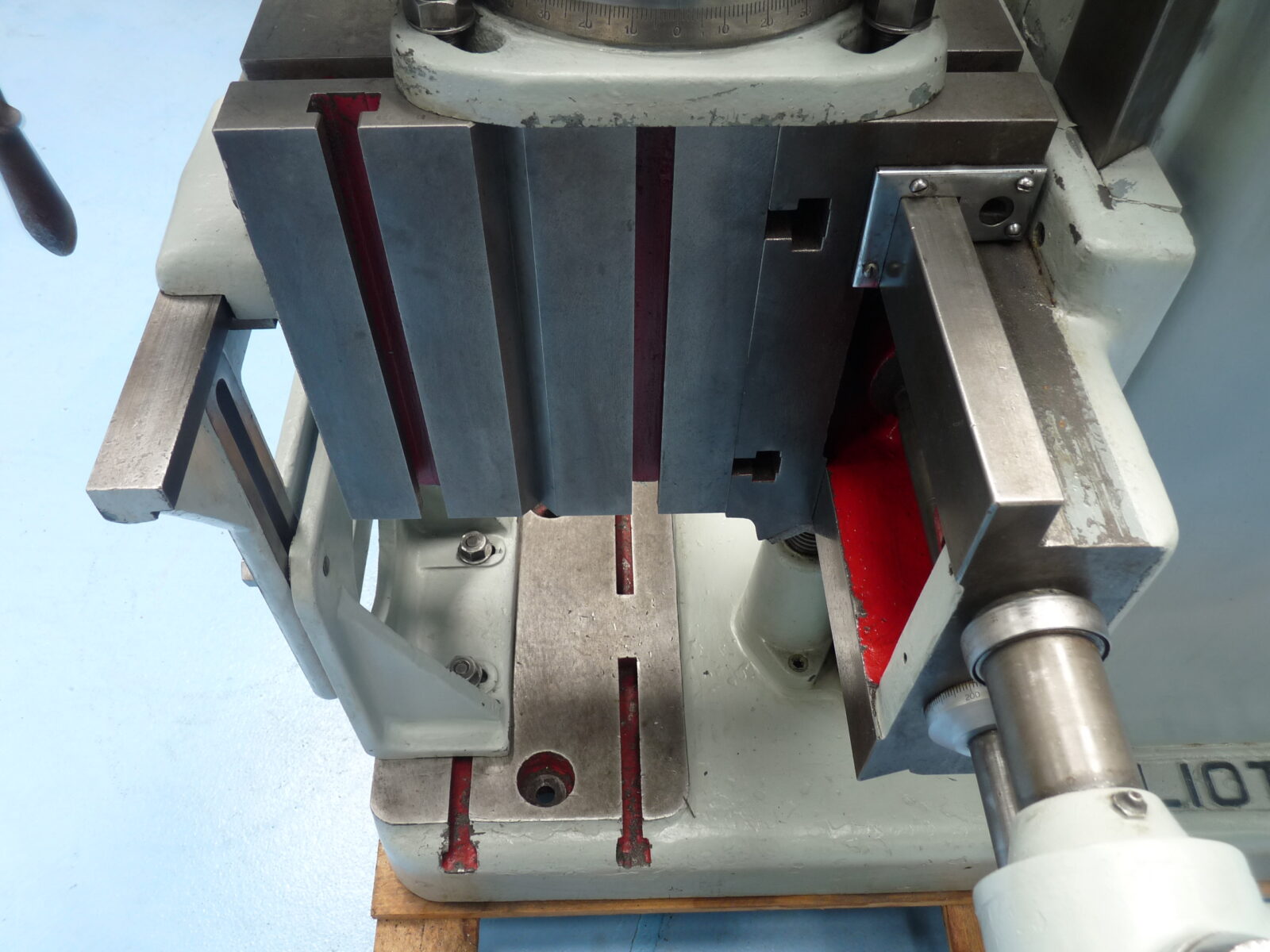

TABLE
355 x 254mm (14 x 10”) Top Surface
283 x 295mm (11 1/8 x 11 5/8”) Side Surface
403mm (15 7/8”) Maximum table to ram
463mm (18 ¼”) Longitudinal traverse (max)
352mm (13 7/8”) Vertical traverse
6 cross feeds: .25-1.5mm (.010-.060”) per cut
VICE
273mm (10 ¾”) jaw opening
235mm (9 ¼”) jaw width
Main Motor:
Three Phase Electrics 3HP 4.7 amps.
Working Feeds (X/Y/Z) 5-10.000 mm/min
Rapid Traverse 20.000 mm/min
Head Type Universal
Taper ISO 50
Turning Speeds 20-4000 rpm
Head Power 22 Kw
Hydraulic Tool Clamping System INCLUDED
EC Guarding INCLUDED
Carrying Load Table 3.500 kg.
