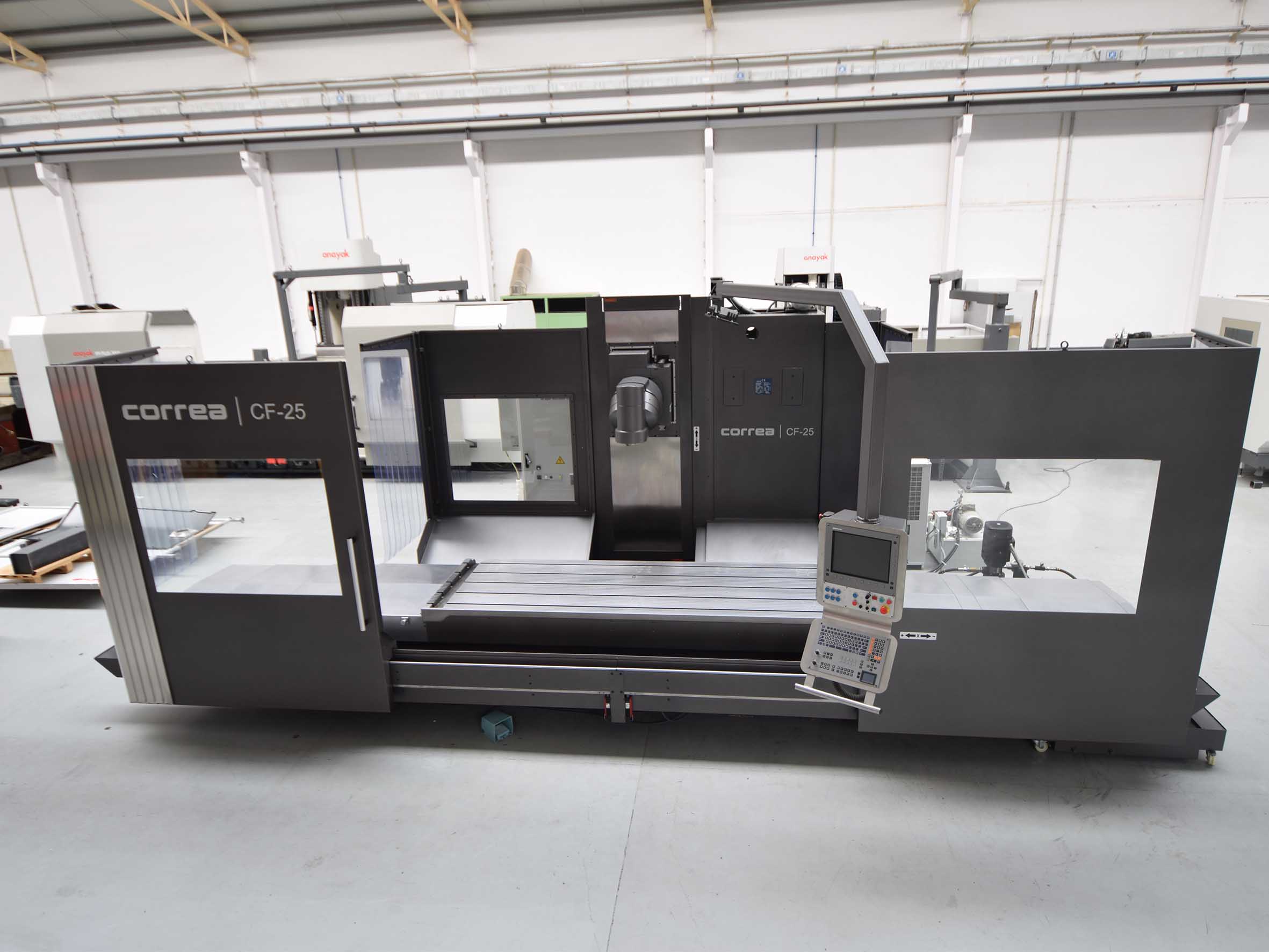

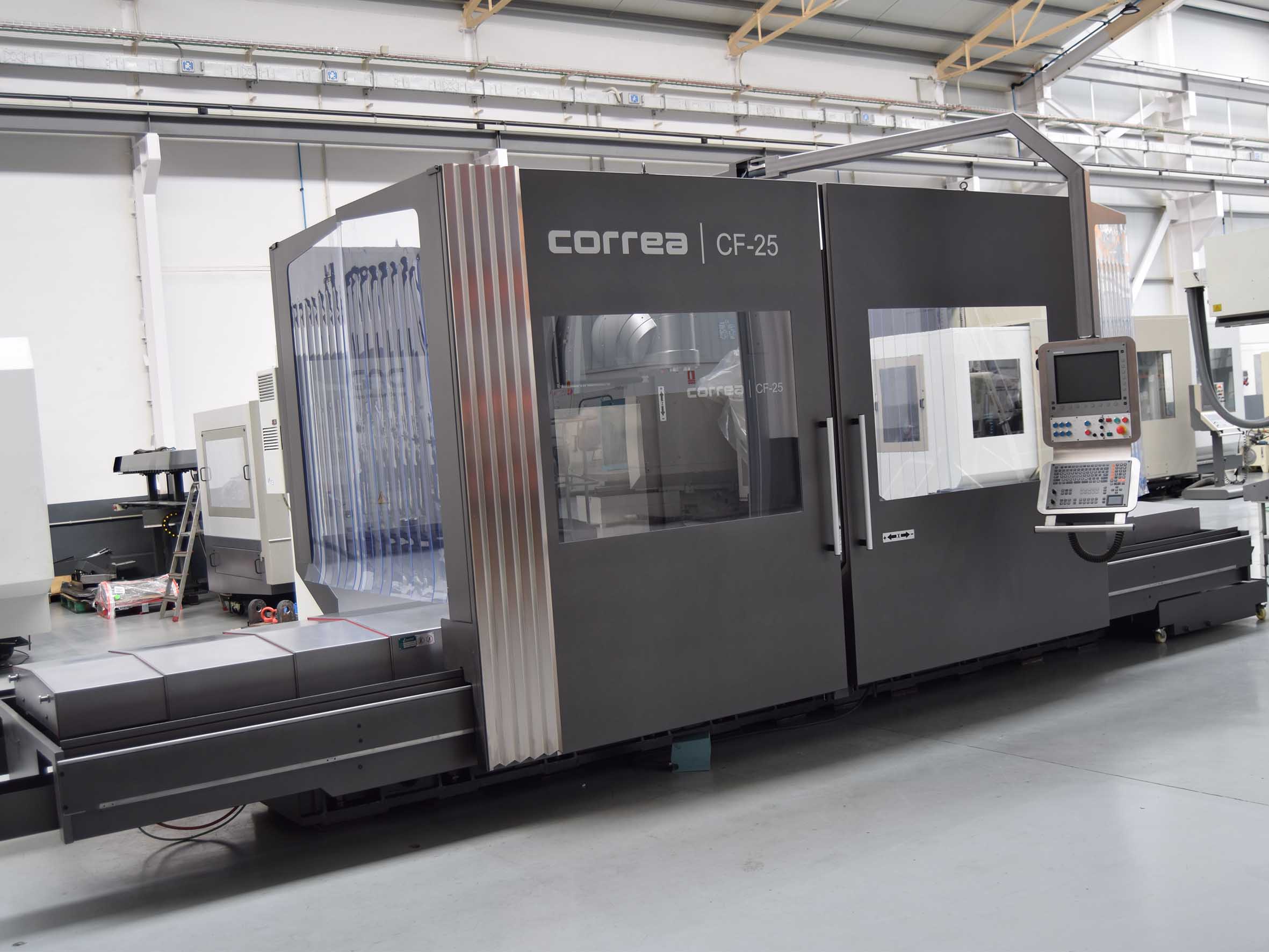

Manufacturer NICOLÁS CORREA
Model CF 25/25
Year 2008
CNC HEIDENHAIN TNC 530 HSCI
Table
Table Surface 3.100 x 1.100 mm
Number /Dimmession of T-Slots 5/200 mm.
Carrying Load Table 6.000 Kg
Travels
Longitudinal Traverse (X Axis) 2.499 mm
Cross Traverse (Y Axis) 1.000 mm
Vertical Traverse (Z Axis) 1.000 mm
Rapid feed 20.000 mm
Working feed 10.000 mm
Head
Head Type UAD
Indexing degrees 0.1º/0.1º
Taper ISO 50
Main Motor Power 22 kW
Spindle Speed 6.000 rpm
Equipment
Coolant through Spindle INCLUDED
Portable Handwheel HEIDENHAIN HR-410
EC Guarding INCLUDED
Weight and dimensions
Machine dimensions ( LxWxH) 7.750×4.400×3.100 mm.
Machine Weight 20.000 kg
PARPAS
07880
CNC HEIDENHAIN TNC 426
TABLE:
Table dimensions mm 1060x510
T-slots mm 18x5
STROKES:
Axis X mm 1000
Axis Y mm 510
Axis Z mm 560
SPINDLE:
Spindle nose ISO 40
Spindle speed rpm 12000
TOOL CHANGE:
Tool change 24 positions
Max tool weight Kg ...
