MACHINE INFORMATION AND SPECIFICATION

DESCRIPTION

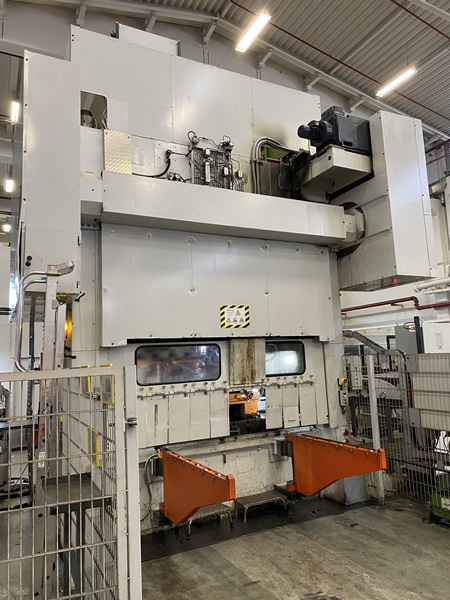

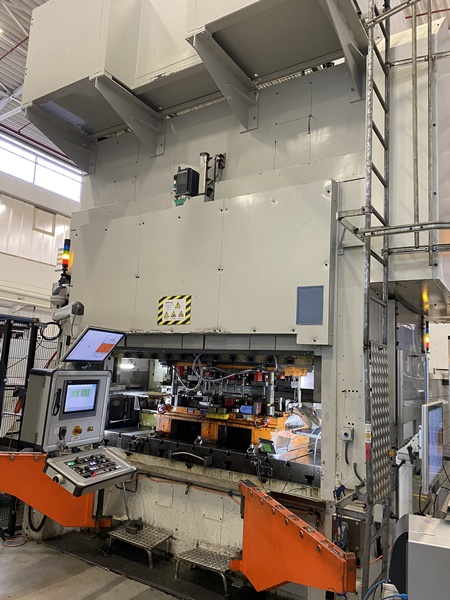

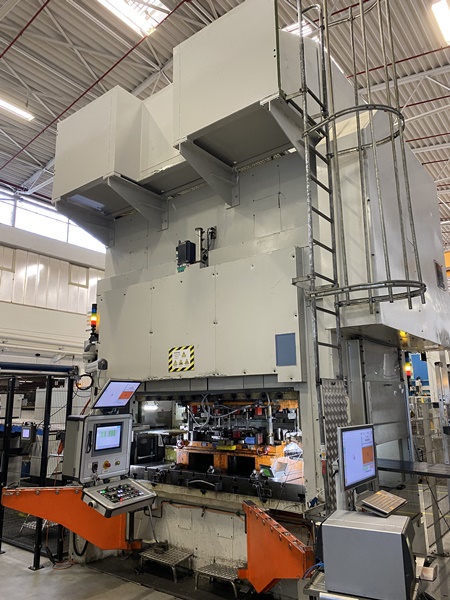

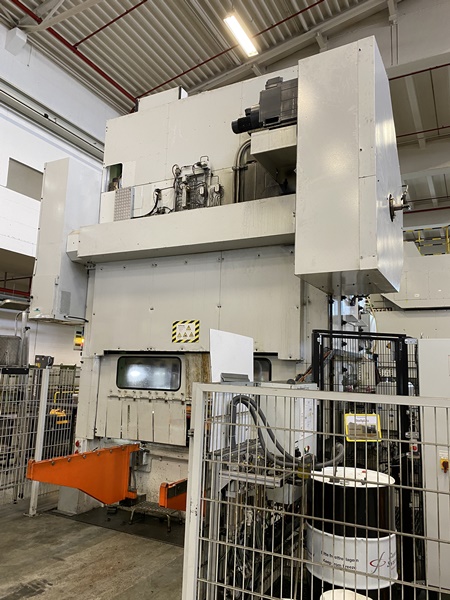

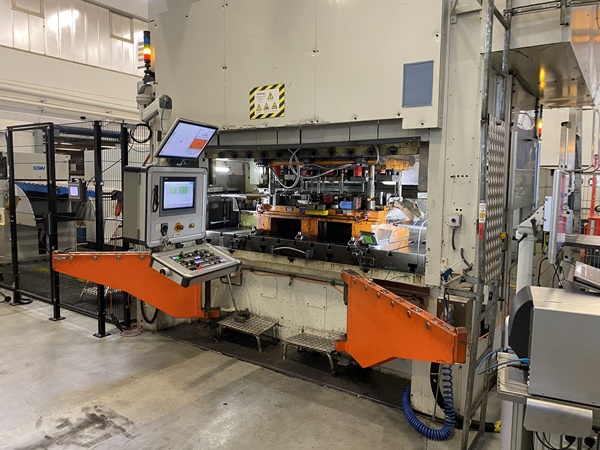

Press capacity: 400 ton
Ram stroke: 20 - 250 mm
Slide adjustment: 150 mm
Shut height (stroke down, adjustment up): 760 mm
Free frontal opening L-R: 2840 mm
Free lateral opening F-B: 900 mm
Table surface area : 2.600 x 1.400 mm
Slide area: 2.500 x 1.400 mm
Number of strokes: 10 - 80 s.p.m.
Table height over floor: 1000 mm
Required power: 96 kW
Height over floor approx.: 4900 mm
Dimensions L x W x H: 4700 x 3300 x 4900 mm
Weight of machine approx.: 80 ton
Standard configuration:

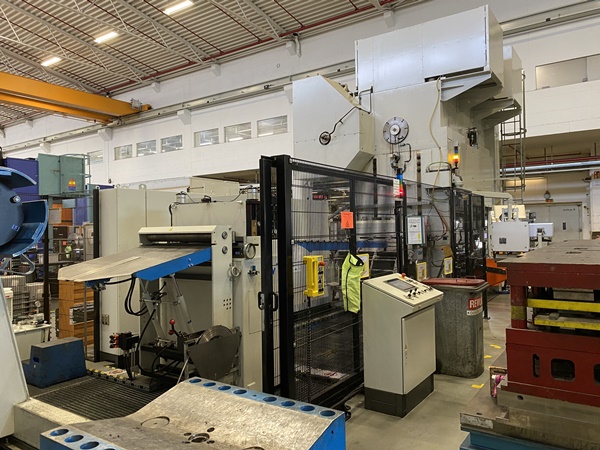

Feeding unit (YOM 2018) consisting of:

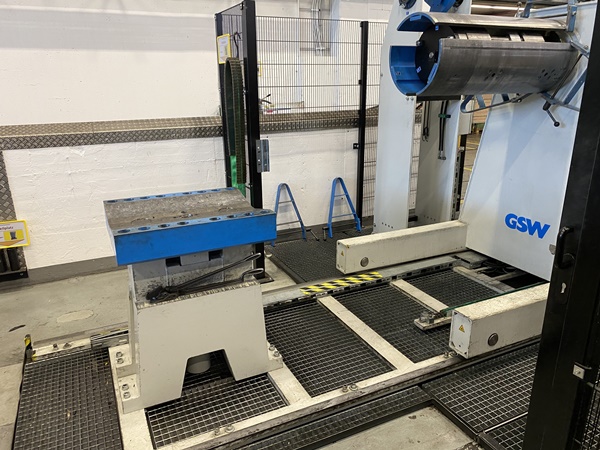

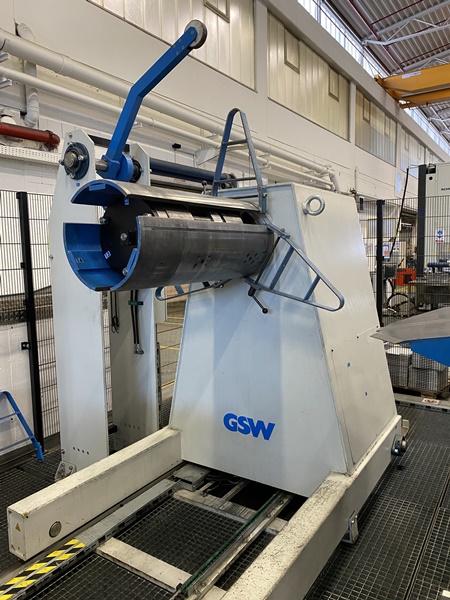

Decoiler Typ SHR 10/1500
Coil weight 10.000 kg
Coil exterior diameter 1500 mm
Band width 150 - 1000 mm
Band thickness 0,35 - 2,5 mm
Working speed 21 m / min
Coil interior diameter 480 - 530 mm
Required power 4,5 kW

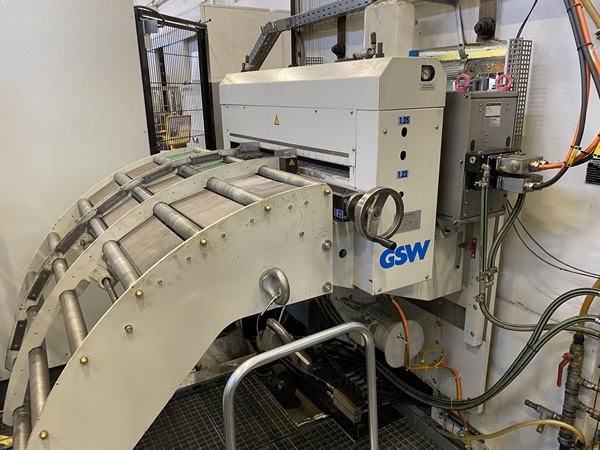

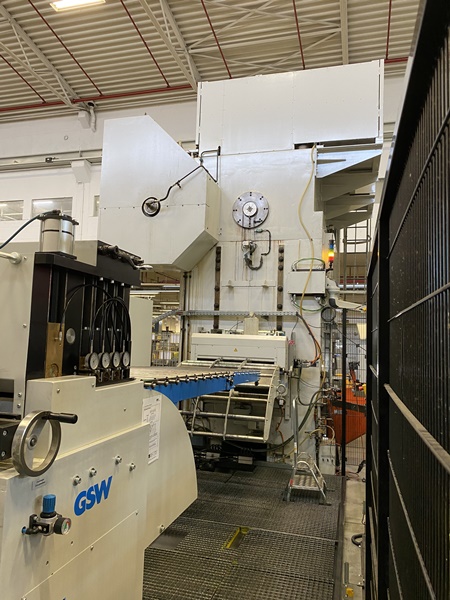

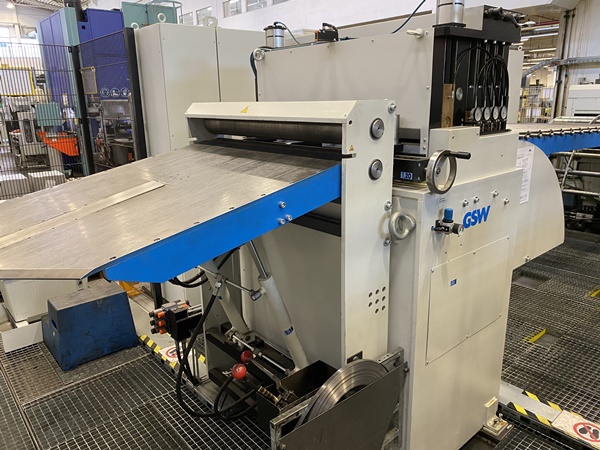

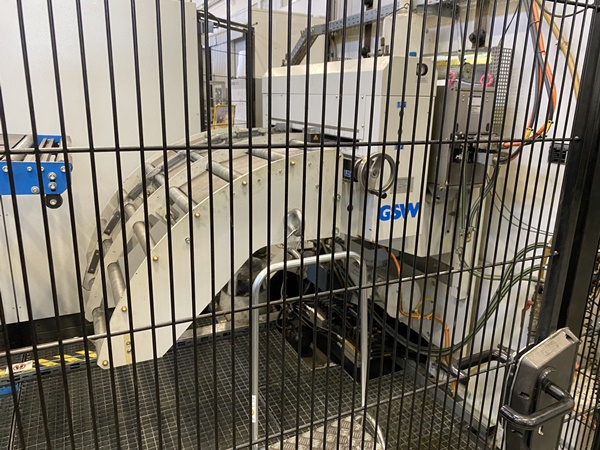

Straigthener Typ RMZ 100 / 86
Material width max. 1000 mm
Number of feeding rolls 2 pieces
Diameter of the feeding rolls 120 mm
Number of leveler rolls 8 pieces
Diameter of leveler rolls 60 mm
Working speed 5 - 25 m / min
Roll feeder Typ WV 100 / 120
Material width max. 1000 mm
Number of feeding rolls 2 pieces
Diameter of the feeding rolls 120 mm
Description:

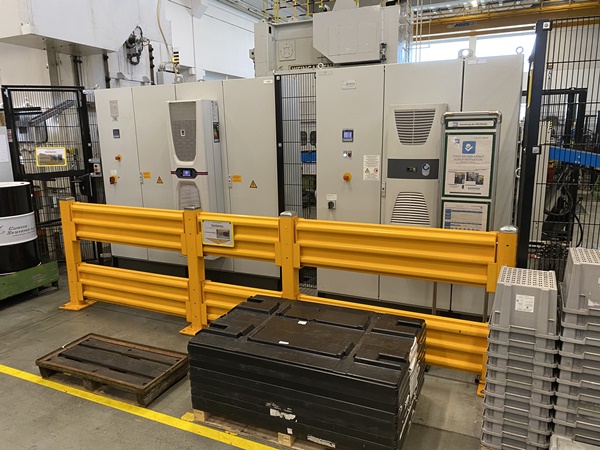

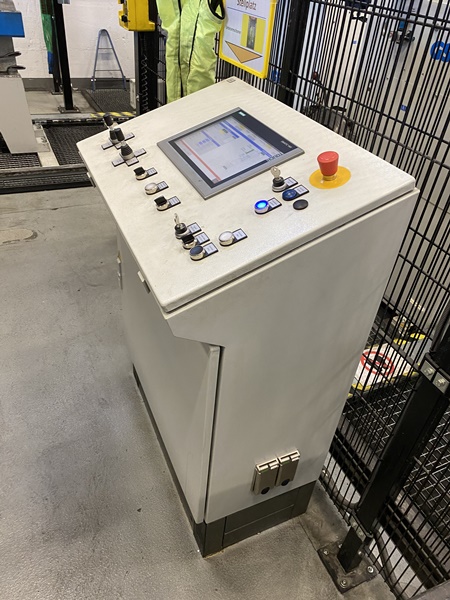

The press was mechanically and electrically overhauled in 2018, the following work was carried out: NEW SIEMENS control NEW CE declaration of conformity New eccentric shaft and new eccentrics New bearing seats in the countershaft Relocate countershaft New roller bearing installed Relocate flywheel Hydraulic unit overhauled October 2018
