MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GRAEBENER
  • Model:
  • GRAEBENER GMO 2-500-2300-80
  • Condition:
  • Used
  • YOM:
  • 2003
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Pressure total: 500 ton
  • Ram stroke: 80 mm
  • Slide adjustment: 150 mm
  • Shut height (stroke down,
  • adjustment up):
  • 480 mm
  • Free frontal opening L-R: 2360 mm
  • Table surface area : 2300 x 1270 mm
  • Slide area: 2300 x 1270 mm
  • Number of strokes: 20 - 100 s.p.m.
  • Required power: 70 kW
  • Height over floor approx.: 5450 mm
  • Dimensions L x W x H: 4600 x 2100 x 5450 mm
  • Oil volume: 300 l
  • Weight of machine approx.: 70 ton
  • Dimensions L x W x H:
  • Standard configuration:
  • Schuler feeding unit - YOM 2003

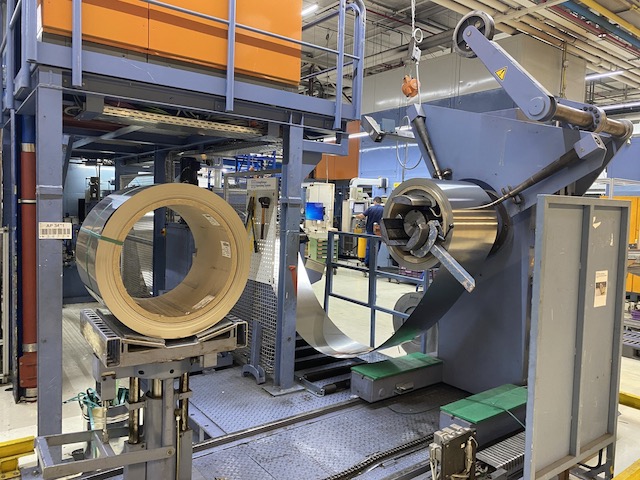

  • Decoiler - Type HEM-5-0850
  • Max. Coil weight 4t
  • Material width 150 - 800 mm
  • Coil exterior diameter 600 - 1200 mm
  • Coil interior diameter 470 - 520

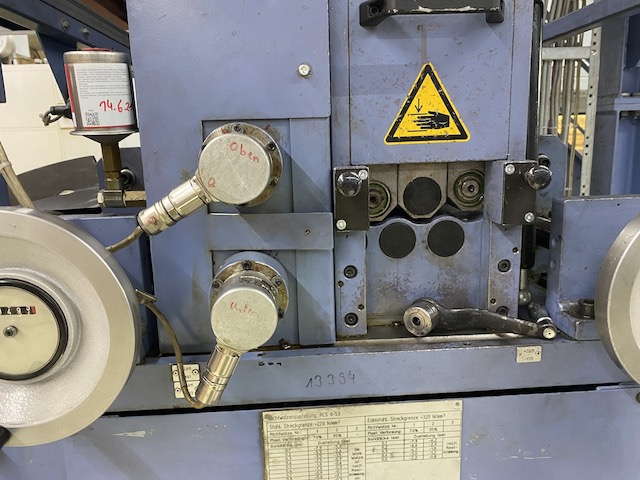

  • Straigthener - Type SBA 850 TM 10
  • Material width 150 - 800 mm
.
