MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • BRUDERER
  • Model:
  • BRUDERER BSTA 30
  • Condition:
  • Used
  • YOM:
  • 1980
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Location: 72479 Strassberg
  • Press capacity: 30 ton

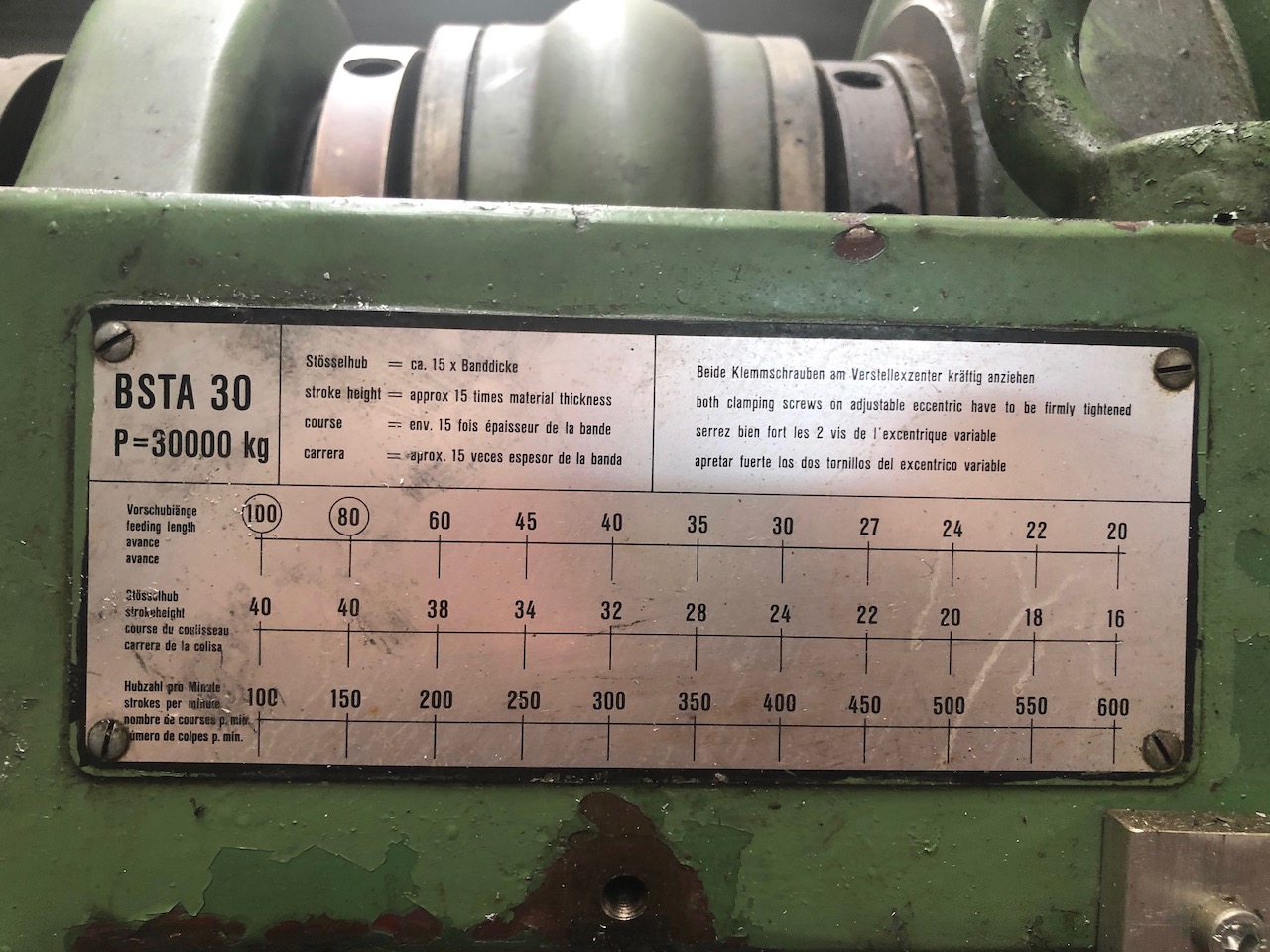

  • Ram stroke adjustable: 16 - 40 mm
  • Slide adjustment: 40 mm
  • Shut height (stroke down, adjustment up): 230 +/- 20 mm
  • Free lateral opening F-B: 170 mm
  • Table surface area : 480 x 450 mm
  • Slide area: 250 mm
  • Number of strokes: 100 - 600 s.p.m.
  • Required power: 5,5 kW
  • Dimensions L x W x H: 2.150 x 1.200 x 1.160 mm
  • Weight of machine approx.: 3 ton
  • Standard configuration: Roll feeder feeding length 20 - 100 mm
.
