MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hurco
  • Model:

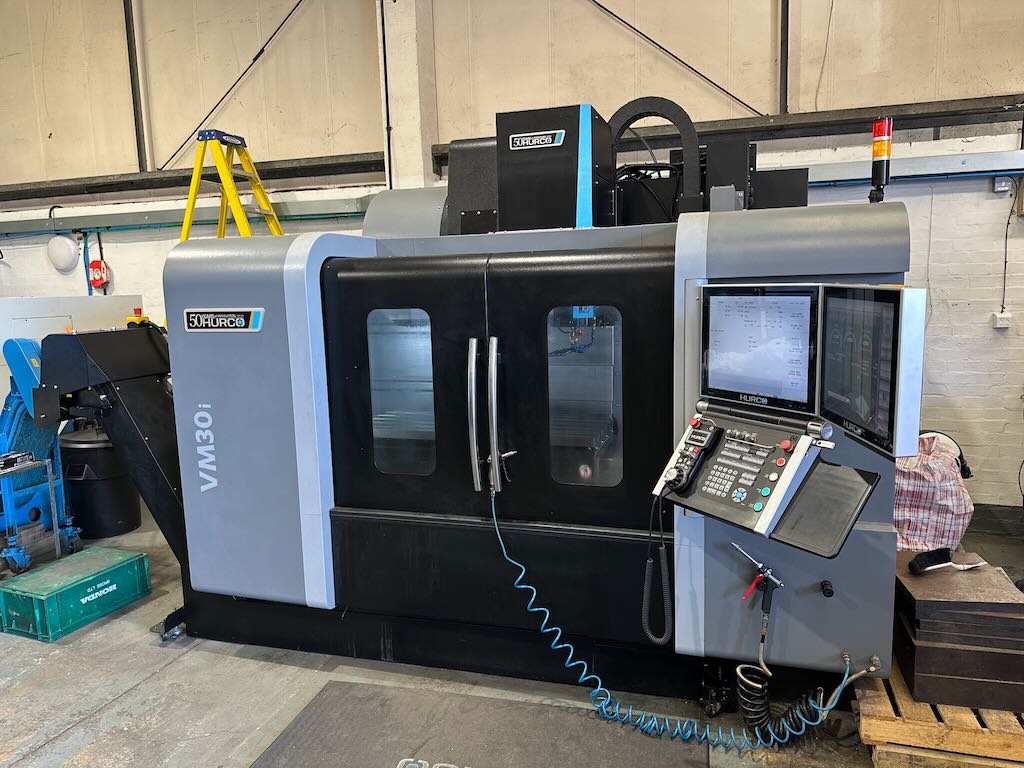

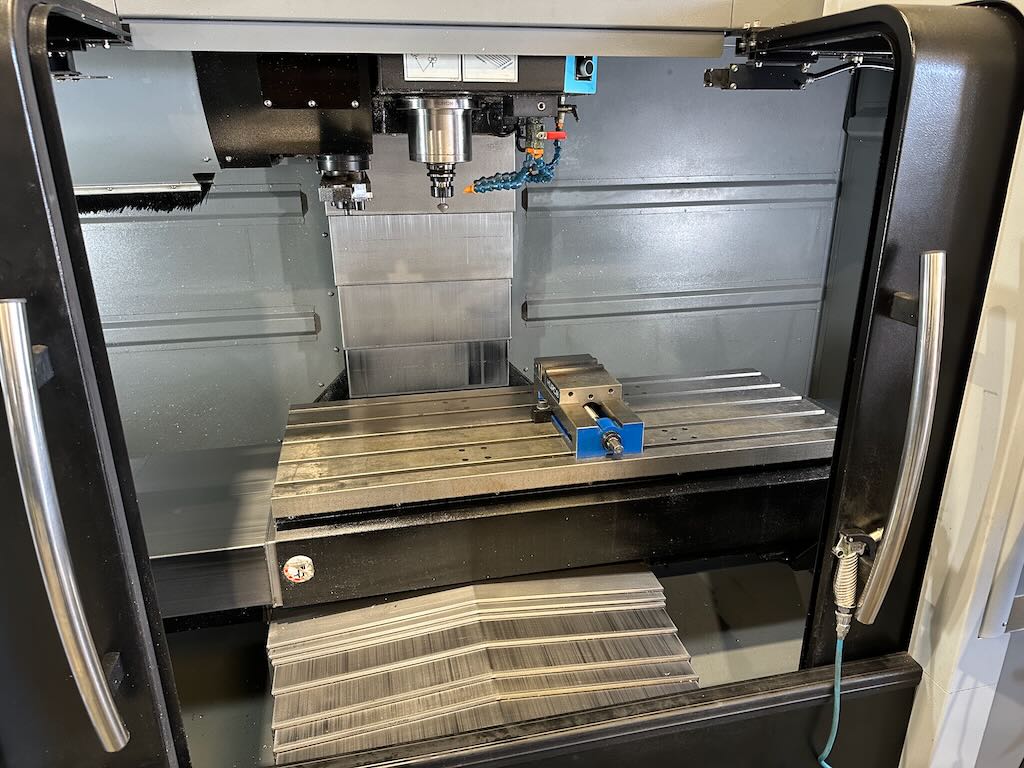

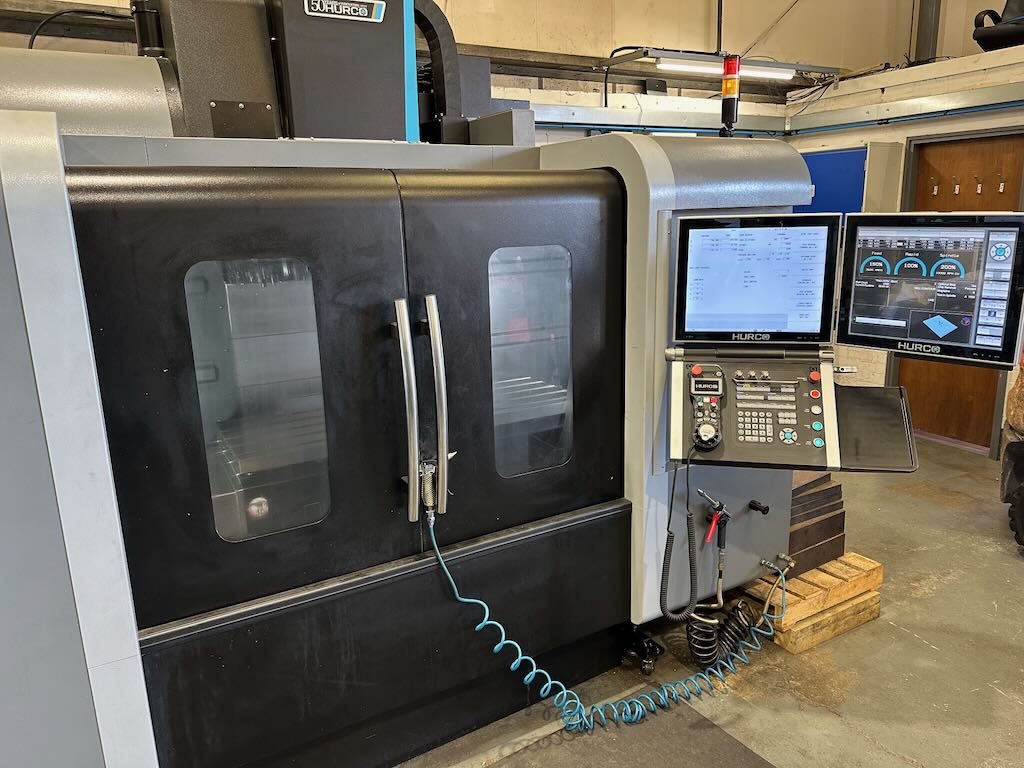

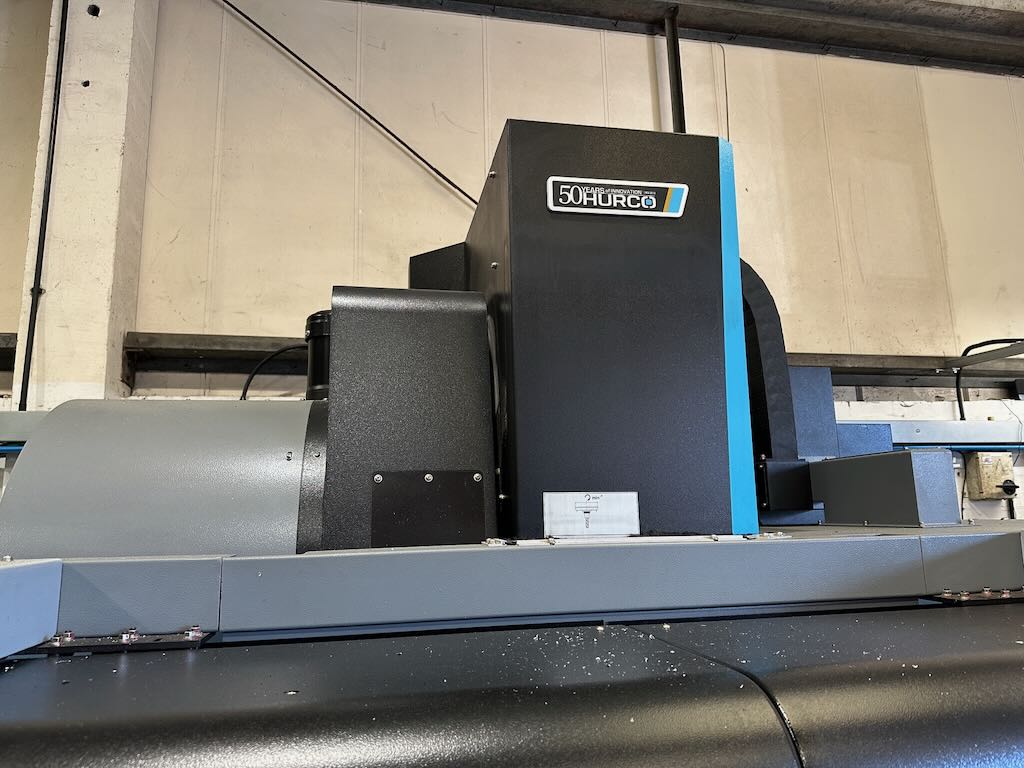

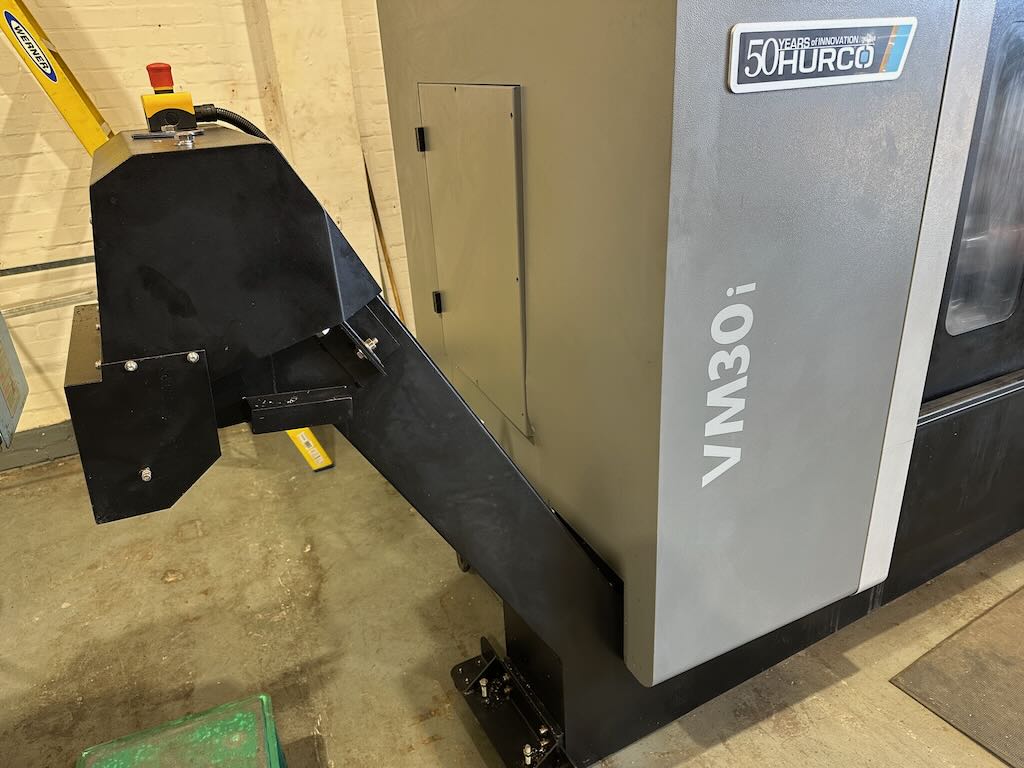

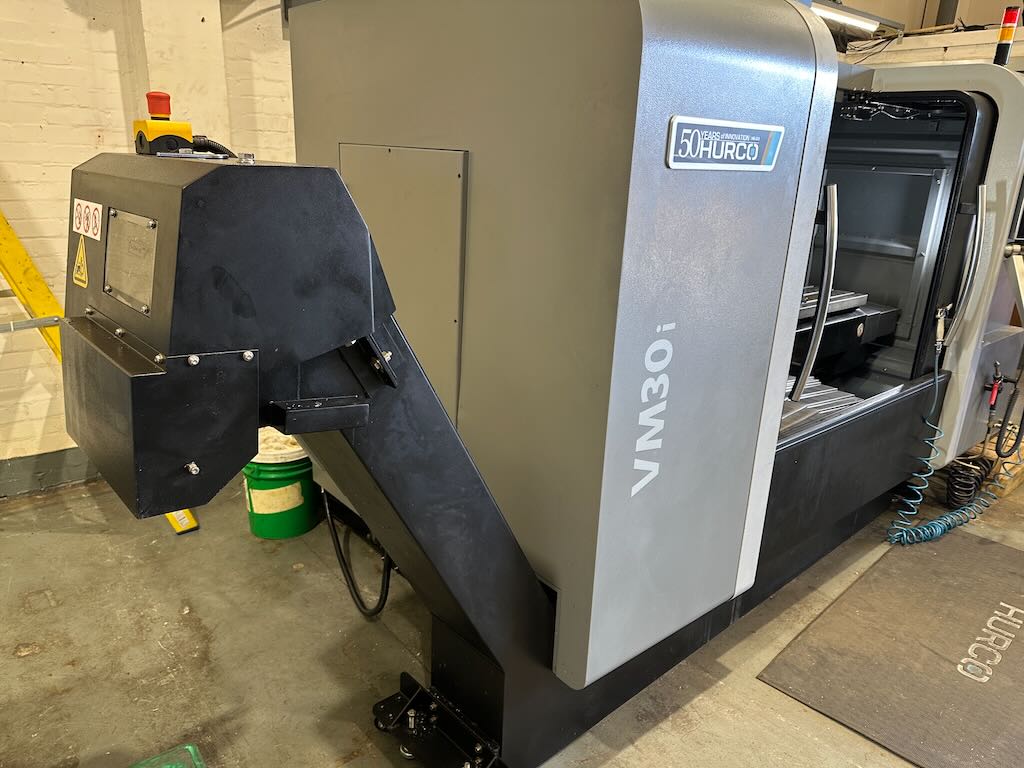

  • Hurco VM30i Vertical Machining Centre (2018)
  • Condition:
  • 1
  • YOM:
  • NA

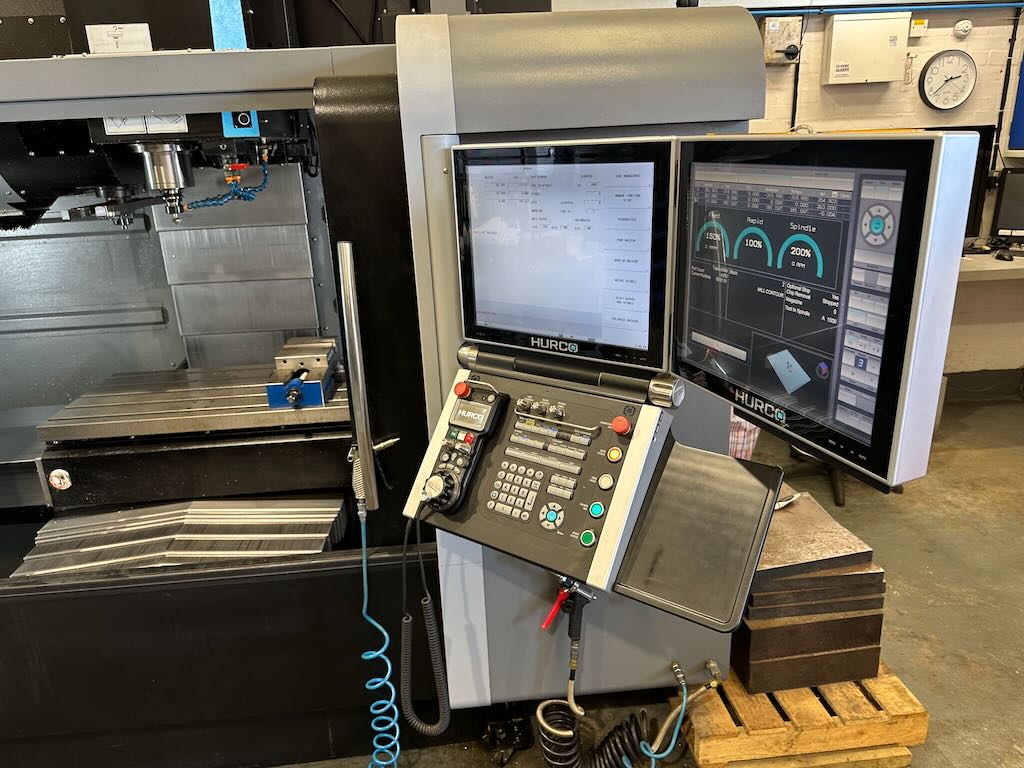

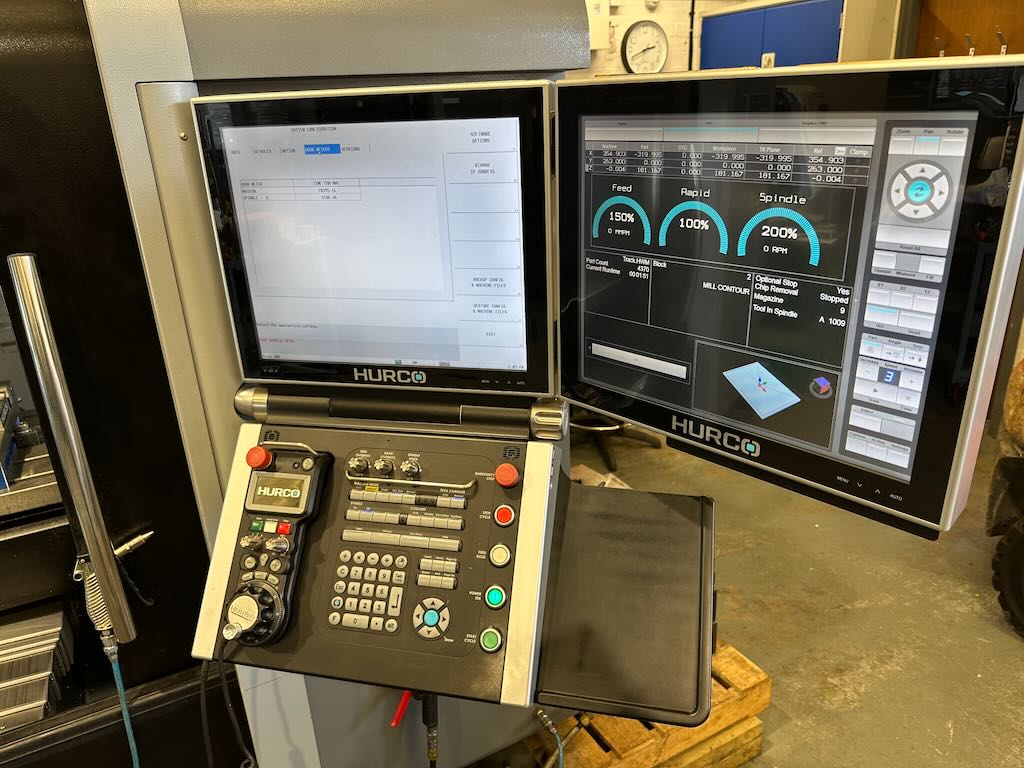

  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Year: 2018.

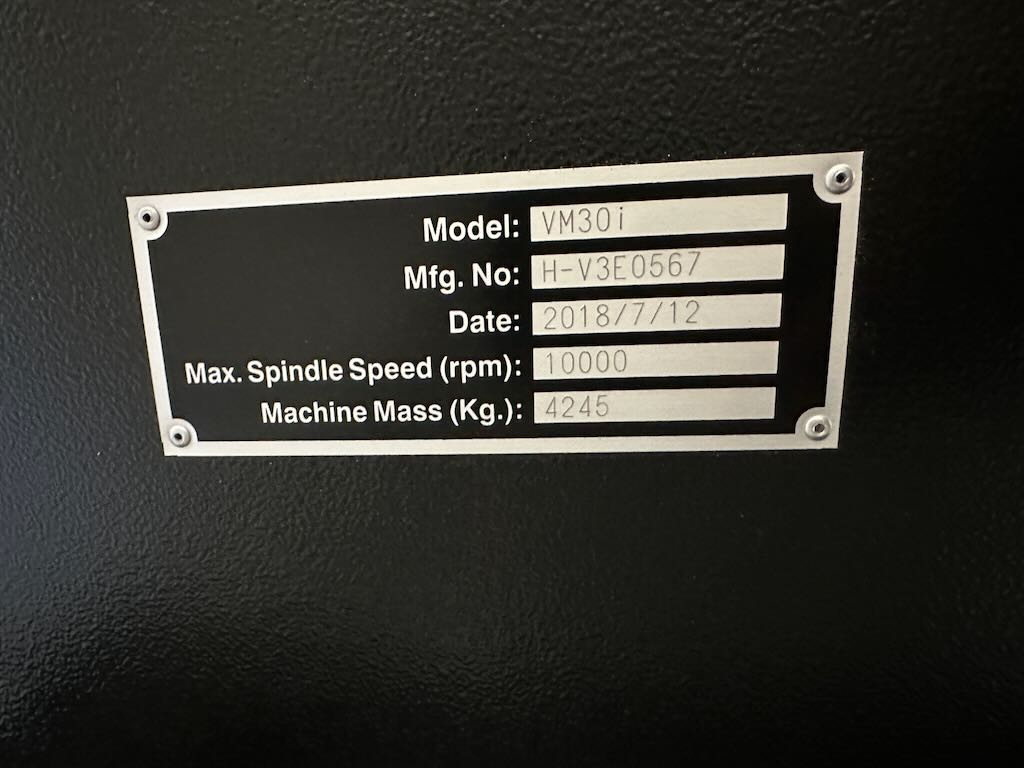

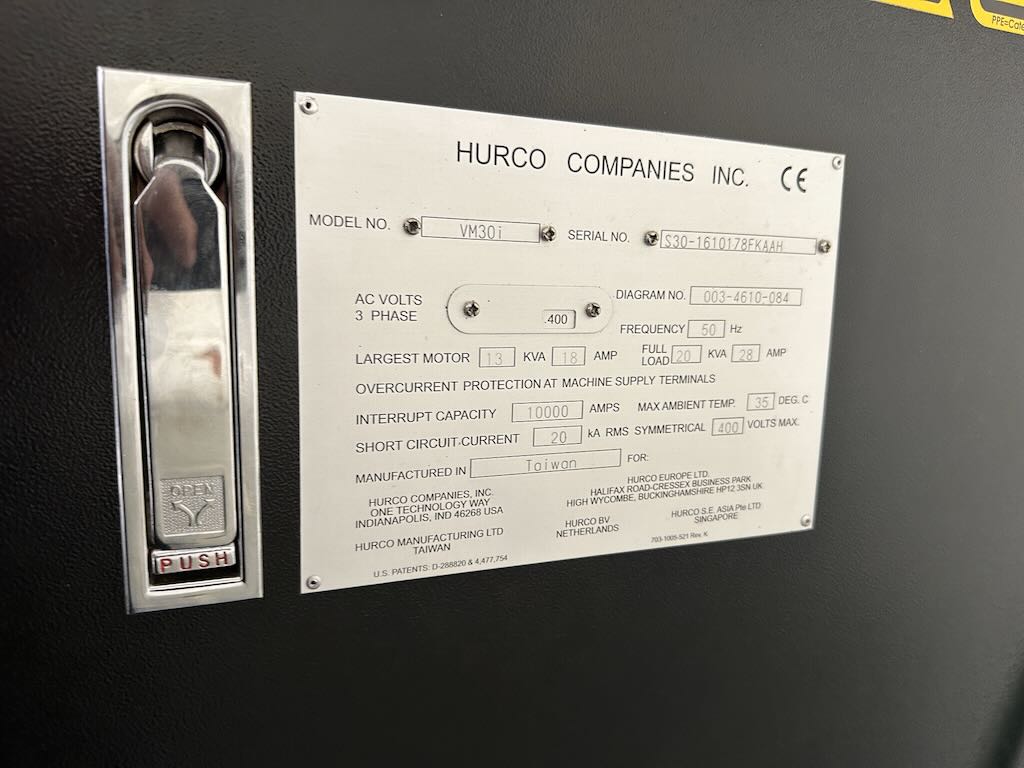

S/N: H-V3E0567.

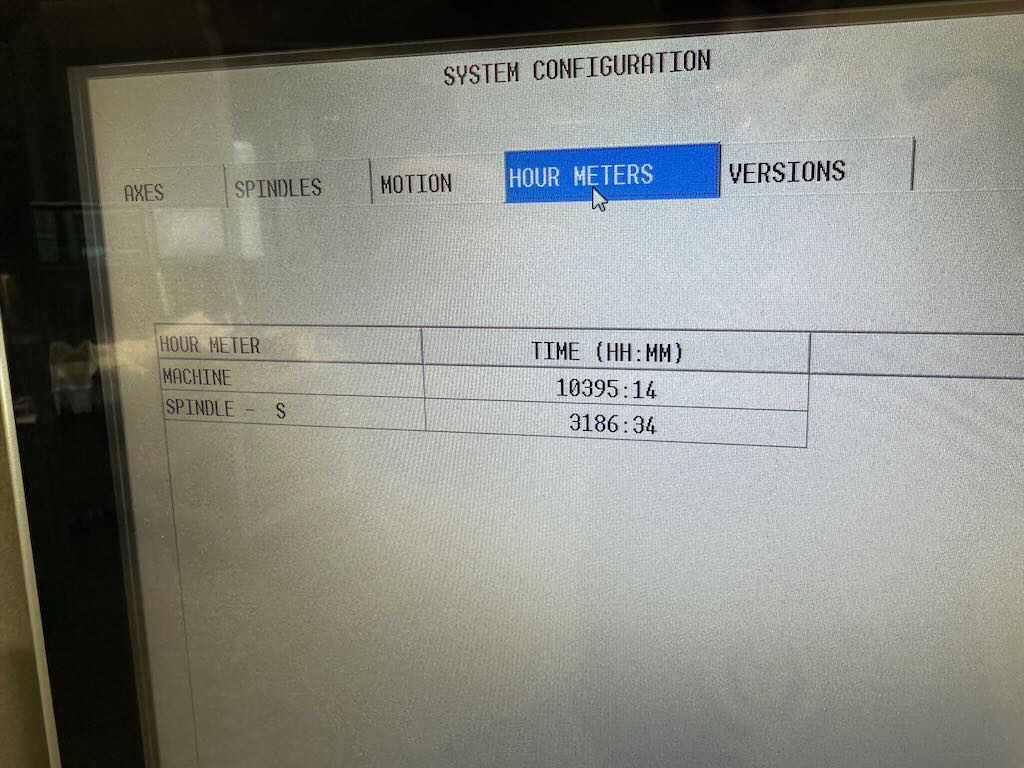

Spindle Hours: 3186.
X Axis Travel: 1270mm.
Y Axis Travel: 508mm.
Z Axis Travel: 508mm.

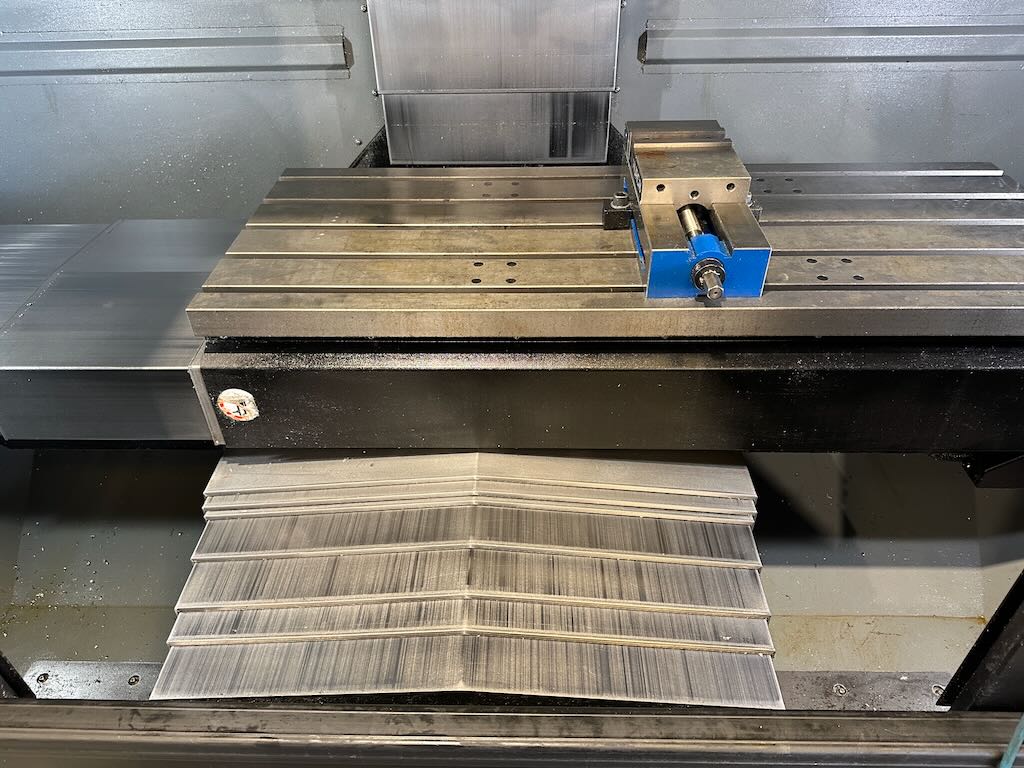

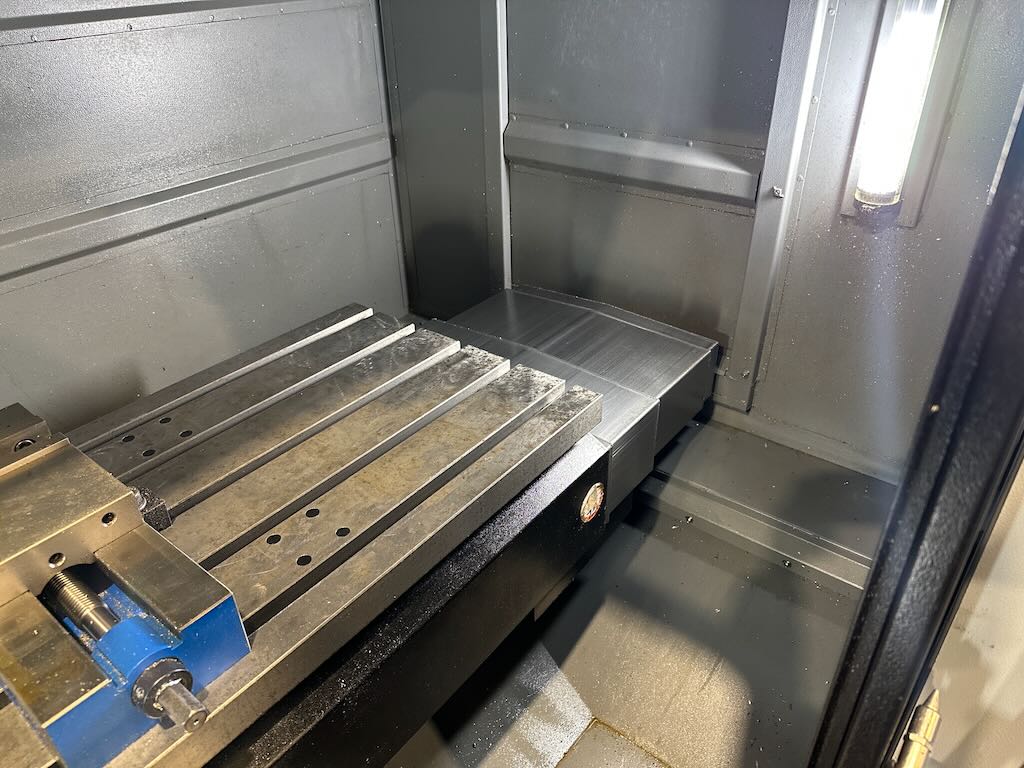

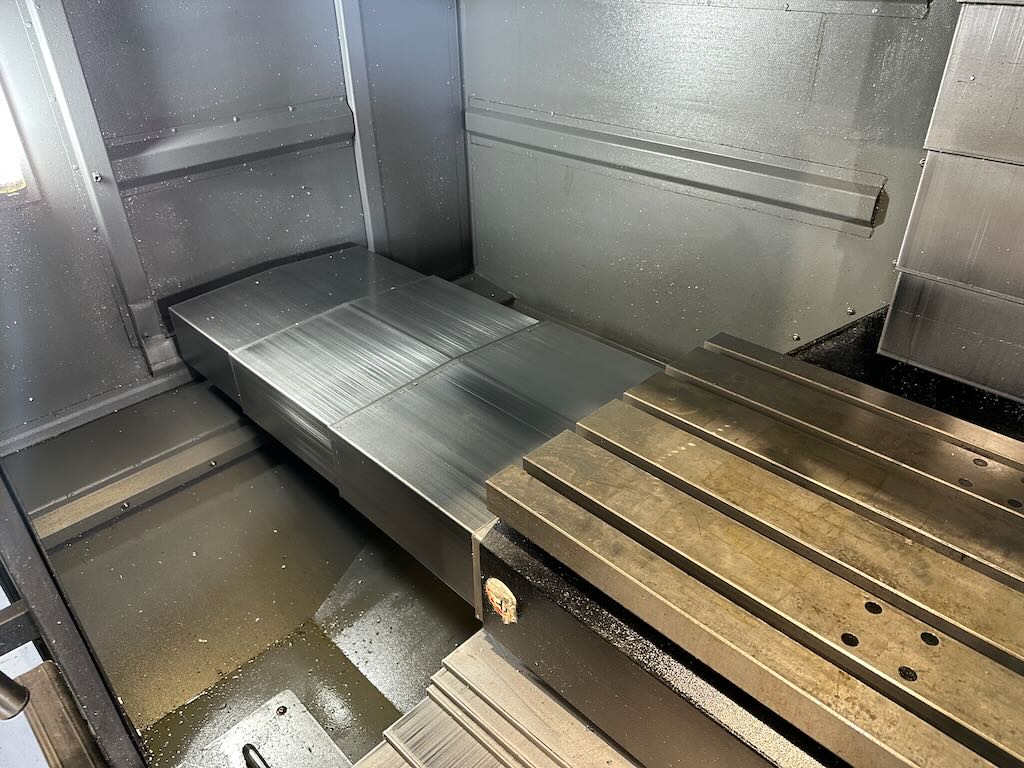

Table Size: 1,321mm x 508mm.
T Slot Size: 5 slots, 18mm wide.
Maximum Table Load: 1,800kg.
Spindle Nose to Table Distance: 102mm.

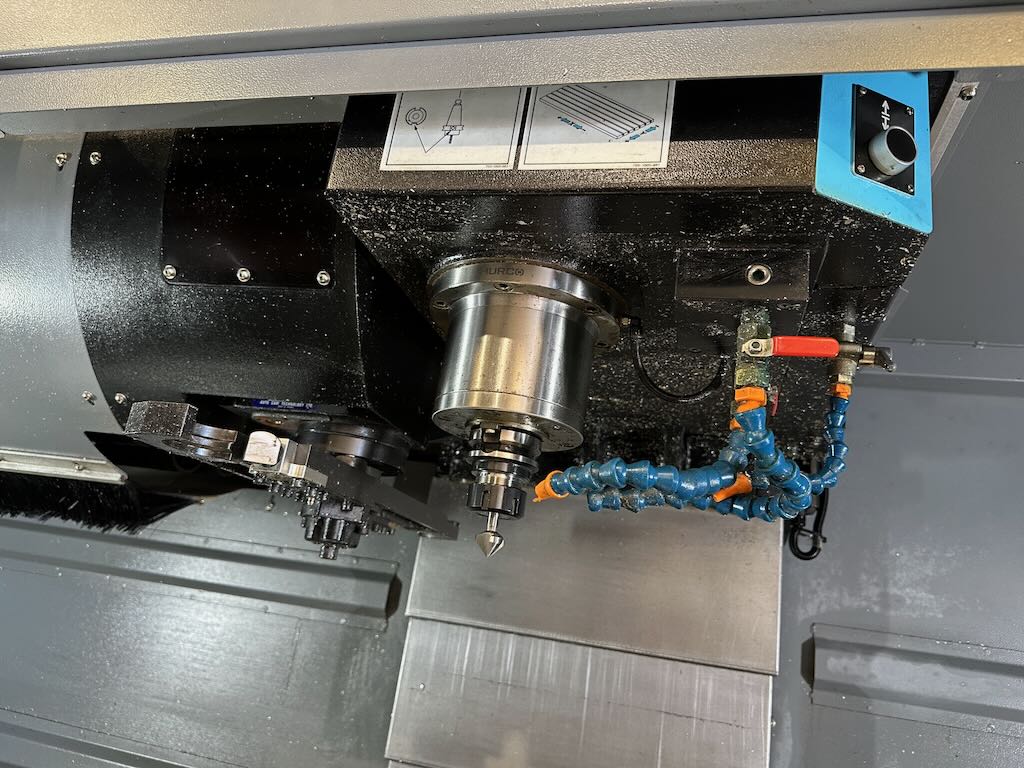

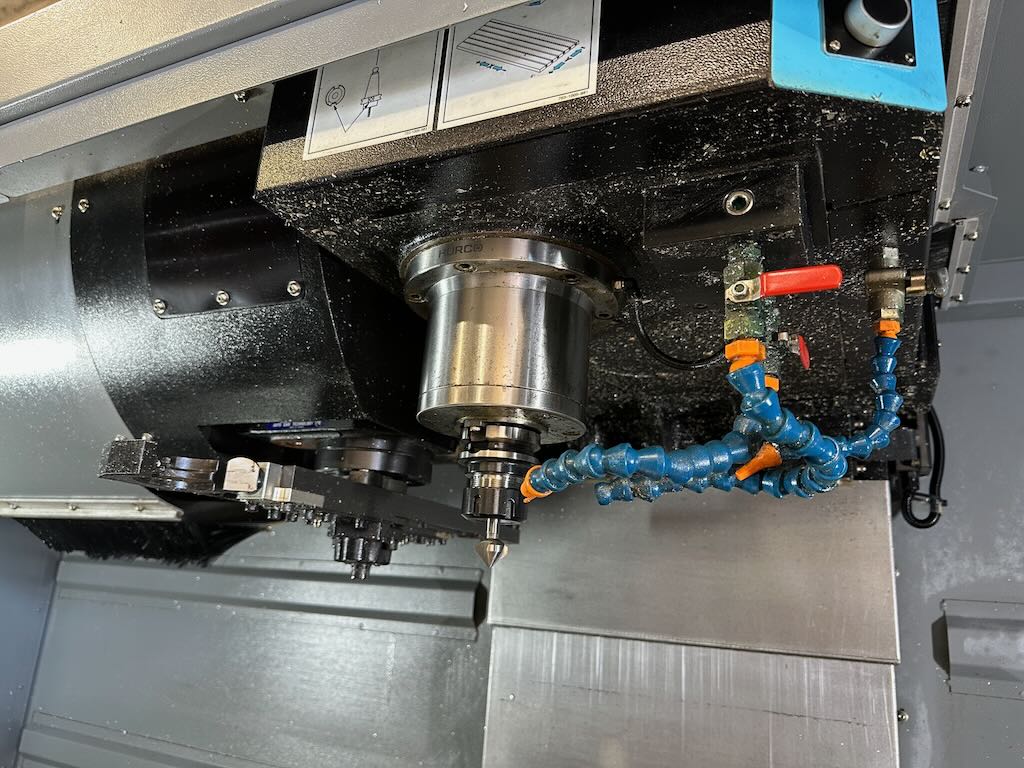

Maximum Spindle Speed: 12,000 RPM.
Spindle Power: 15kW.
Spindle Torque: 82.3 Nm @ 1,740 rpm.
Tool Type: BT40.

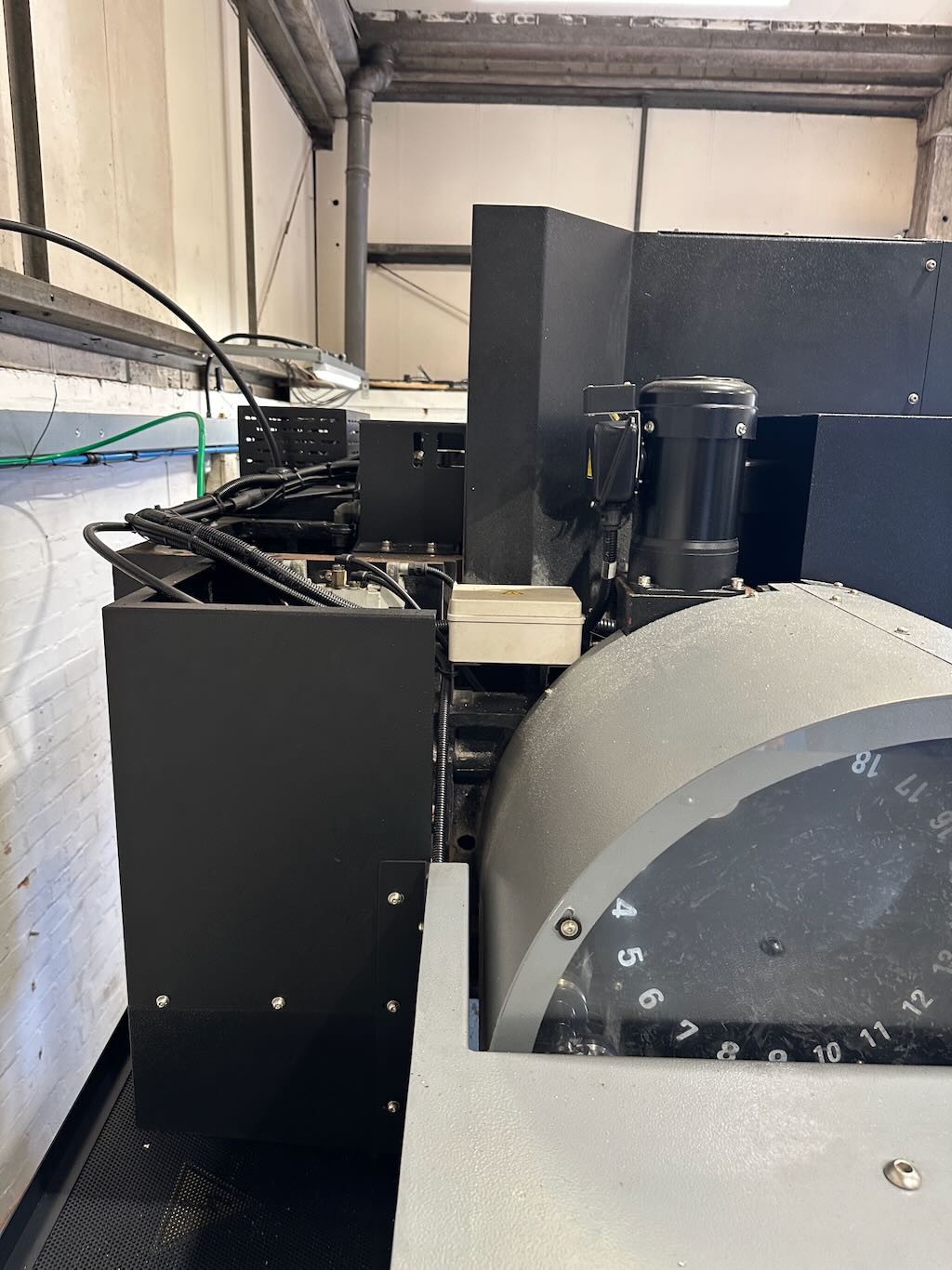

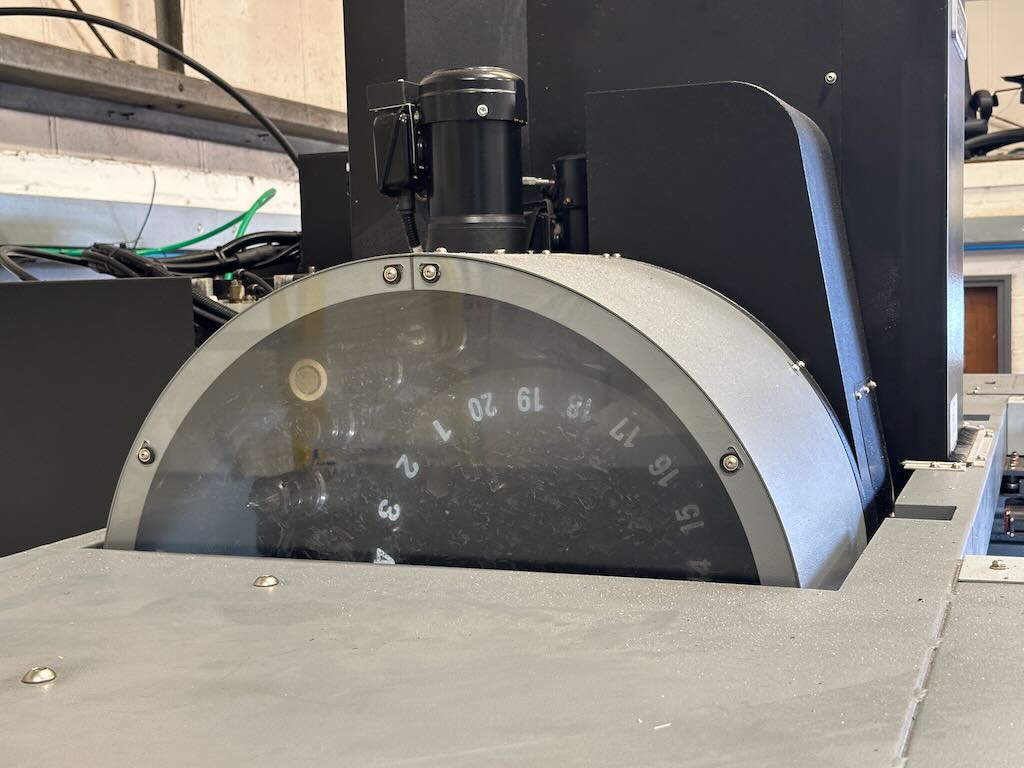

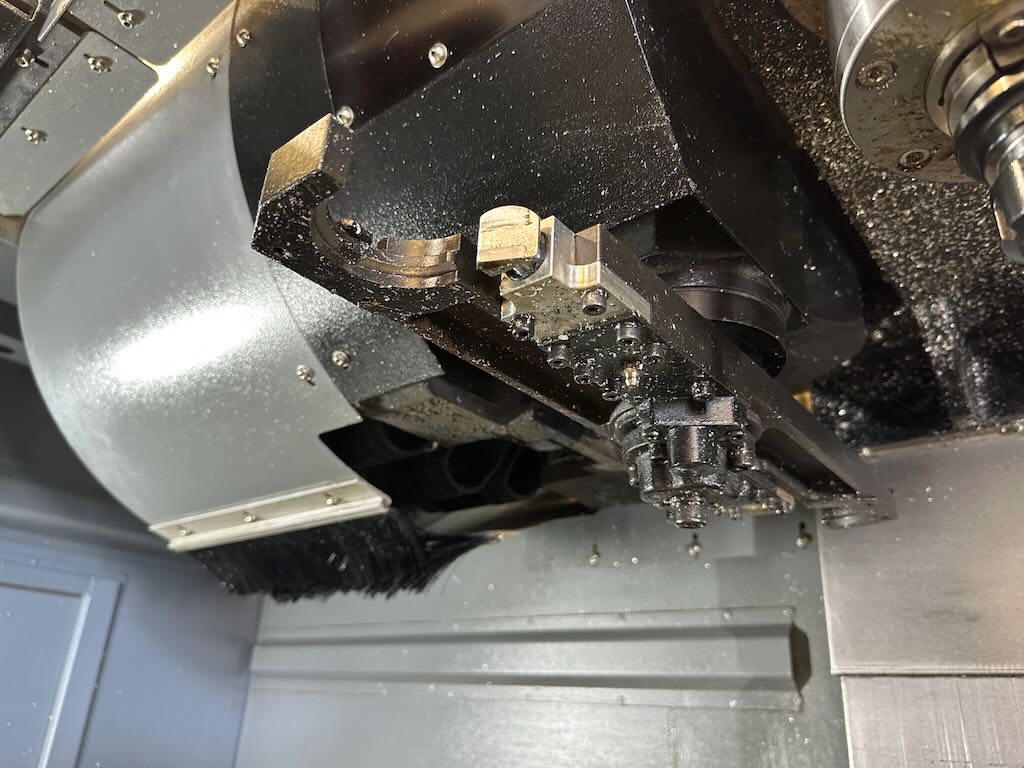

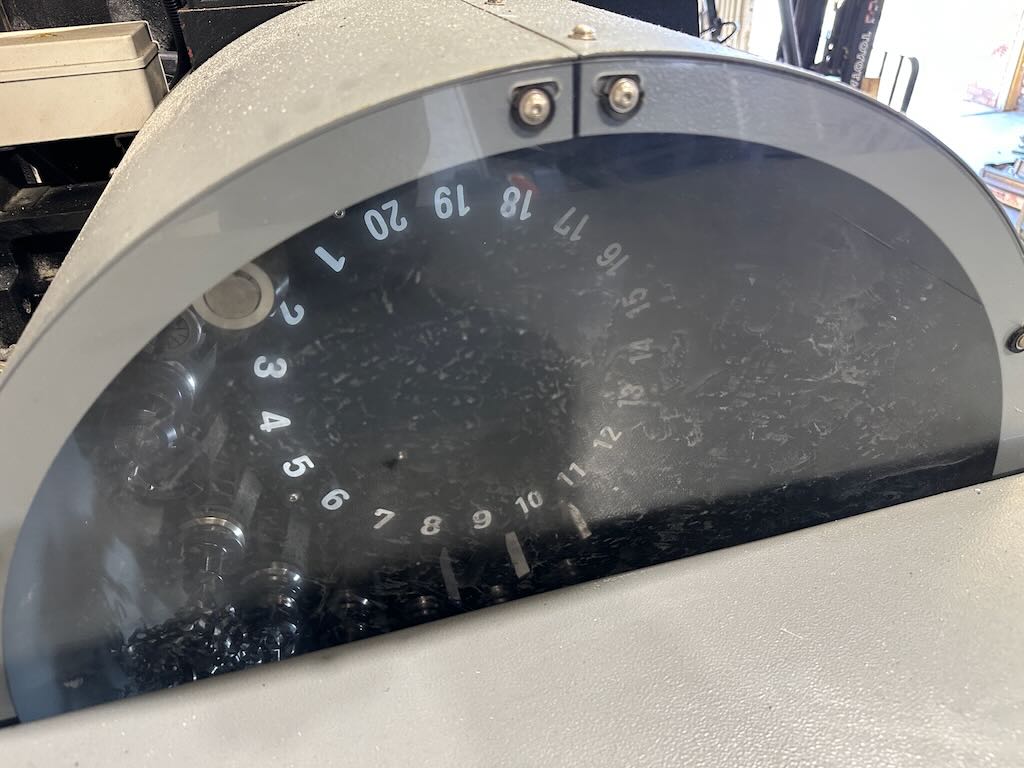

Number of Tools: 24.
Maximum Tool Diameter: 80mm.
Maximum Tool Length: 250mm.
Maximum Tool Weight: 7 KG.
Rapid Traverse Rates: (X, Y, Z Axis): 28 m/min.
Maximum Programmable Feedrate: 28 m/min.
Dimensions: 4,086mm x 3,312mm x 2,543mm (L x W x H).
Machine Weight: 4,320 kg.
