Manufacturer:
Description:
Numerical control 2axis – Spindle B-8 ERI – Display LCD Motorstep control 800 steps by turn – linear-circul. Interpo
Or
Reference: 2180068

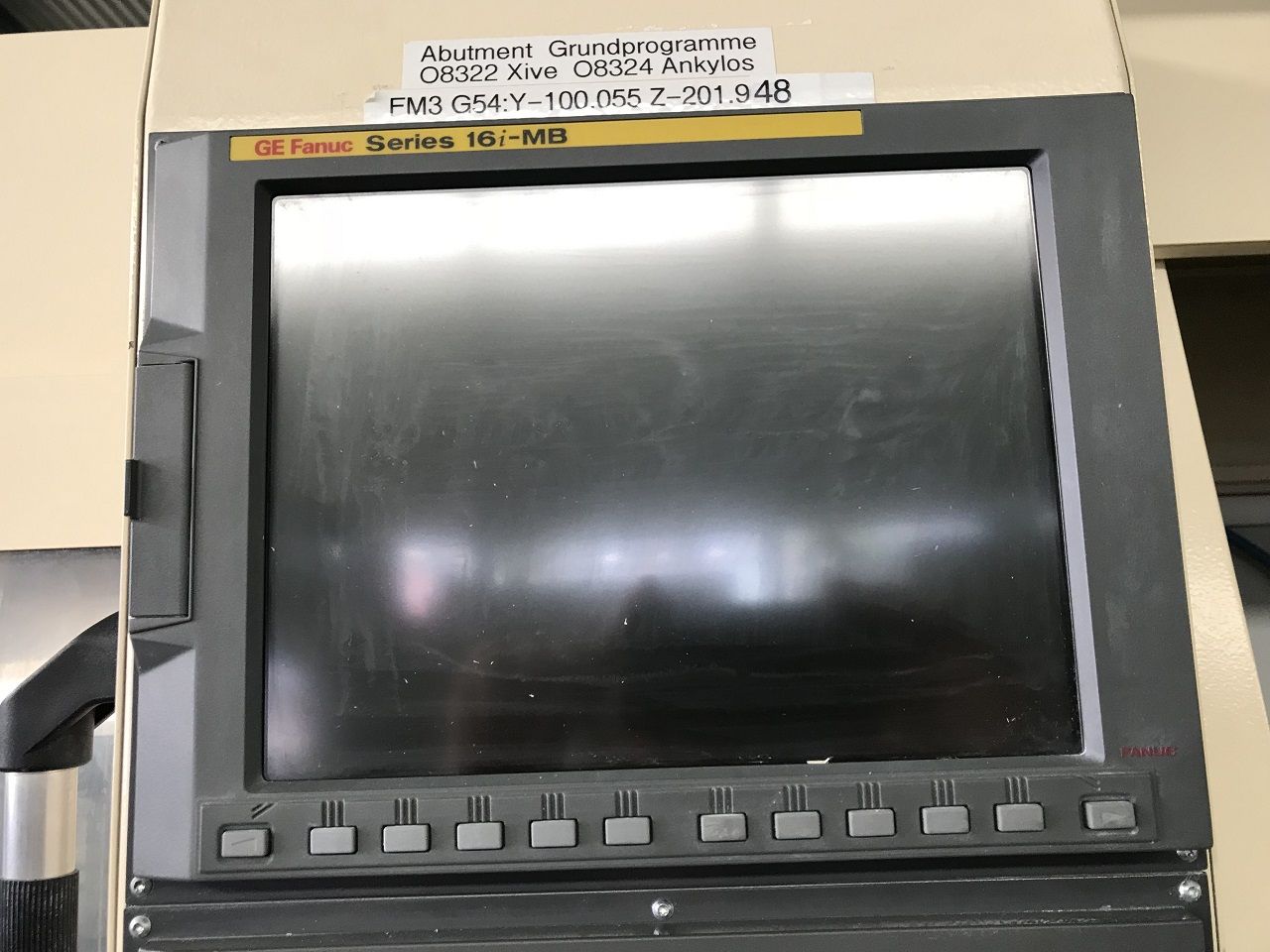

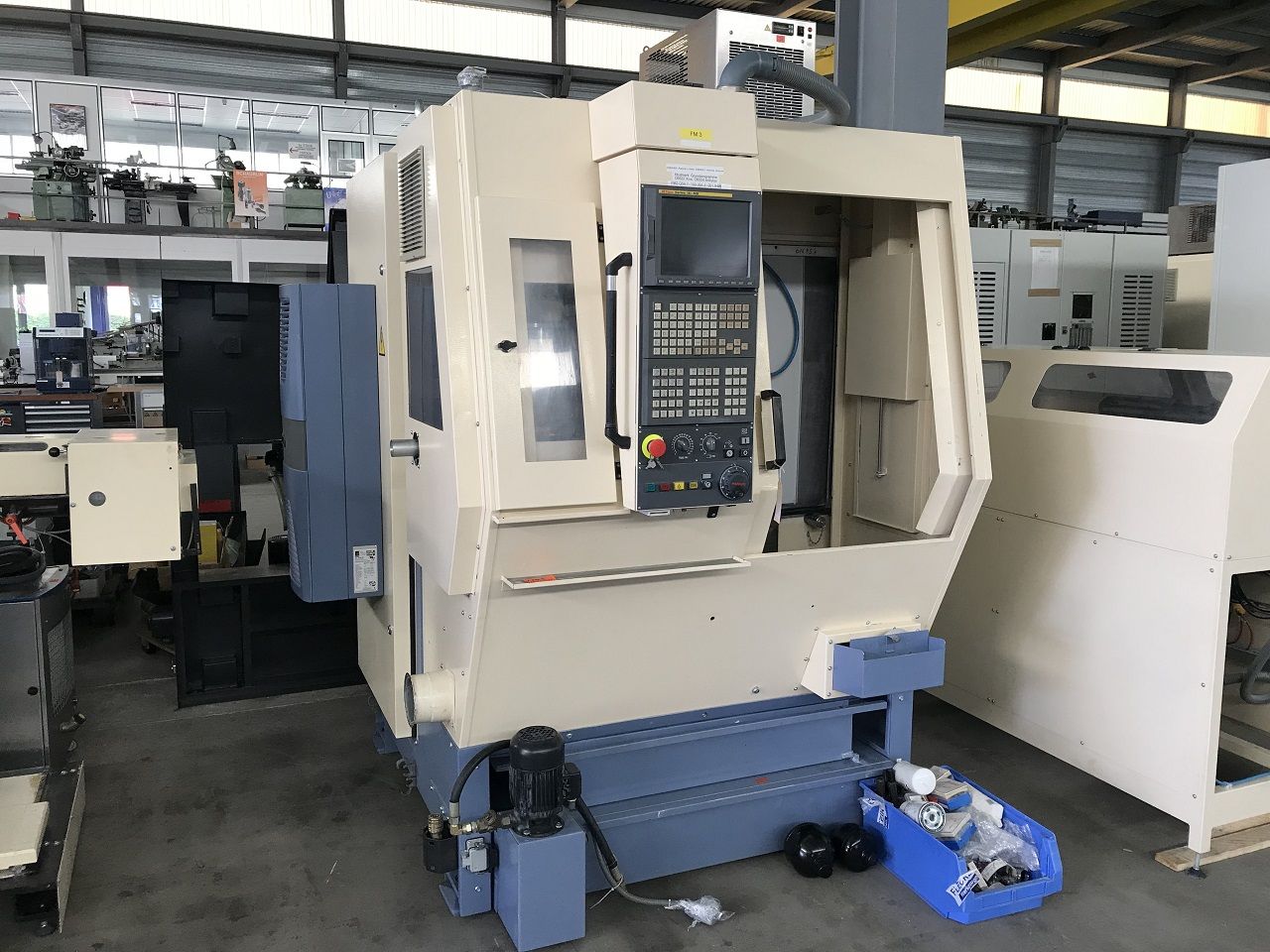

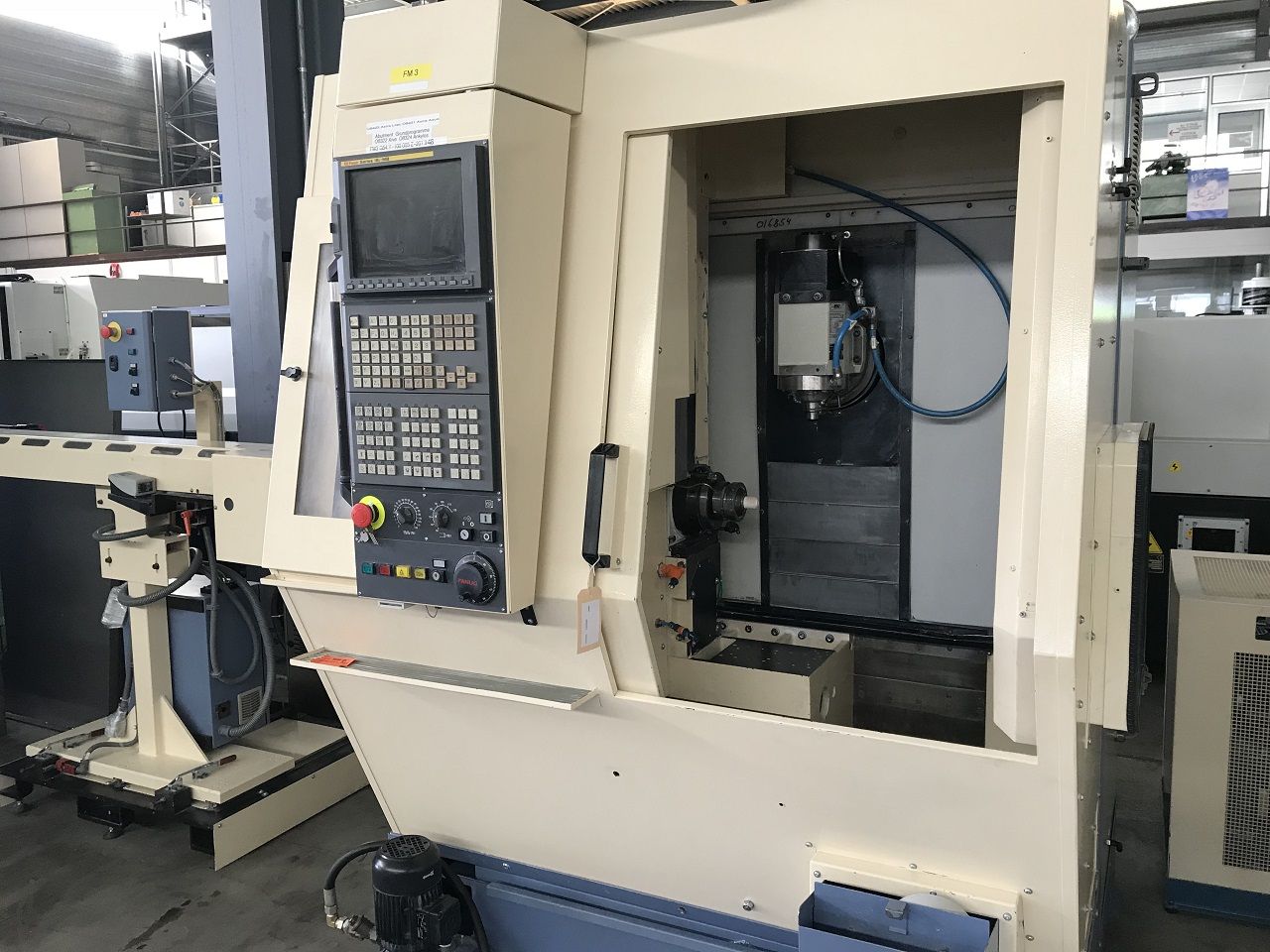

CNC 5 axes, Fanuc 16i-MB 2006
| Manufacturing year | |
| Manufacturing origin | CH |
| Voltage | 400 V |
| Netweight | 1700 kg |
| Custom position | 8458.9120 |
| Dimensions | mm |
| Standard bar capacity � 32 mm | |
| Turning / Milling from bars up to � 36 mm | |
| Pivoting spindle | |
| Linear axes | |
| Travels X � Y � Z � U | 250 / 200 / 300 / 80 mm |
| Max travel speed | 30m/min |
| Feed force | 2600 N |
| Resolution | 0,0001 mm (0.1 �m) |

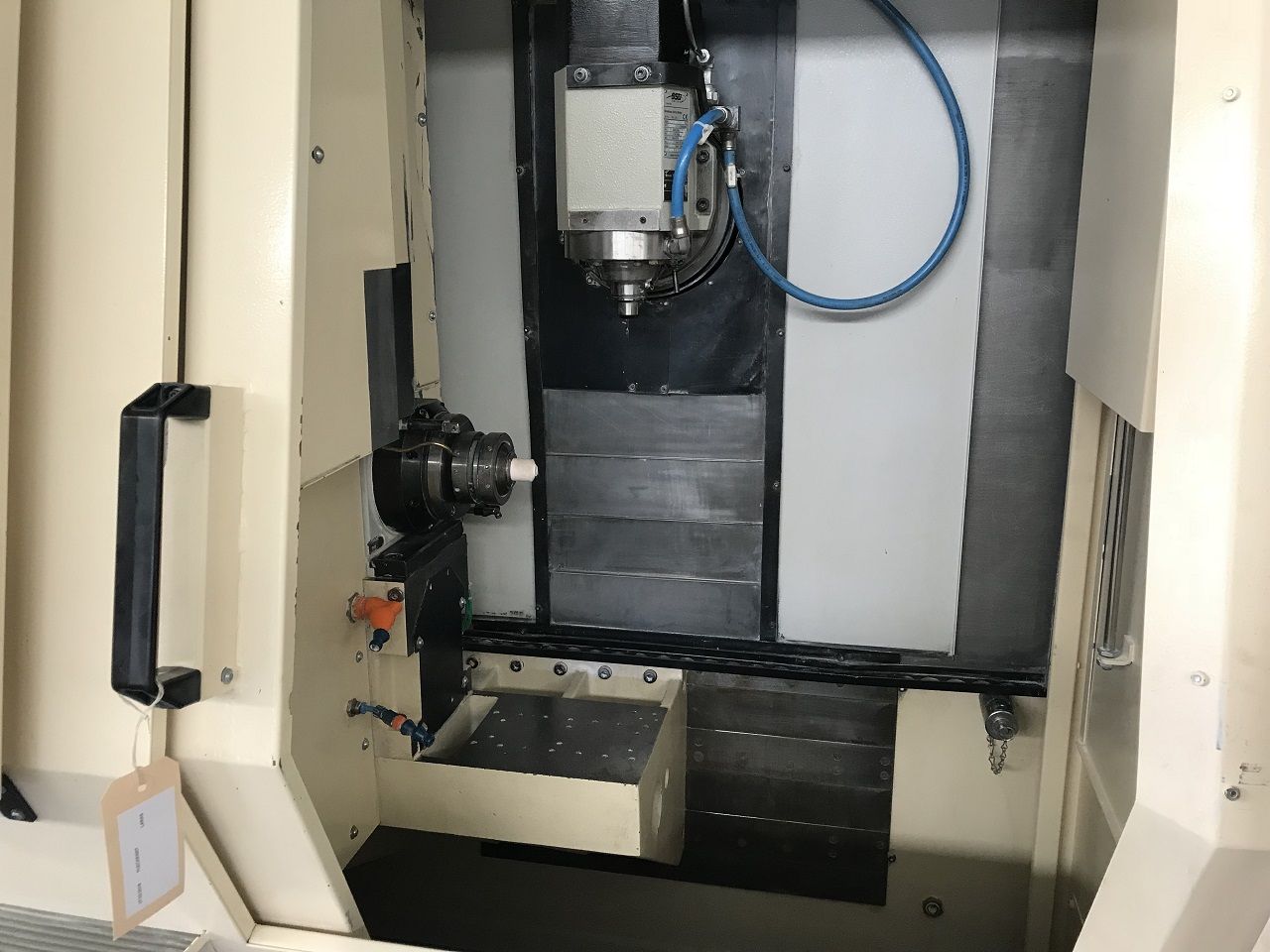

| Spindle with integrated motor | |
| Standard interface | HSK-E40 |
| Power S1/S6 | 10 kW / 15 kW |
| Torque S1/S6 | 8 Nm / 12 Nm |
| Speed | 30000 min-1 (42000 min-1) |
| B pivoting axis | |
| Angular move | -15� � +100� |
| Resolution | 0,0001� |
| Max torque | 180 Nm |
| Hydraulic maintain brake | 500 Nm |
| A horizontal axis milling mode | |
| Angular move | 360� |
| Resolution | 0,001� |
| Torque S1/S6 | 9 Nm / 29 Nm |
| Hydraulic maintain brake | 130 Nm |
| Max rotating speed | 100 min-1 |
| A horizontal axis turning mode | |
| Max speed | 6000 min-1 |
| Power S1/S6 | 1,5 kW / 3,7 kW |
| Bar capacity | � 32 mm |

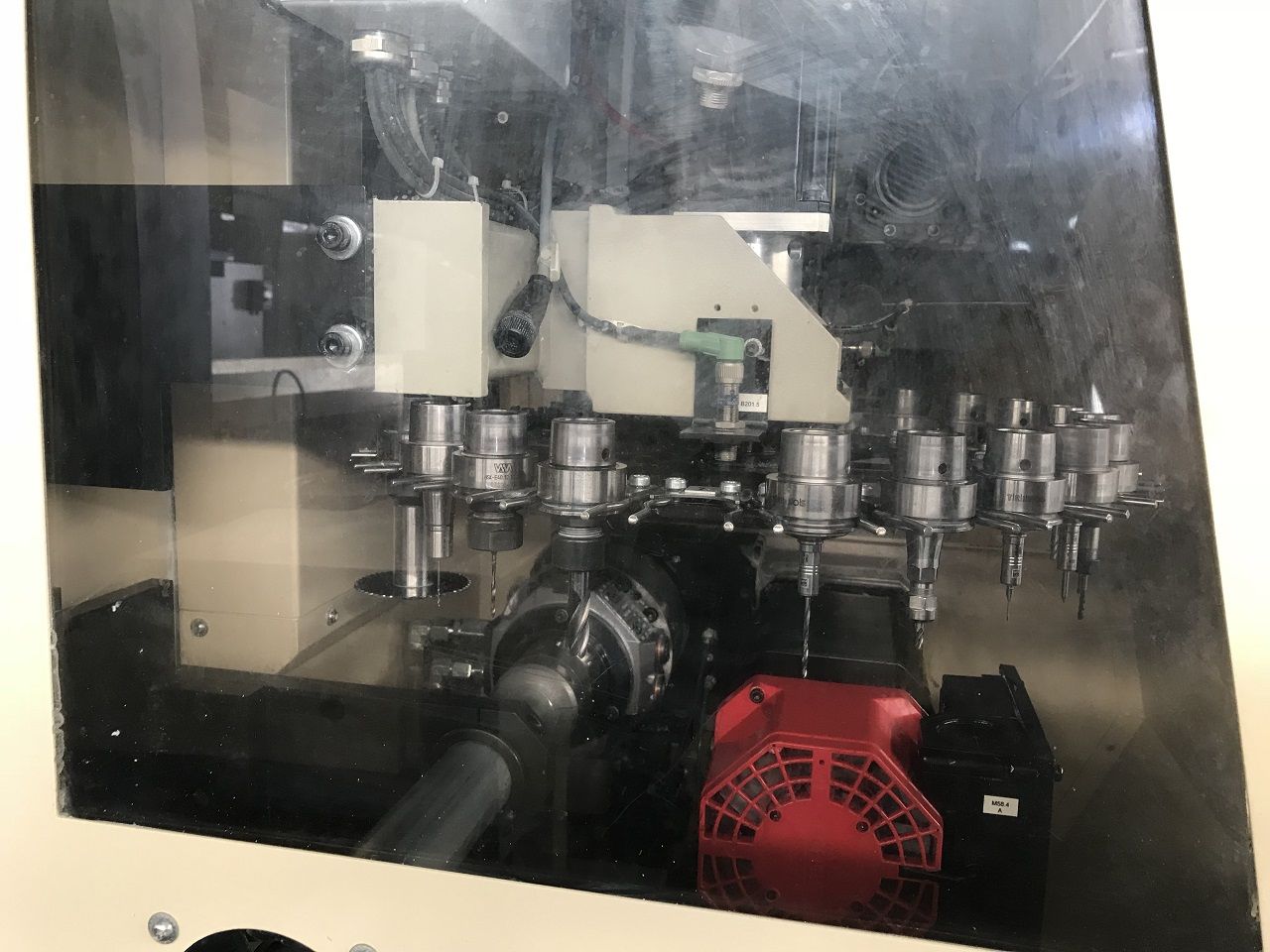

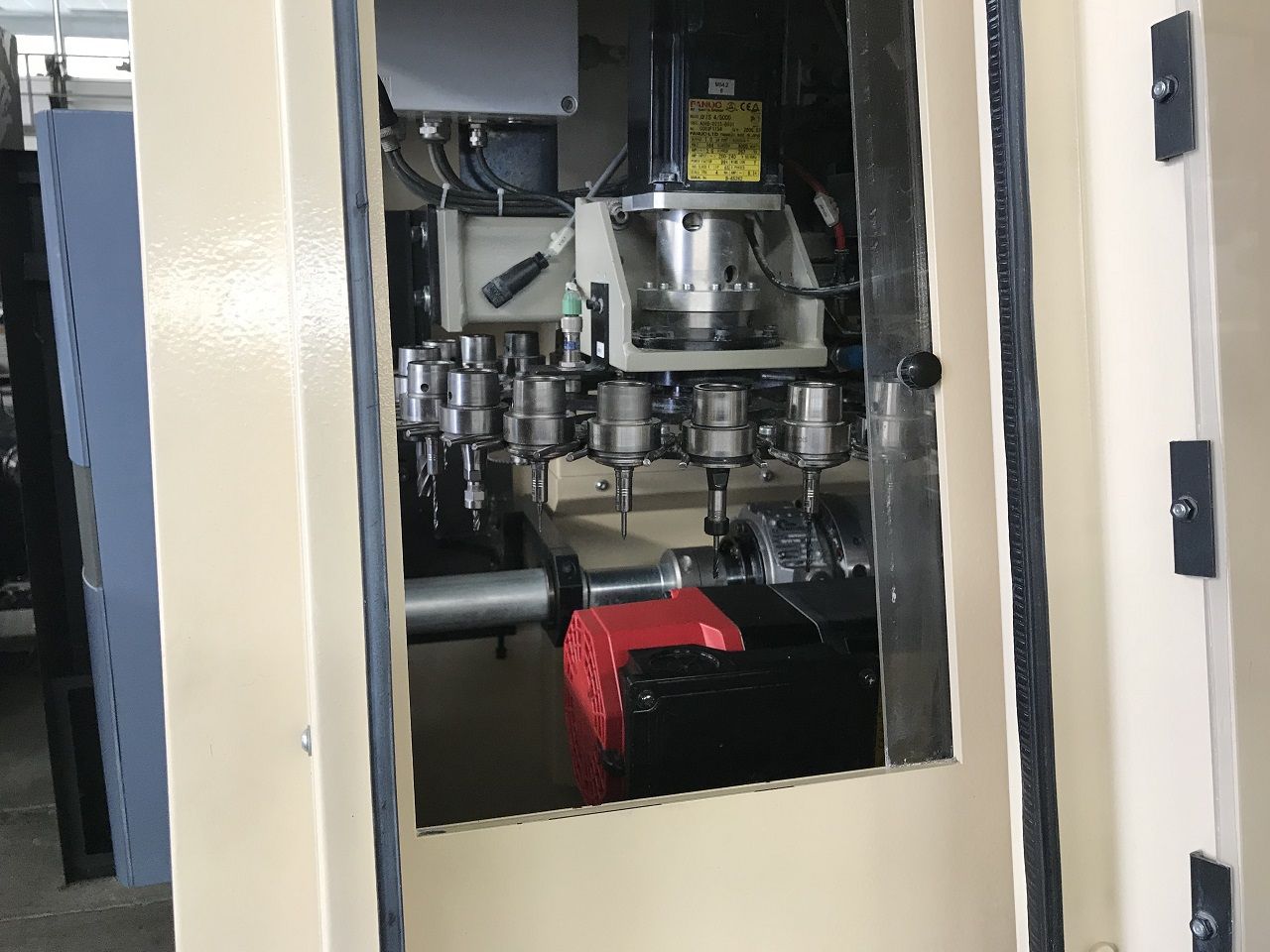

| Tools magazine � quick changer � | |
| Numbre of tools | 24 / 48 |
| Change tools to tools | 0,8 sec |
| Change chip to chip | 3 sec |
| Max tool � | 63 mm |
| Max tool � with free adjacent posts | 63 mm |
| Max tool length | 95 mm |
| Cooling unit | |
| Tank capacity | 80 L |
| Pump flow rate | 40L / min. ; pression 2.5 bar |
| Hydraulic group | |
| Nominal power | 100 bar |
| errors and omissions excepted-data given without obligation | |
