MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SACHMAN
  • Model:
  • MILLING SACHMAN T 314 HS
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

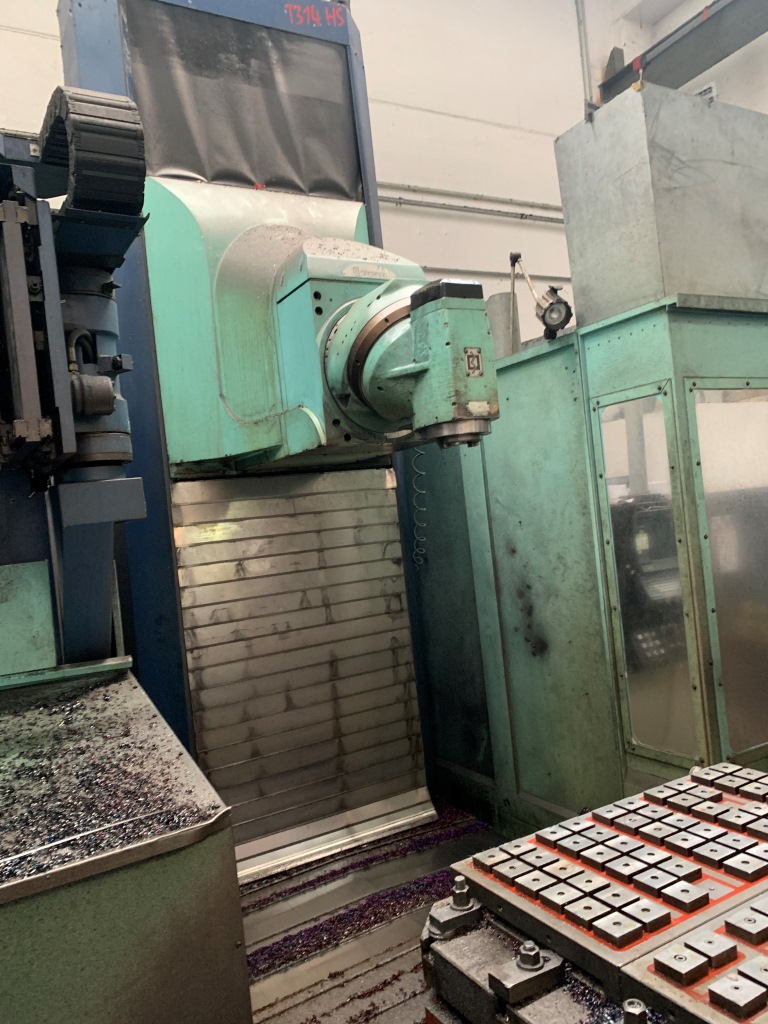

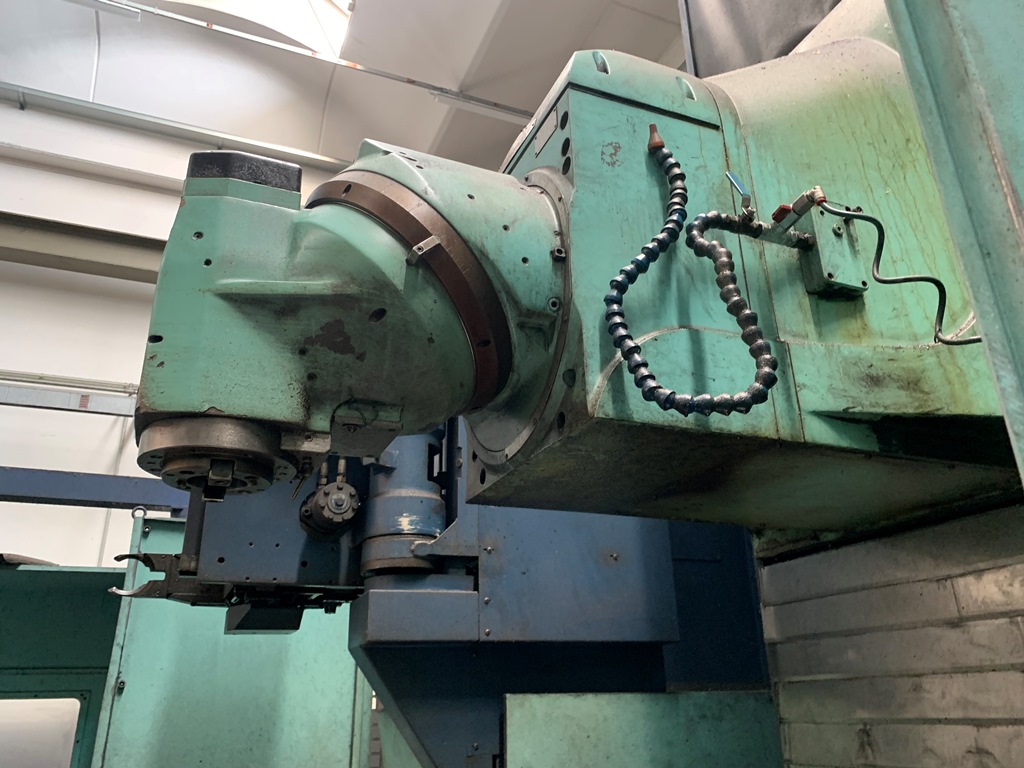

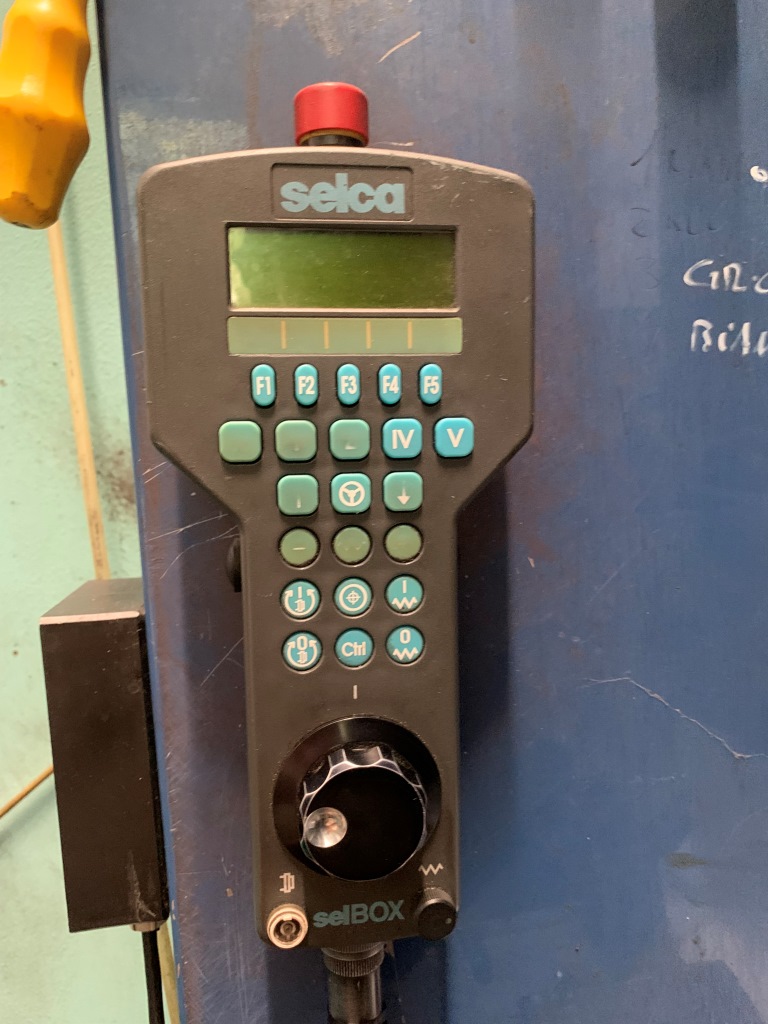

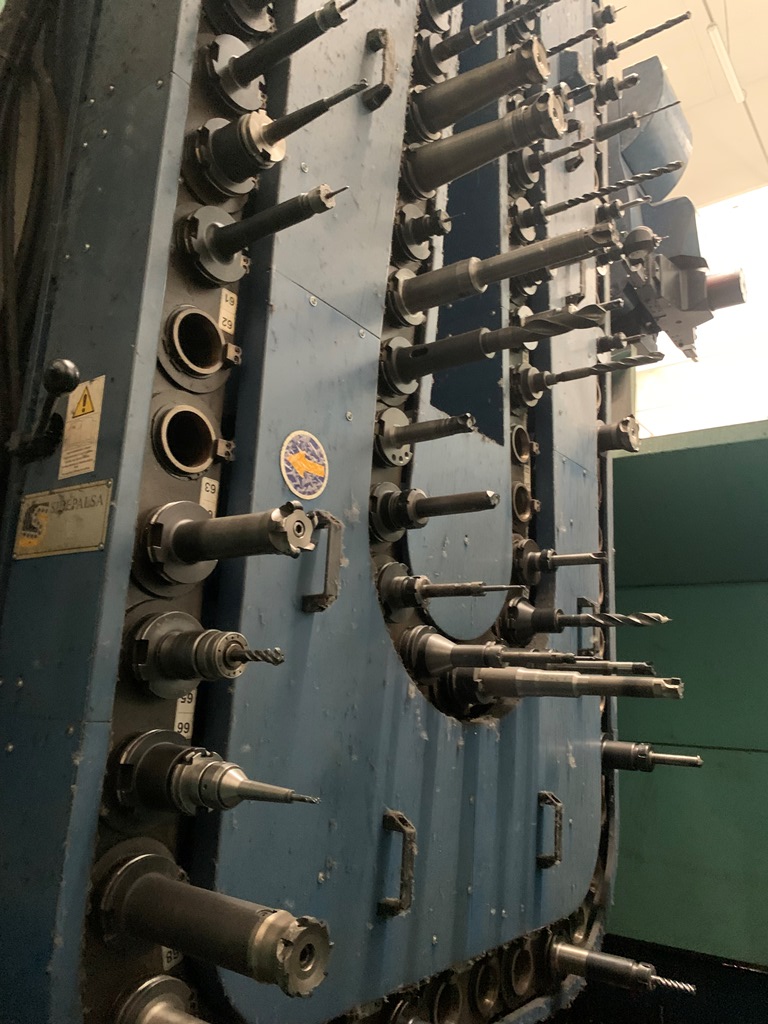

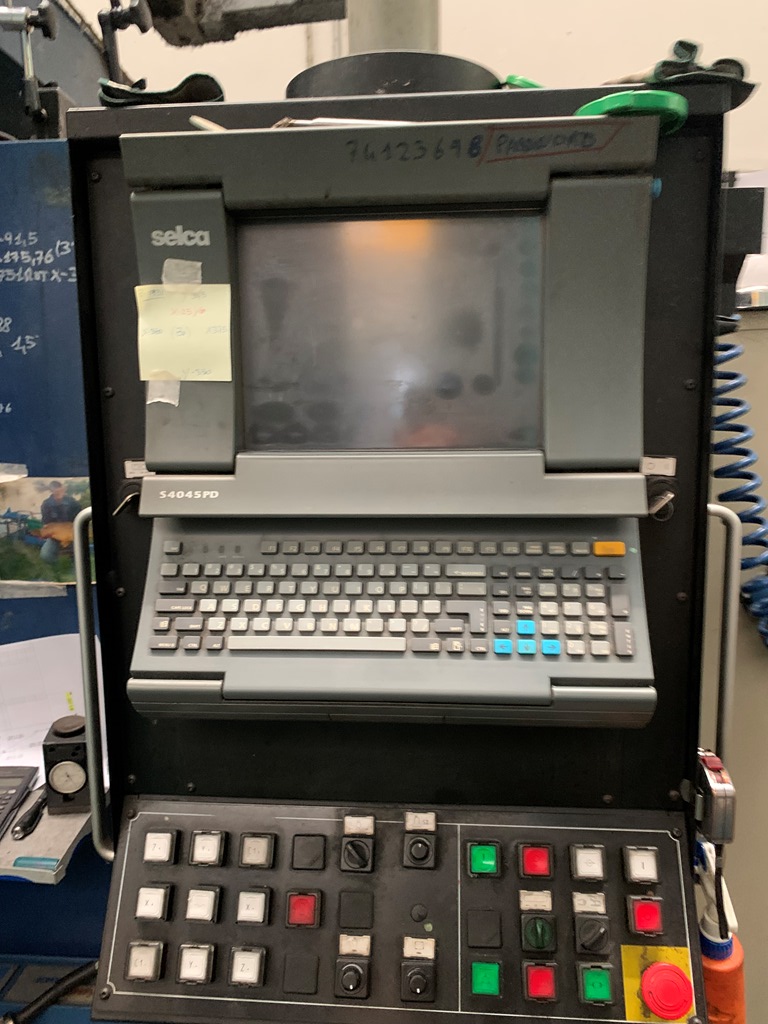

SACHMAN 09461 CNC SELCA 4045PD + Handwheel Selbox STROKES: Longitudinal stroke X-axis mm 3500 Cross stroke Y-axis mm 1600 Vertical stroke Z-axis mm 2000 TABLE: Dimensions mm 3700x1100 T-slots 22 H7 n.8 (1100) Max load weight Kg 10.000 SPINDLE: Continuous power kW 28 Spindle speed 6000 rpm Tool taper DIN 69871-B50 TOOL MAGAZINE: Tool changer with 90 positions GENERAL: Machine weight Kg 32.670 Max installed power kW 48 EQUIPPED WITH: -Head KOSMO 3 / 2.5°-2.5° ISO 50 -Continuous rotary table OMO SPARK-A-R10Q dimensions mm 1000x1000 max load Kg 6000 -Chip conveyor USED MACHINE
