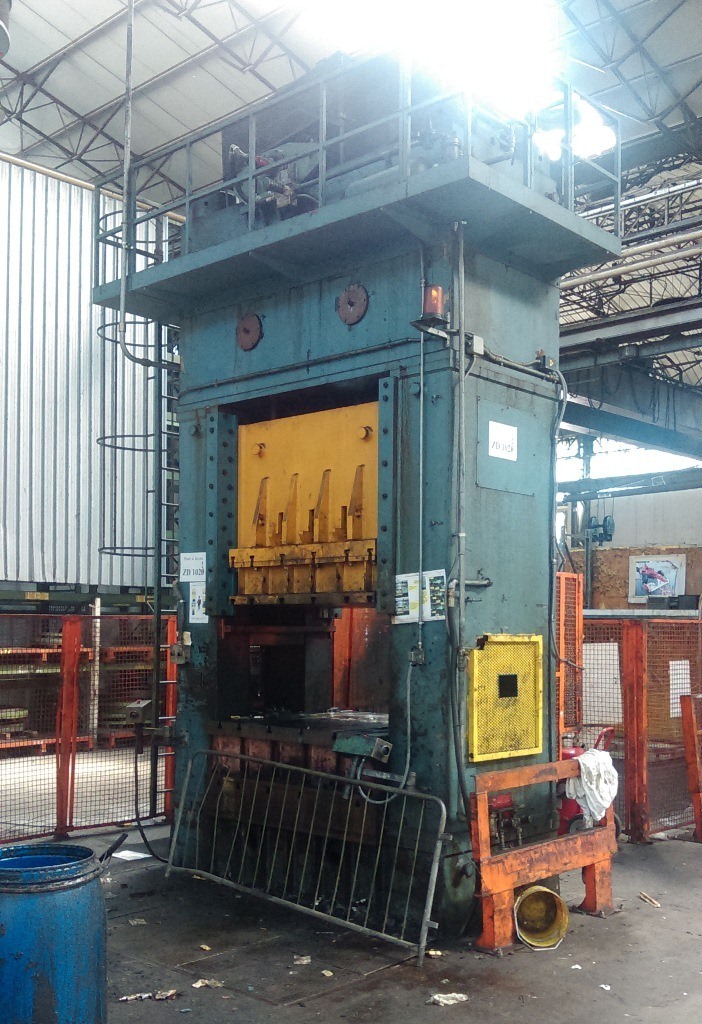

RADAELLI
07364
Max pressure 500 Ton
Fixed stroke m/m 300
Max distance between table and slide m/m 1600
Table size mm 1600x1400
Slide size mm 1600x1200
Distance between frames mm 1600
Stroke per minute n. 16
Sledge hammer adjustment mm 160
Pneumatic blankholder power at 6 atm Ton 35
Blankholder strole m/m 170
Main motor power Hp 40
USED MACHINE
The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece, enabling you to fixture unusual applications easily. The specially designed steel wedge spr...
BOMAC
09876
SFC 210x1000
TECHNICAL AND CONSTRUCTION CHARACTERISTICS:
Height of center mm 210
Swing diameter on the bed mm 420
Swing diameter on the gap mm 550
Swing diameter on the slide mm 225
Gap width mm 260
Guides width mm 330
Distance between ce...
