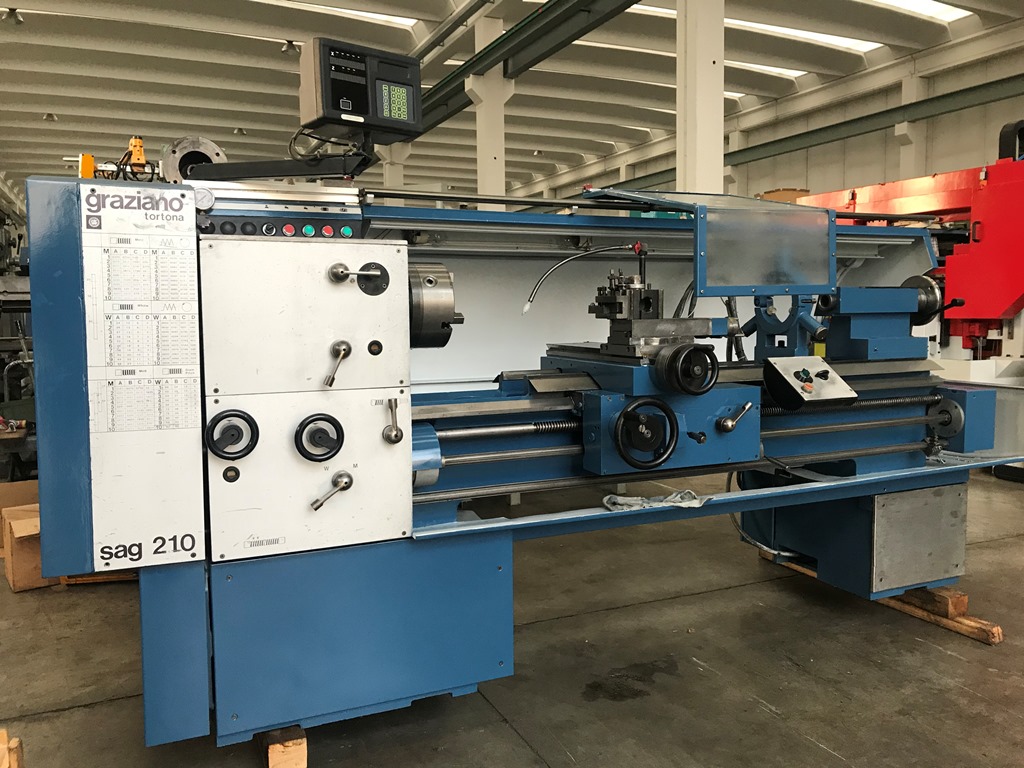

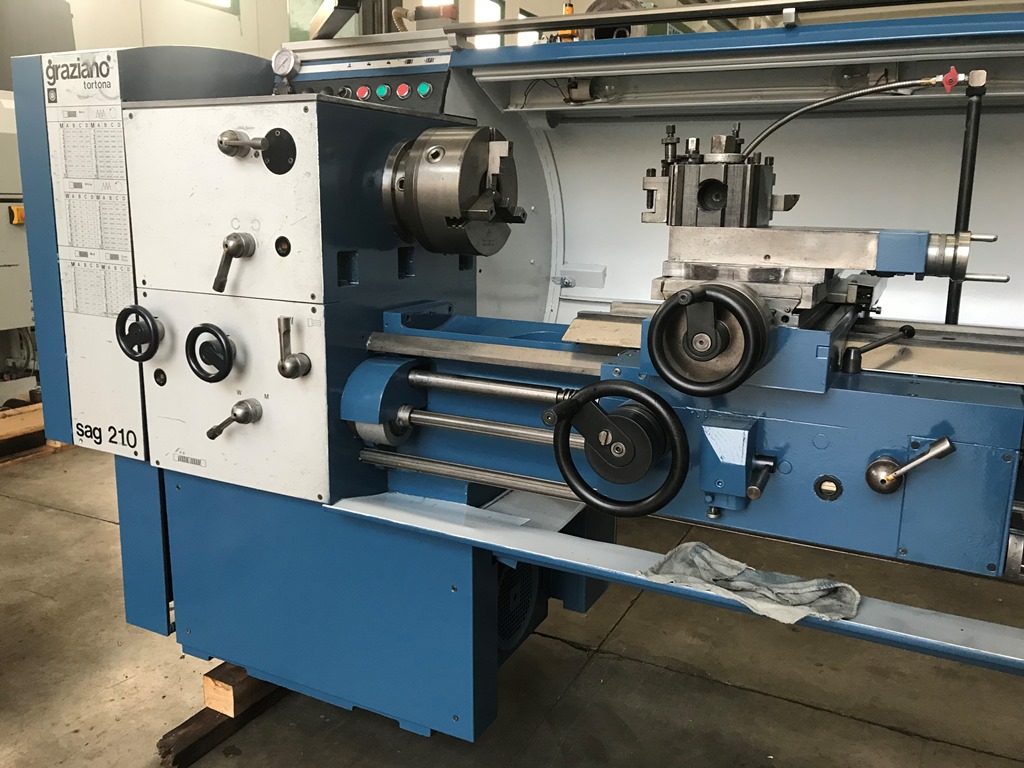

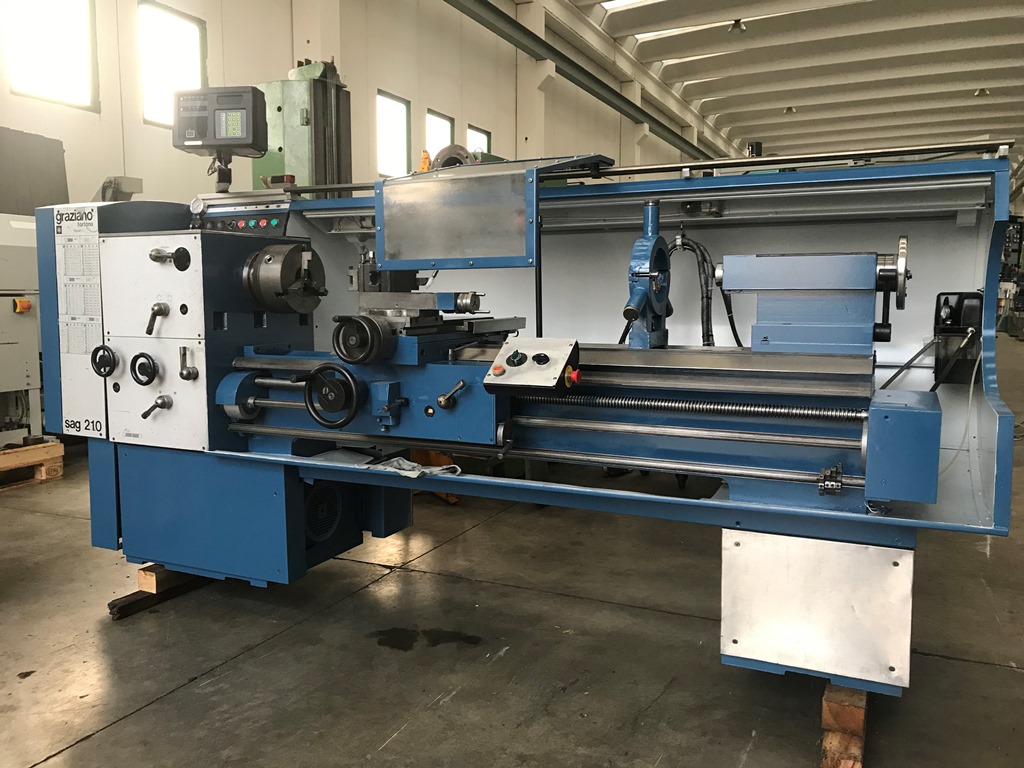

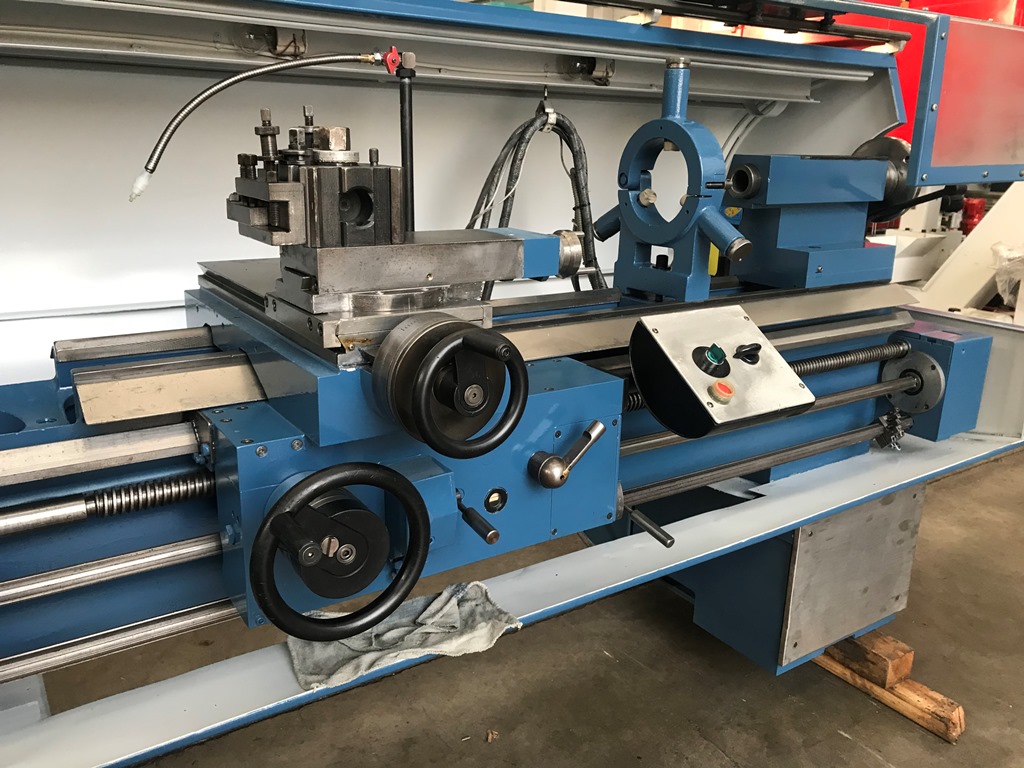

GRAZIANO
08074
Height of centre mm 210
Max turning diameter over bed mm 420
Max turning diameter over slide mm 270
Ma turning diameter in gap mm 600
Distance between centre mm 1500
Spindle bore mm 60
Spindle nose CAMLOCK 6''
No. 24 spindle speed, Rpm 38-2000
Tailstock cone MT5
EQUIPED WITH
Chuck double guide
Automatic speed variator on carriage
Back cover
Rotary turret with toolholder
Digital read-out with 2 axis
USED MACHINE
CMT
New04801
AUTOLATHE
CNC FAGOR 8055T
-HEIGHT OF CENTER FROM PLAN MM.250
-DISTANCE BETWEEN CENTRE MM.1500
-MAX DIAM OVER PLAN MM.505
-MAX DIAM OVER SLIDE MM.265
-SPINDLE NOSE C.L. 6''
-SPINDLE BORE MM.52
-SPINDLE SPEED RANGE N. 02 A AUTOMATIC CHANGE...
VICTOR
09957
VERTICAL MACHINE CENTER
TECHNICAL DETAILS
- Axis x 1360 mm
- Axis y 700 mm
- Axis z 700 mm
- Distance table / spindle min max mm 300-1000
- Rapid feedrates x-y-z 32-32-32 m/min
- Table size 1400x700 mm
- Max load 1000 Kg
- Lenght 4670 mm...
