MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Huron
  • Model:
  • CENTER HURON KMILL 10
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

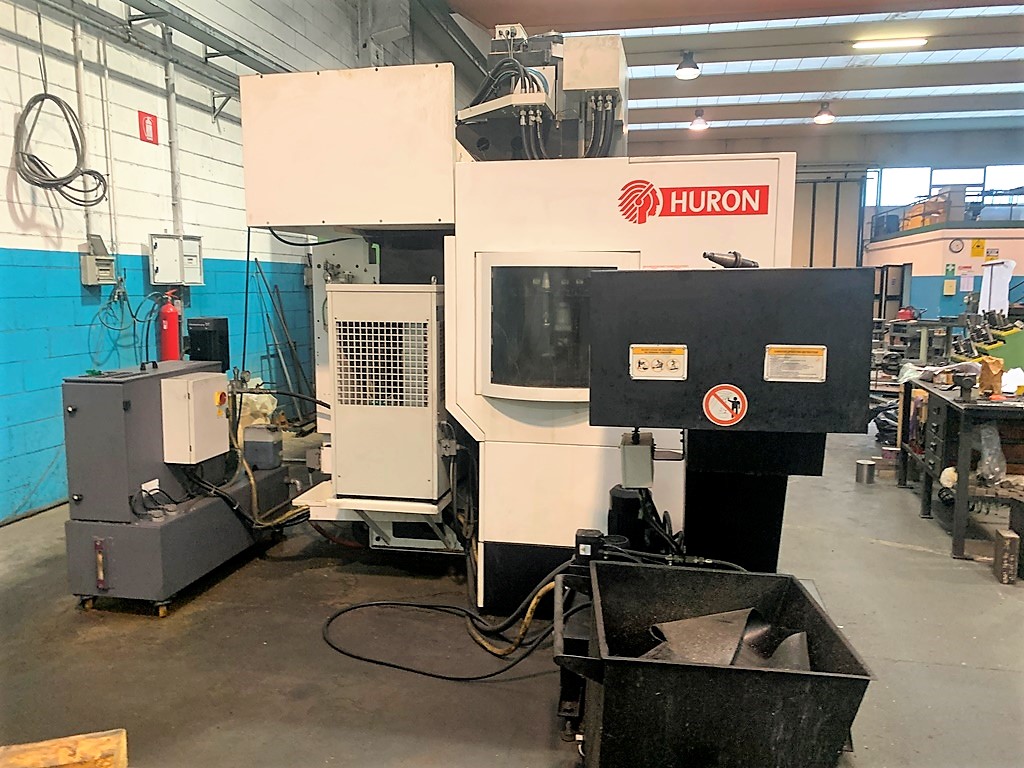

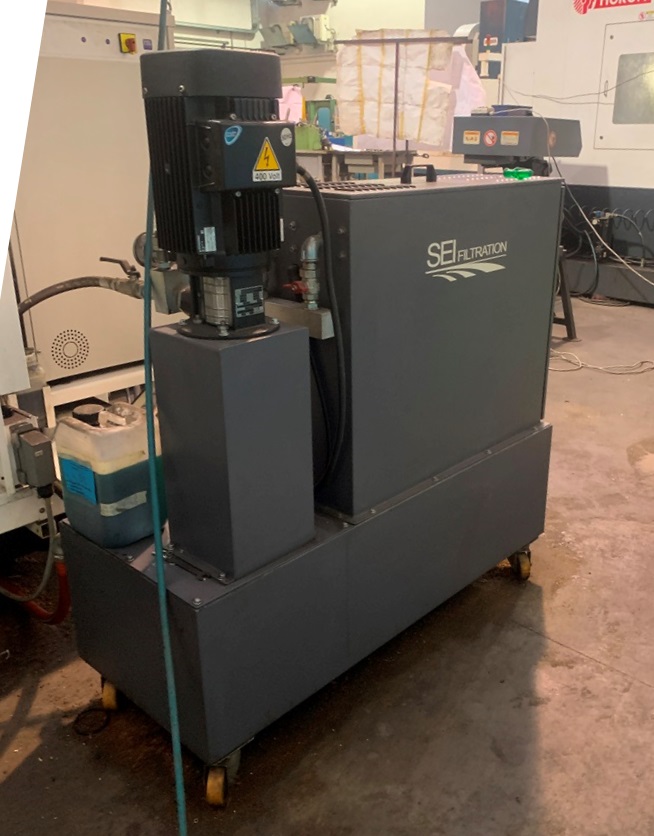

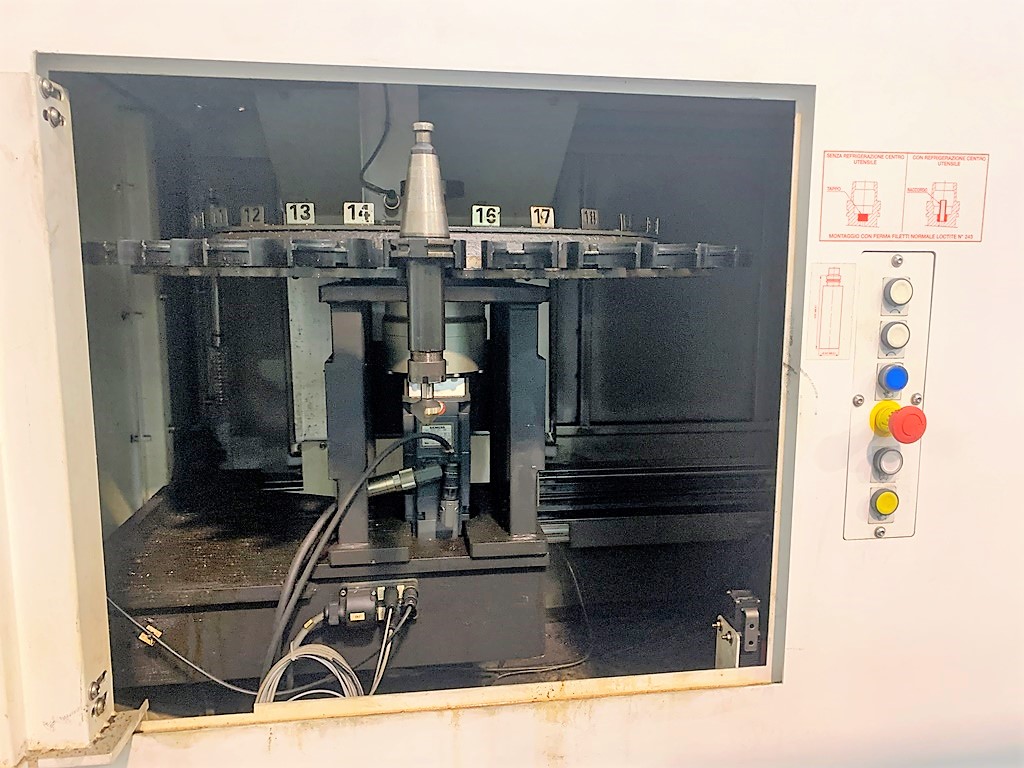

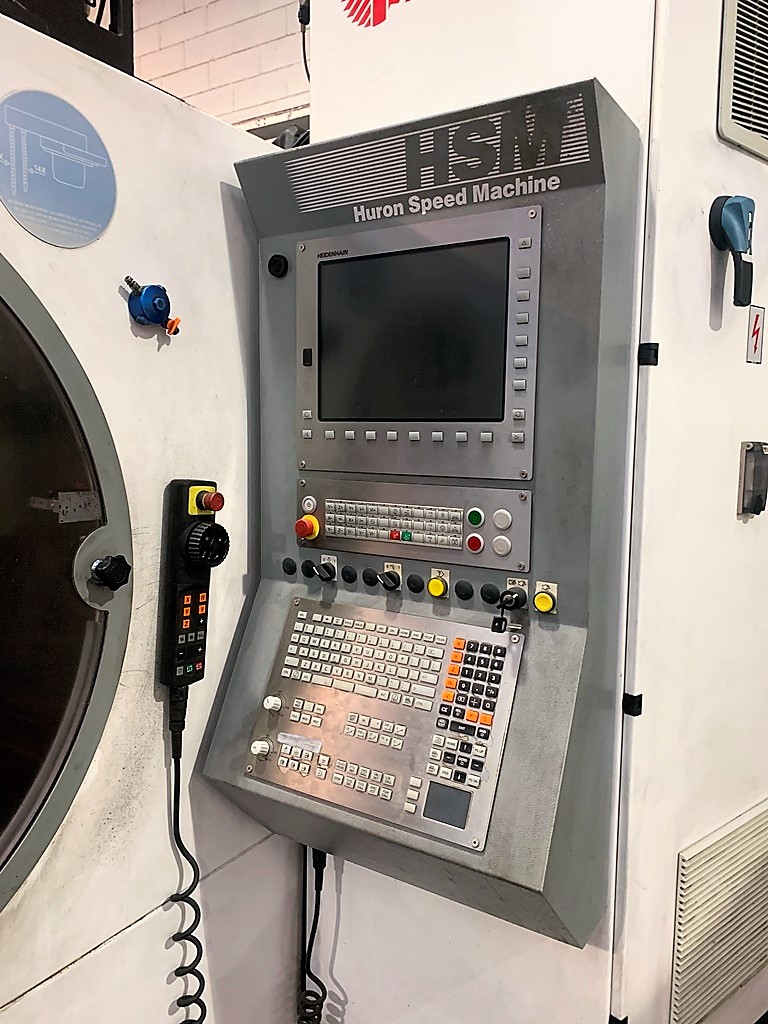

HURON 09895 CNC HEIDENHAIN TNC620 TABLE: Table size mm 1250x700 Table load Kg 1500 T-slots number 6 Distance between T-slots mm 100 T-slots width mm 18 H 7 Height table surface/floor mm 930 Min/max distance spindle/table surface mm 150/700 AXIS: X-axis stroke mm 1000 Y-axis stroke mm 700 Z-axis stroke mm 600 SPINDLE: Spindle taper ISO 40 Rotation speed rpm 15,000 Power S1/S6 kW 26.4 TOOL MAGAZINE: Tools number 24 Tool taper ISO 40 DIN 69871 Max tool diameter mm 90 Max tool length mm 300 Max tool weight Kg 7 OVERALL DIMENSIONS AND WEIGHT: Overall dimensions mm 4590x2840x3060H Weight Kg 10.500 EQUIPPED WITH: -Measurement lines for linear X and Y axes -Spindle center refrigeration 20 bar -Infrared transmission electronic piece measuring probe -Infrared transmission tool probe -Washing gun -Belt chip conveyor USED MACHINE YEAR 2016
