MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Safop Leonard
  • Model:
  • LATHE SAFOP LEONARD 50/S-CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

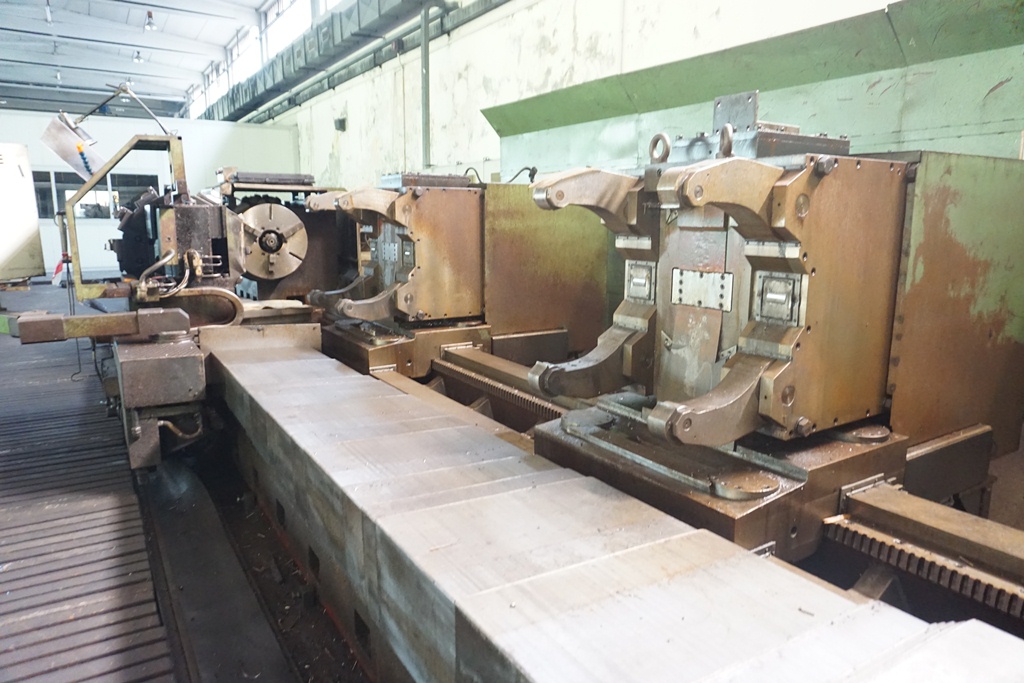

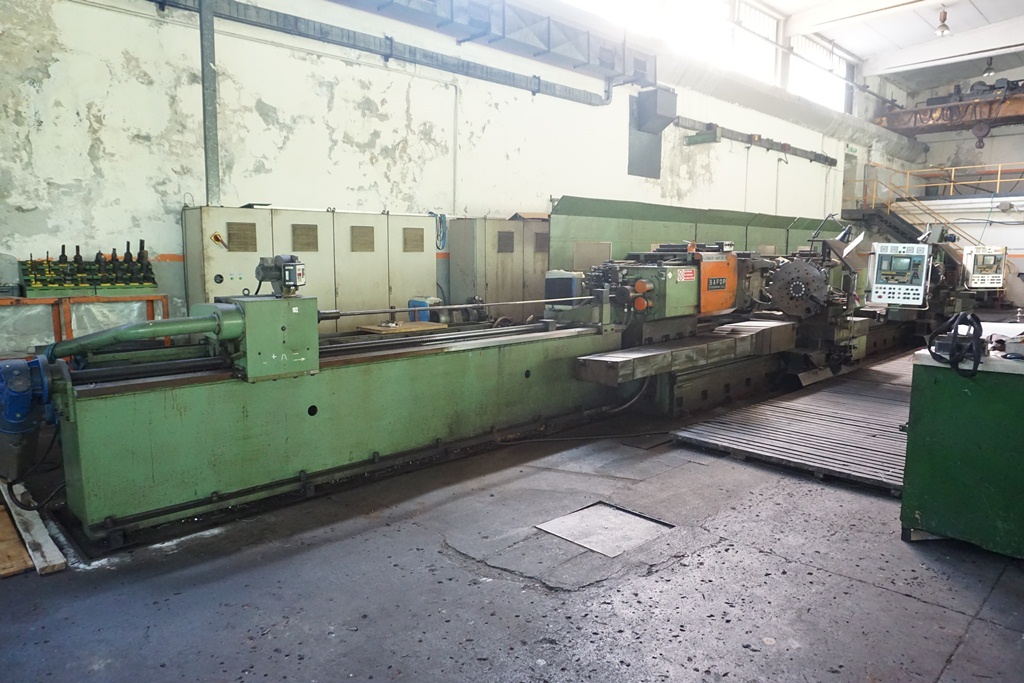

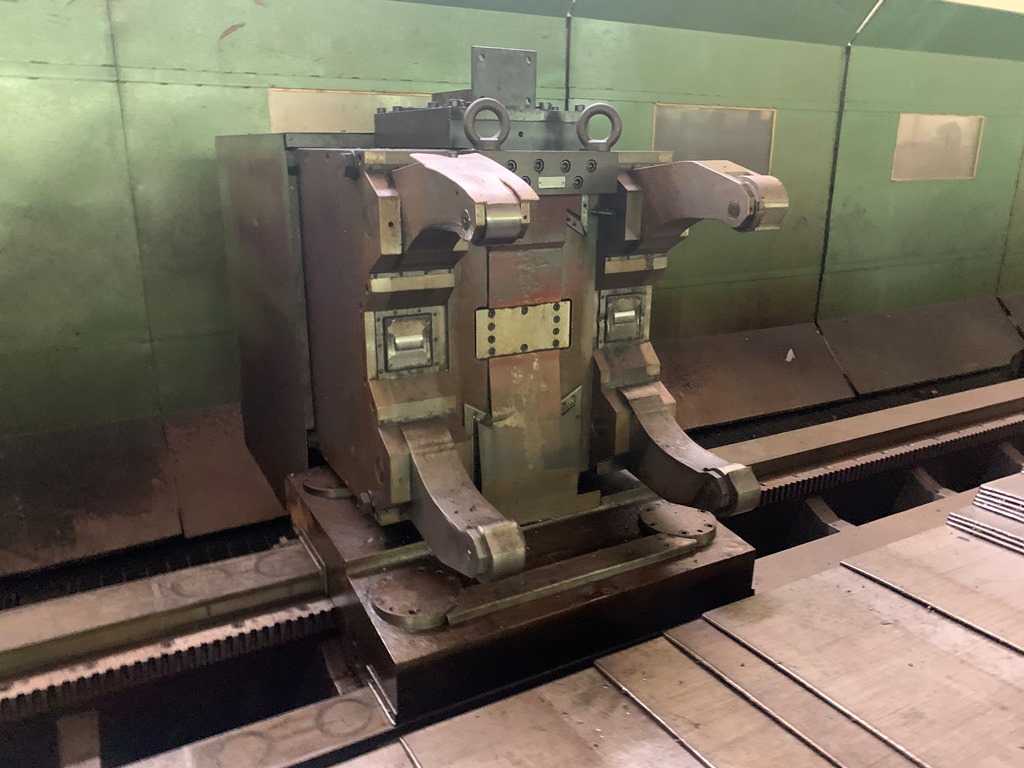

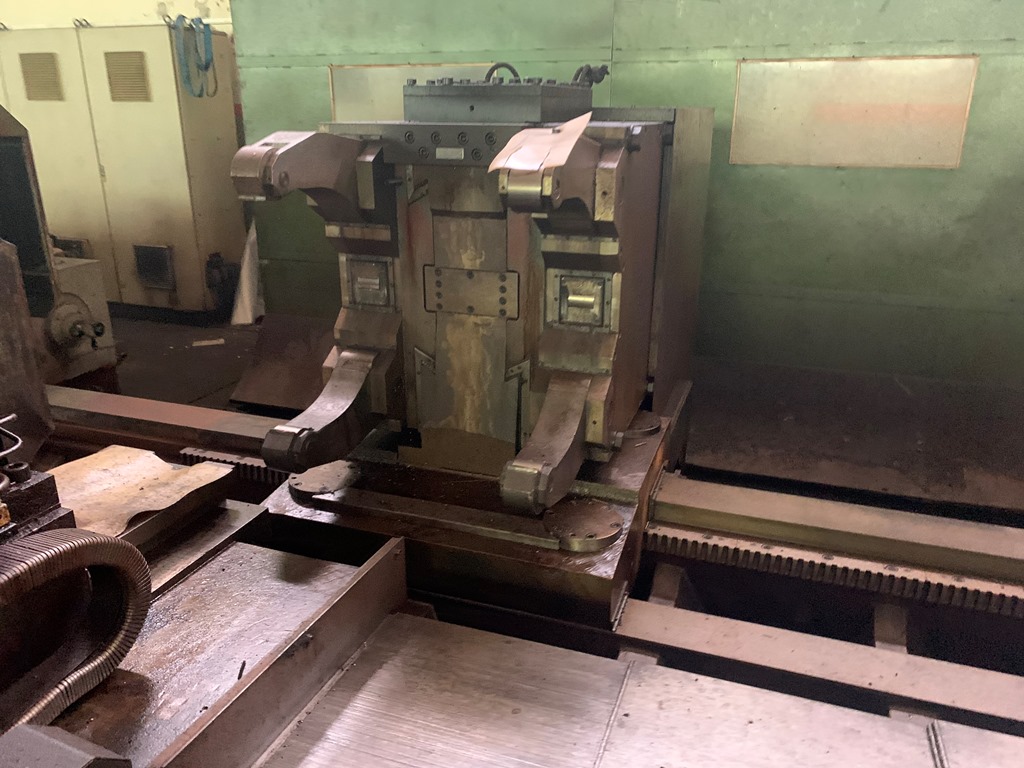

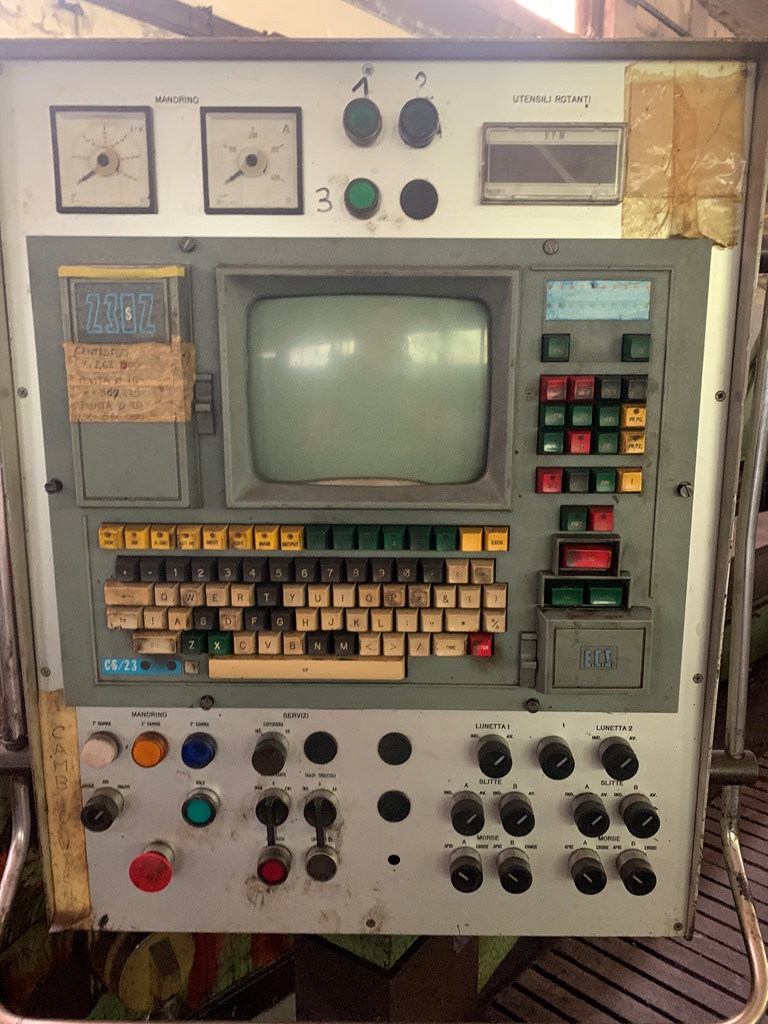

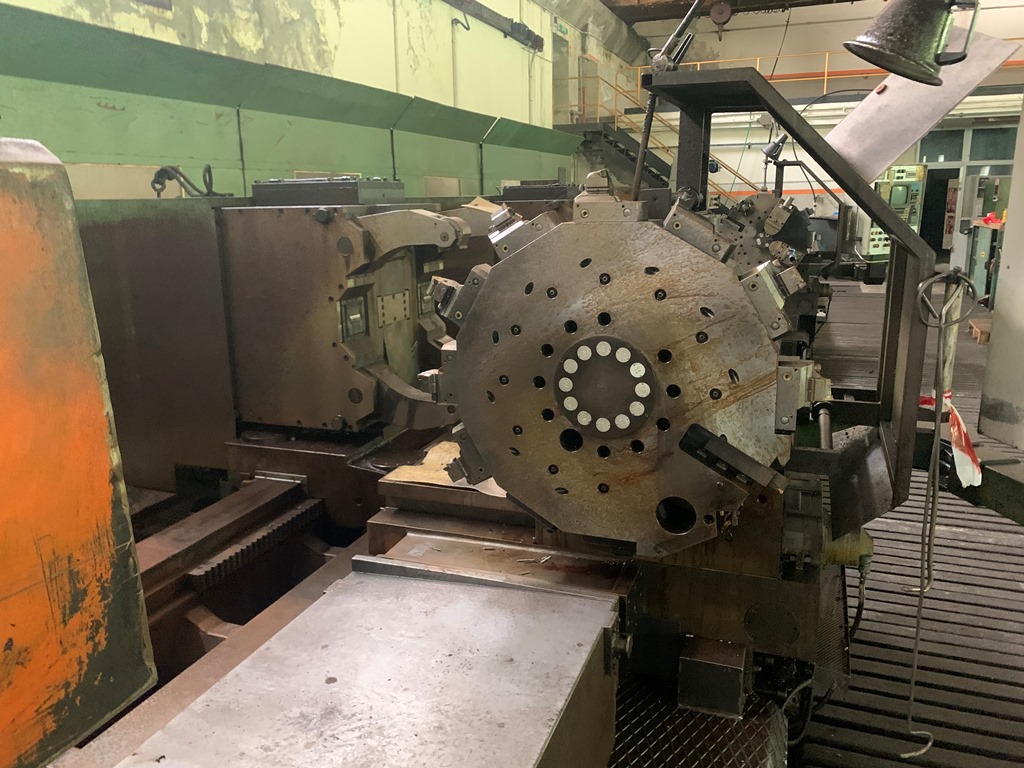

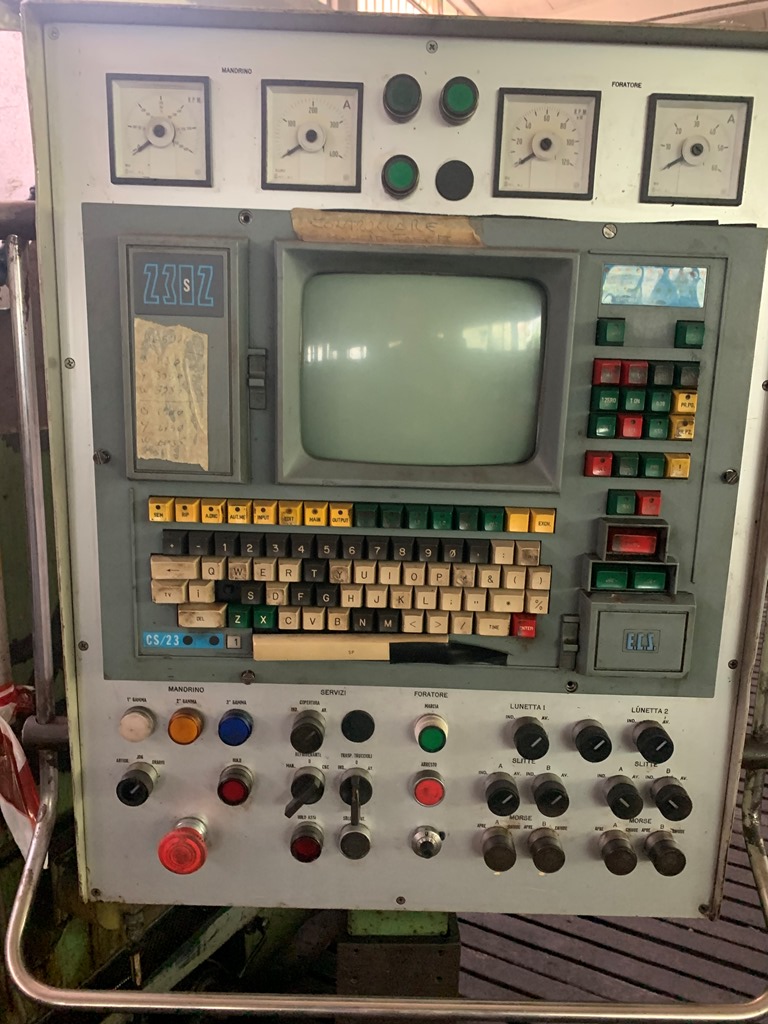

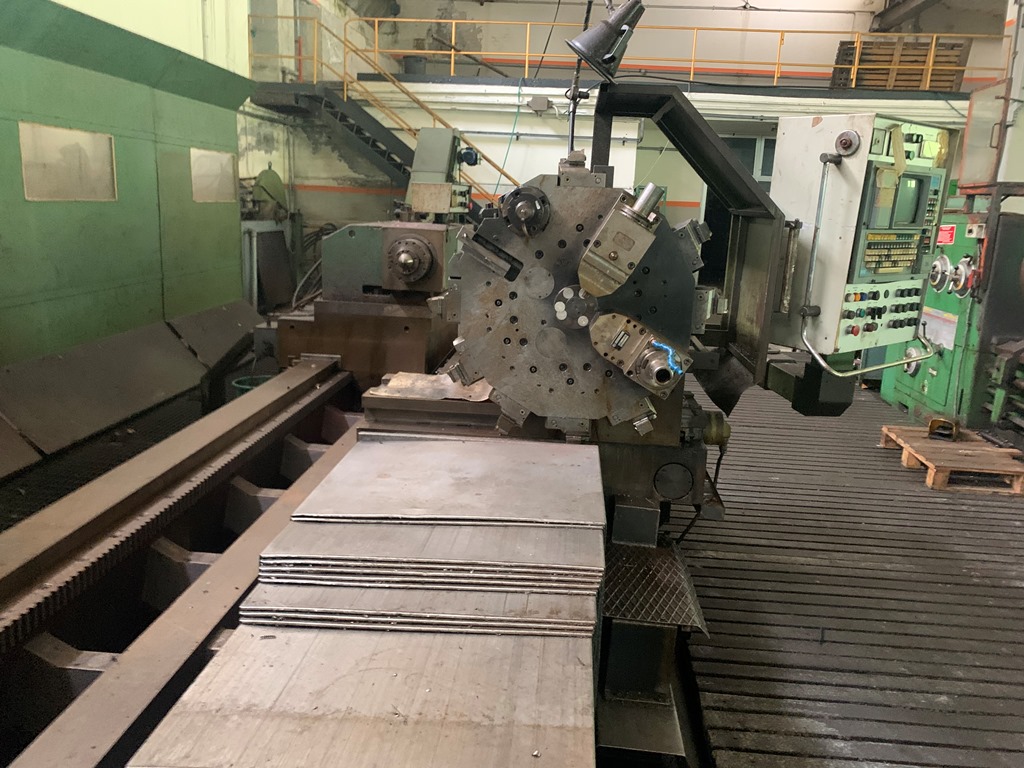

SAFOP 07438 DOUBLE CARRIAGE WITH INDIPENDENT CONTROL FRONT SIDE SYSTEM FOR HORIZONTAL DRILLING 4 GUIDEWAYS LIVE TOOLS AXIS C CNC ECS 2302 CAPACITY': Center height mm 520 Max diameter allowed on the bezels mm 460 Max swing diameter on the cross carriage 550 mm Distance between centers mm 10.000 3-jaw platform diameter, steel body mm 600 Max weight admitted between the points Kg 15.000 HEAD: Spindle speed range n.3: -1st rpm range 5-150 -2nd rpm range 10-300 -3rd rpm range 20-600 DC motor power kW 80 BENCH: Bench width mm 1300 Pallet height over length mm 630 TAILSTOCK: Diameter 190mm Stroke 300 mm Attachment ASA 4'' EQUIPPED WITH: -N.02 pairs steady rest capacity mm 150:460 USED MACHINE
