MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIGMA
  • Model:

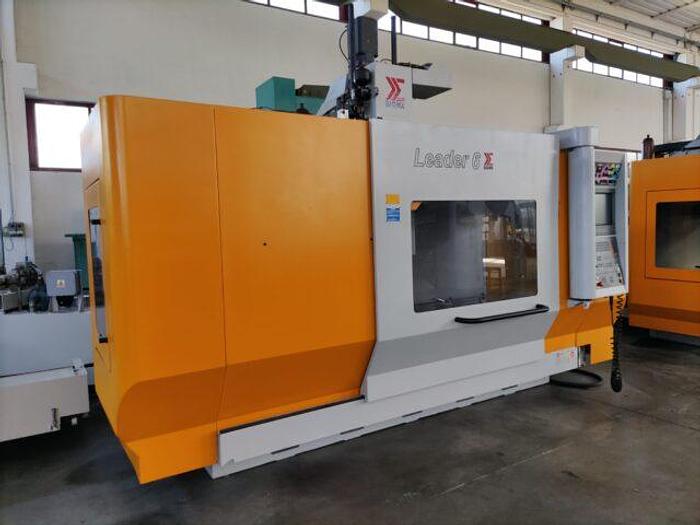

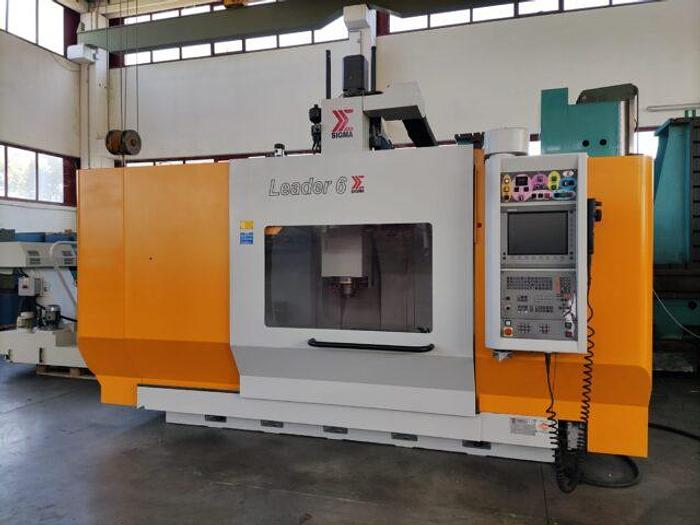

  • MACHINING CENTER SIGMA LEADER 6
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

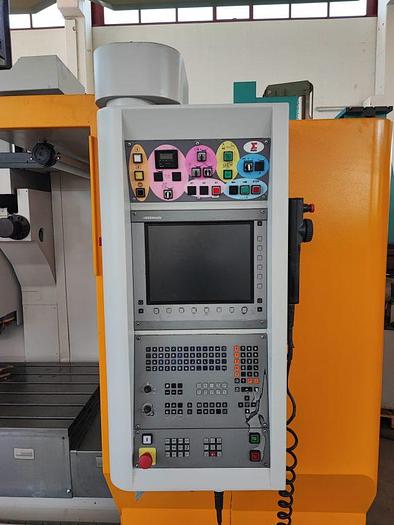

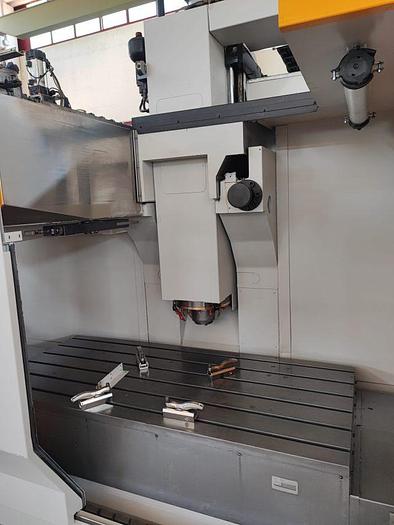

SIGMA 10014 CNC Control: Heidenhain X-axis travel: 1.600 mm Y-axis travel: 810 mm Z-axis travel: 630 mm Min./Max. spindle-table distance: 150 - 780 mm Spindle-column distance: 830 mm Table size: 770 × 1,750 mm T-slots: 5 slots, 18 × 25 H7 mm Max. table load capacity: 2,000 kg Feed rates: Rapid traverse speed: 40 m/min (X = 30 m/min) Acceleration: 5,000 mm/s² (0.6 g) Linear guides with triple preloaded ball recirculation pads Spindle: Integral motorized spindle Taper: No. 40 (DIN 69871) Spindle speed: 15,000 rpm Max. available torque: 235 Nm Ceramic ball bearings Permanent grease lubrication Tool magazine: Horizontal bi-directional chain-type tool changer Tool positions: 50 General specifications: Machine weight: 14.000 kg Overall dimensions (L×W×H): 5,050 × 3,540 × 3,200 mm Table height from floor: 800 mm Power supply: 400 V Total installed power: 37 kW Required air pressure: 6 bar USED MACHINE
