MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Takisawa
  • Model:
  • LATHE TAKISAWA MOD. EX-110
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

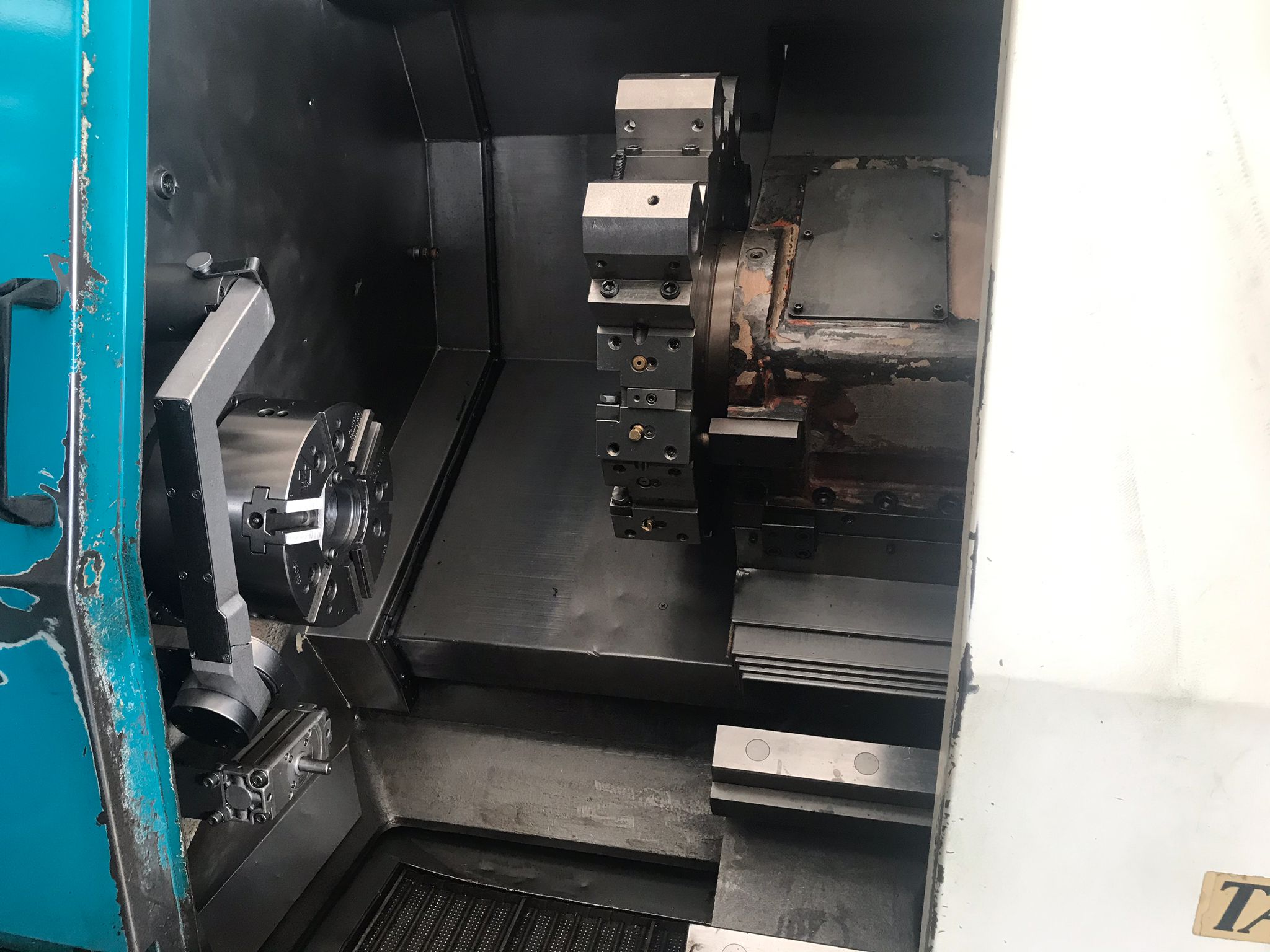

TAKISAWA 08891 CNC FANUC 21i-T Turning diameter over bed 495 mm Turning diameter over cross slide 400 mm Distance between center 845 mm Max turniing diameter 400 mm Max tunring lenght 710 mm Bar passaging 77 mm Strokes (X-Z) 200x710 mm Spindle taper ASA 8 Spindle diameter mm 250 Spindle speed 30/3500 rpm Spindle bore 86 mm Turret 10 position Total power required 18,5 kW USED MACHINE
