MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Union
  • Model:
  • Union Graduate Wood Turning Lathe 30? 3 phase
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • £1175 + VAT
  • Country:
  • United Kingdom

DESCRIPTION

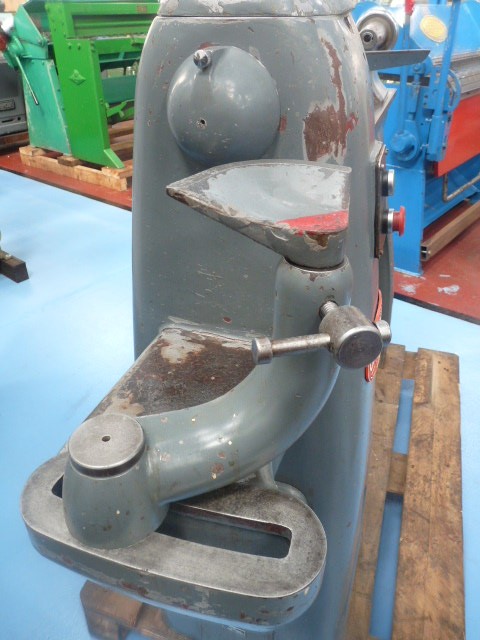

Manufacturer Union Model: Graduate Wood Turning Lathe Bowl Turning and Sanding Lathe Between centres: 30" (750mm) Swing over bed: 12" (300mm) Centre Height: 6" (152mm) Height of base to centre line: 40" (1016mm) Spindle Thread: 1 1/2" x 6 TPI Spindle: 3 Morse Taper Spindle Bore: 25/32" (20mm) Tailstock Taper: 3 Morse Equipment: Tool Rest Outboard Tool Rest 14" Diameter Outboard Face Plate Capacity with outer face plate: 6" wide at 18" diameter 12" wide at 14" diameter Speeds: 4: 425, 790, 1330 & 2250rpm Power: 3/4 horse power 0.55 kW Three Phase Electrics Approx Dimensions: 1550 x 400 x 1150mm high Approx Weight: 225kg
