MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • TOOLROOM LATHE SCHAUBLIN TYPE 102N-80 TO W-25
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

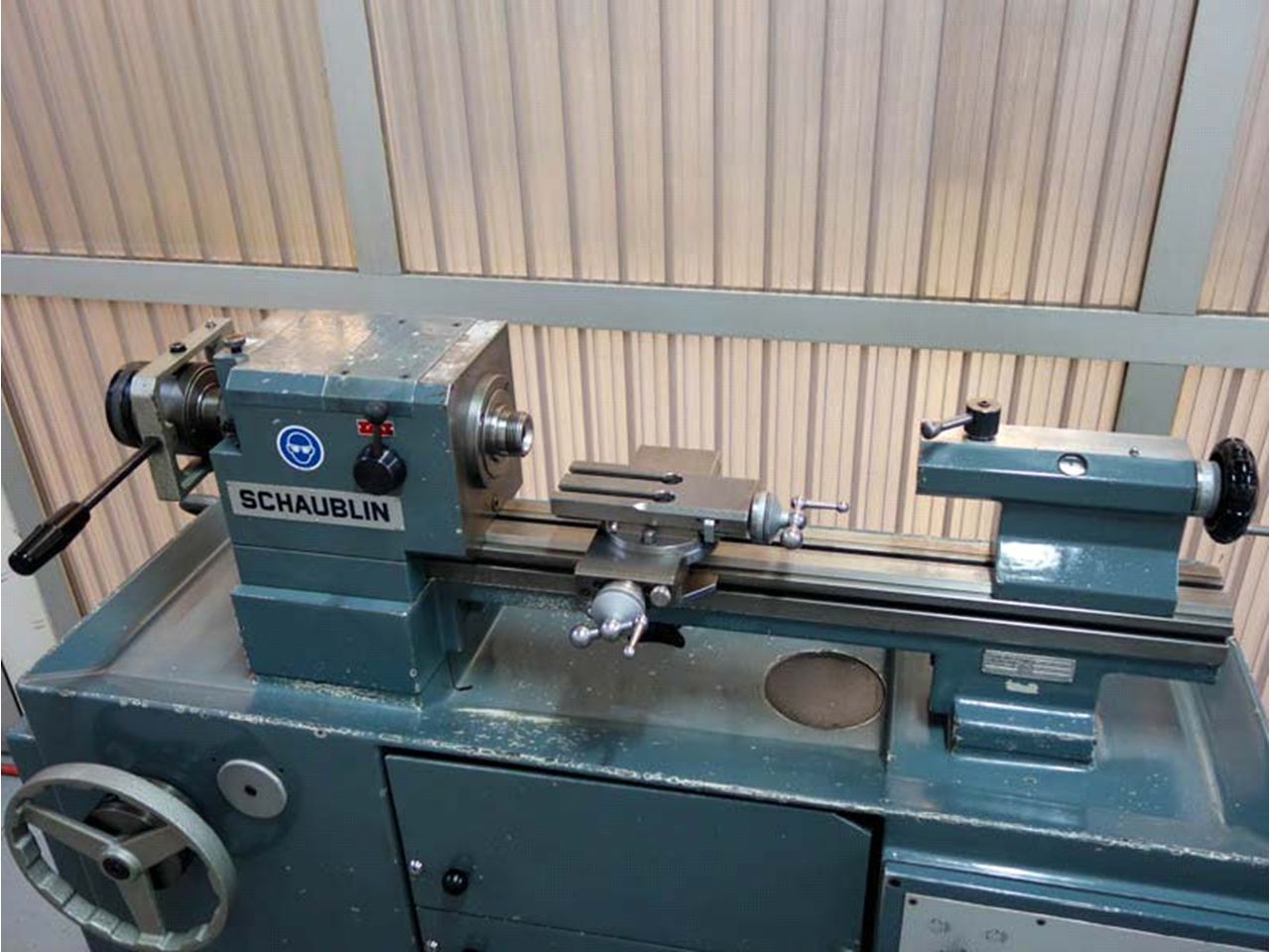

TOOLROOM LATHE "SCHAUBLIN" TYPE 102N-80 TO W-25

Reference: 2419002

headstock with reduction for collet W25, with fast clamping device



Information

Manufacturing number
Manufacturing year
Manufacturing origin Swiss
Voltage 380V 50Hz 3Ph.
Netweight 550 kg
Dimensions 200/80/140 cm
Total power
Customs position 8458.1930
Colour

TECHNICAL DATA

Capacities :
- height of centres 102 mm
- distance between centres, standard headstock W470 mm
- distance between centres, headstock type W with
reduction unit 375 mm
- Swing over bed 200 mm
- Swing over carriage 120 mm
Bed :
- Height - width - lenght 168-100-1000 mm
cast-iron bed with ground inverted-V profile
Headstocks :
- spindle nose for collets W-25
- maximum bore through collet (bar capacity) 19.0 mm
- headstocks with reduction unit, ratio 1:5
Carriages :
- stroke of longitudinal tool slide 90 mm
- stroke of transverse tool slide 100 mm
- size of tools 12x12 mm

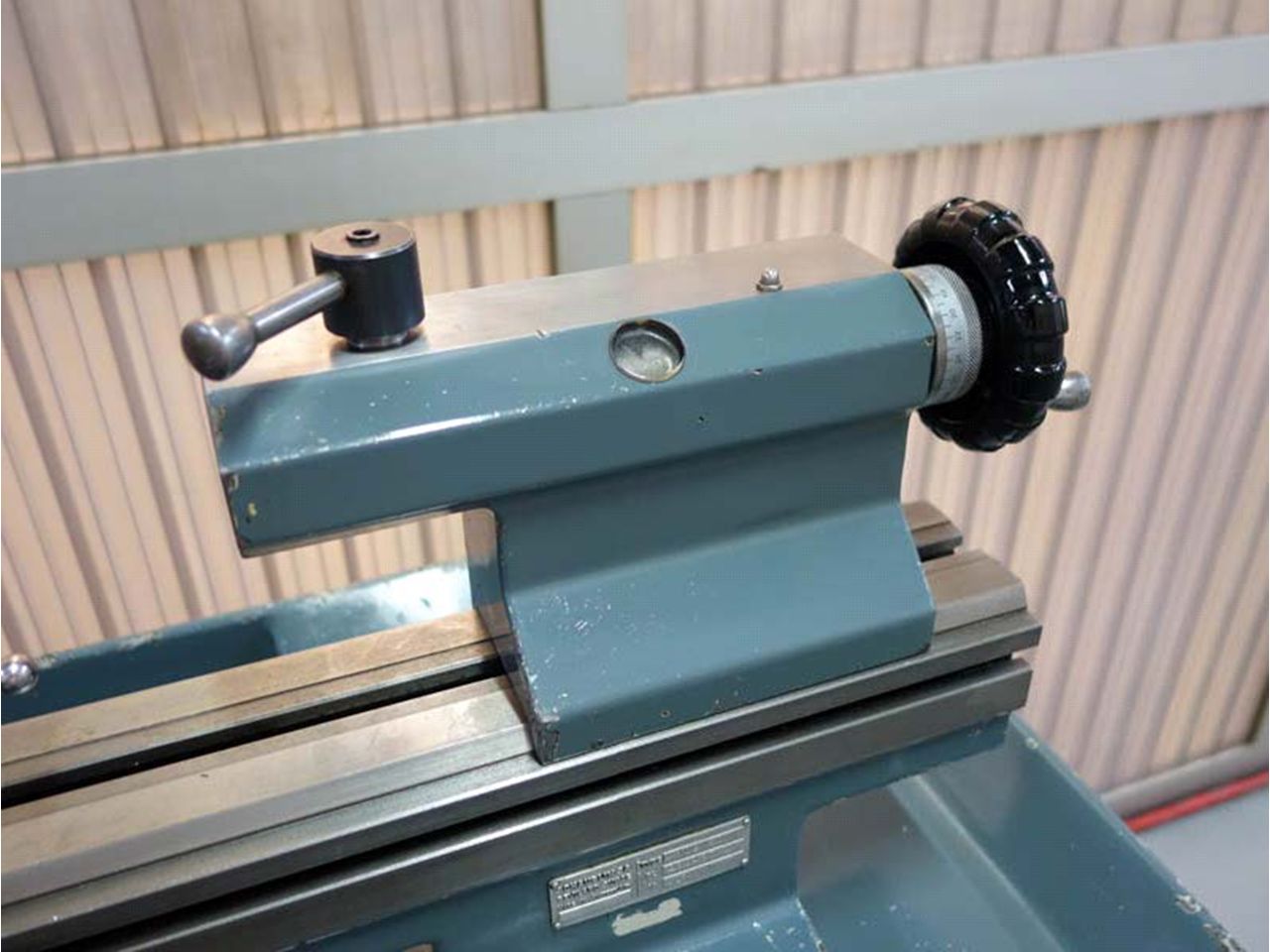

Tailstocks :
- internal taper of tailstock spindle Morse 2
- spindle stroke, screw- and handwheel-operated 80 mm
Cast iron base
errors and omissions excepted-data gived without obligation
