MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Harrison
  • Model:

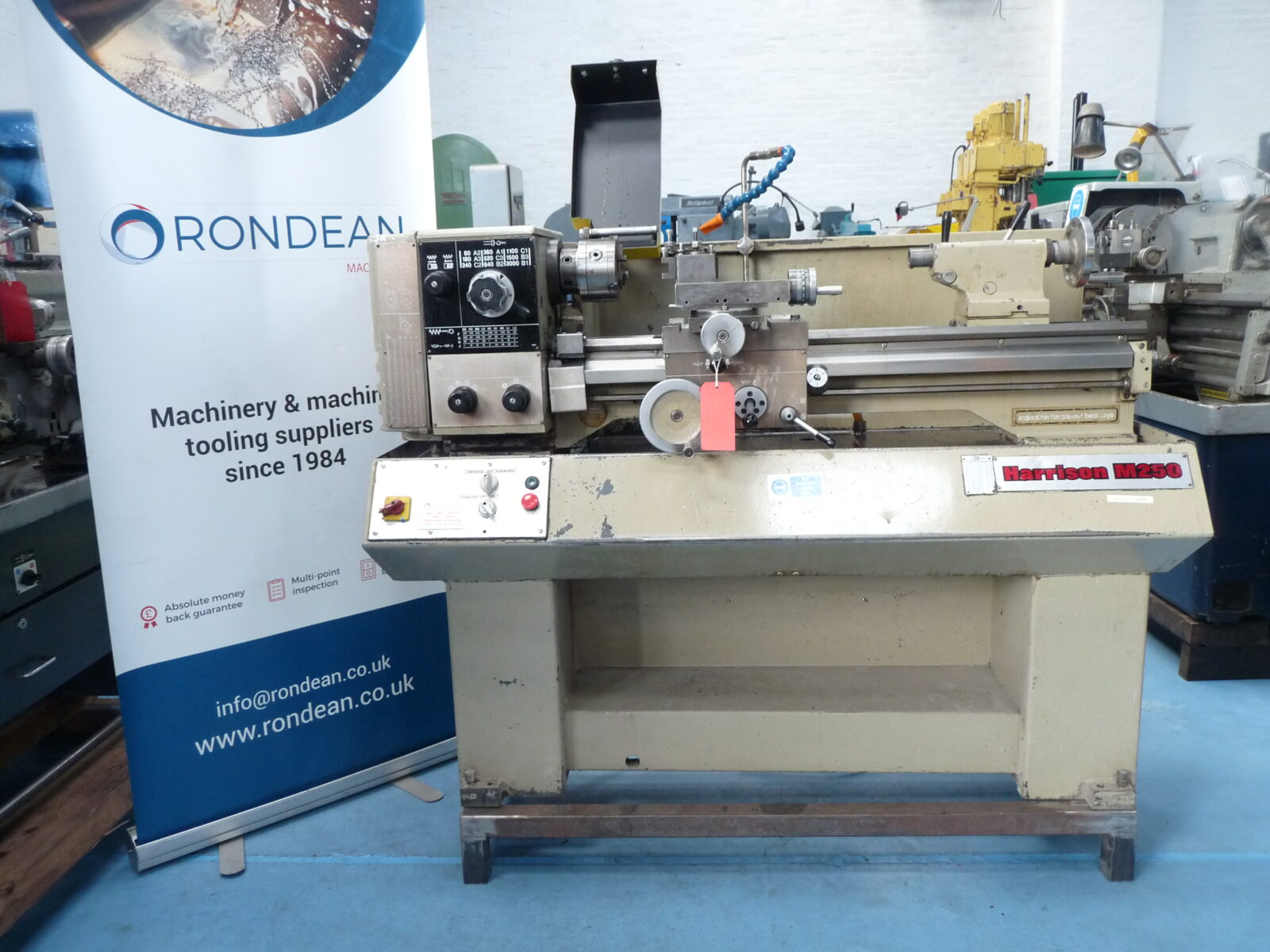

  • Harrison M250 30” Straight Bed Centre Lathe -
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • 3 Phase electrics
  • Price:
  • £4250 + VAT
  • Country:
  • United Kingdom

DESCRIPTION

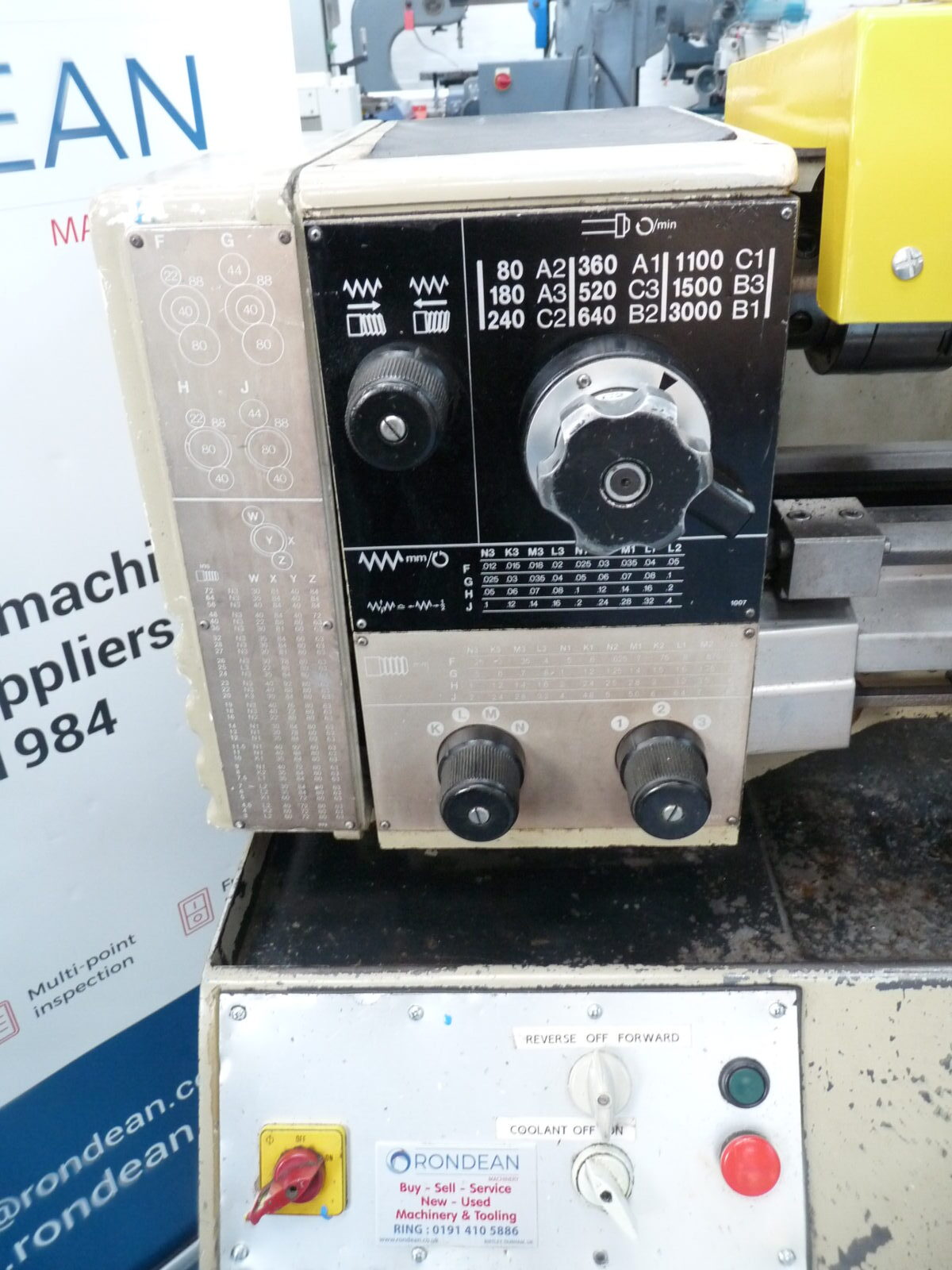

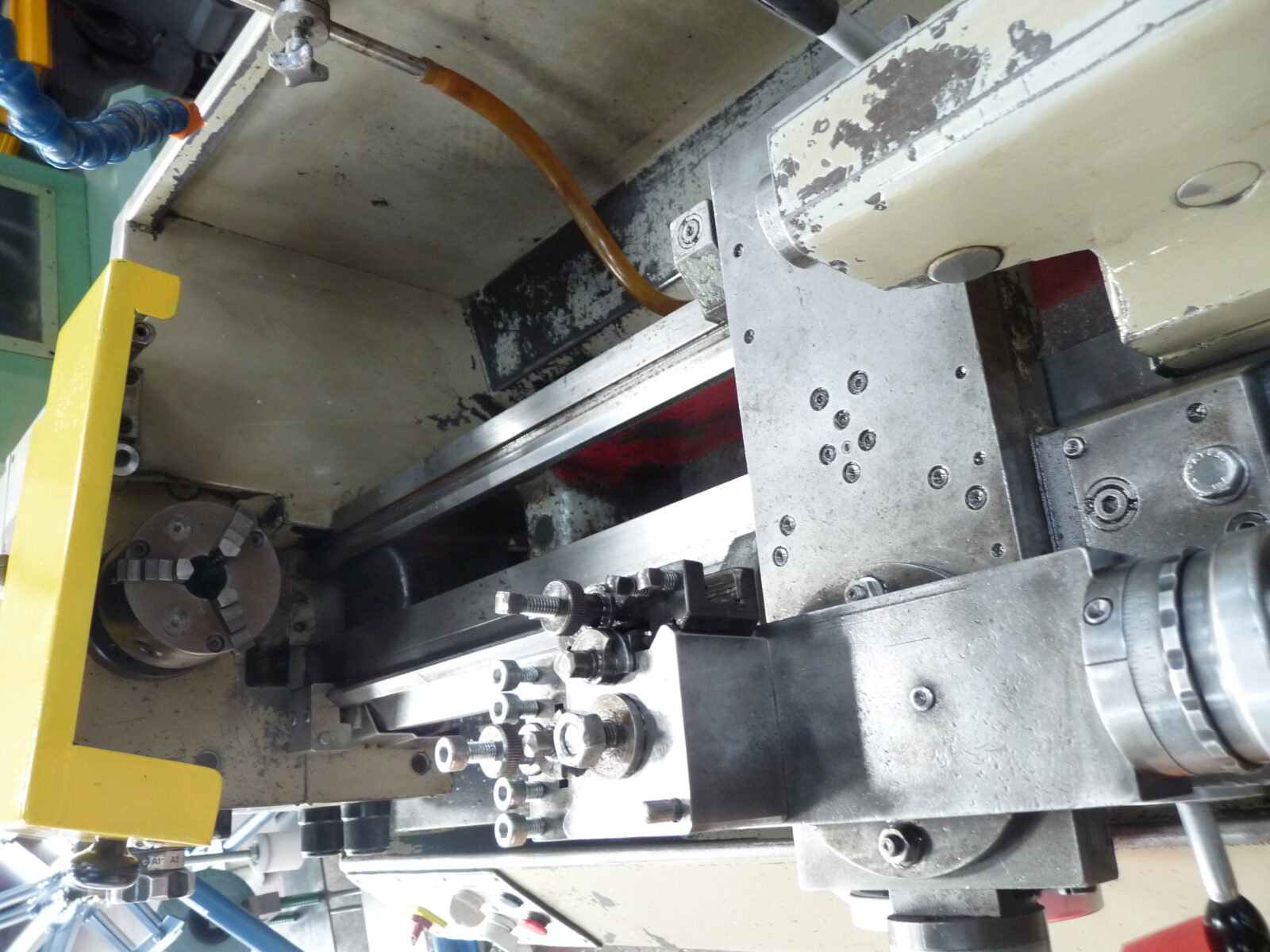

Manufacturer Harrison Model M250 Straight Bed Centre Lathe Capacity 30" (750mm) Between Centres 11" (280mm) Swing Over Bed 7" (178mm) Swing over cross slide 3MT Tail Stock Spindle Bore 1 3/8" (35mm) Spindle Nose D1-3” Camlock Equipment 3 Jaw Chuck Quick Change Tool Post (holds two tools) Coolant Splash Back Safety Lead Screw Covers Chuck Guard Speeds 9: 80 to 3000rpm (80, 180, 240, 360, 520, 640, 1100, 1500, 3000 rpm) Main Motor 1.3 kW (1.8hp) Power Three Phase Electric's 2.9 amps Dimensions 1605 x 735 mm weighs approx 500 Kg Safe lifting and handling We supply lifting and moving instructions. We also loan our specialist lifting equipment where required. Delivery Options To suit your needs, call us for a quote.
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    Rondean

    • Contact Name
    • Allison King
    • Contact Number
    • +44 (0) 191 410 5886
