MACHINE INFORMATION AND SPECIFICATION
Model:

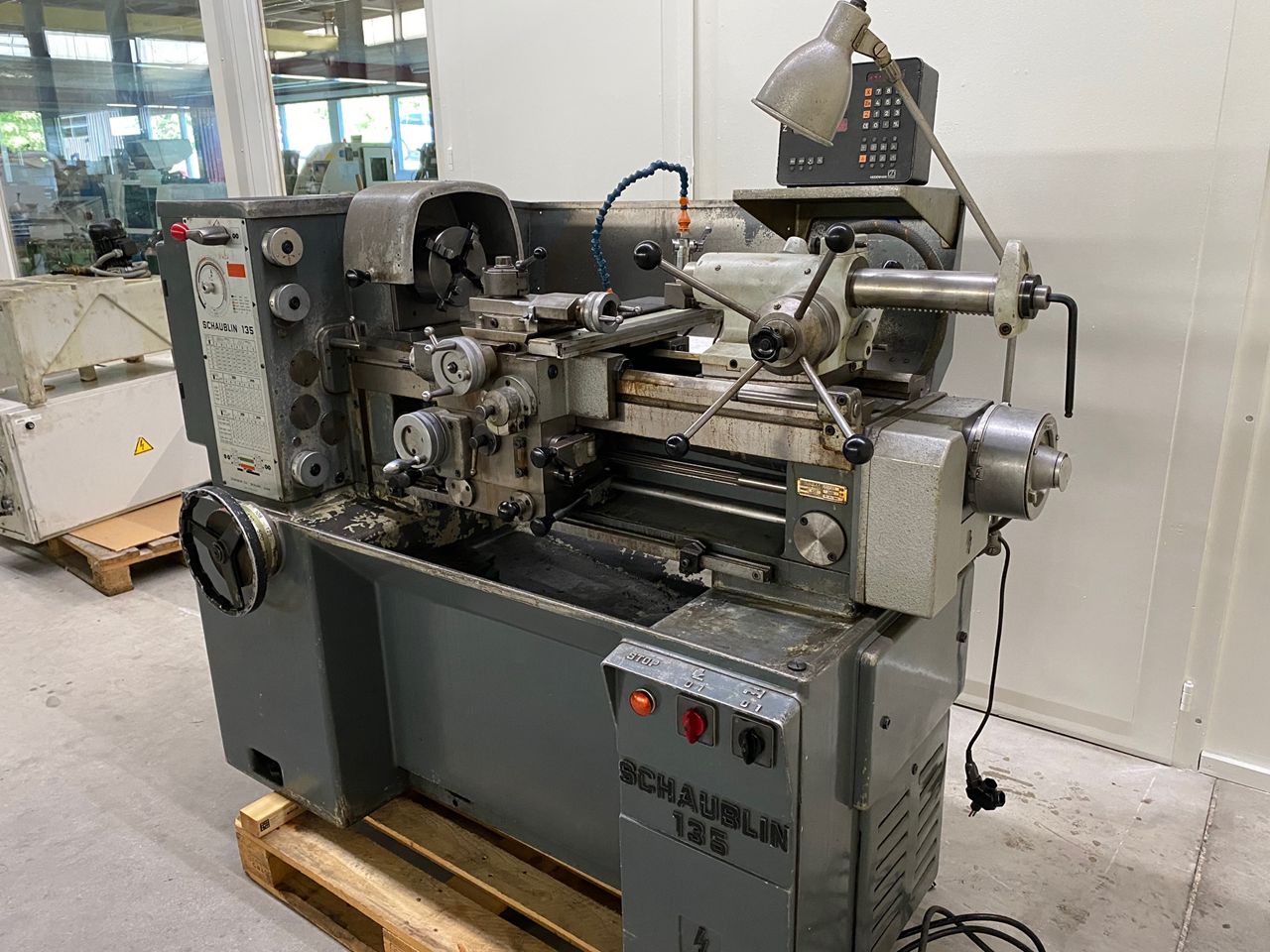

LEADSCREW LATHE SCHAUBLIN TYPE 135
Country:
Switzerland

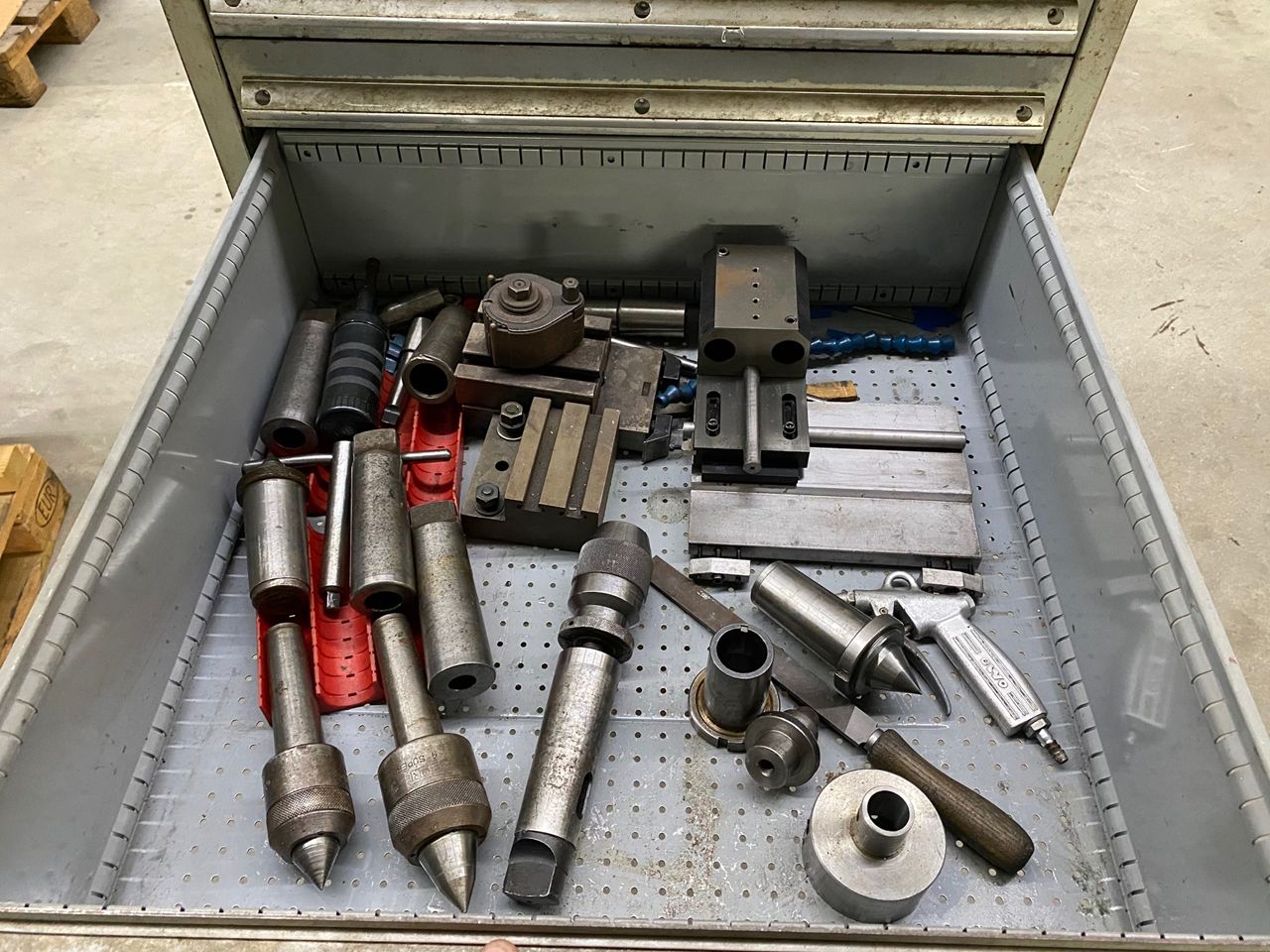

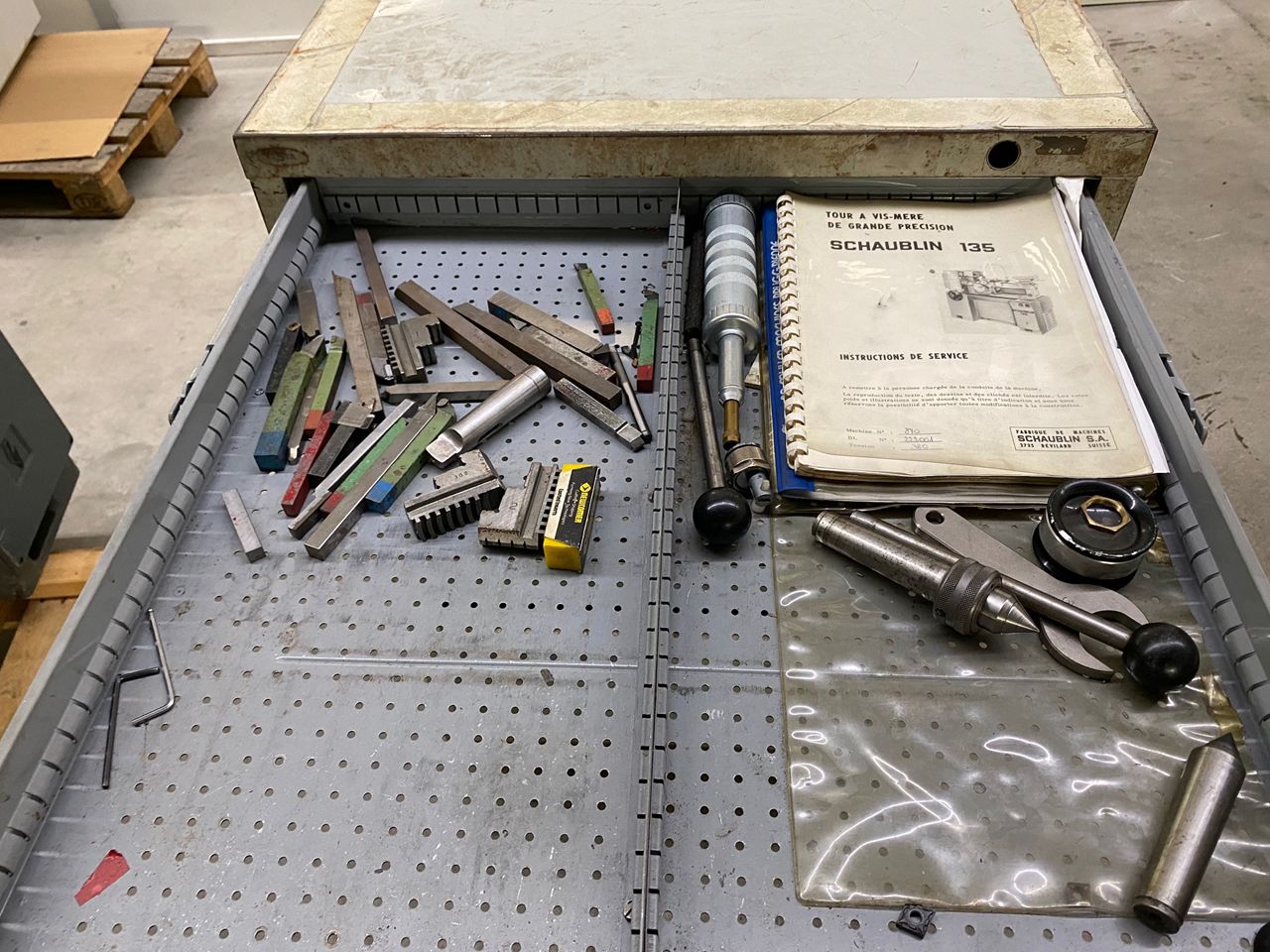

DESCRIPTION
LEADSCREW LATHE SCHAUBLIN TYPE 135
Reference : 2320012
Information Manufacturing origin Swiss Netweight 1200 kg (gross 1350 kg) Custom position 8458.1920
See more TECHNICAL DATA : CAPACITY : Height of centres 135 mm Distance between centres 630 mm Swing over bed 315 mm Swing over carriage 150 mm
HEADSTOCK : Spindle speeds, infinitely varaible 55-3000 rpm. Spindle speeds, with open belt drive 220-3000 rpm. Spindle speeds, with reduction gears 55-750 rpm. Spindle nose Camlock D1-4" Spindle bore dia. 40 mm Spindle clamping taper Morse No. 5 Reduction bush for collet type B-32 Bar capacity of collet 24 mm
BED : Height x width x length 320 x 270 x 1300 mm
TAILSTOCK : Spindle dia. 50 mm Internal spindle taper Morse No. 3 Spindle traverse 120 mm Transversal adjustment = 10 mm
FEED AND SCREWCULTING GEAR BOX : Number of metric pitches 48 Pitches 25 to 14 mm Number of english pitches 48 Pitches 72 to 1 t.p.i. Number of module pitches 48 Modules 125 to 7.5 Number of longitudinal and transversal feeds per revolution of spindle 96 24 fine feeds 015 to. 21 mm 24 feeds 025 to .35 mm 48 feeds by the use of screwcutting gears 25 to 14 mm
CARRIAGE : Travel along bed 630 mm Tool slide, width x length 95 x 225 mm Traverse 100 mm Height of centres above slide 26 mm Dimensions of tools 16 x 16 mm Cross slide, width x length 155 x 420 mm Traverse 180 mm Carriage body, guiding length on bed 400 mm

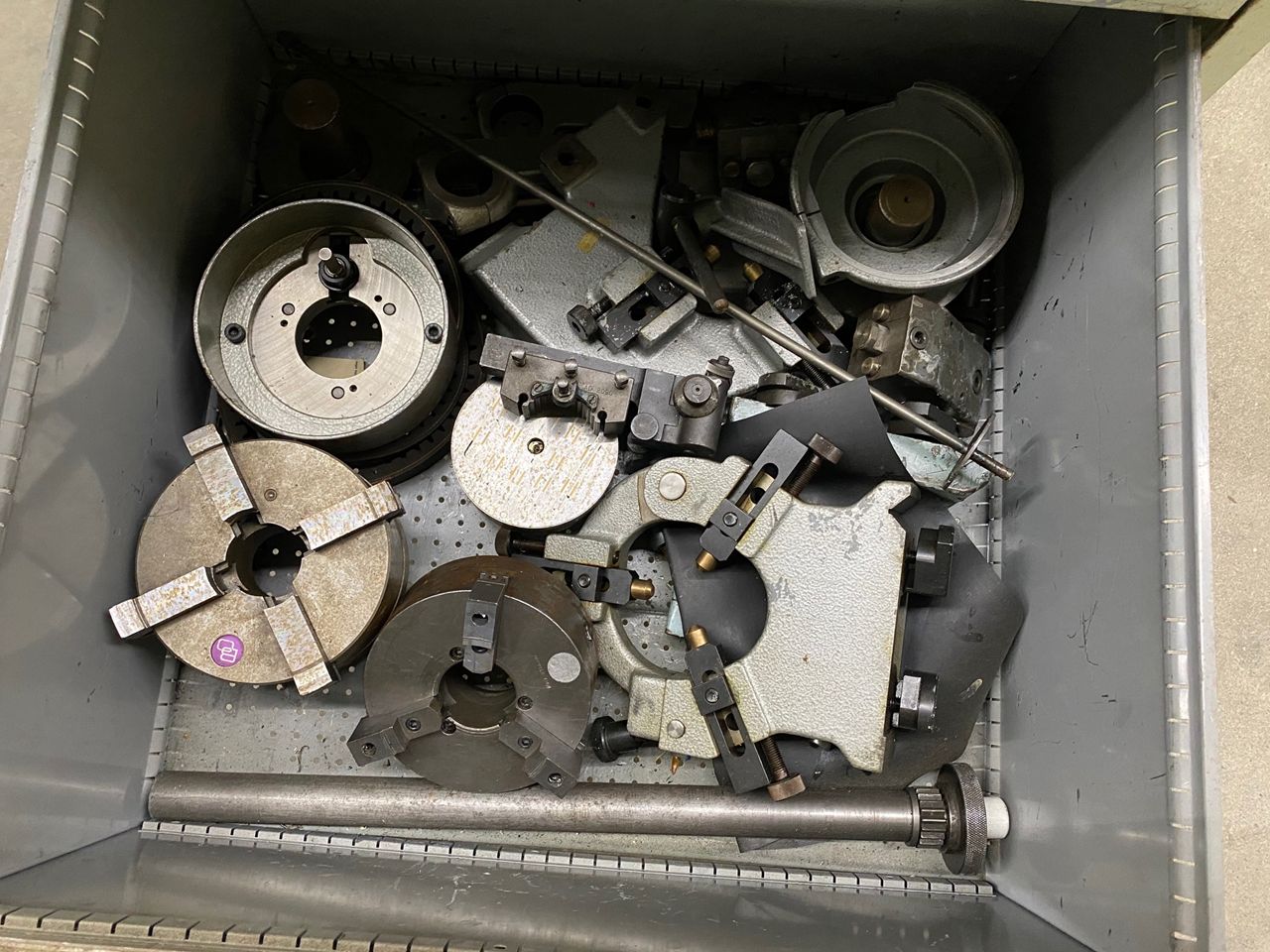

STEADIES : Diameter of stock accommodated in both stationary and travelling steadies 5 to 100 mm
COOLANT SYSTEM : MOTOR : Speeds 750 / 3000 rpm. Power 2 / 4 HP errors and omissions excepted data gived without obligation
