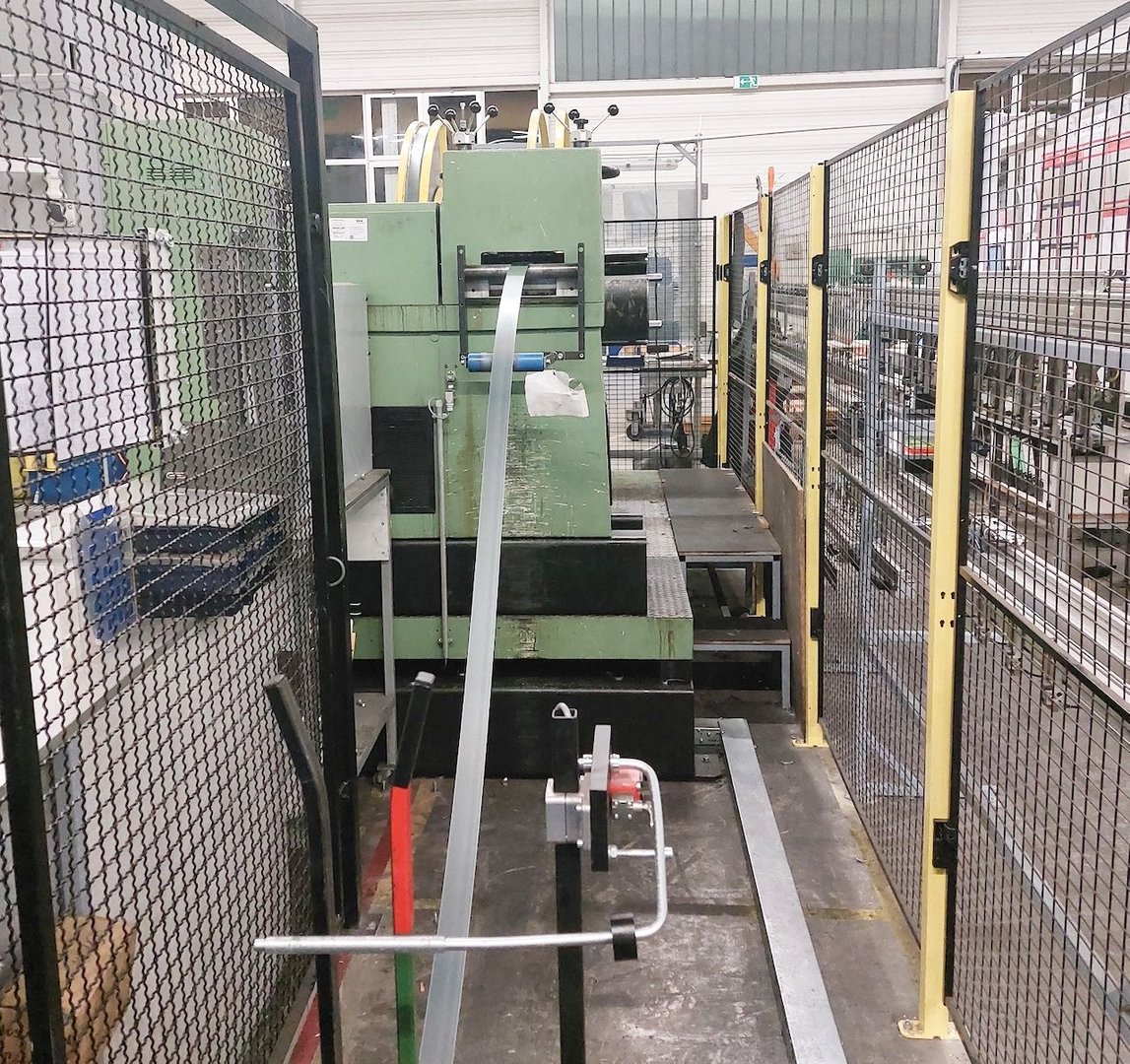

KOHLER 18.260/19-1000.2H

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Kohler

    Model:

  • KOHLER 18.260/19-1000.2H

    Condition:

  • Used

    YOM:

  • NA

    Control:

  • NA

    Price:

  • POA

    Country:

  • Germany
DESCRIPTION
  • Decoiler Double mandrela coil weight each side: 1 ton
  • Material width: 260 mm
  • Coil exterior diameter: 1.800 mm
  • Spacing: 380 - 520 mm
  • Leveller / Straightener Material width : 260 mm
  • Number of levelling rolls: 19 pcs.
  • Diameter of the levelling rolls: 18 mm
  • Material thickness: 0,3 - 3 mm
  • Feeding speed: 0 - 60 m / min
  • Required power: 4,5 kW
  • Weight of machine approx.: 3 ton
  • Dimensions L x W x H: 3.600 x 1.800 x 1.850 mm
  • - Decoiler axial movable
  • - pneumatic brake
  • - loop regulation with sensor
  • - drive shafts have a circulatory oil lubrication
  • - elektro-motor dispersion
  • SIEMENS SIMOREG PLC
  • Feeding line was completely overhauled in 2018.
  • Direction from RIGHT to LEFT
.
