MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Schuler
  • Model:

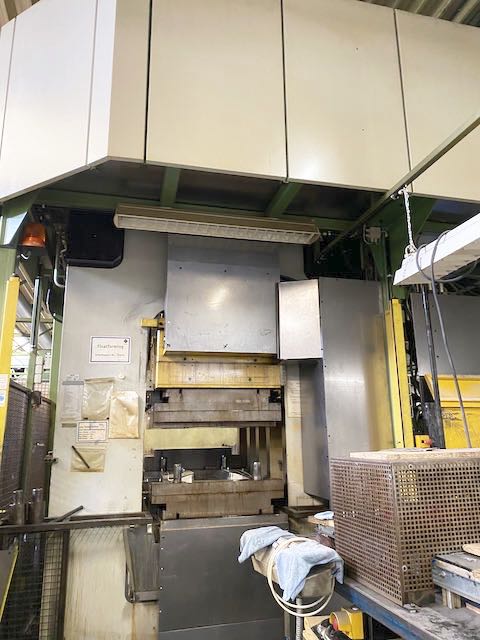

  • SCHULER SHPS 50000
  • Condition:
  • Used
  • YOM:
  • 2005
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Capacity: 5.000 ton
  • Table surface area : 2.000 x 1.000 mm
  • Slide area: 2.000 x 1.000 mm
  • Die height: 495 mm
  • Stroke length ram: 500 mm
  • Stroke length cushion (up): 10 mm
  • Stroke length cushion (down): 10 mm
  • Closing speed: 400 mm / sec
  • Working speed: 2,5 mm / sec
  • Return speed: 400 mm / sec
  • Die Weight total: 8.000 kg
  • Upper tool weight max.: 4.000 kg
  • Required power: 220 kW
  • Total power: 350 A
  • Oil volume: 3.750 l
  • Weight of machine approx.: 73 ton
.
