MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Downham
  • Model:

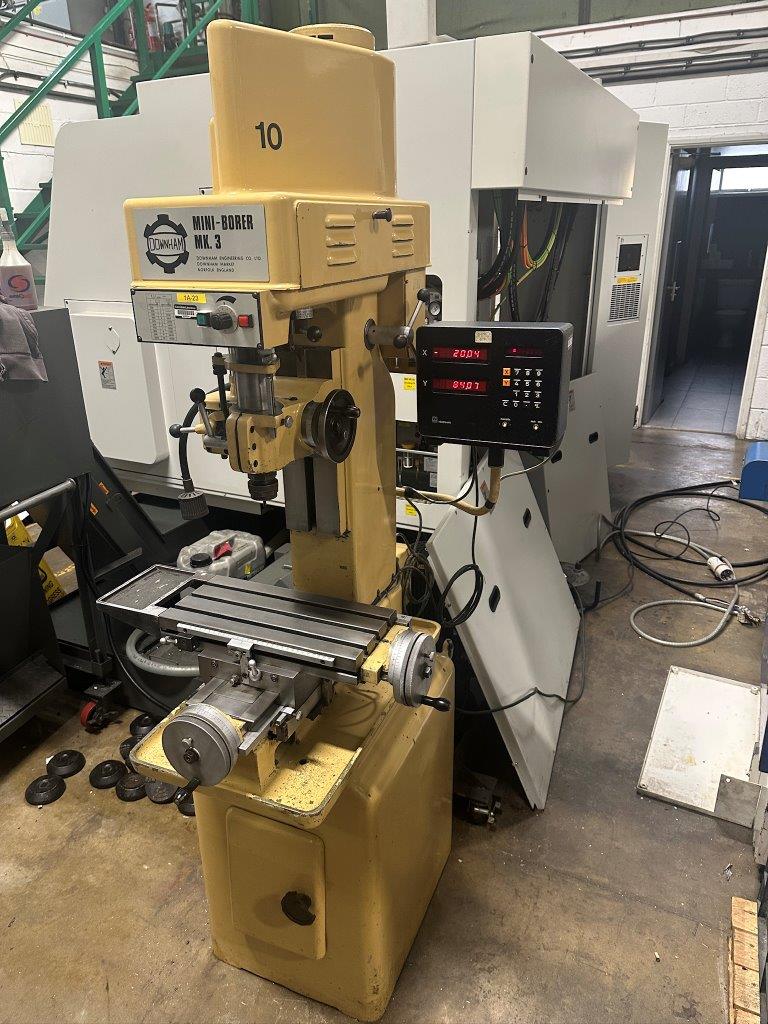

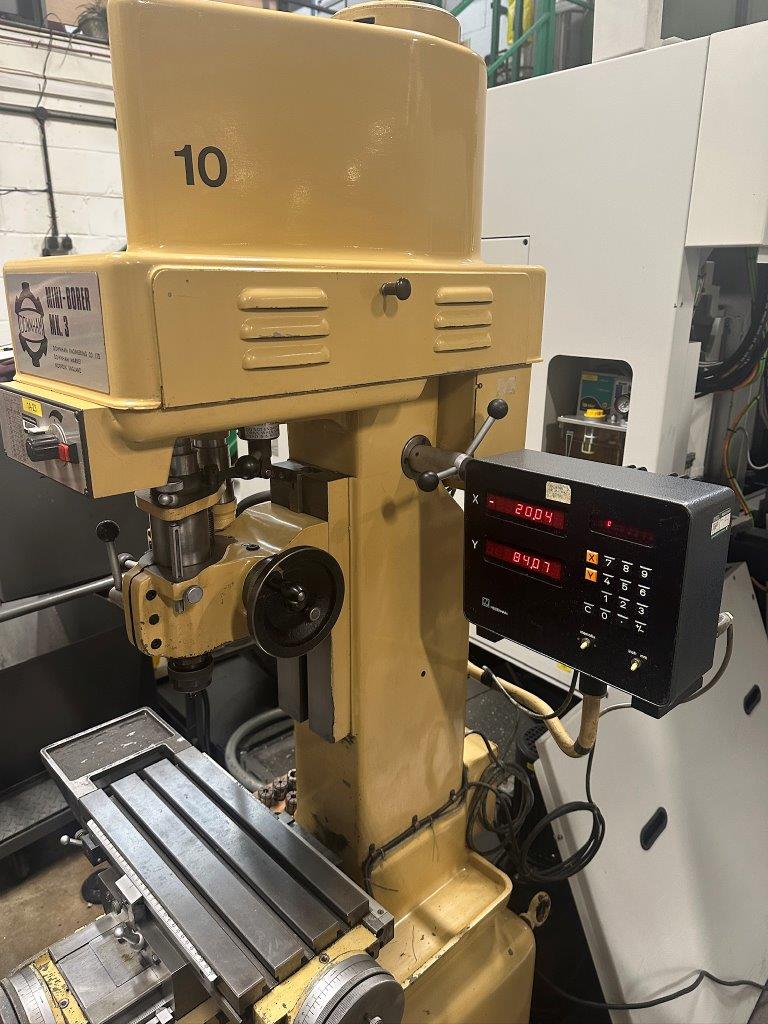

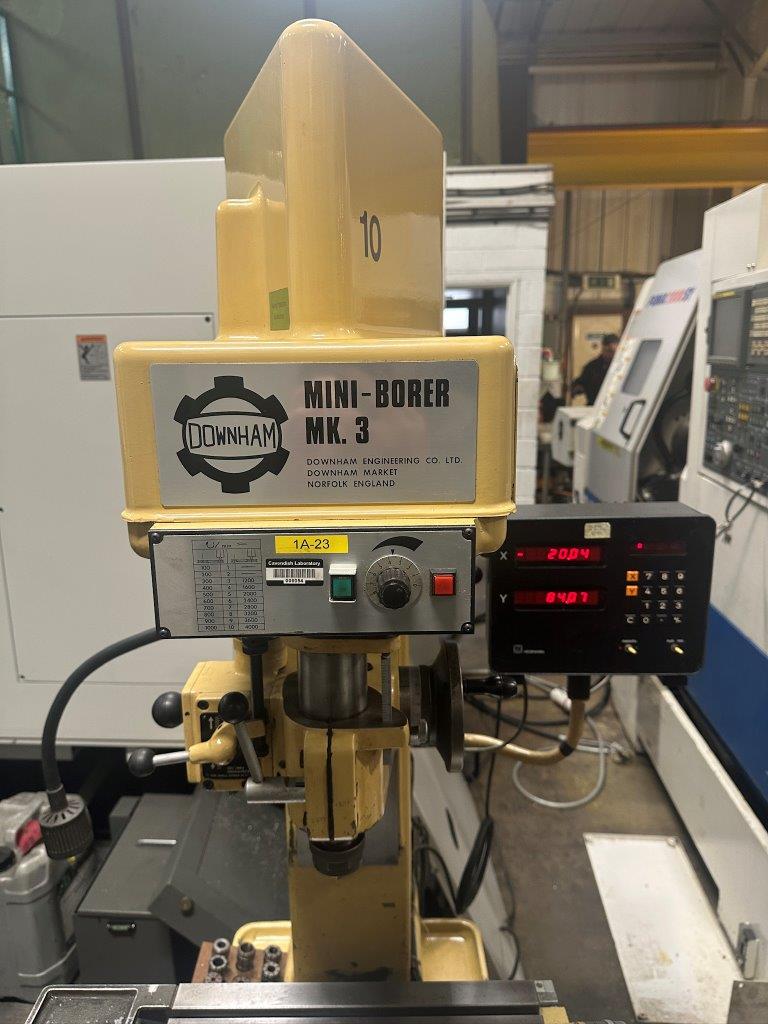

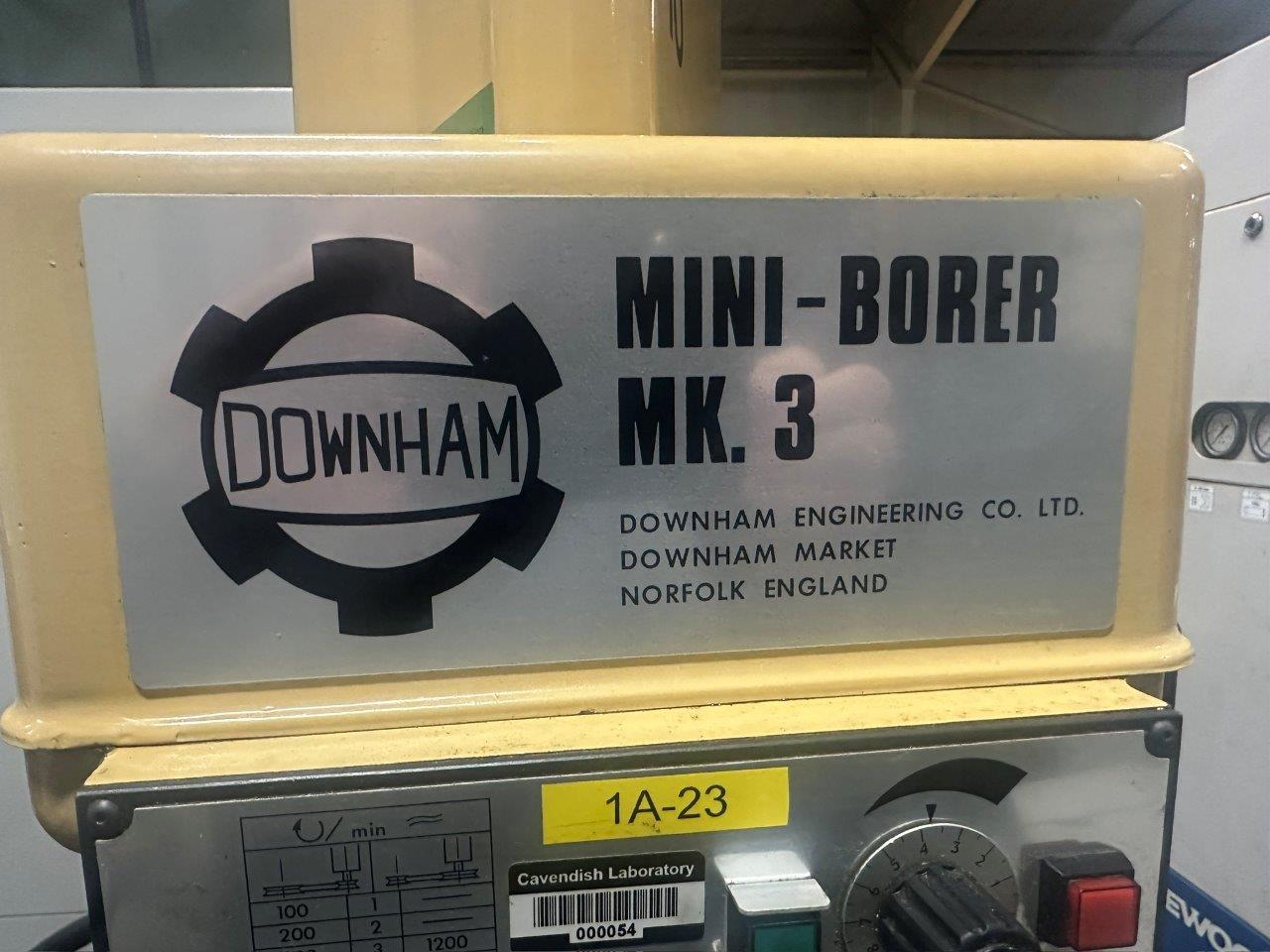

  • Used Downham Mill-Borer Mk3 (4204)
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

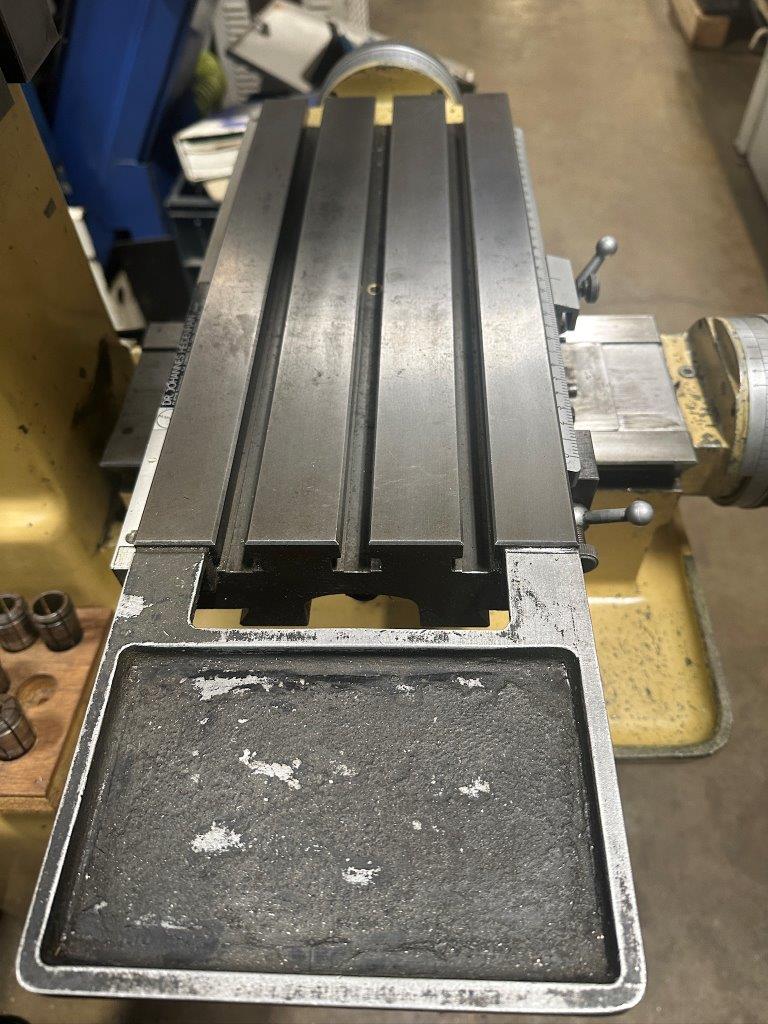

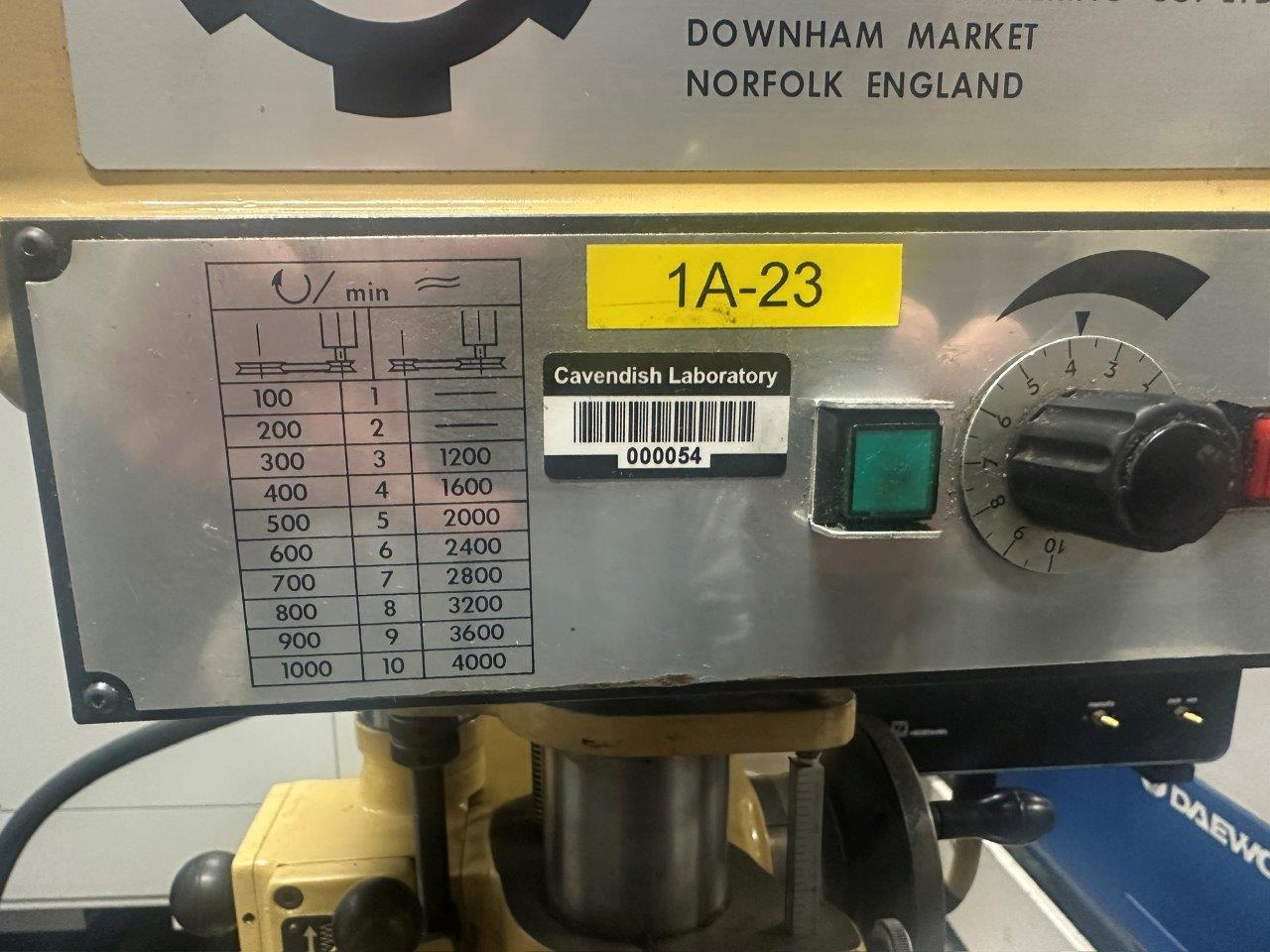

Used Downham Mill-Borer Mk3, Table 406 x 178mm, Long travel 305mm, Cross travel 190mm, Spindle travel 76mm, Distance between spindle nose and table 12 to 254mm, .75kw spindle Motor, 1MT Spindle Taper, Spindle speed variable 100-1,000RPM and 1,200 to 4,000RPM, Power supply - Single phase, (1ph), Dimensions 700 x 865 x 1,905mm high, weight 450kgs
