MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Universal
  • Model:

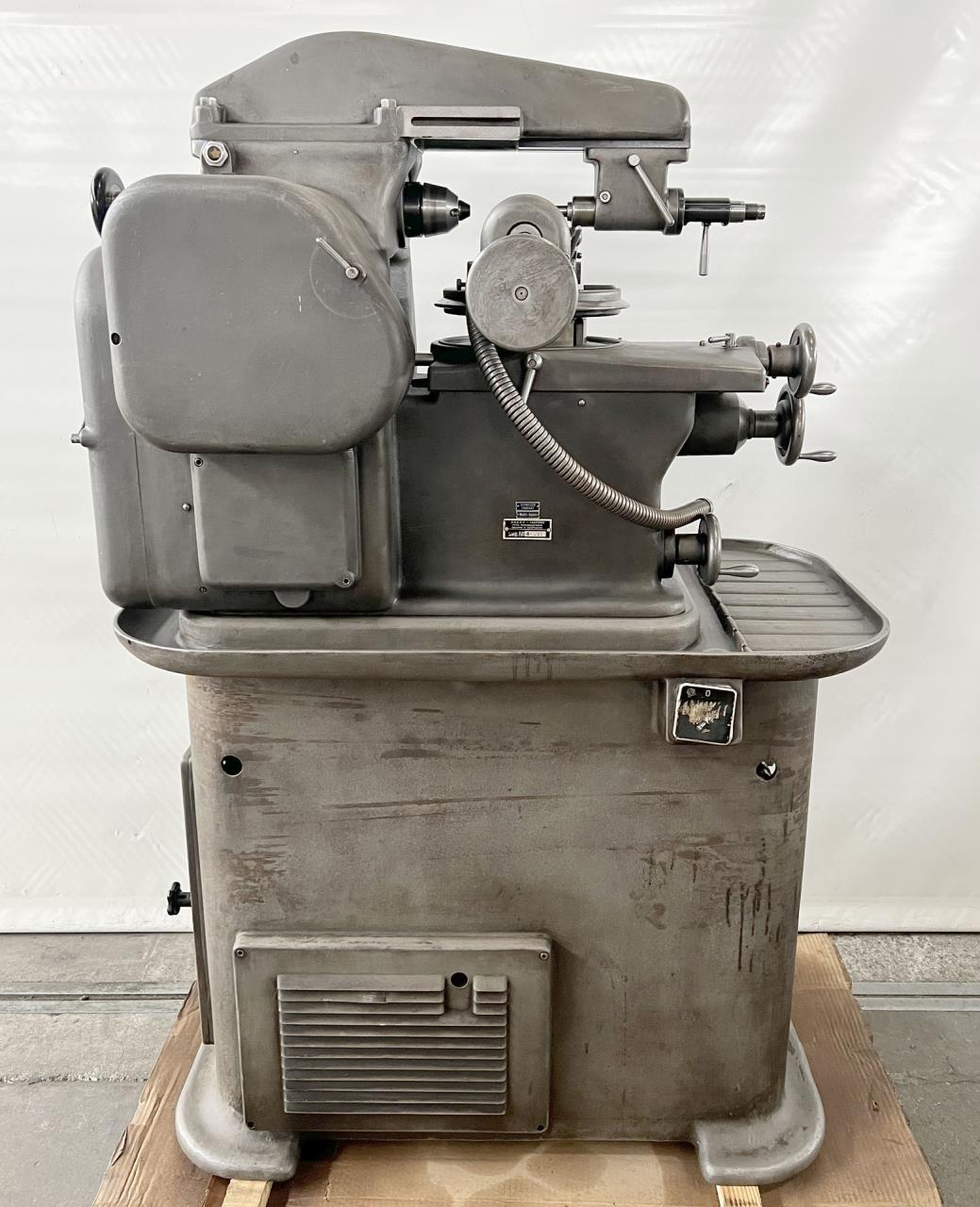

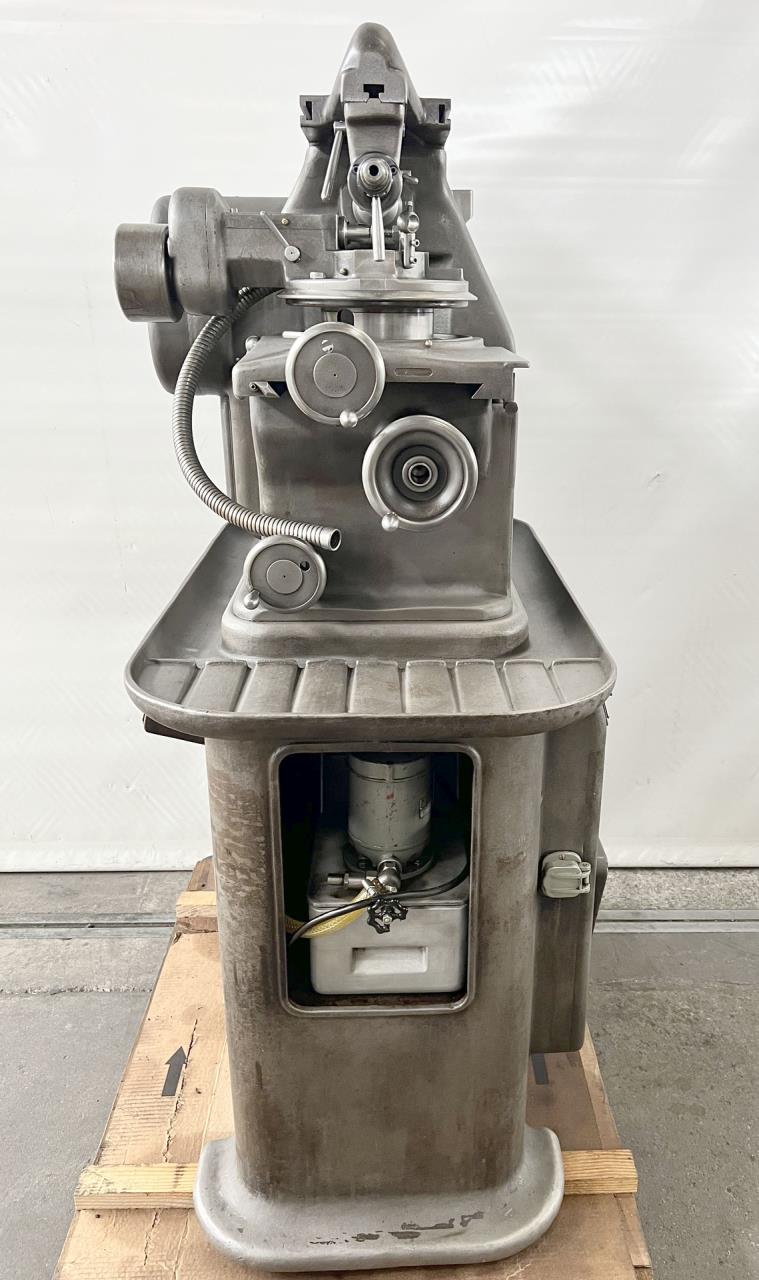

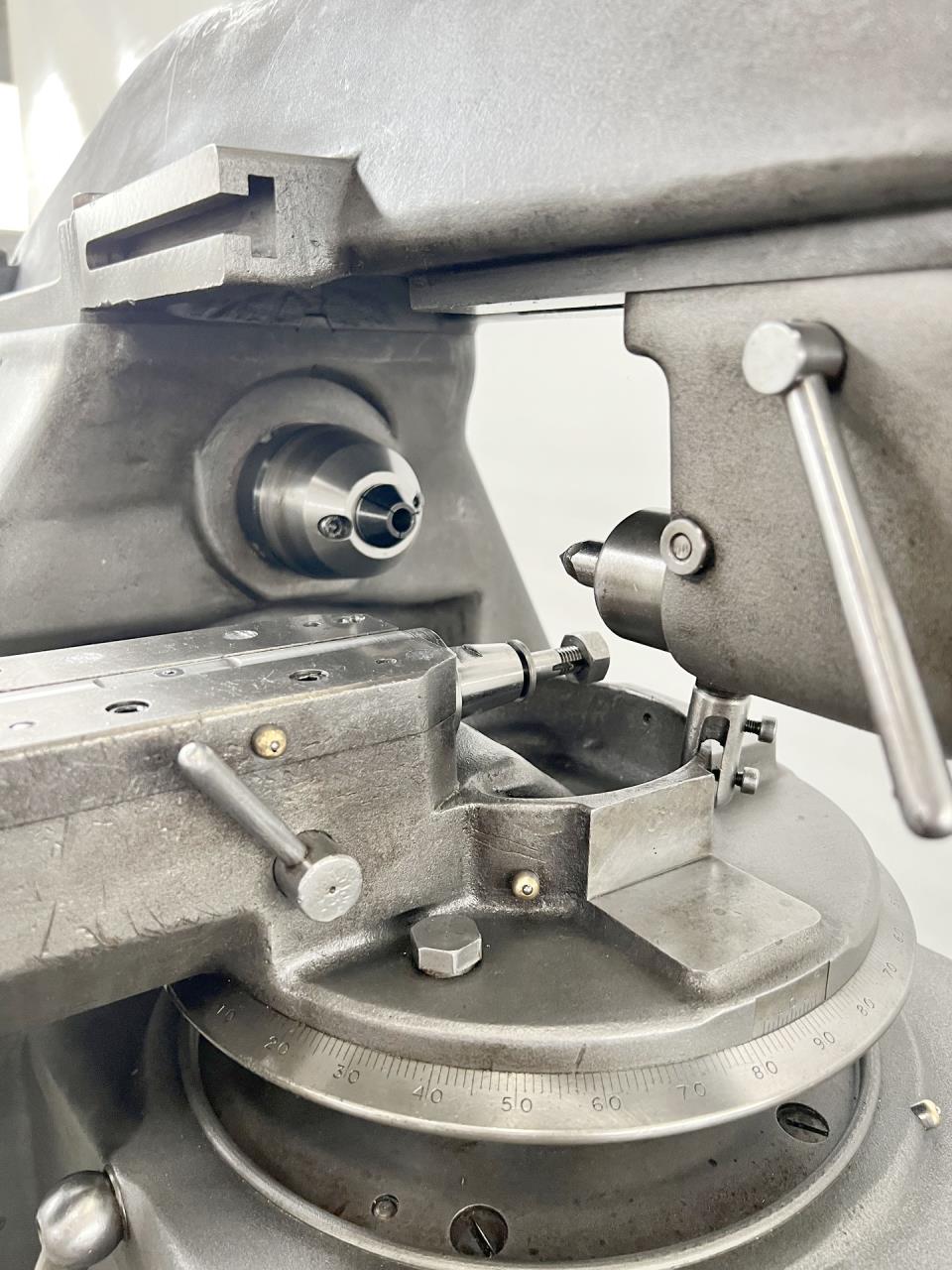

  • Universal gear hobbing machine
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

{"Work capacity:max. diameter": "120 mm", "Collet attachment": "20 W", "Max. module": "2", "Workpiece length max.": "130 mm", "Pitch min.": "2", "max.": "400", "Spiral lead:": "", "from": "0.05 mm/r", "up to": "0.6 mm/r", "Spiral lead angle:": "", "Milling cutter speeds:": "", "number (steps)": "14", "Feeds:": "", "Voltage 50 Hz 3x": "380 Volt", "Power": "0.75 kW", "Total power required": "0.85 kW", "Machine's weight about": "800 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "700 mm", "Height": "1600 mm", "Various accessories:": "", "Worm wheel milling device": ""}
