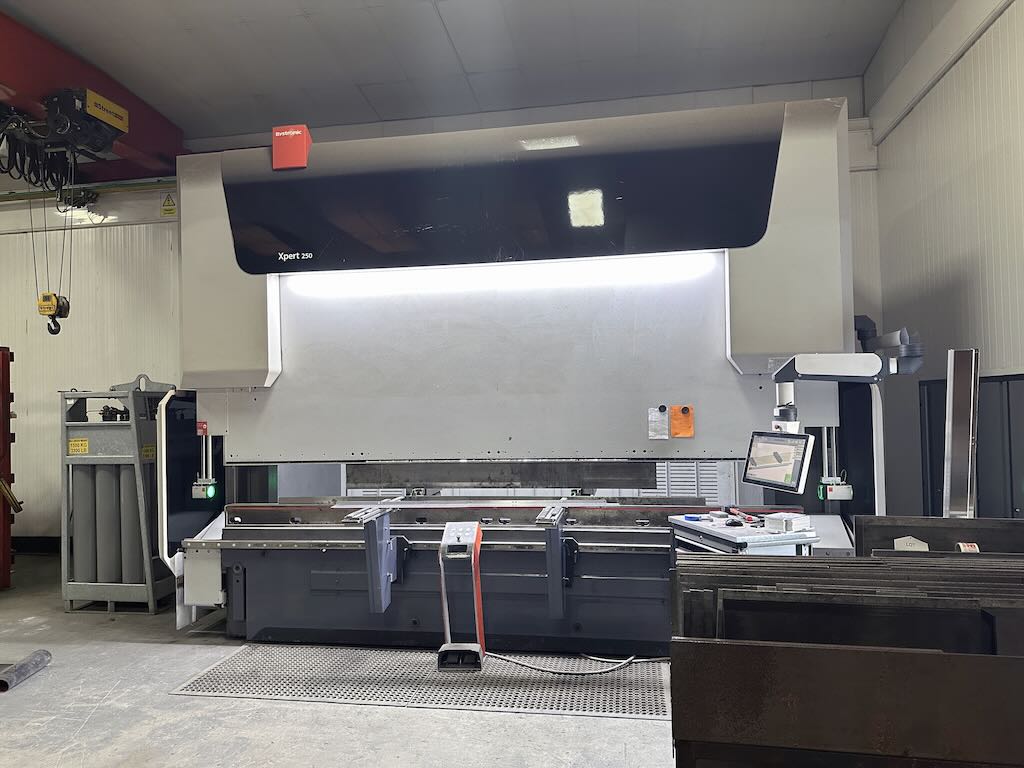

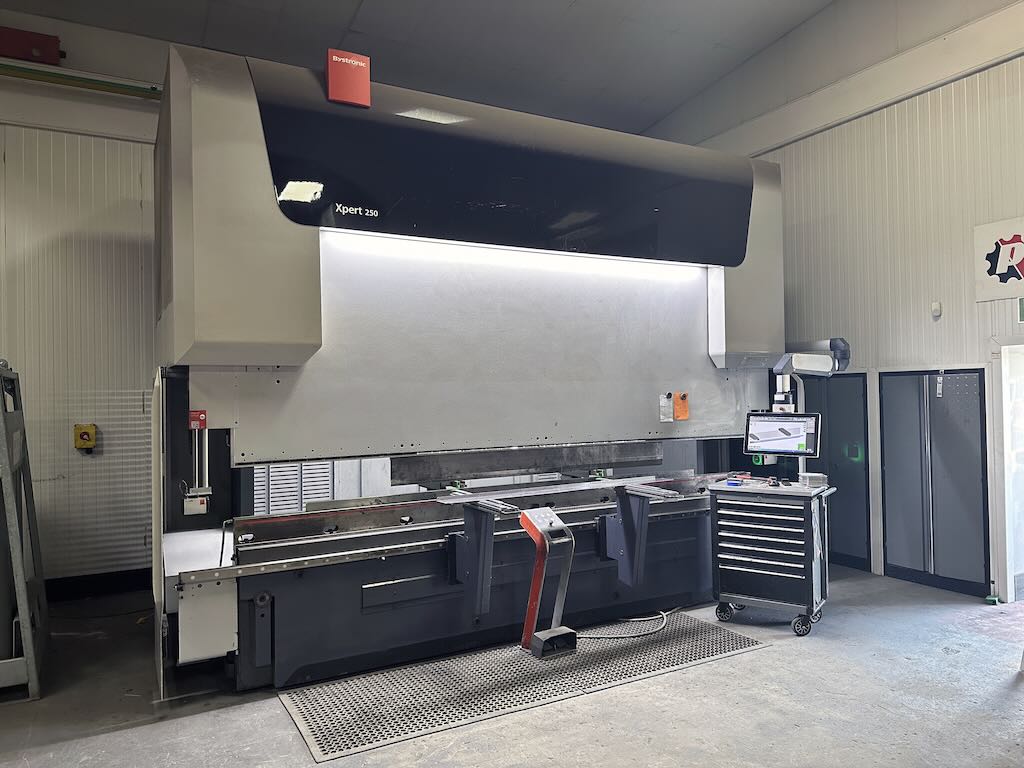

This machine is in EXCELLENT condition and is available to purchase immediately. All viewings are by appointment only.

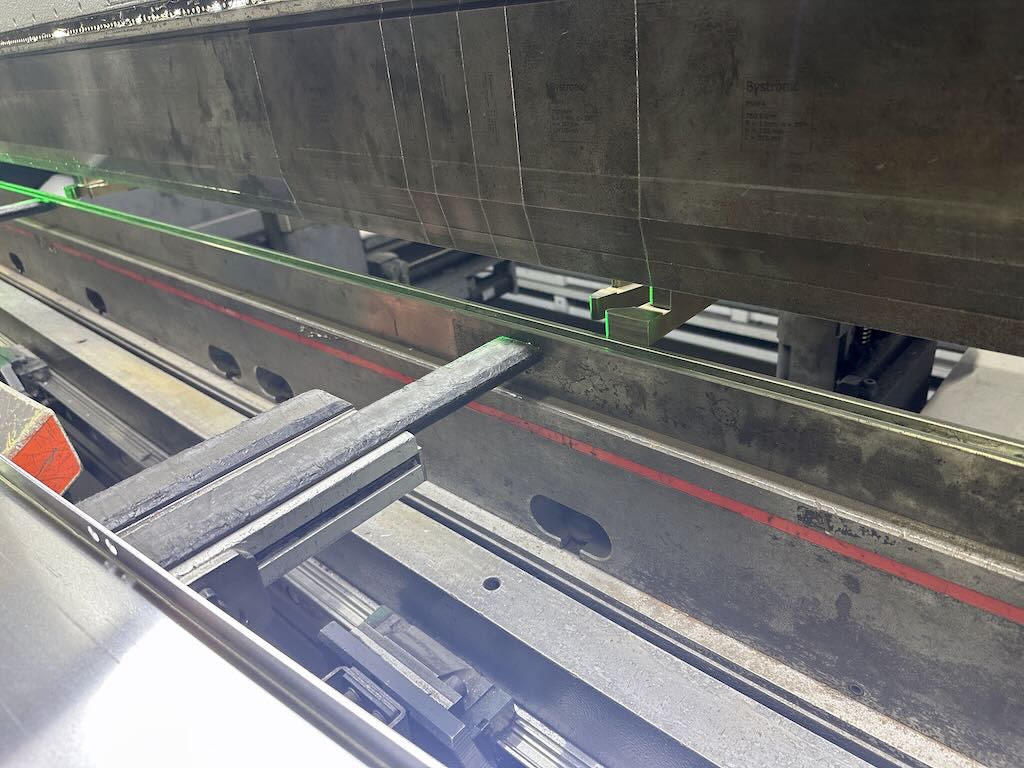

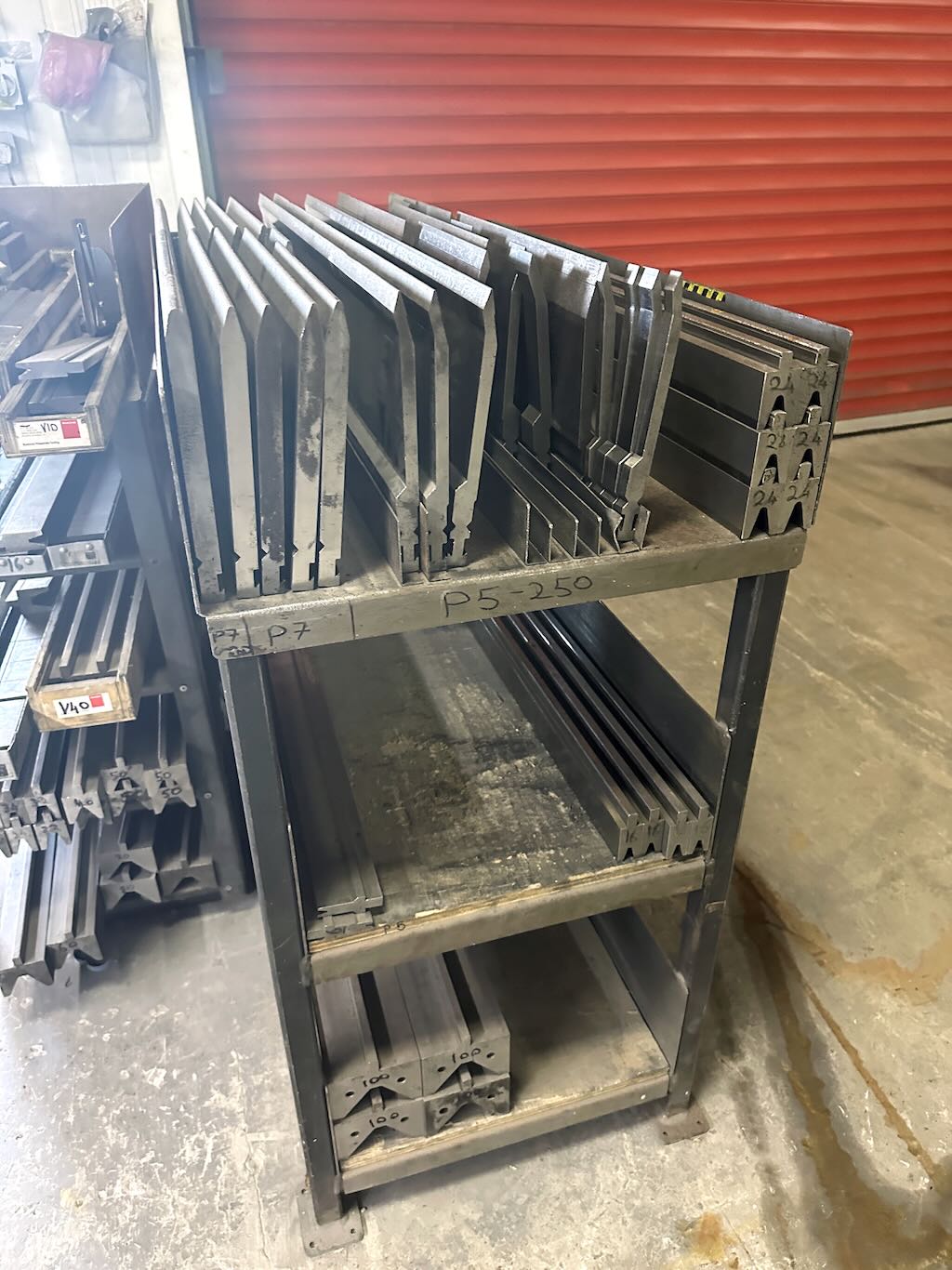

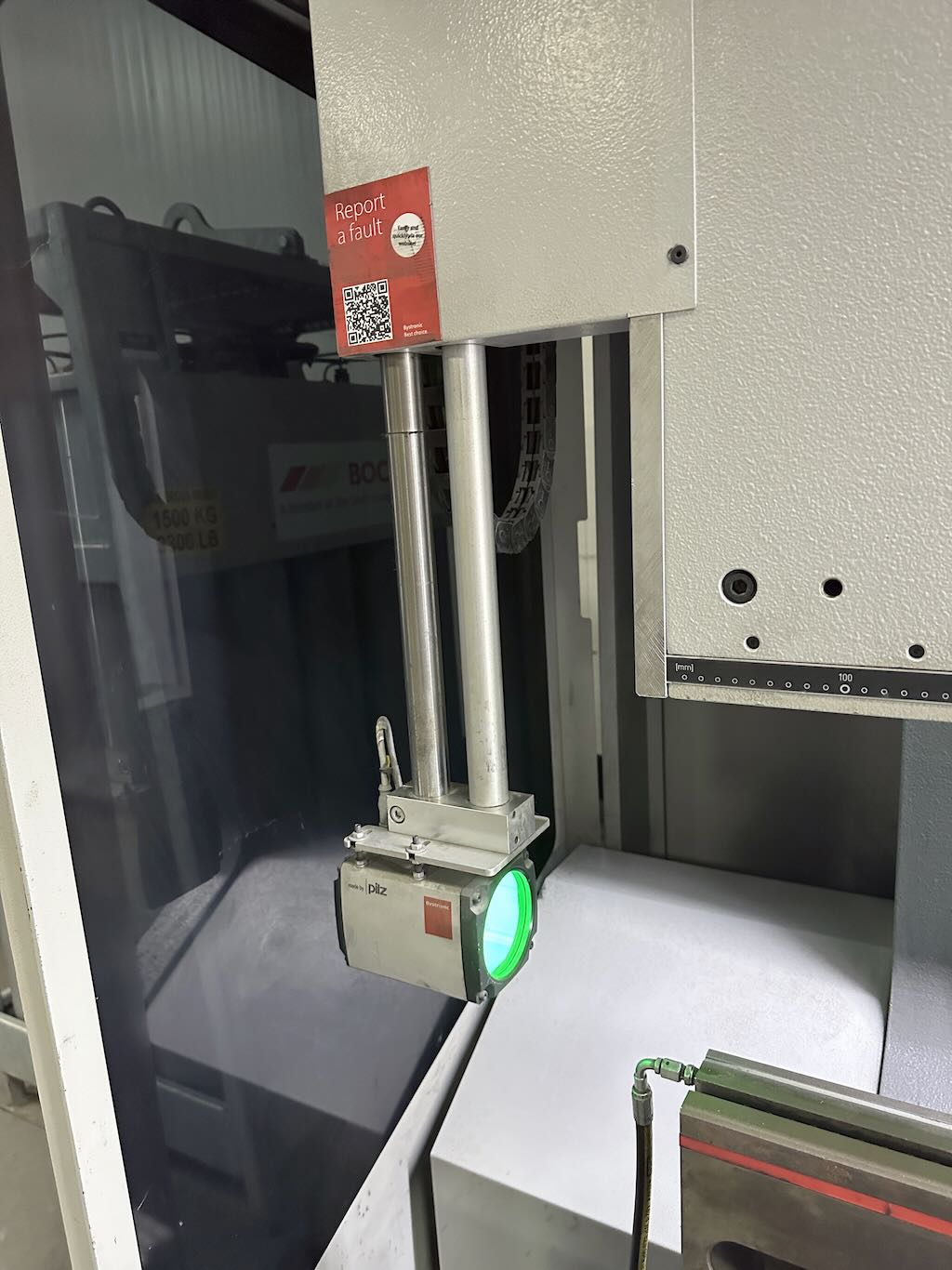

This machine comes equipped light-guarding and a selection of top & bottom tooling.

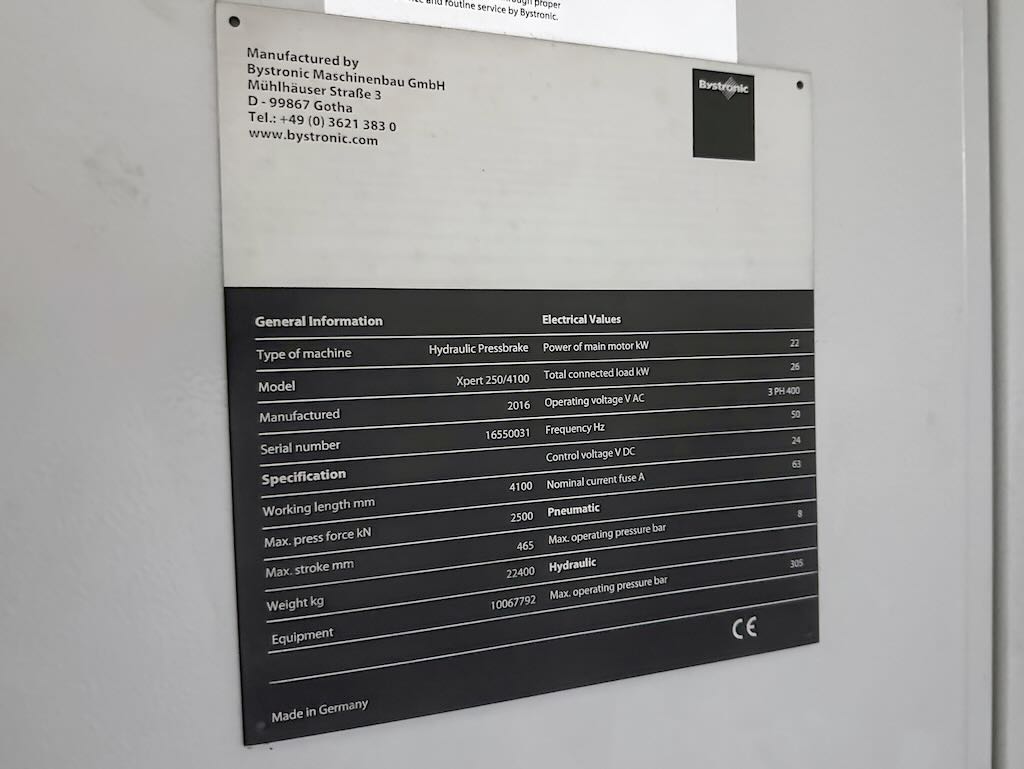

Serial Number: 16550031
Tonnage:
2,500kN
Bending Length:
4100mm
Number of Backgauge Axis:
6
Standard Stroke:
265mm
Max Stroke:
465mm
Open Height:
550mm
Distance Between Columnns:
3,600mm
Throat:
400mm
Table Width:
60mm
Backgauge Range in X:
1,100mm
Axis Travel:
X: 700mm
R: 250mm
Z: 2,900mm
Axis Speeds:
X: 500mm/s
R: 150mm/s
Z: 1000mm/s
Y: 120mm/s
Axis Accuracy:
X: 0.02mm
R: 0.1mm
Z: 0.1mm
Y: 0.01mm
Main Motor Power:
30kW
Weight:
27t
Dimensions:
4,880 L x 2,200 W x 3,230mm H
