MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Subcategory:
Other Machines

Manufacturer:
Hurco

Model:

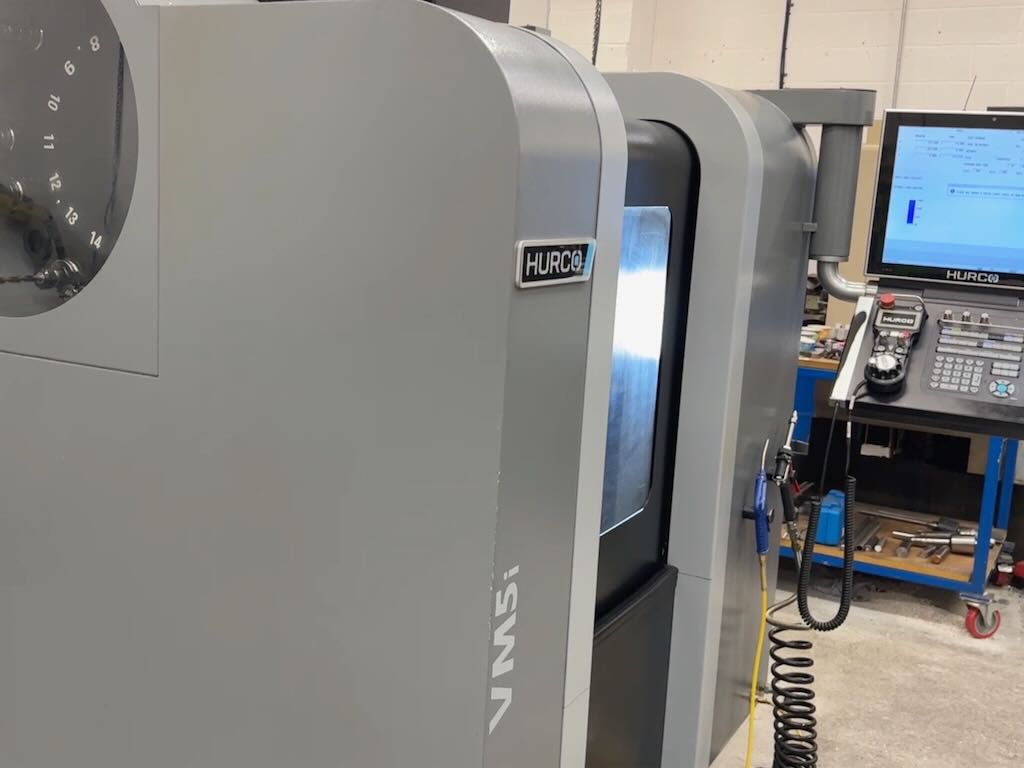

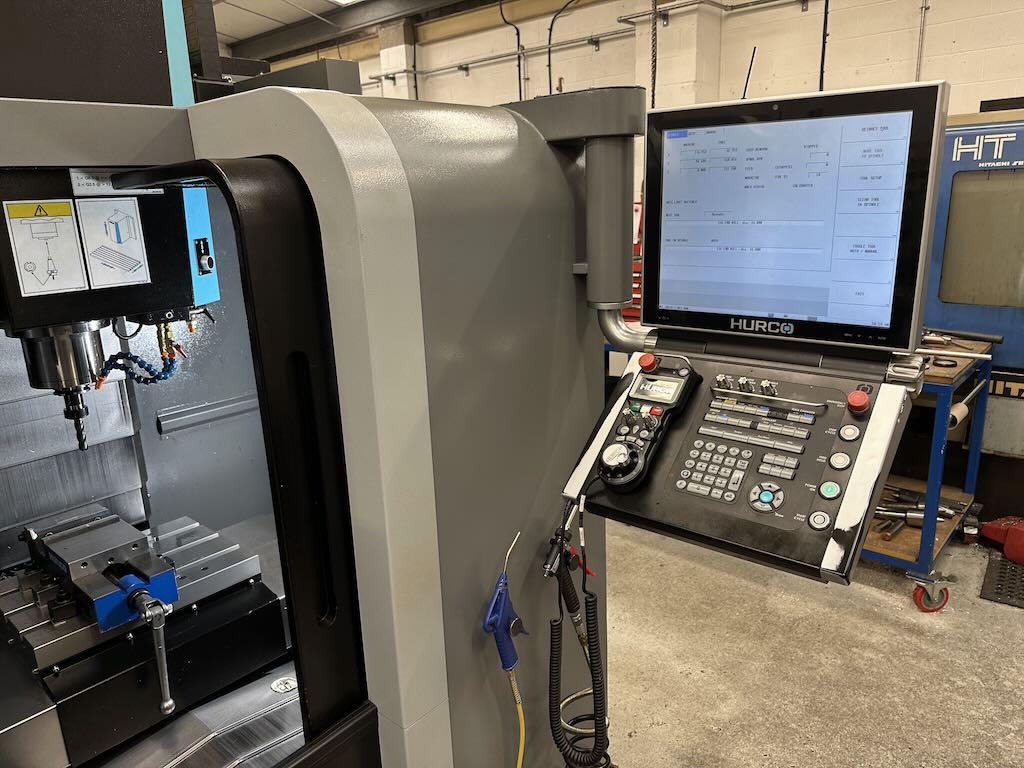

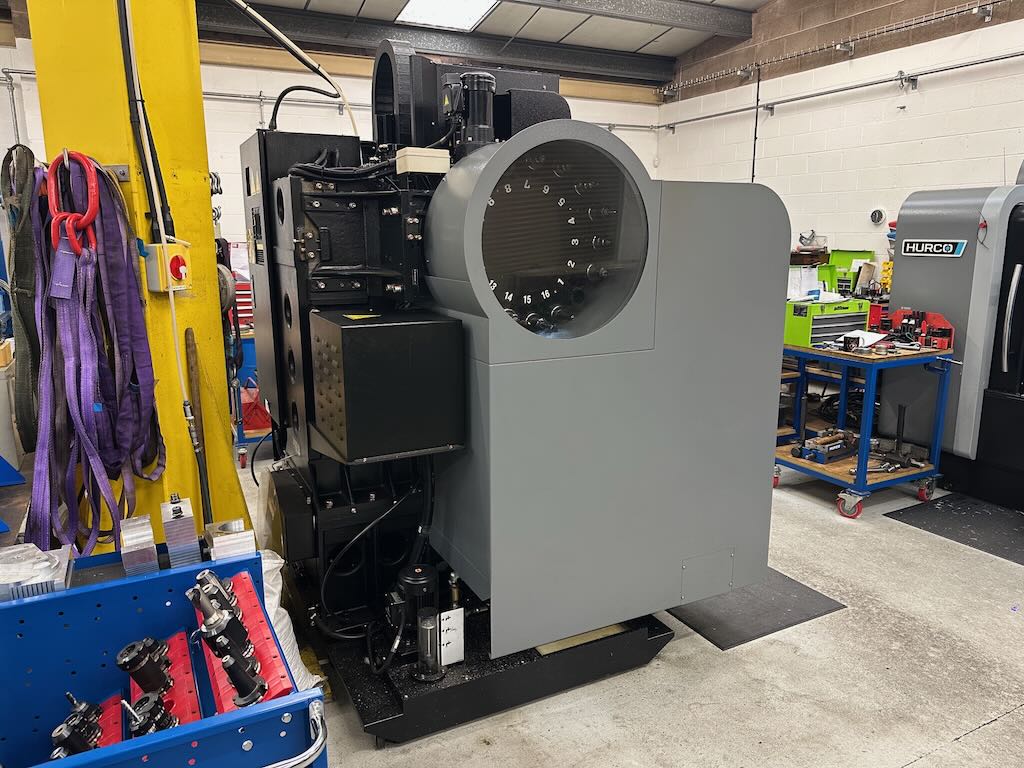

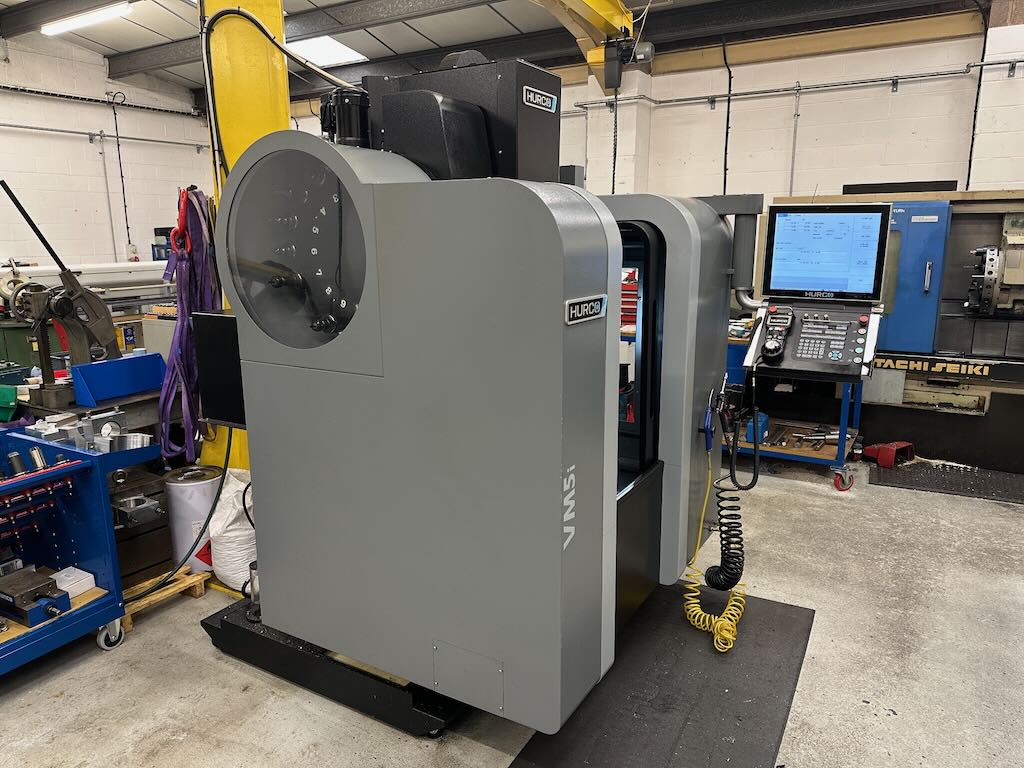

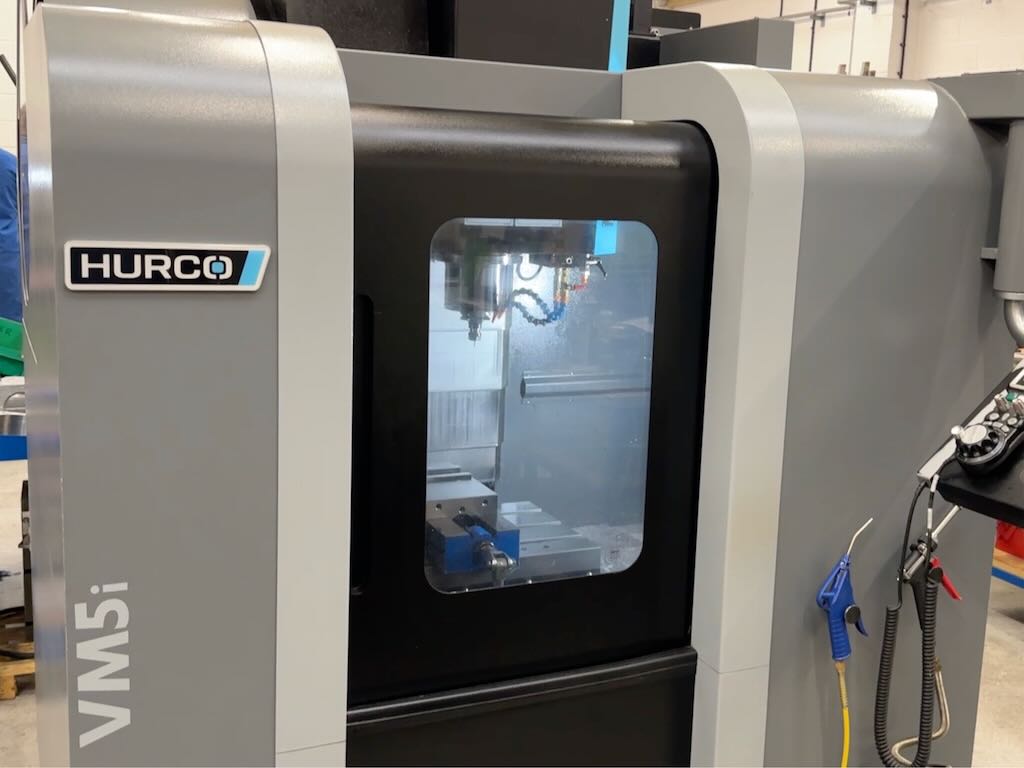

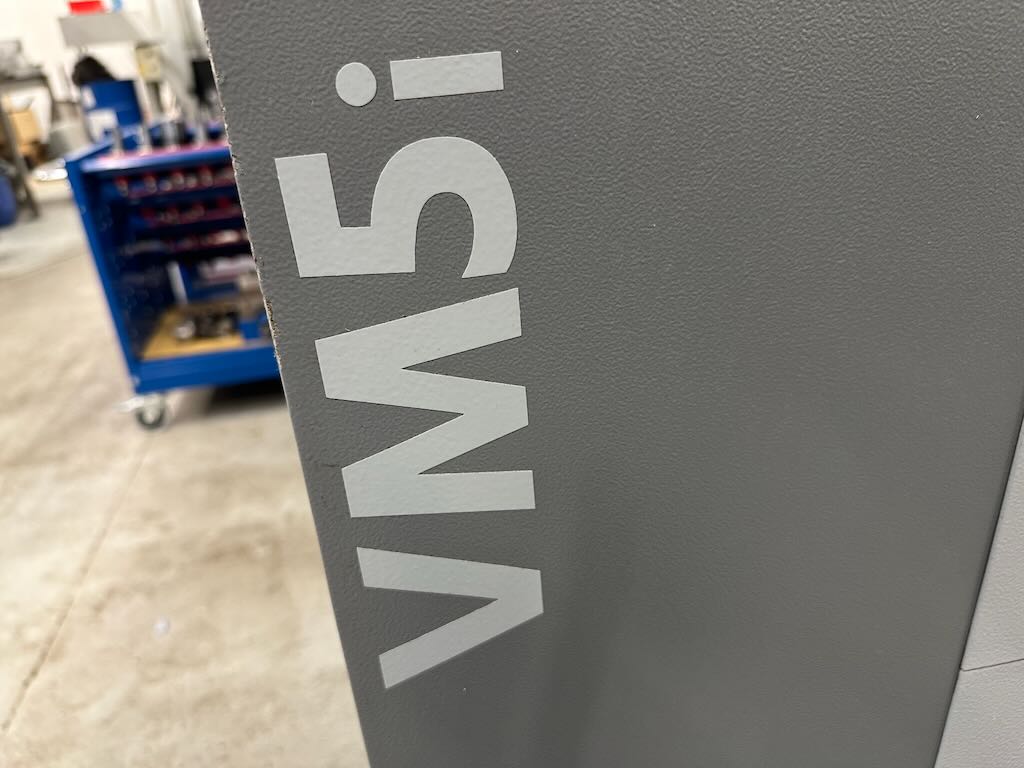

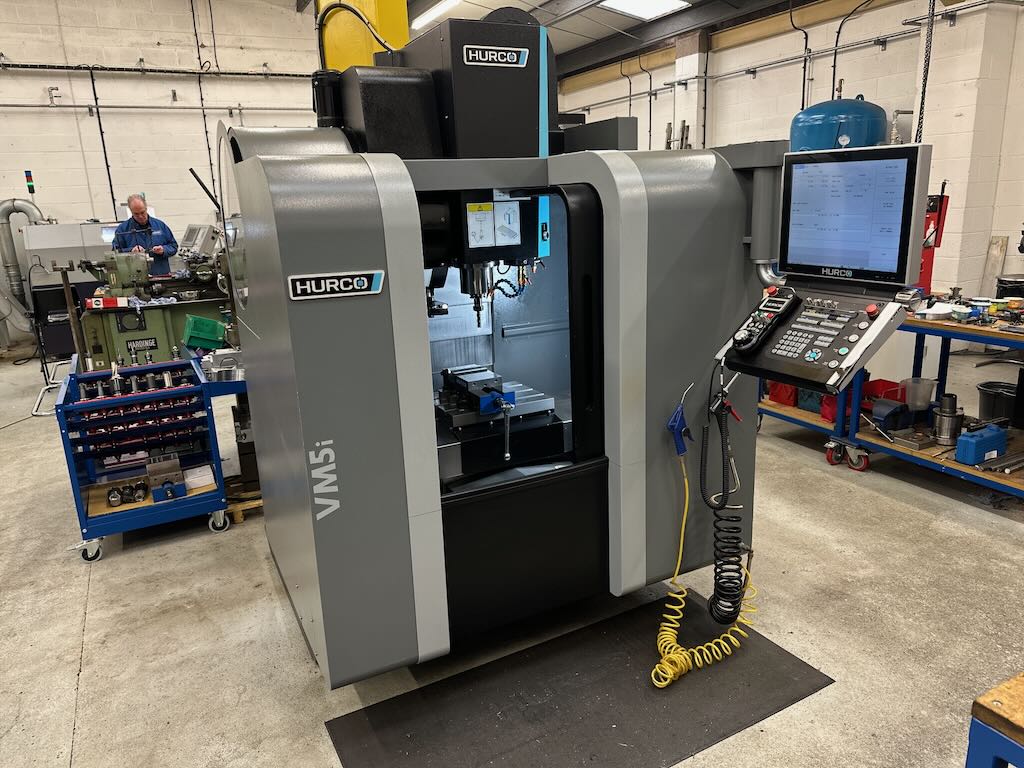

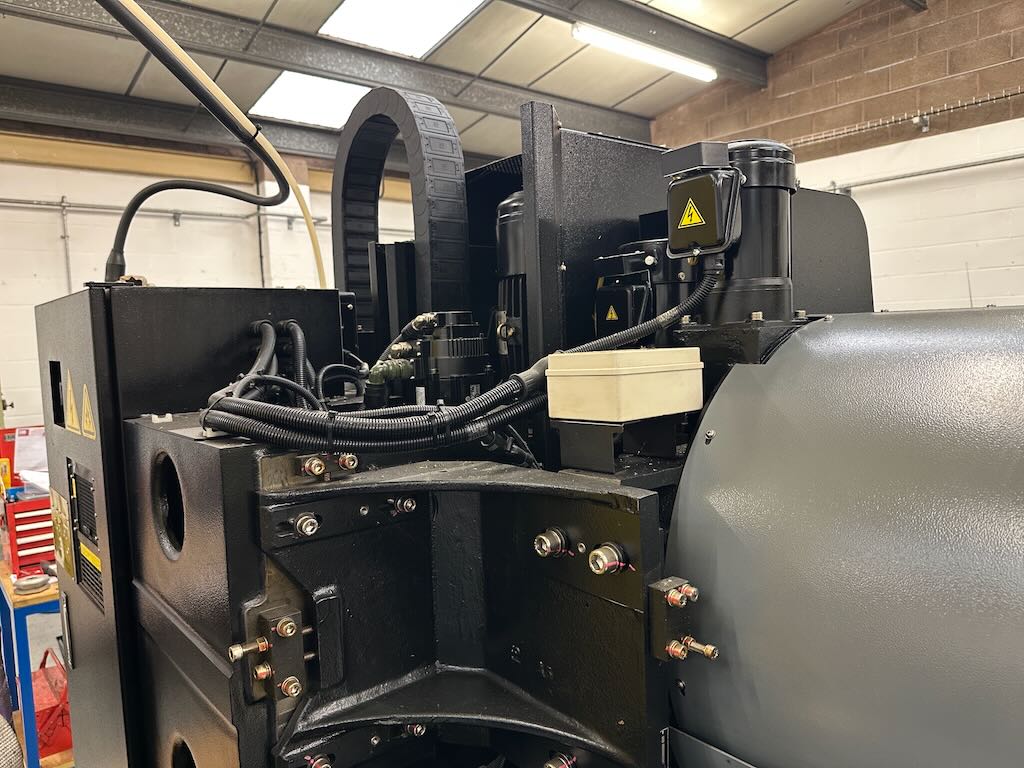

Hurco VM5i VMC (2017)

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Charter Auctions

Country:
N/A

DESCRIPTION

X Axis Travel: 457mm.
Y Axis Travel: 356mm.
Z Axis Travel: 356mm.

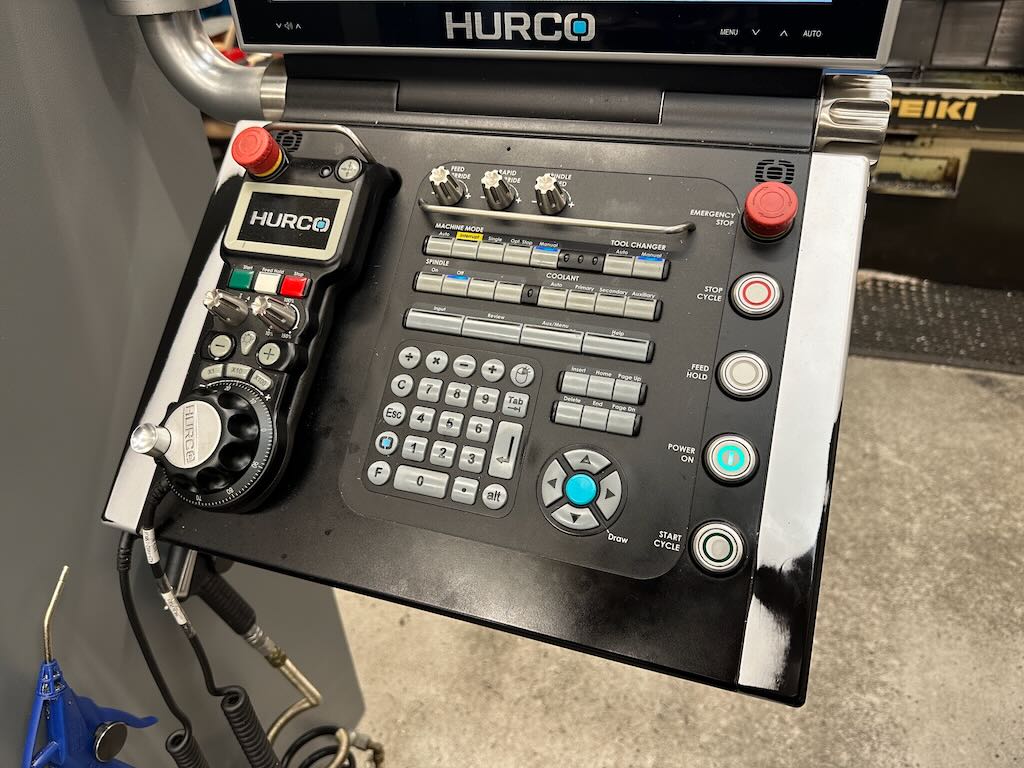

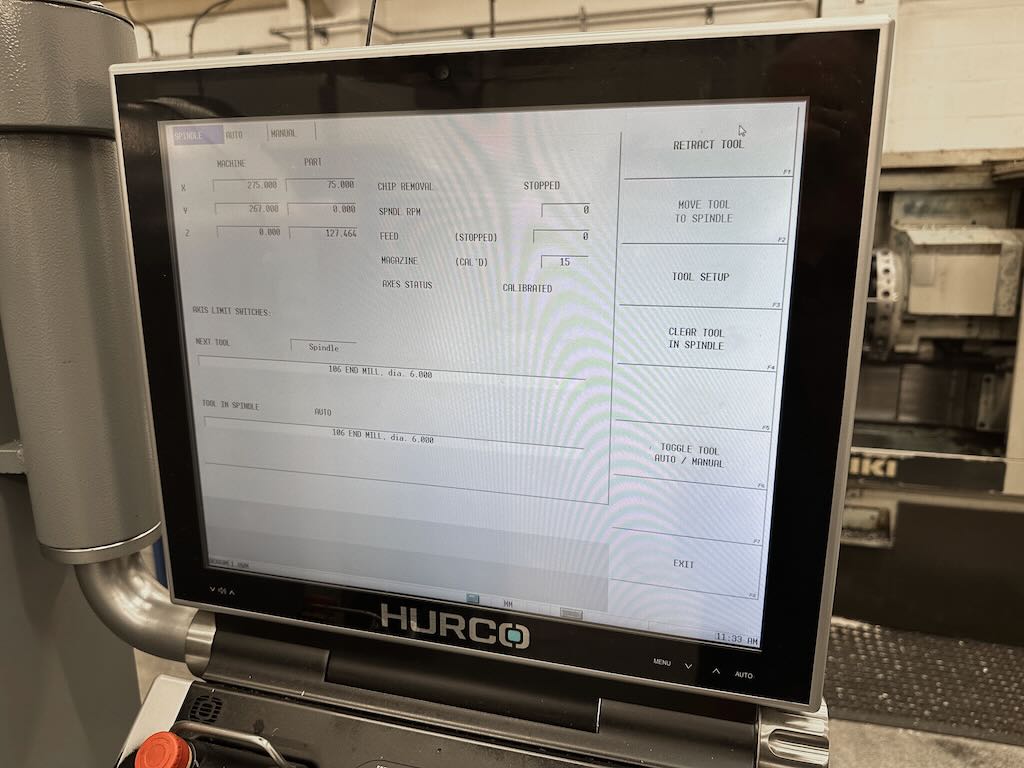

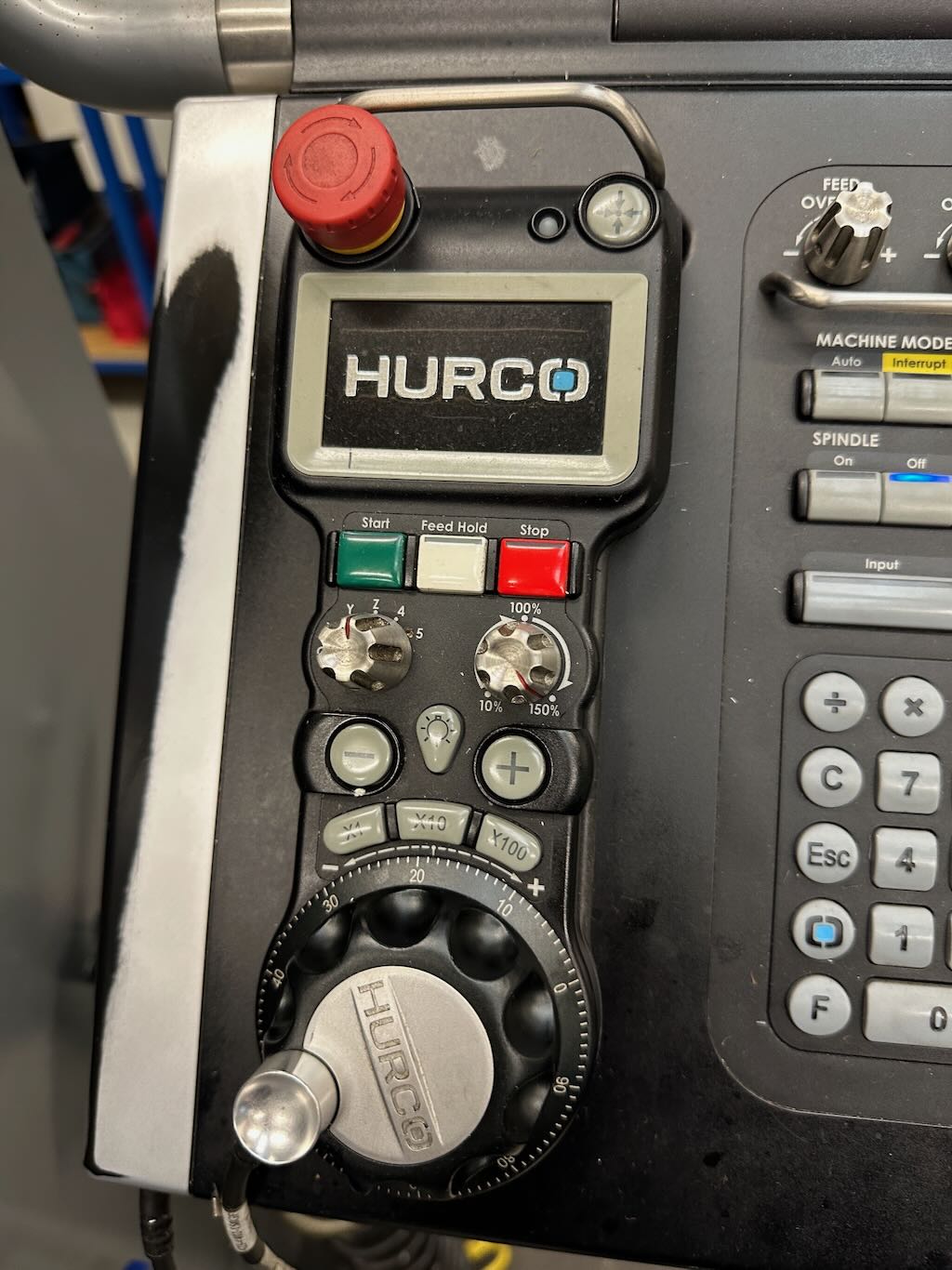

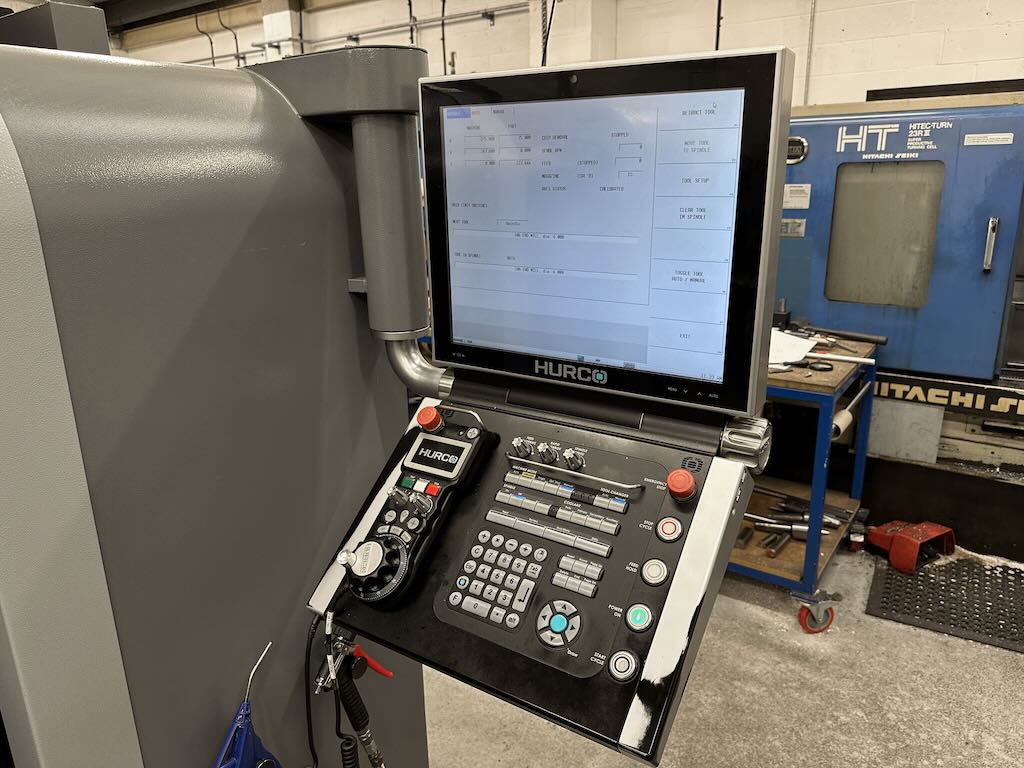

Control: Single Screen Winmax MAX5 Control.
T-slot Size: 3 x 18mm.

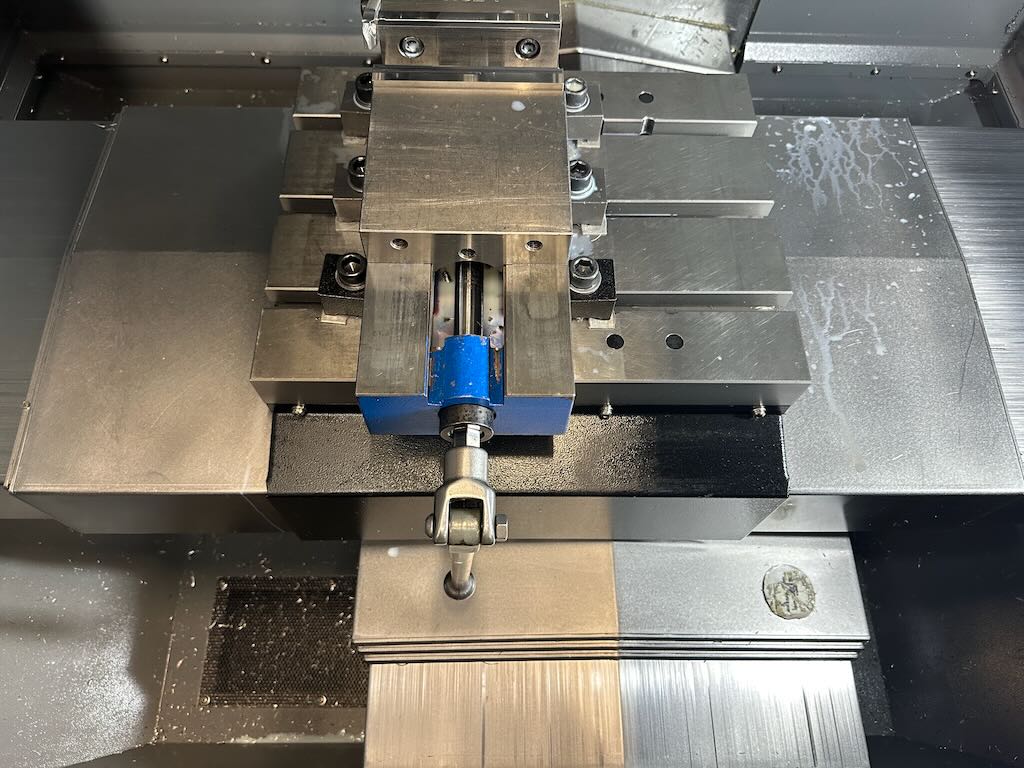

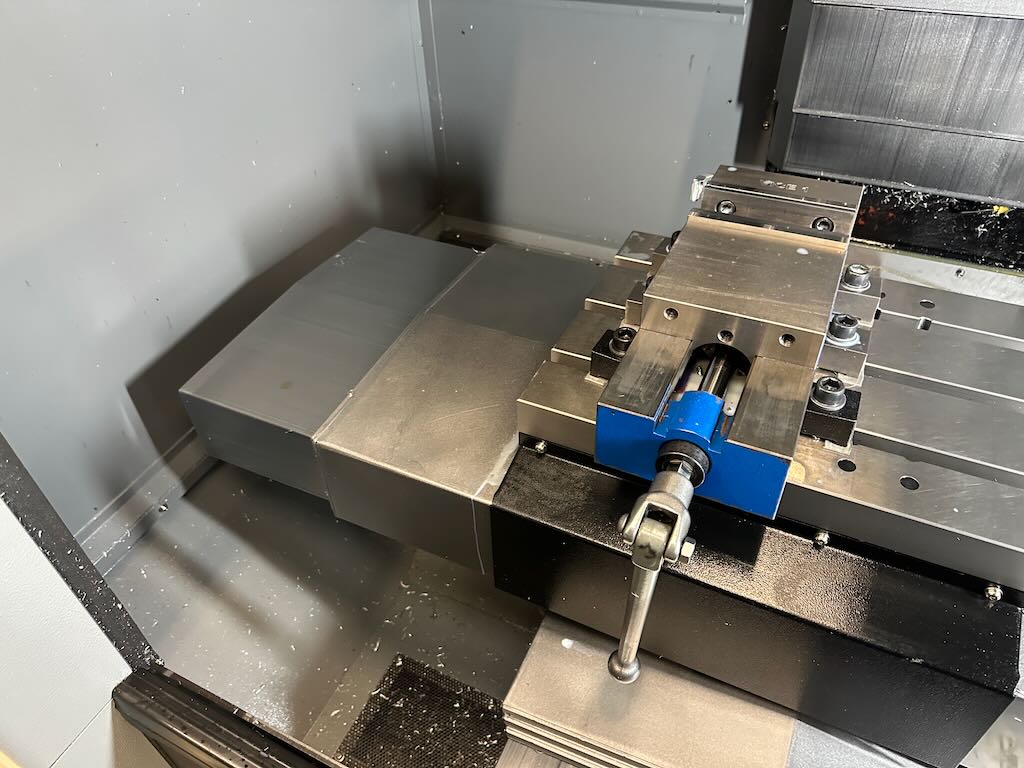

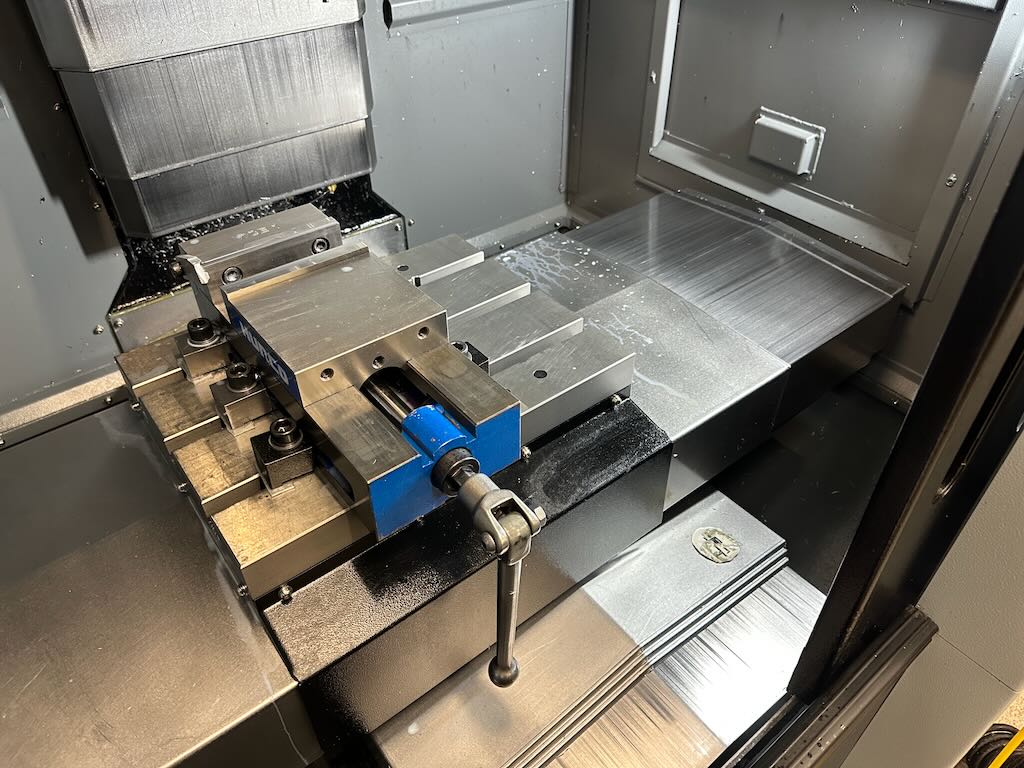

Table Size: 457mm x 356mm.
Max Weight on Table: 250kg.
Spindle Nose to Table: 101.6mm.
Max Spindle Speed: 8000rpm.
Spindle Power: 7.5kW @ 1,450 rpm.
Spindle Torque: 48.8Nm @ 1,450 rpm.

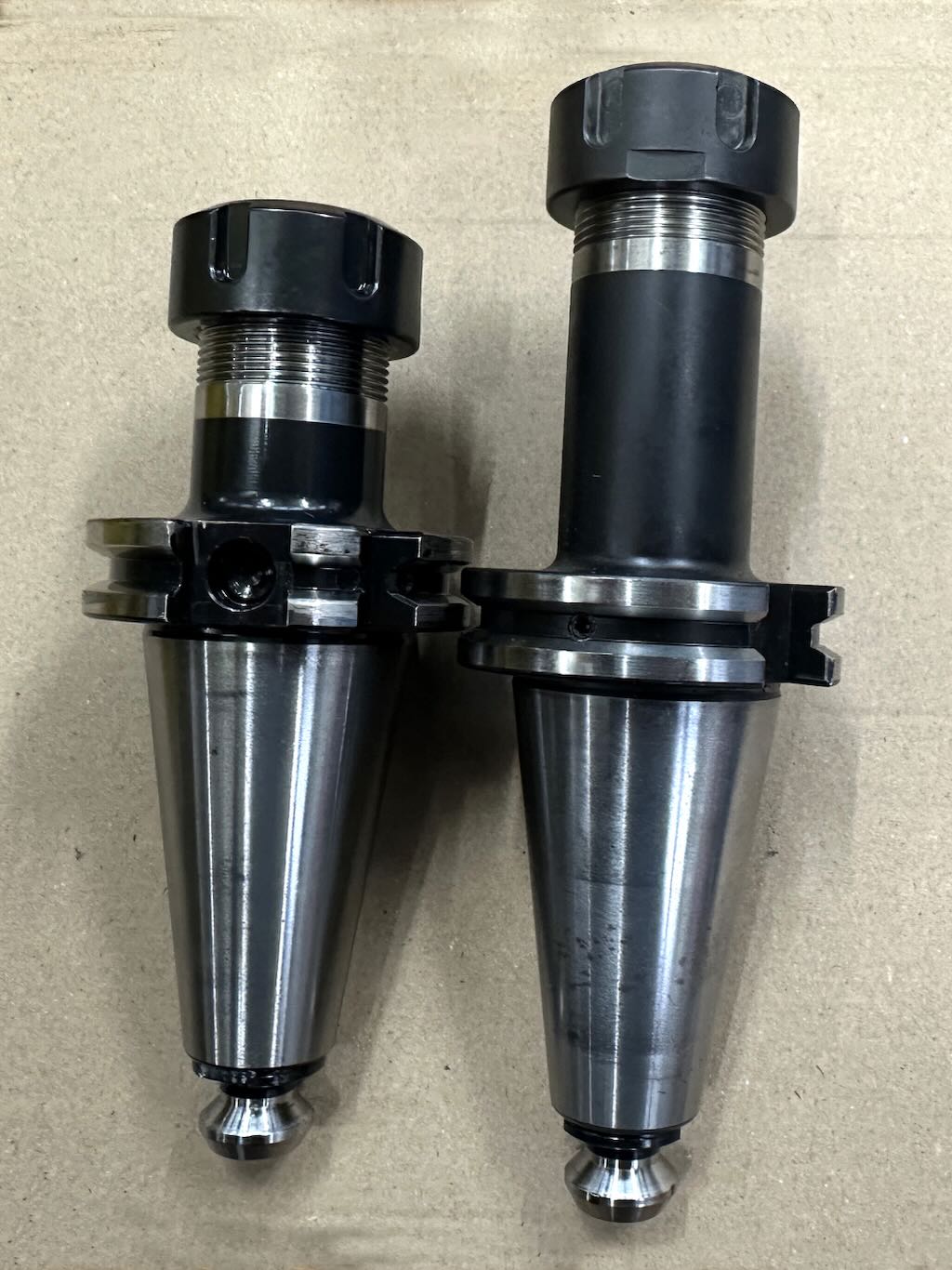

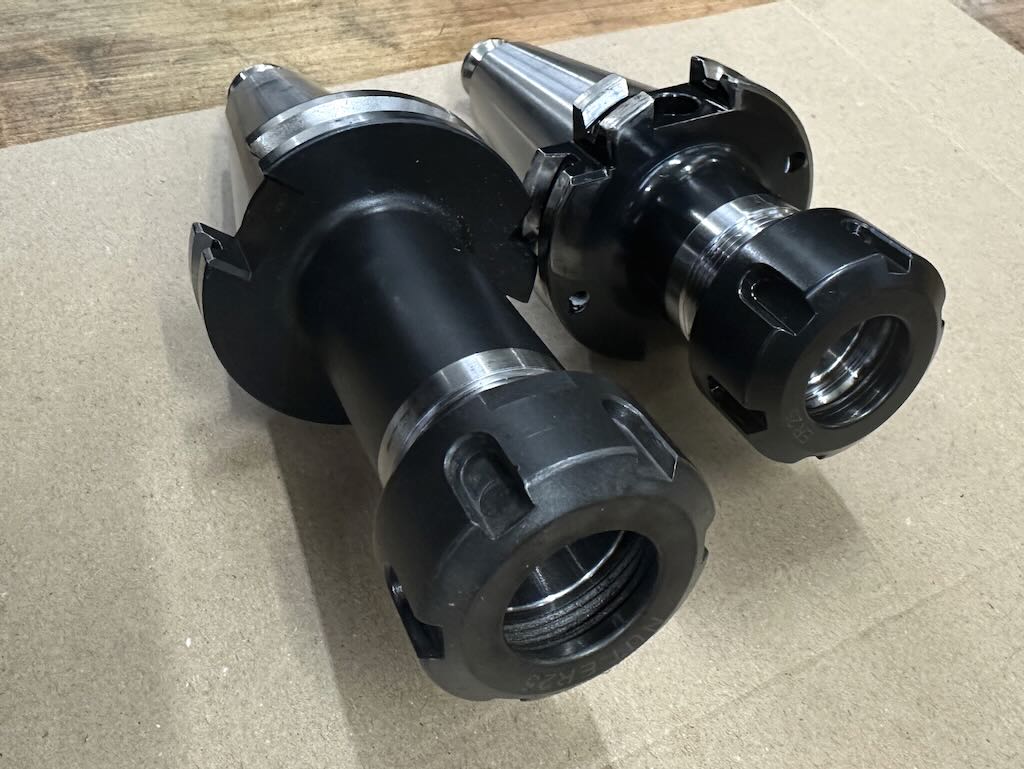

Tool Type: CAT 40.

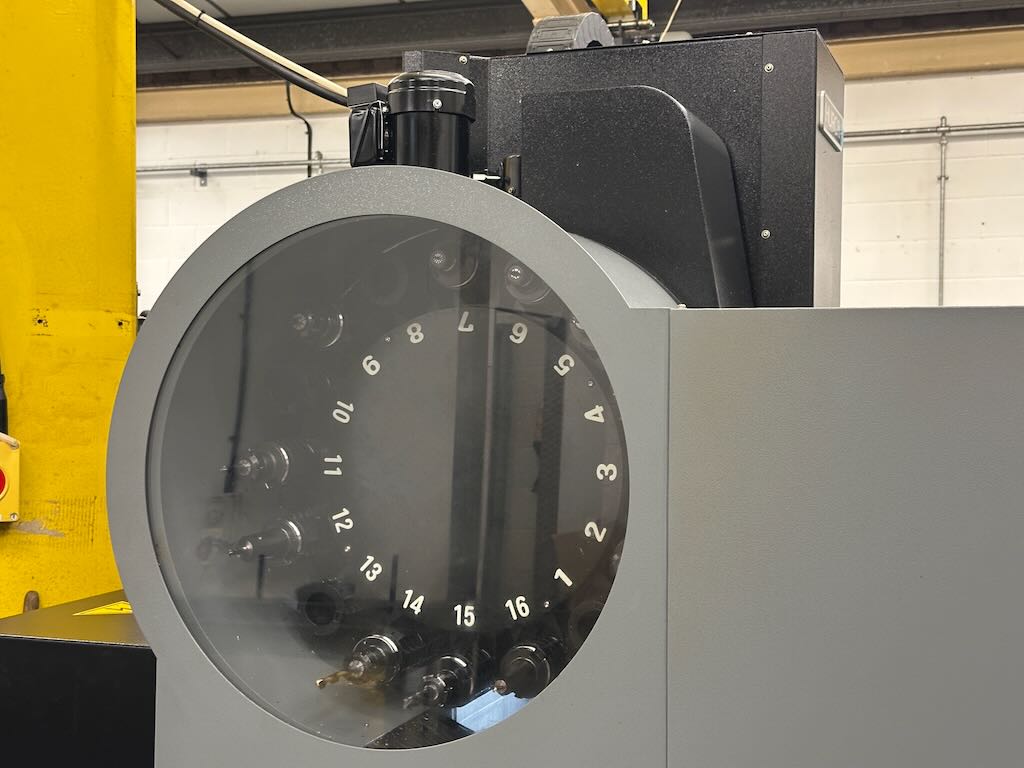

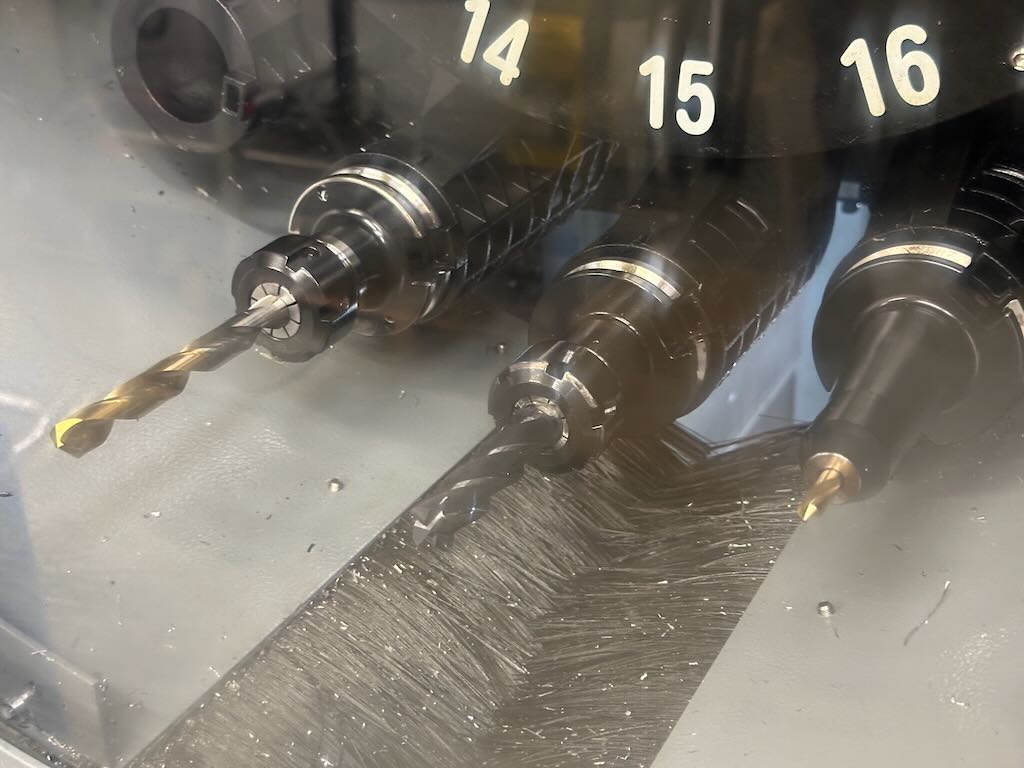

Number Of Tools: 16.
Max Tool Diameter: 90mm.
Max Tool Length: 200mm.
Max Tool Weight: 7kg.
X, Y Z Axis Rapid Traverse: 19m/minute.
Dimensions: 1,633.2mm x 2,903.2mm x 2,390.1mm (L x W x H).
Machine Weight: 2,636kg.
