MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Subcategory:
Other Machines

Manufacturer:
Hwacheon

Model:

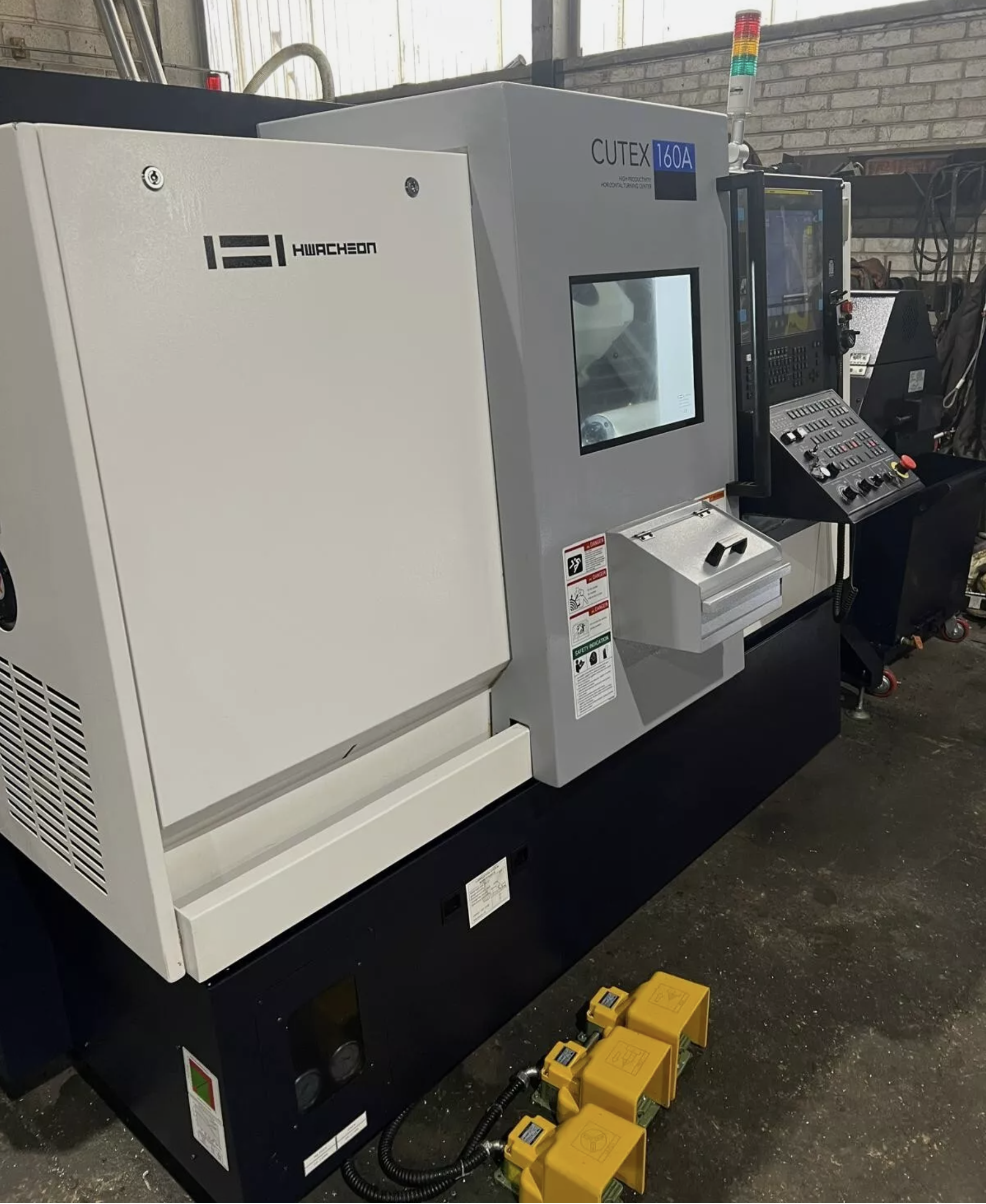

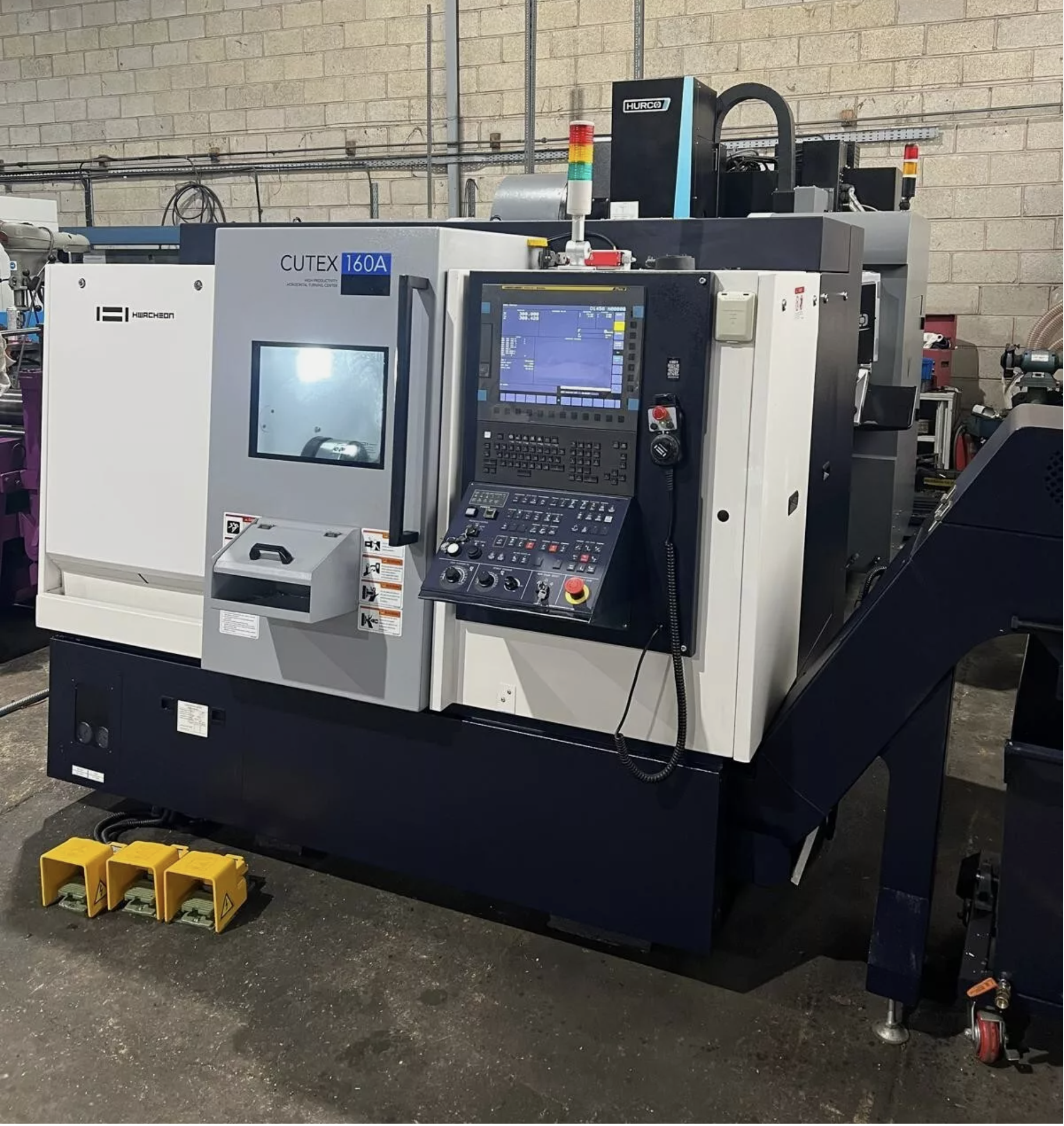

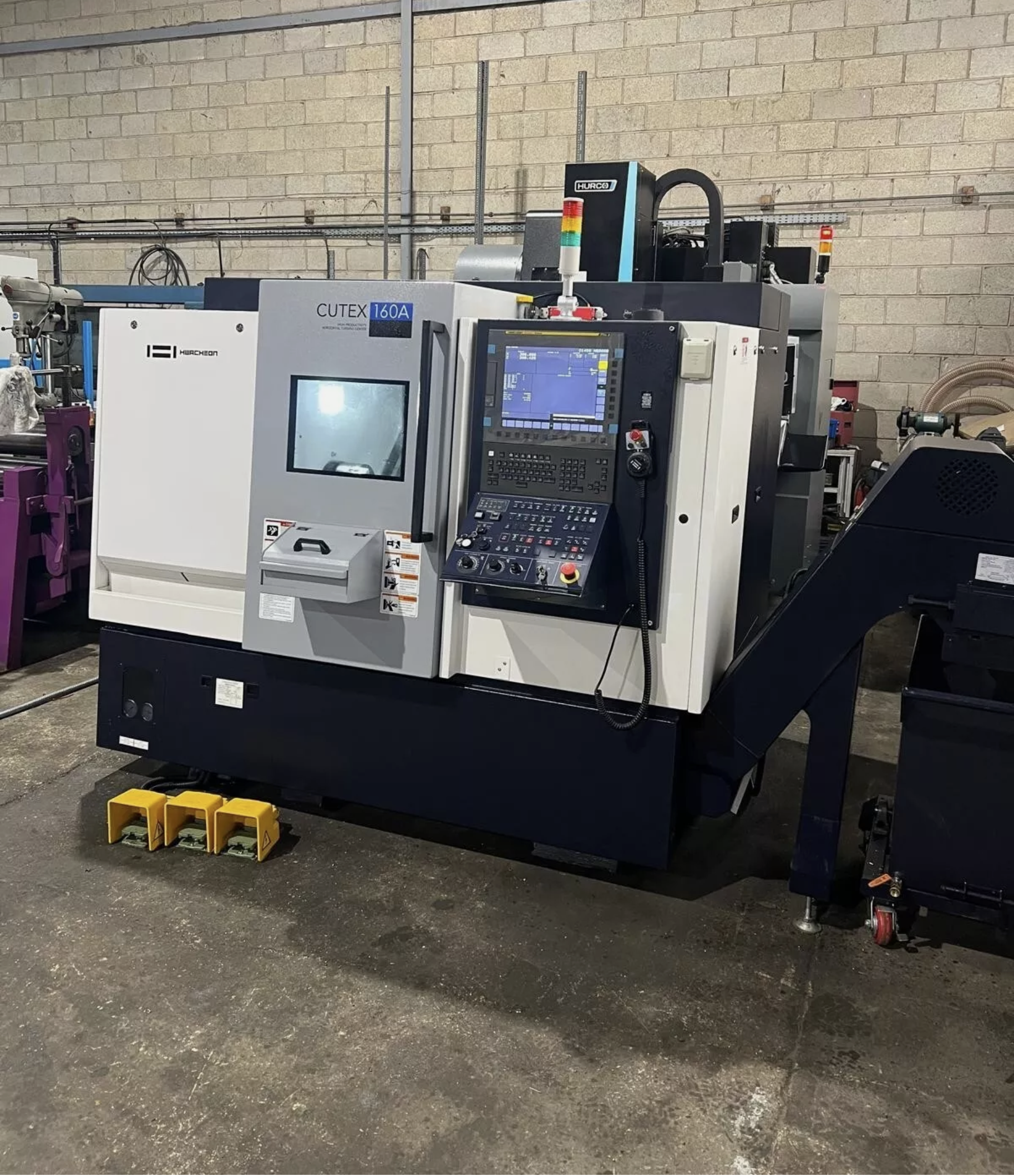

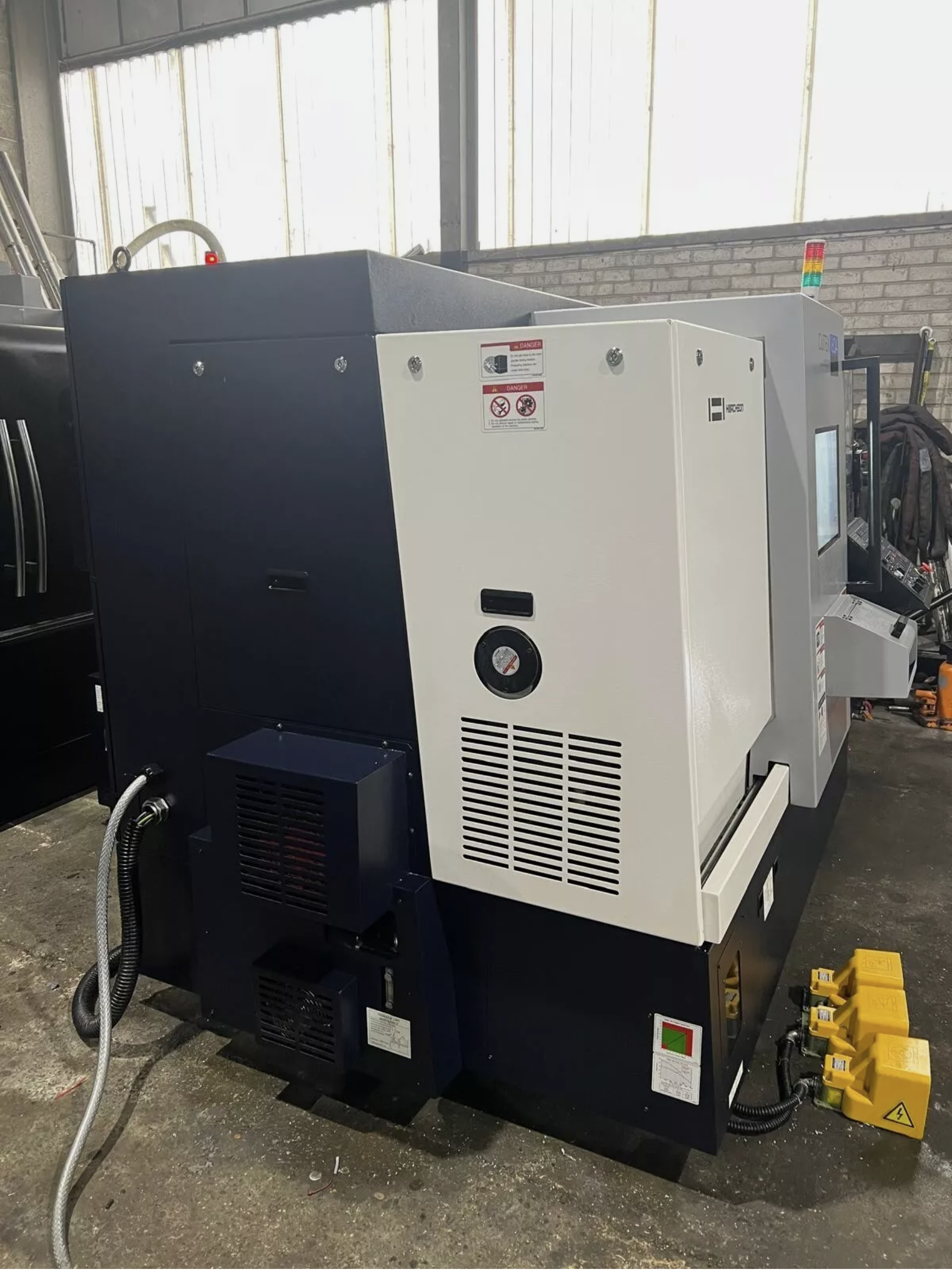

Hwacheon Cutex 160A CNC Lathe, with Renishaw Tool Probe

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Charter Auctions

Country:
N/A

DESCRIPTION

Hours: 789 Hours from new.
Year: 2022.

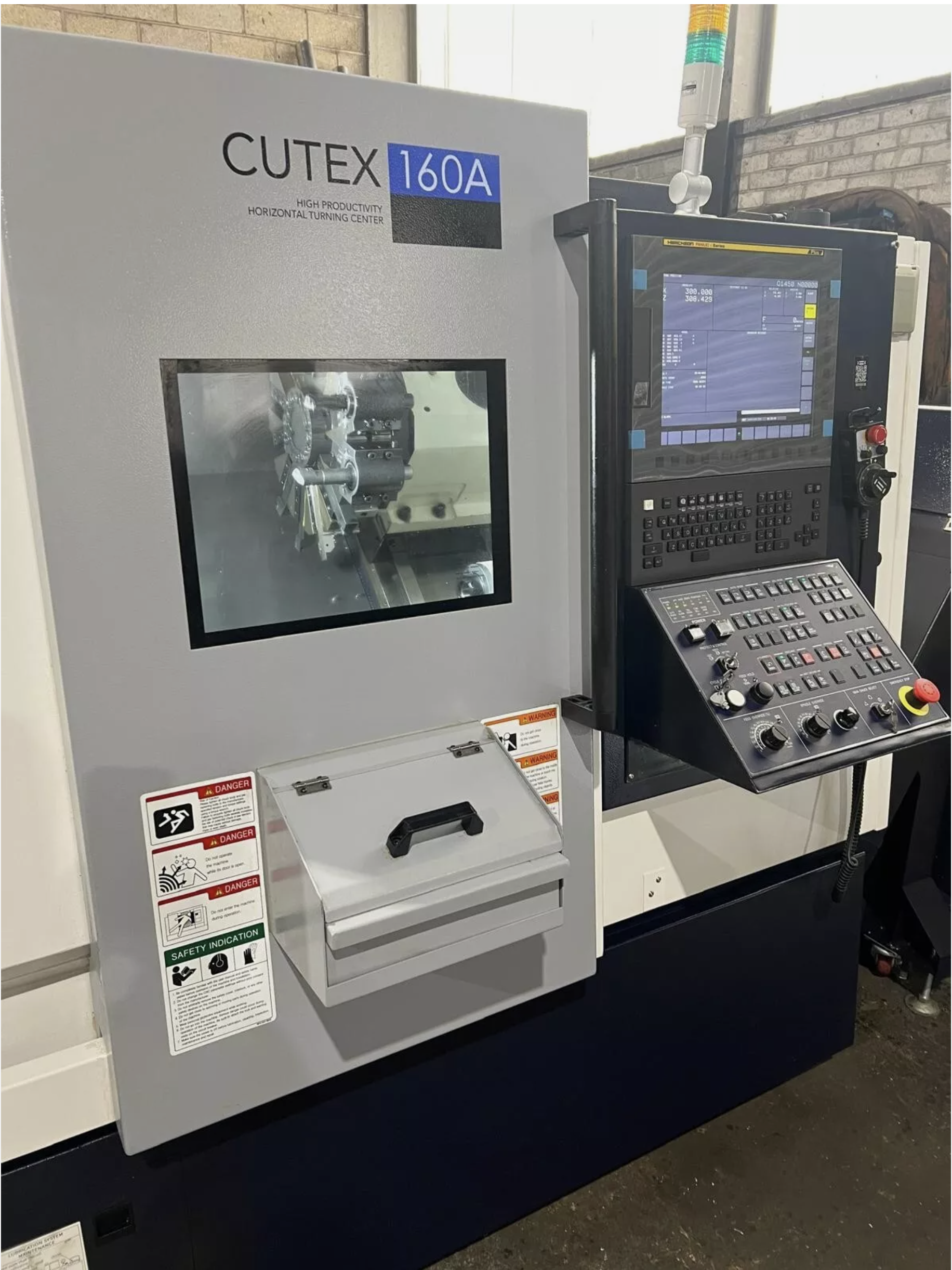

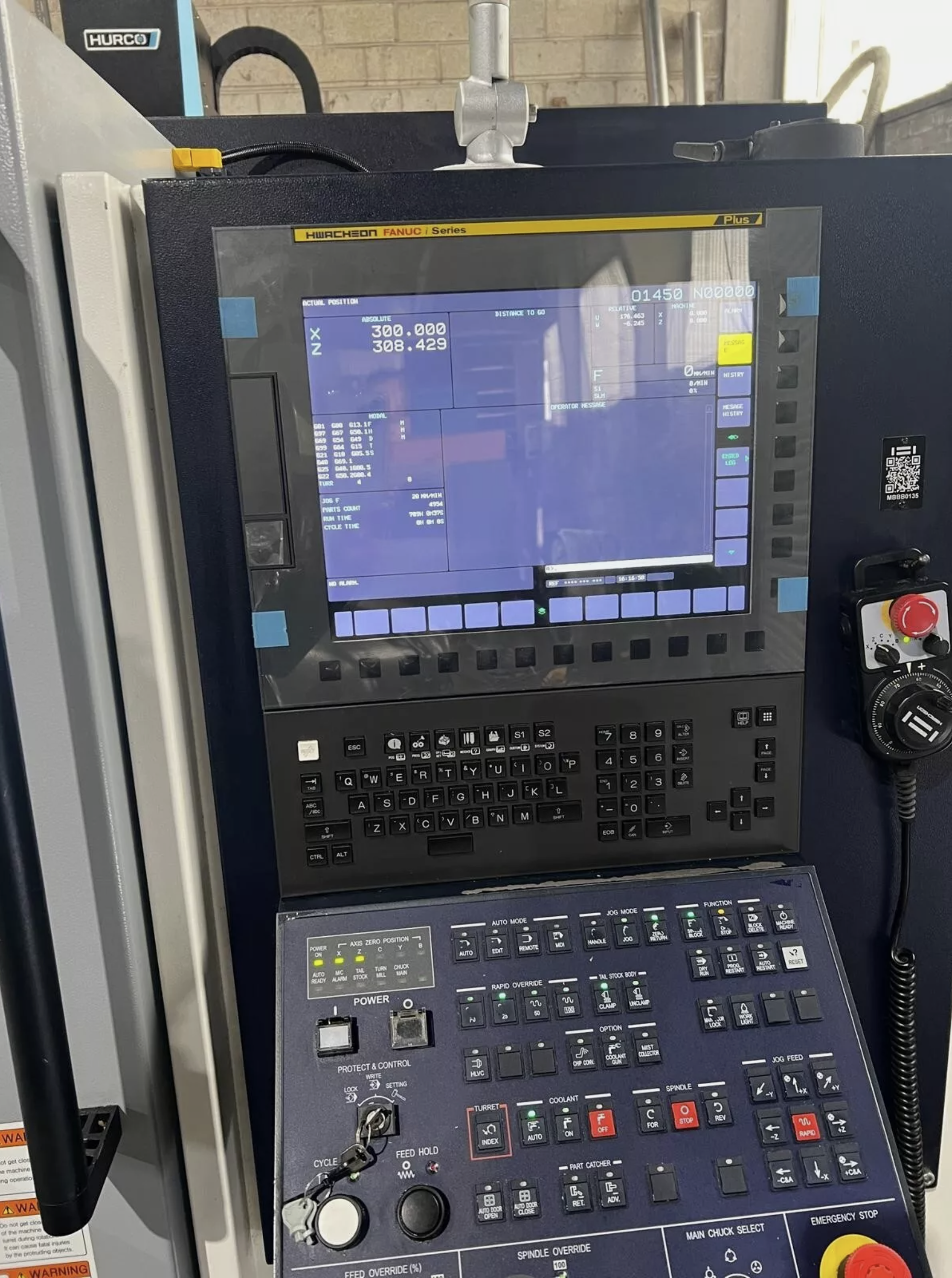

Control: CNC Fanuc 0i-TF Plus.
Swing Over Bed: 550mm.
Max Cutting Diameter: 300mm.
Chuck SIze: 6".
Spindle Nose: A2-5.
Max Spindle Speed: 6000rpm.
Through spindle hole diameter: 56mm.
Max bar size: 45mm.
Spindle Bearing Inner Diameter: 90mm.
Spindle Motor: 15kW.

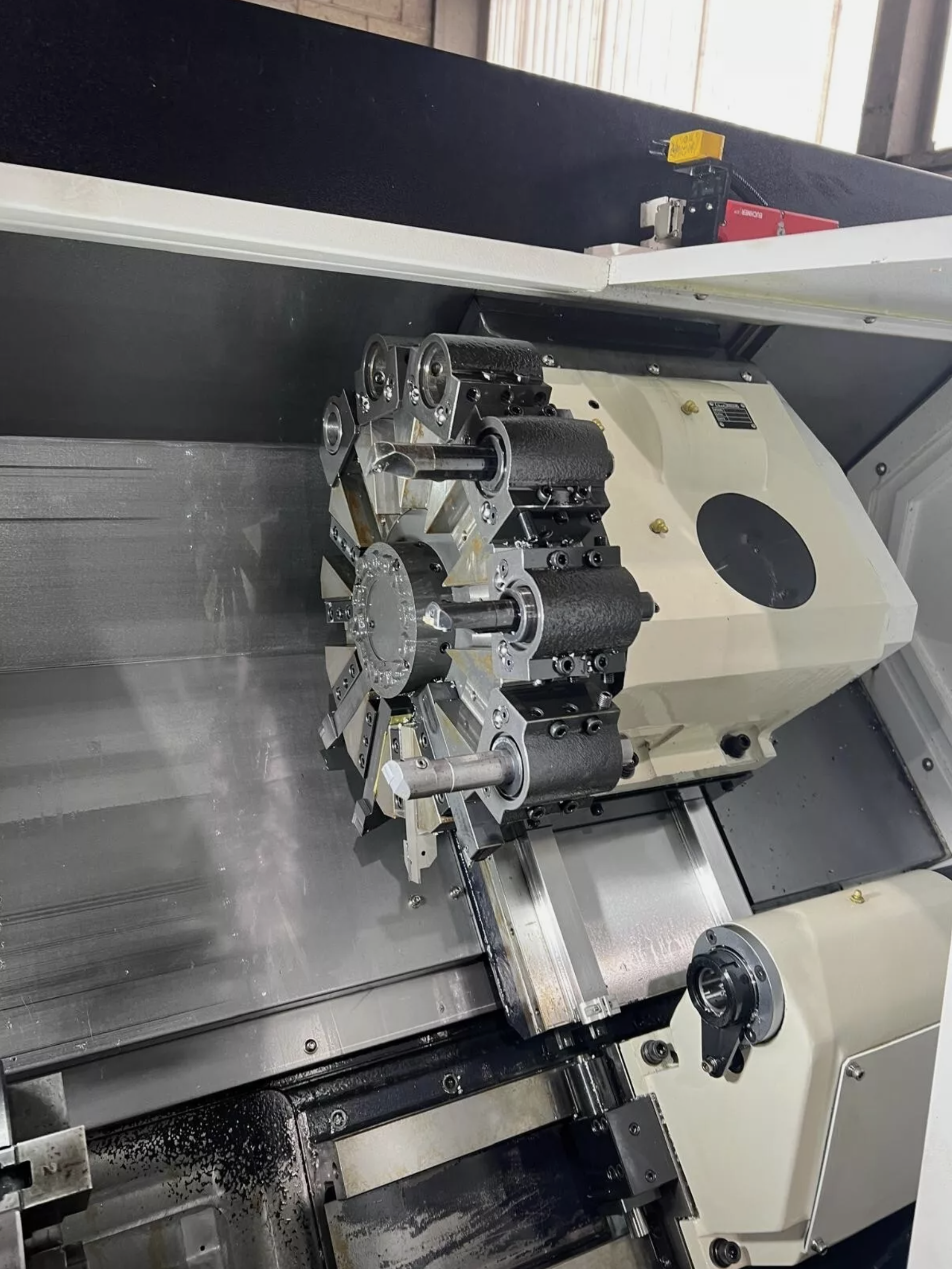

Number of tool station: 12.
Tool Size: 25 x 40mm.
Turret Indexing time: 0.15 sec.
Rapid Feedrate: 36 / 36m/min.
Max Stroke: 170 / 335mm.
Feed Motor: 1.8 / 1.8 kW.
Quill Diameter: 60mm.
Quill Stroke: 80mm.
Quill Taper: 4MT.
Lubrication tank Capacity: 2L.
Hydraulic tank capacity: 11L.
Coolant tank Capacity: 81L.
Power Requirement: 20kVa.
Dimensions: 2373mm x 1520mm x 1720mm (L x W x H).
Weight: 3550kgs.
