MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Durma
  • Model:

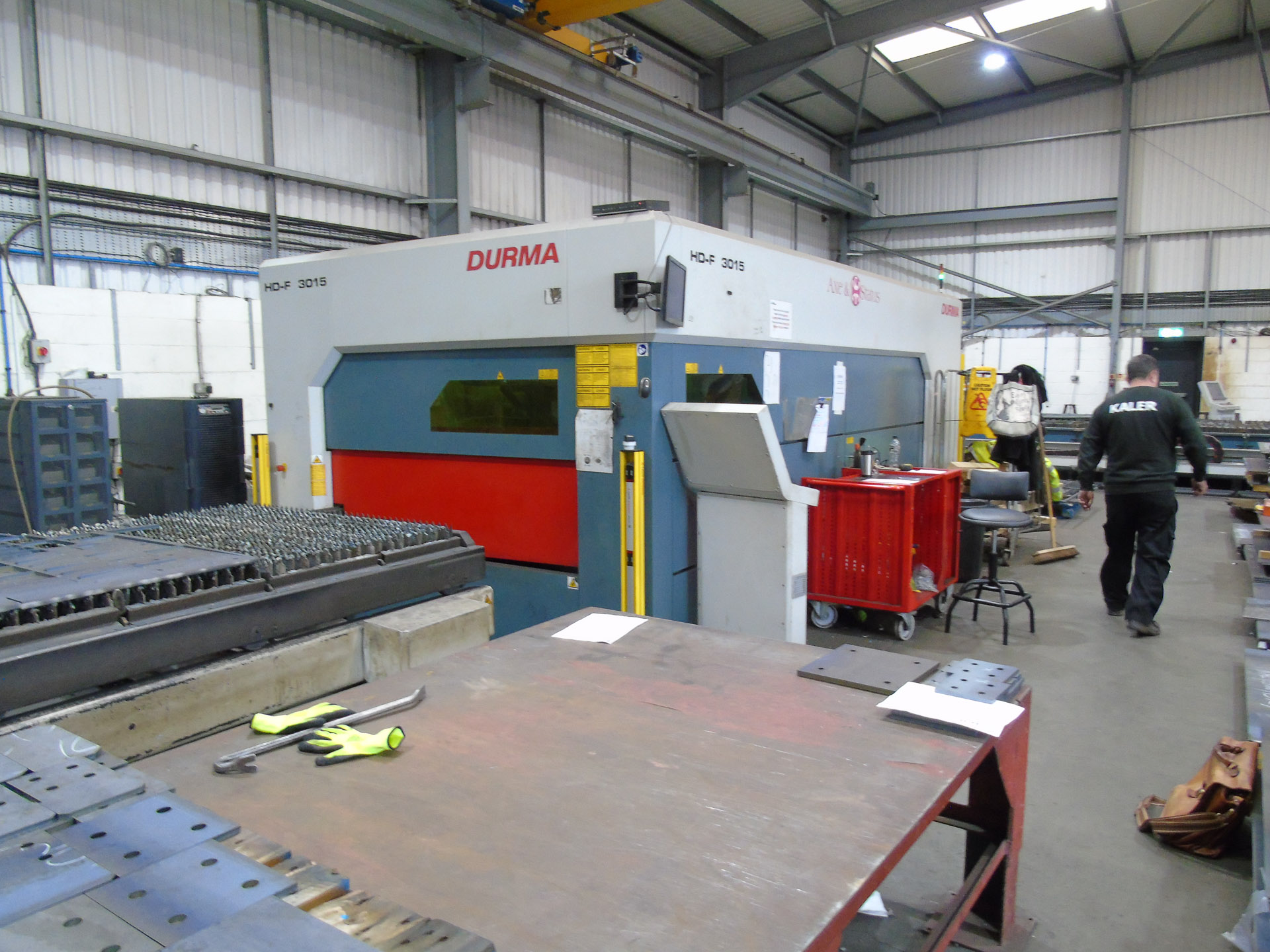

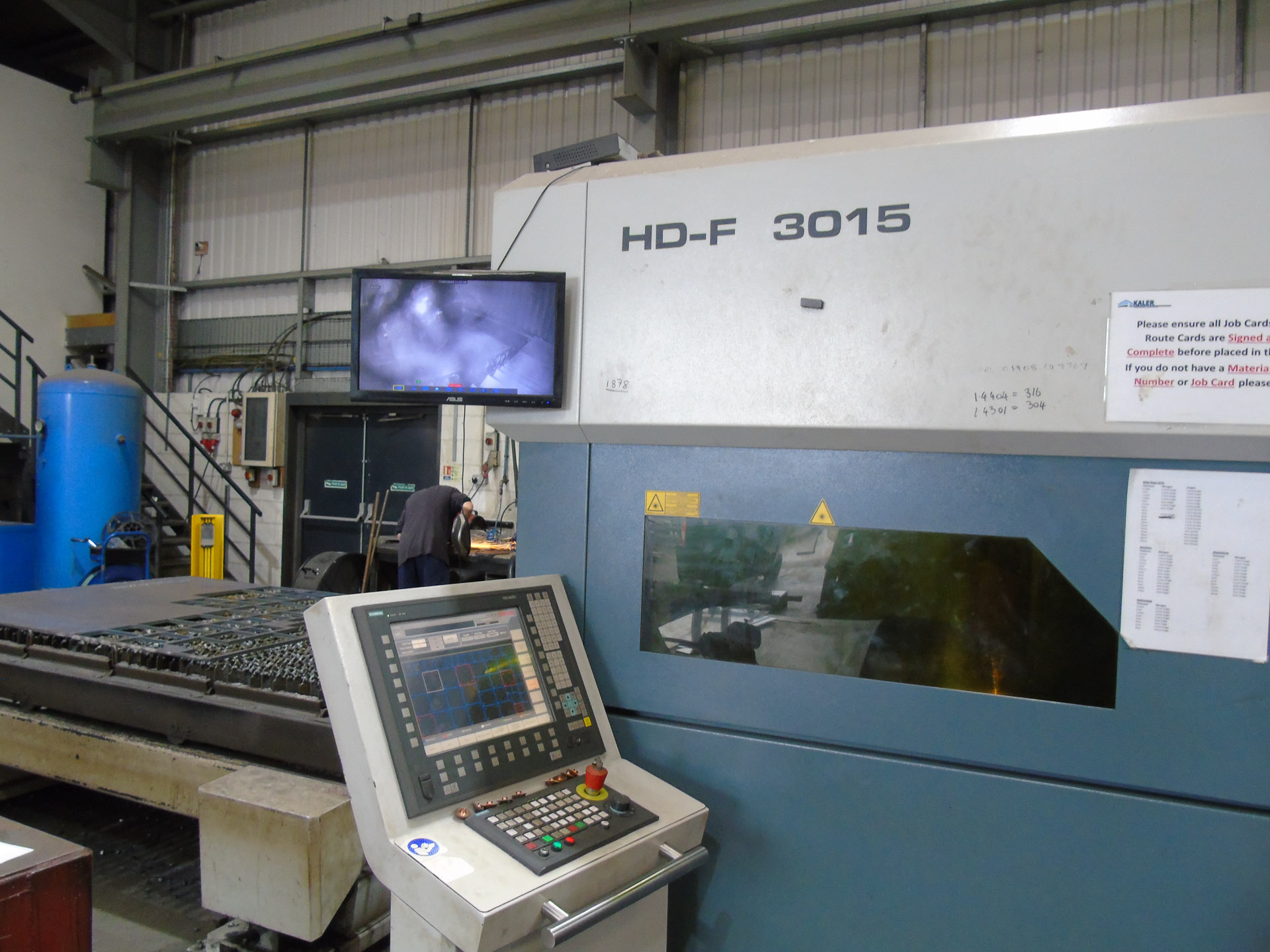

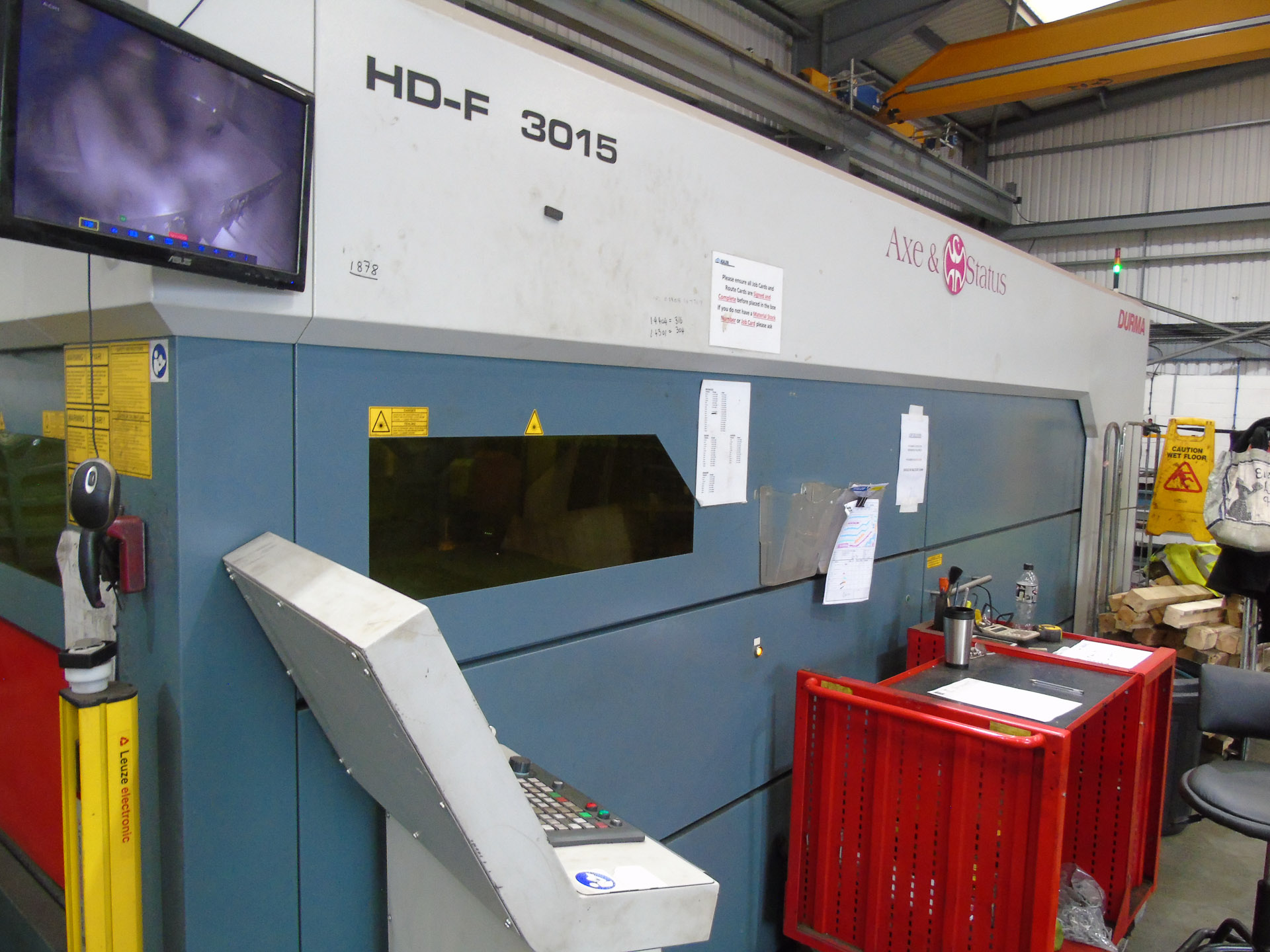

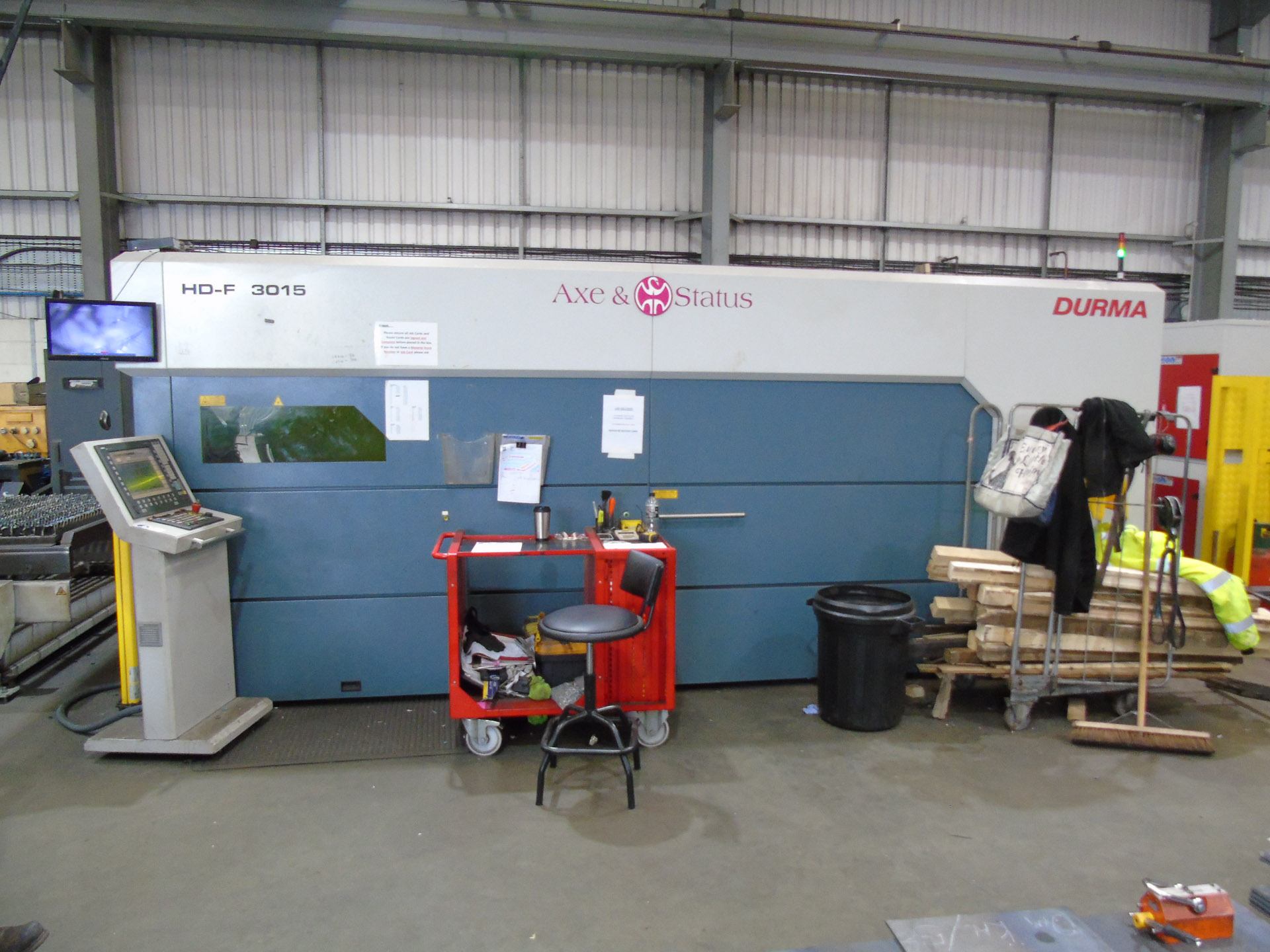

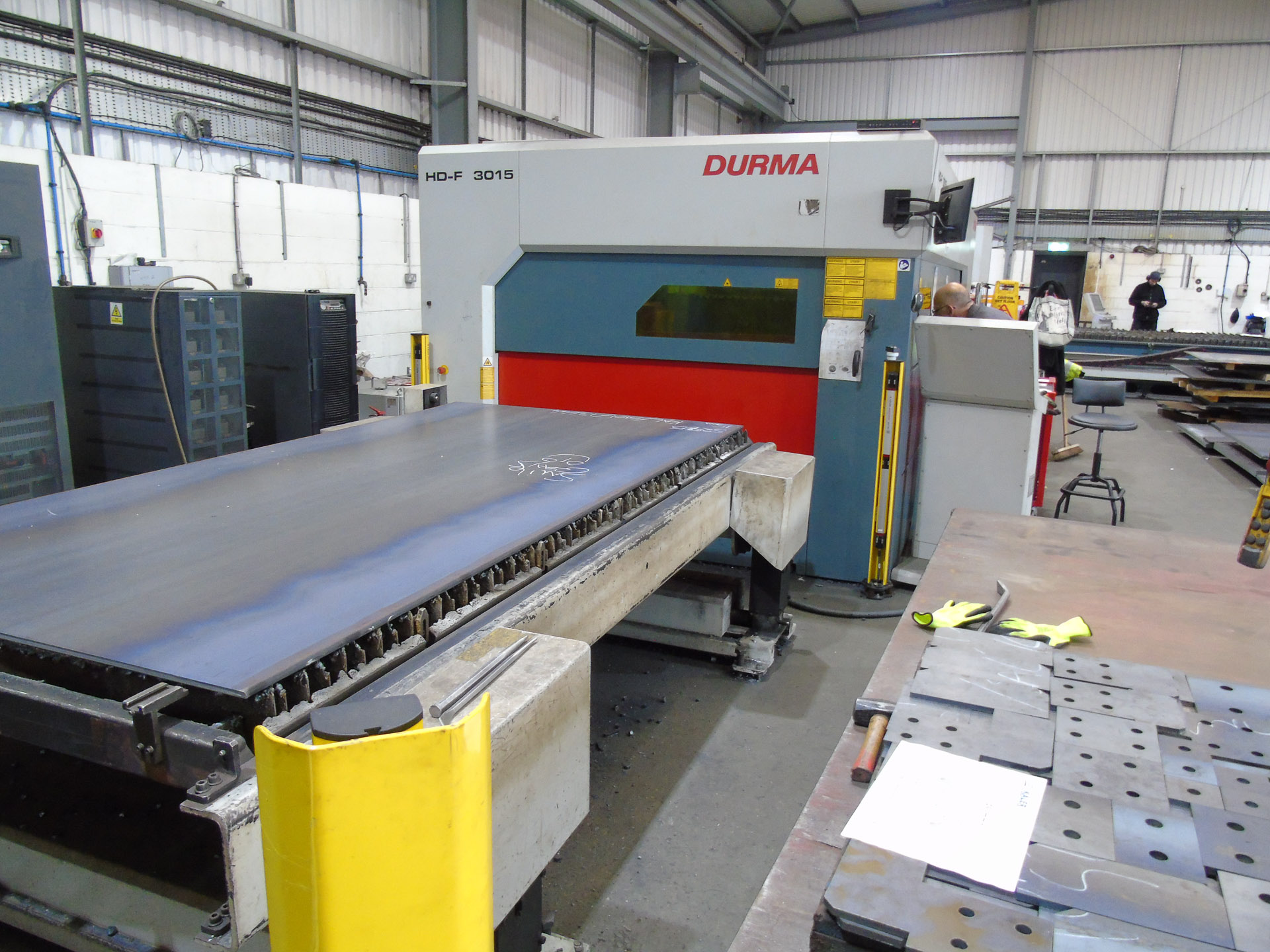

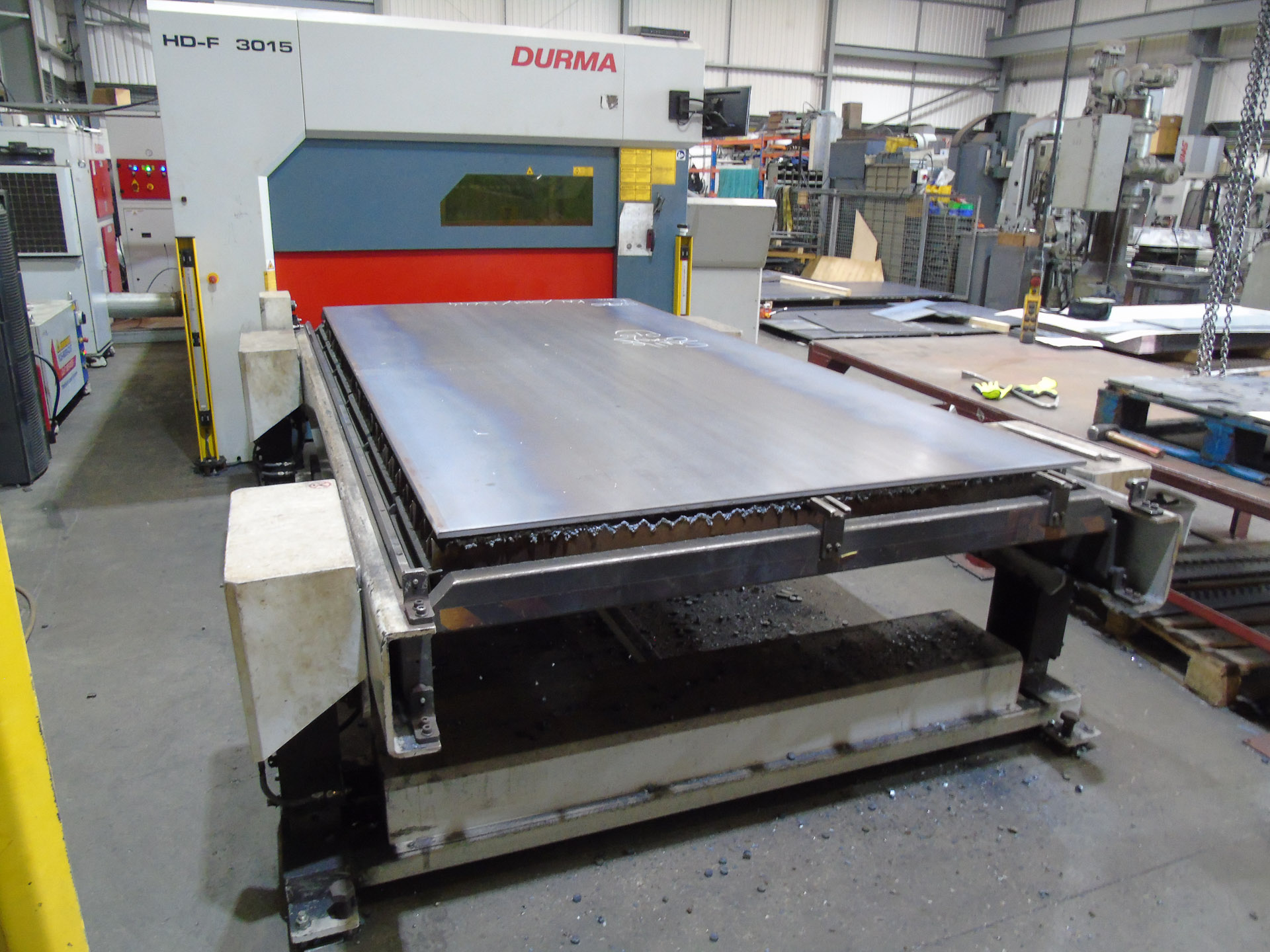

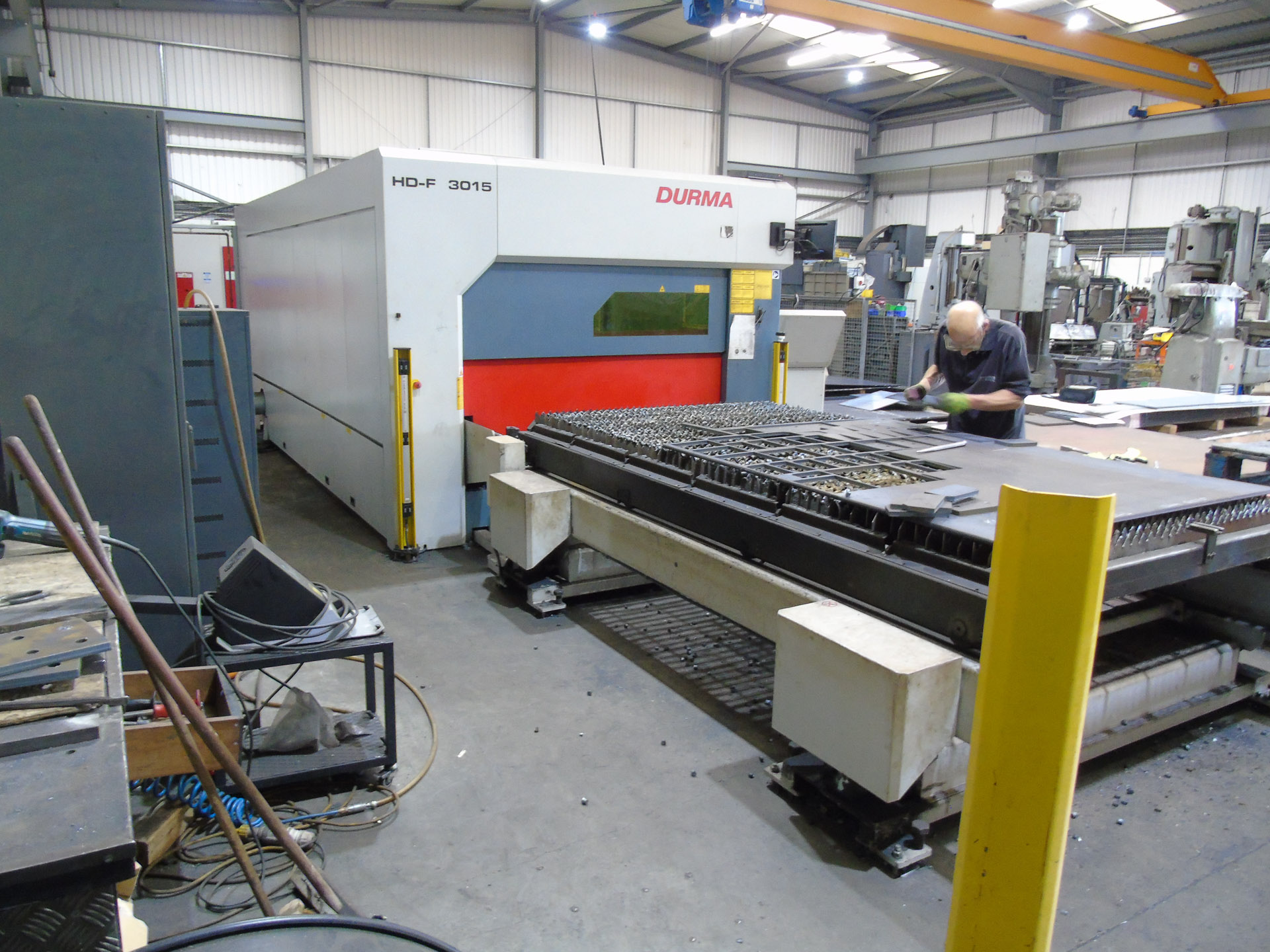

  • 2017 DURMA HD-F 3015 III IPG 6KW Fibre Laser Cutter
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

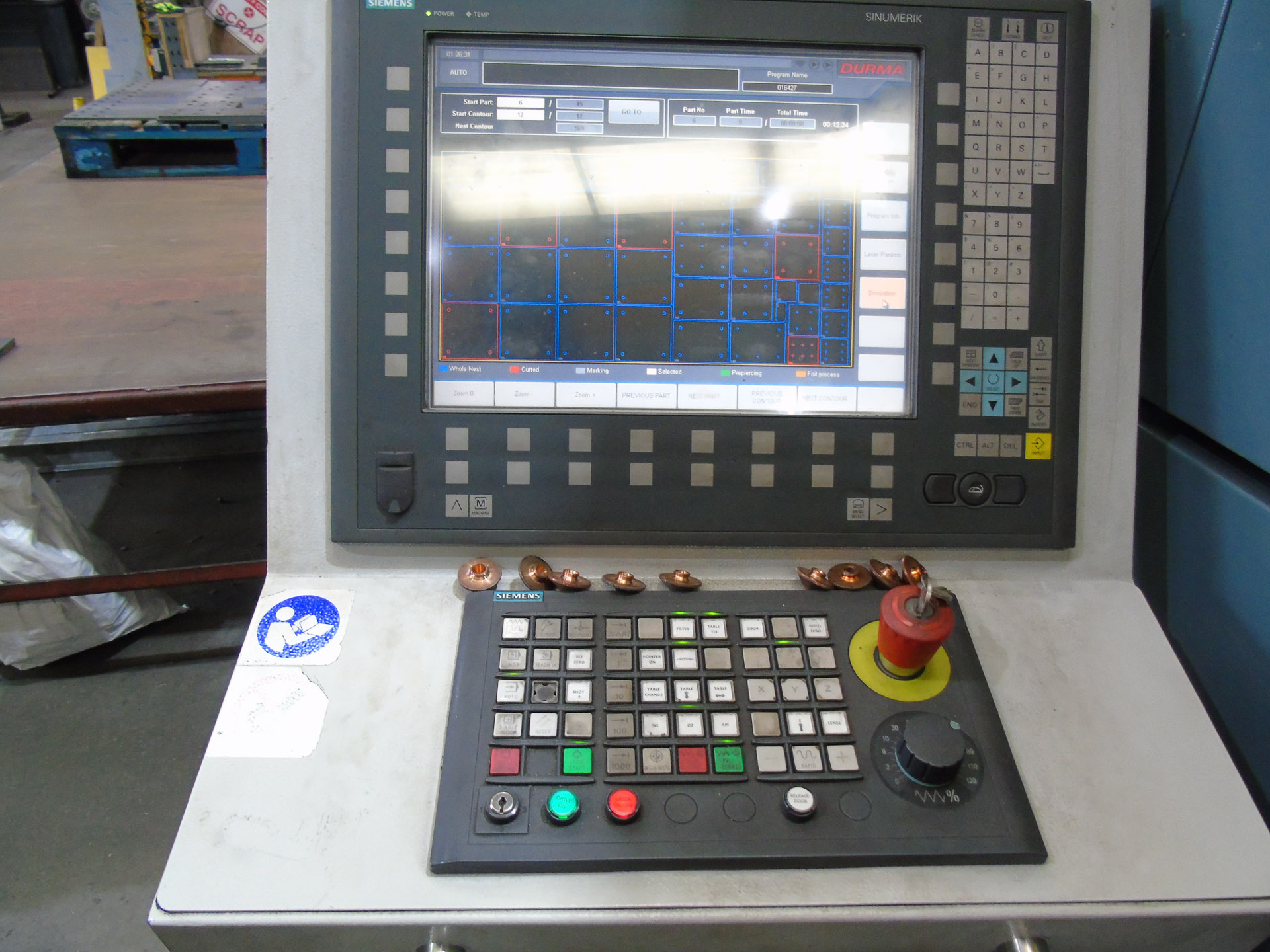

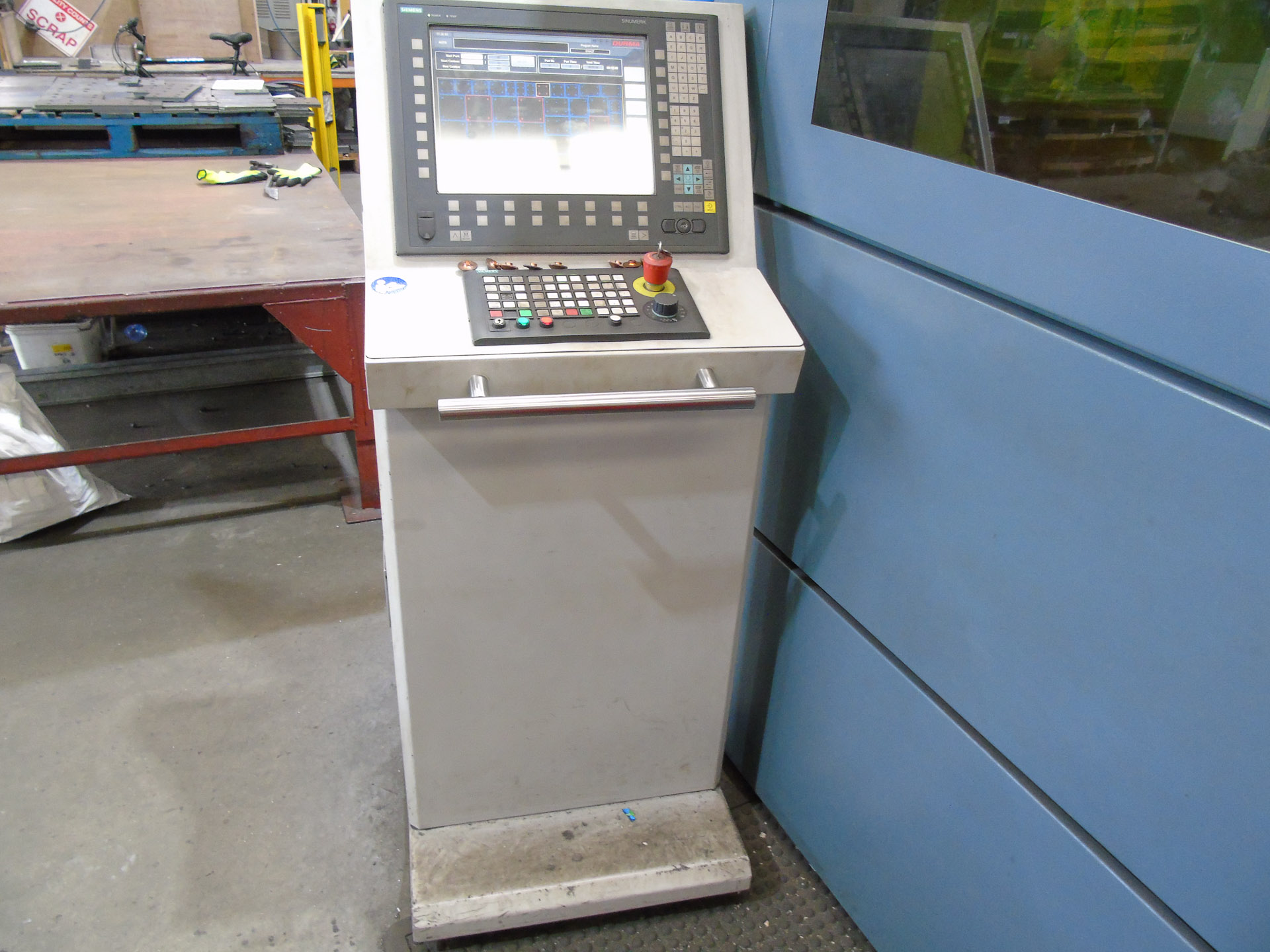

Control Unit: Siemens Sinumerik 840SDL15" DisplayLaser Cutting Head: Precitec ProCutter.

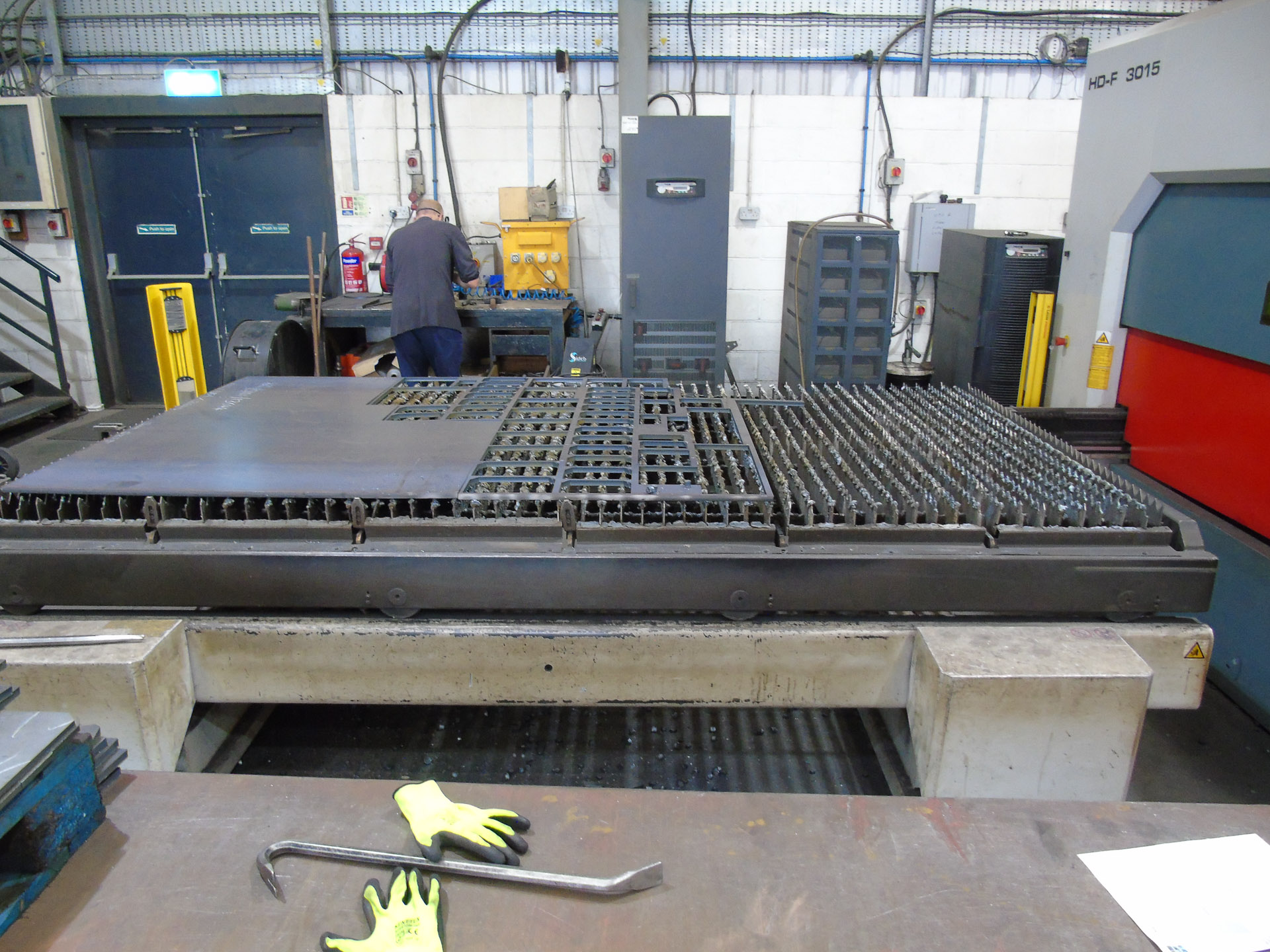

Cutting Area: X Axis: 3060mmY Axis: 1530mmZ Axis: 160mmMax Sheet Size: 3048 x 1524mmMax. Sheet Weight: 200kg/m^2.
Dynamics: X Axis: 120m/minY Axis: 120m/minSynchronous: 170m/minAcceleration: 20m/s^2Positional Accuracy: ±0.05mmRepeatability: ±0.05mm.

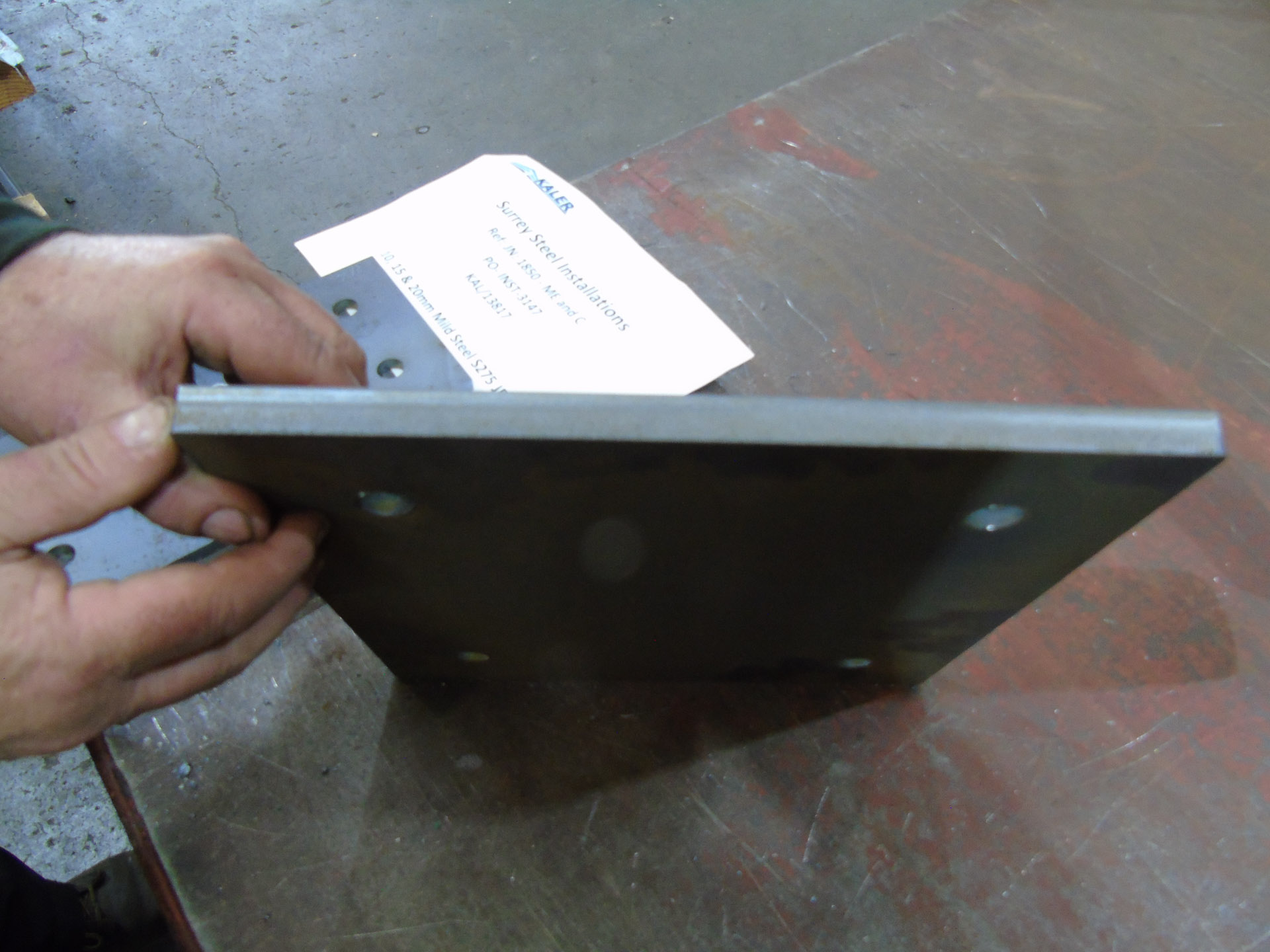

Material Cutting Capacity: Mild Steel: 25mmStainless Steel: 12mmAluminium: 15mm.

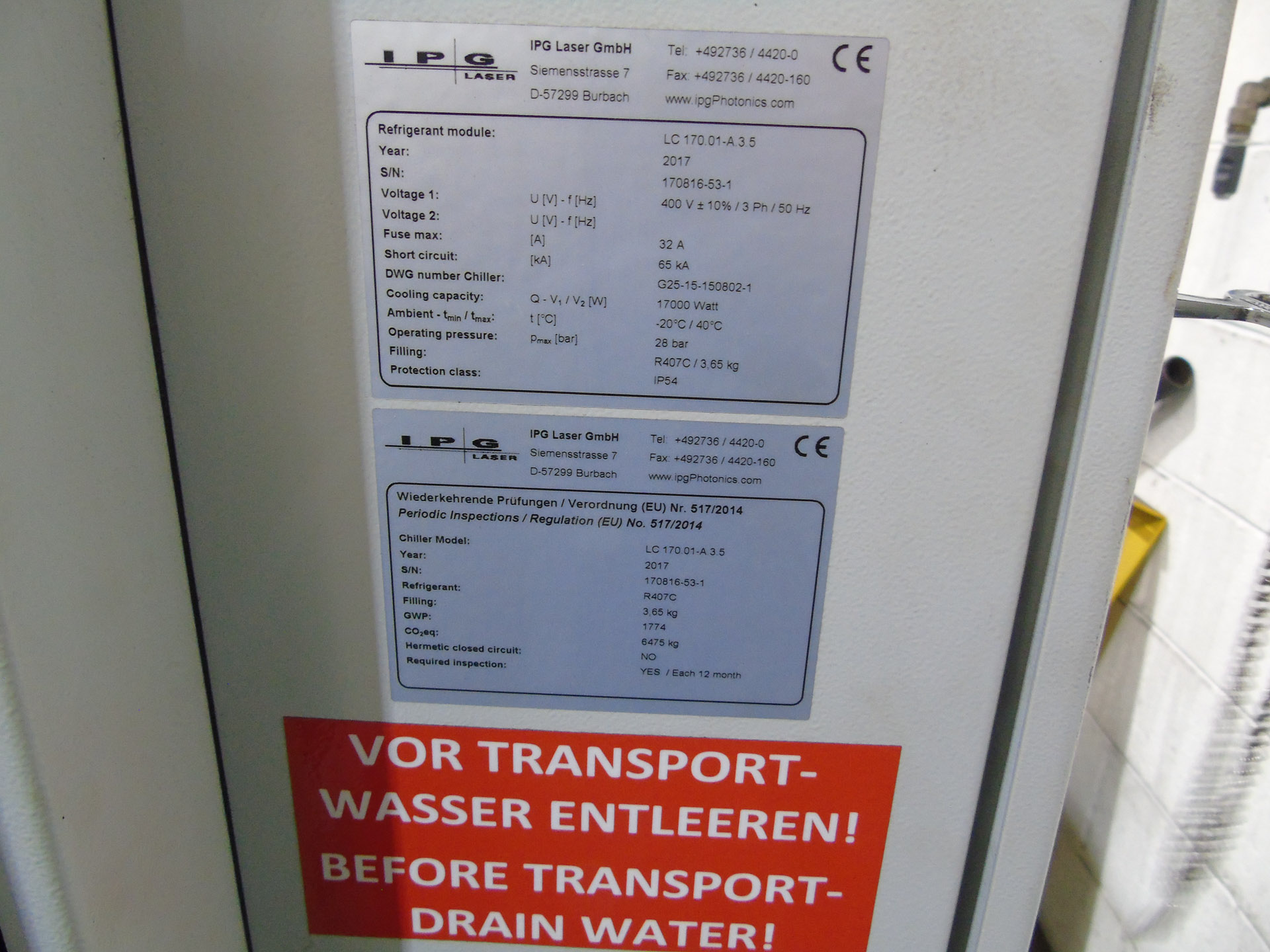

Resonator: IPG YLS-6000-Cut 6kWVolts: 400 - 46050 - 60 HzYear: 2017.

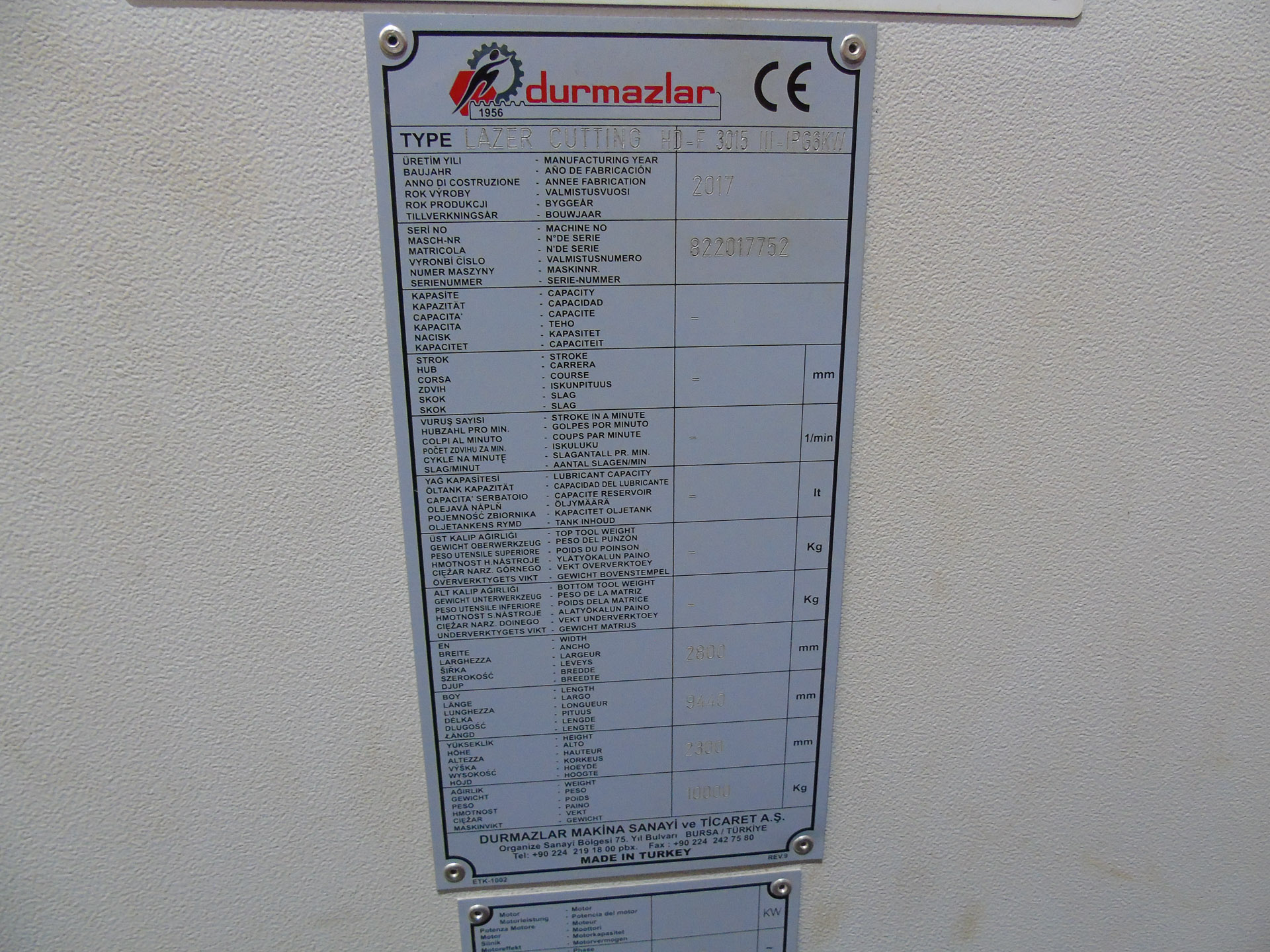

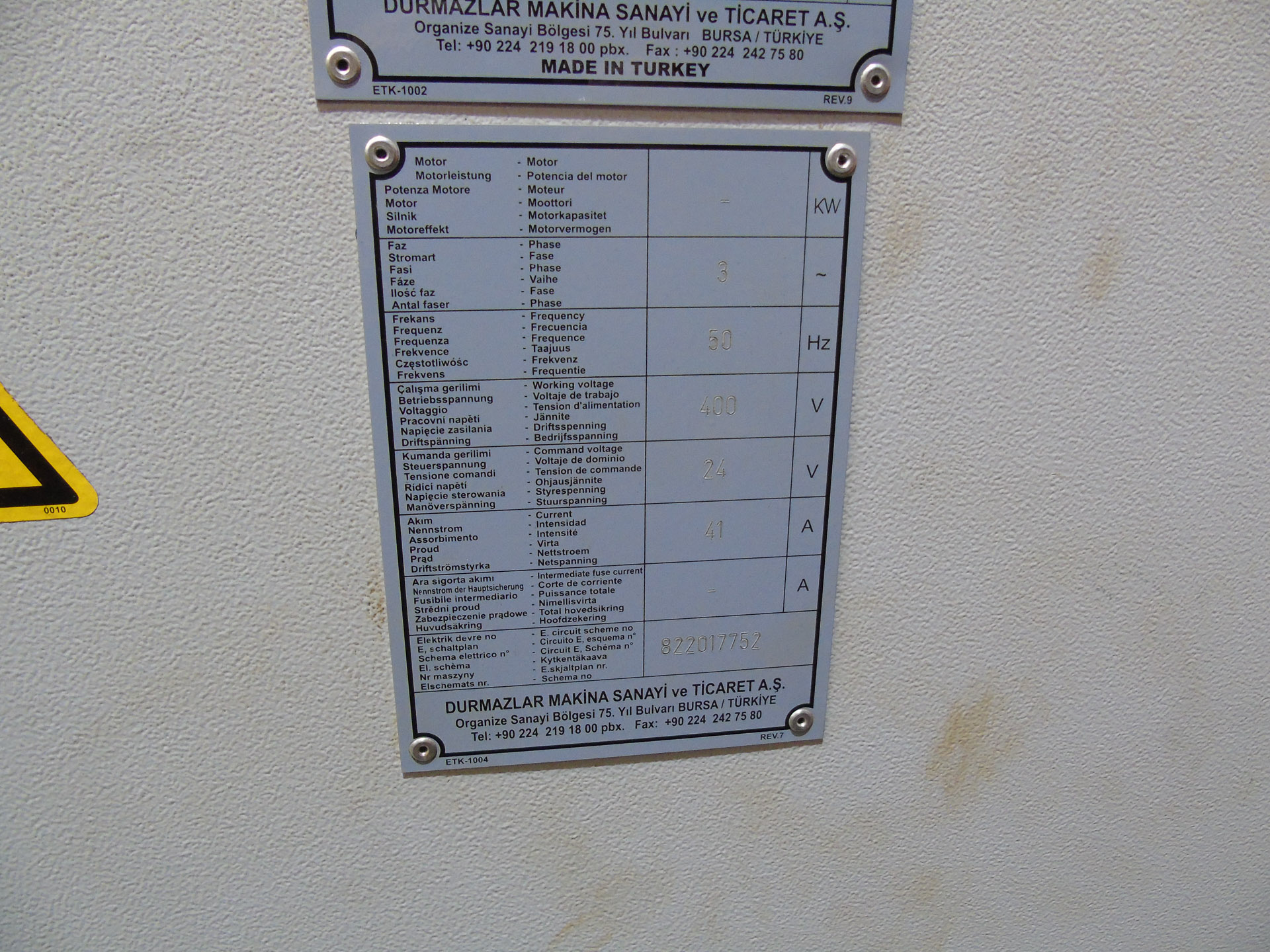

Serial No.: 822017752.
Weight: 12,000kg (approx.).
Overall dimensions: 14500mm L x 7500mm W x 2420mm H.
