MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Subcategory:
Other Machines

Manufacturer:
XYZ

Model:
XYZ TC 320 LTY (2014)

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Charter Auctions

Country:

DESCRIPTION

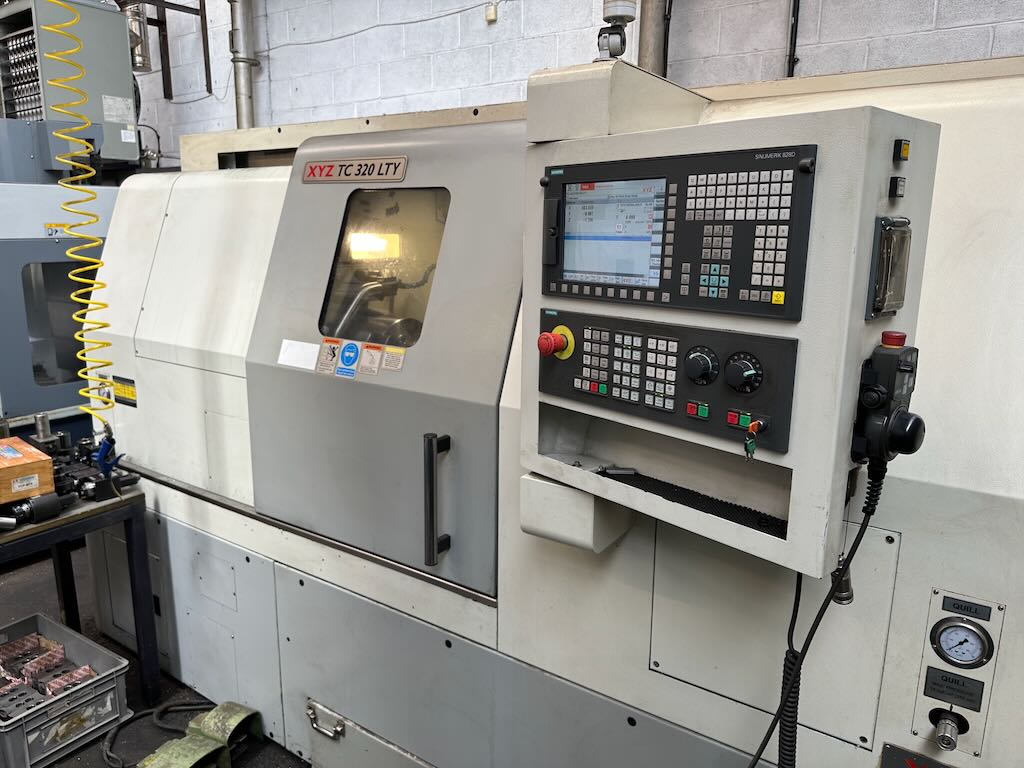

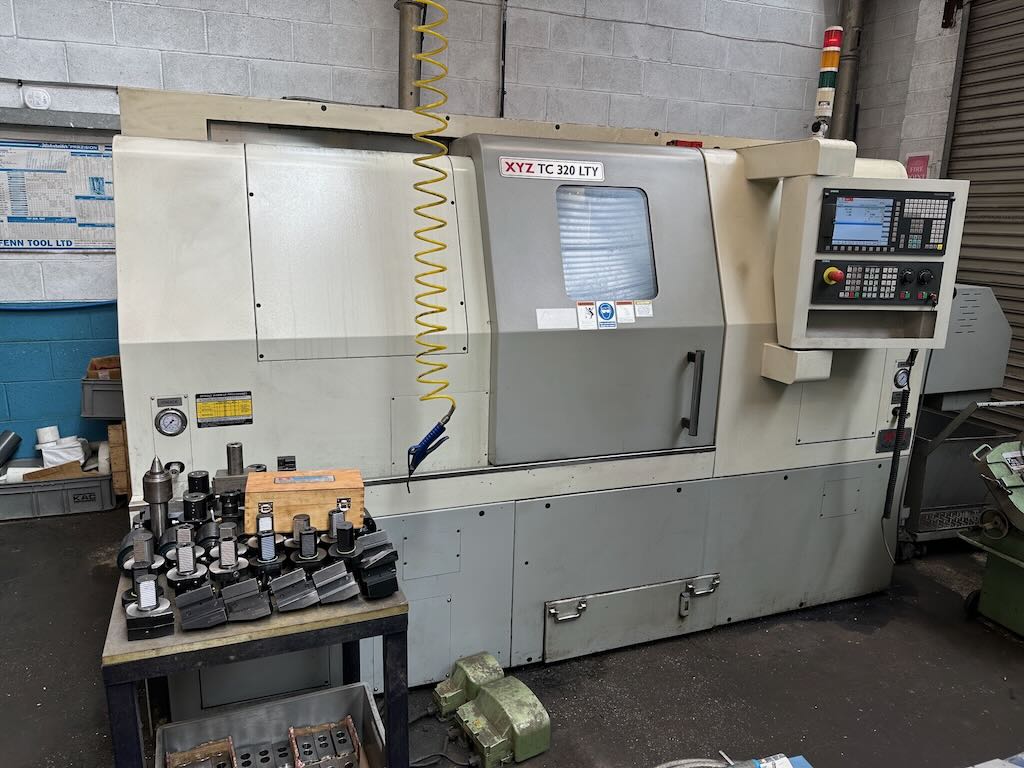

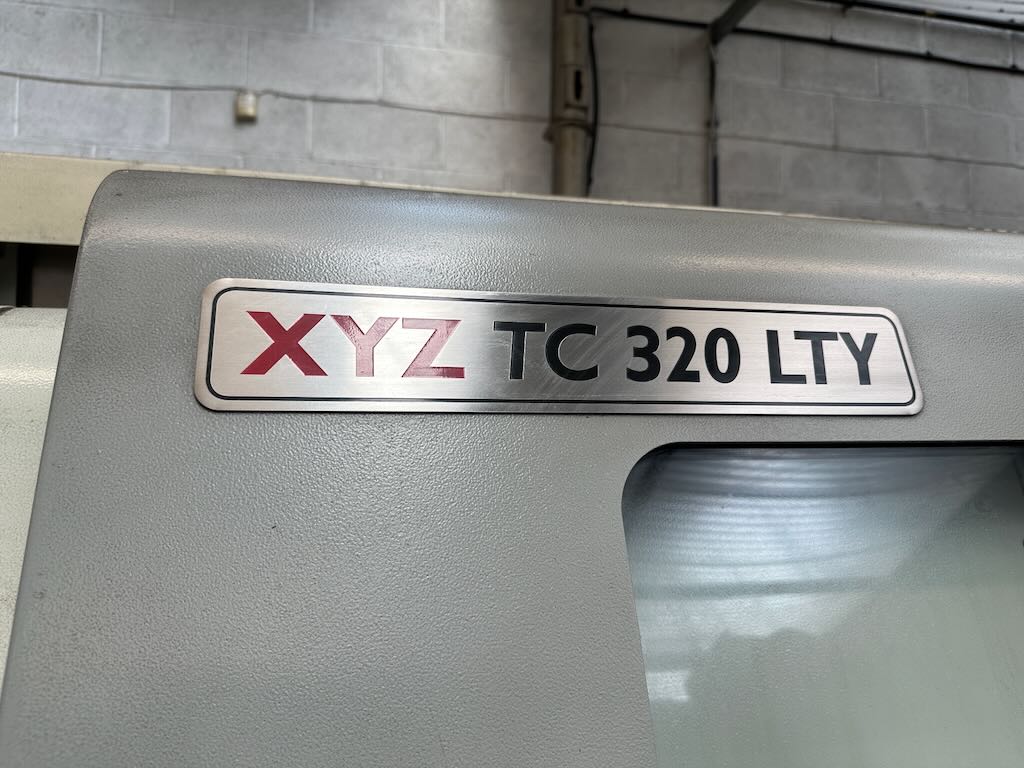

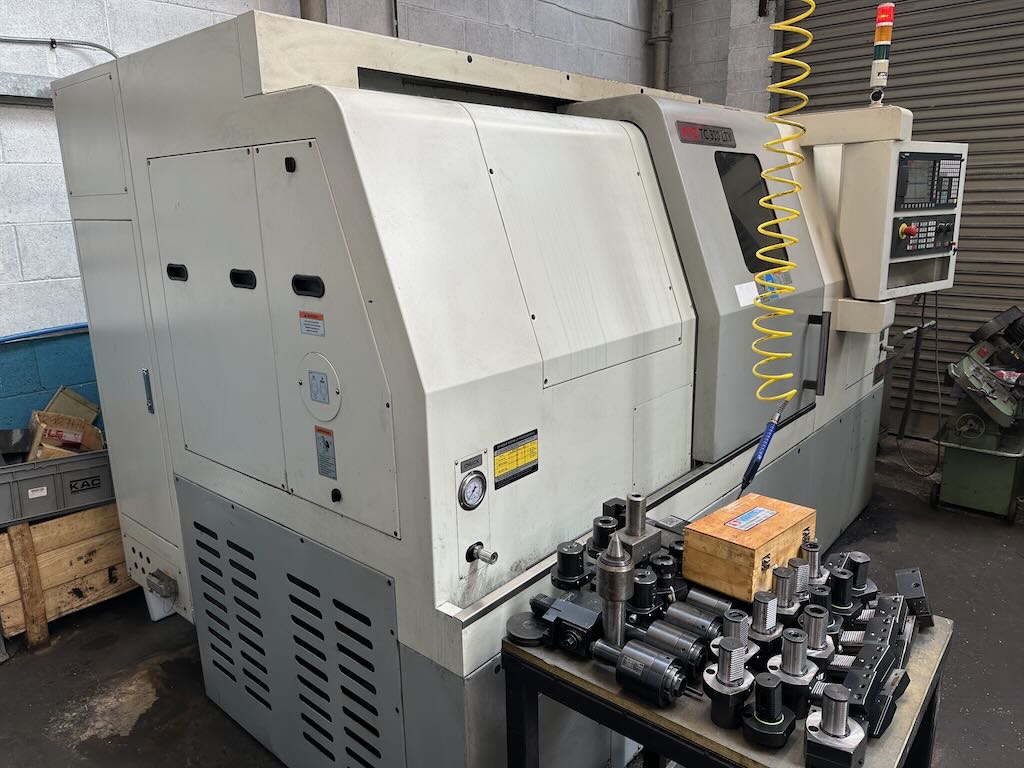

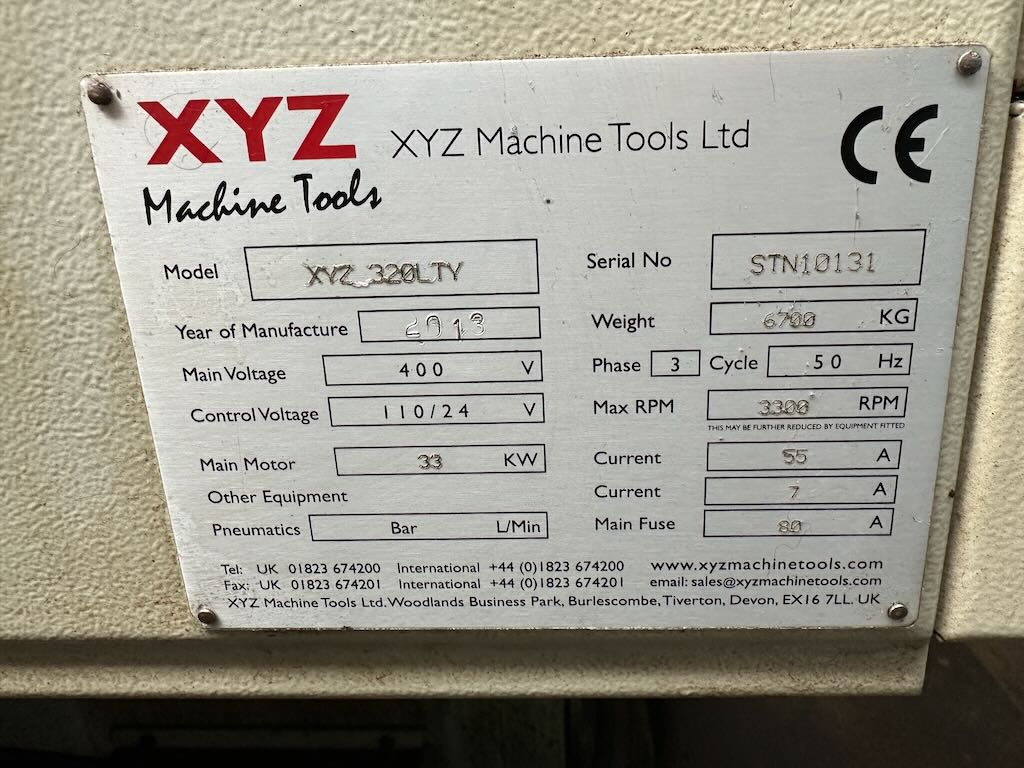

Model: XYZ TC 320 LTY.

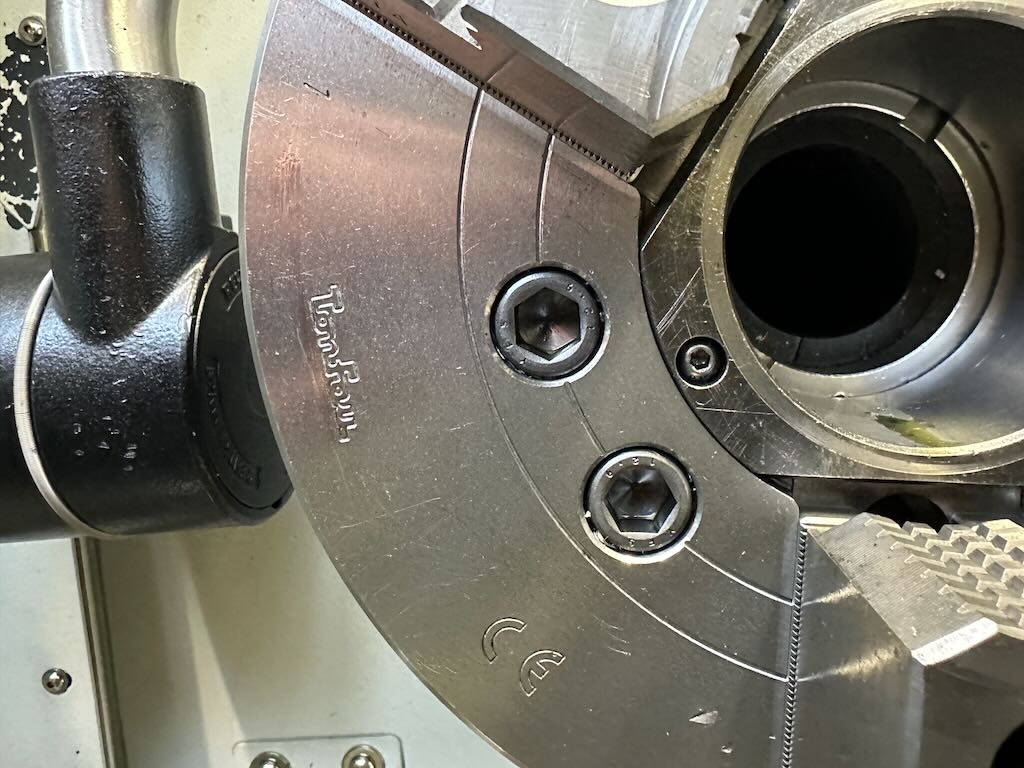

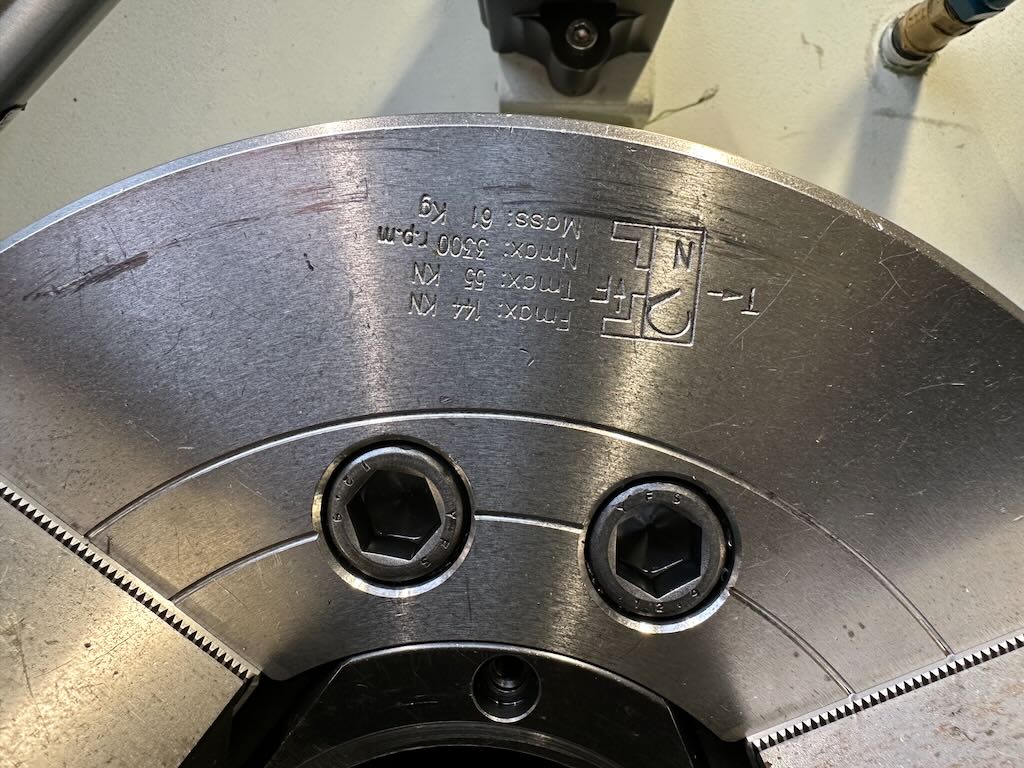

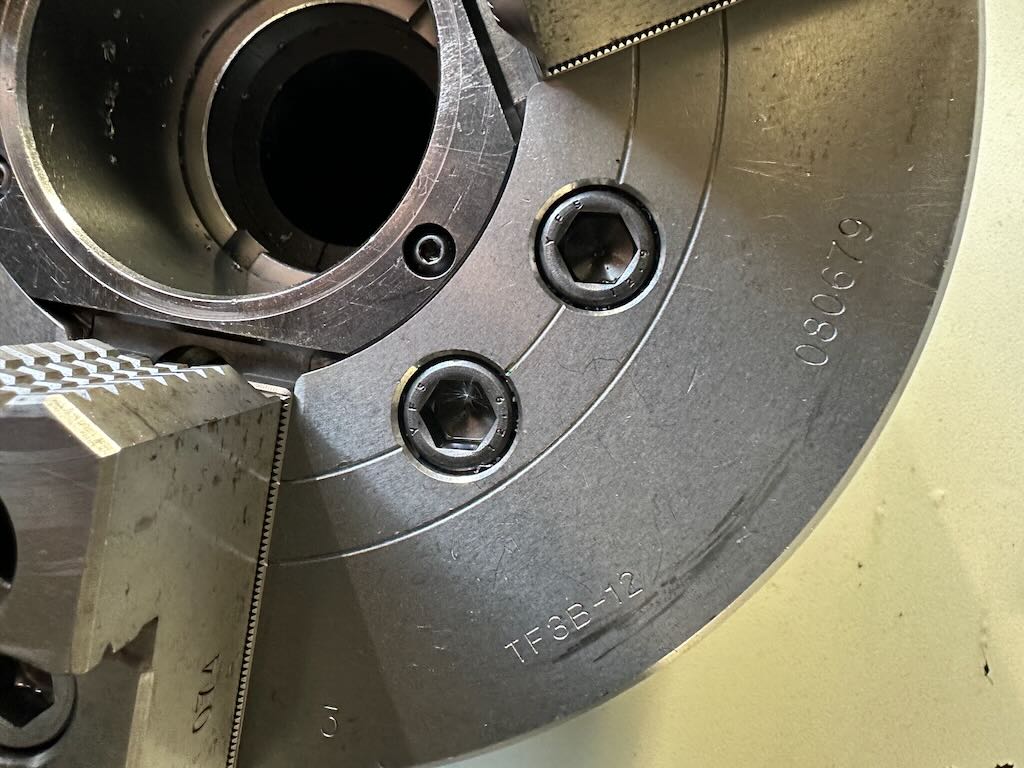

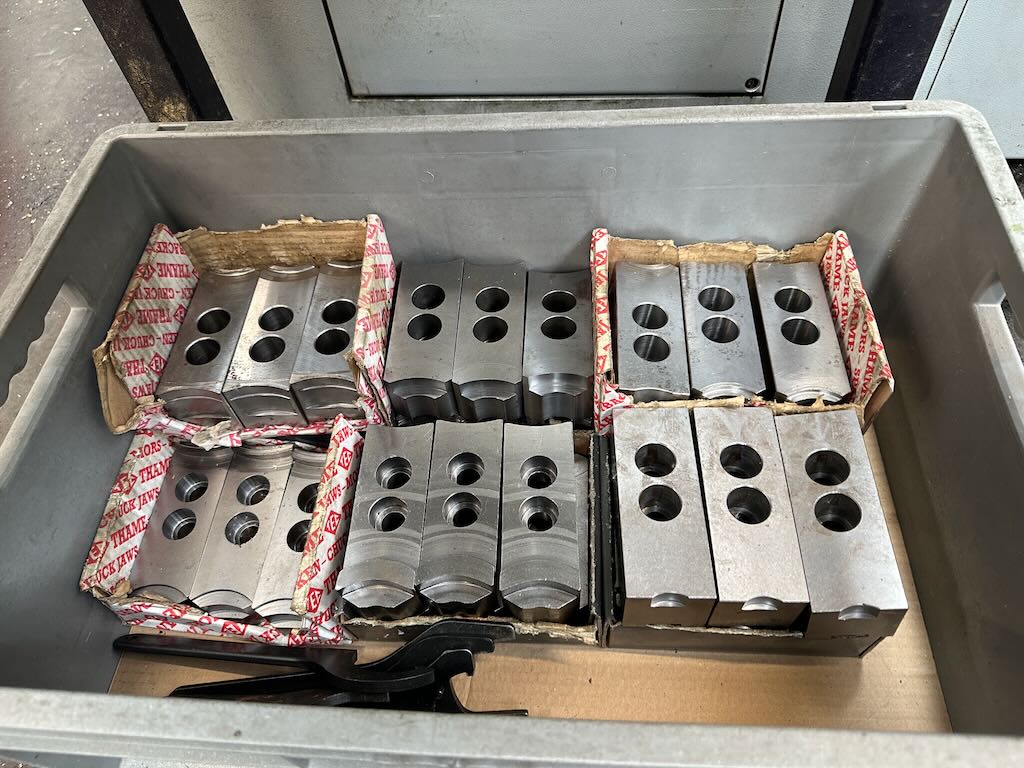

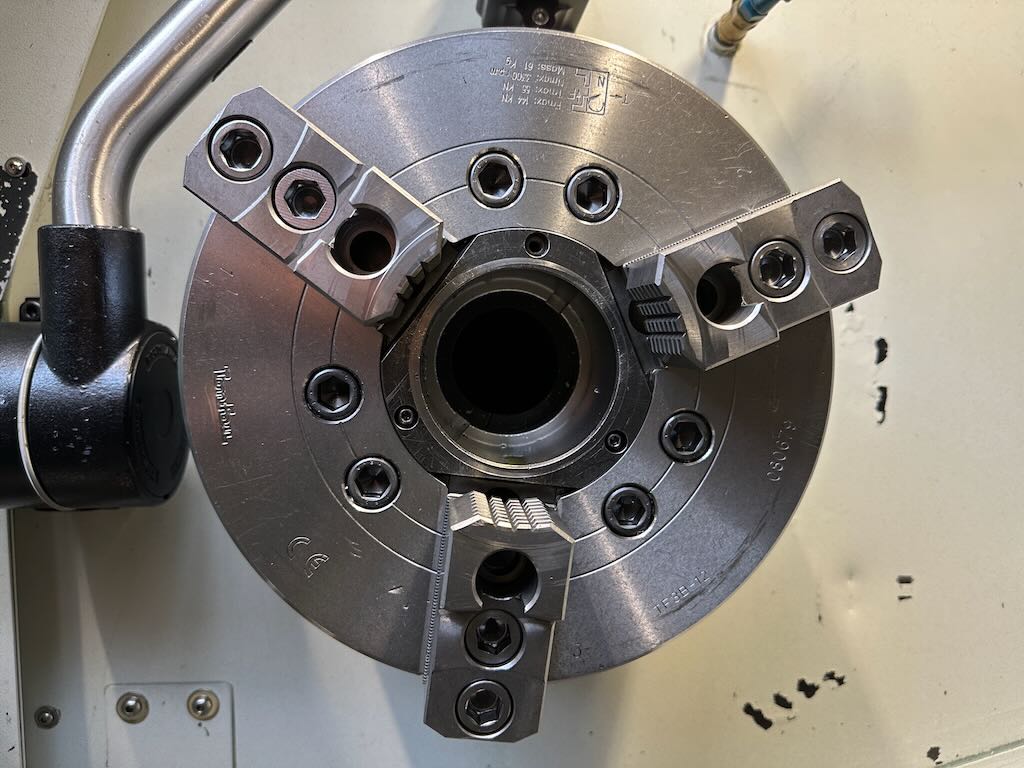

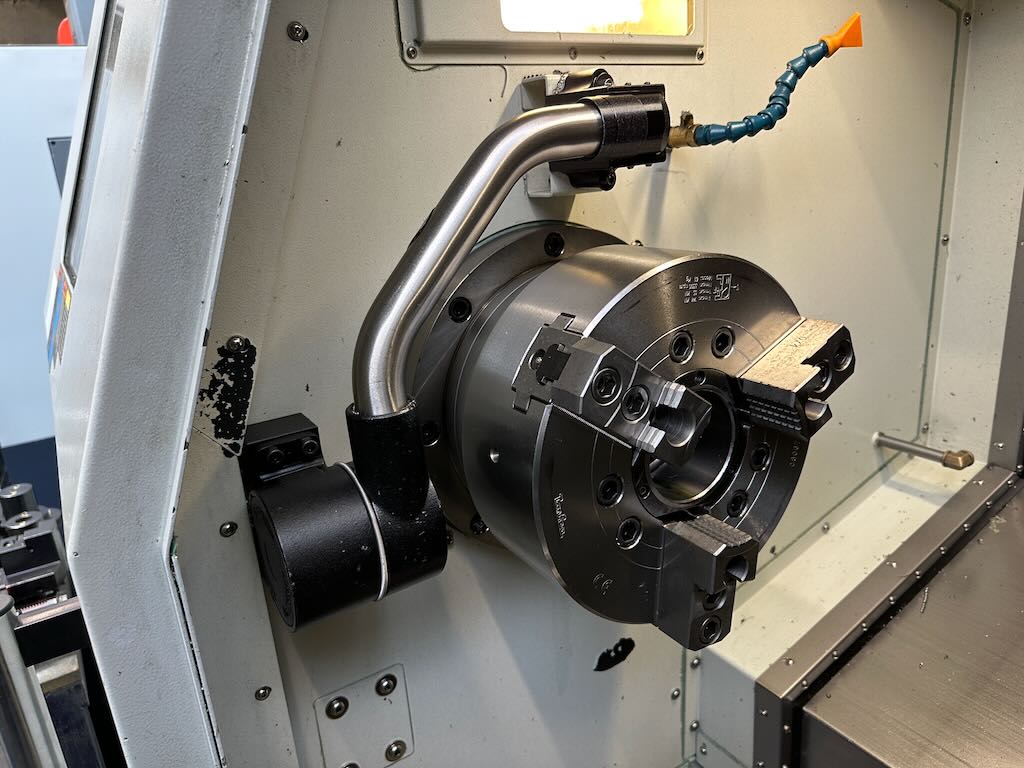

Power Chuck Diameter: 300mm.
Maximum Swing: 450mm.
Swing Over Carriage Cover: 450mm.
Maximum Turning Diameter: 320mm.
Maximum Turned Length: 550mm.
X Axis Travel: 270mm.
Y Axis Travel: 100mm (+/- 50mm).
Z Axis Travel: 600mm.
Spindle Centre Height from Floor: 1,230mm.
Height from Floor to Spindle Centre: 1,040mm.
Spindle Nose: A2-8.
Spindle Bore (Drawtube Capacity): 91mm (78mm).
Spindle Front Bearing Internal Diameter: 130mm.
Spindle Speeds: 3,300rpm.
Spindle Motor: 32kW.
Minimum Speed for Full Power: 1,500 rpm.
Rapid Feedrate: 20 M/min.
Ballscrew: X= 40mm Y= 36mm Z= 45mm.
Servo Motor: X = 11 Nm / Y = 11 Nm / Z = 16 Nm.

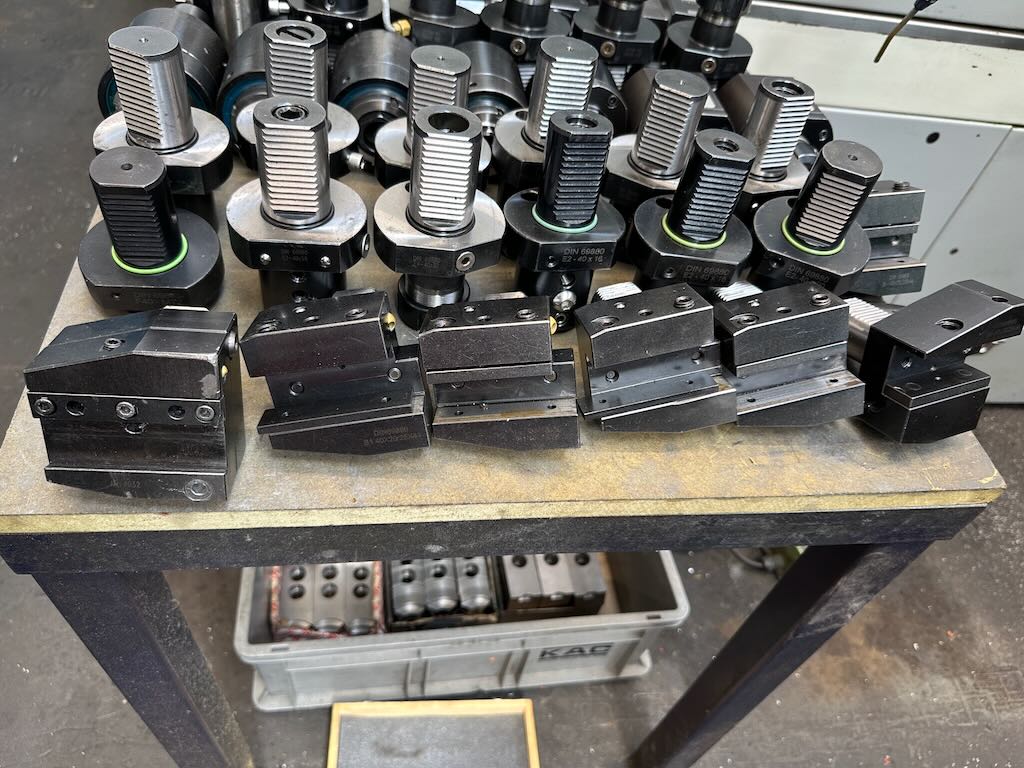

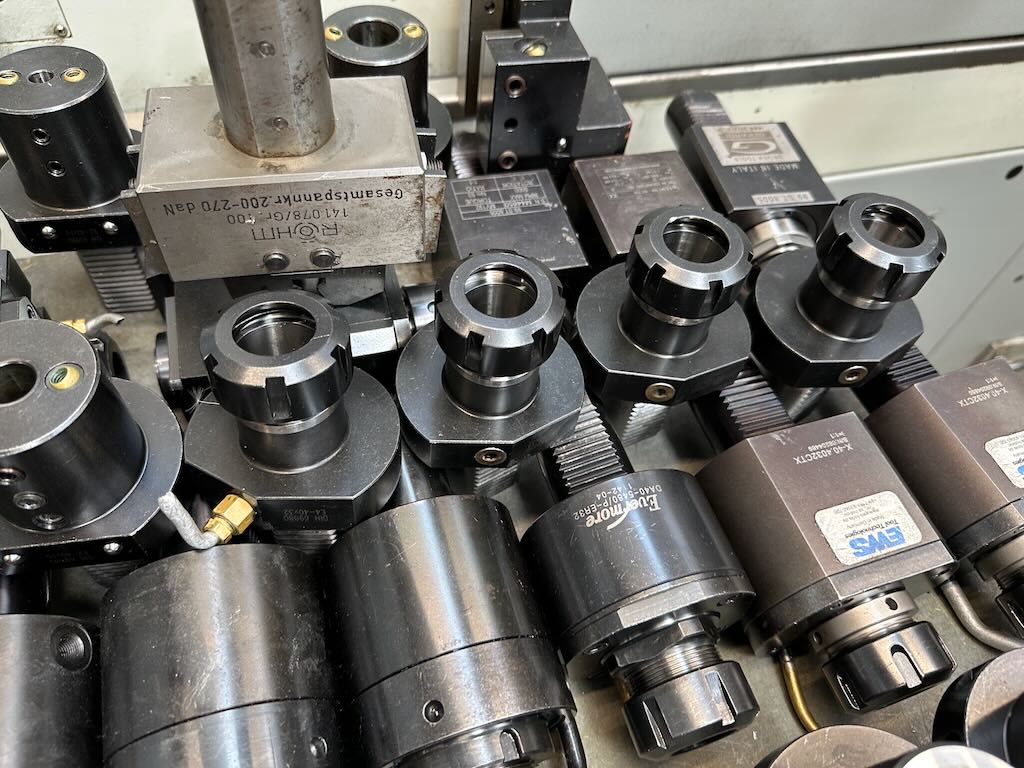

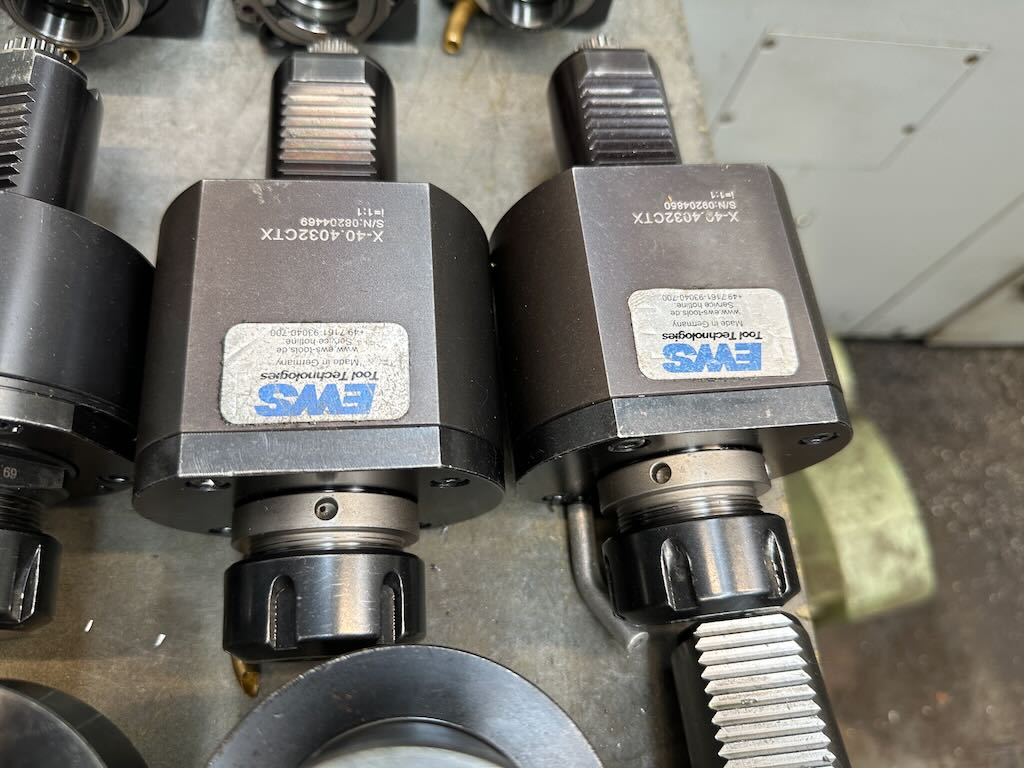

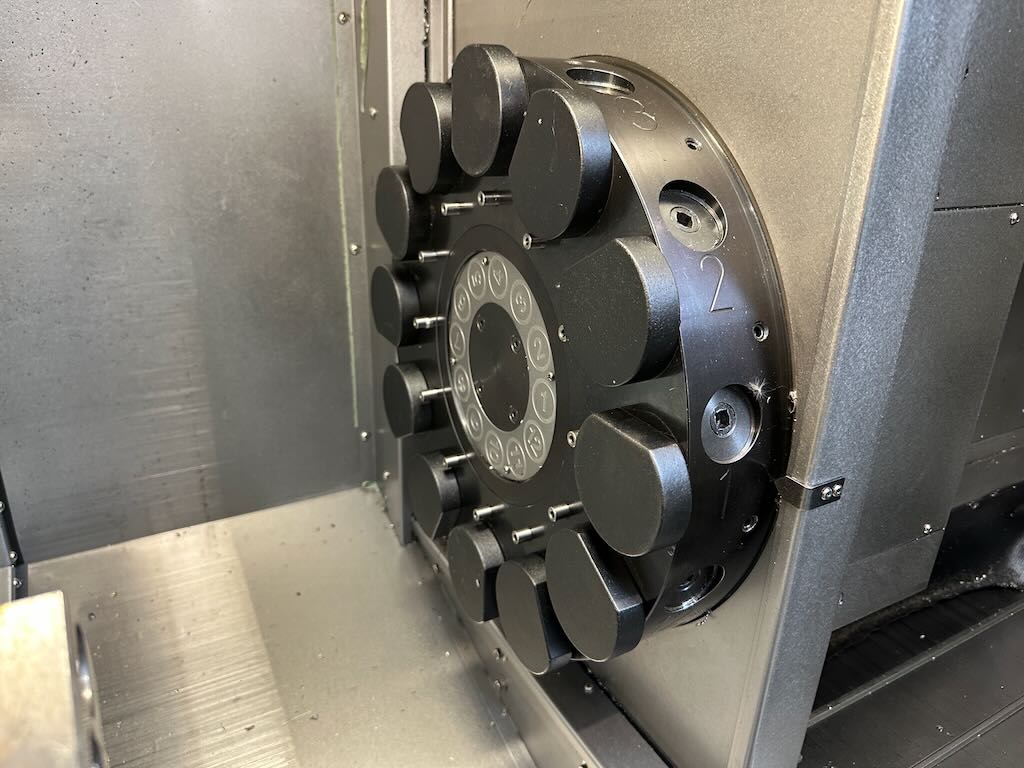

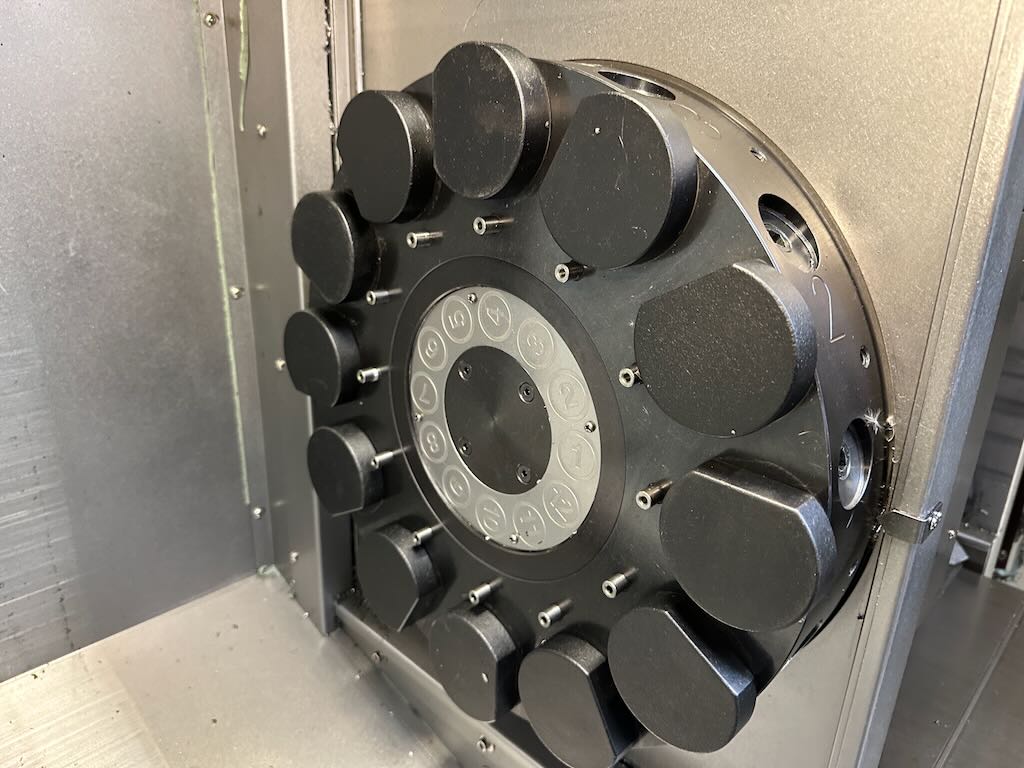

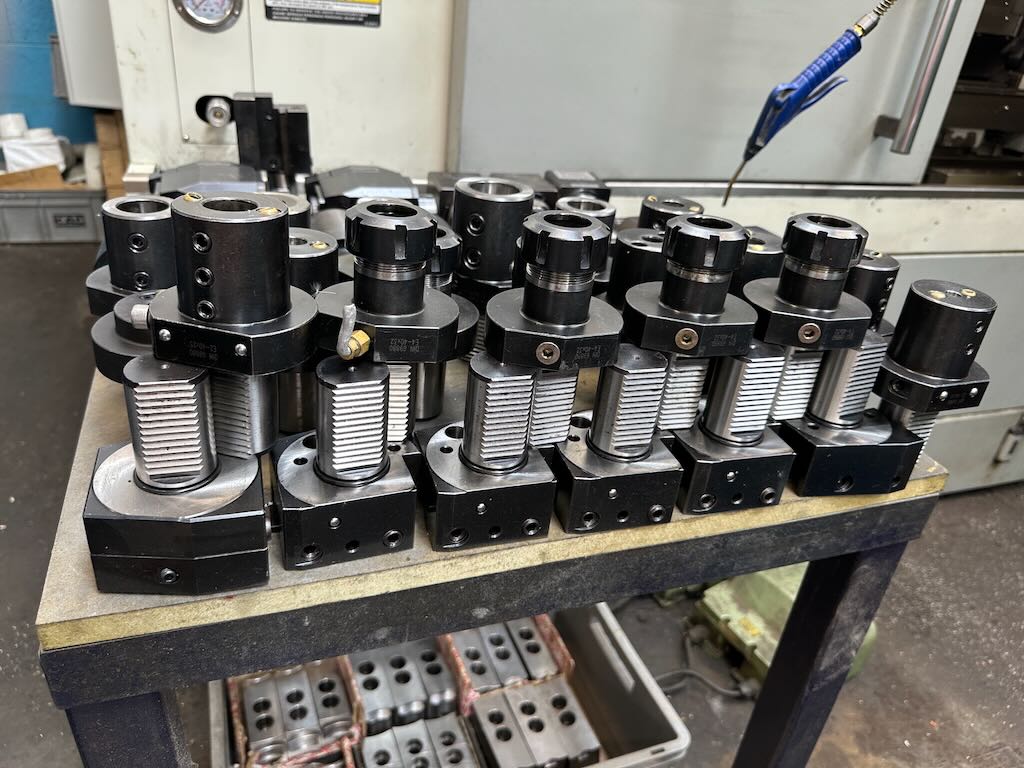

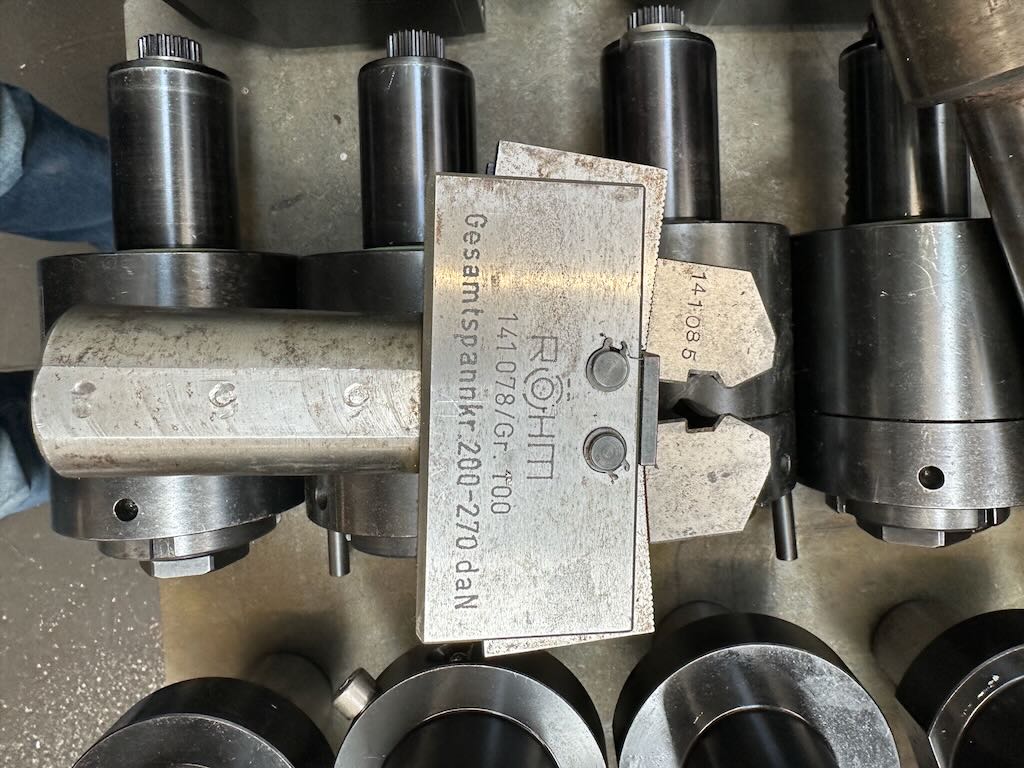

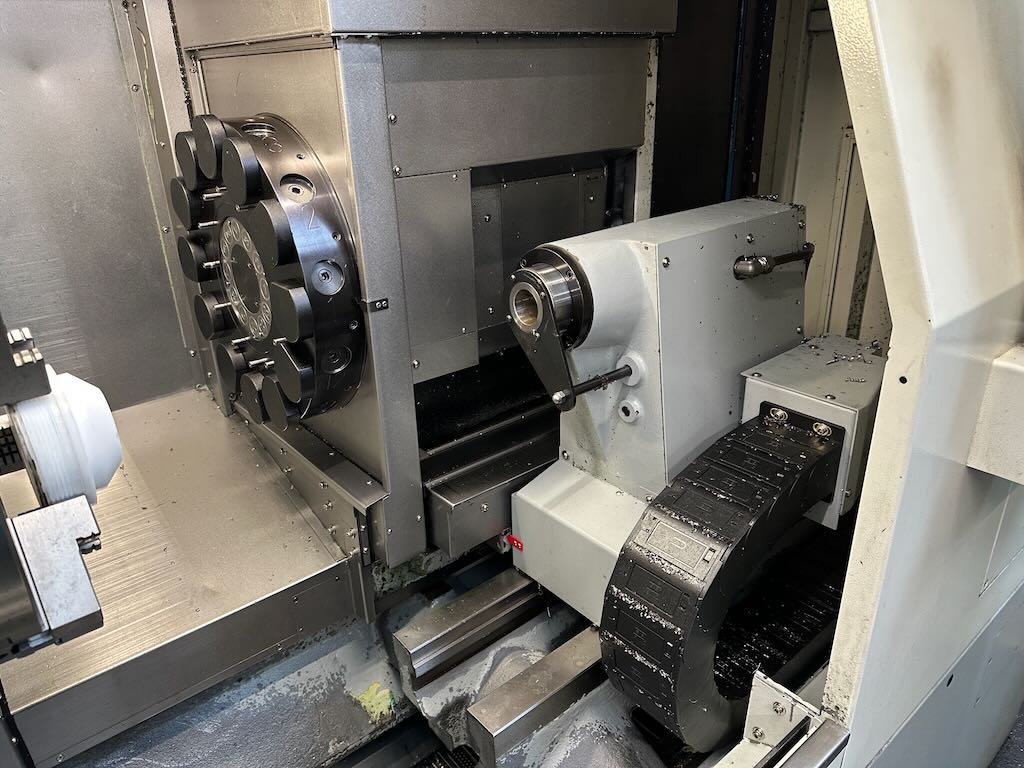

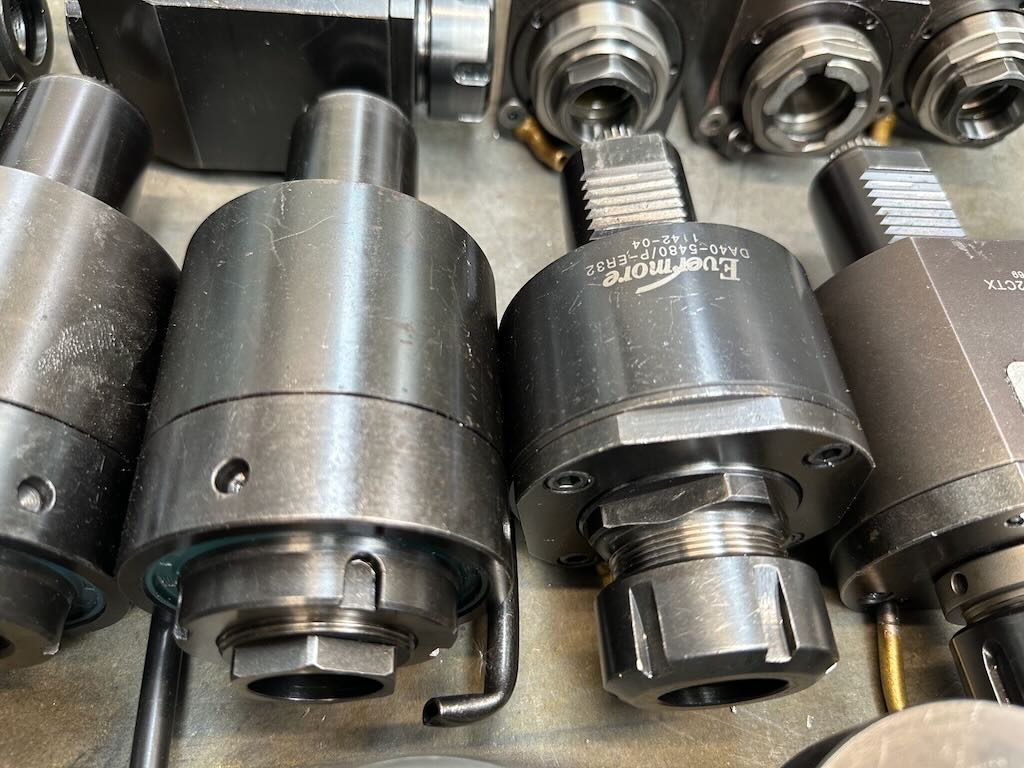

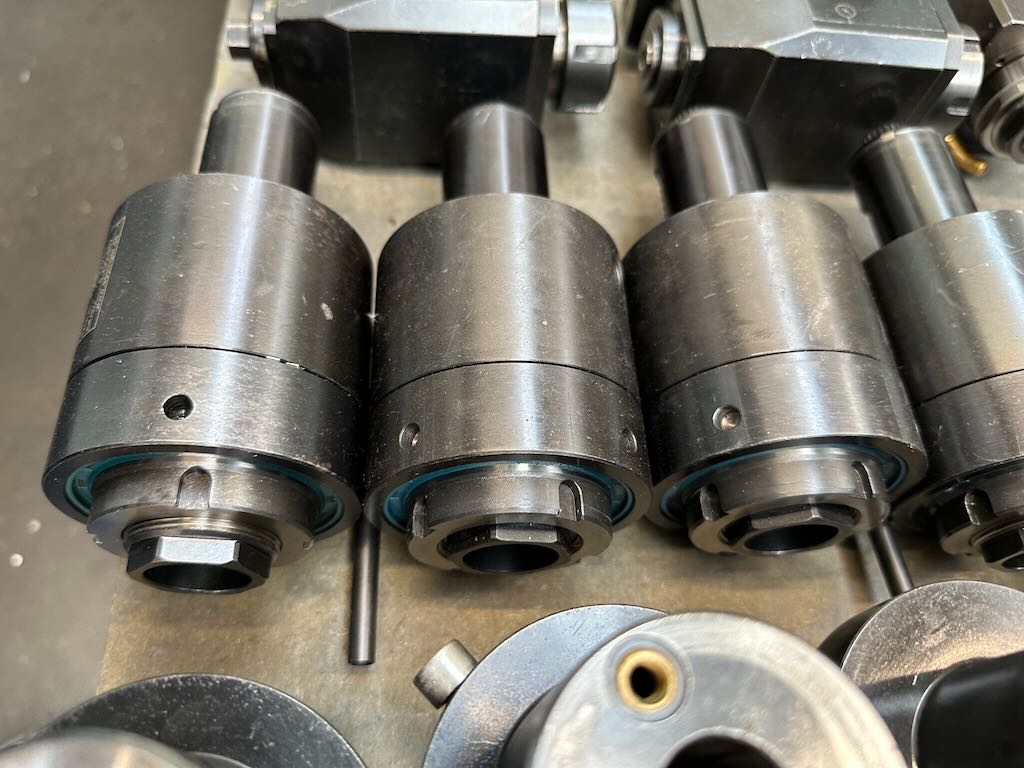

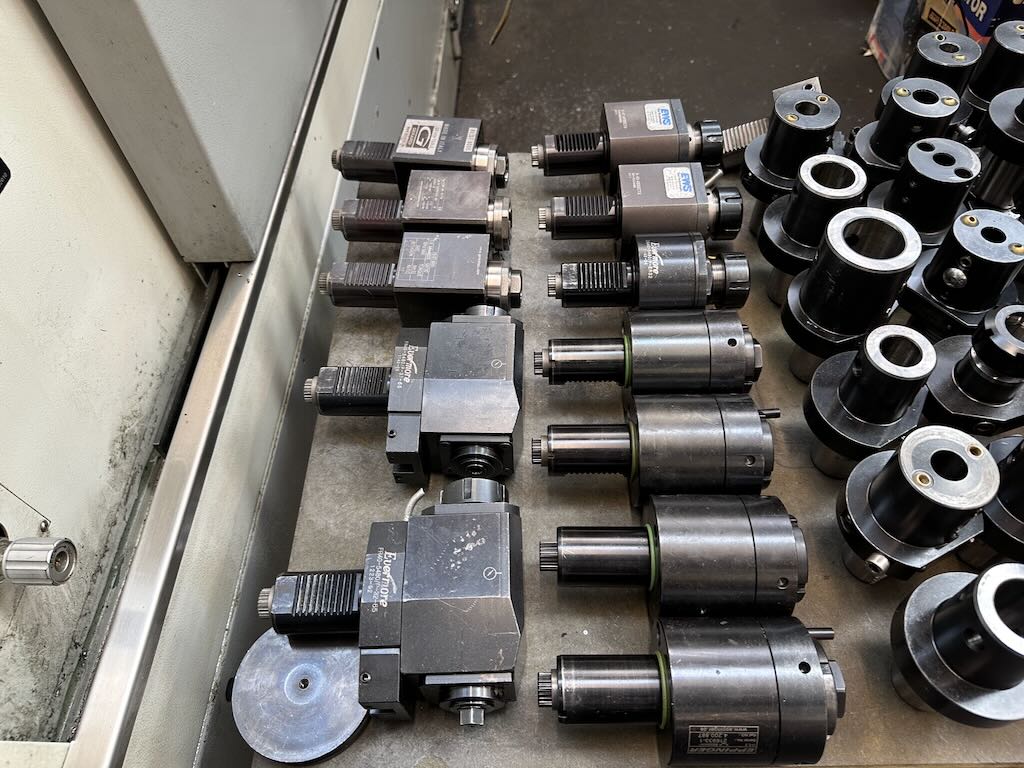

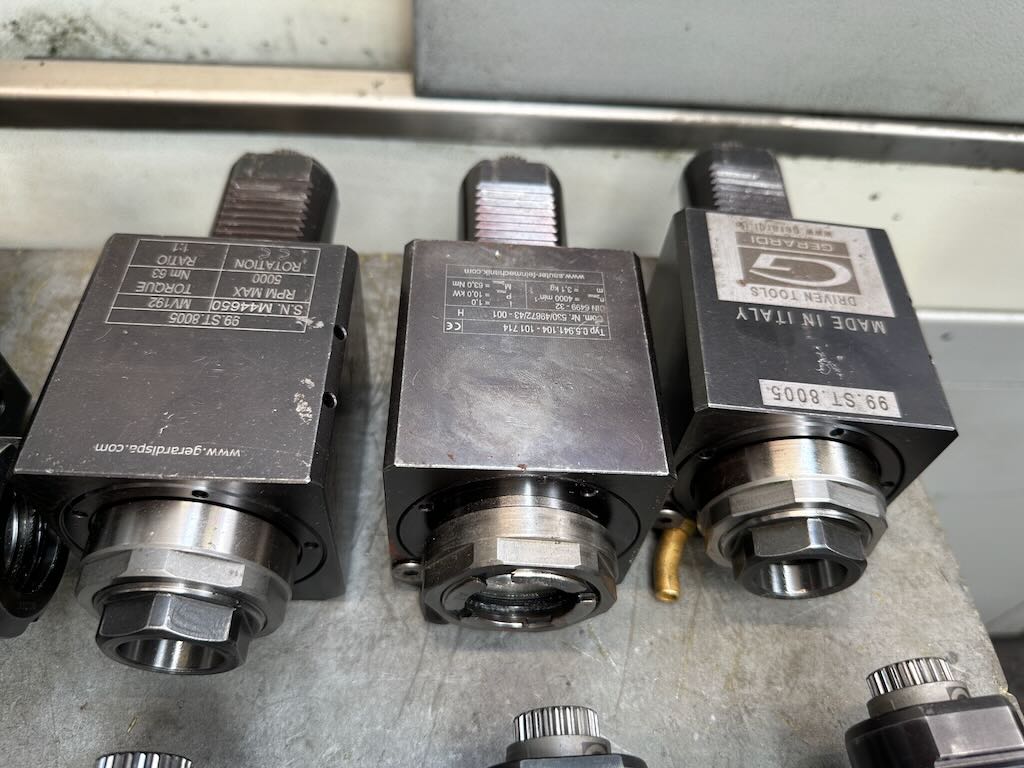

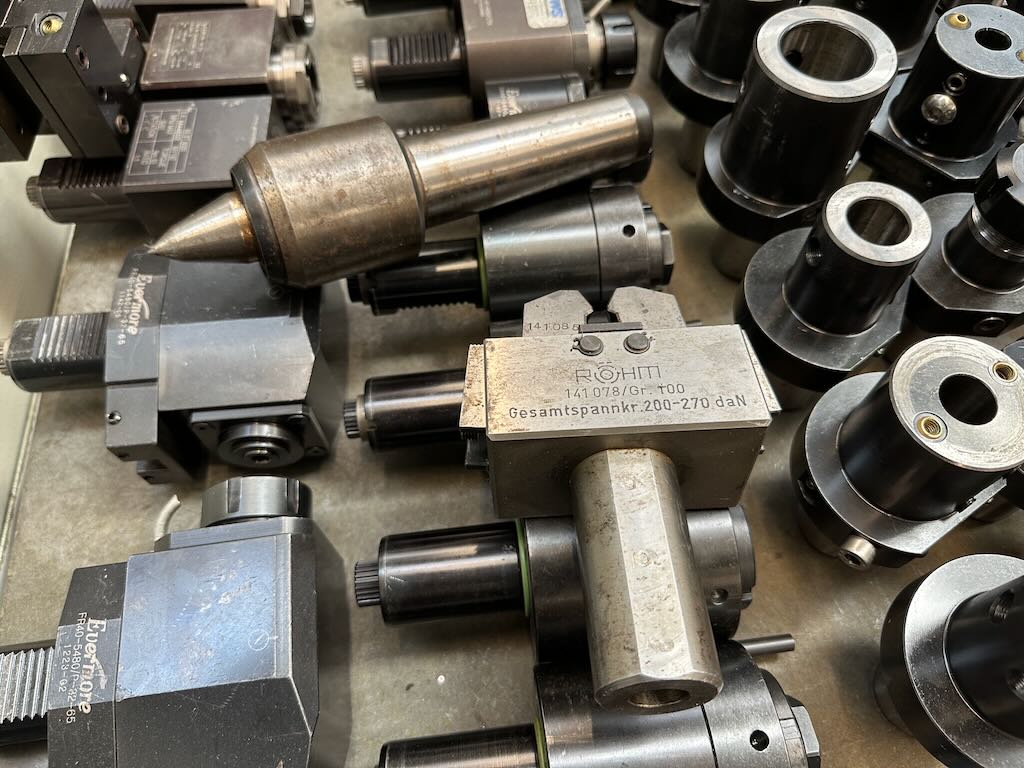

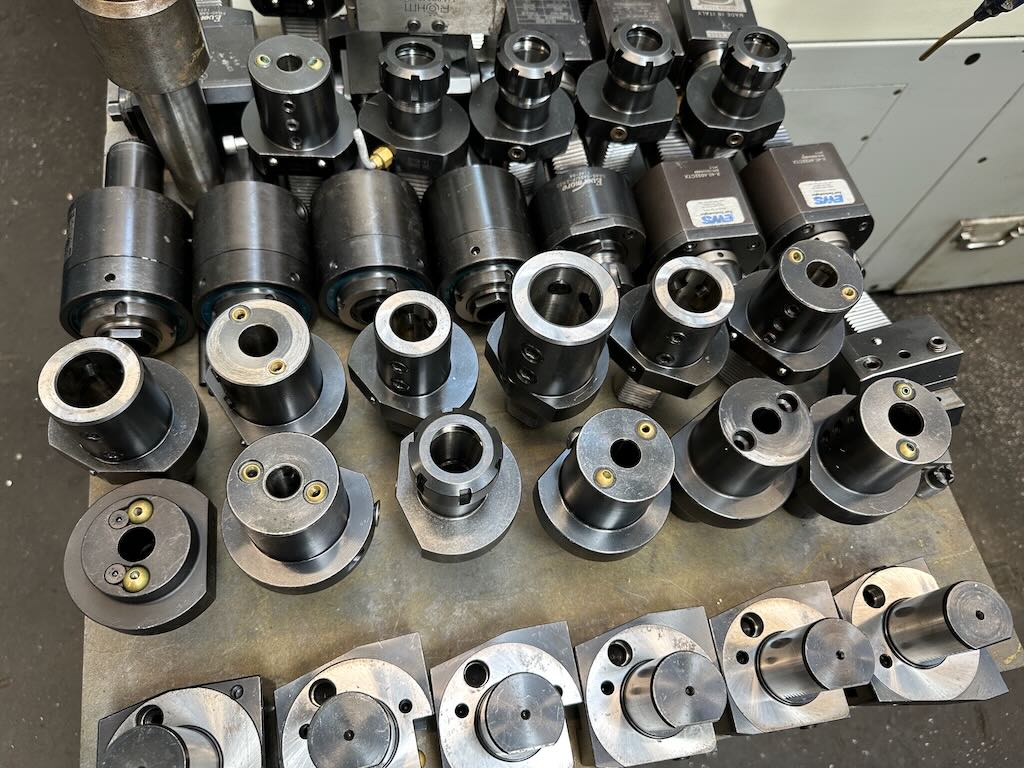

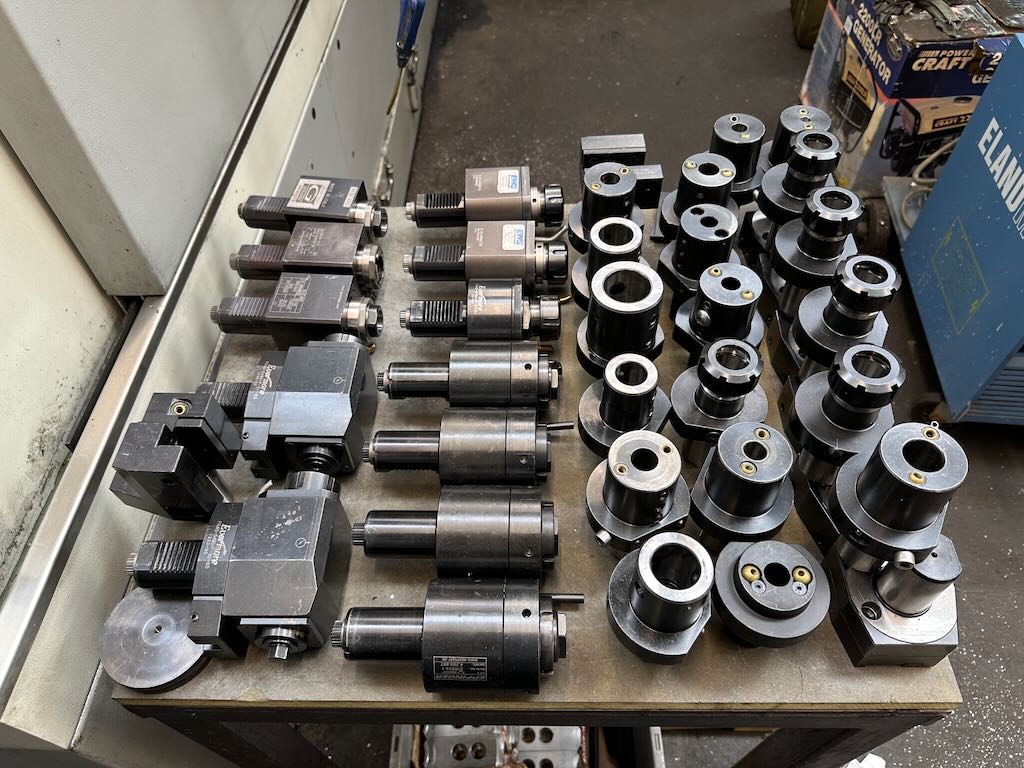

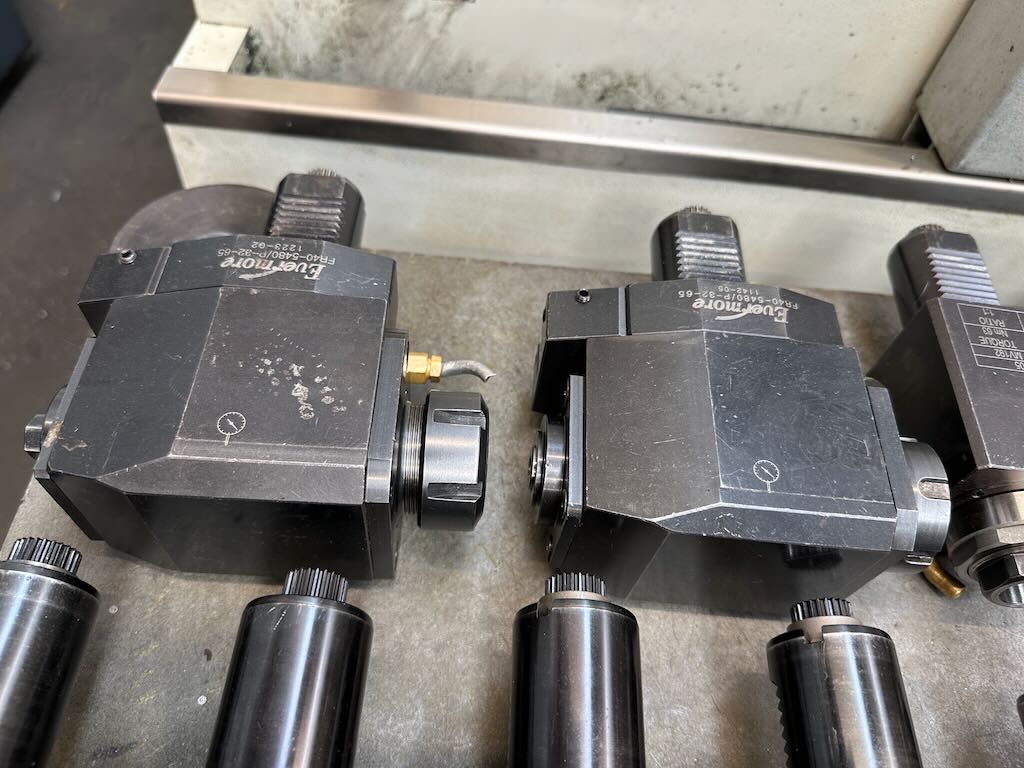

Toolchanger: 12 Station 40 VDI Turret.
Tool Section Size: 25 x 25mm.
Max Boring Bar Diameter: 40mm.

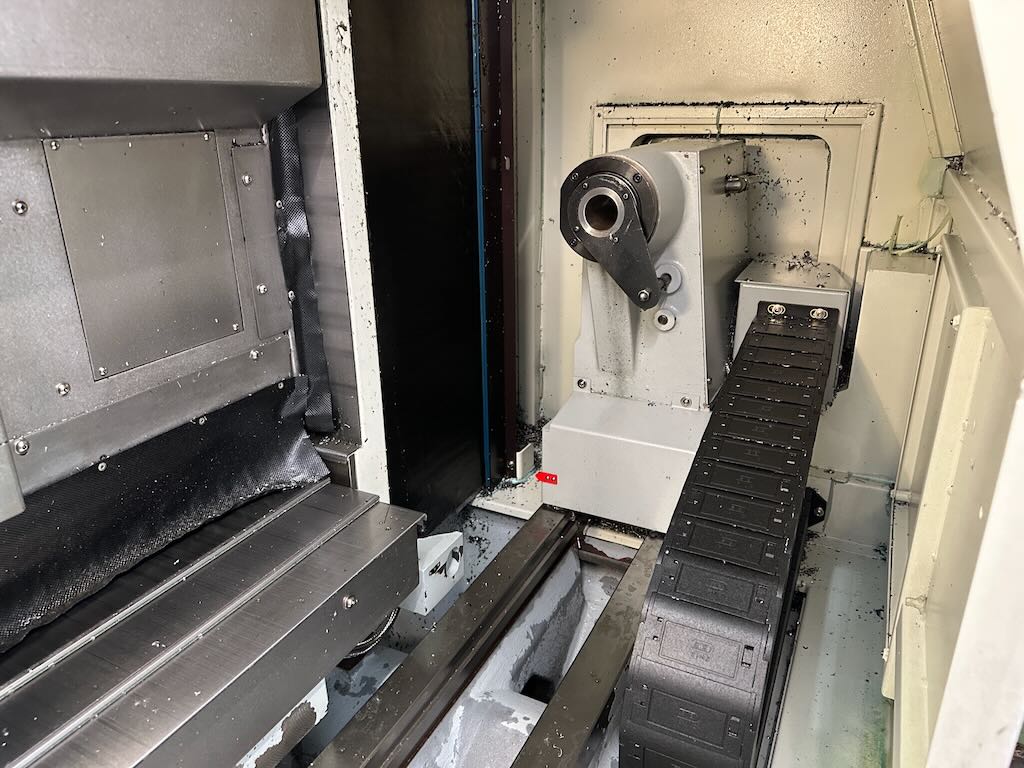

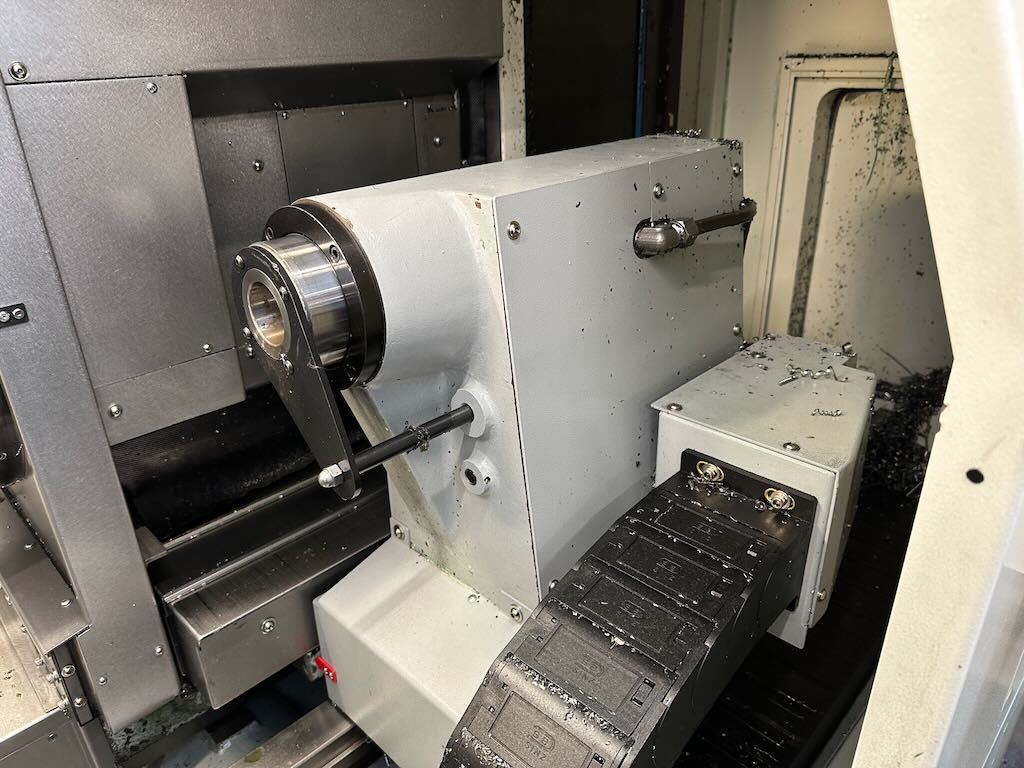

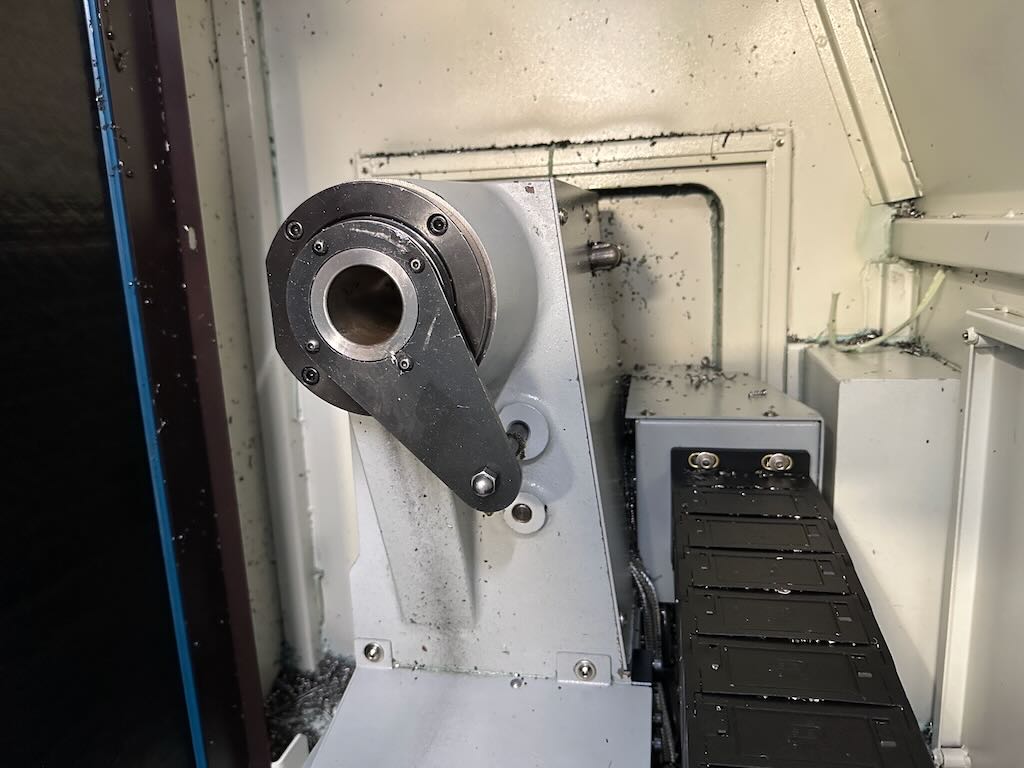

Tailstock Quill Taper: MT5.

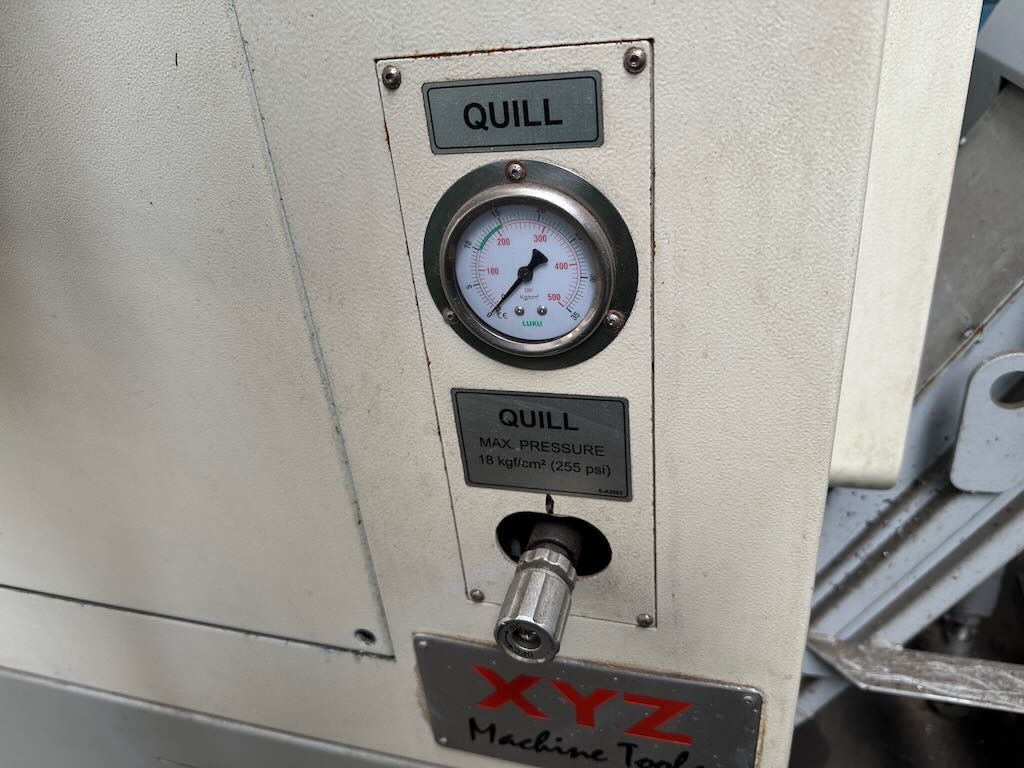

Quill Diameter: 95mm.
Quill Travel: 125mm.
Max quill thrust: 2,300kg.
Coolant Tank Capacity: 200L.

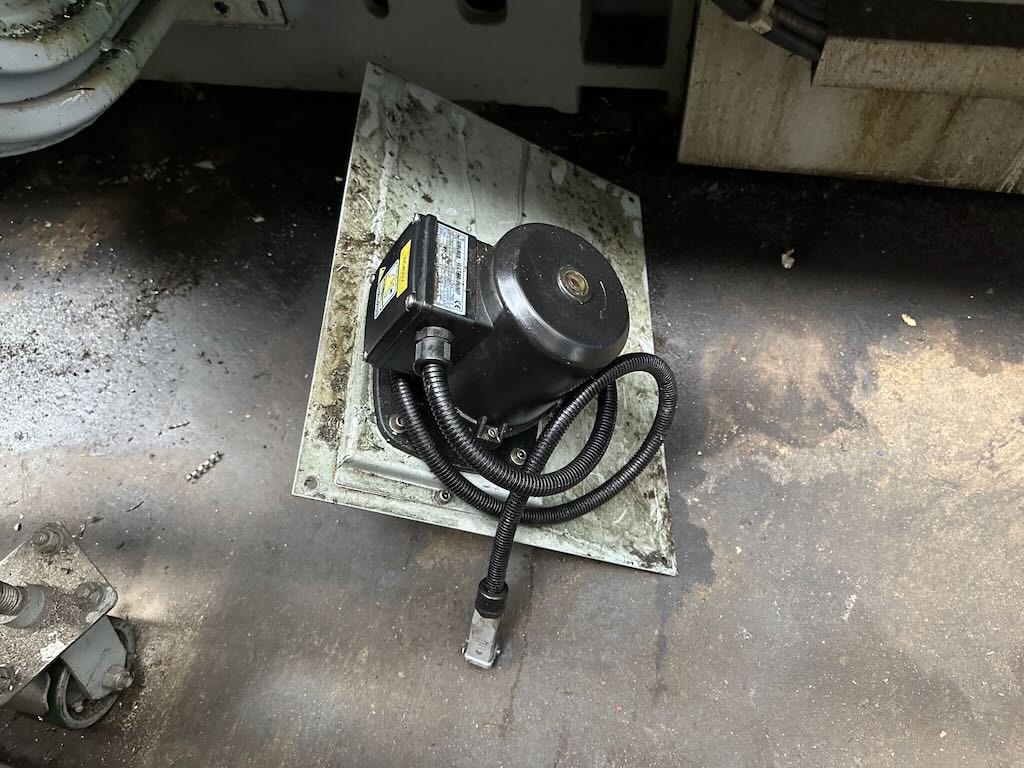

Coolant Pump Delivery: 16L/min @ 2.5 Bar.
Machine Weight: 6,950Kg.
Footprint: 4,120 x 2,480 x 2,300mm.
