Table Data:
Capacity | U-1000
Area (Width x Length) | 360x1500mm
Longitudinal travel | 1000mm
Spindle center to table (Horizontal) arbor arm is used | 50-480mm
Spindle nose to table (Vertical) | 50-480mm
Cross travel | 380mm
Traverse rates (X,Y) | Va...
Table Surface 2000 X 700 mm.
Longitudinal Traverse (X Axis) 2000 mm.
Transversal Traverse (Y Axis) 800 mm.
Vertical Traverse (Z Axis) 800 mm.
Rapid Traverse 12.000 mm/min
Taper ISO 50
Turning Speeds 20 – 3000 rpm
Head Power 17 Kw
Carrying...
Mecof CNC Bed Type Milling Machine x 9000mm
Table 9000mm x 2200mm
Asquith Angle plate 1000mm x 2500mm x 1200mm,
2 off sub tables 1000mm x 11500m.
Travels
X 6626mm,
Y 1000mm,
Z 2040mm

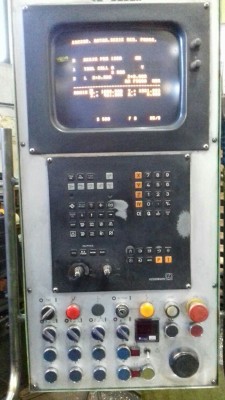

Heidenhain 426 CNC Control
