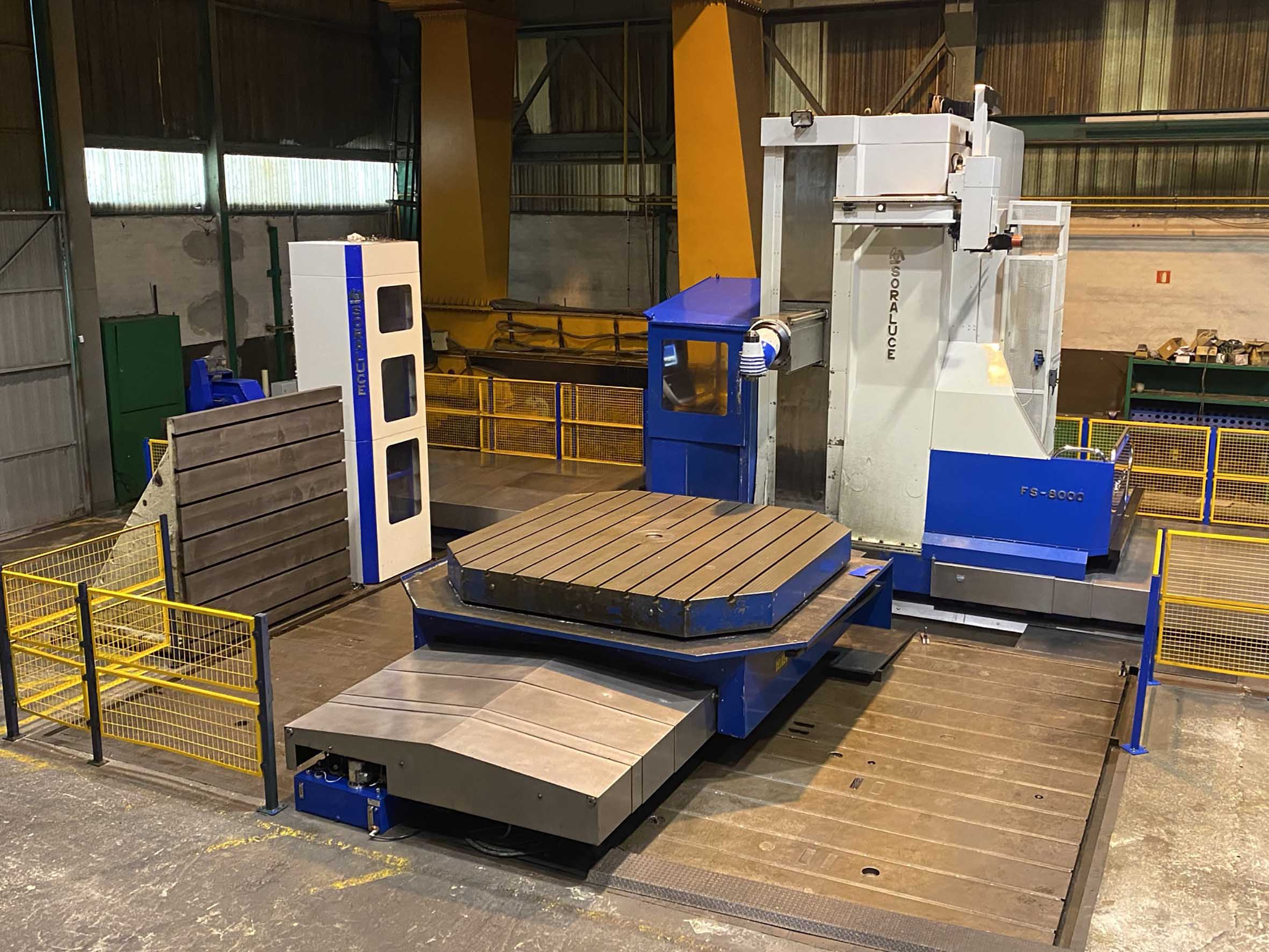

Manufacturer SORALUCE
Model FS-8000
Year 2006
CNC HEIDENHAIN TNC-530 HSCI
Stoller Table Surface 7.500 x 5.000 mm.
Travels (X/Y/Z) 8.000 /1.500/ 2.800mm.
Working Feeds (X/Y/Z) 15.000 mm/min
Rapid Traverse 50.000 mm/min
Taper ISO 50 DIN 69871 AD
Turning Speeds 3.000 rpm
Man spindle power 30 kW
Torque 16.000 N
Heads
Automatic head 45º ISO 2.5º/2.5º 3.000 rpm INCLUDED
Horizontal Head length 638 mm ISO 50 3.000 rpm INCLUDED
Special orthogonal head ISO 40 1º/2.5º 2000 rpm INCLUDED
Automatic head change INCLUDED
Pick Up station for 3 heads INCLUDED
ATC
ATC type Horizontal / Vertical
ATC Positions 40
Max tool length 400 mm.
Max tool diameter 250 mm.
Max tool weight 20 kg
Other equipment
Longitudinal chip conveyor INCLUDED
Internal Coolant 20 Bar INCLUDED
Deposit 500l with magnetic and paper filter INCLUDED
Portable Handwheel Heidenhain HR-410
1 square 2.200 x 2.200 x 1.800 mm.
X axis telescopic slides for wire protection INCLUDED
Total Power 65 kVA
Machine Weight 38.000 kg
Machine Dimensión 6.605×3.315×2.730 mm
ROTOTRANSLATING TABLE
Type DELKEN DCN 250 ST
Table surface 3.000 x 3.000 mm.
Cross Table travel (W Axis) 2.000 mm.
Positioning precision 0.001º
Max speed W Axis 8.000 mm
Max turning speed table 1.5 g/min.
Max weight allowed on table 50.000 kg
Table weight 27.000 kg
DEBER
06431
TRAVEL COLUMN
CNC SELCA 4045
STROKES AND FEEDS:
-Axis X mm 8000
-Axis Y mm 1000
-Axis Z mm 2500
-Rotary moving table mm 2200x2500
Load 40 ton.
V axis travel table mm 1500
SPINDLE:
-Motor spindle power kW 37- Nm 1000
-Spindle taper ISO 50
...
Nº Tools at ATC 60 Tools
Taper at Orthogonal Head ISO-50
Turning Speeds 45º Head 20 – 4.000 r.p.m.
Auto Indexing Orthogonal Head 1º/2.5º
Main Motor Power 35 Kw.
Speed Ranges (ZF Box) 2
Rotary Table Spirsin INCLUDED
Rotary Table Dimmessi...
