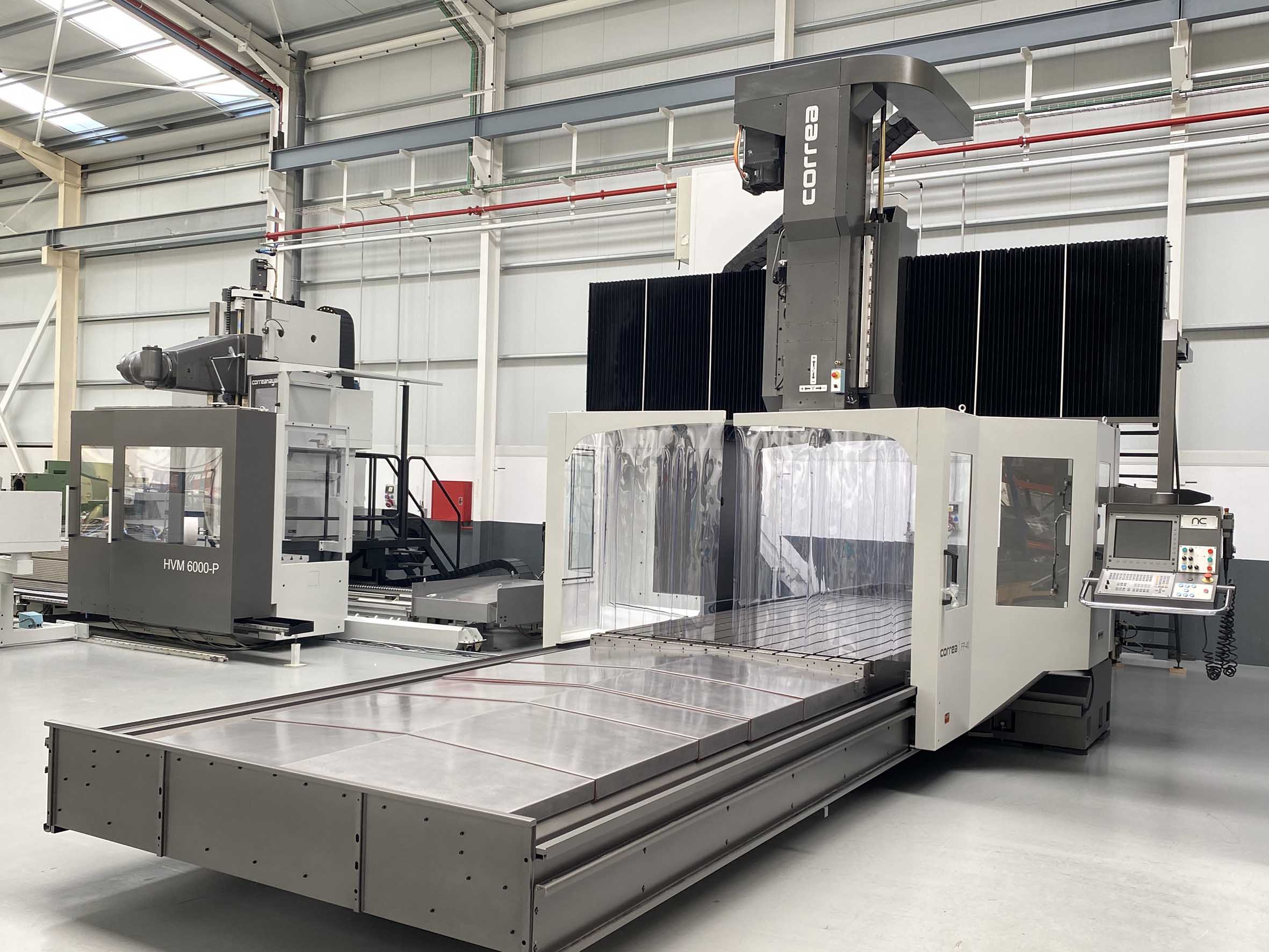

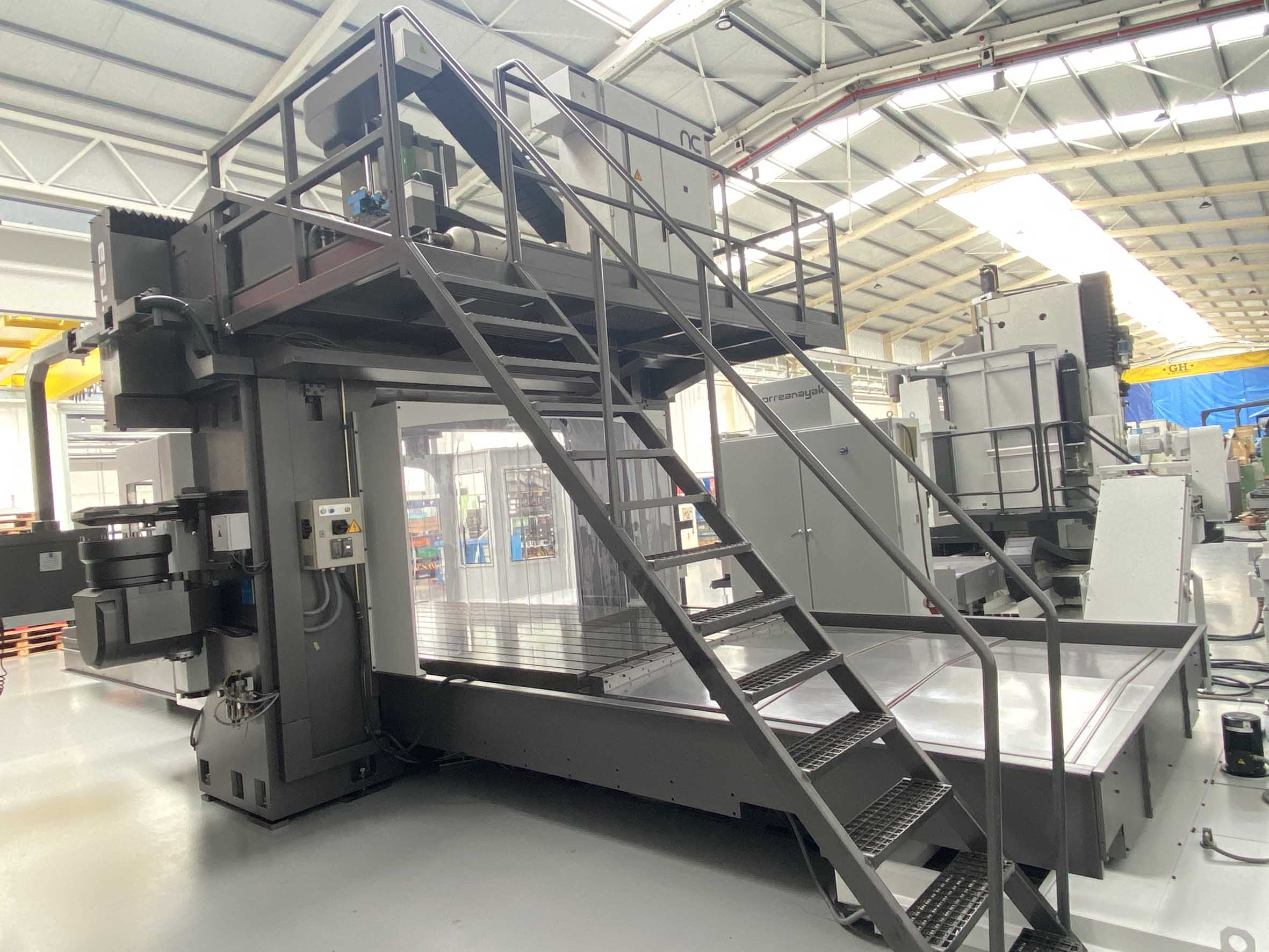

Manufacturer :NICOLAS CORREA
Model :FP 40/40 UAGA
Year :2006
CNC :HEIDENHAIN iTNC-530
Table Surface :4.500 x 2.000 mm
Longitudinal Travel (X Axis) :4.000 mm
Cross Travel (Y Axis) :3.000 mm
Vertical Travel (Z axis) :2.500 mm
Distance Between Columns :2.550 mm
Rapid Feed (X Axis) :15.000 mm/min
Rapid Feed (Y, Z Axis) :12.000 mm/min
Max. Working Feed :5.000 mm/min
Taper :ISO-50
Direct Output Head Speed :5.000 r.p.m.
Speed Head 45º :3.000 r.p.m.
Main Engine Power :22 kW
Speed Ranges :2
Max Weight Allowed on table :15.000 kg.
Direct Output INCLUDED
Universal Head UAGA : INCLUDED
Auto Indexing Head :2.5º /2.5º
Automatic Support in the right side for Head UAGA INCLUDED
Automatic Support in the left site for Direct Output Head. INCLUDED
Automatic Head Changer :INCLUDED
Chip Conveyor INCLUDED
SIGMA
07519
CNC Heidenhain 530
Axis X mm 1600
Axis Y mm 810
Axis Z mm 630
Table dimensions mm 1400x800
Tool change 40 positions - ISO 40
Spindle taper ISO 40
Spindle speed 15.000 rpm
EQUIPPED WITH:
Chip conveyor
Handwheel remoted
USED MACHINE
MILLUTENSIL
10128
Useful length of the table mm 1400
Useful width of the table mm 1200
Max passage between the columns on the length mm 1540
Max passage between the columns on the width mm 1300
T-slots in the tables 18 (DIN650)
Height of the lower wo...
