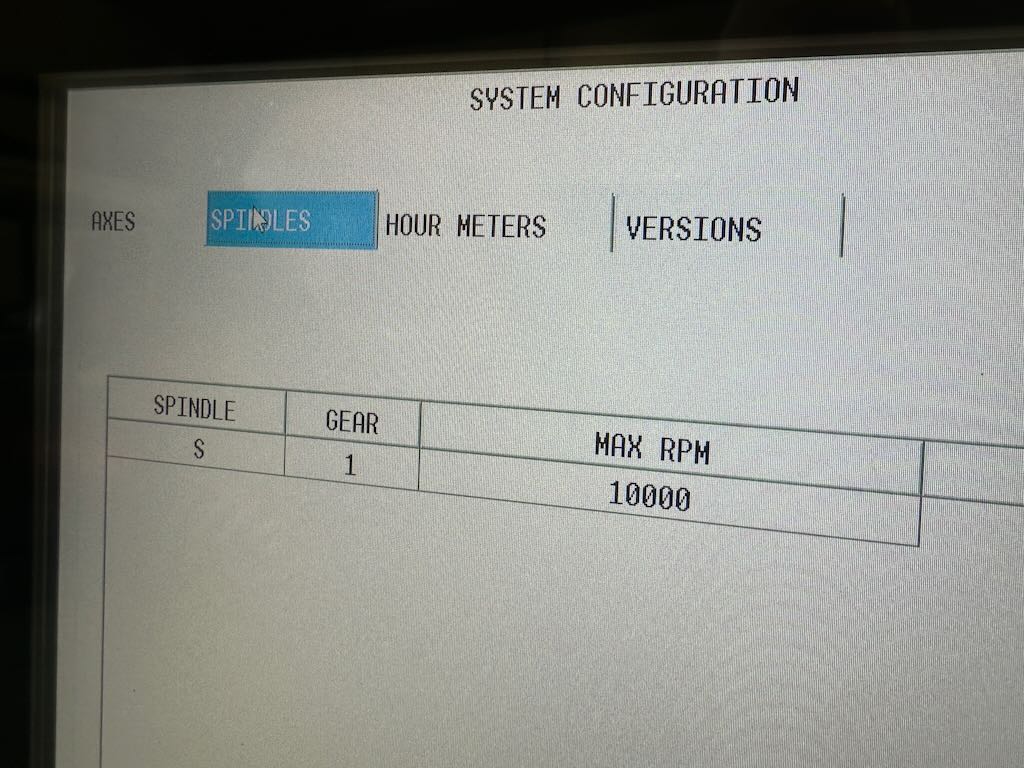

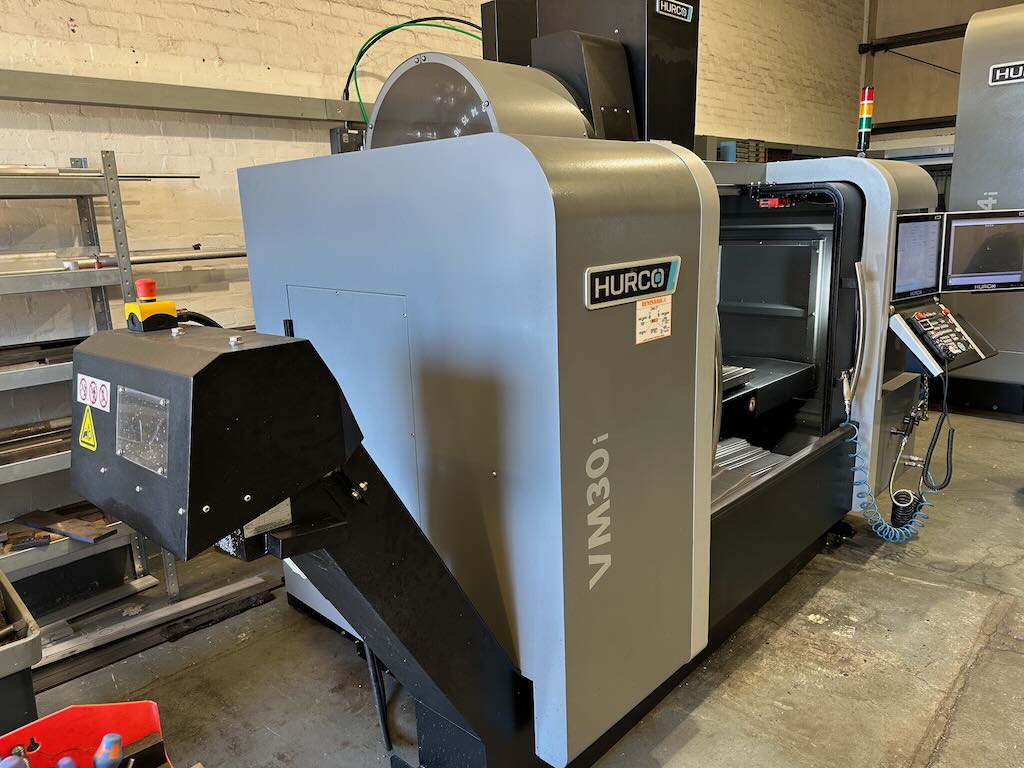

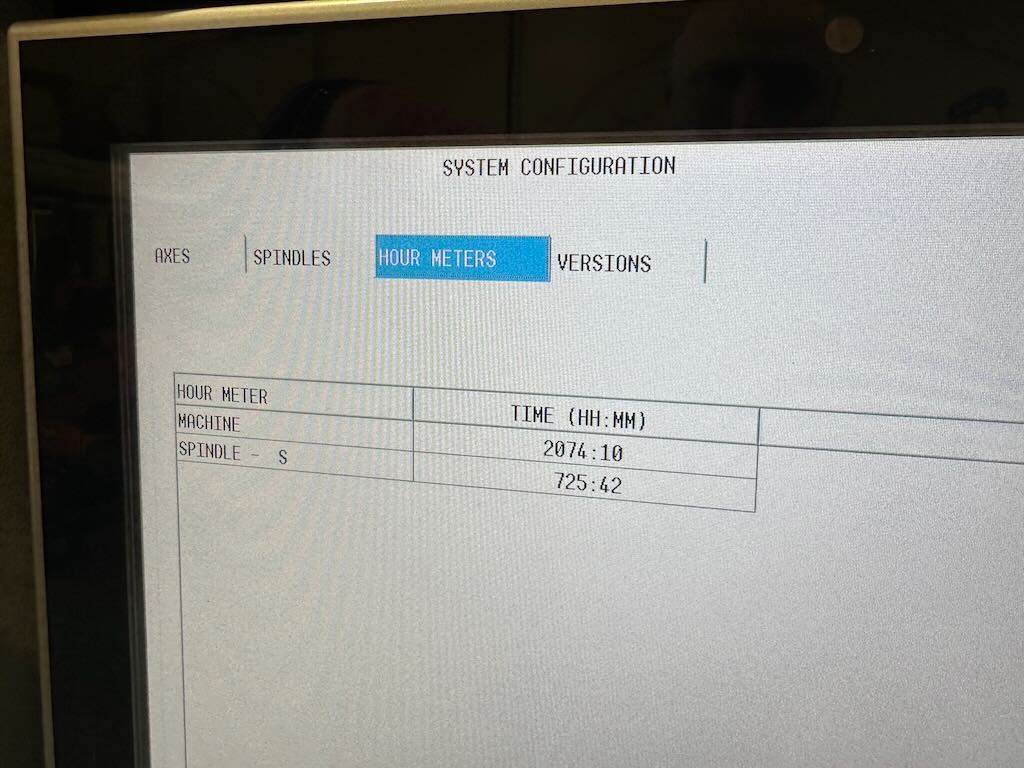

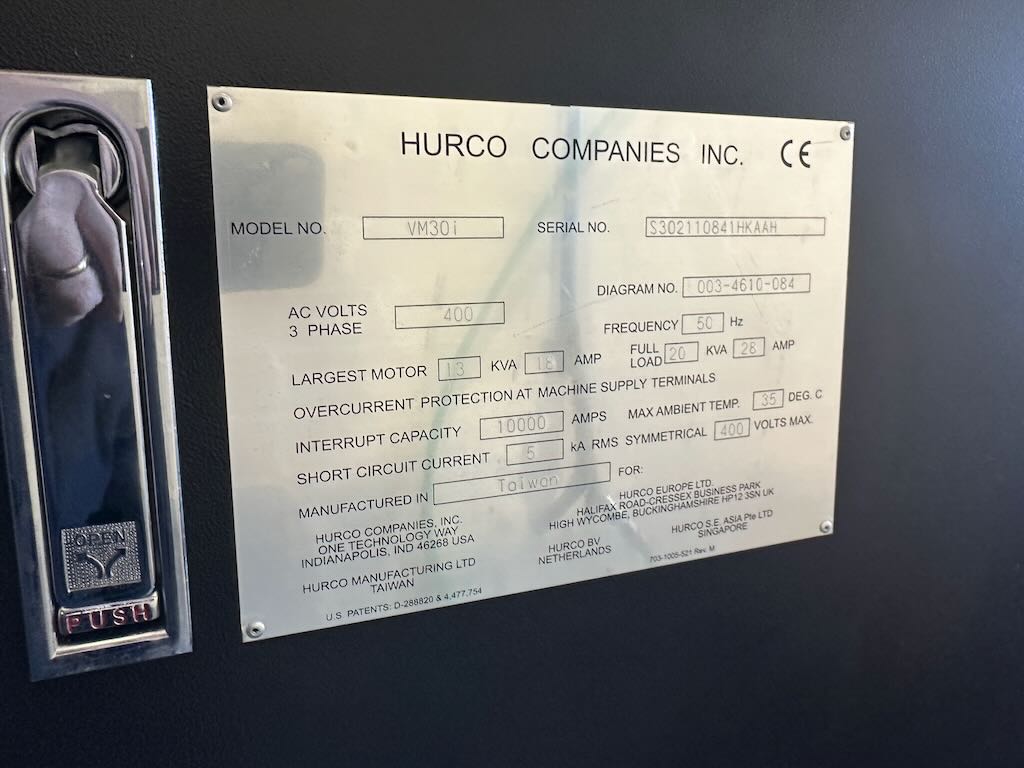

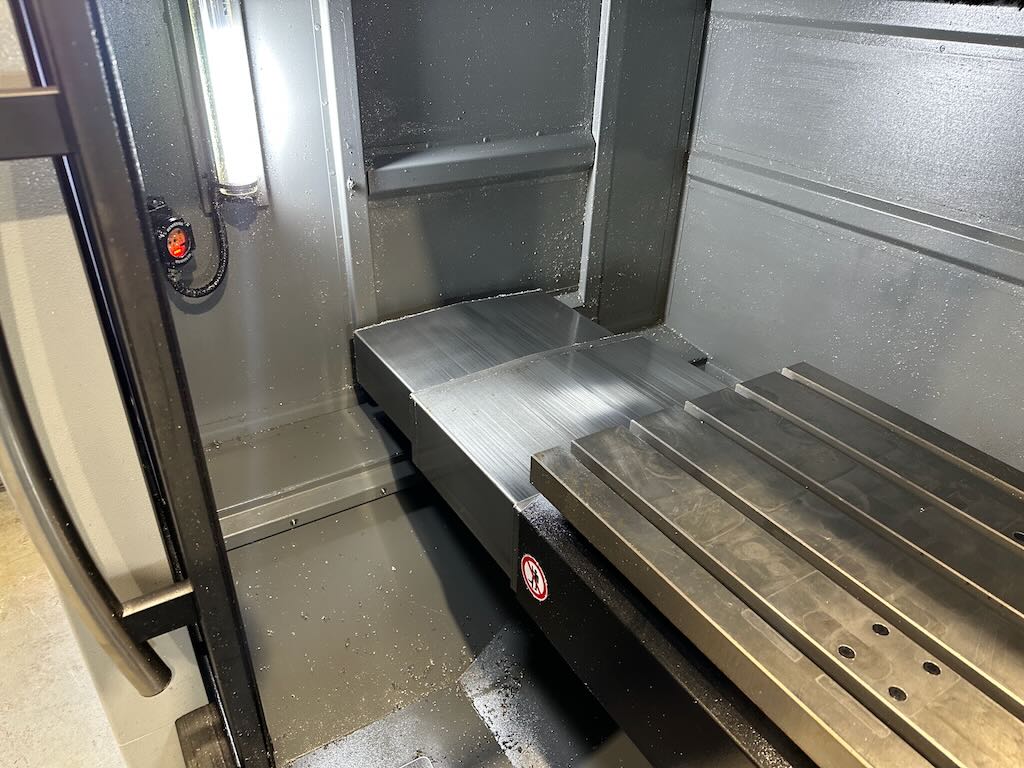

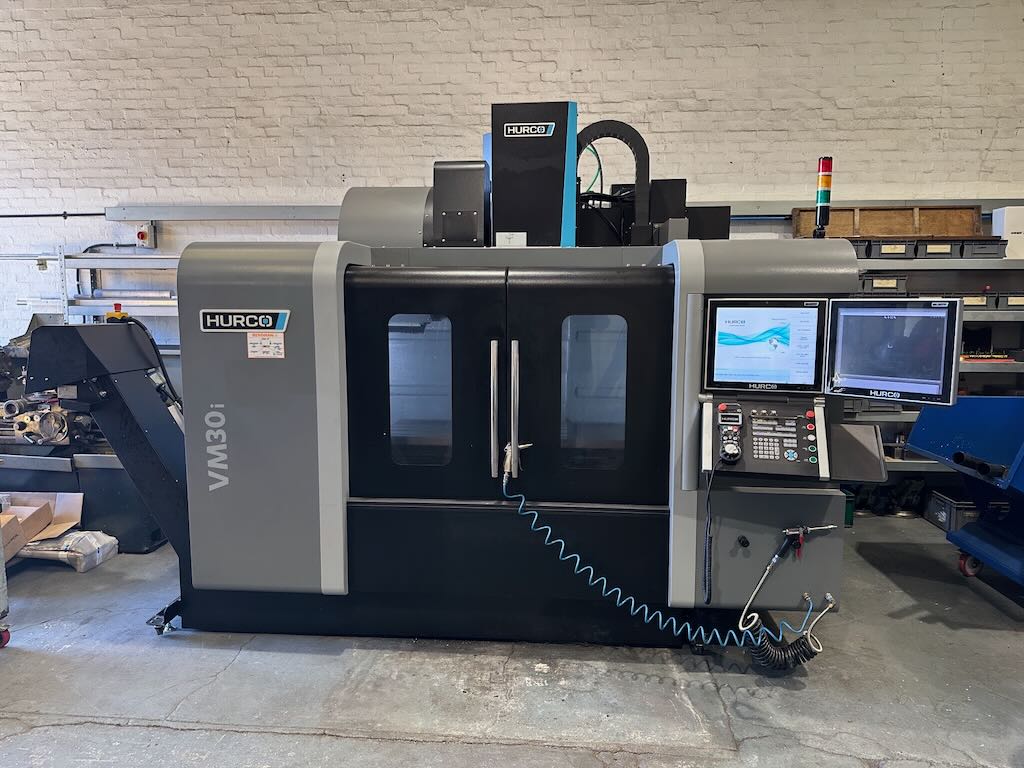

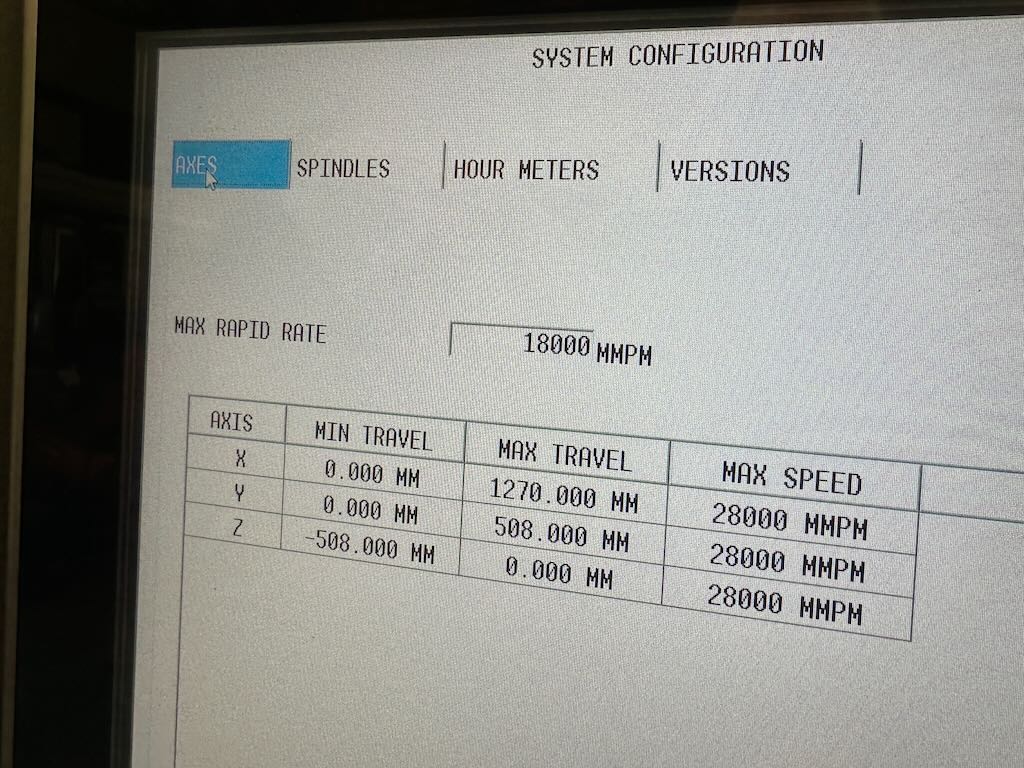

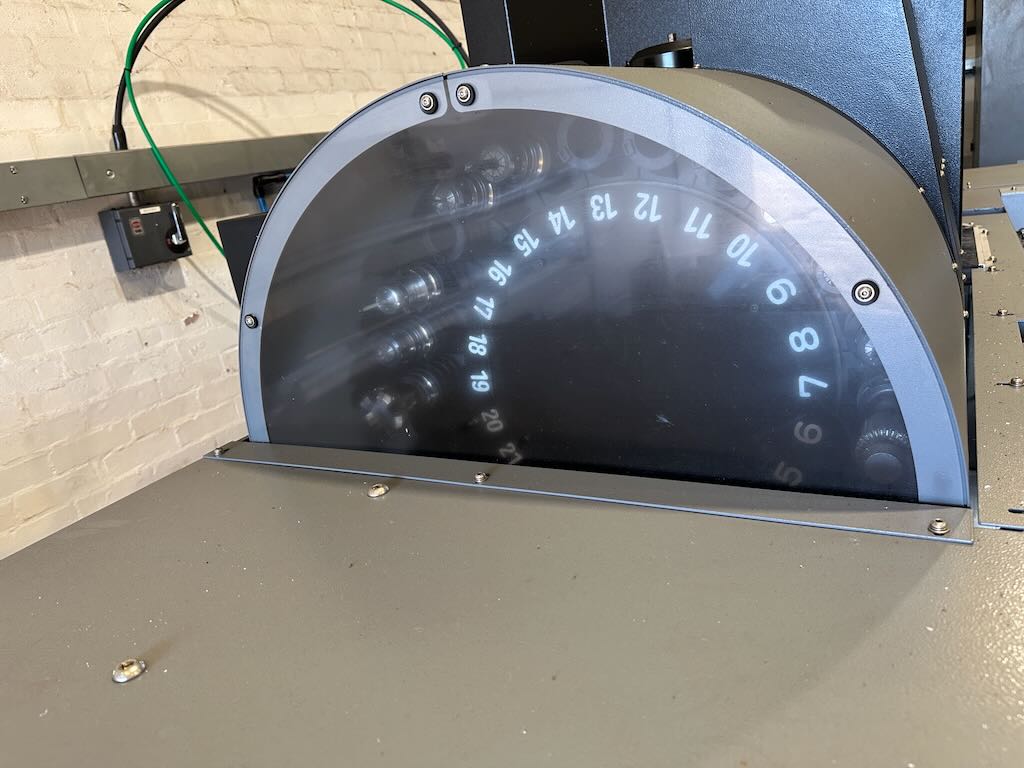

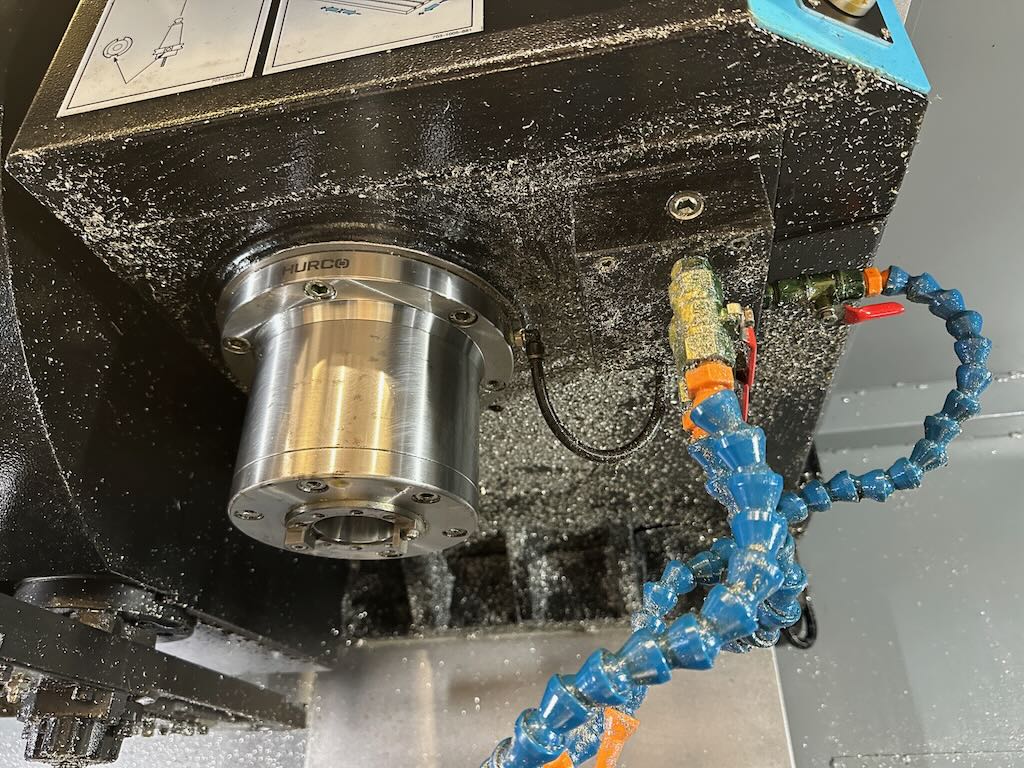

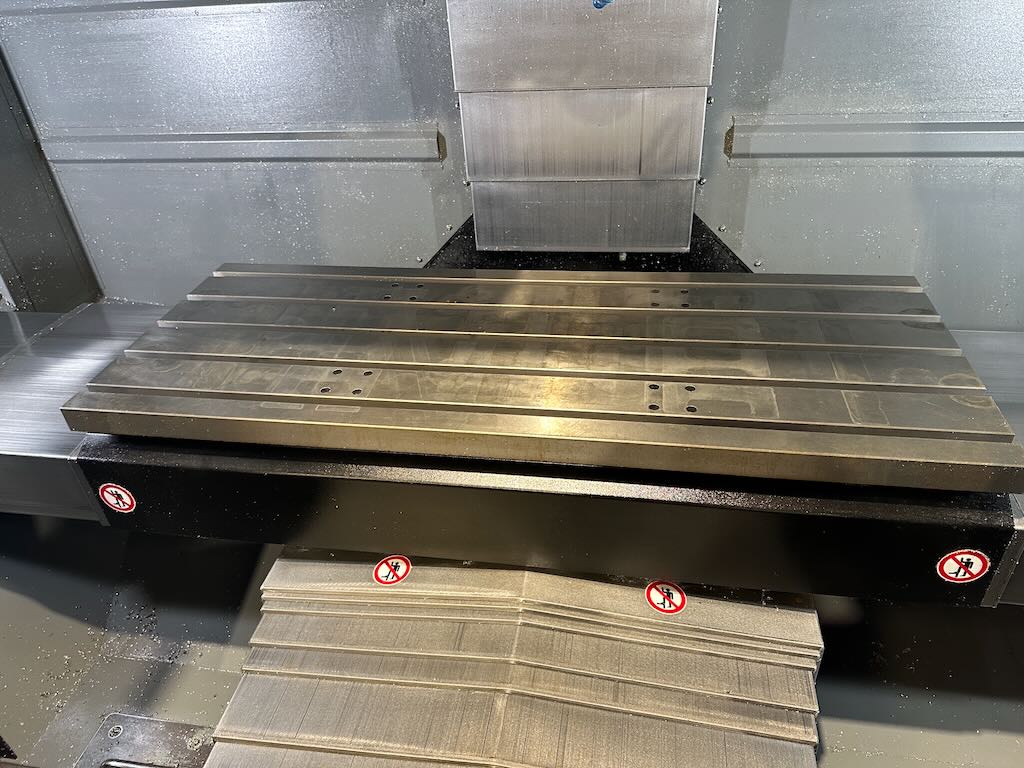

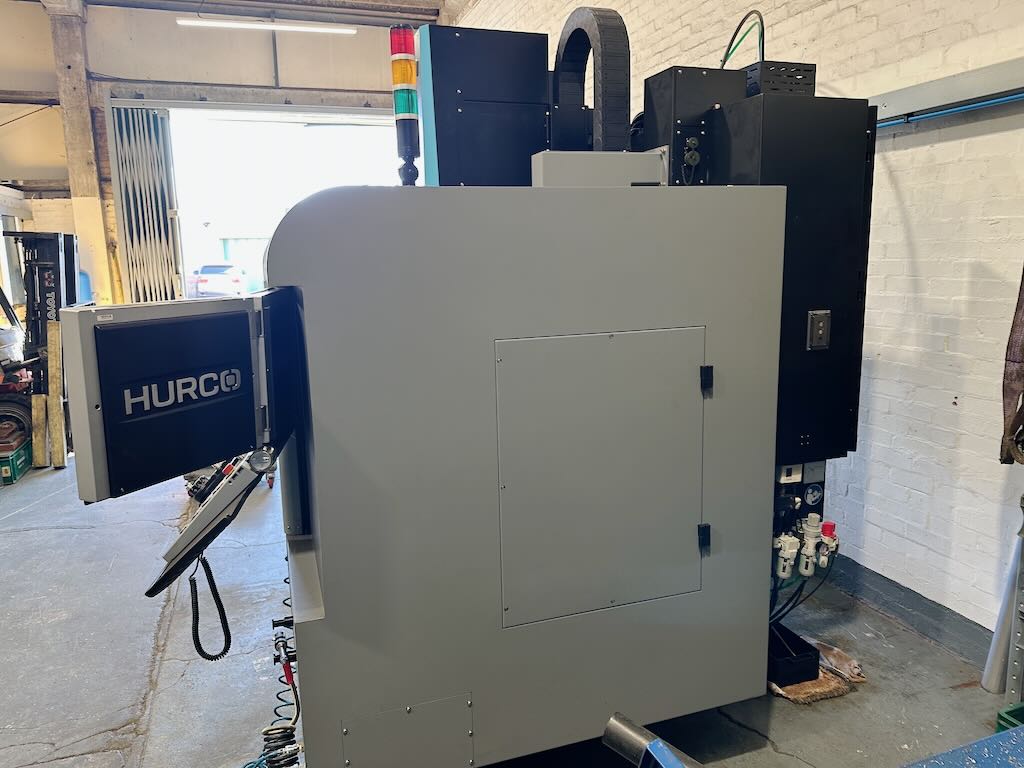

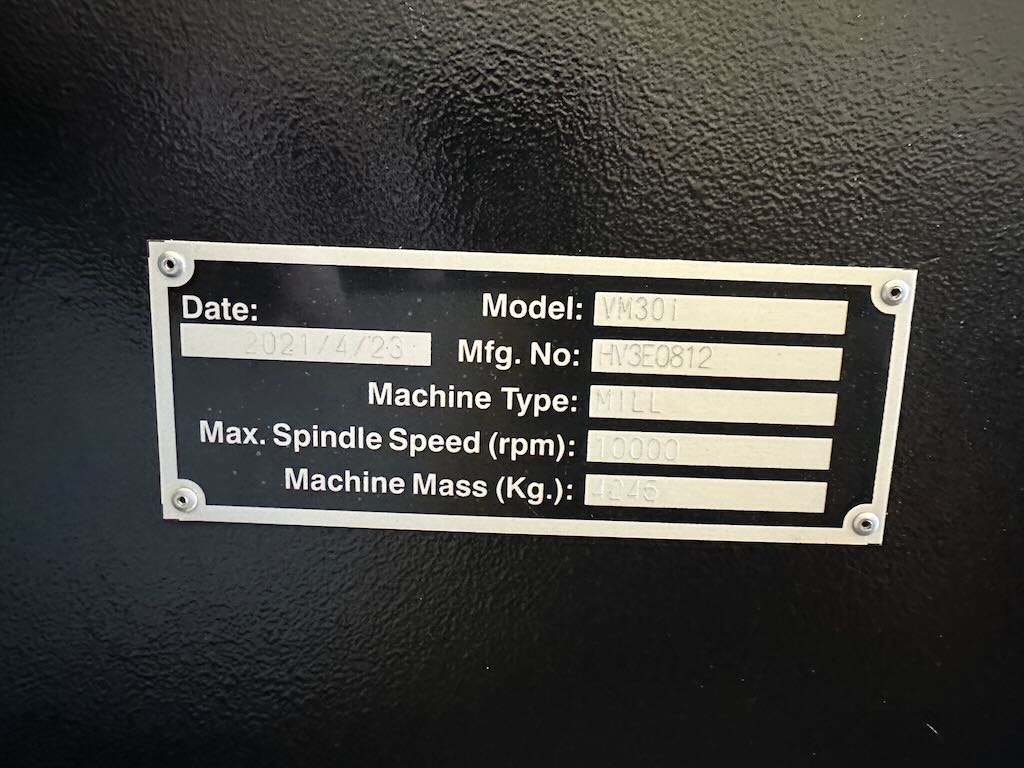

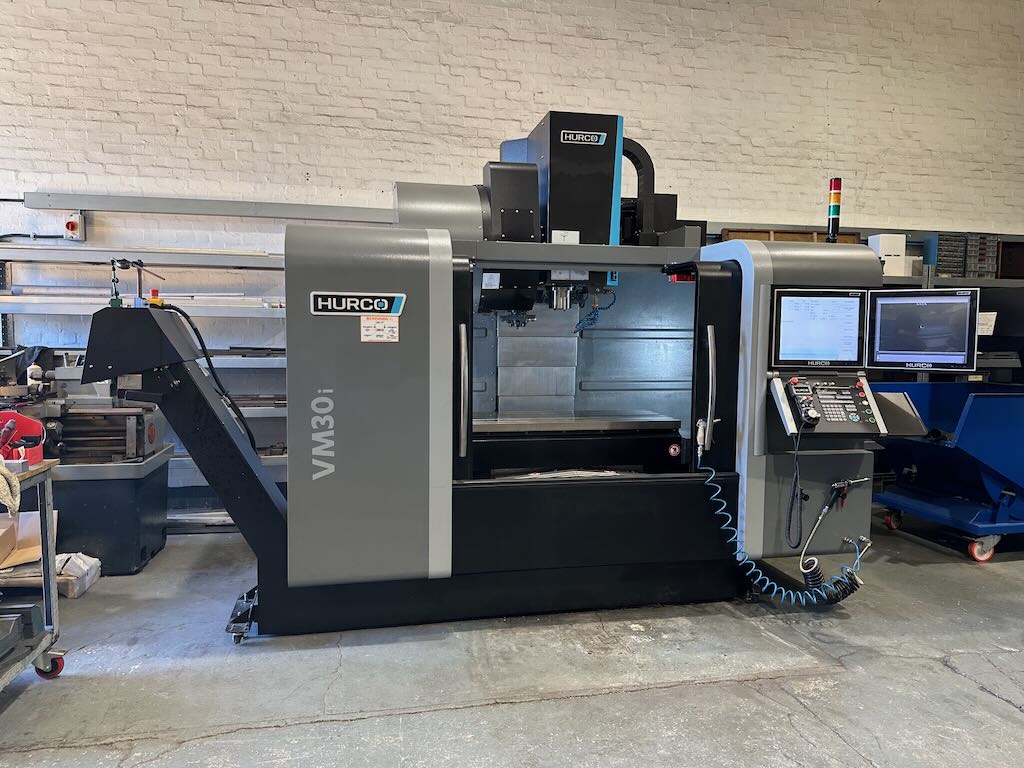

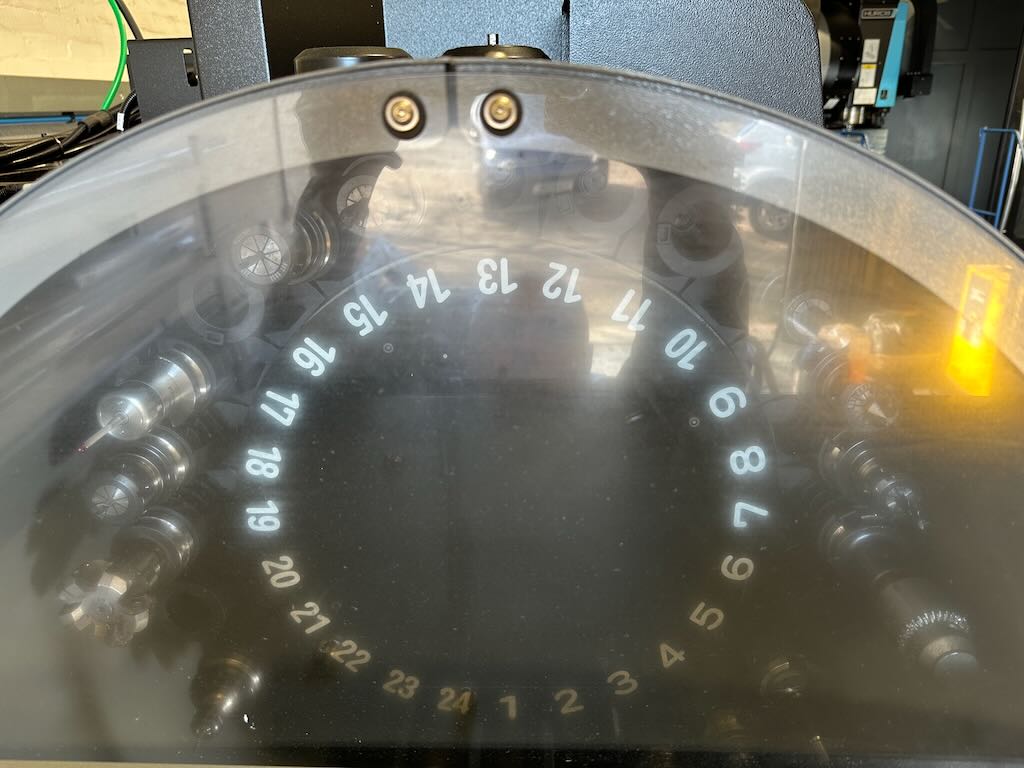

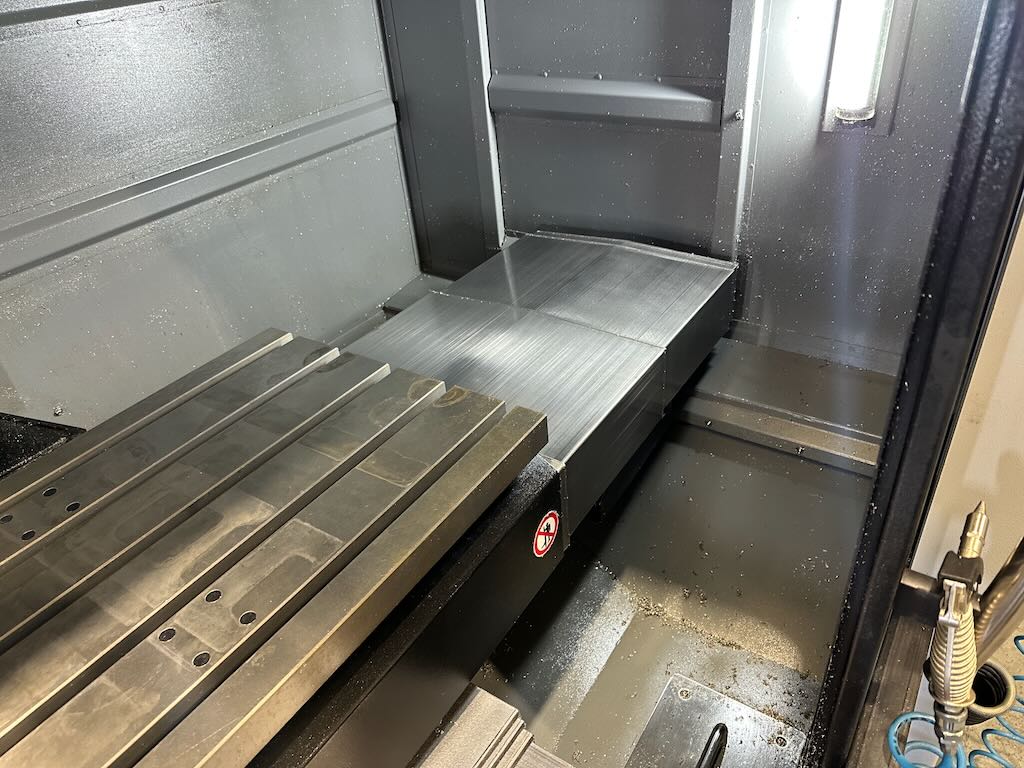

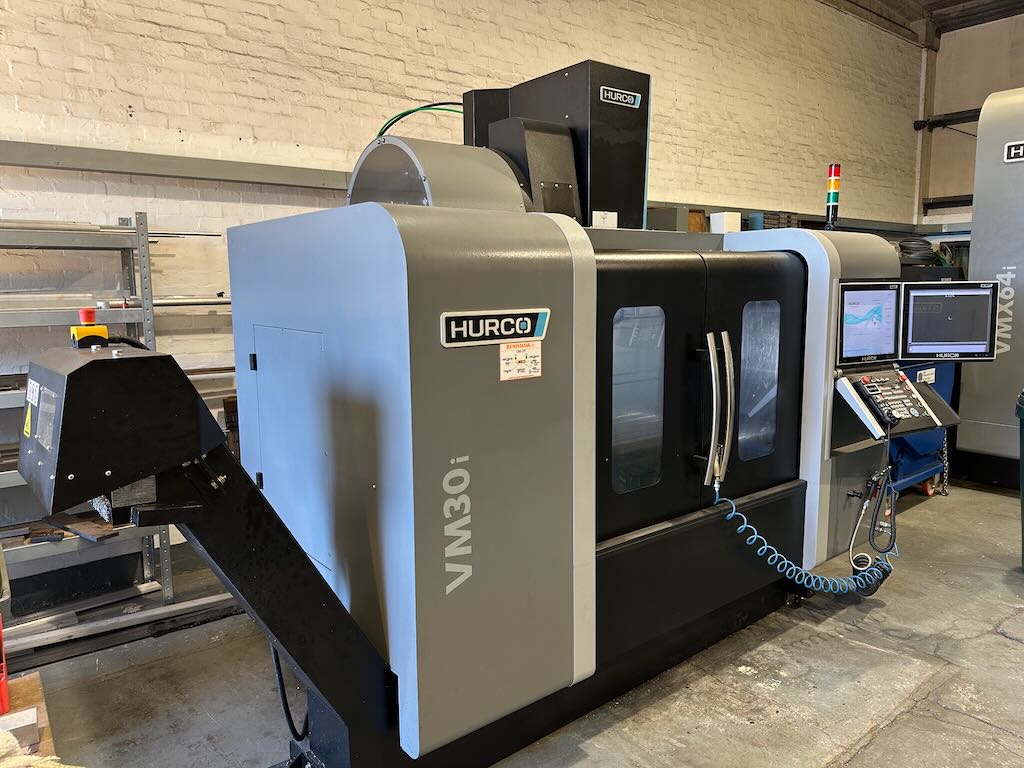

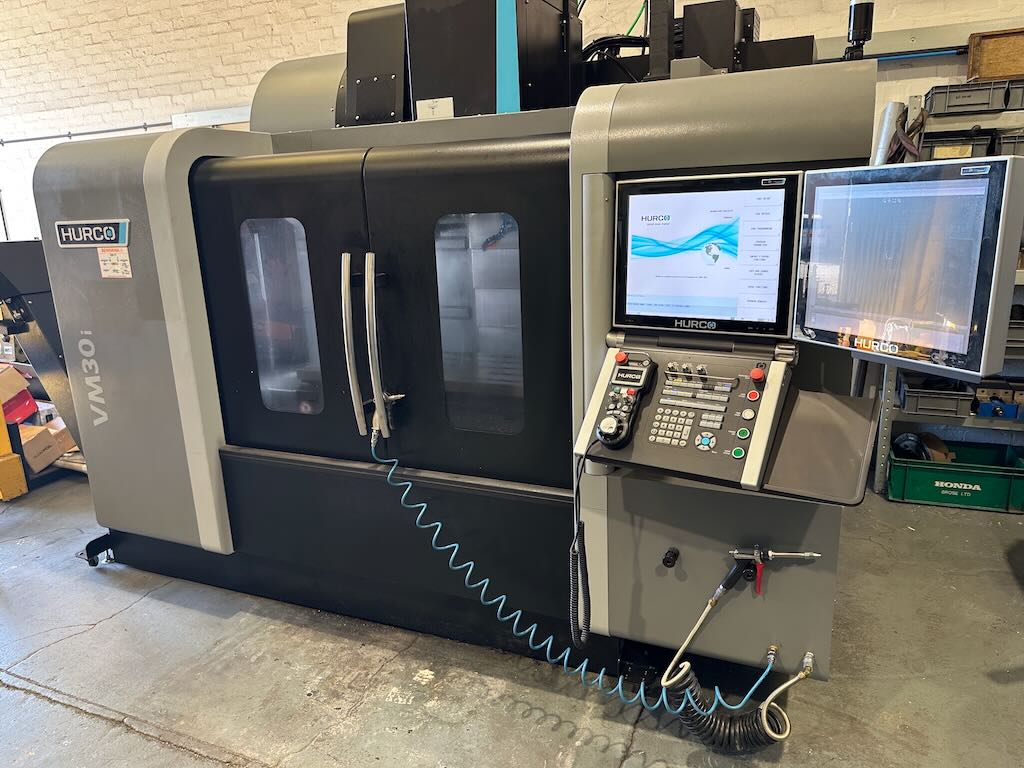

Year: 2021. S/N: H-HV3E0812. Spindle Hours: 725 hours. X Axis Travel: 1270mm. Y Axis Travel: 508mm. Z Axis Travel: 508mm. Table Size: 1,321mm x 508mm. T Slot Size: 5 slots, 18mm wide. Maximum Table Load: 1,800kg. Spindle Nose to Table Distance: 102mm. Maximum Spindle Speed: 12,000 RPM. Spindle Power: 15kW. Spindle Torque: 82.3 Nm @ 1740rpm. Tool Type: CAT / BT40. Number of Tools: 24. Maximum Tool Diameter: 80mm. Maximum Tool Length: 250mm. Maximum Tool Weight: 7 KG. Rapid Traverse Rates: (X, Y, Z Axis): 28 m/min. Maximum Programmable Feedrate: 28m/min. Dimensions: 4,086mm x 3,312mm x 2,543mm (L x W x H). Machine Weight: 4,320 kg.
FPT
10122
CNC Heidenhain iTNC530 HSCI
X-axis travel mm 6.000 (mm 5.200 for head magazine)
Y-axis travel mm 2.700
Z-axis travel mm 1.300
Working table mm 2.500 x 5.000
Table height mm 300
Load capacity 15 Ton
n.1 Universal bi-rotary head with continuo...
Table size 700mm x 520mm. X/Y/Z travels 510 mm/510mm/510mm. Maximum weight on table 350 kg. 21 station ATC. Spindle taper BT40. Spindle power 5.5 kW. Maximum spindle speed 6000 rpm. Machine dimensions L x W x H 2300mm x 2100mm x 2700mm. Approximate...
Made in Taiwan. Dugard HD 1363B – Heavy Duty VMC – Fanuc/Seimens/Heidenhain control options, X axis 1300mm, Y axis 630mm, Z axis 600mm, table size 1450 x 600mm, speed range 20~6000rpm, 24 station ATC.
