MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hurco
  • Model:

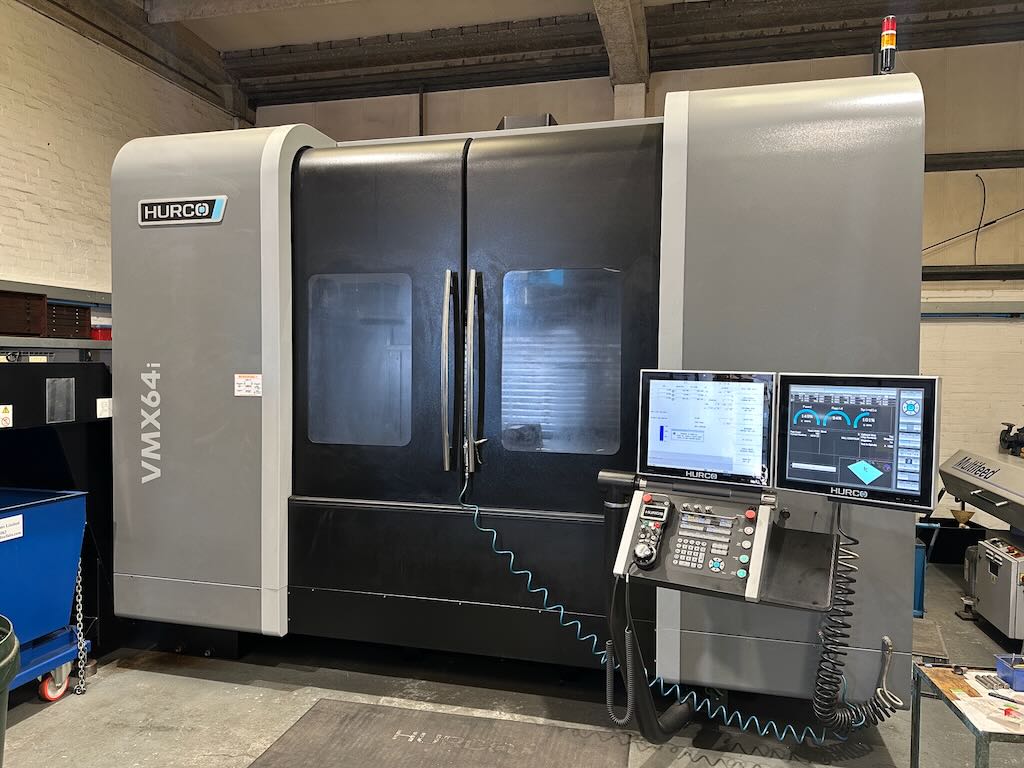

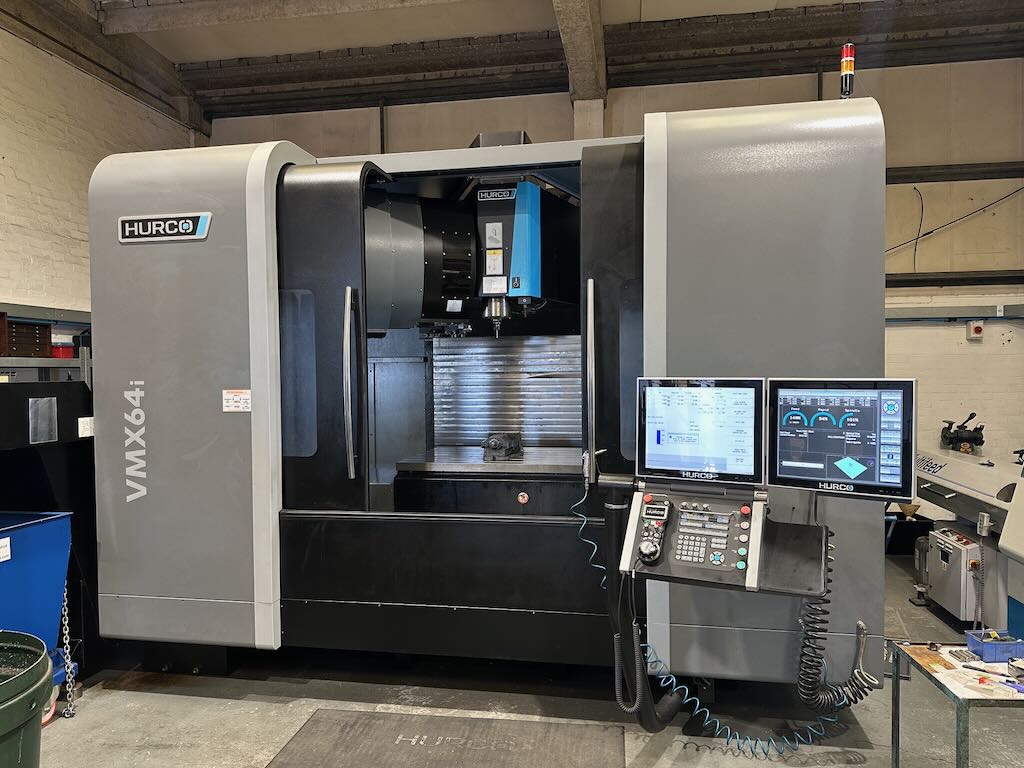

  • Hurco VMX64i Vertical Machining Centre
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Year: 2016.

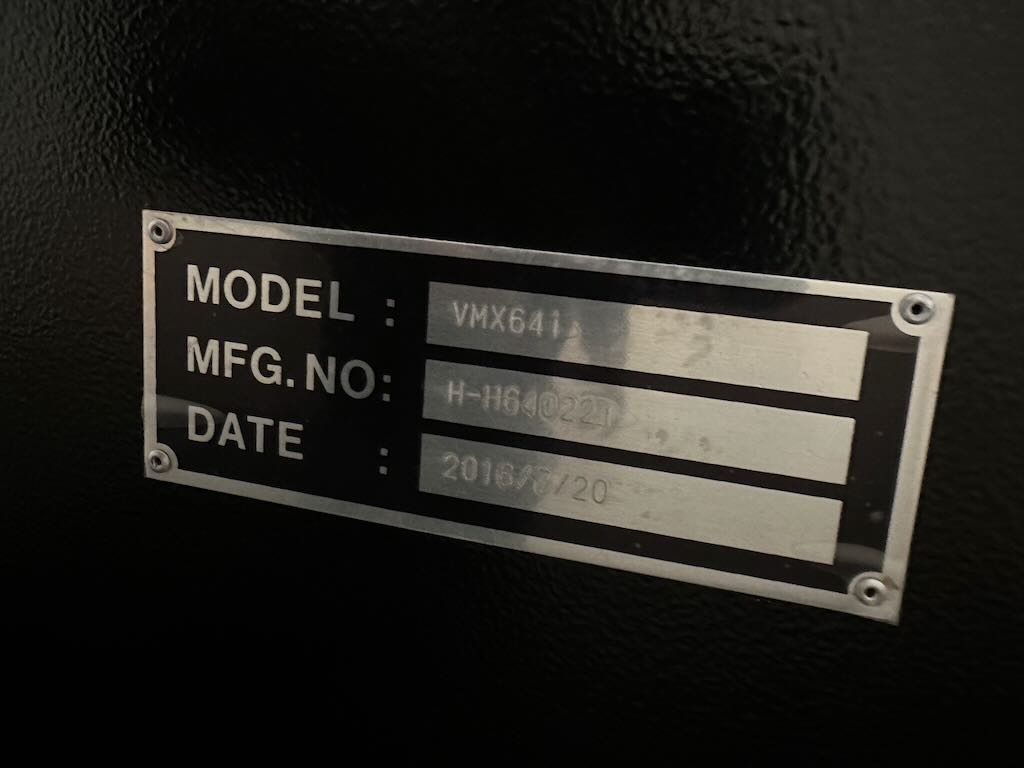

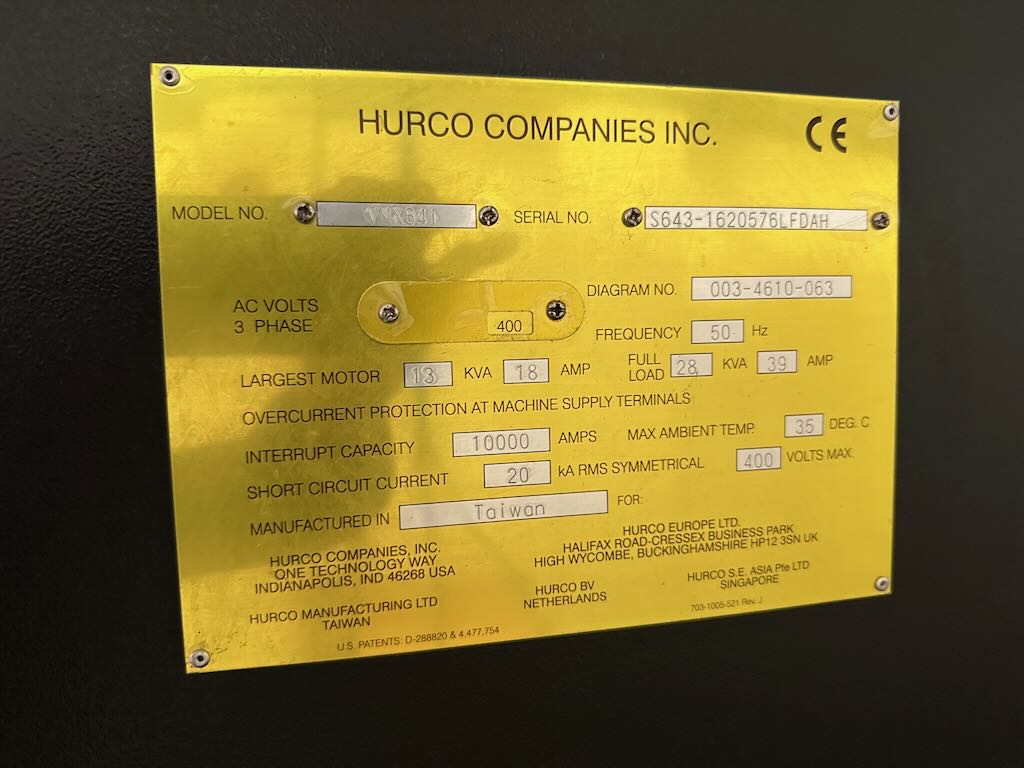

S/N: H-H640221.

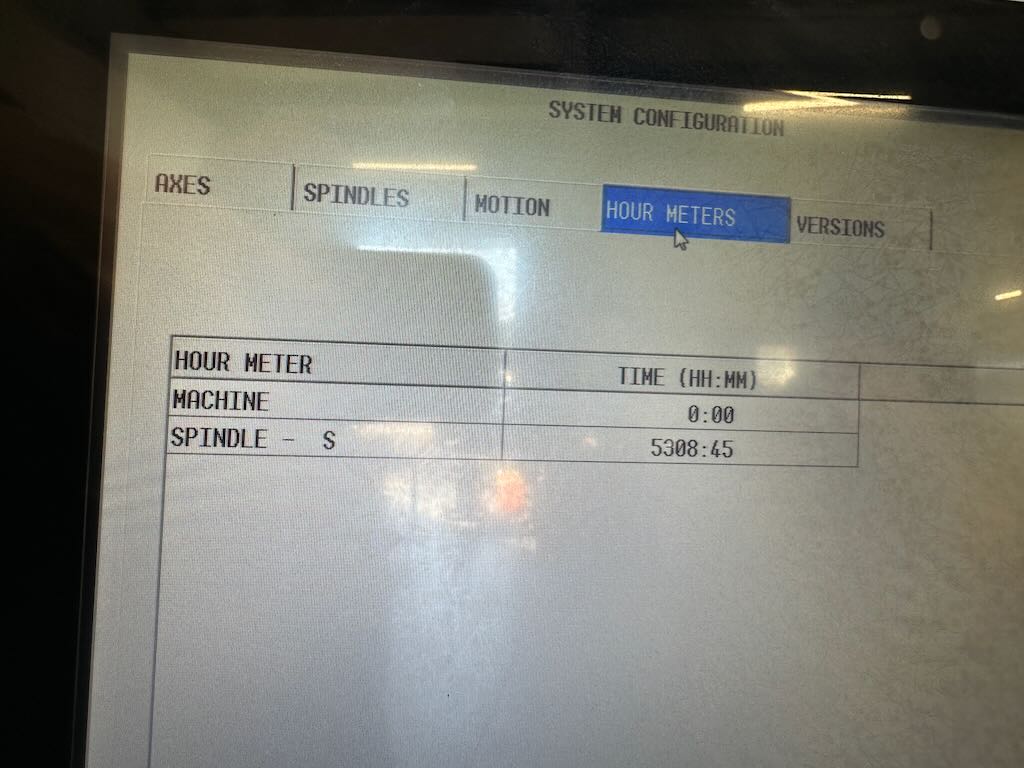

Spindle Hours: 5308 hours.

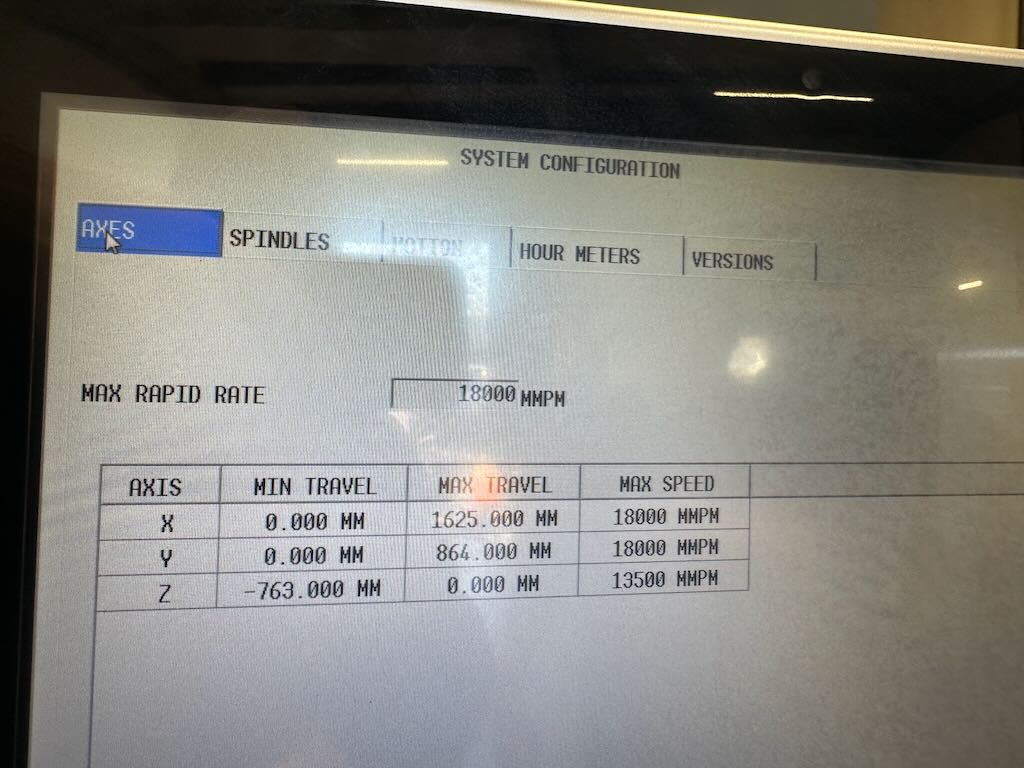

X Axis Travel: 1625mm.
Y Axis Travel: 864mm.
Z Axis Travel: 762mm.

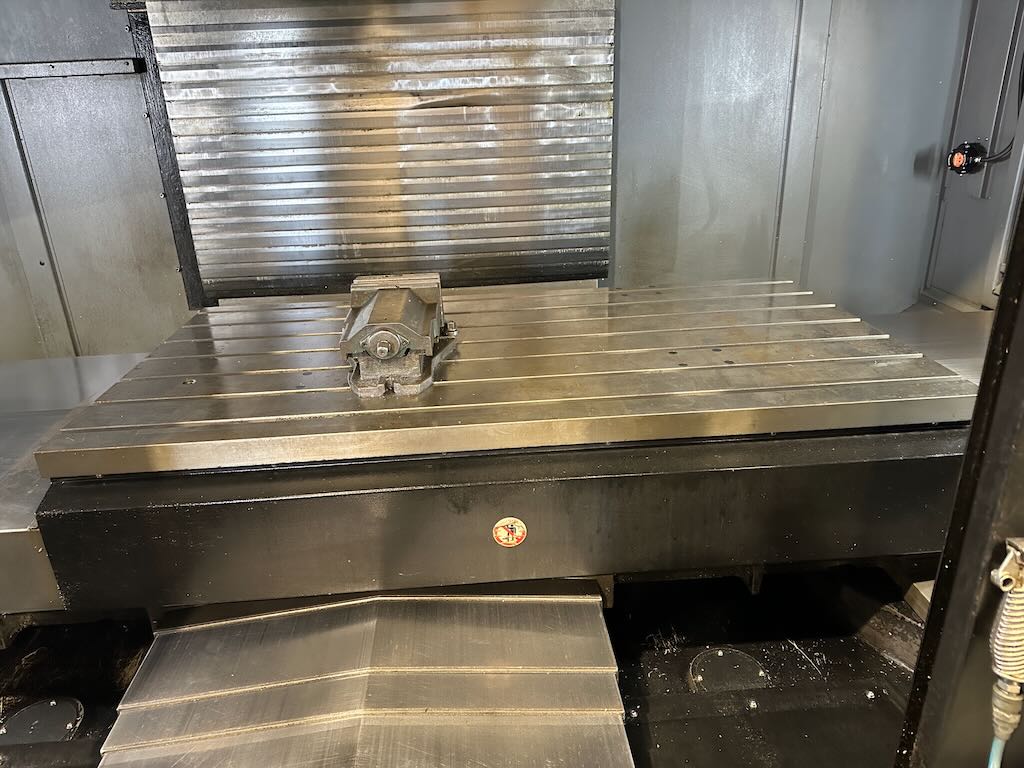

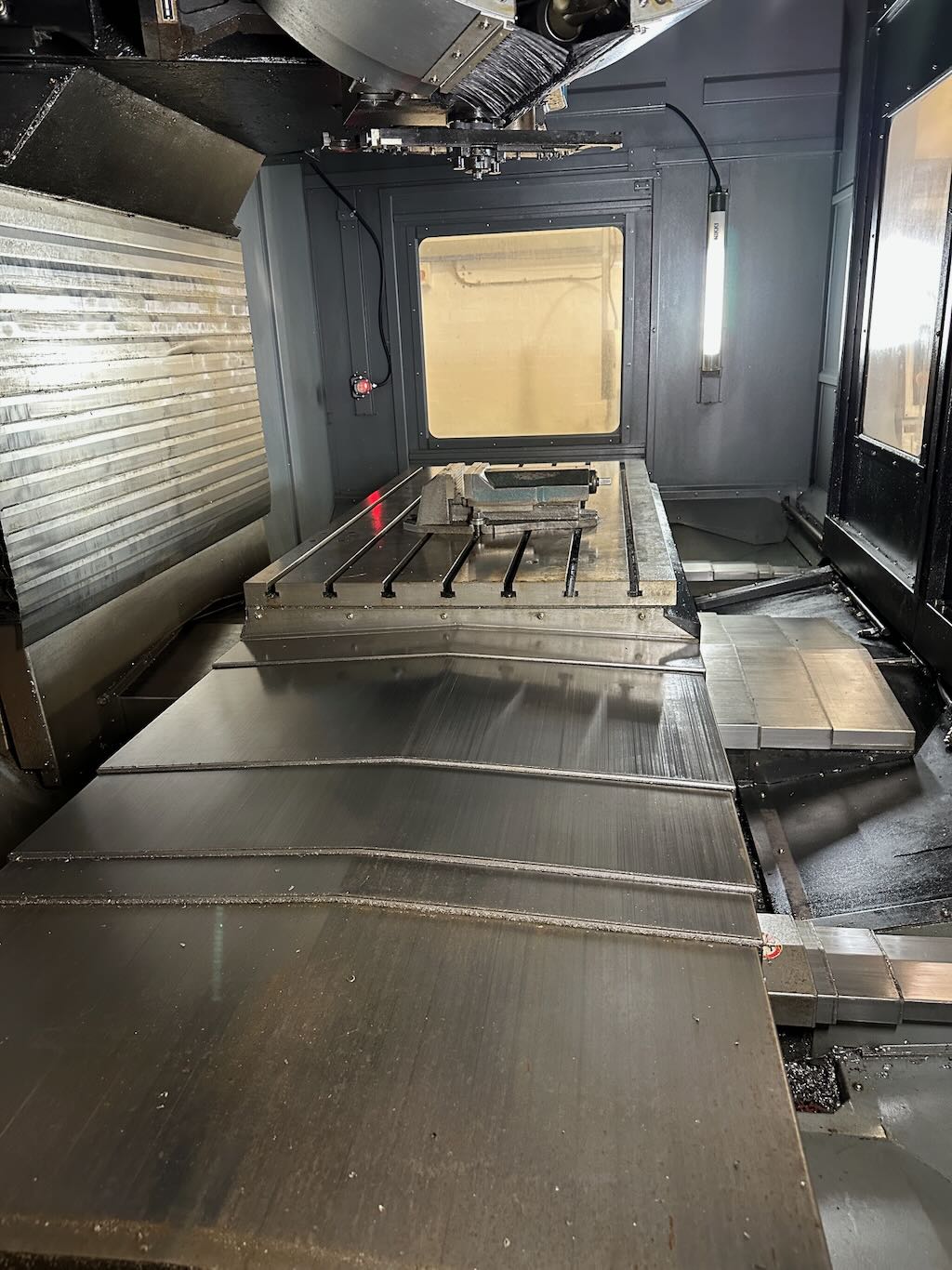

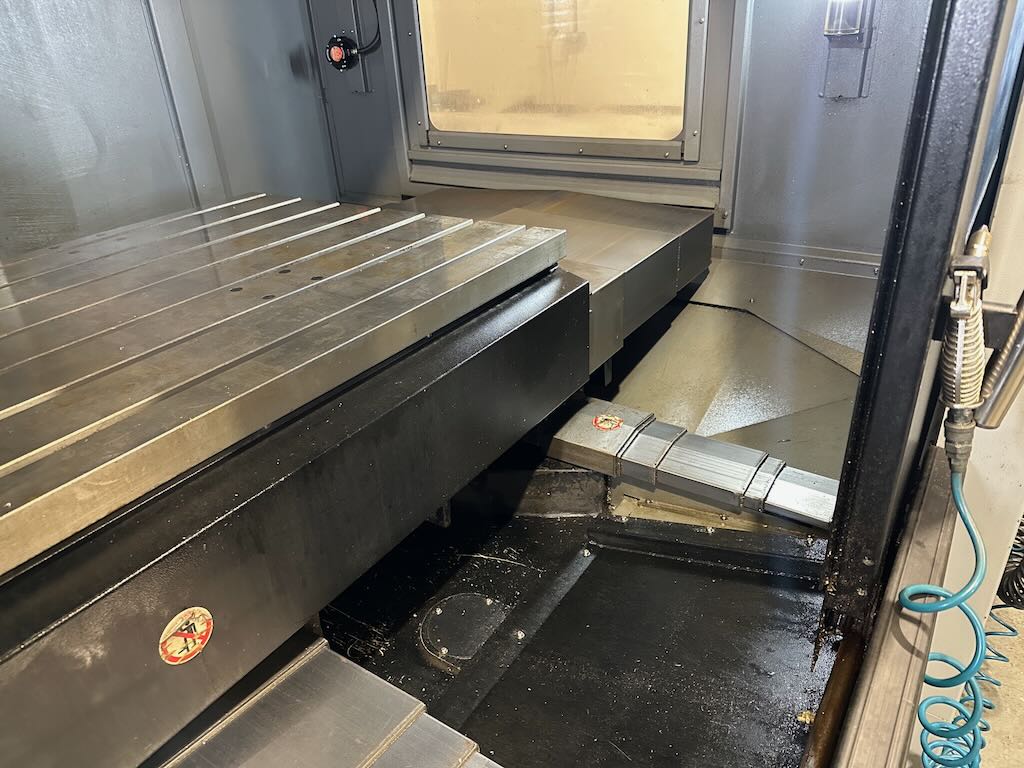

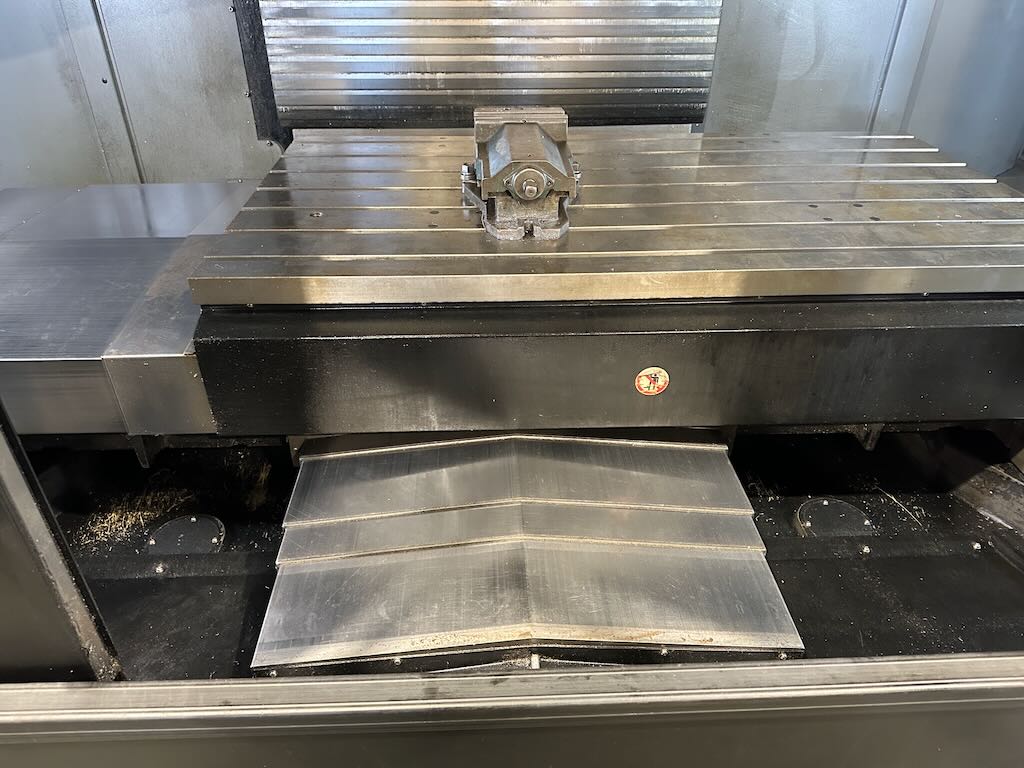

Table Size: 1,676mm x 889mm.
T Slot Size: 7 slots, 18mm wide.
Maximum Table Load: 2,722kg.
Spindle Nose to Table Distance: 127mm.

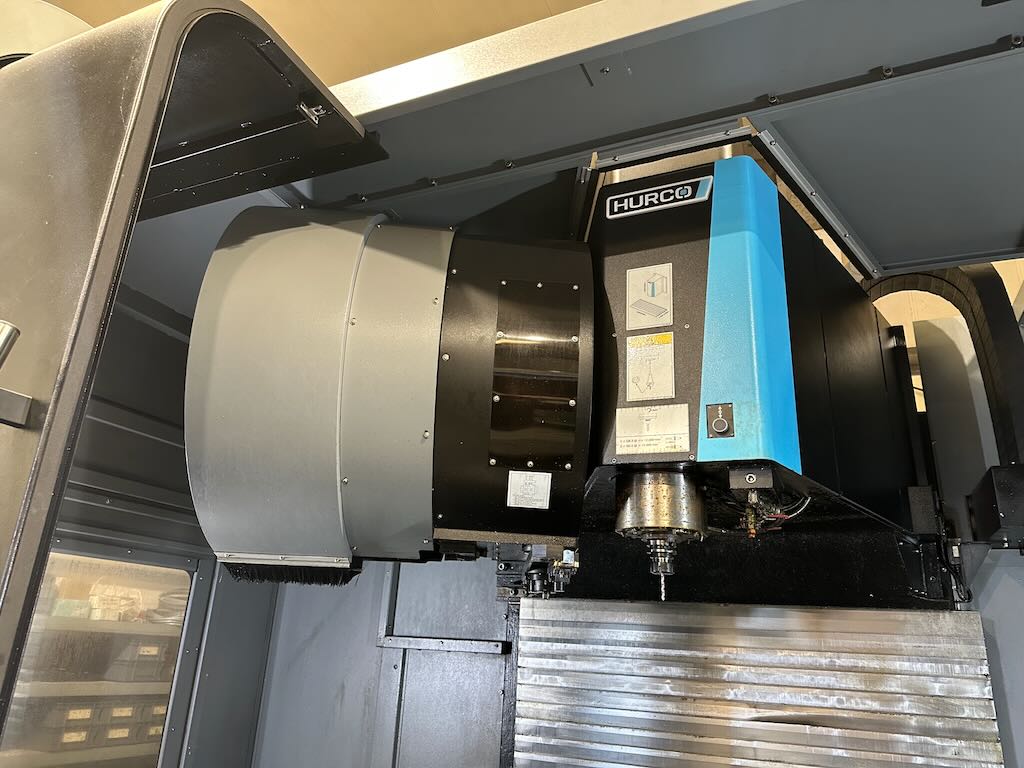

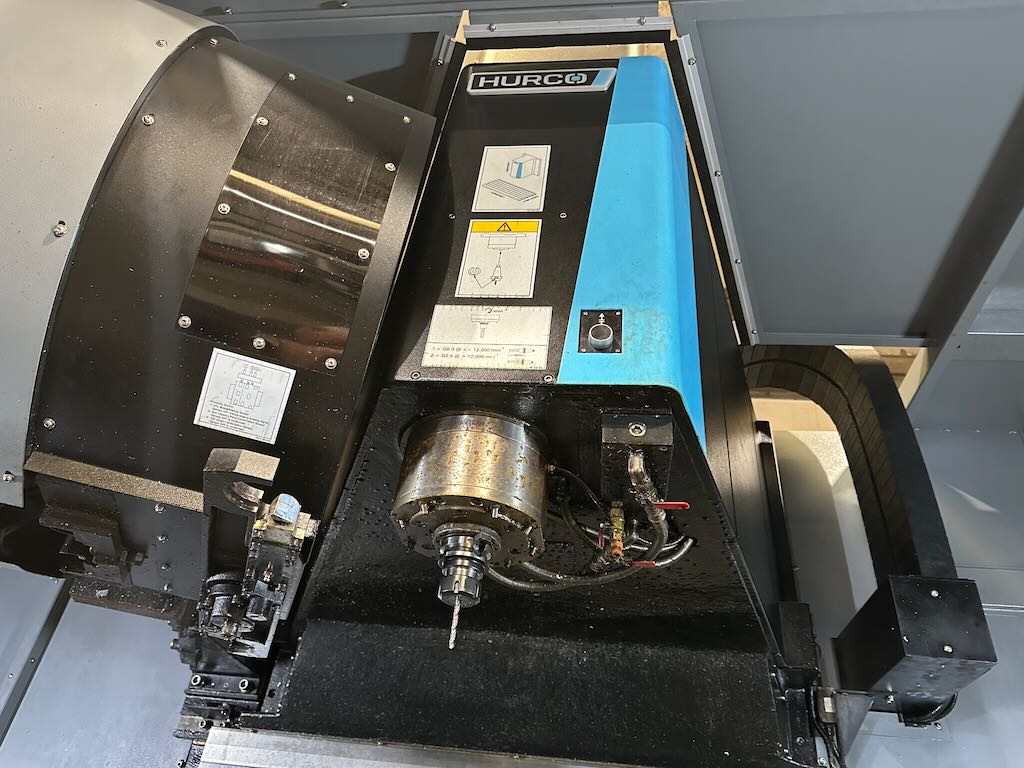

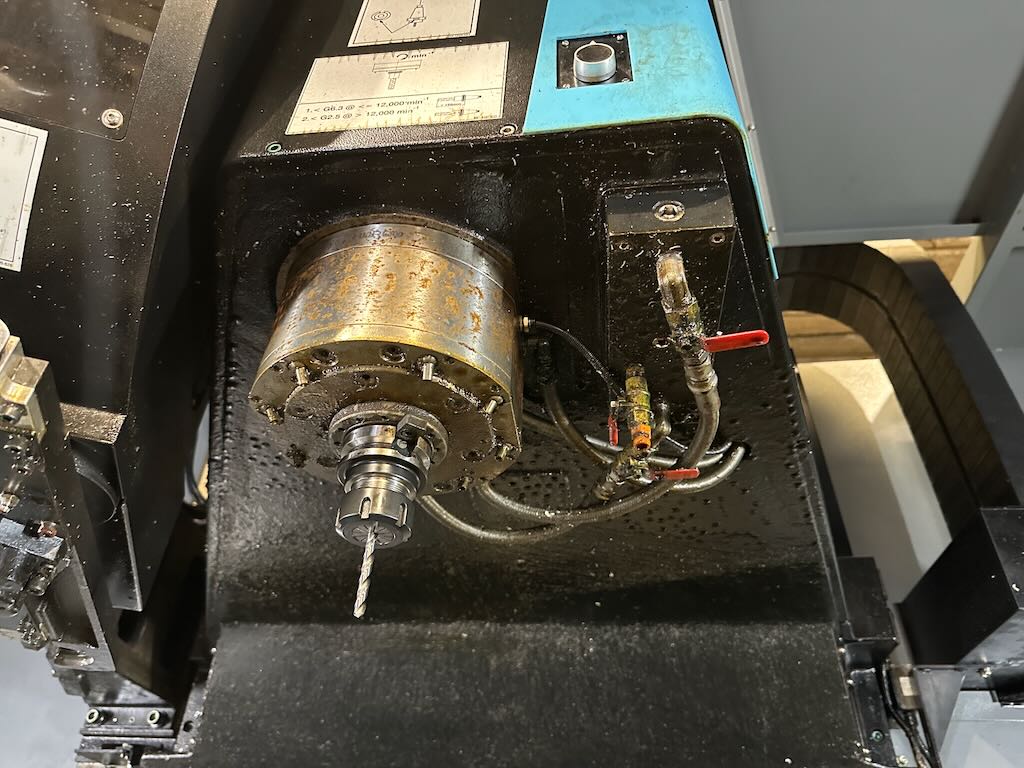

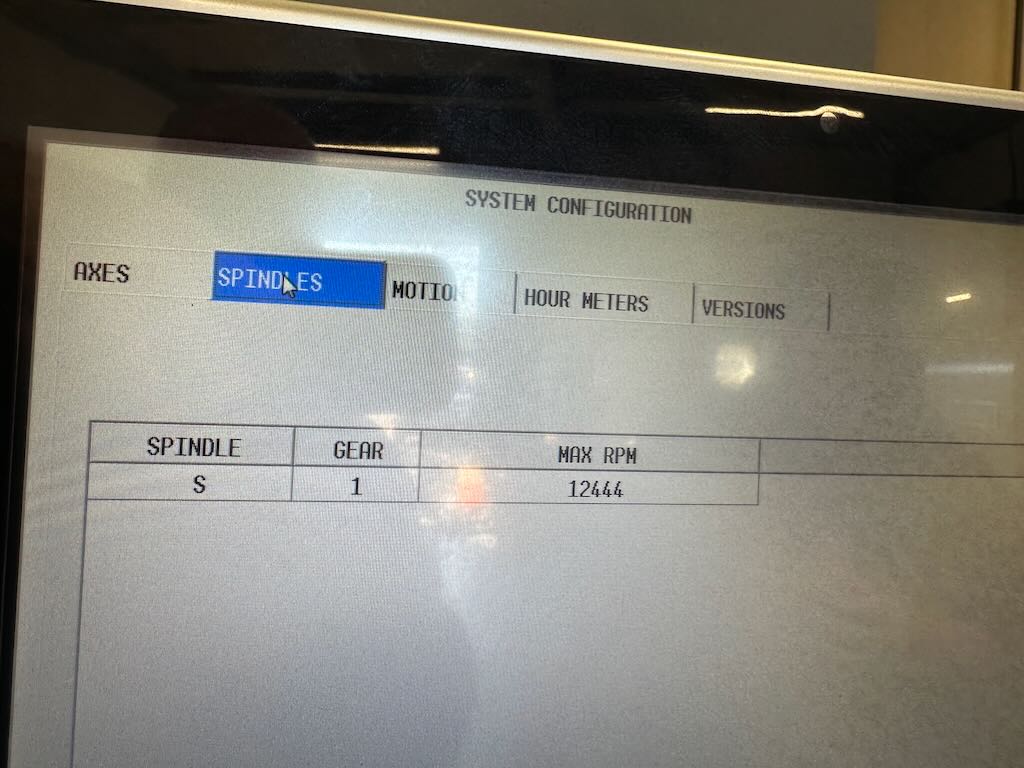

Maximum Spindle Speed: 12,000 RPM.
Spindle Power: 18kW.
Spindle Torque: 239 Nm @ 900 rpm.
Tool Type: BT40.

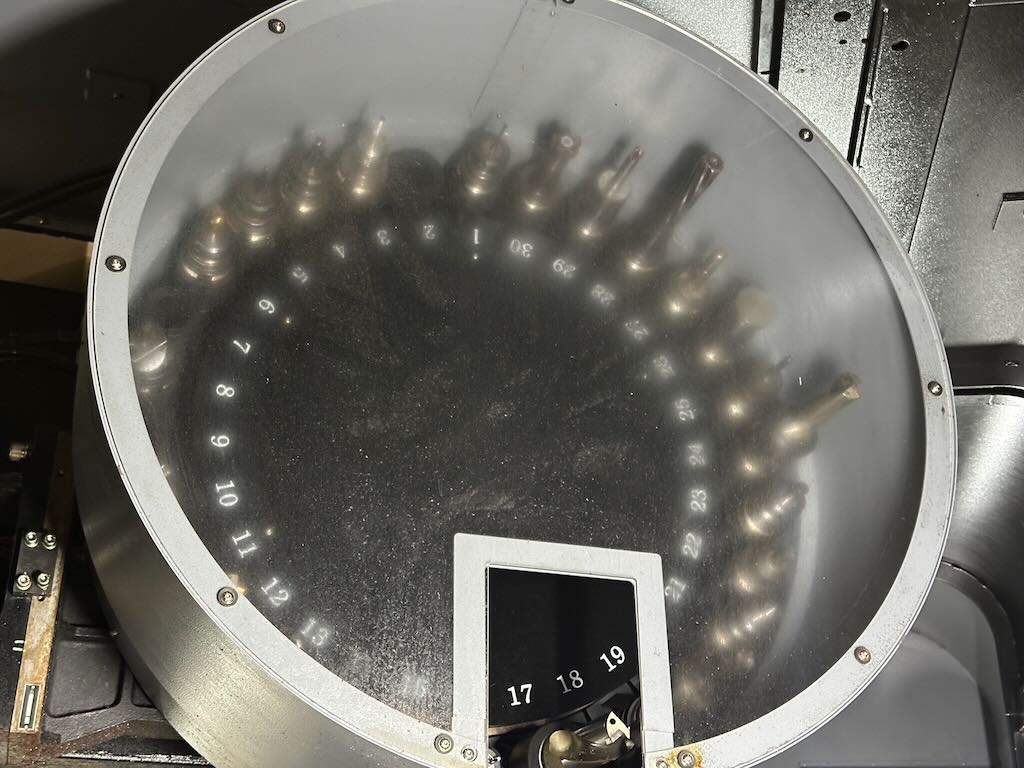

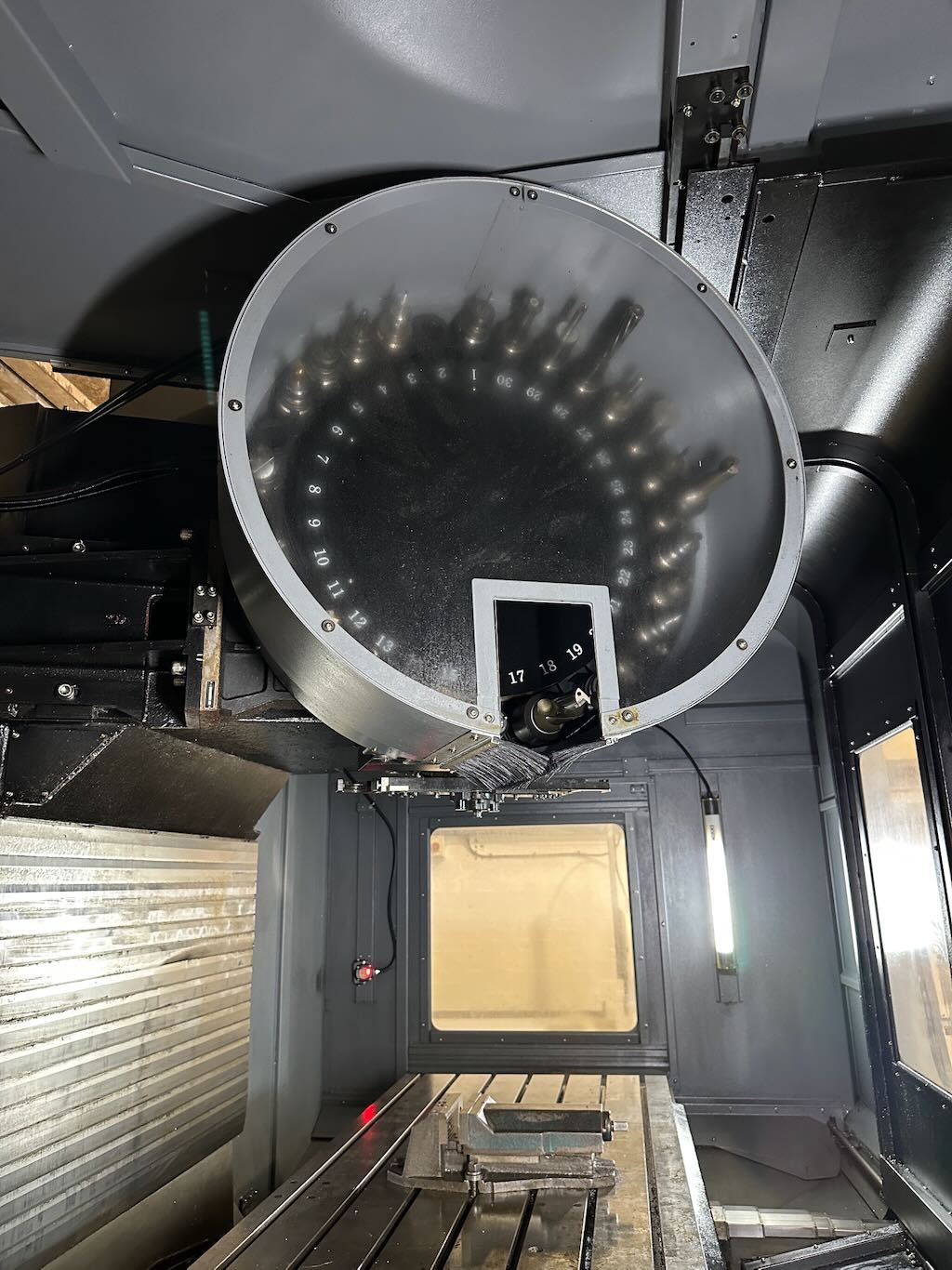

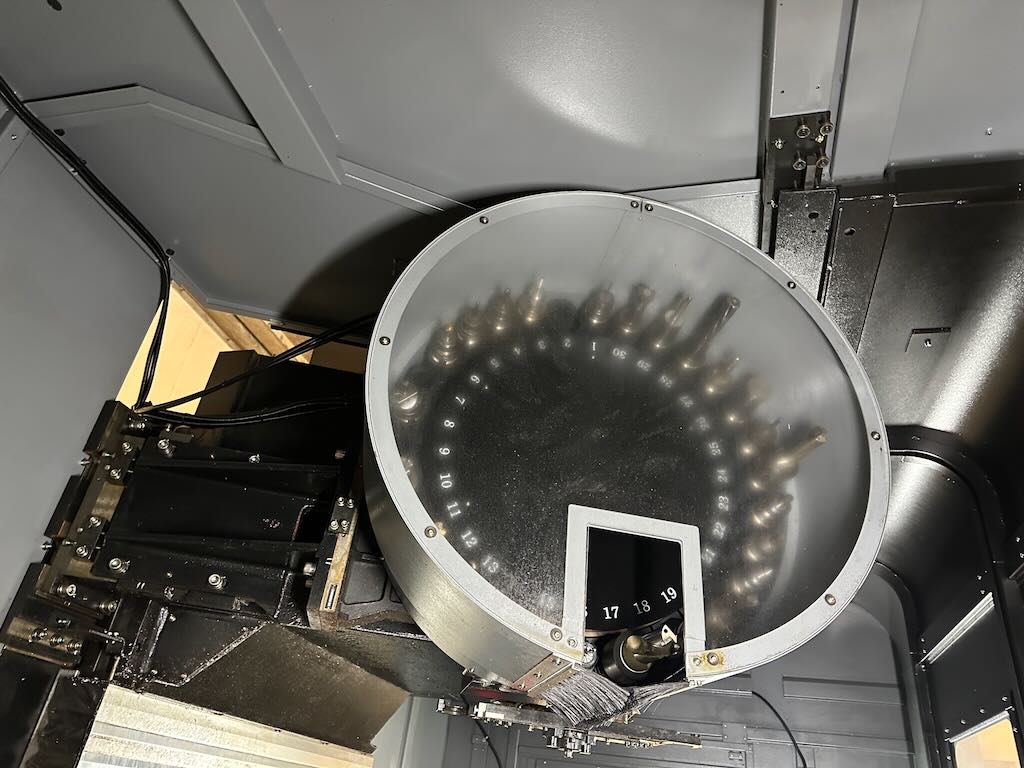

Number of Tools: 40.
Maximum Tool Diameter: 75mm.
Maximum Tool Length: 300mm.
Maximum Tool Weight: 7 KG.
Rapid Traverse Rates: (X, Y, Z Axis): 18, 18, 13.5 m/min.
Maximum Programmable Feedrate: 13.5m/min.
Dimensions: 6,338mm x 4,496mm x 3,335mm (L x W x H).
Machine Weight: 14,895 kg.
