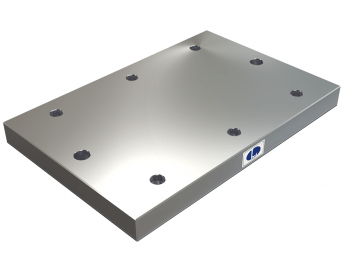

BP01 Machinable Fixture Plate
Cast iron plain fixture plate with mounting holes.
Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy.
Two dowel holes allow for precise loading and setting up of the fixture plate.
CEMB
MSP.EQU.O274
LENGHT MM.2000
HEIGHT OF CENTRE MM.500
KW 1.5 V 380
MAX WEIGHT LOAD KG.100
EQUIPED WITH:
* HOLE WITH VISUALIZED MOVEMENT
* ACCESSORIES
USED MACHINE
PFC
09950
MOULD AND DIE PRESS TEST
Removable and tilting table
Max closing force Ton 20
MAx opening force Ton 10
Upper table dimensions mm 750x1100
Lower table dimensions mm 750x1100
Opening min max 85- 985
Tables stroke mm 900
Upper table rotation 1...
GATTI
08981
150 ton
Piano mm 600x540
Corsa mm 500/550
Luce mm 700
Spessore piani mm 150
Interasse colonne mm 560 x 370
Diametro pistone mm 300
Diametro colonne mm 90
Used machine
