MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:

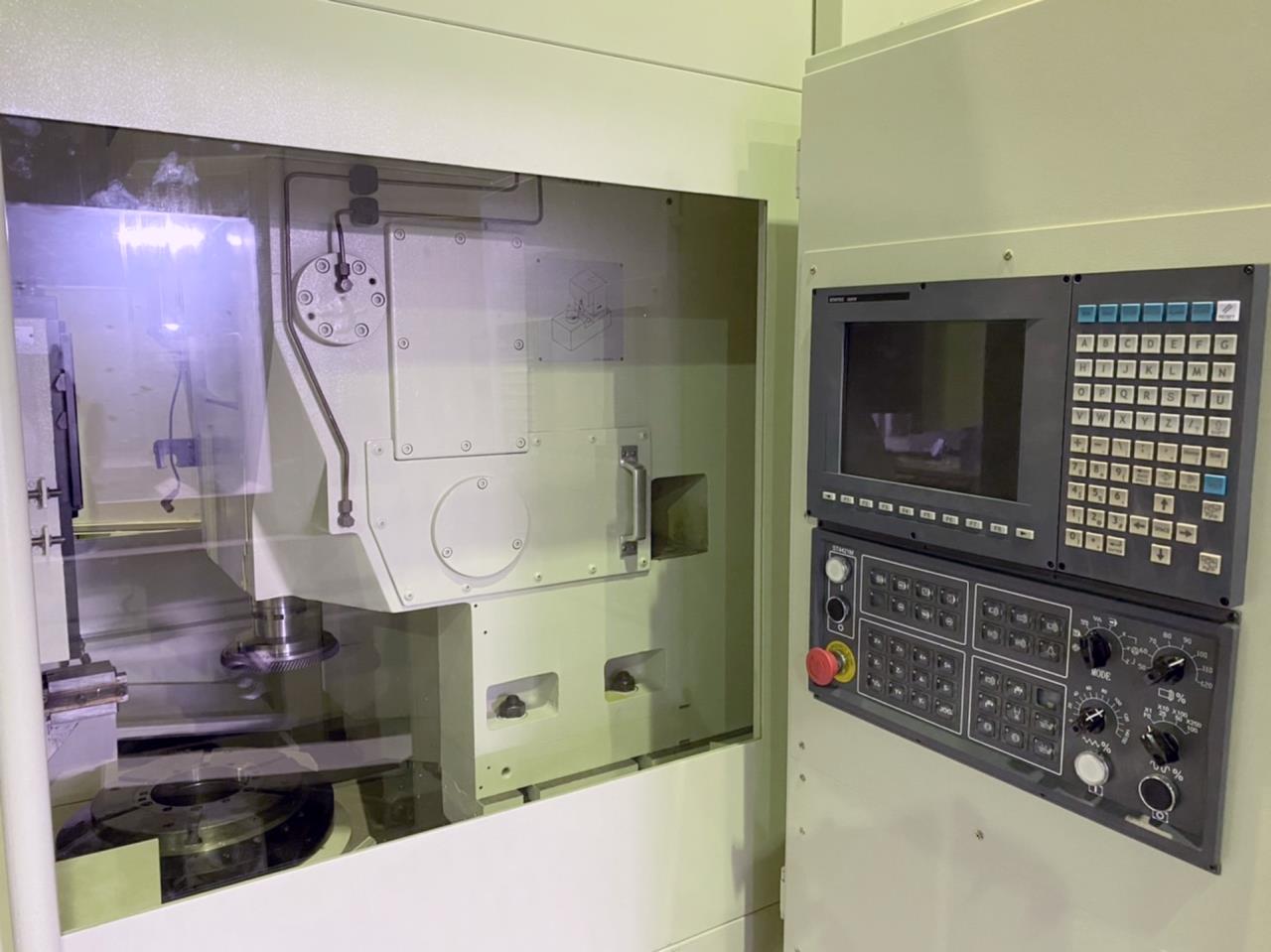

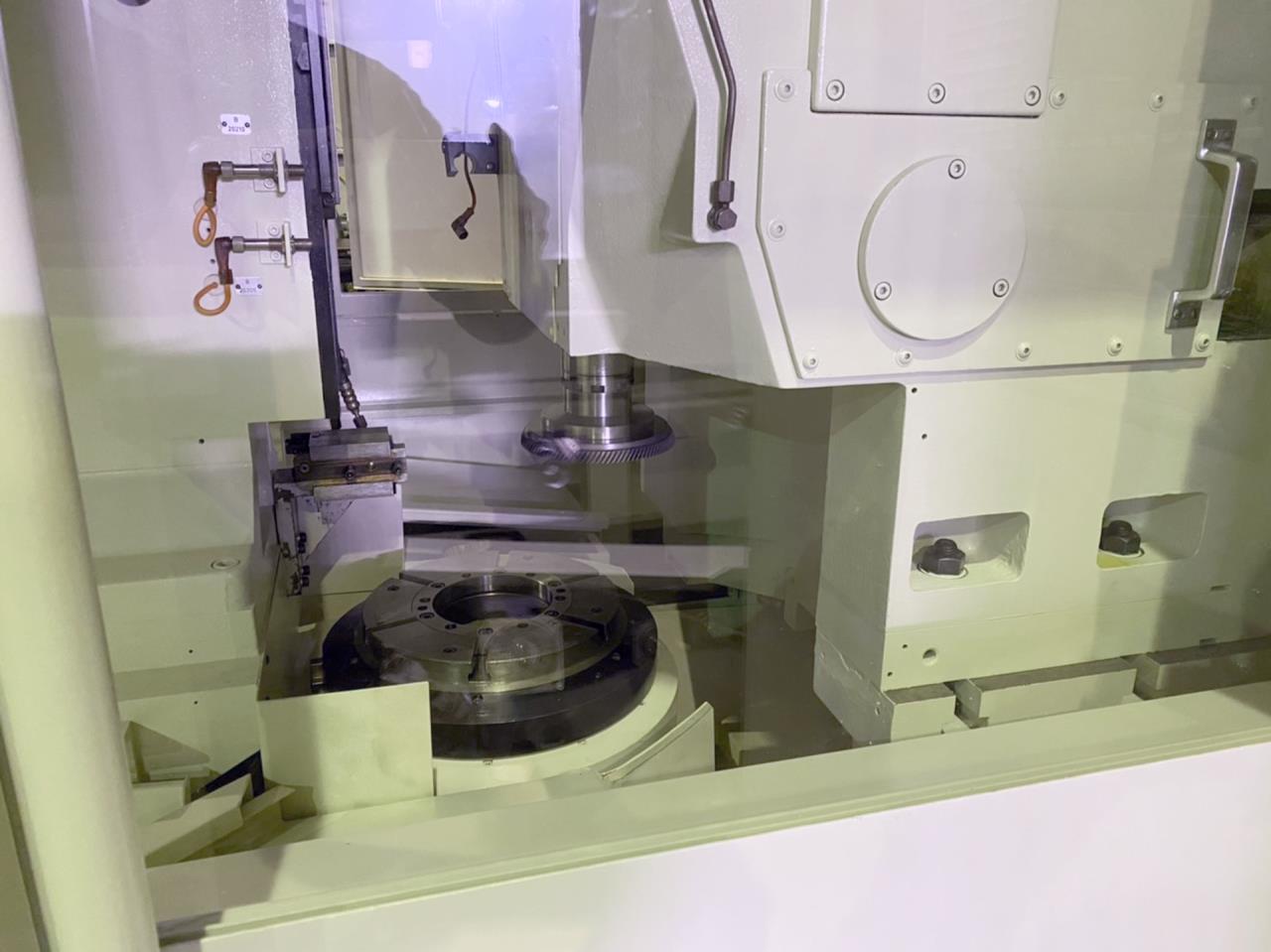

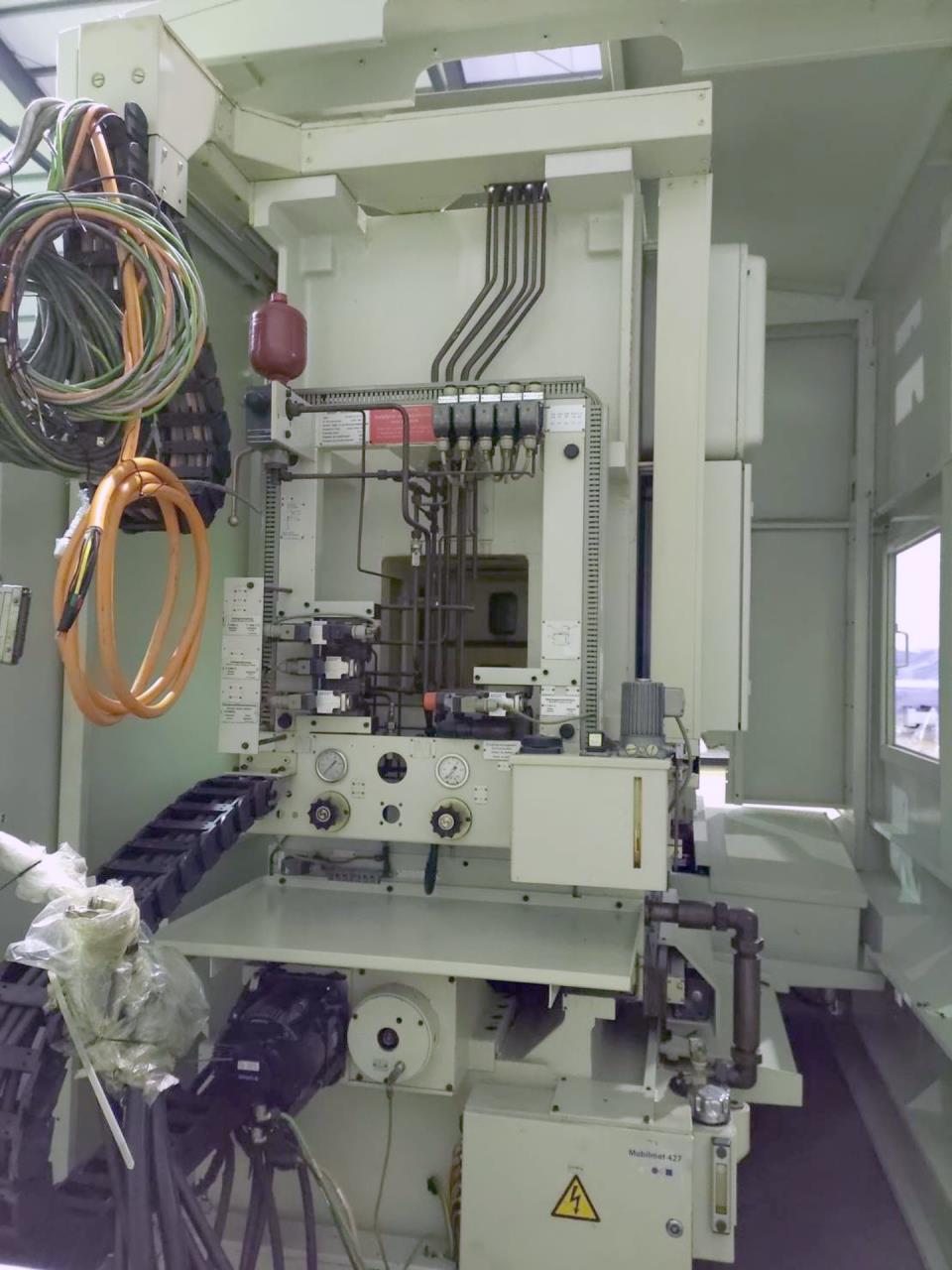

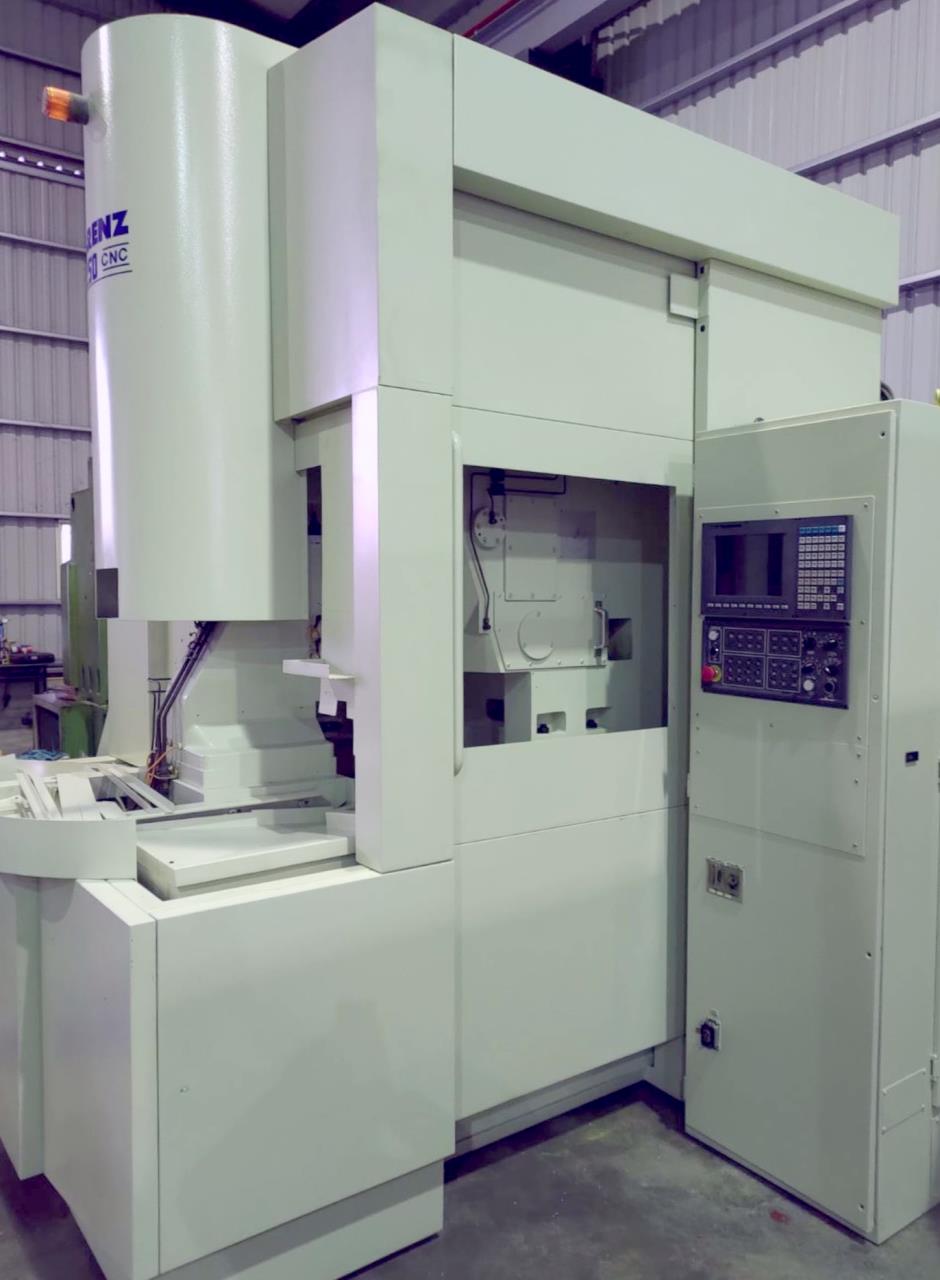

  • CNC gear shaping machine
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

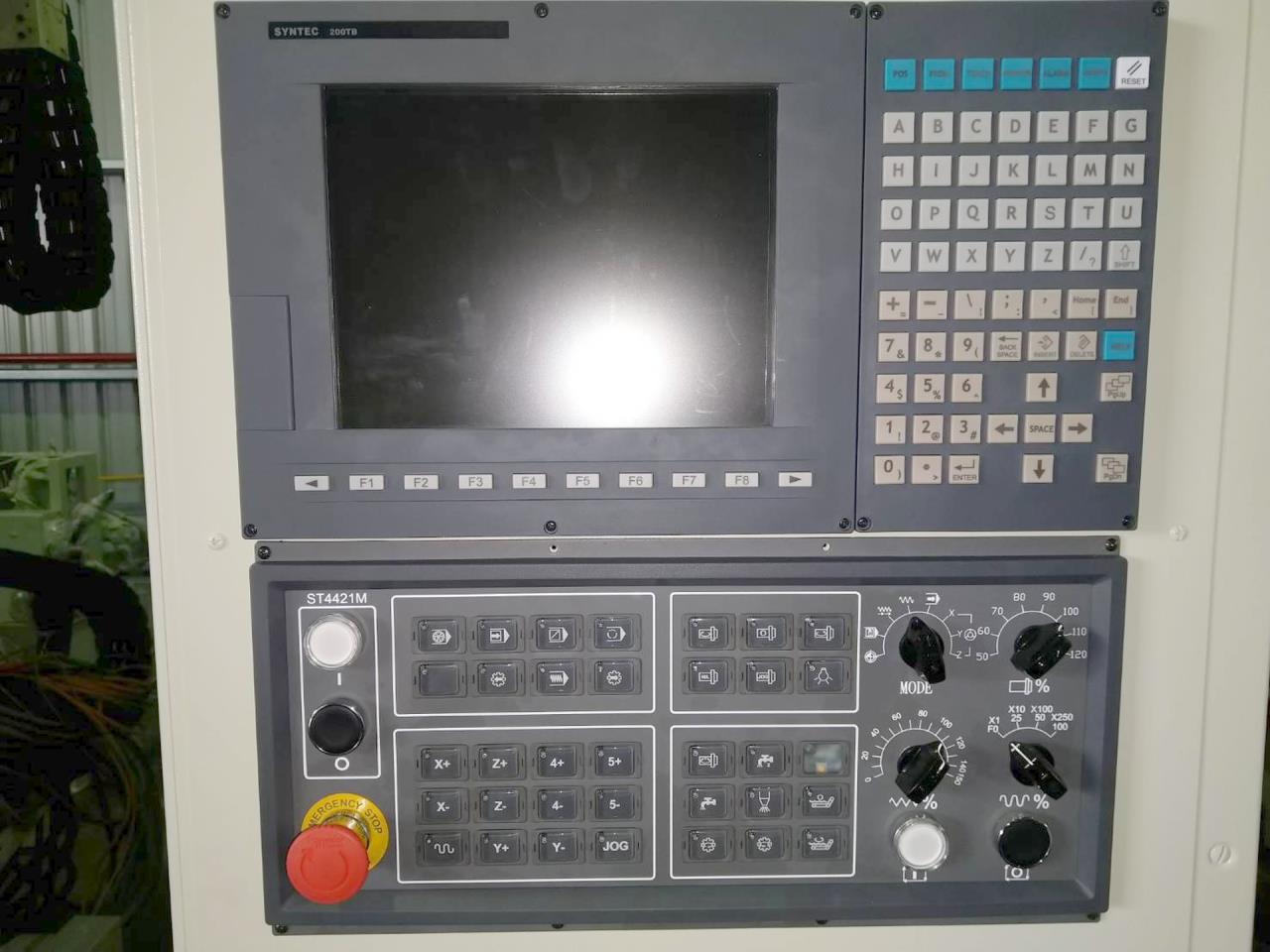

{"Working range:": "", "Module from": "1", "up to": "1200 s/min", "Max. wheel diameter": "250 mm", "Max. gear cutting width": "70 mm", "Table diameter": "320 mm", "Drill diameter of the table": "125 mm", "Max. ram stroke": "100 mm", "Distance ram to table:": "", "from": "100 s/min", "Taper in ram": "40 ISO", "Ram stroke speeds:": "", "Voltage 50 Hz 3x": "380 Volt", "Drive": "36 kW", "Machine's weight about": "10000 kg", "Overall dimensions machine:": "", "Length": "4500 mm", "Width": "3200 mm", "Height": "2900 mm", "Equipment:": "", "Retrofited control": "2019", "Helical gearing": "", "Mise en conformit\u00e9 CE": ""}
