MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Erie
  • Model:
  • Series-9 Clamps
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

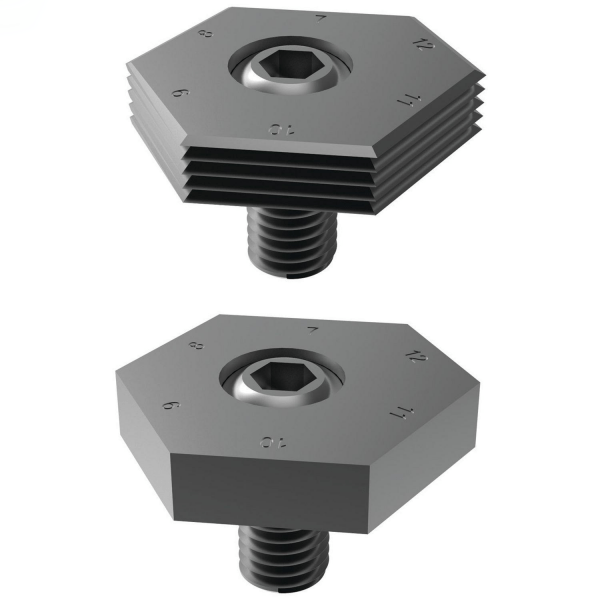

Adjustable low-profile clamp. Actuated using a Cam screw, it is quick and easy to use but is adjustable with each face being 1mm further away from centreline. This allows for one clamp to hold parts varying up to 9.4mm by rotating the clamp. Four sizes available in both metric and serrated and metric and imperial.
