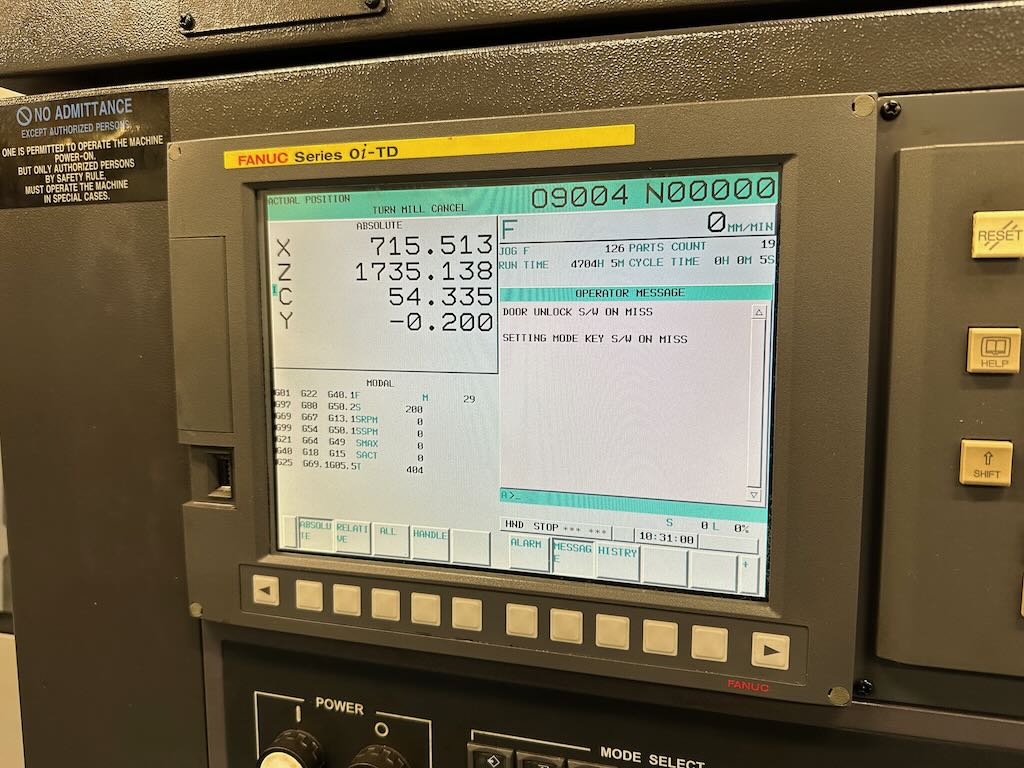

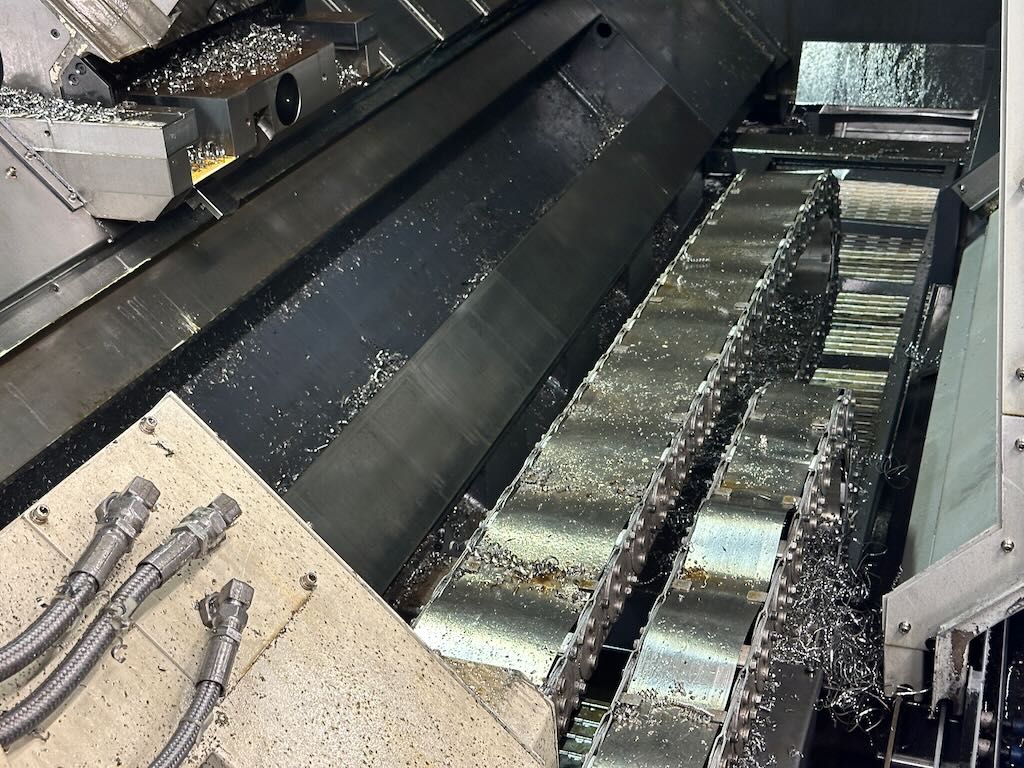

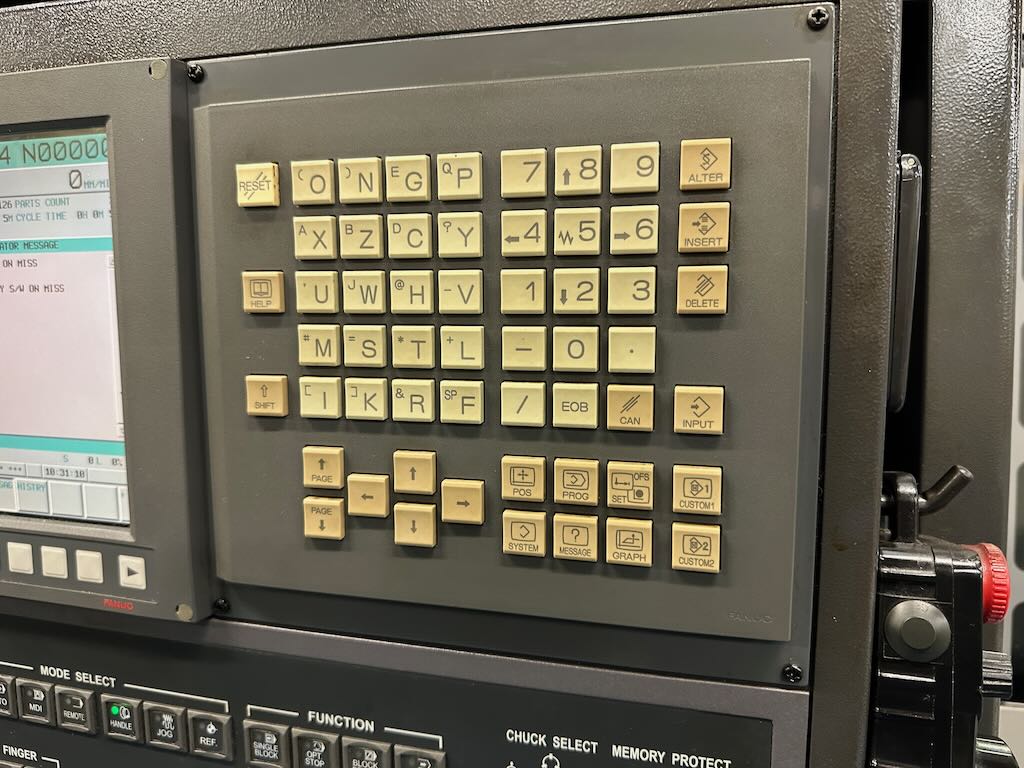

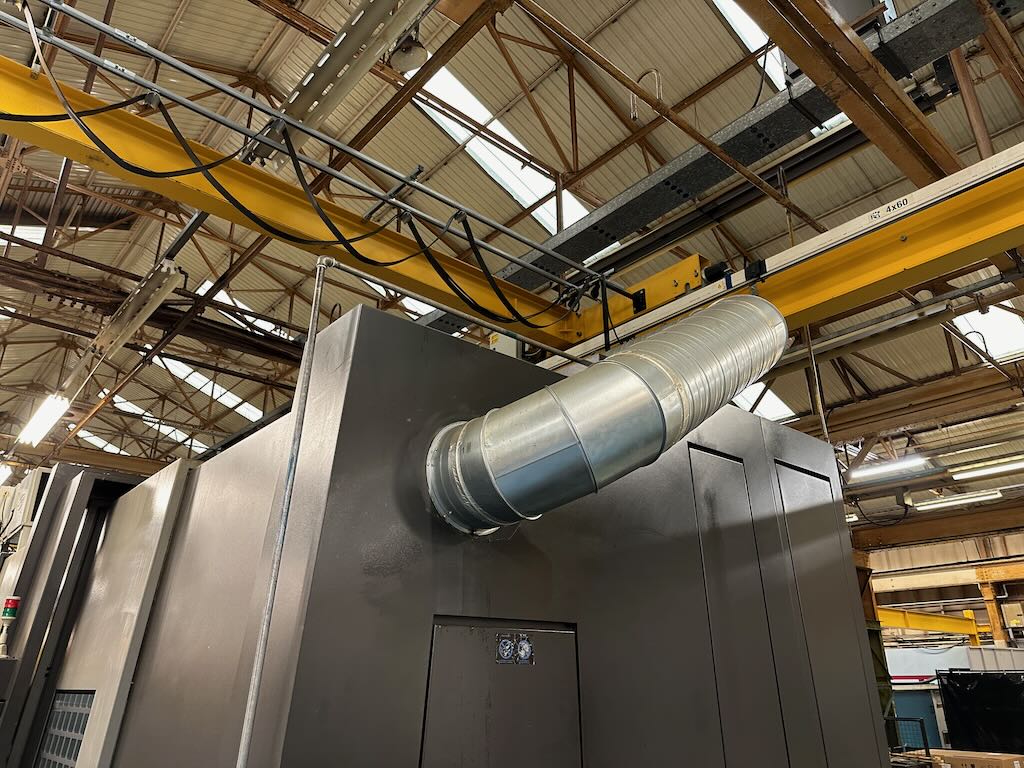

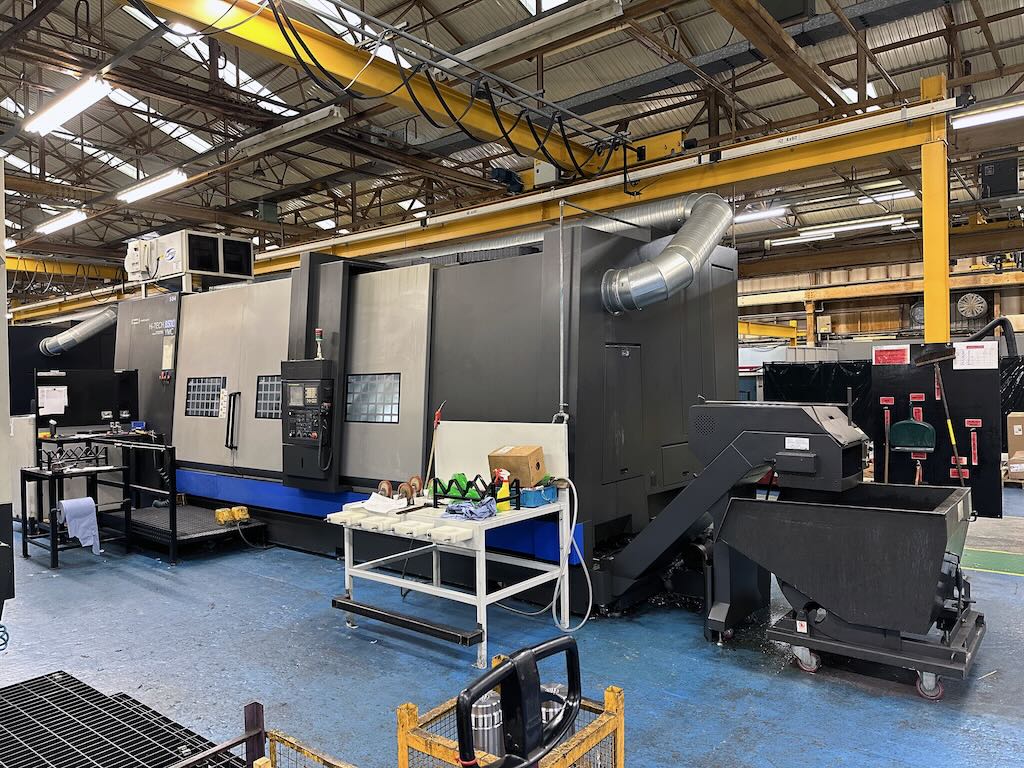

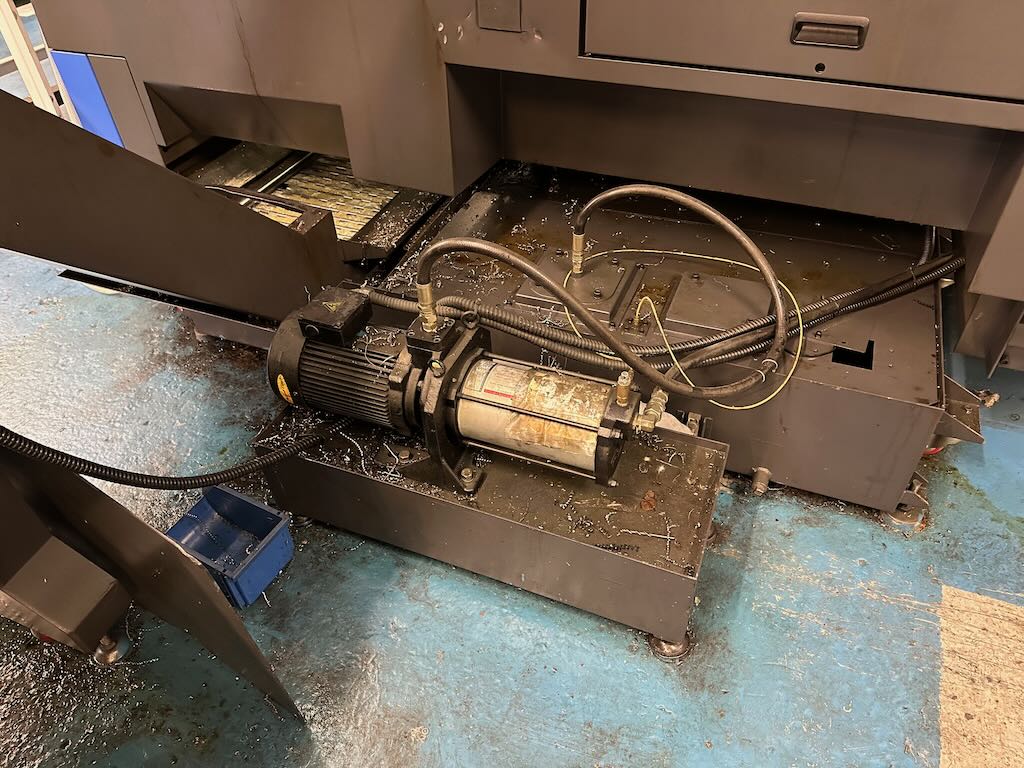

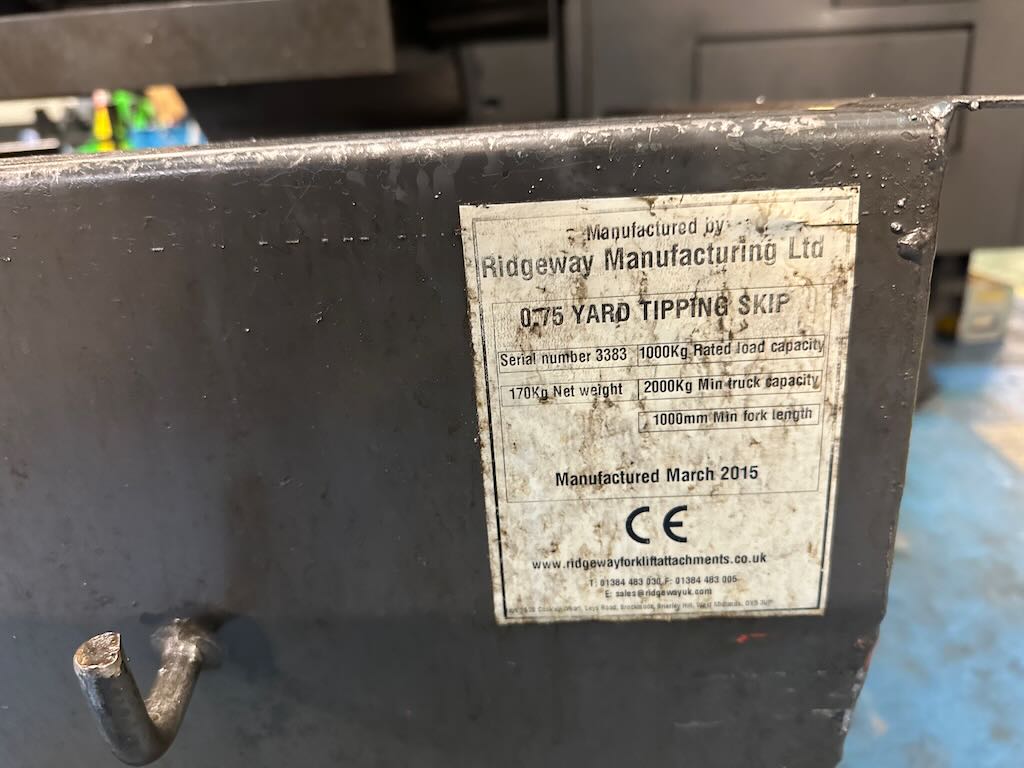

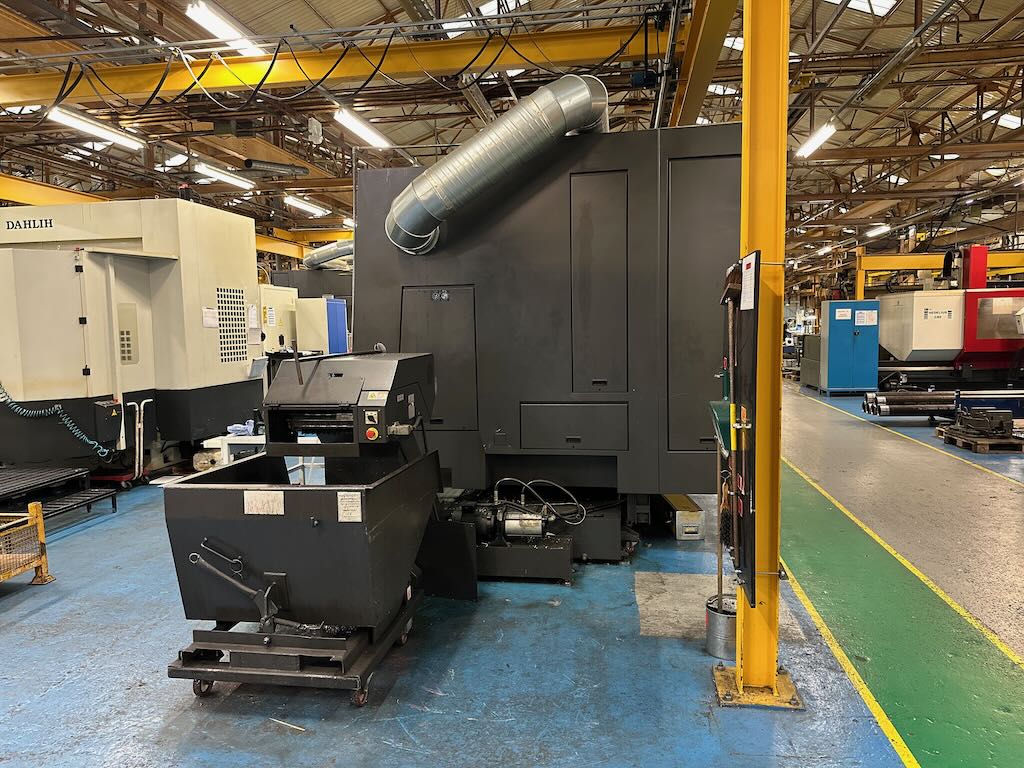

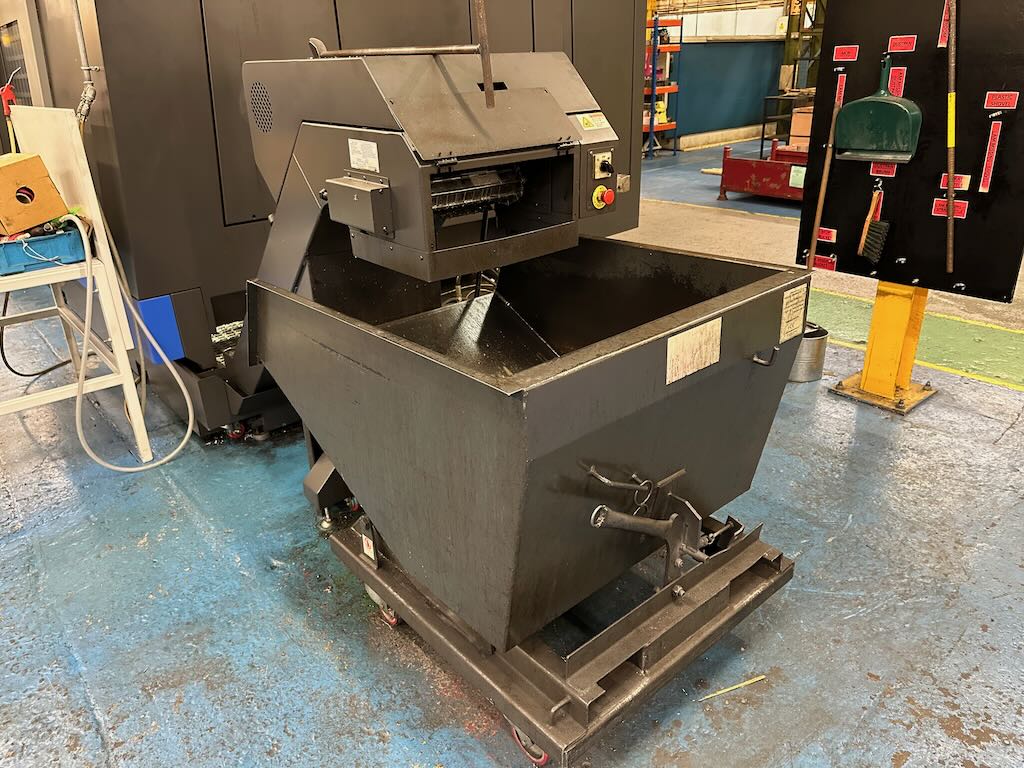

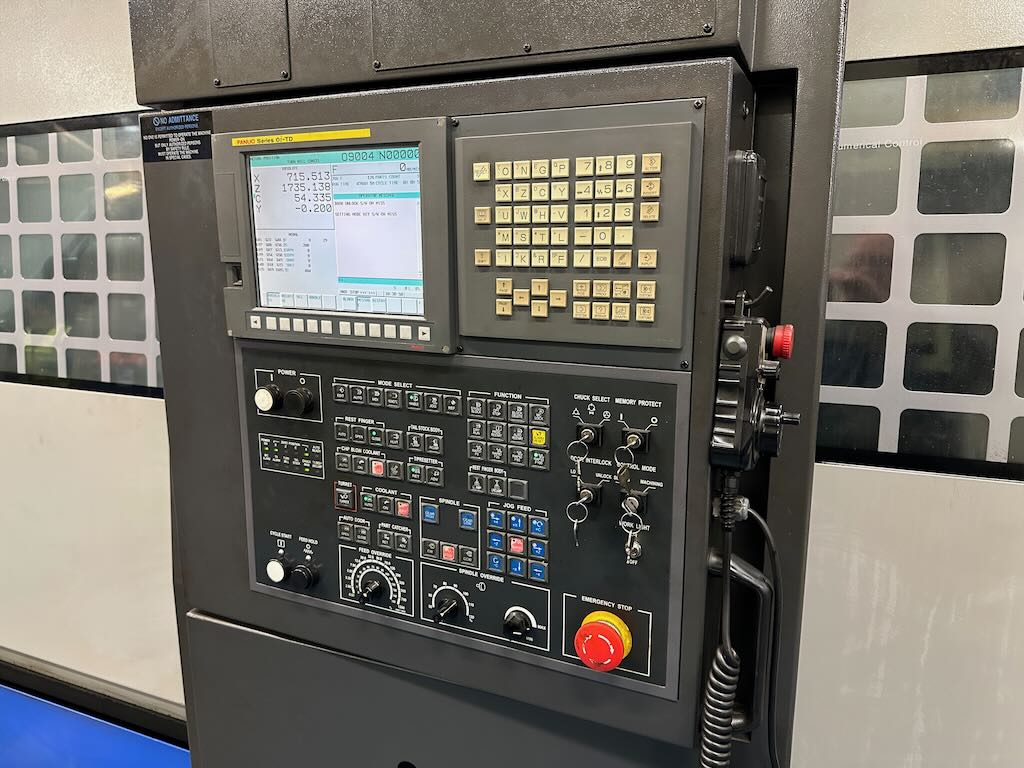

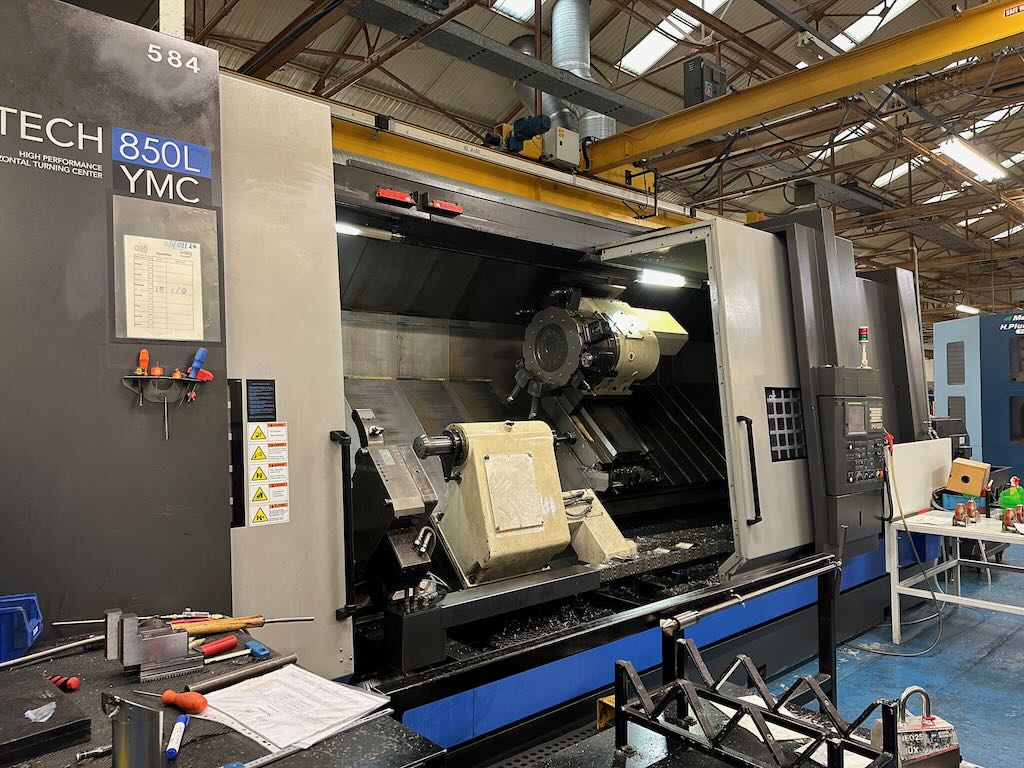

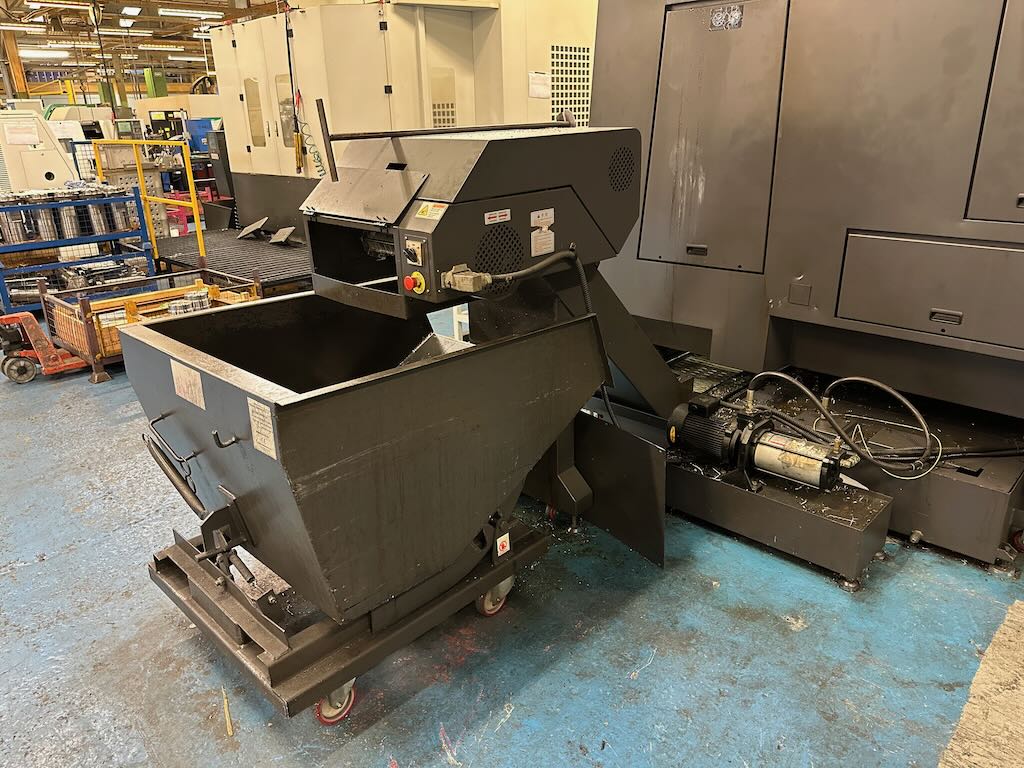

This machine is in excellent working condition and is currently still in production. Approximately 4900 hours. Viewing is by appointment only, please get in touch to arrange a viewing slot. Purchase of this machine includes FANUC/Hwacheon operating and maintenance manuals, tool presetter, hydraulic steady, coolant system, swarf conveyor and skip, optional filtermist unit and a tooling package. Please note tooling package may be subject to change.
Swing Over Bed: 1050mm
Swing Over Cross Slide: 825mm
Maximum Turning Diameter: 920mm (with 24" Chuck)
Standard Cutting Diameter: 380mm
Maximum Turning Length: 3500mm (with 24" Chuck)
Slideway Slant Angle: 60˚
Chuck: 400mm SMW KNCS Power Chuck
X Travel: 485mm
Z Travel: 3650mm
Y Travel: 220mm
X Rapid Traverse: 10m/min
Z Rapid Traverse: 10m/min
Y Rapid Traverse: 10m/min
X Feed Motor: 6kW
Z Feed Motor: 6kW
Y Feed Motor: 7kW
Spindle Nose: ASA A2-15
Chuck Size: SMW KNCS 400mm (3 Jaw)
Spindle Speed: 1500RPM
Spindle Bore: 185mm
Max. Bar Size: 164mm
Spindle Range Shift: 4 Step Gearbox
Spindle Motor: 45/37kW
Number of Tool Stations: 12
Standard Tool Size: 32mm
Max. Dia. of Boring Bar: 80mm
Index Time: 0.3 seconds

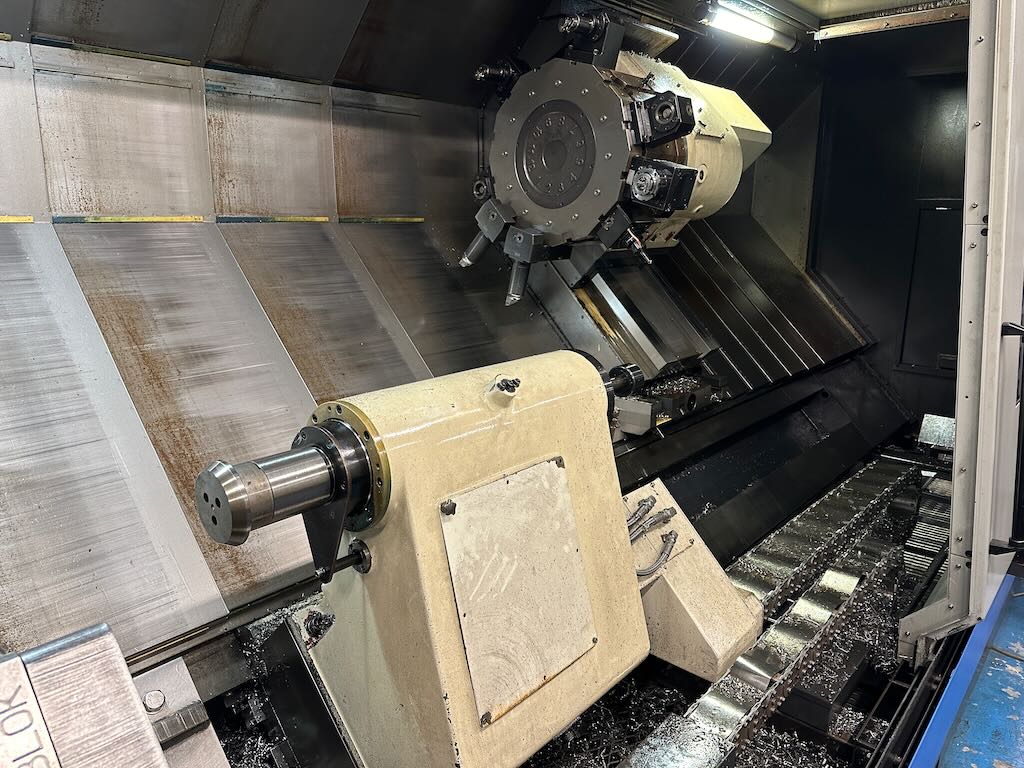

Quill Dia.: 160mm
Quill Stroke: 150mm
Quill Taper: 6MT
Spindle Motor: 11/7.5kW
Max. Spindle Speed: 2500 RPM
Max. Drill/Collet Size: ø32 / ER50
Max. Index Angle: 0.001˚
Length: 7860mm
Width: 3030mm
Height: 3020mm
Machine Weight: 23,500kg
Voltage: 415V
Phase: 3
50Hz
Overall Power Requirements: 75kVA
