MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:

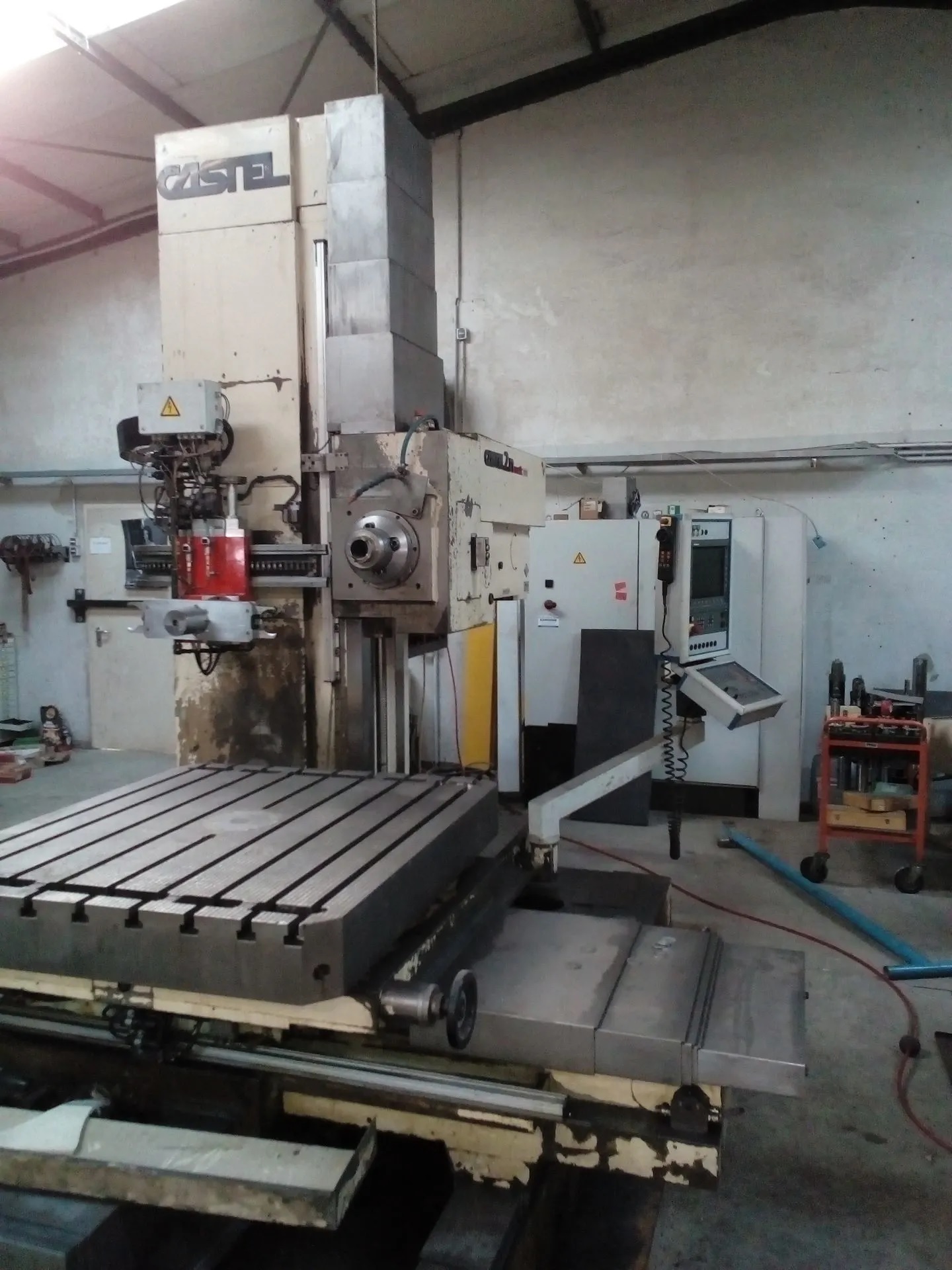

  • Boring machine CNC
  • Condition:
  • NA
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

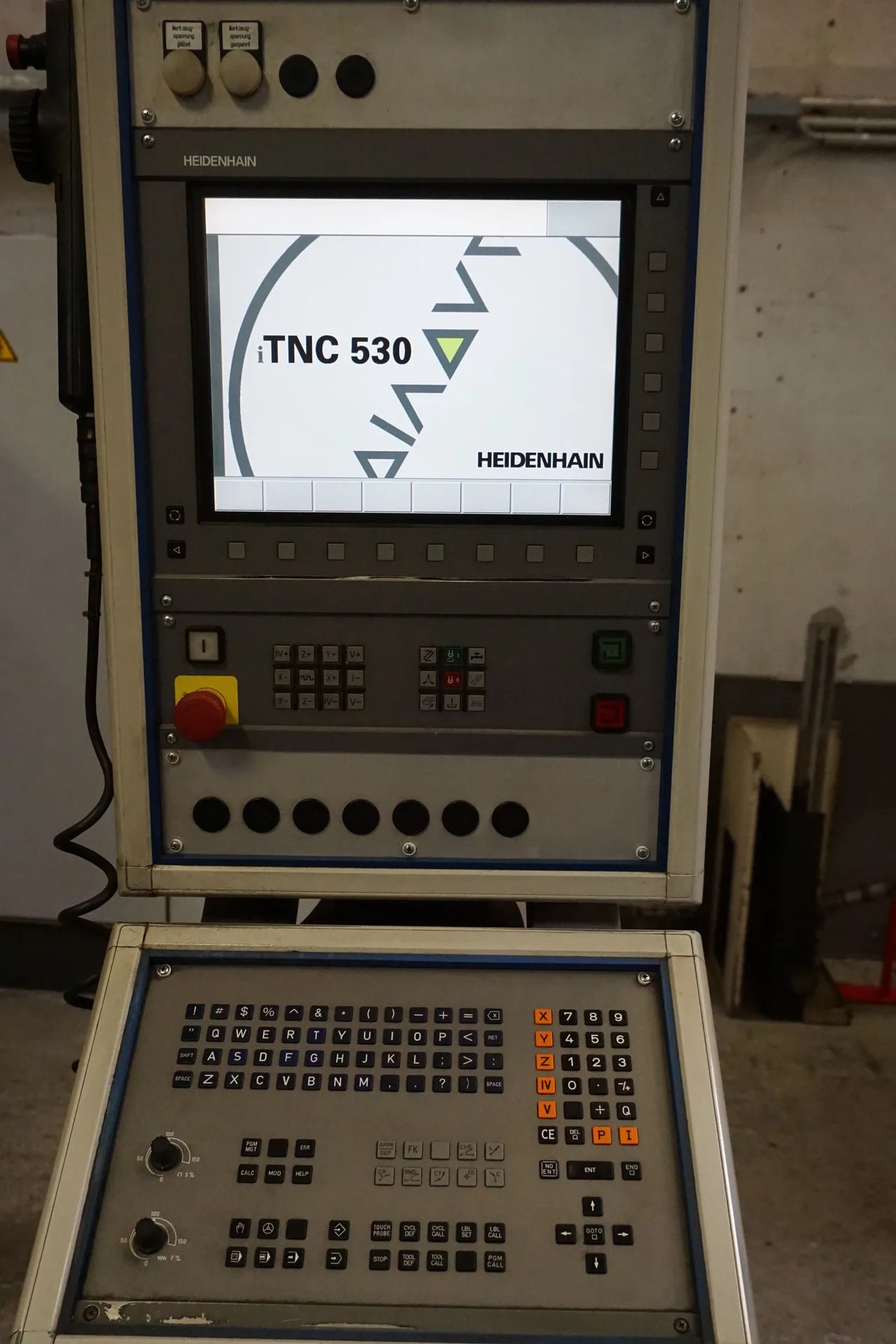

- Man. Year 1985/2006 - Control Heidenhain iTNC 530 - Spindle diameter: 100 mm - Travel X axis: 2000 mm - Travel Y axis: 1500 mm - Travel Z axis: 1000 mm - Travel W axis: 500 mm - Tool magazine: 40 pos. - Table surface L x W: 1100 x 1300 mm - Table rotation: 360 ° - Table load: 3000 kg - Spindle speed: 1 - 2000 rpm - Spindle taper: MAS BT 50 - Feed range: 1 - 5000 mm / min - Rapid feed : 8,000 m / min - Total power requirement: 22 kW - Weight approx: 14,000 kg - Dimensions (L x W x H) Approx.: 7200 x 6500 x 3400 mm
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    FHU Kriw

    • Contact Name
    • PrzemysÅ‚aw BlabuÅ›
    • Contact Number
    • +48 881 777 733
