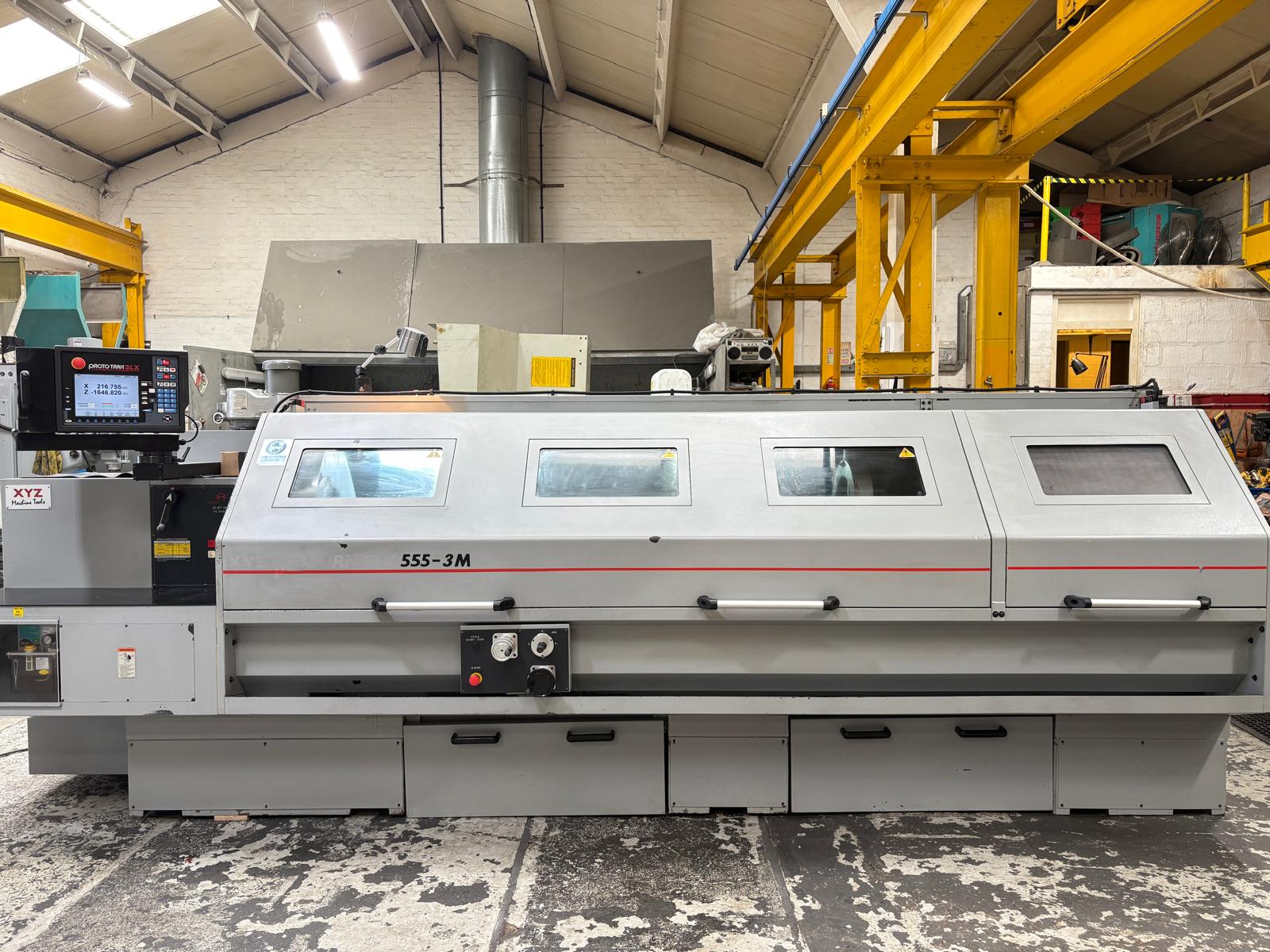

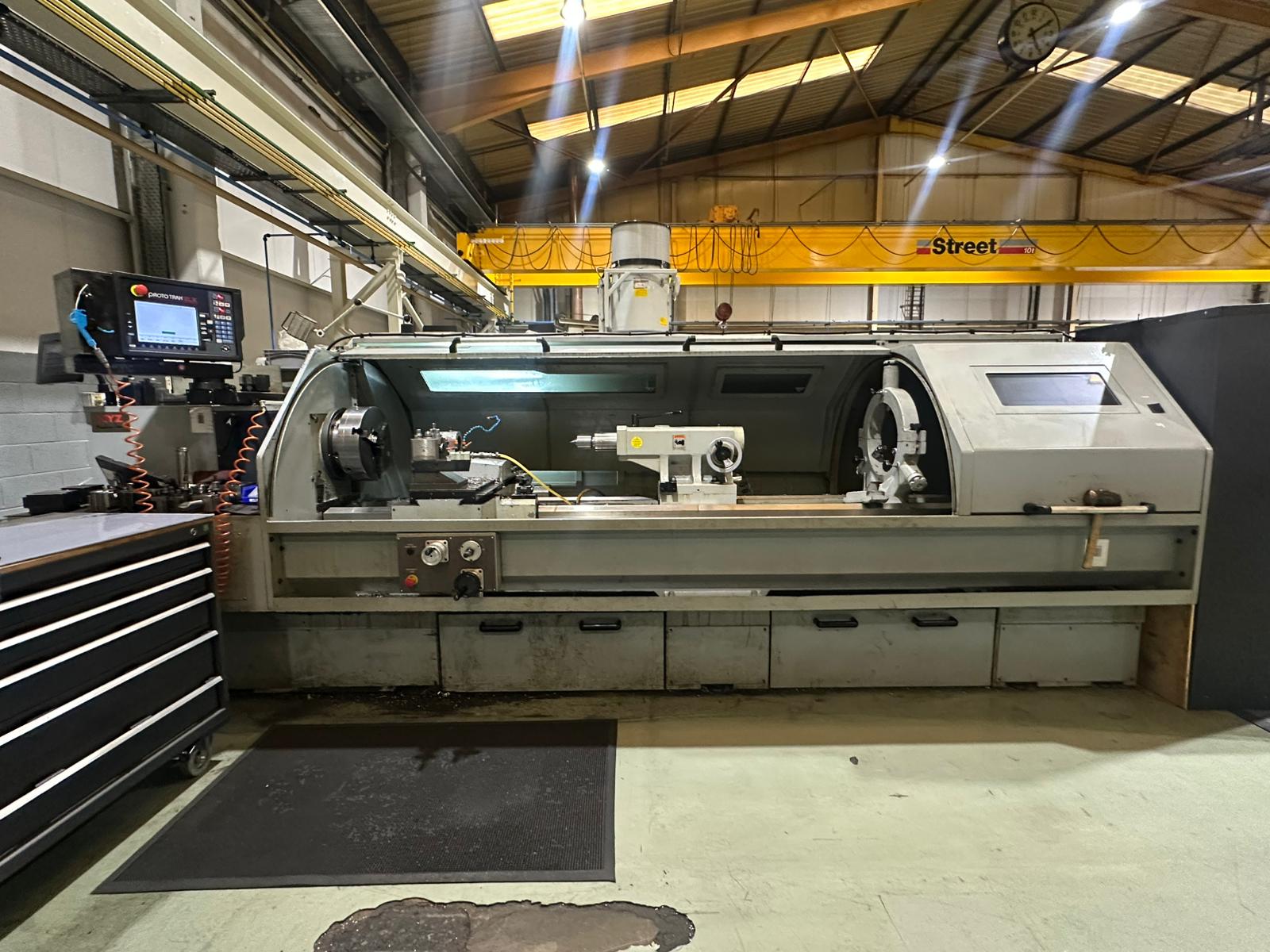

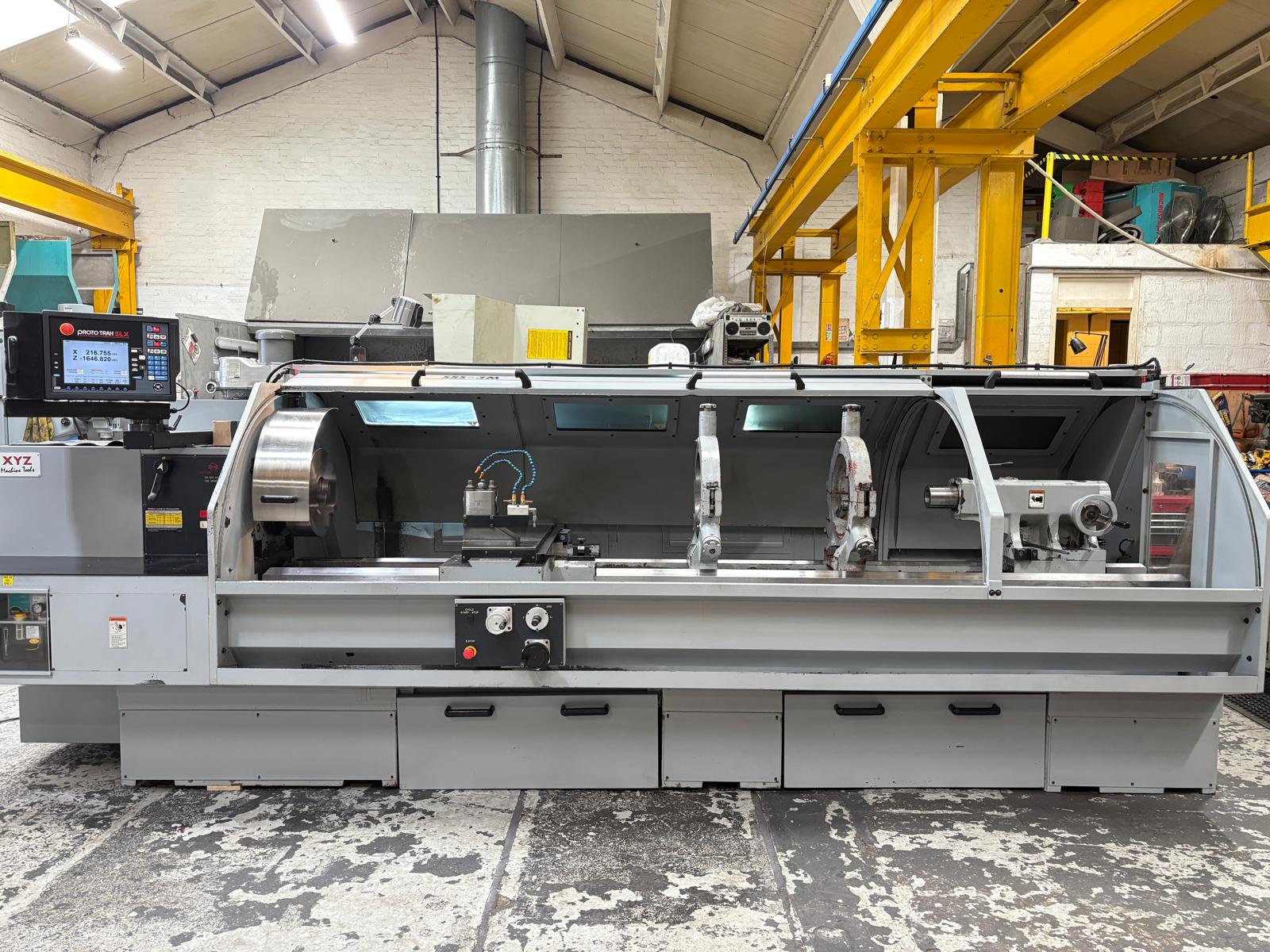

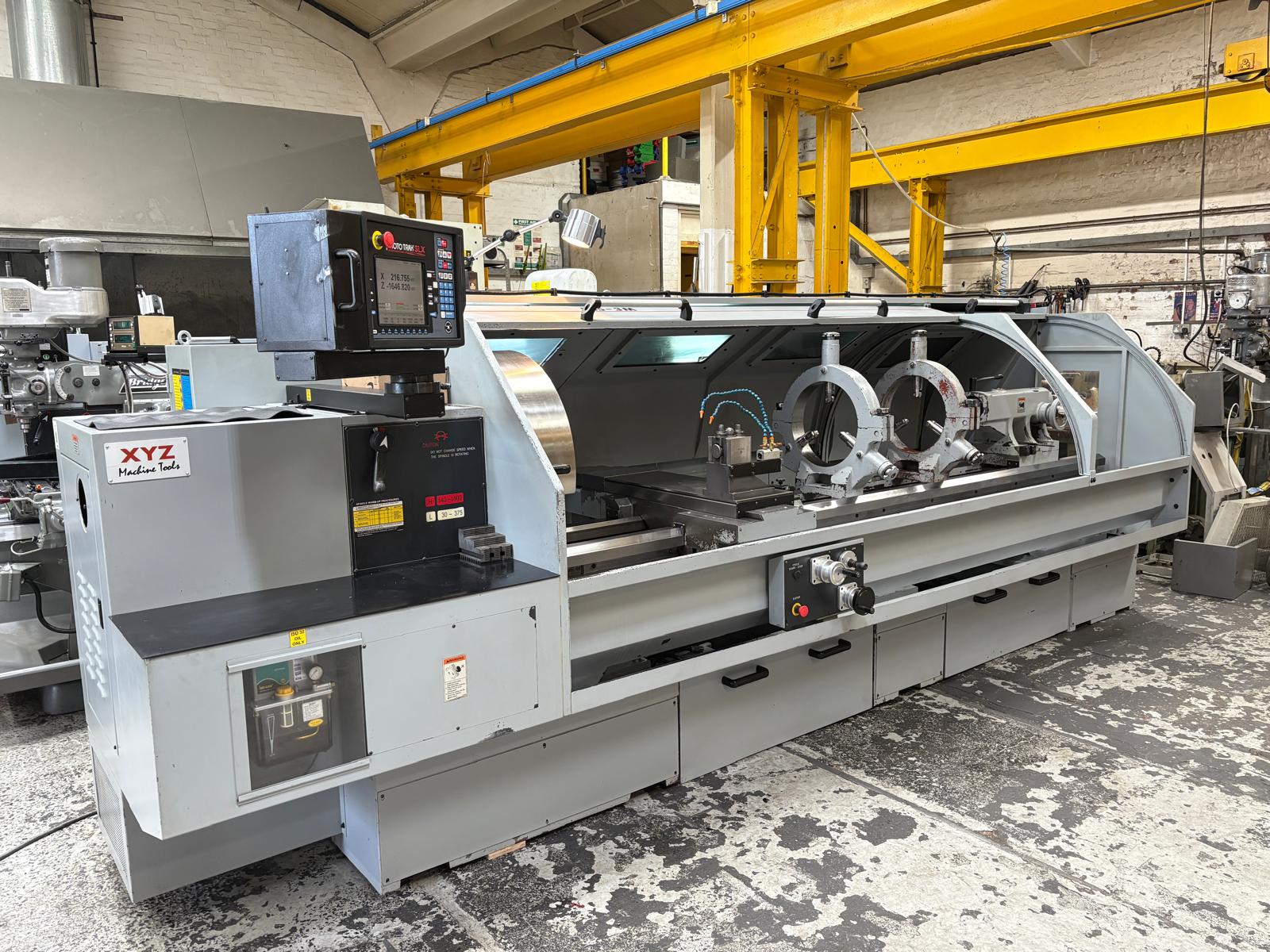

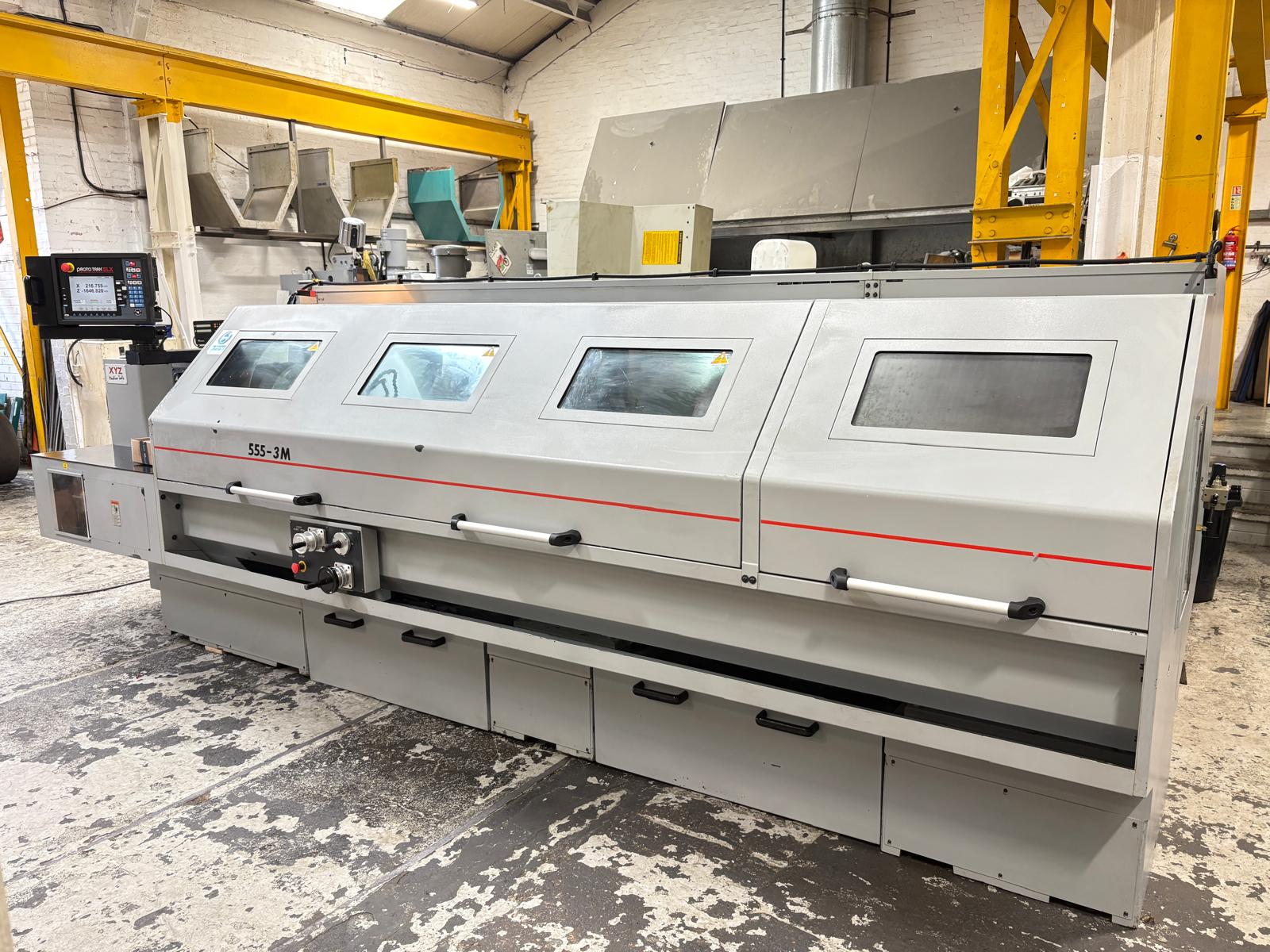

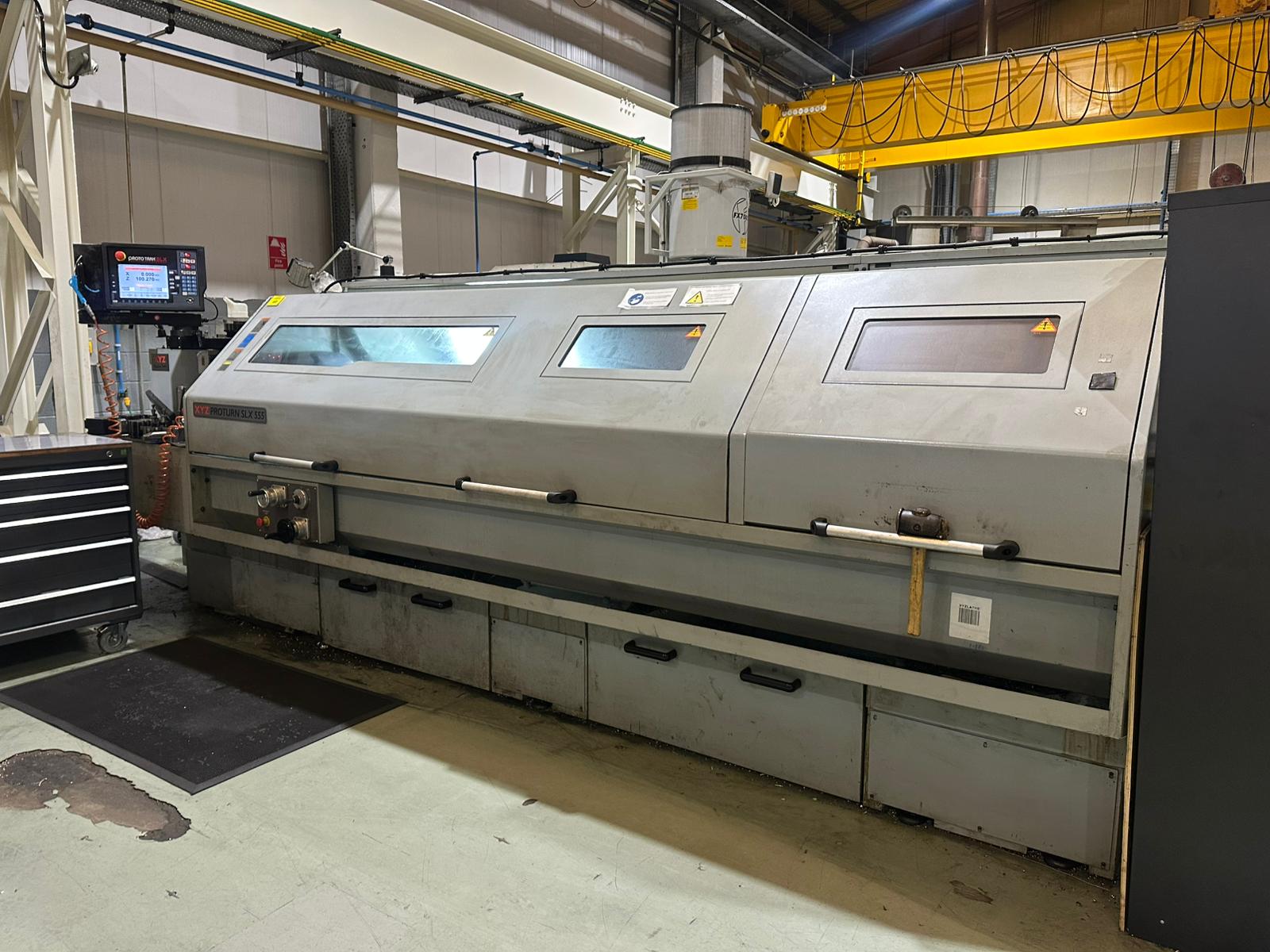

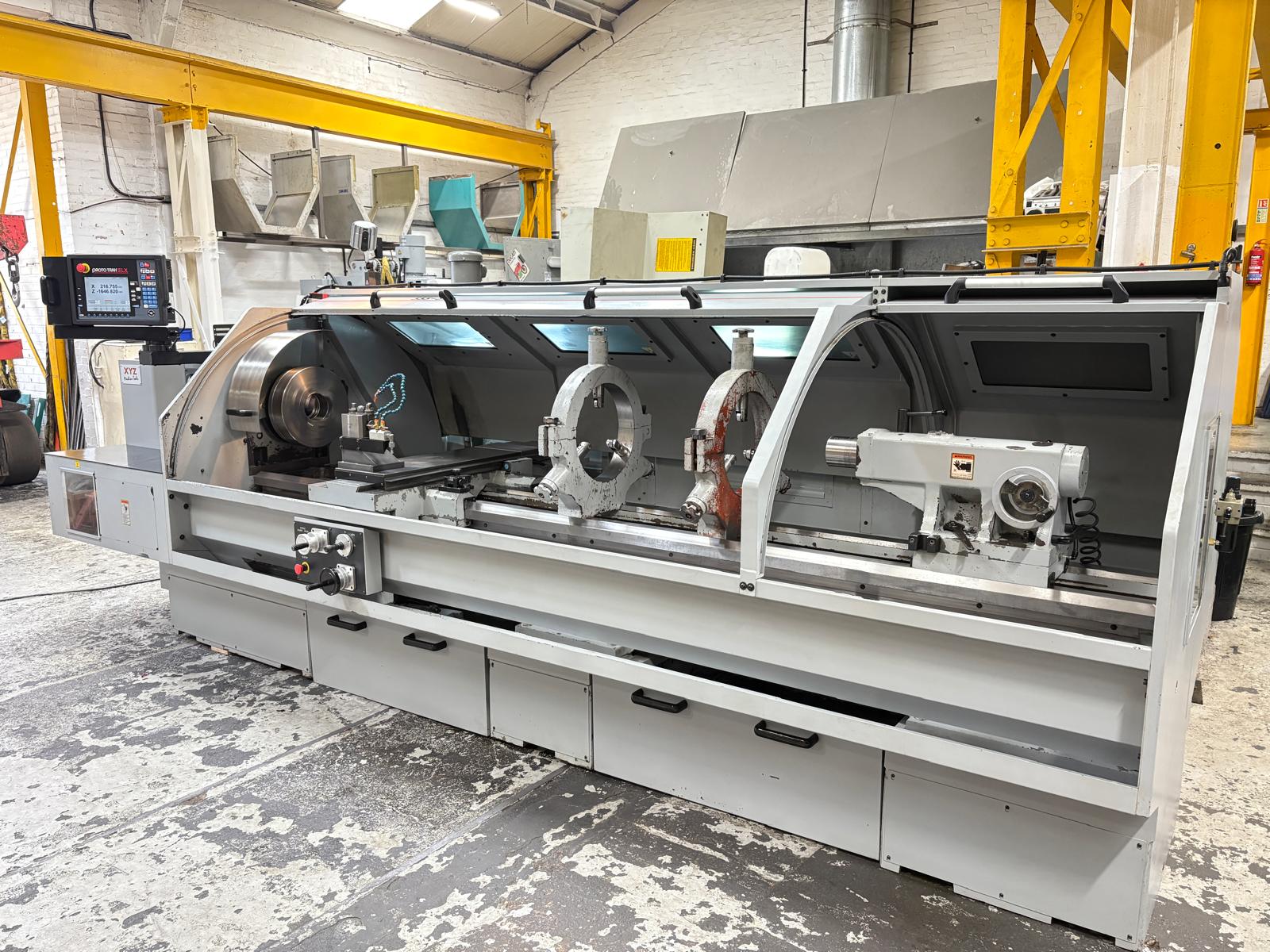

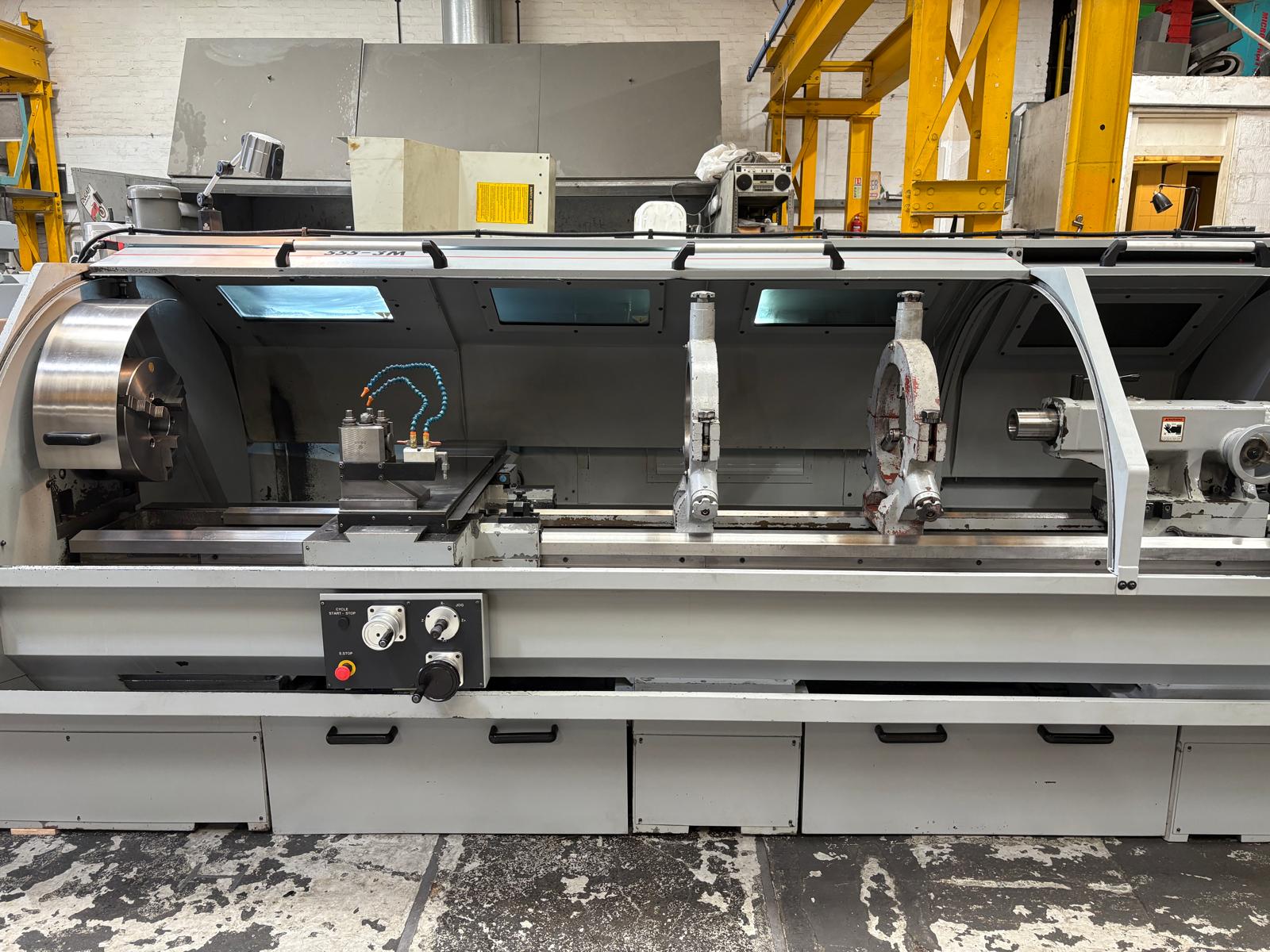

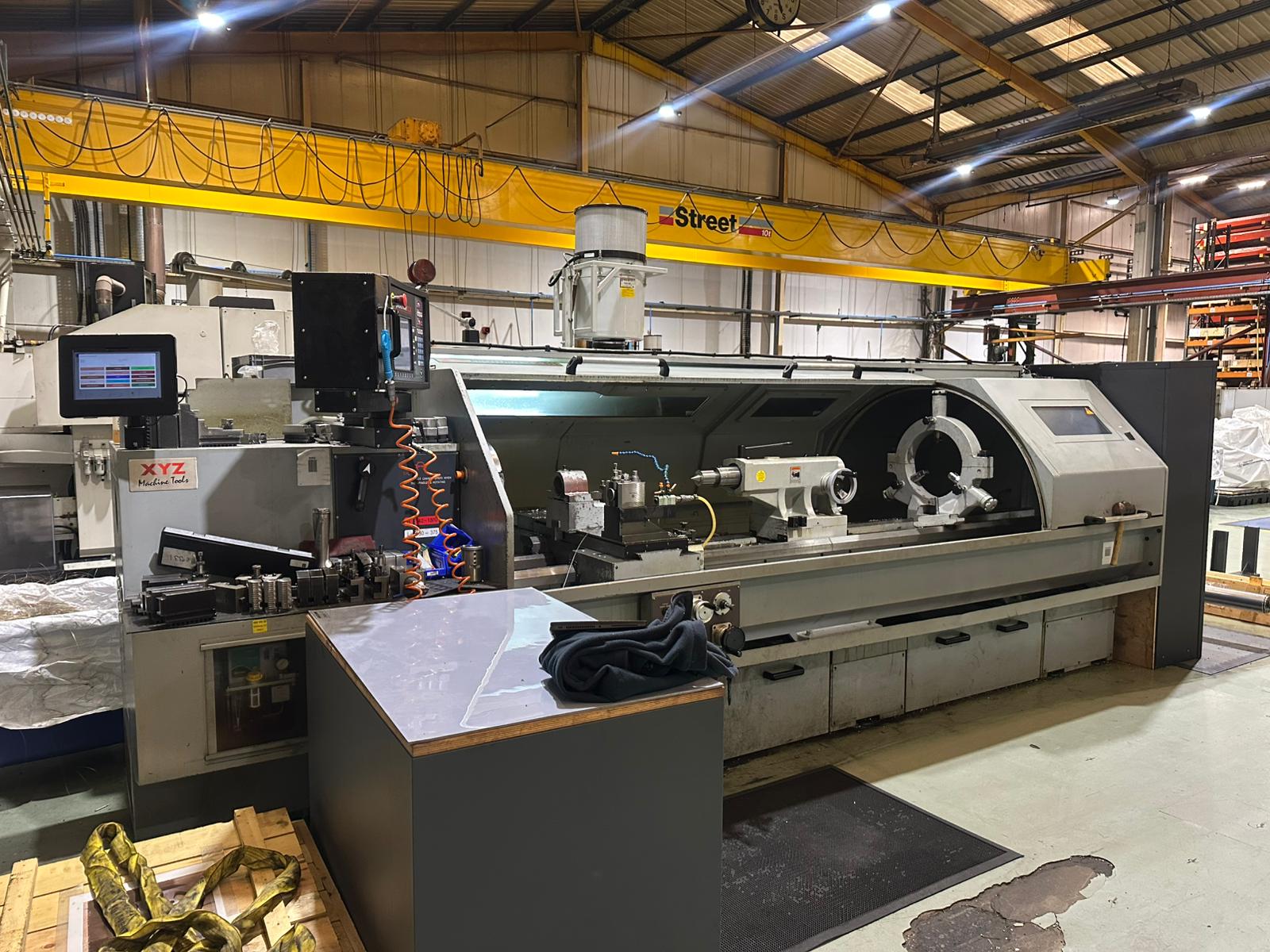

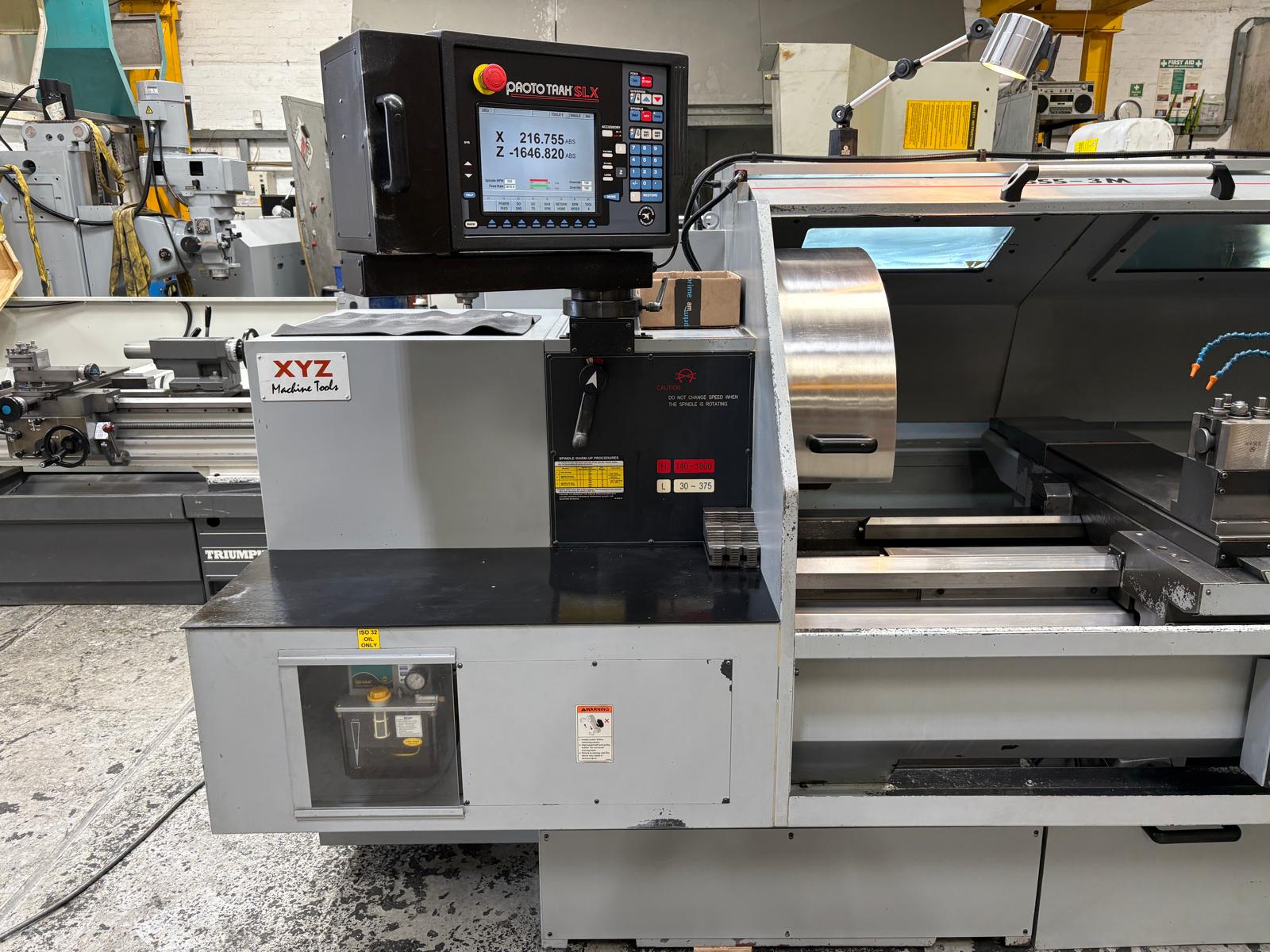

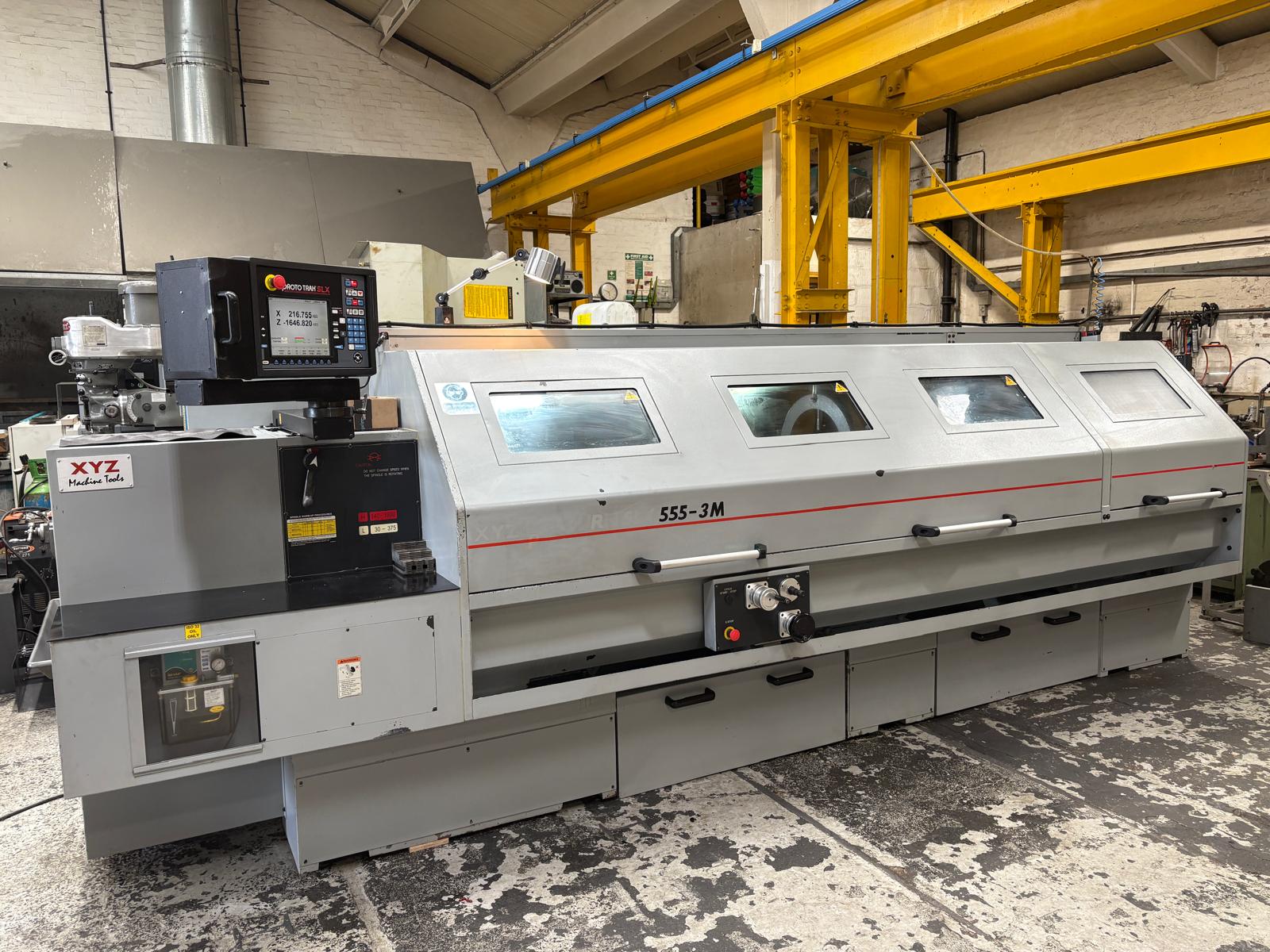

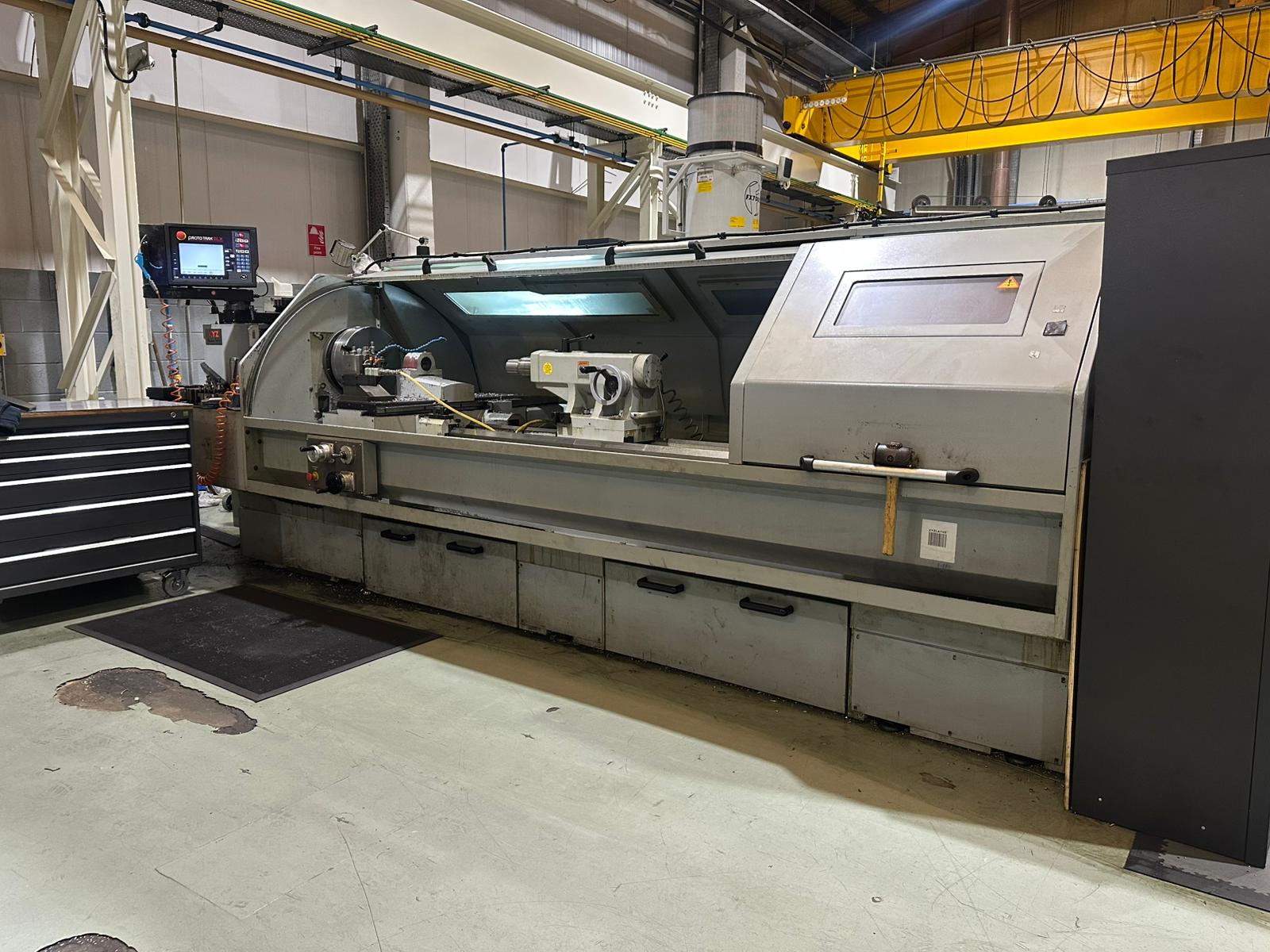

XYZ Proturn SLX555 ProtoTRAK Control Gap Bed Centre Lathe POA

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Roto

    Model:

  • XYZ Proturn SLX555 ProtoTRAK Control Gap Bed Centre Lathe POA

    Condition:

  • 1

    YOM:

  • NA

    Control:

  • NA

    Price:

  • null

    Country:

  • United Kingdom
DESCRIPTION

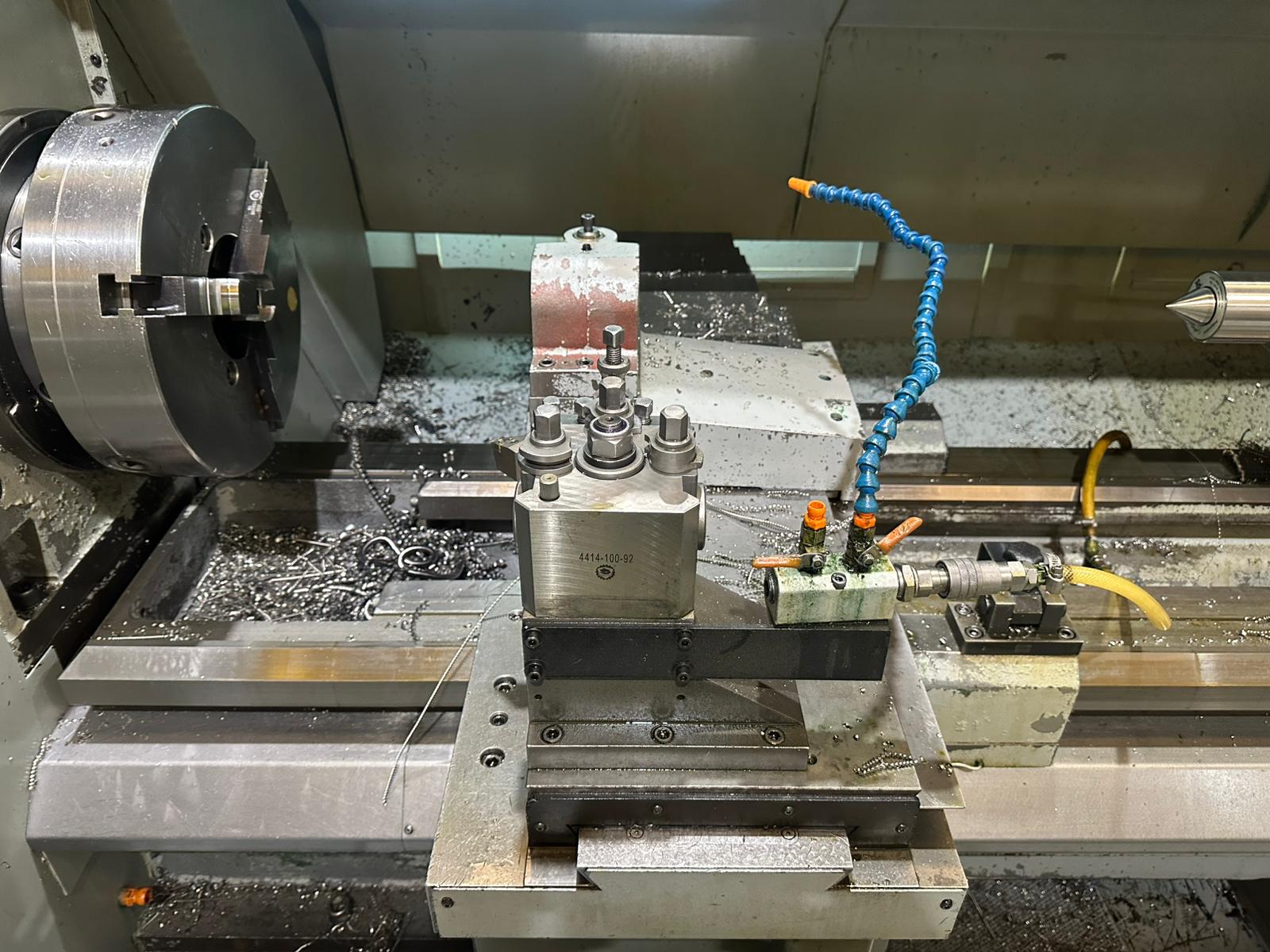

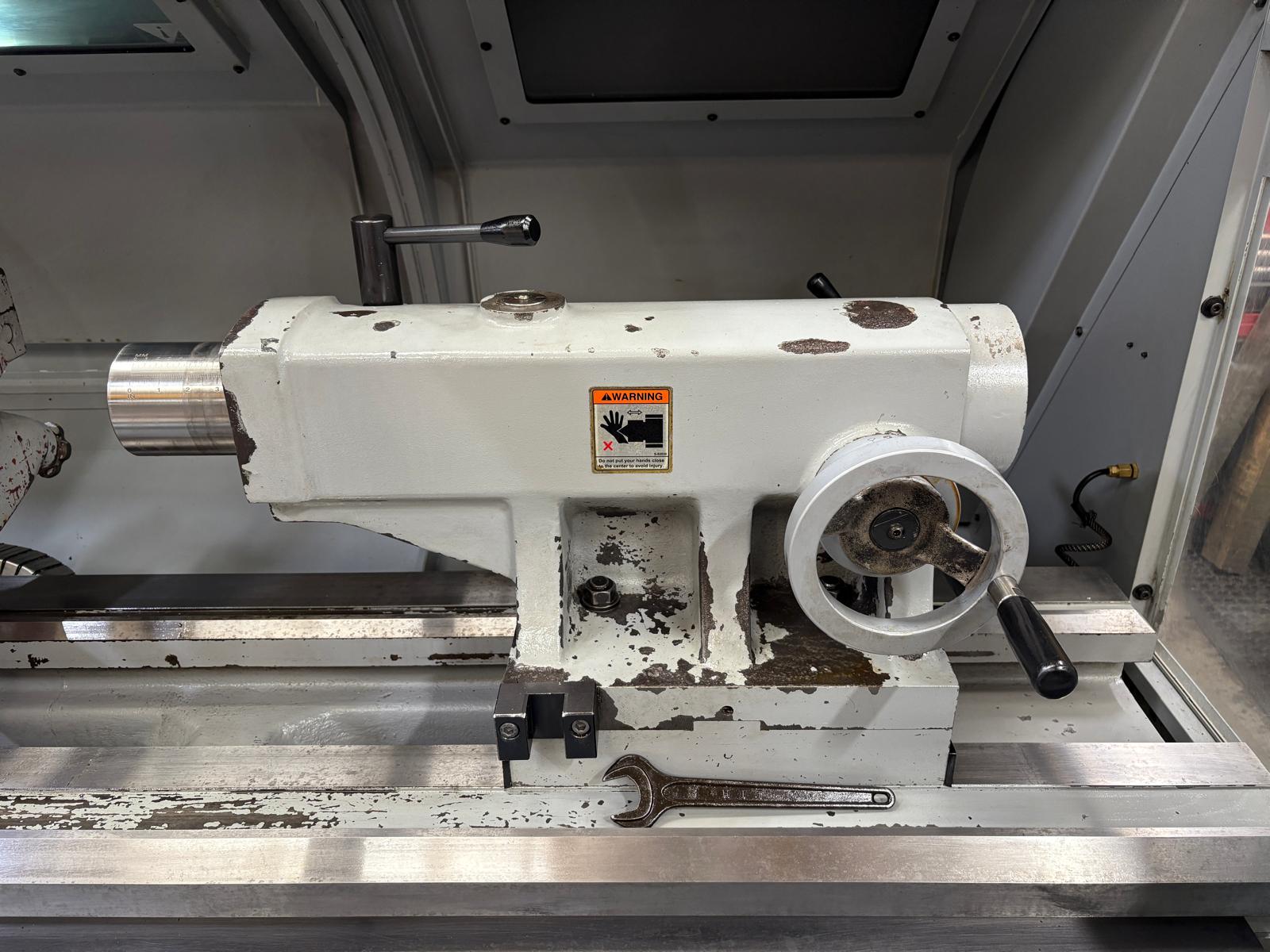

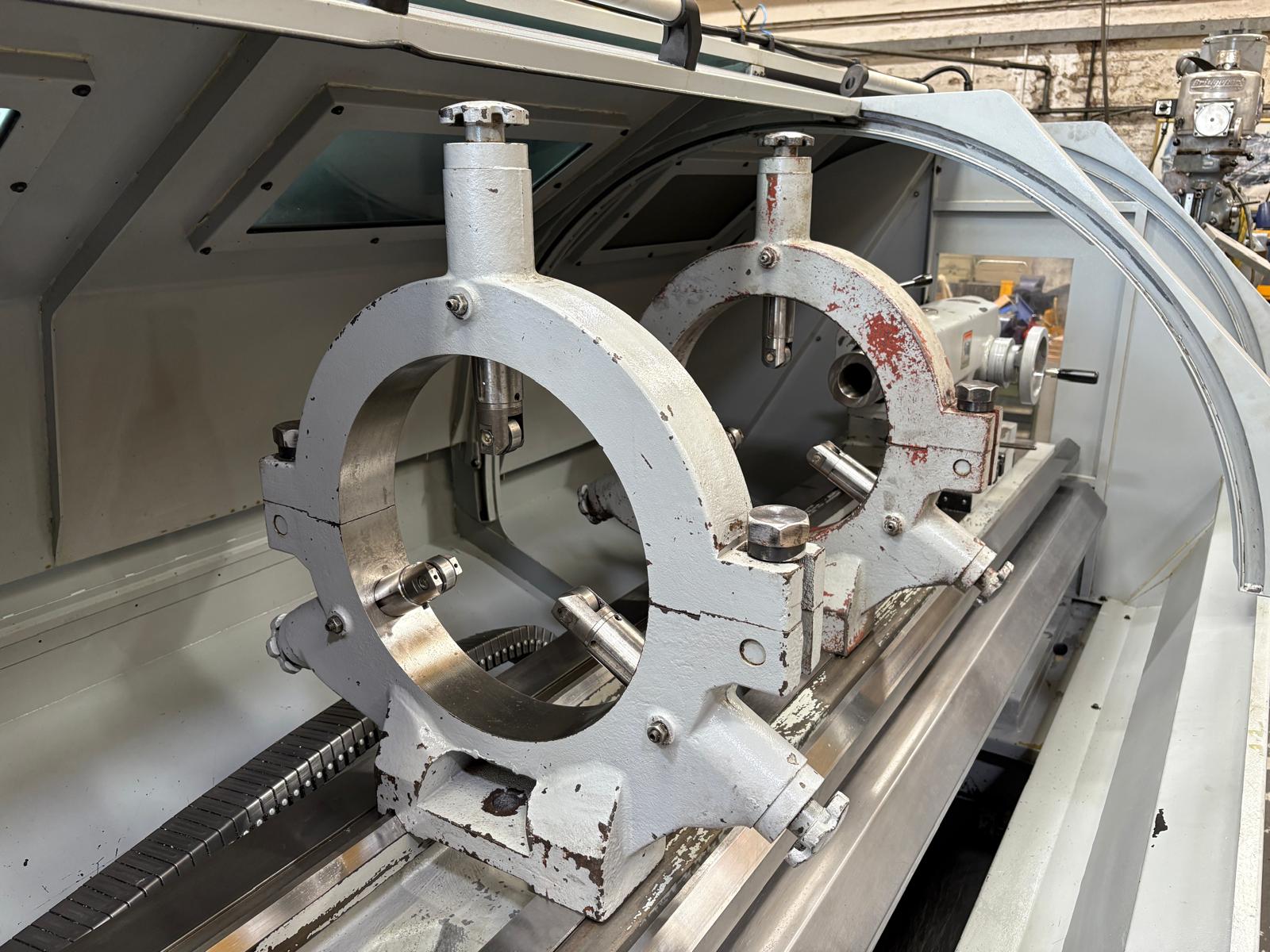

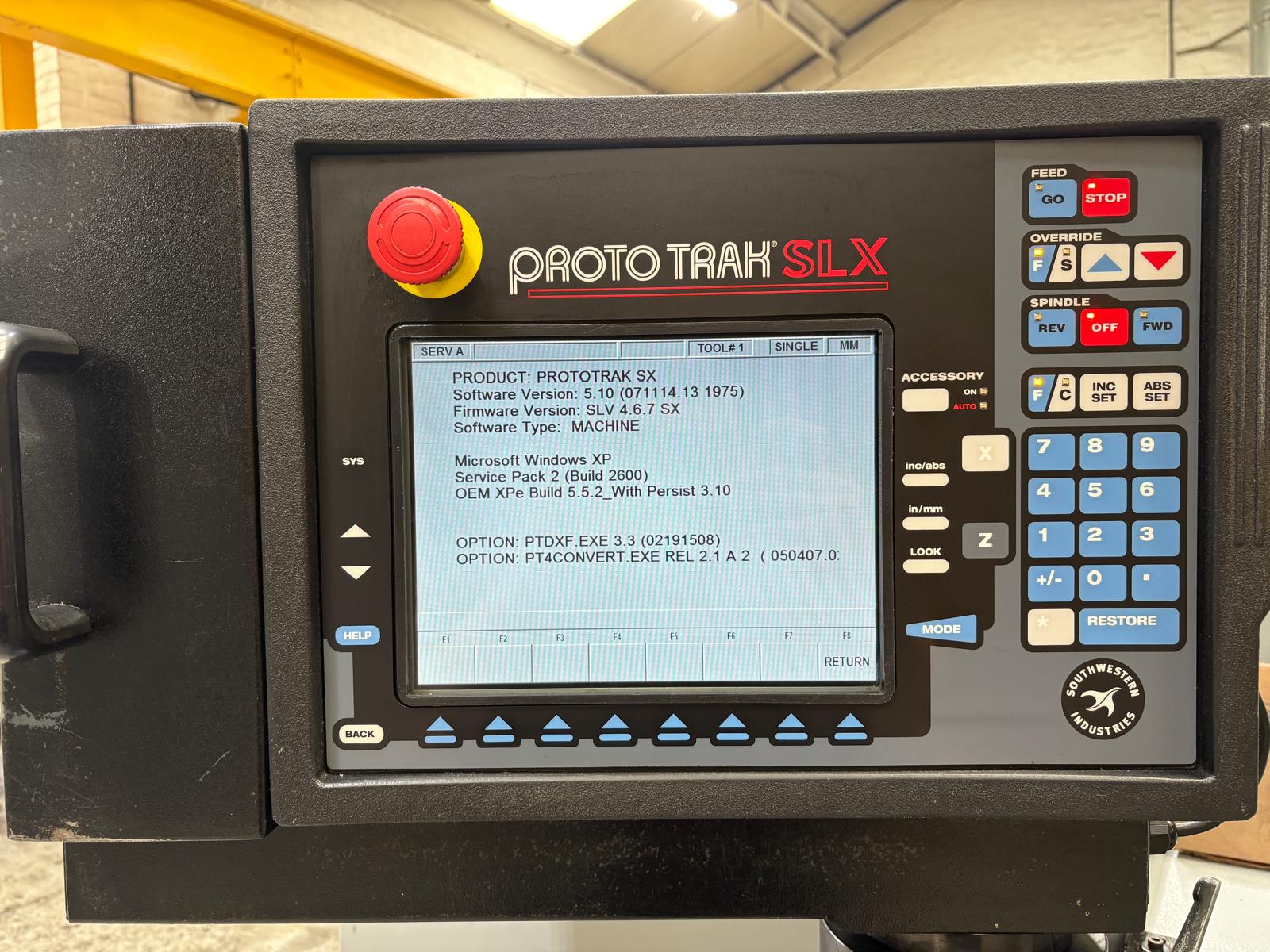

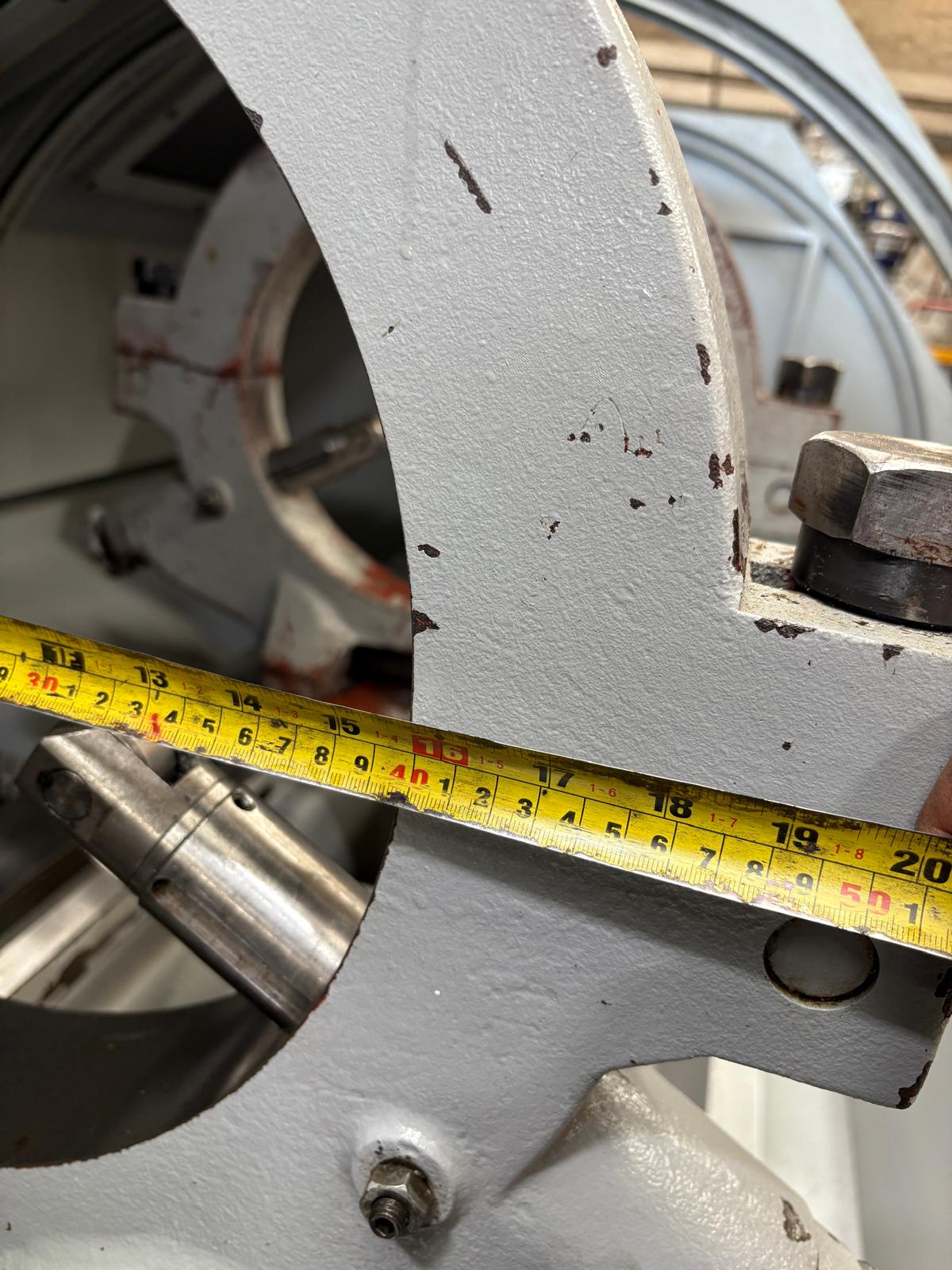

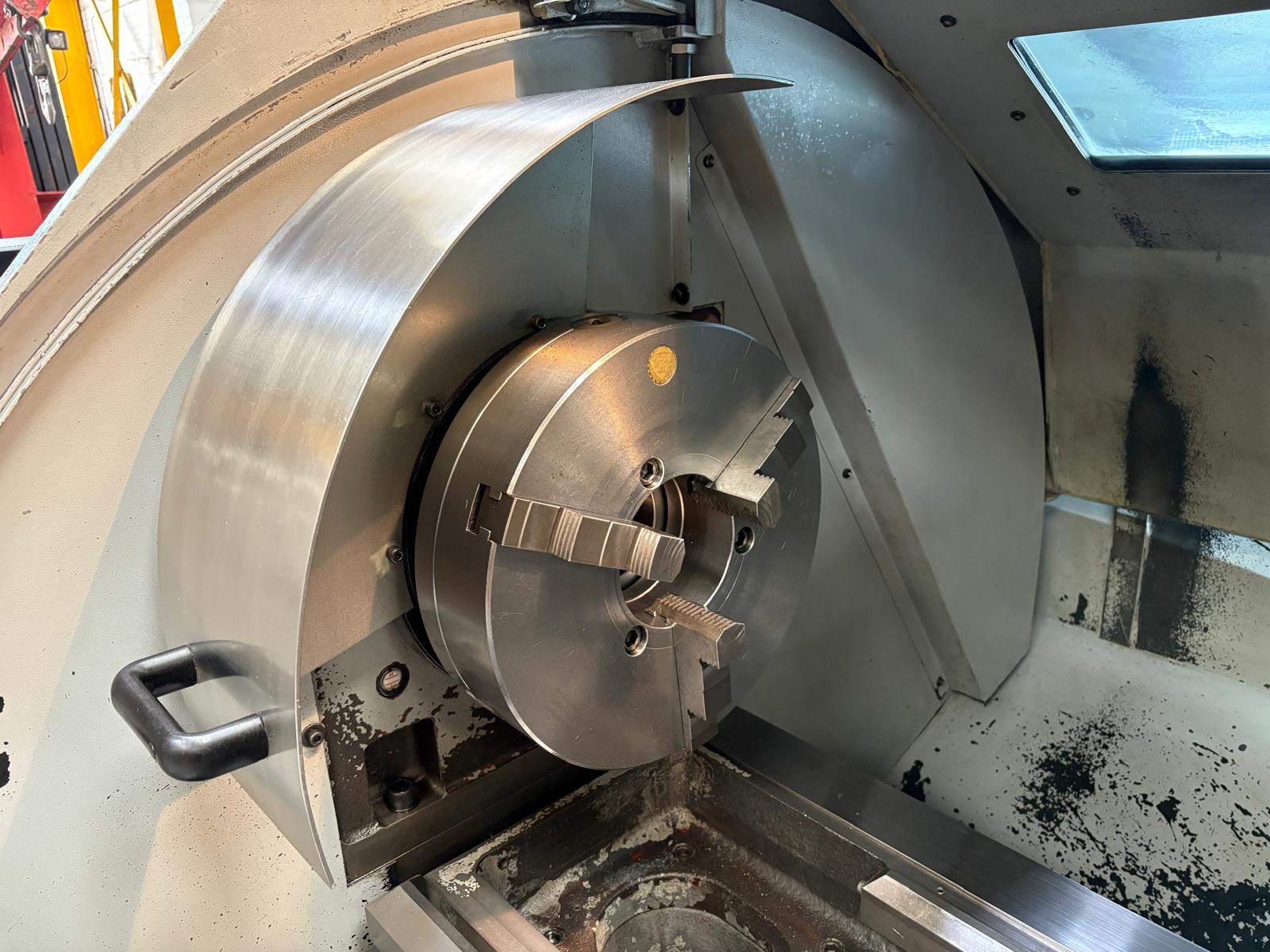

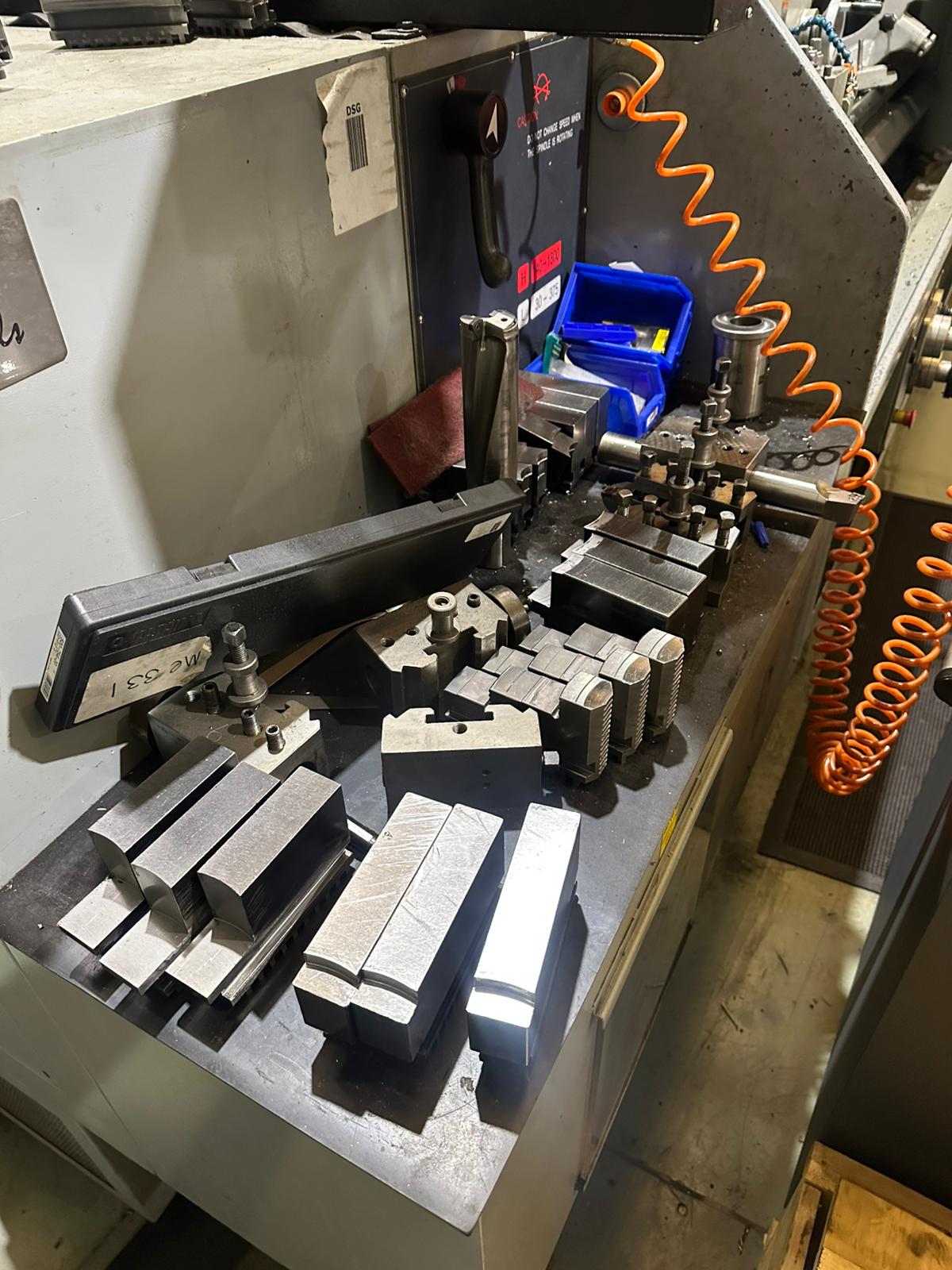

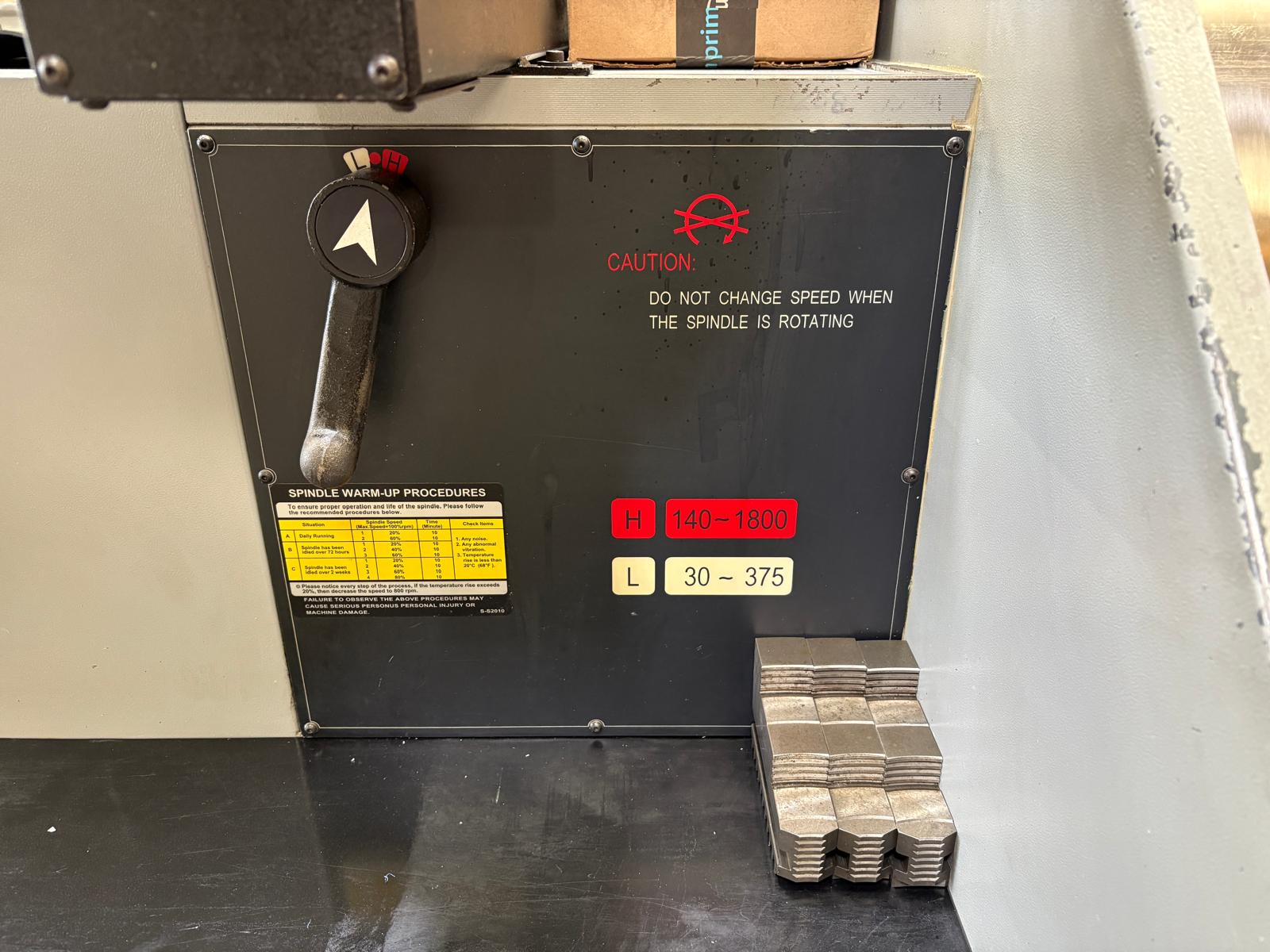

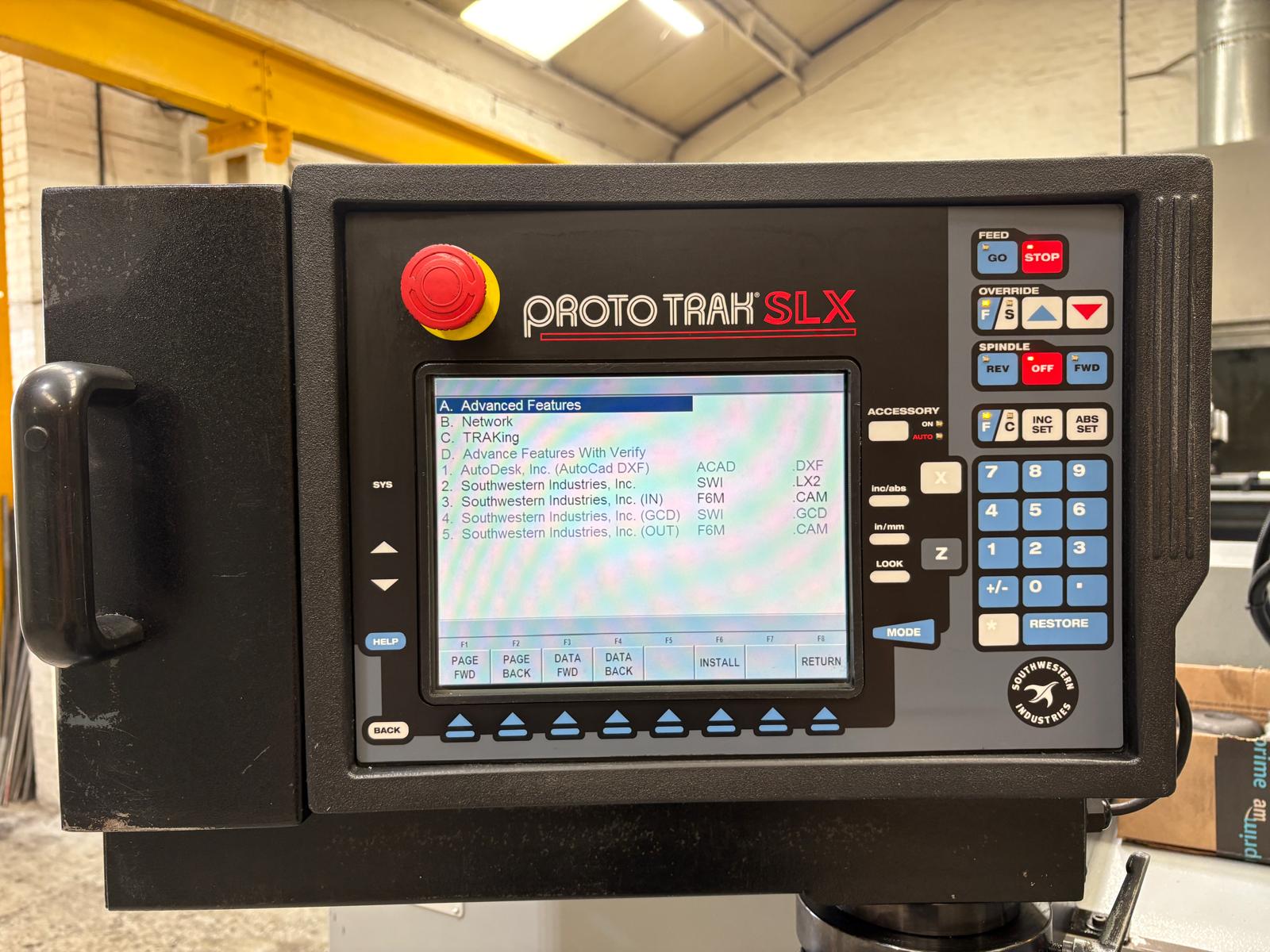

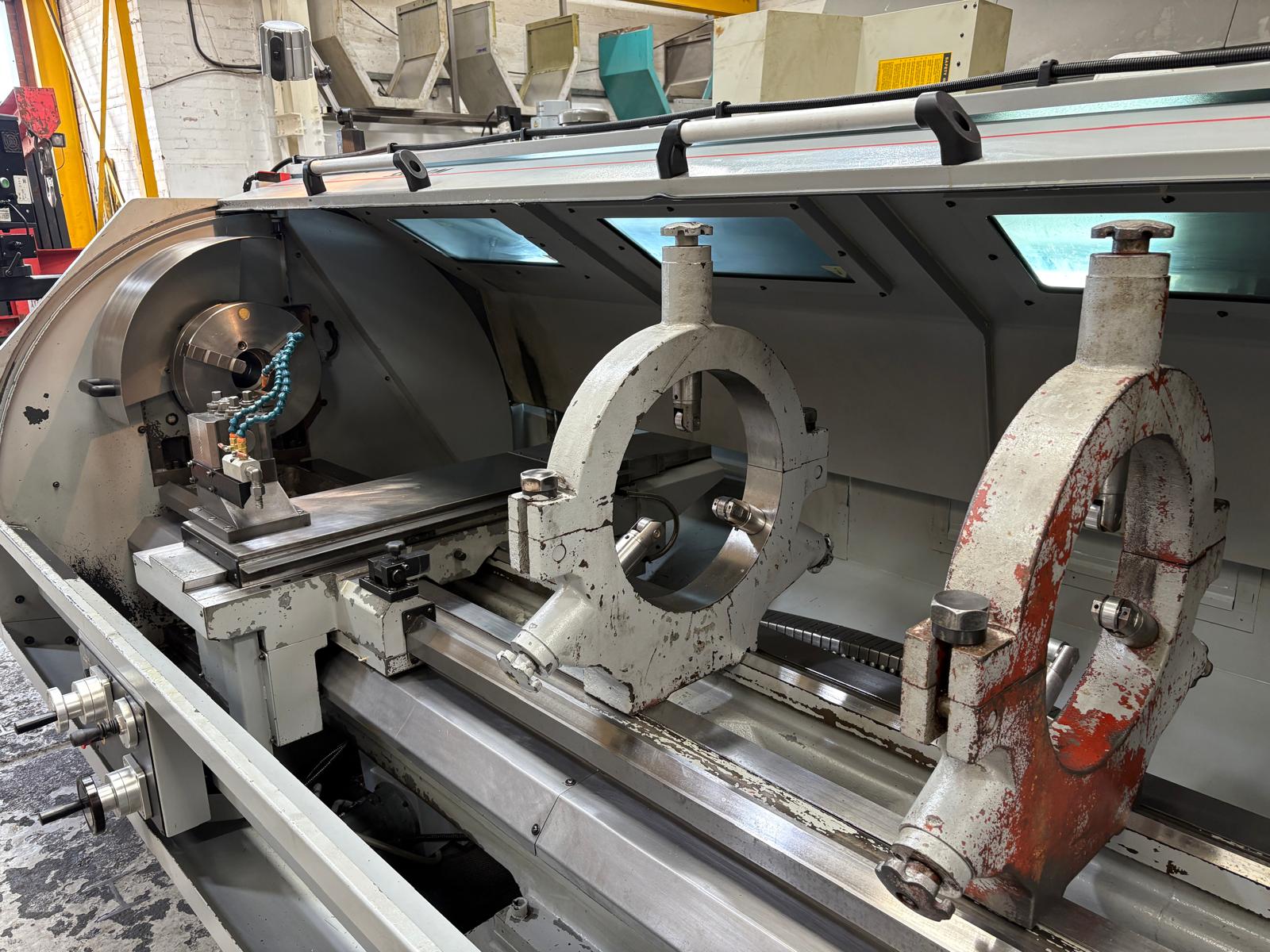

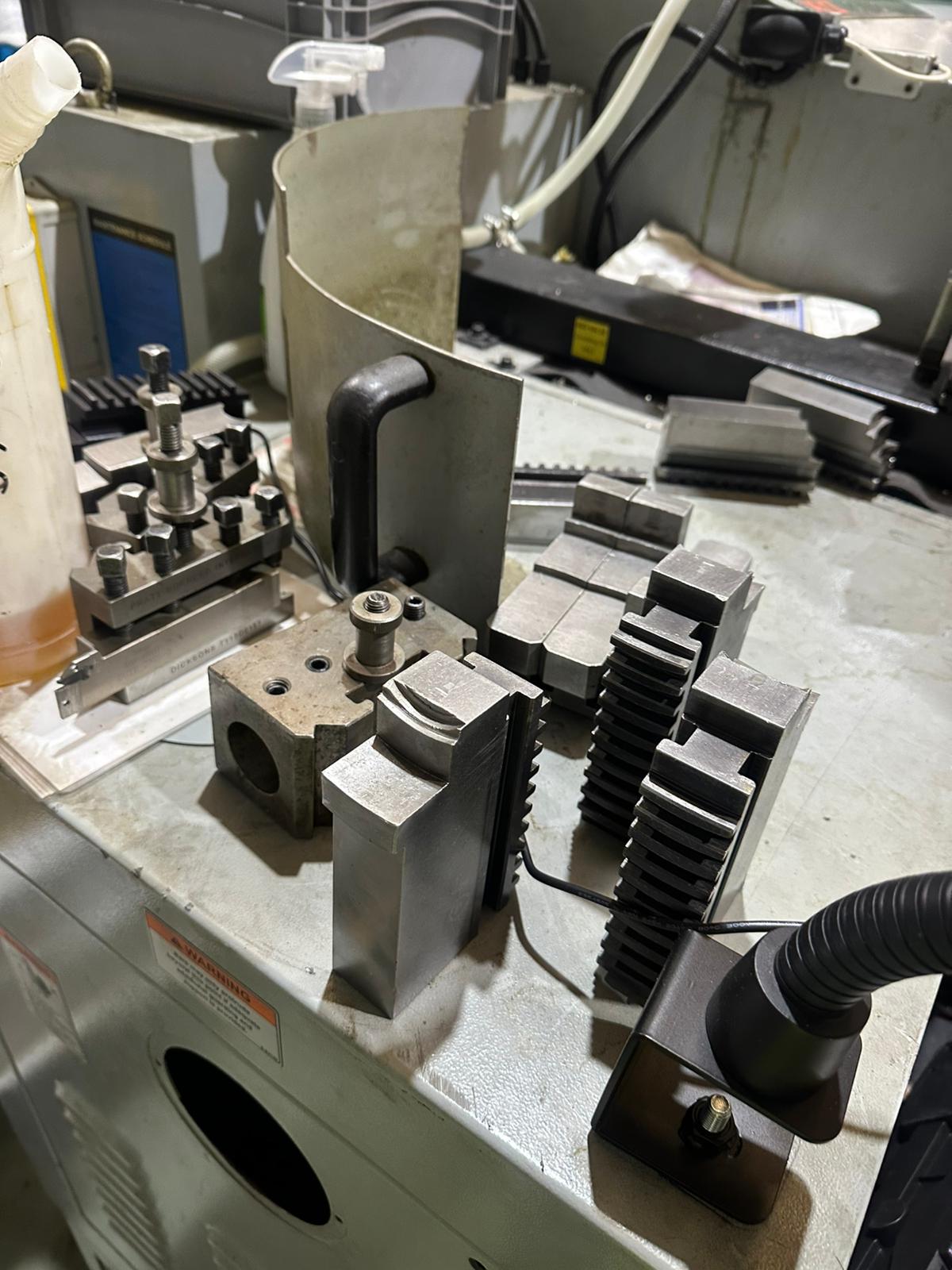

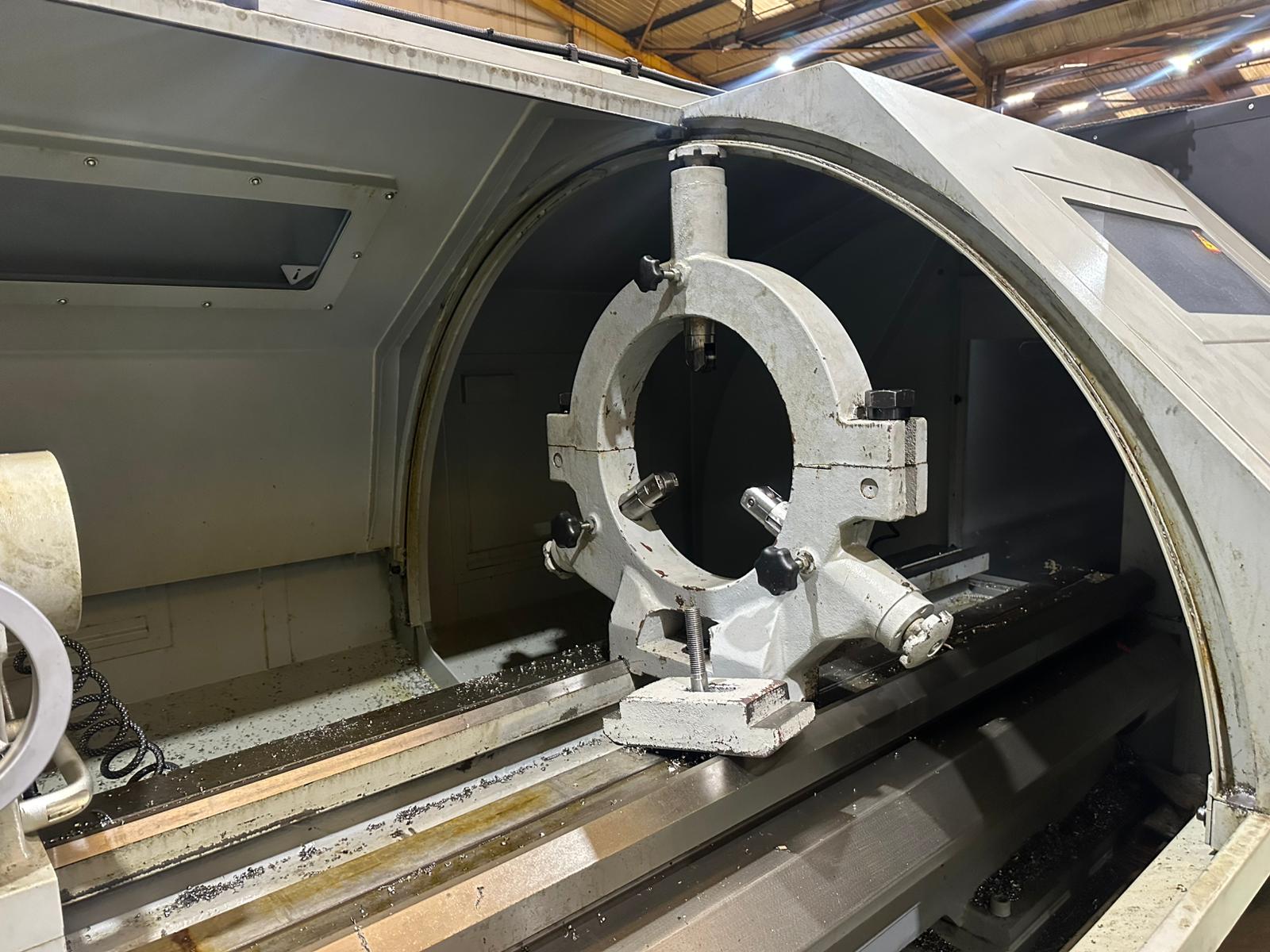

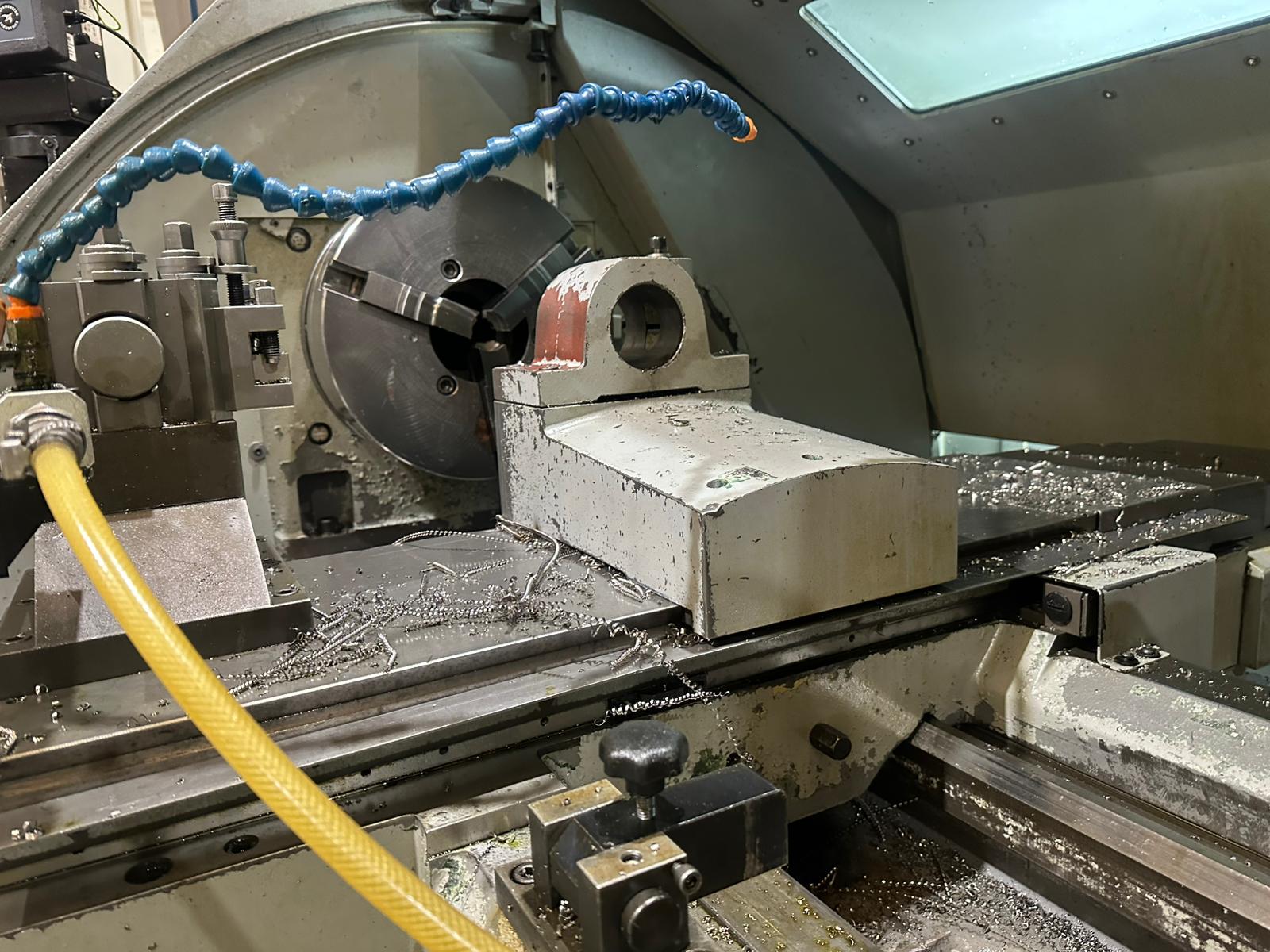

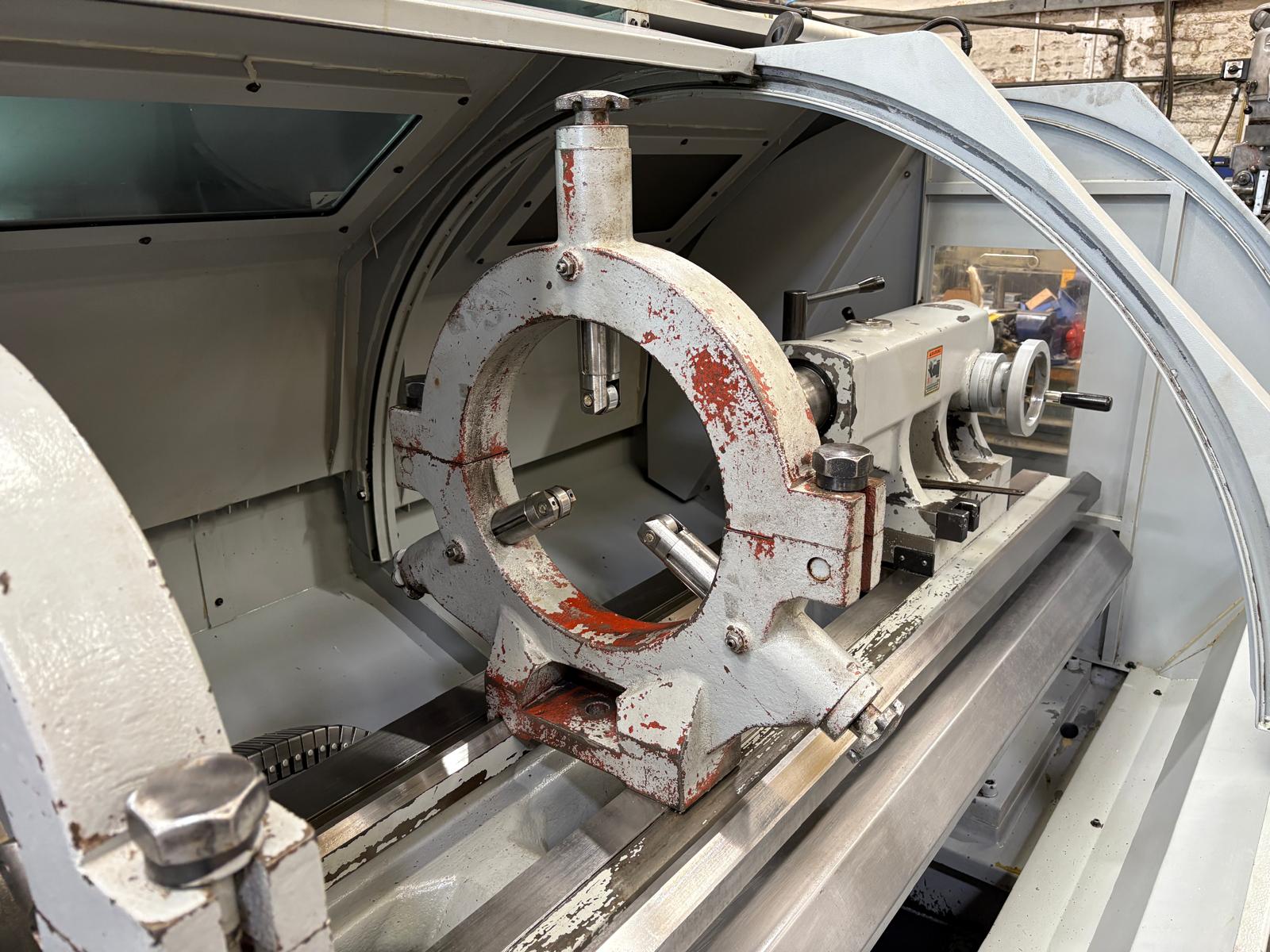

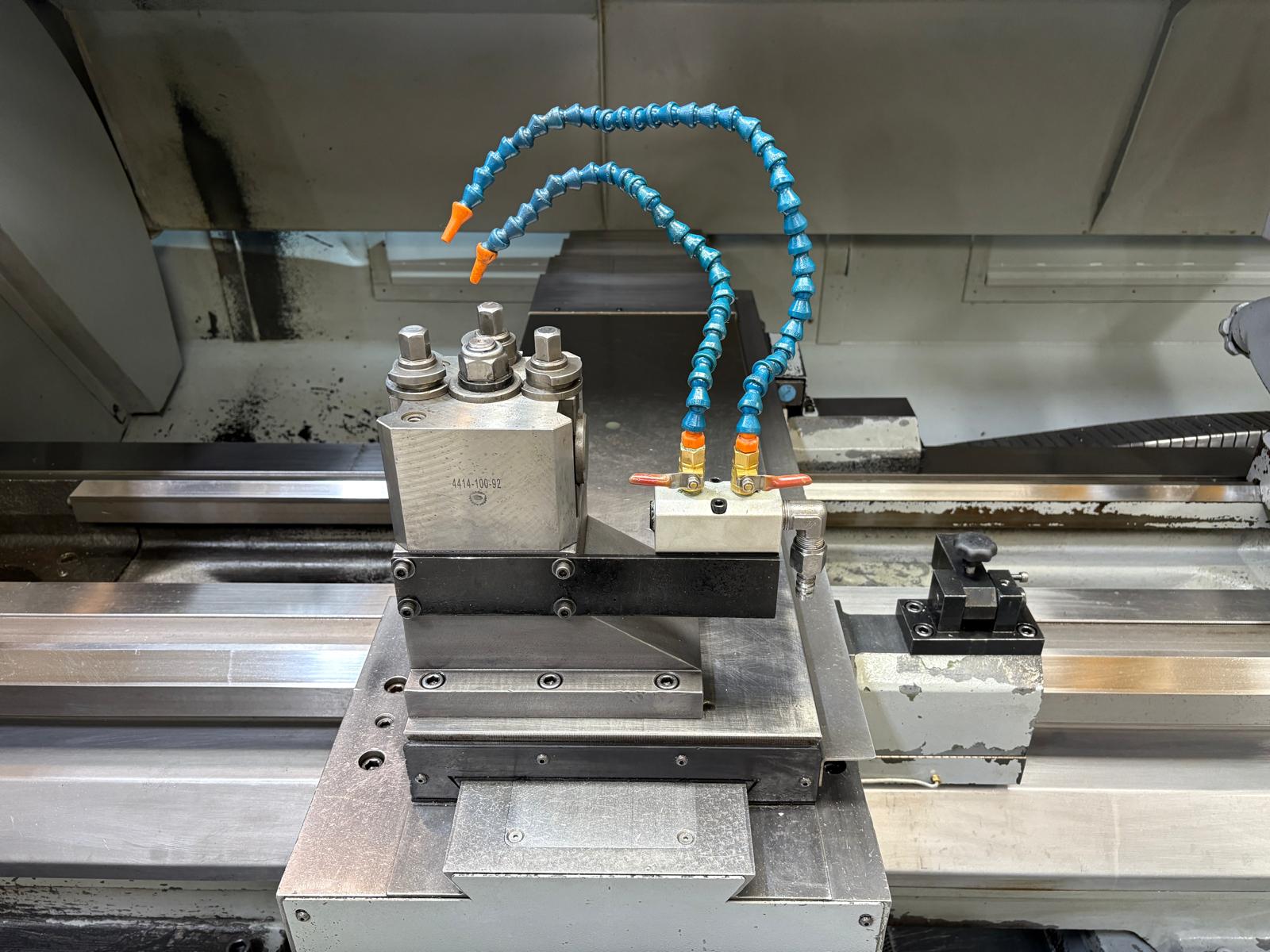

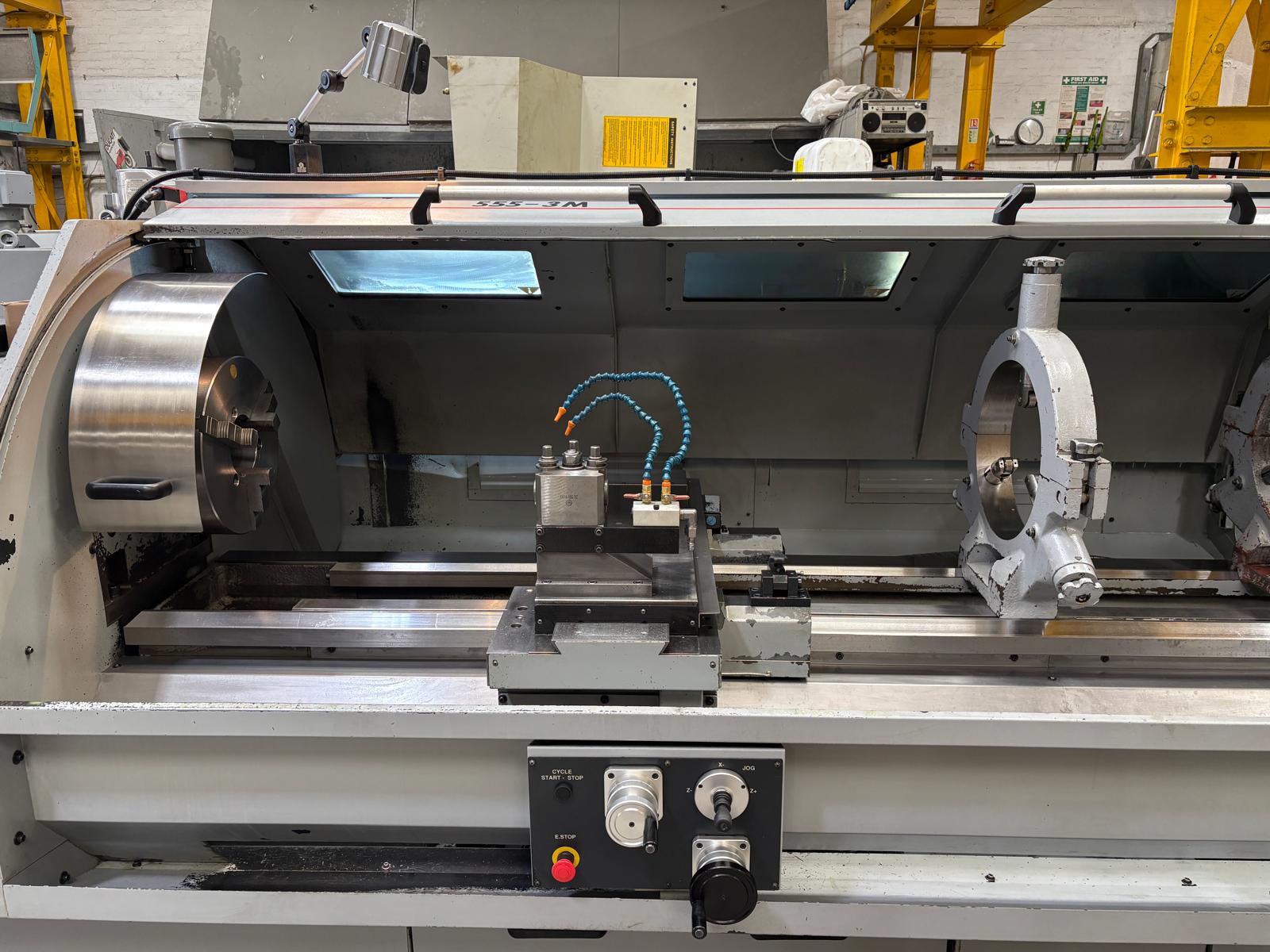

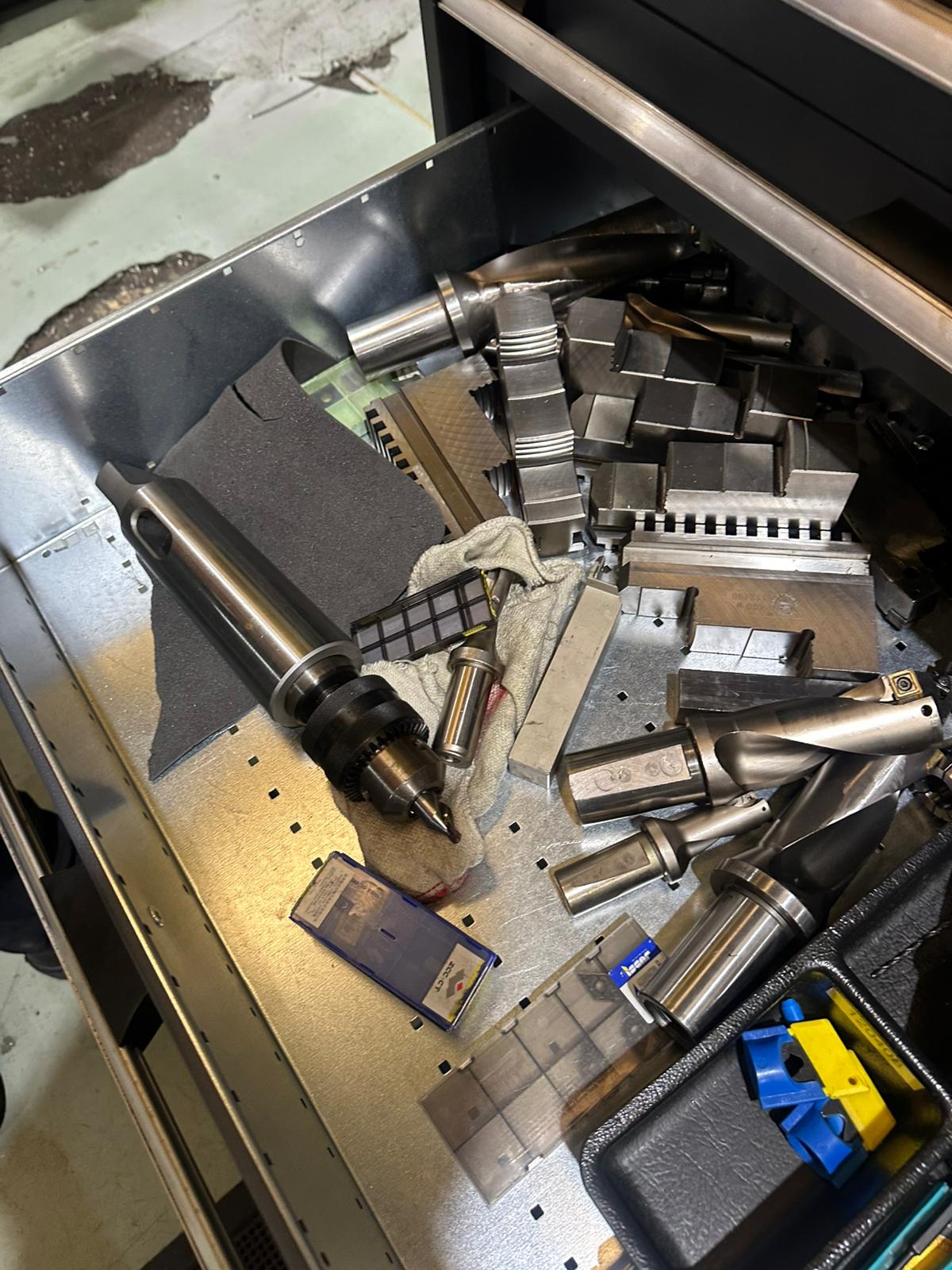

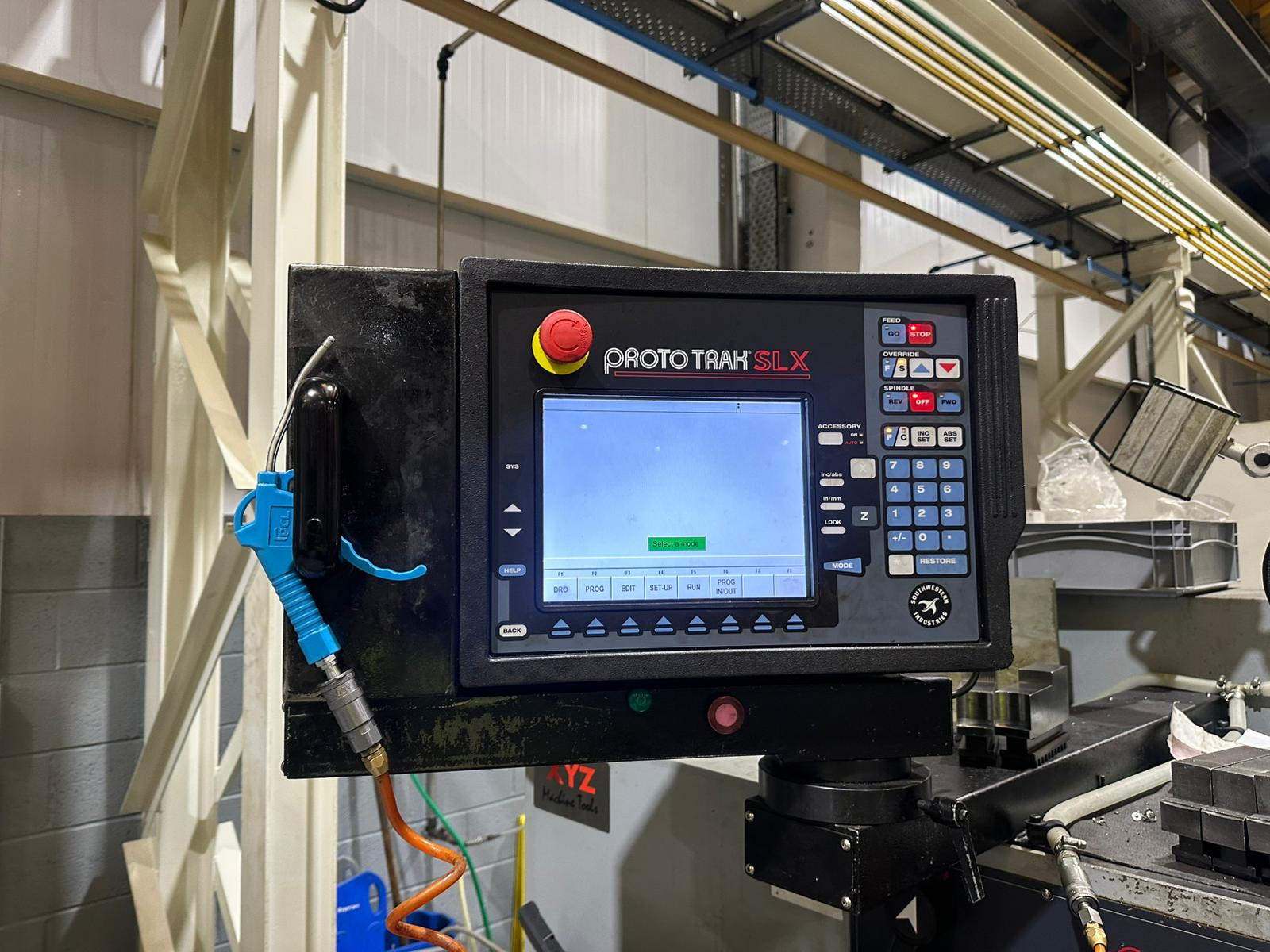

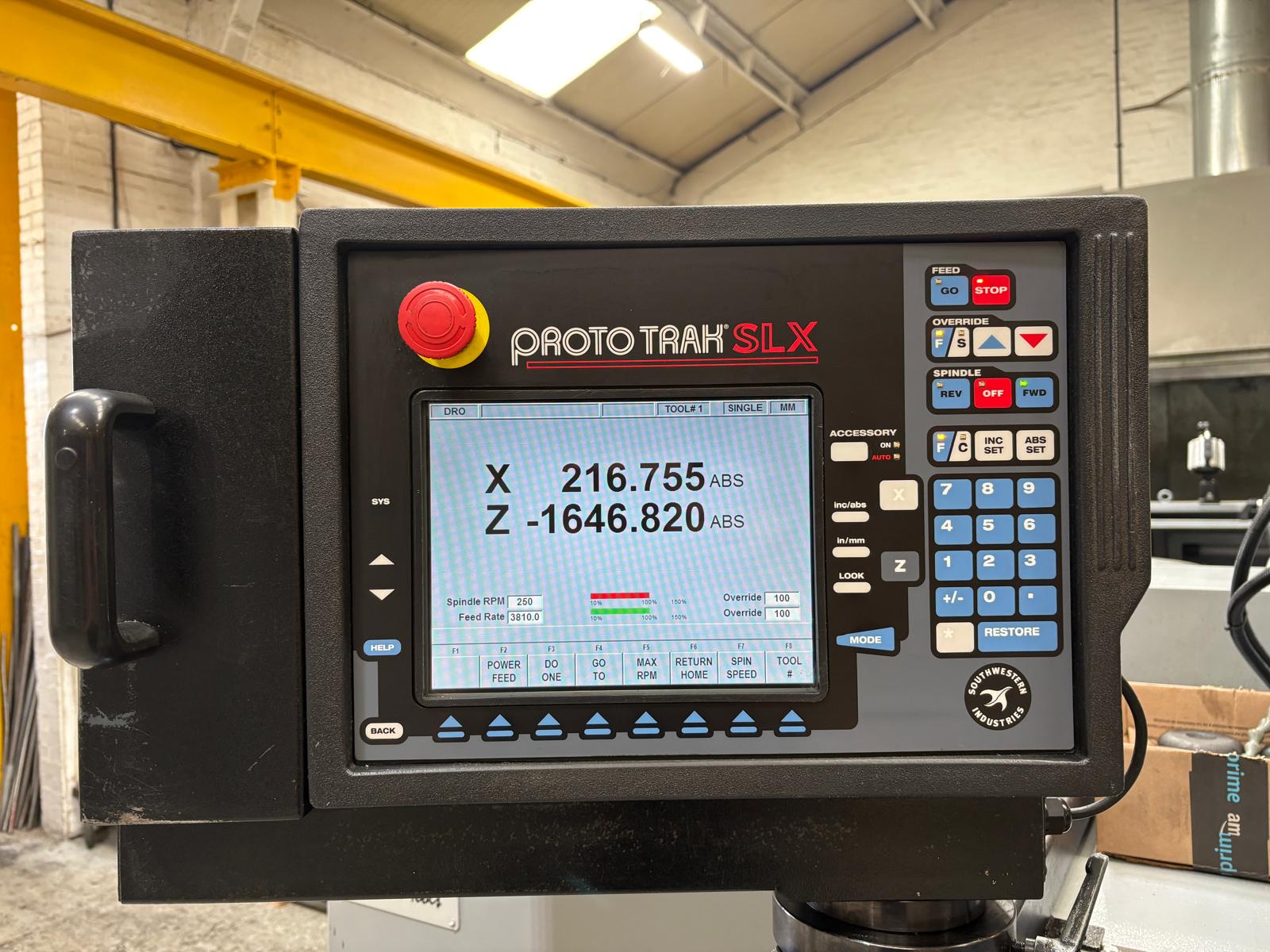

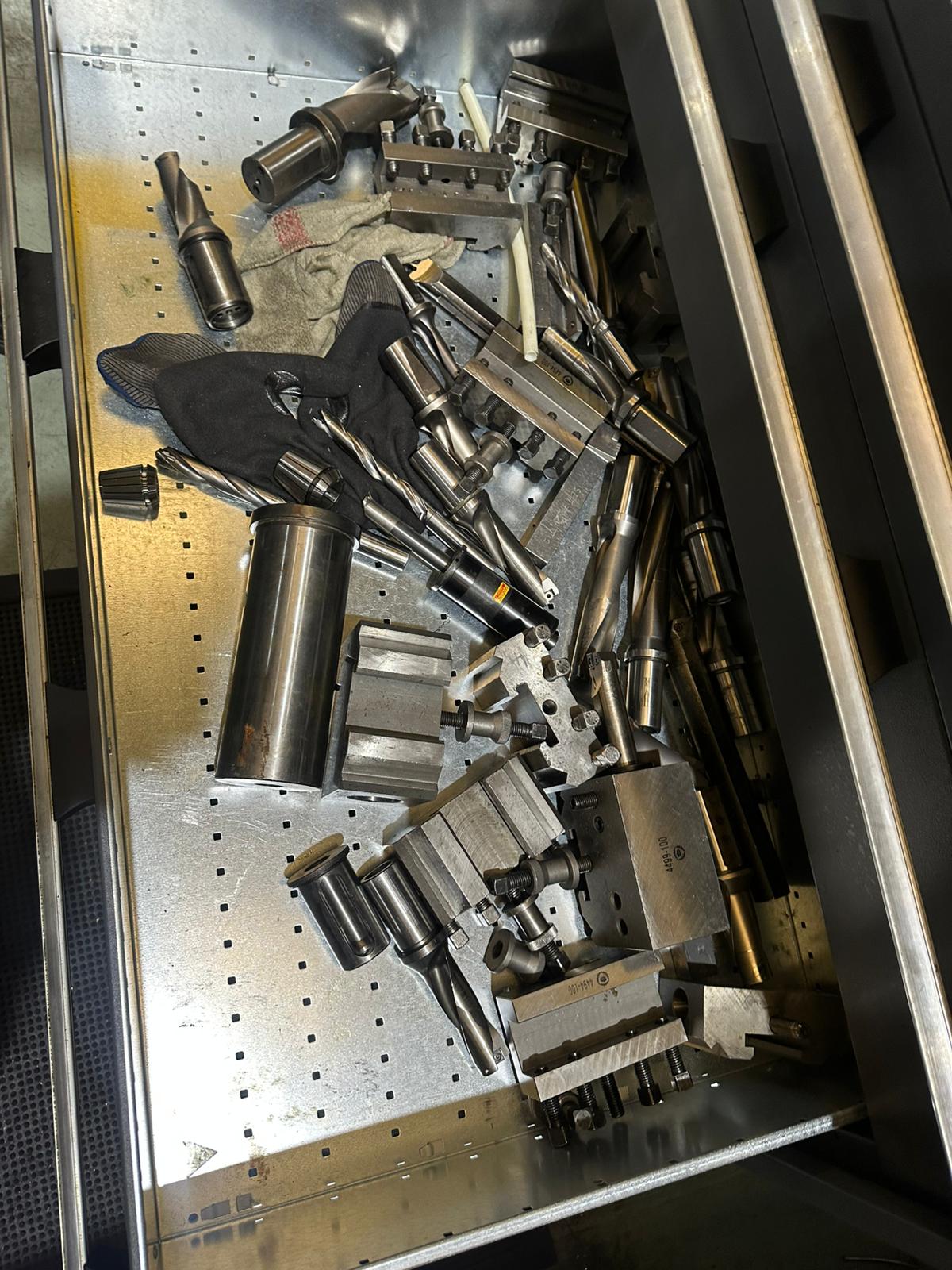

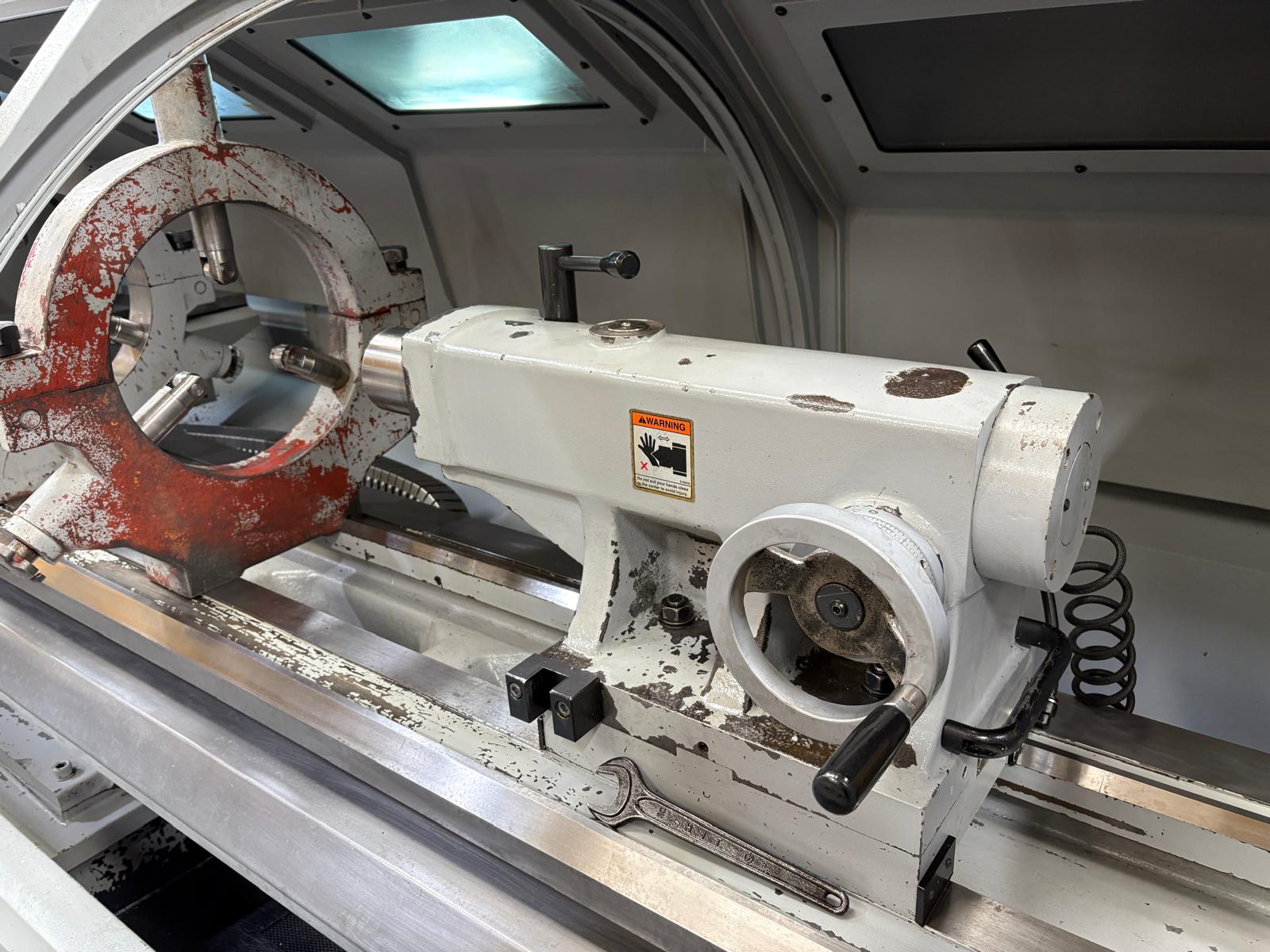

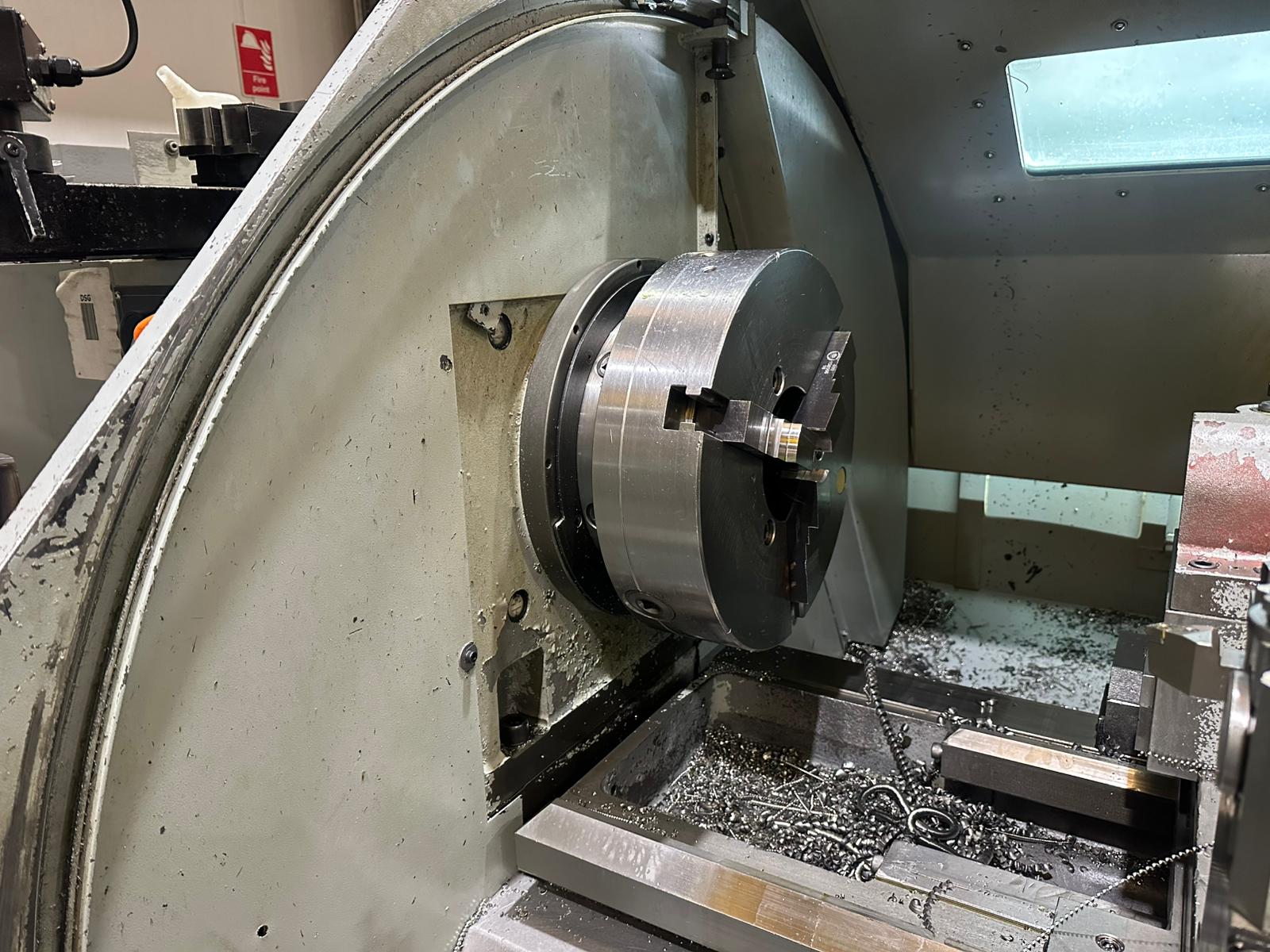

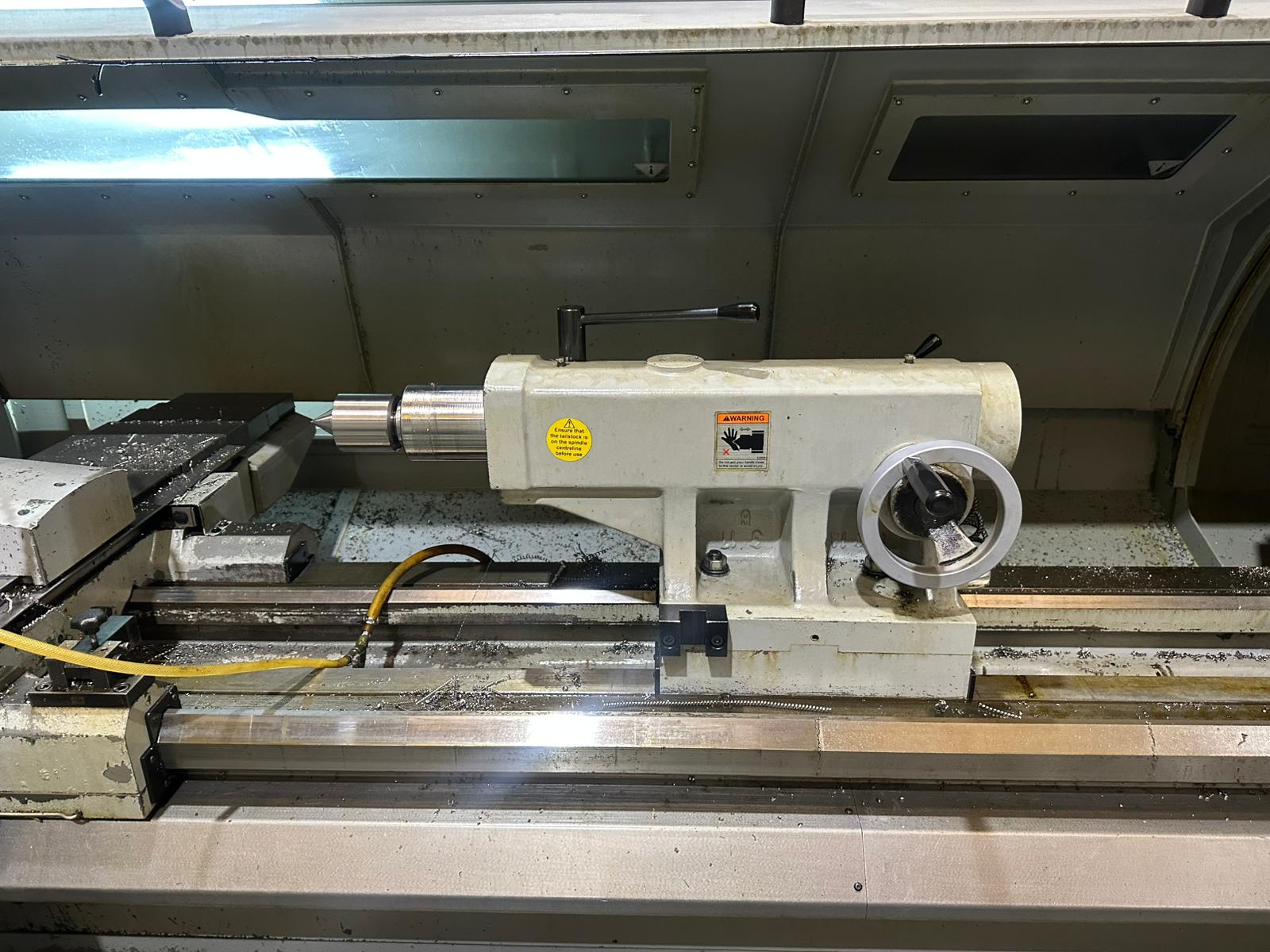

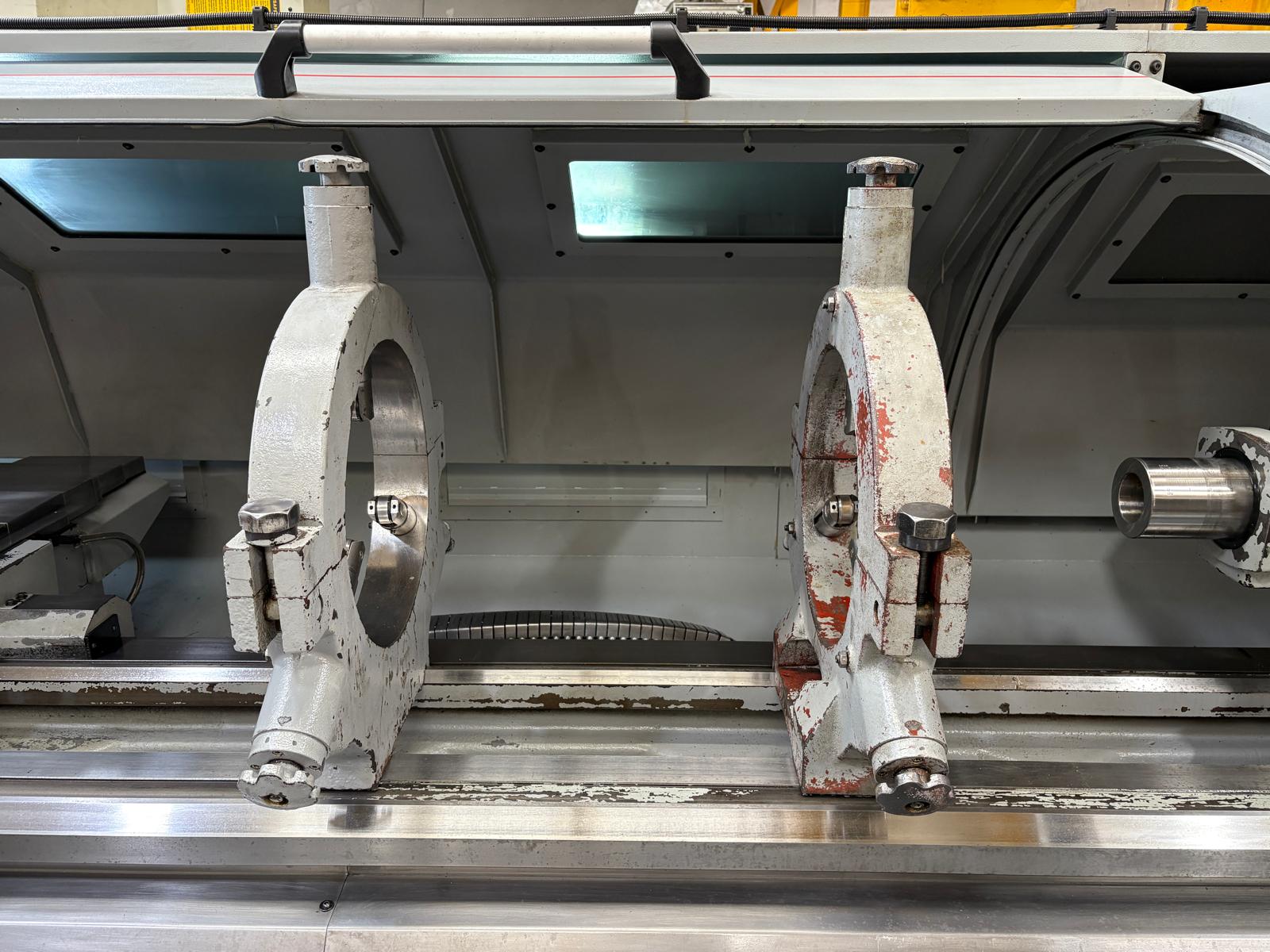

XYZ Proturn SLX555 ProtoTRAK Control Gap Bed Centre LatheProtoTRAK SLX Control (2012)Max. Distance Between Centres 3000mmMax. Swing over Bed 560mmMax. Swing over Gap 935mmMax. Swing over Cross slidesMax. Cross slide Travel 290mmSpindle Nose D1-11Spindle Bore 104mmSpindle Speeds 30 – 1800rpmSpindle Motor 15HpQuick Change Tool PostTailstock MT7Tailstock Dia’ 75mmTailstock Travel 160mManufactured | 2012Dimensions: L x D x H 5220 x 2150 x 1950 mmWeight 7400 kg Supplied with:3 Jaw ChuckMachine HandbooksTRAKing®.Constant Surface Speed.Rapid Traverse with Joy Stick.QCTP & Holders2 x Fixed Stead Rests. 15”.Interlocking GuardsAuto Lubrication.Coolant.Worklight We can offer delivery & installation, operater training and warranties. *For sale with Jet Machinery Ltd*Jet Machinery Stock No: #78999 Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
