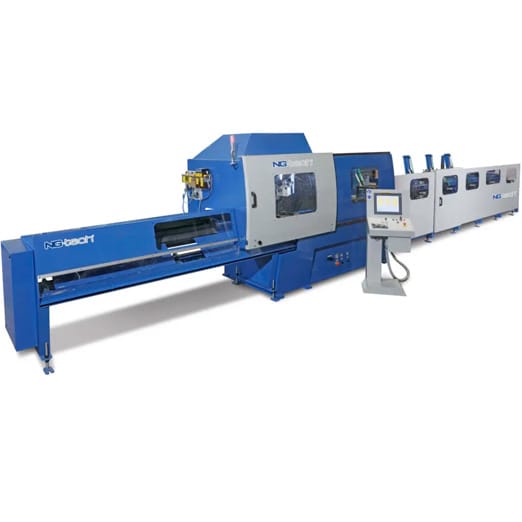

High volume production saw | Auto mitre cut of tubes & bar | Straight & angle cut of tubes from ø10mm - ø100mm | CN feeding gripper powered by servo motor w/ 2000mm stroke | Ability to index for longer pieces | Automatic positioning of feeding gripper length | Quick release vice jaws for rapid tooling changes | Double clamping vices on both sides of blade | Centralized lubrication system for moving parts | Hydraulic clamping vice and gripper | Head transmission on prismatic guides | Gearbox options to suite material range | Blade diameter: min Ø200mm - max Ø370mm | Electronic equipment PLC Siemens | Terminal Etop05 touch-screen or software | Optional loading system: slope loader (type M) | Scroll down for specification, optional extras, videos & more ⬇️
Centre distance (mm): 3000Max swing over bed (mm): 1020Max swing over cross slide (mm): 600Max swing in gap (mm): 1420Spindle bore (mm): 84R.P.M.: 5-800 (48x)kW: 20/40Volts: 380VCycles: 50
MAUT
09200
CNC HEIDENHAIN TNC 530
AXIS STROKES:
Longitudinal stroke X axis 7000 mm
Vertical travel Z axis 1500 mm
Cross travel Y axis 3600 mm
WORK PLAN:
Dimensions mm 9000x2500x300
T-slots n.10, mm 22 H7
Distance between T-slots 250 mm
FEEDRATES:
Wor...
MORANDO
10124
Center height mm 1.300
Swing over bed mm 2.615
Swing over carriage mm 2.240
Faceplate diameter mm 1.700
Spindle bore diameter mm 100
Bed width mm 1.500
Carriage base length mm 1.200
Swiveling slide travel for taper turning mm 400
Admitt...
XYZ SLX 425 x 1250Name of Machine: XYZ SLX 425 x 1250YOM: 2012Stock Number: clu/0248A very nice 2012 built XYZ Proturn SLX 425 x 1250 with SLX control, quick change tool post, 3 chucks, Traking facilityA very nice 2012 built XYZ Proturn SLX 425 x 125...
