MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Dugard
  • Model:

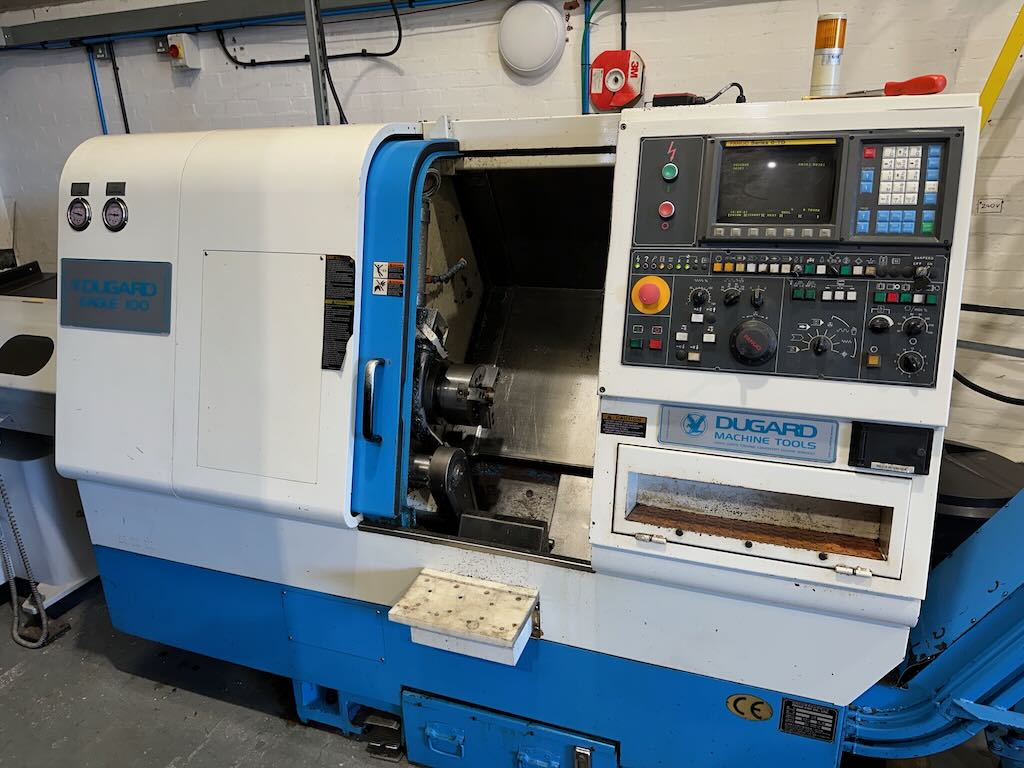

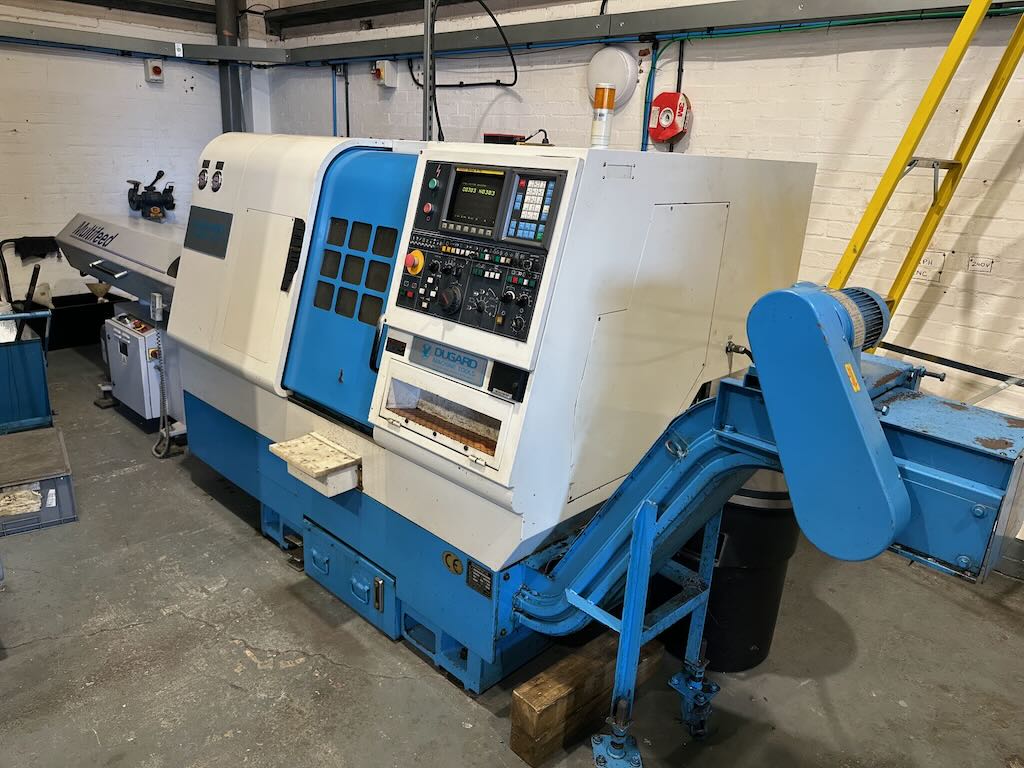

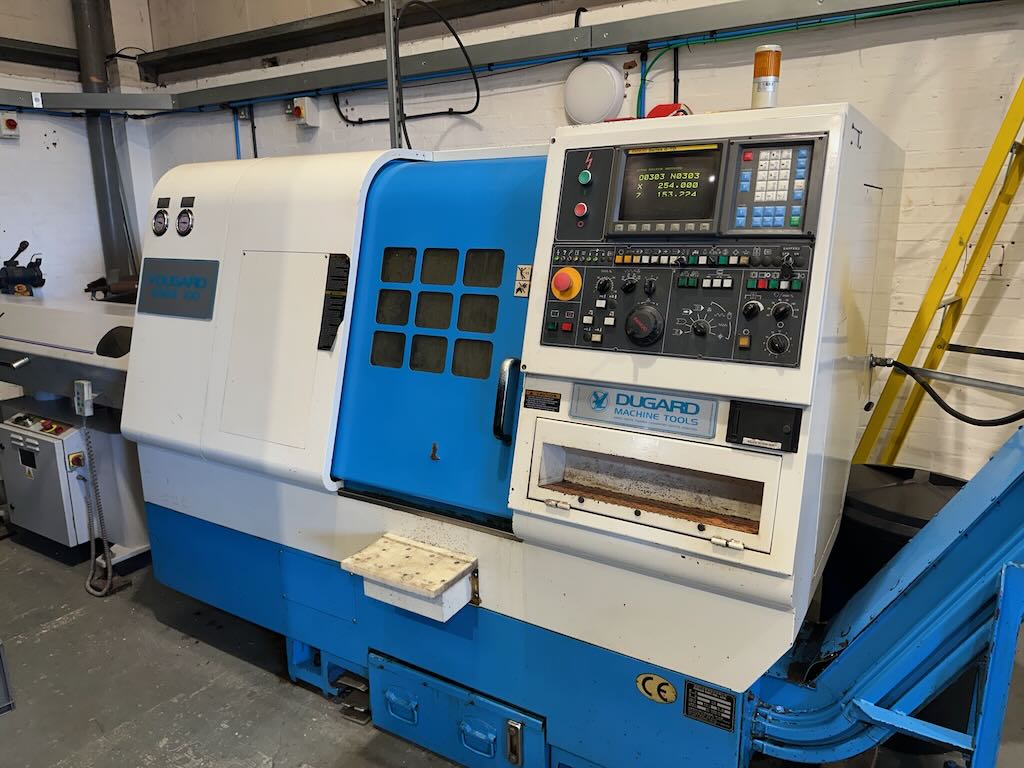

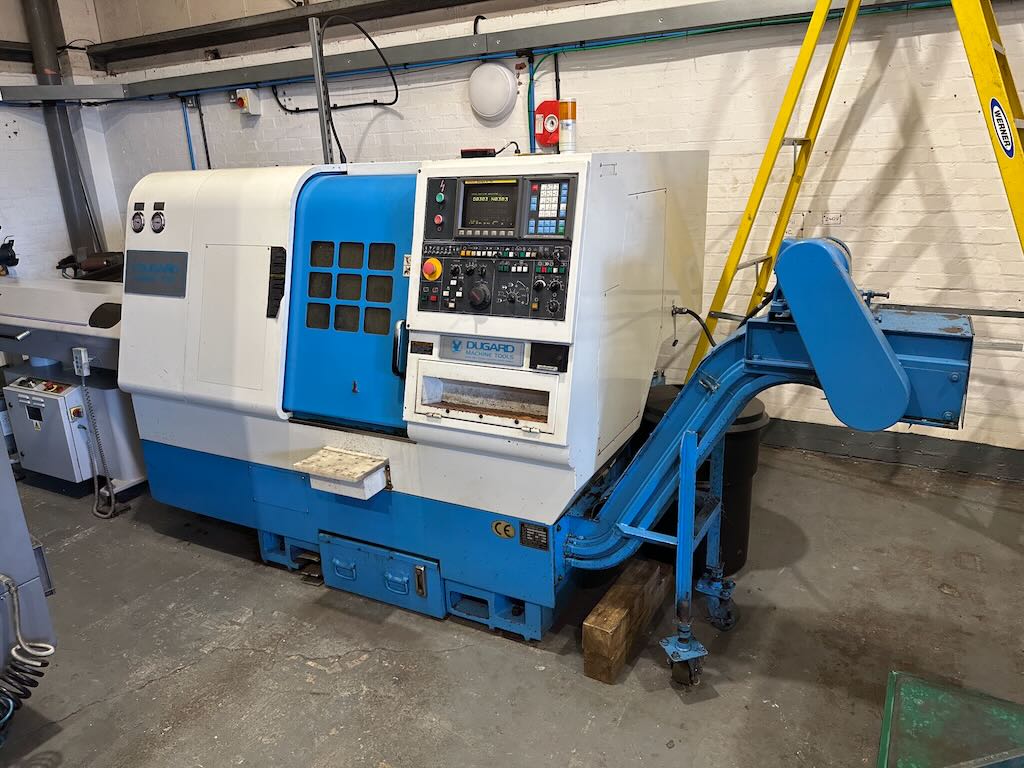

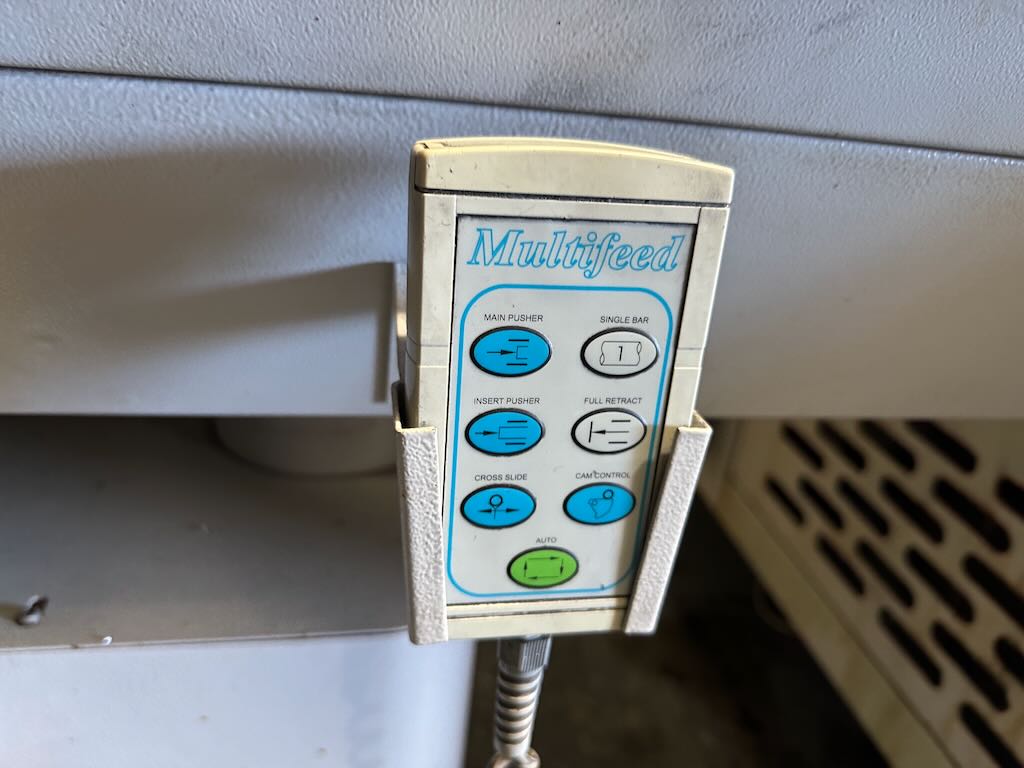

  • Dugard Eagle 100 Turning Centre with Barfeed
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

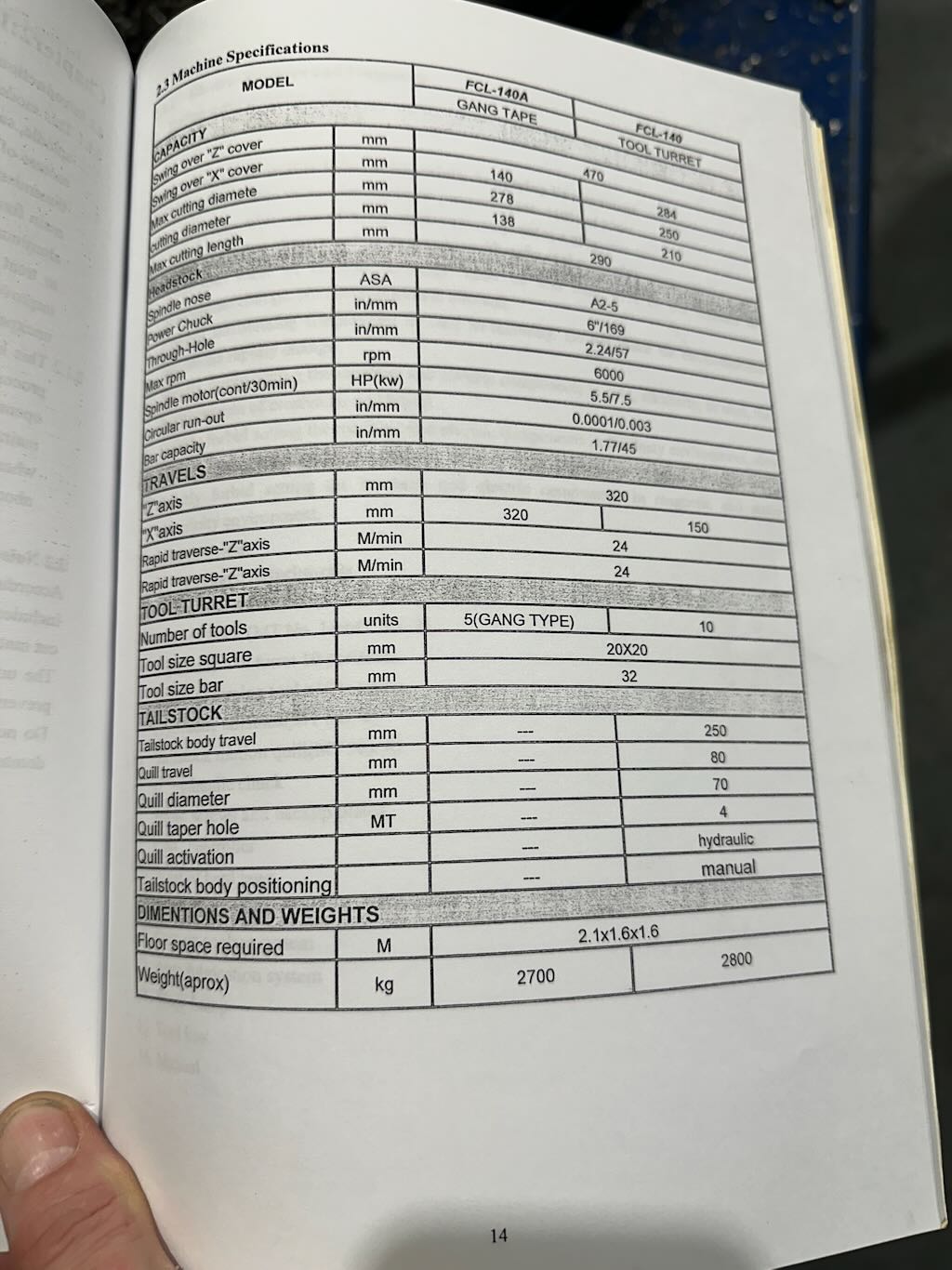

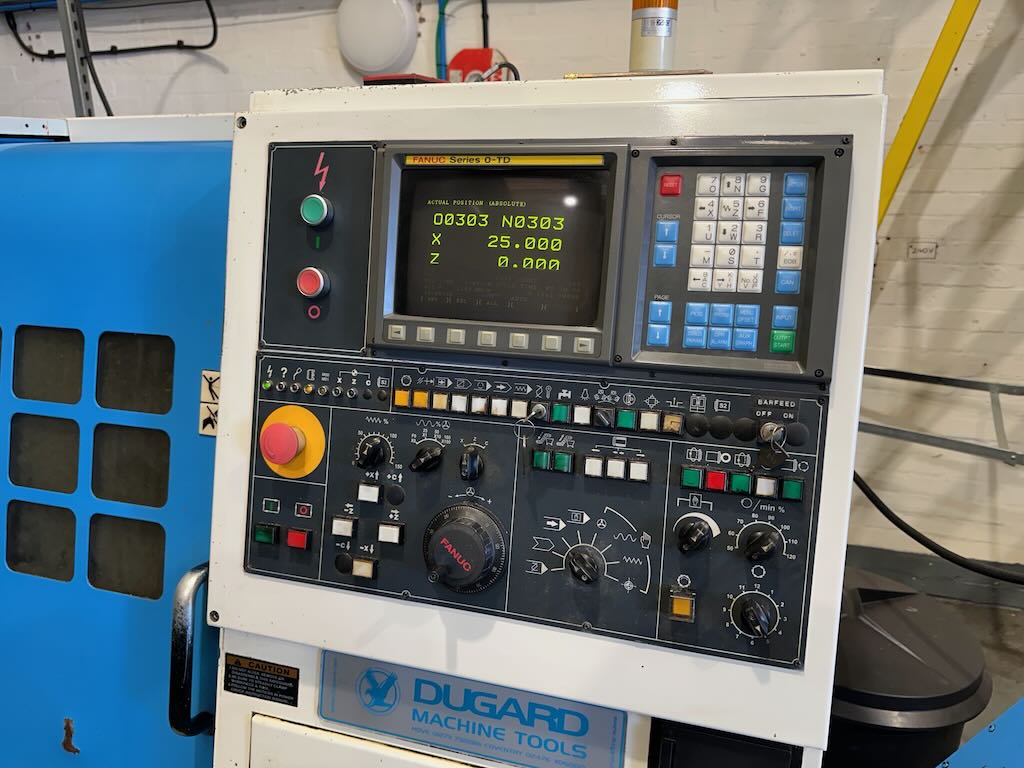

Control: Fanuc O-TD.
Swing Over "Z" Cover: 470mm.
Swing Over "X" Cover: 284mm.
Max Cutting Diameter: 250mm.
Cutting Diameter: 210mm.
Max Cutting Length: 290mm.
Spindle Nose: A2-5.

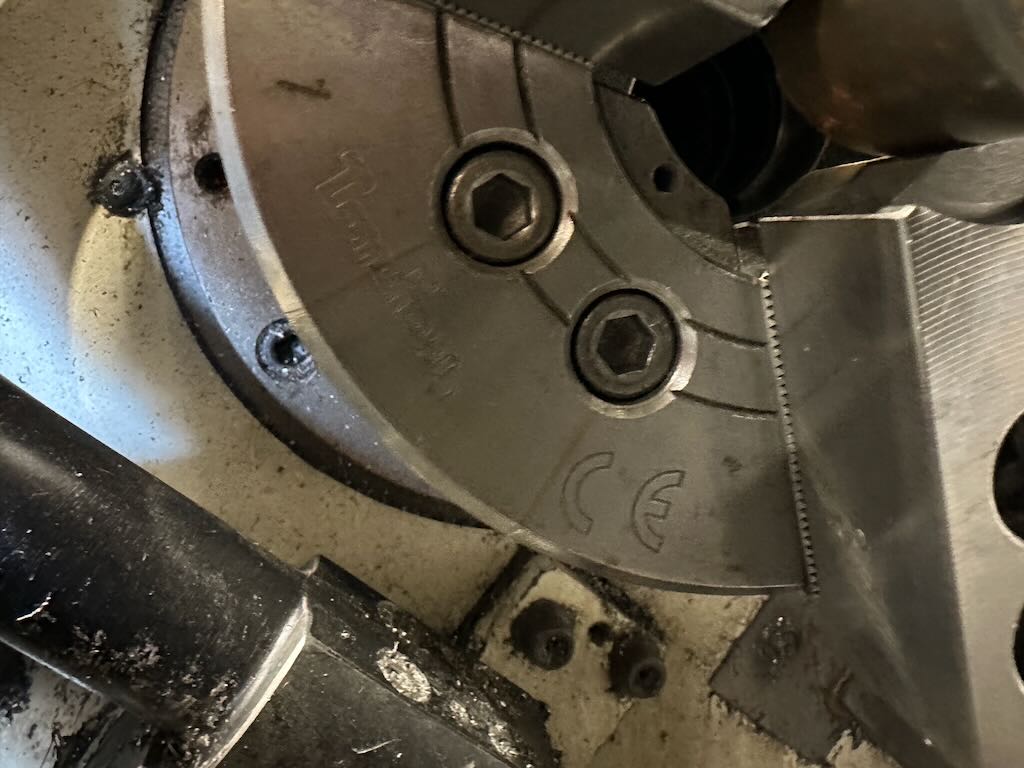

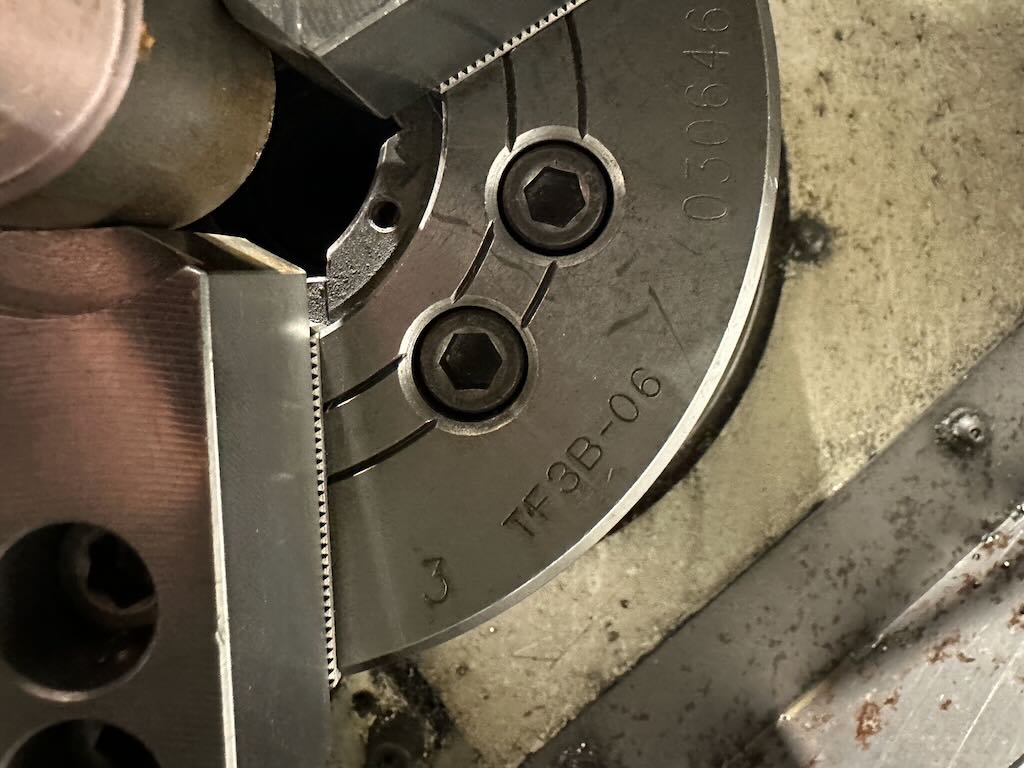

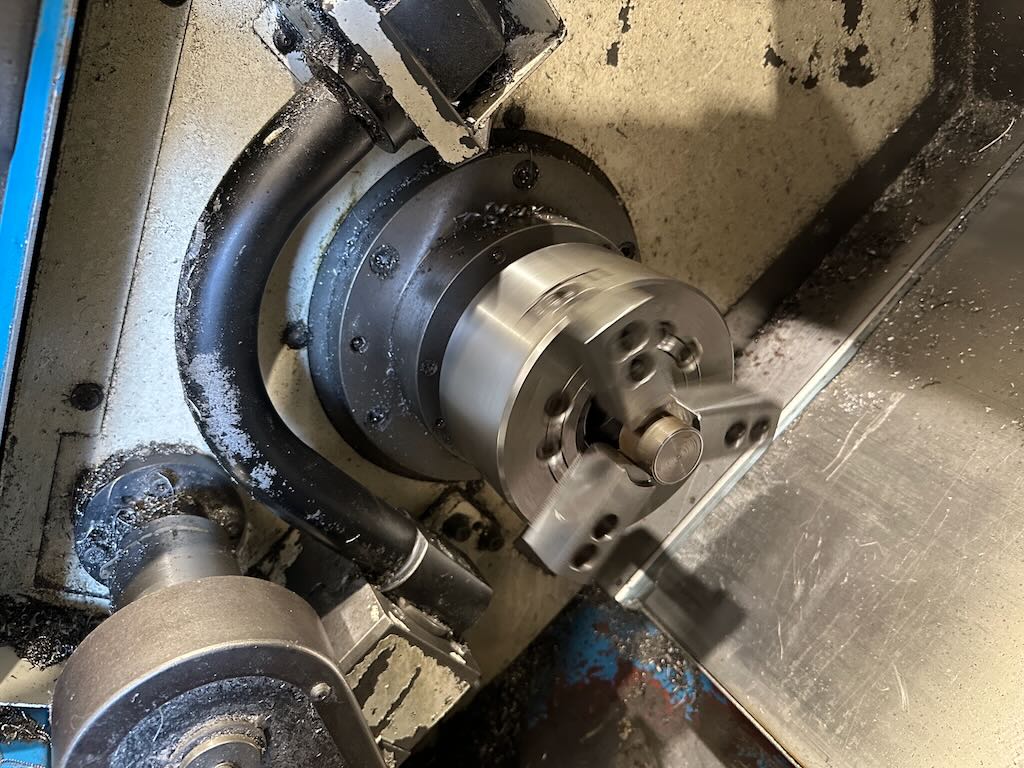

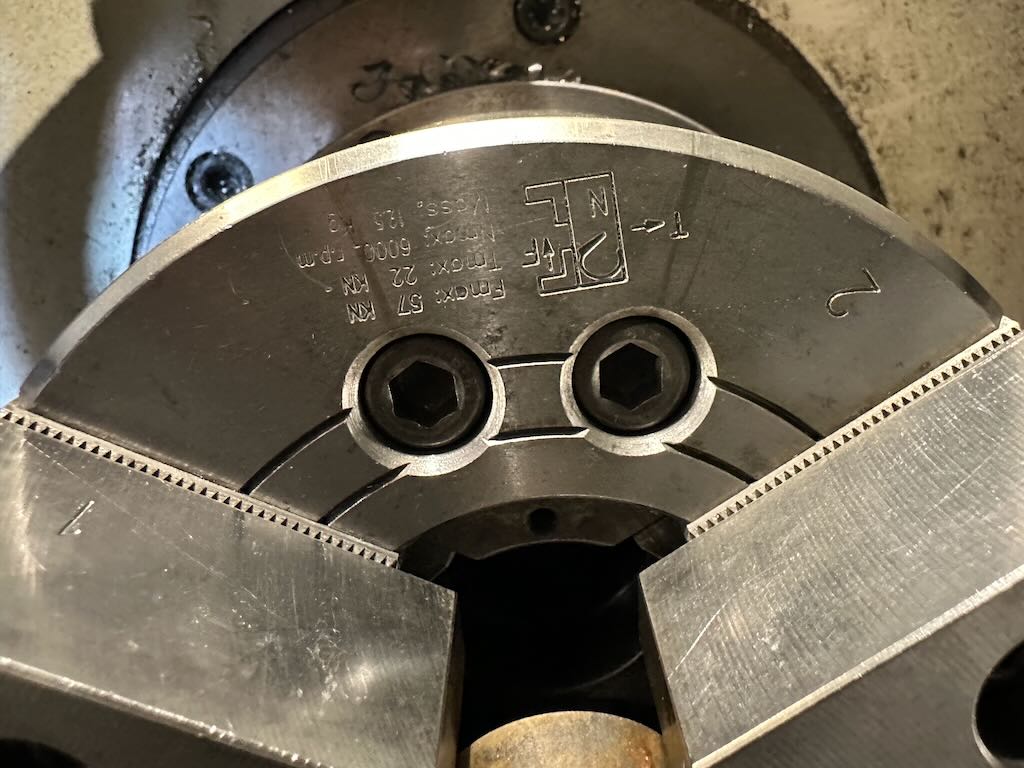

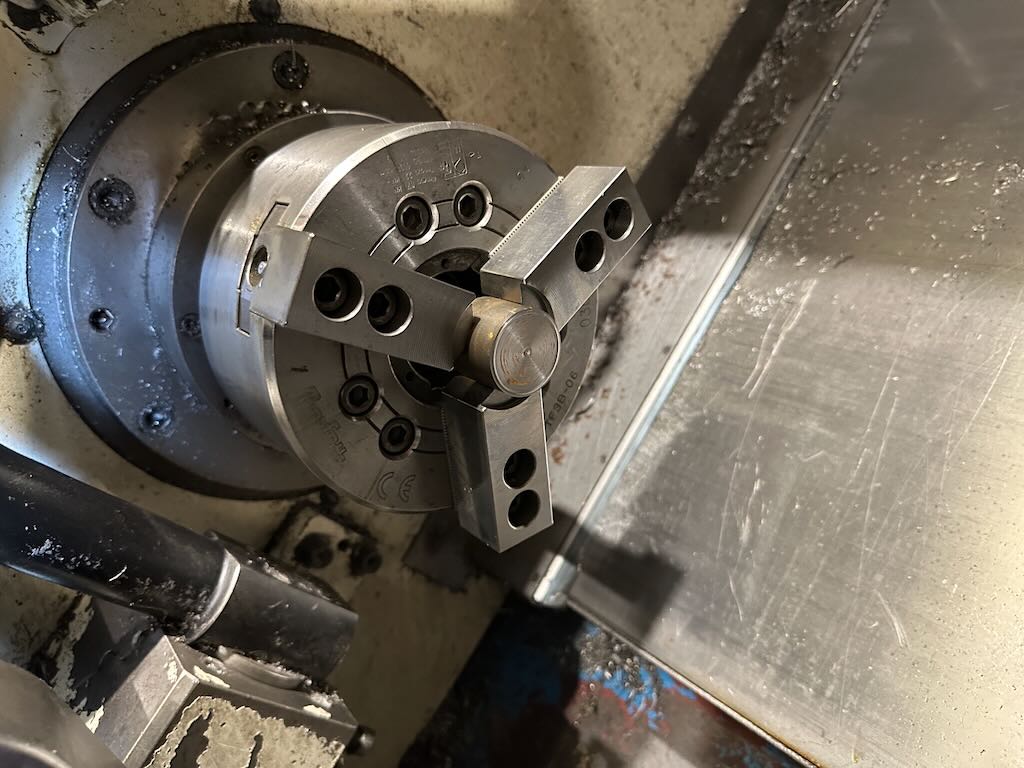

Power Chuck: 169mm.
Through Hole: 57mm.
Max Rpm: 6000.
Spindle Motor: 7.5 kW.
Circular run-out: 0.003mm.

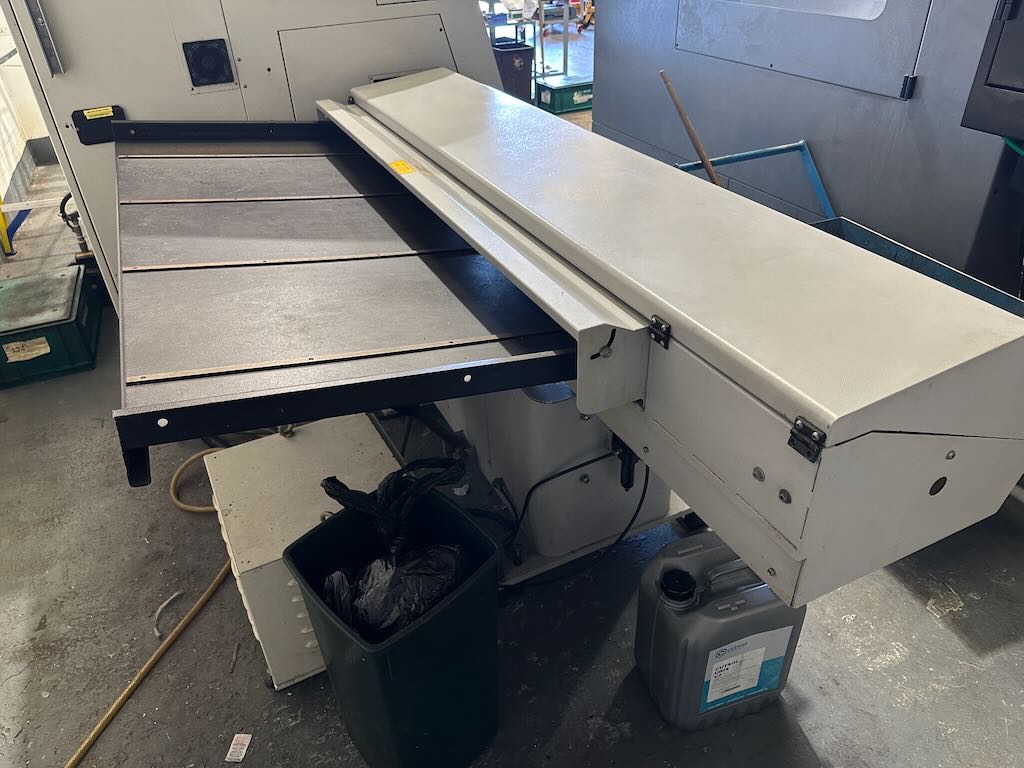

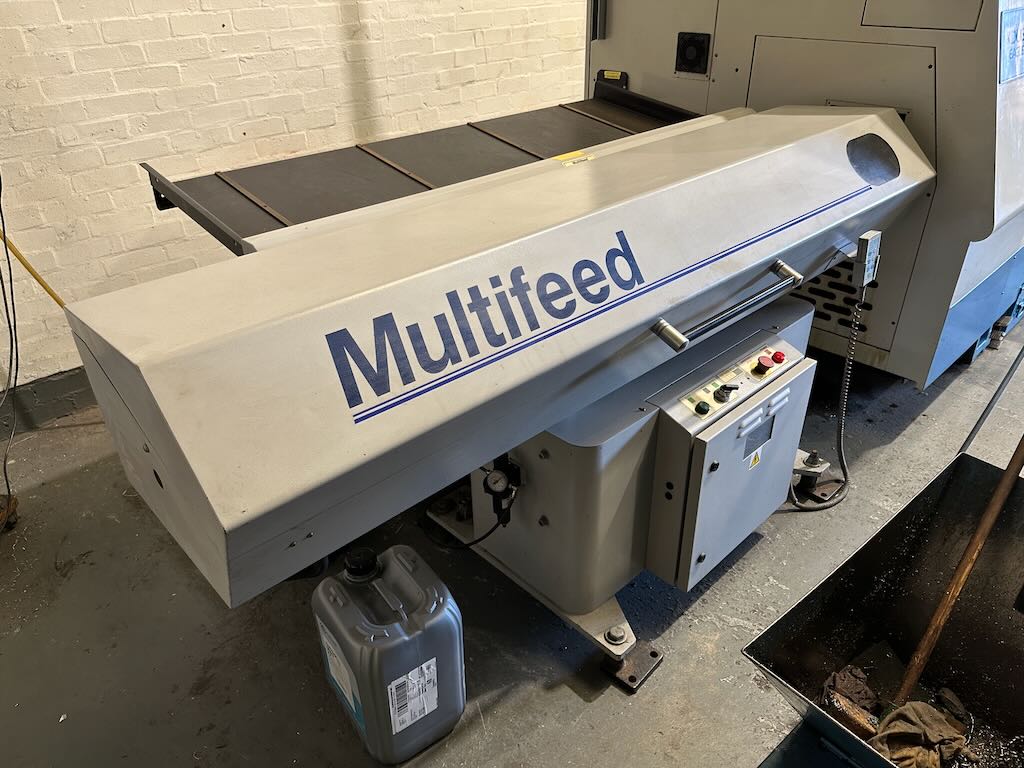

Bar Capacity: 45mm.
Z Axis Travel: 320mm.
X Axis Travel: 150mm.
Z Axis Rapid Traverse: 24 m/min.

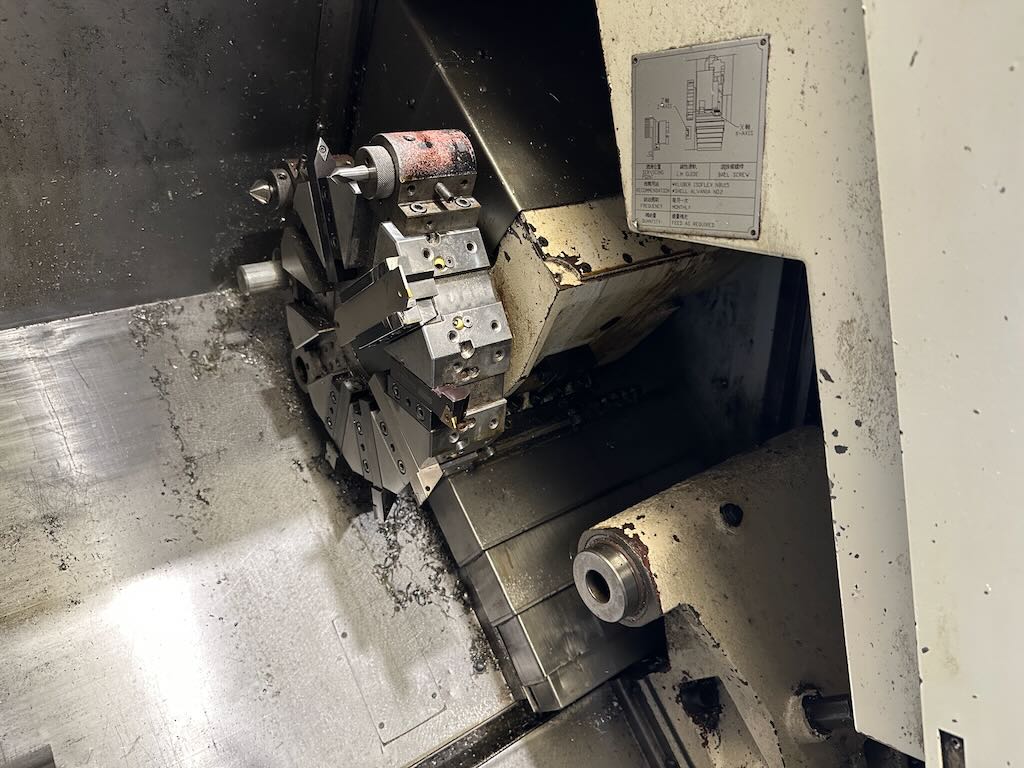

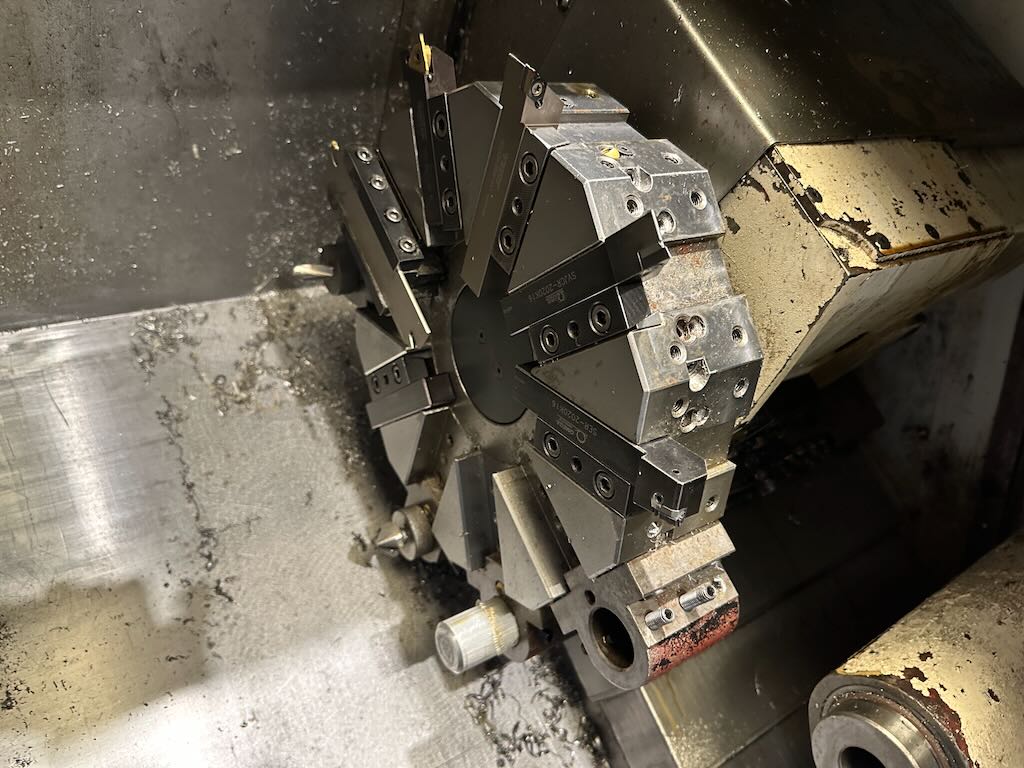

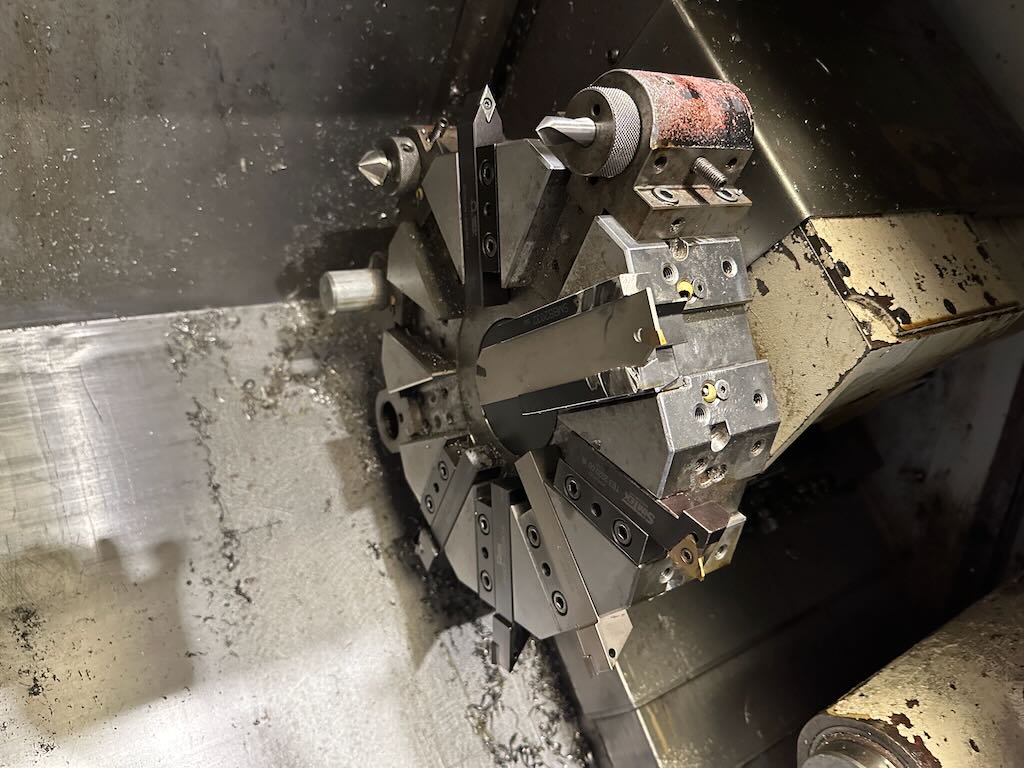

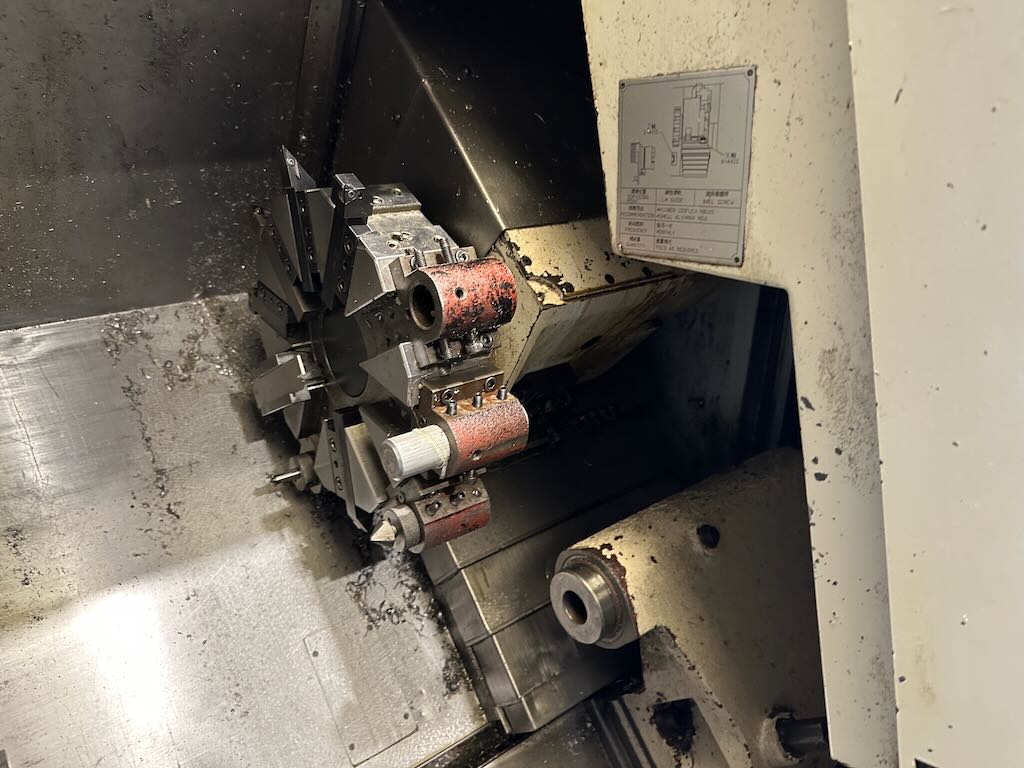

Number of tools: 10.
Tool Size Square: 20x20mm.
Tool Size Bar: 32mm.
Tailstock Body Travel: 250mm.
Quill Travel: 80mm.
Quill Diameter: 70mm.
Quill Taper Hole: MT 4.

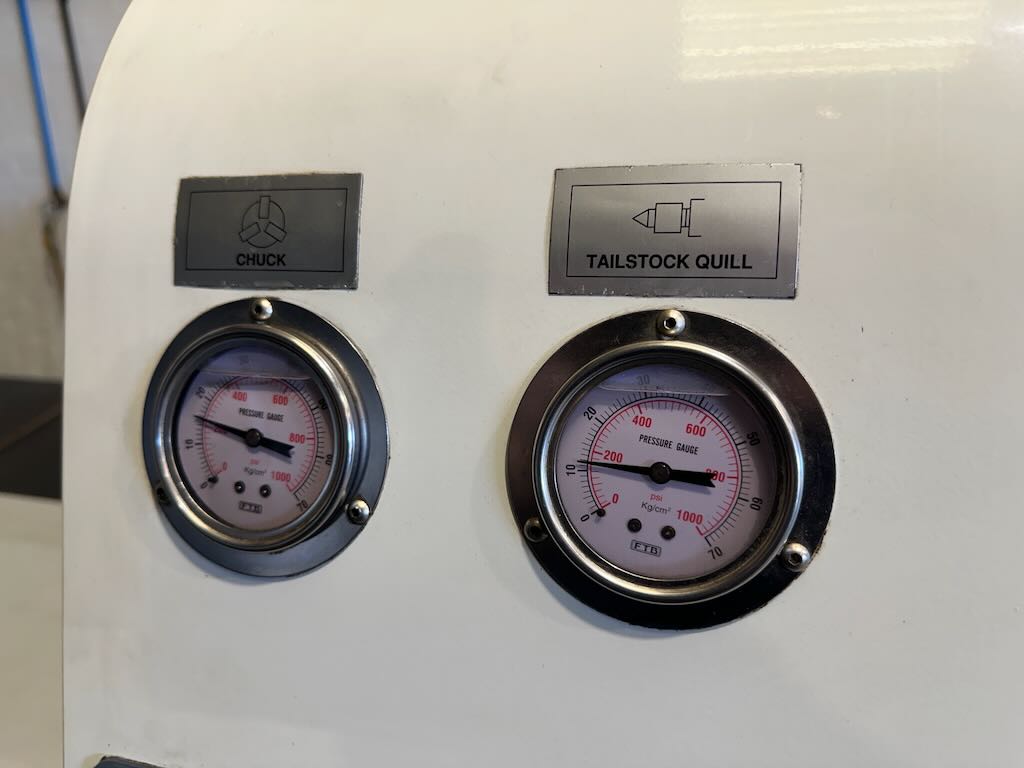

Quill Activation: Hydraulic.
Tailstock Body Positioning: Manual.
Floor Space Required: 2.1 x 1.6 x 1.6m (L x W x H).
Weight (Approx): 2800kg.
+ request more information
