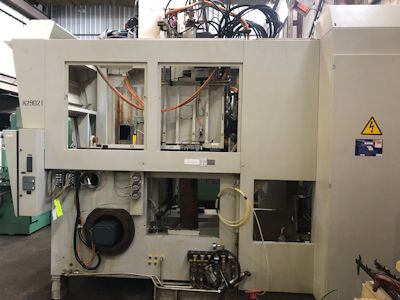

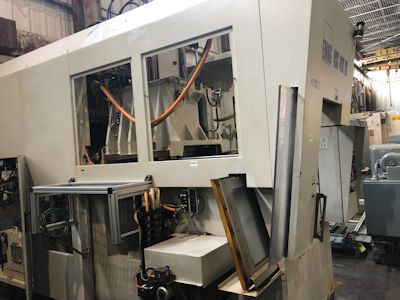

The combined turning and grinding center VSC 400DS combines the advantages of
vertical hard turning with the advantages of grinding, on a single machine, in
a single set-up. The turning and grinding center VSC 400DS is equipped with
turning, drilling and grinding modules.
As on all machines of the VSC series, the pick up principle ensures that the
EMAG REINECKER VSC 400DS turning and grinding center loads itself. There is
consequently no need for cost intensive, space devouring gantry loaders or
other loading devices that necessitate time consuming resetting work.
* Vertical hard turning and finish grinding in a single setup, on a single
machine.
* All workpiece sections that can be turned with the required process
reliability are hard finish turned and only ground (after hard pre-turning)
where component quality and process reliability demand.
* A better quality component and increased productivity levels, because the
workpiece is machined in a single setup, and the hard turning process leaves
a small amount of material to be ground away in the subsequent operation.
The turning and grinding center VSC 400DS is specifically designed for the low
cost, process capable, precision machining of medium to large component
batches. Typical examples of such workpiece are: gearwheels, chain wheels,
sliding sleeves, parts CVTs, link pins, conrods, rocker arms, bearing rings
and piston rings.
EQUIPPED WITH:

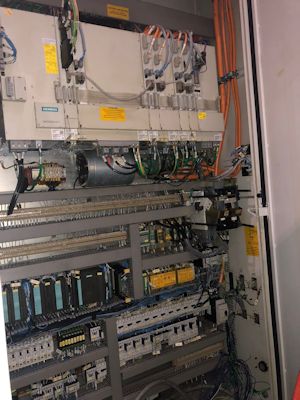

Siemen 840D Control
Coolant System
Mayfran Chip Conveyor
Chiller
Auto Load Table
480/3/60 Cycle Electrics
SPECIFICATIONS:
Chuck Diameter: 400 mm
Swing Diameter: 420 mm
Max. Workpiece Diameter: 340mm
X-Axis Travel: 850 mm
Y-Axis Travel: 315mm
Z-Axis Travel: 315 mm
Spindle Speed, Max: 3000 RPM
Spindle Bearing, Front: 120 in/mm
Rapid Traverse Speed X/Z: 45/30 m/min
Turning Tools/Life Tools: 1-12
Approximate Weight: 22,000#
