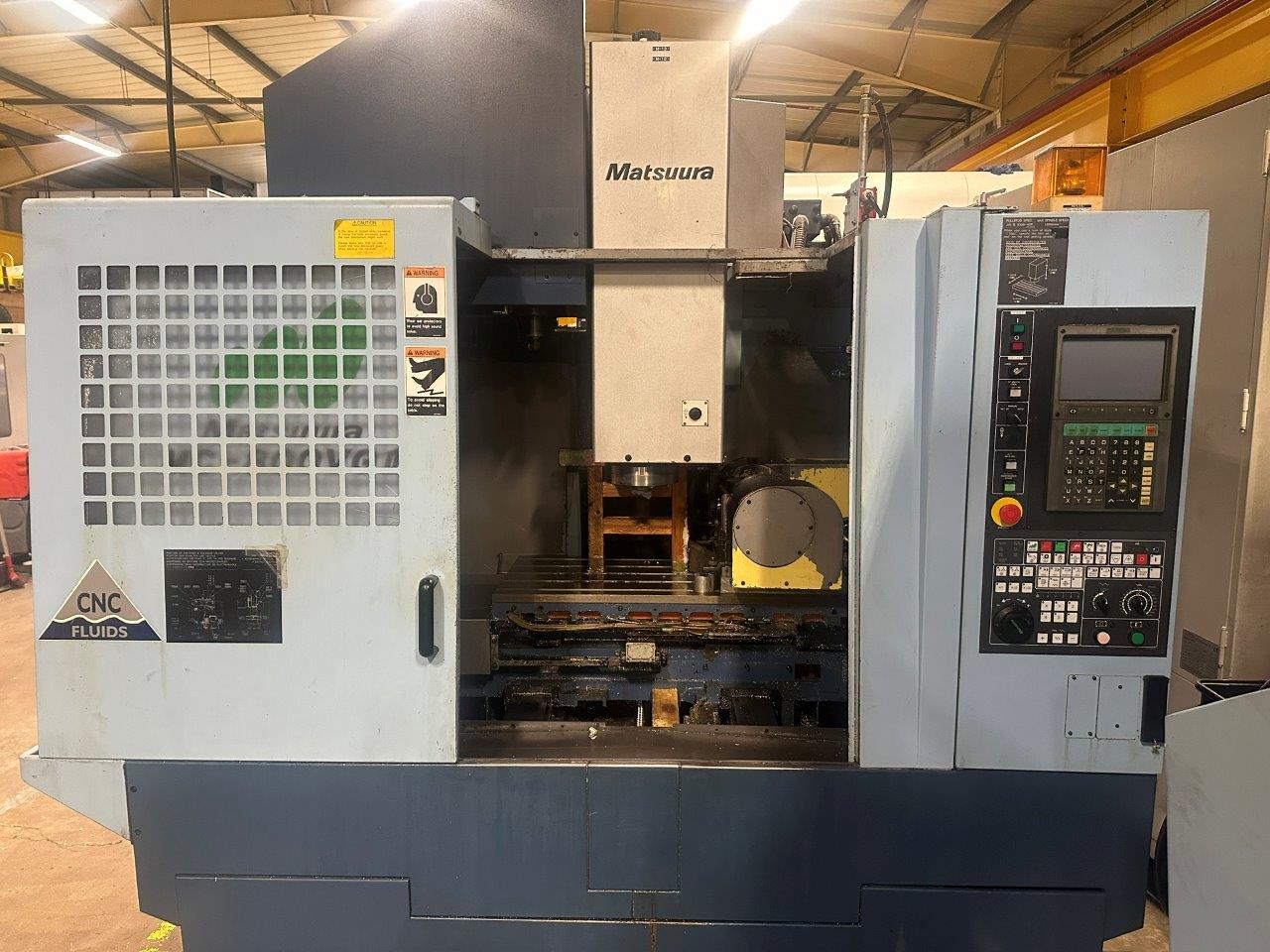

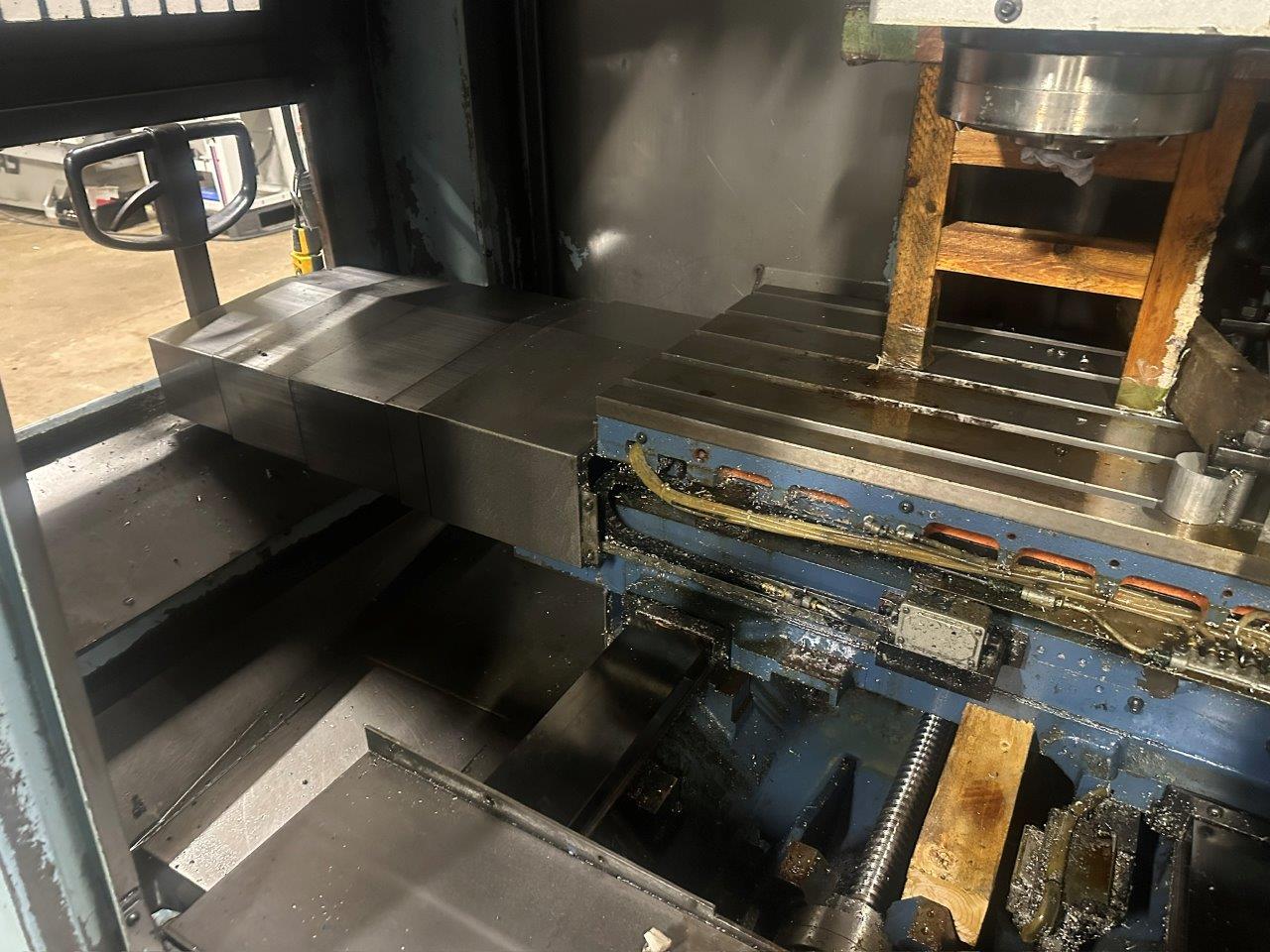

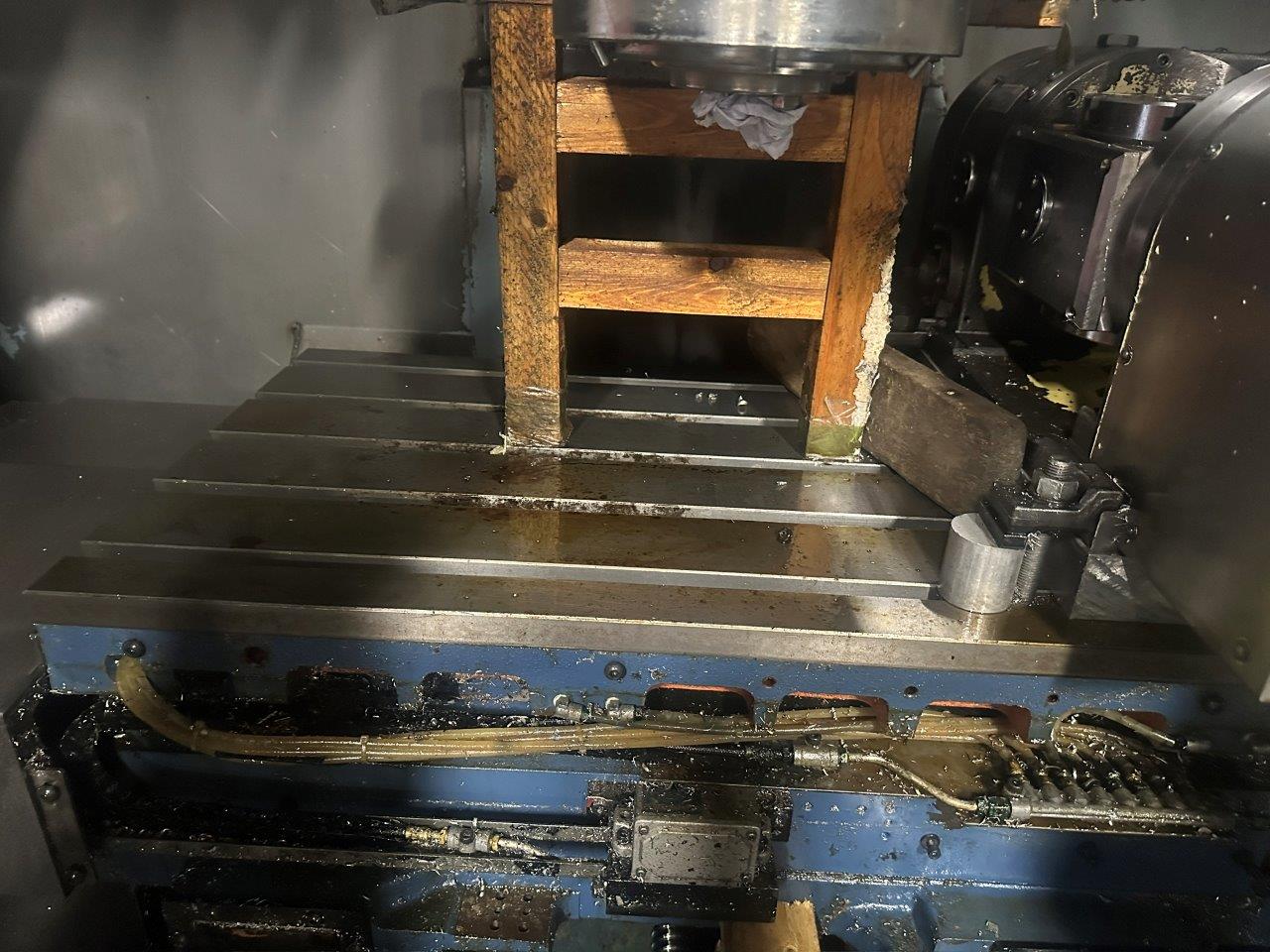

Table Size 920 x 480mm. Max Table Load 900kg. T Slot Size 16mm. 4 x T Slots x 100mm pitch. Travels X/Y/Z 800mm/500mm/510mm. Spindle Centre to Column 550mm. Min/Max Spindle to Table 100/ 610mm. Min/Max Column Front to Table Centre 300/800mm. Cutting F...
SANGIACOMO
10103
C-FRAME PRESSES
Nominal force: 1300 kN
Nominal stroke: 7.5 mm
Adjustable stroke: 16÷200 mm
Stop position: TDC
Ram adjustment: 100 mm
Stop time: 190 ms
Strokes per minute min./max.: 10/55
Maximum mould surface: 600 x 1100 mm
Maximum ...
