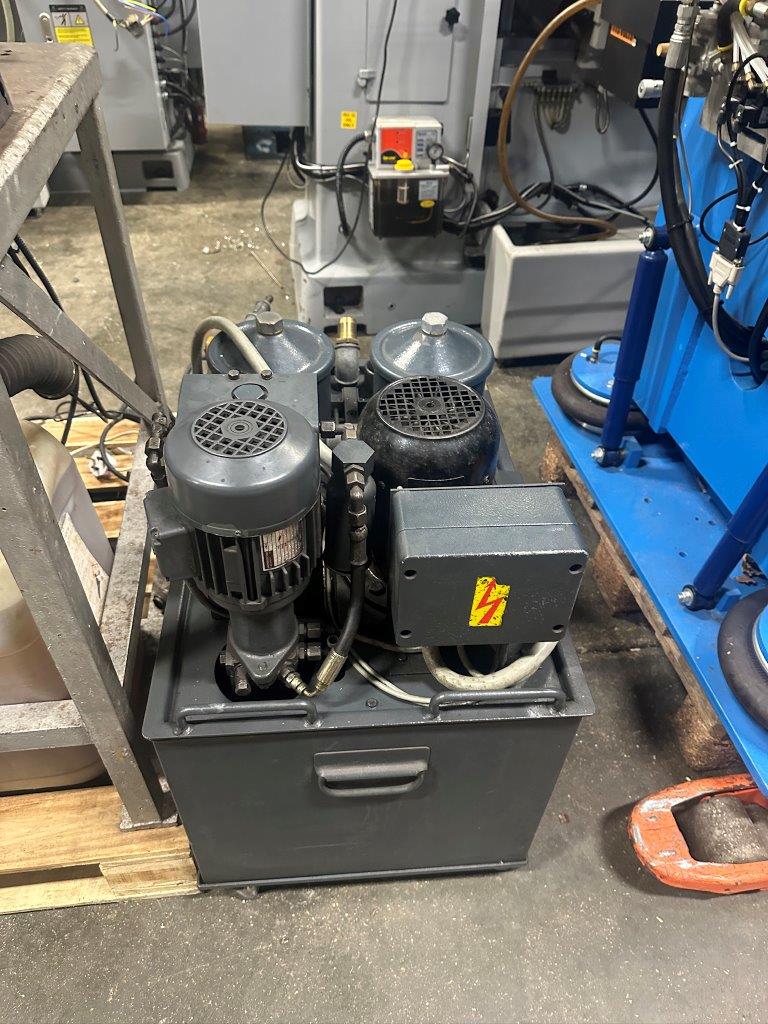

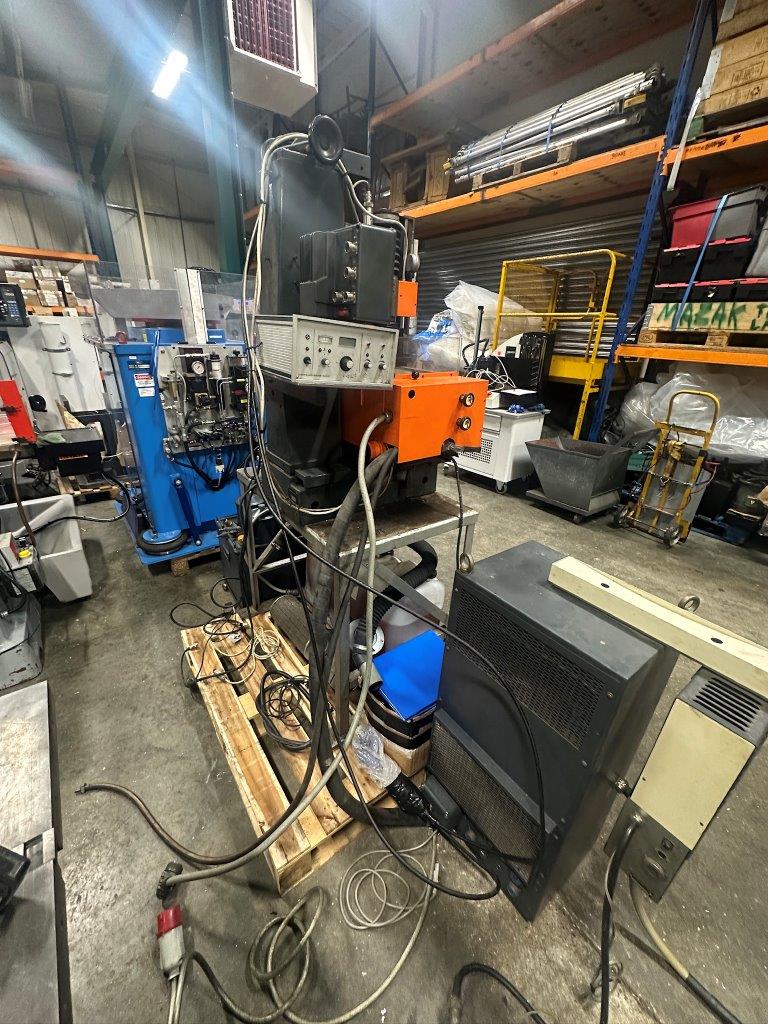

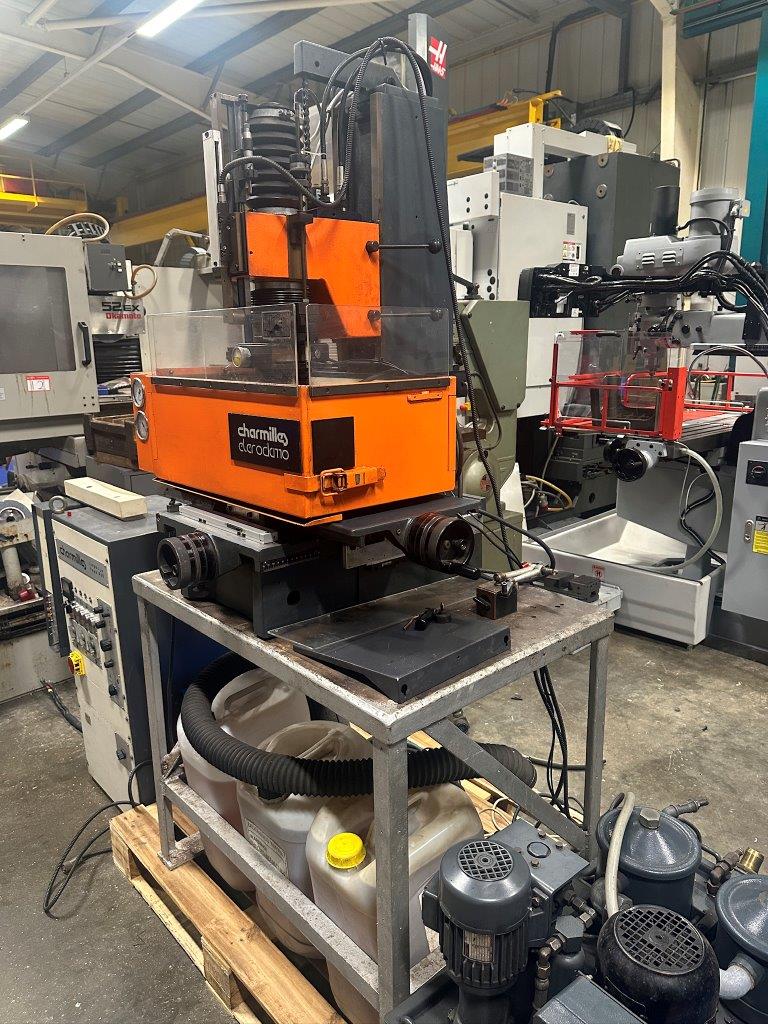

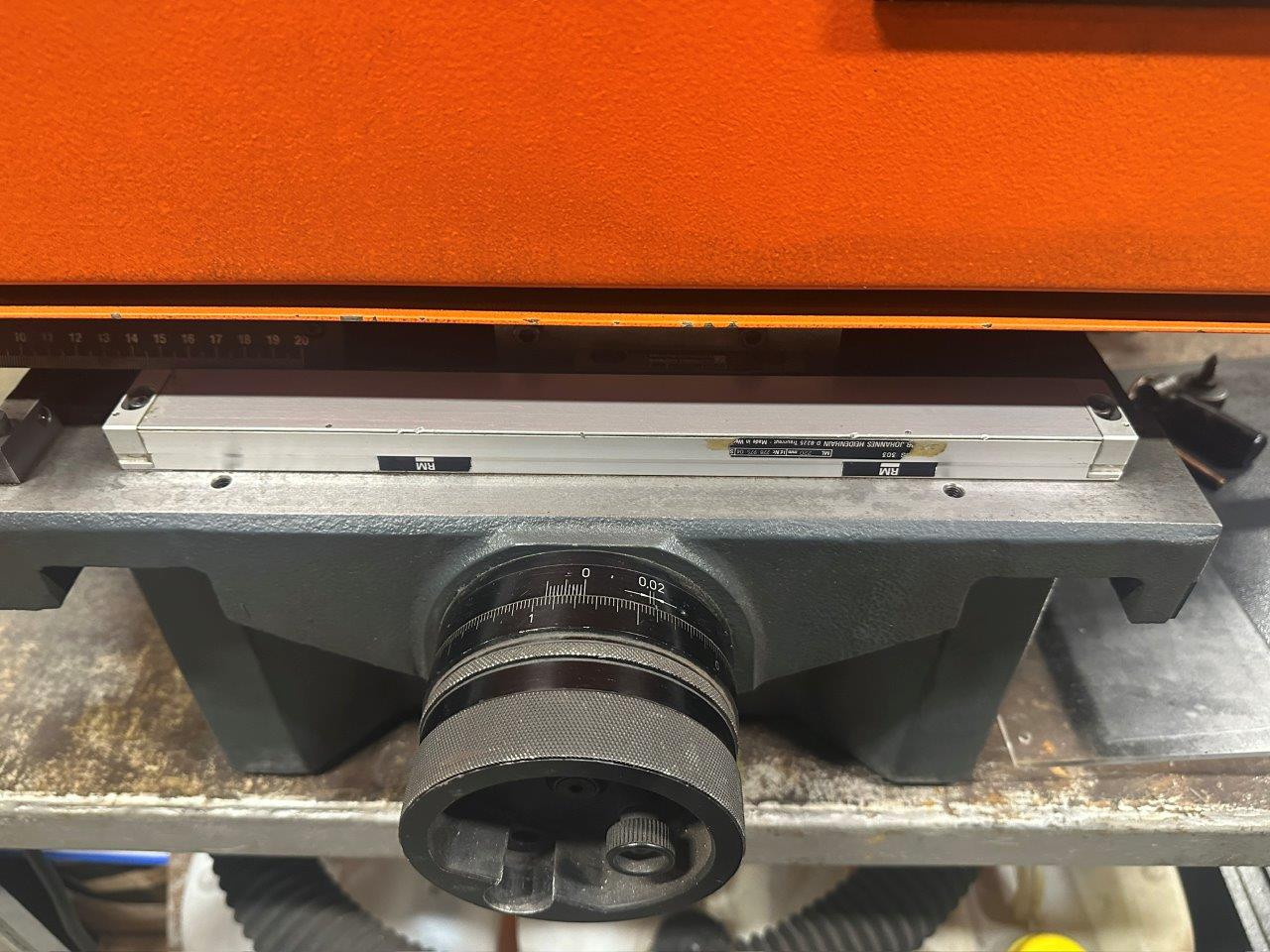

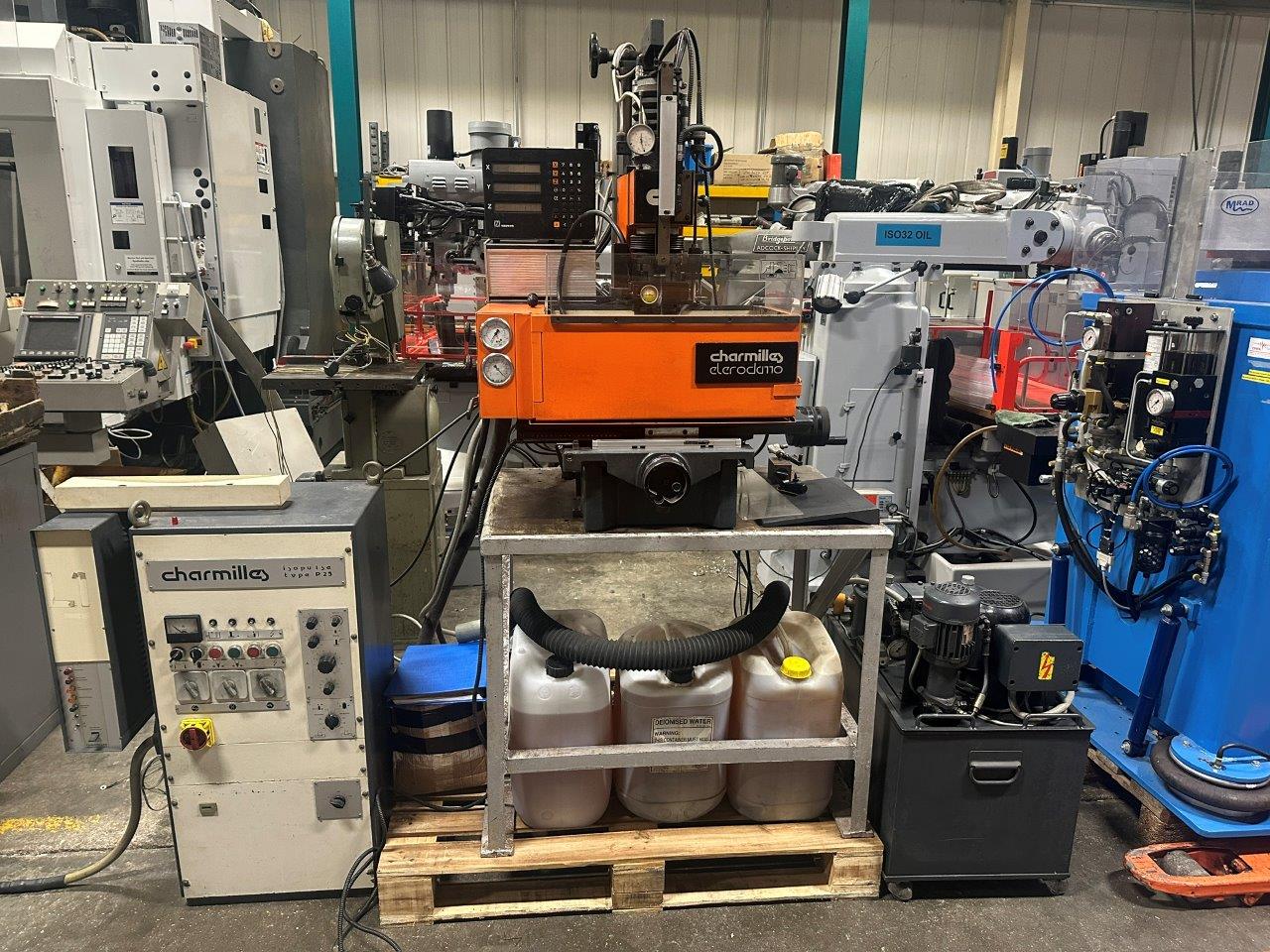

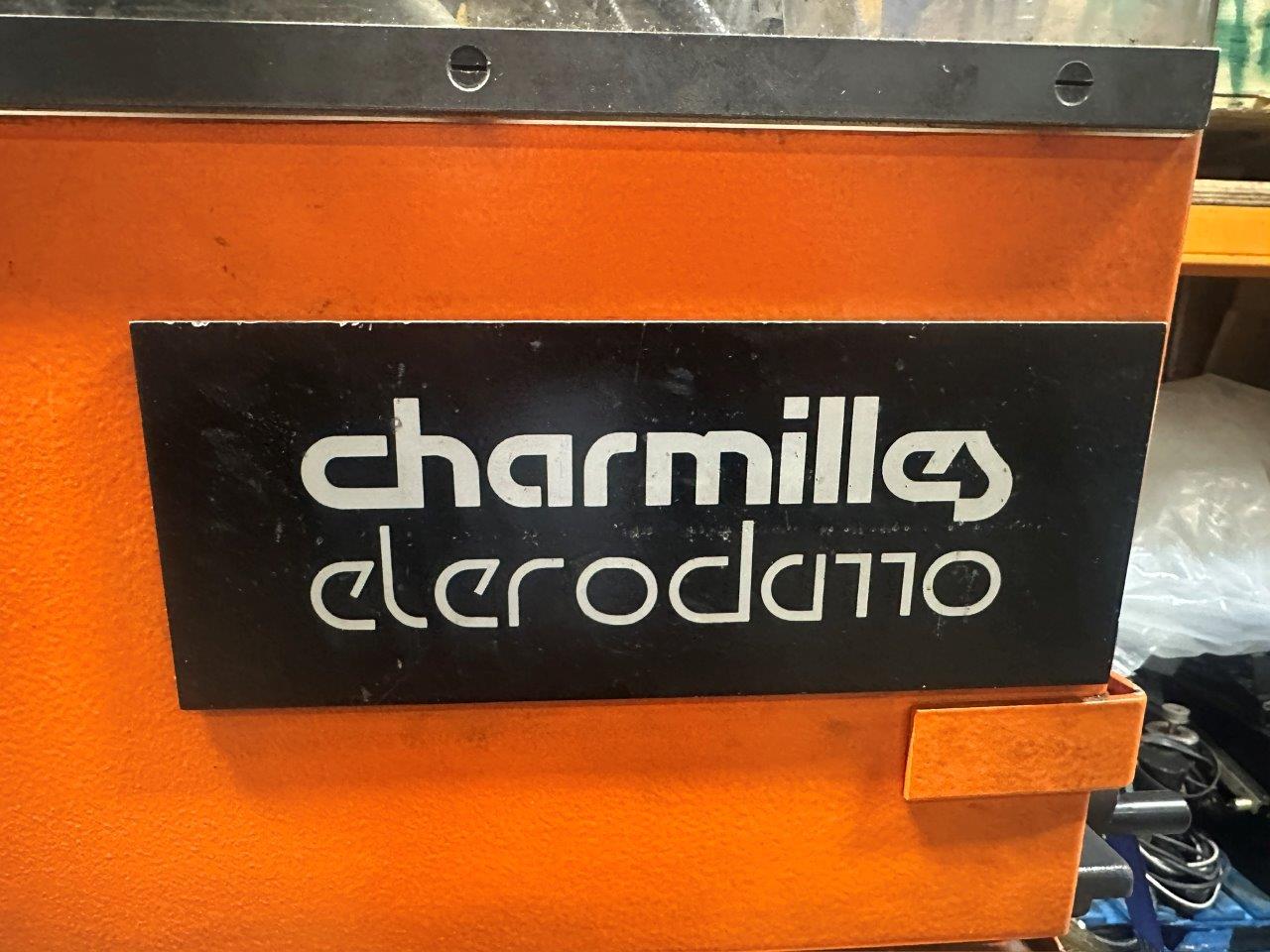

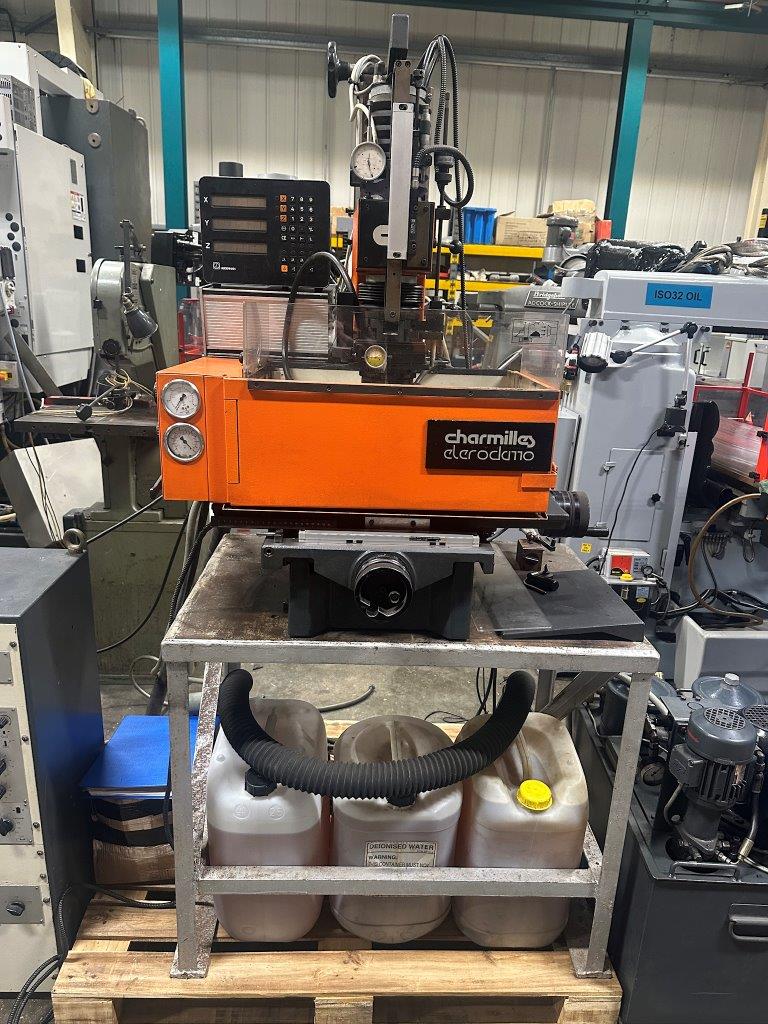

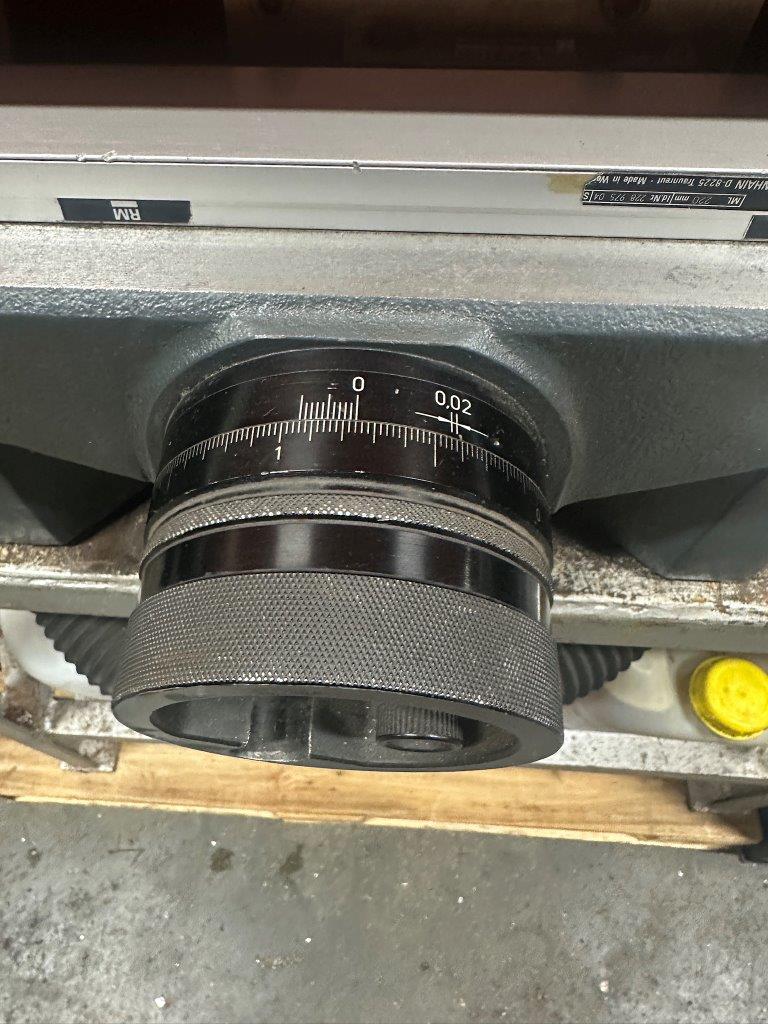

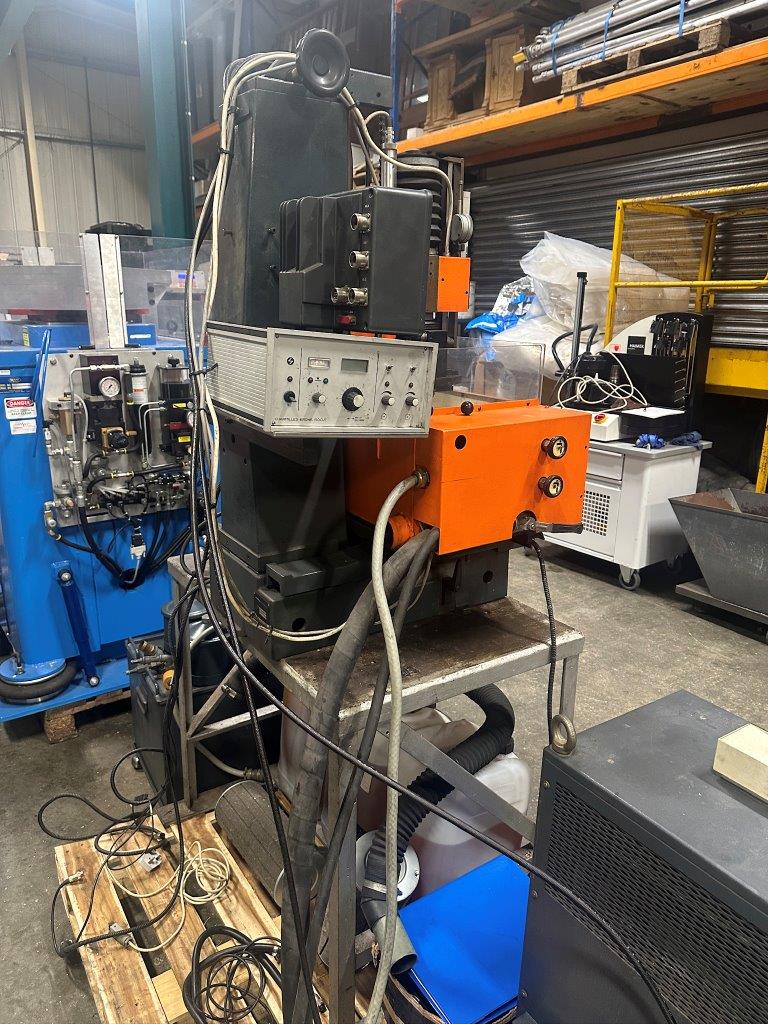

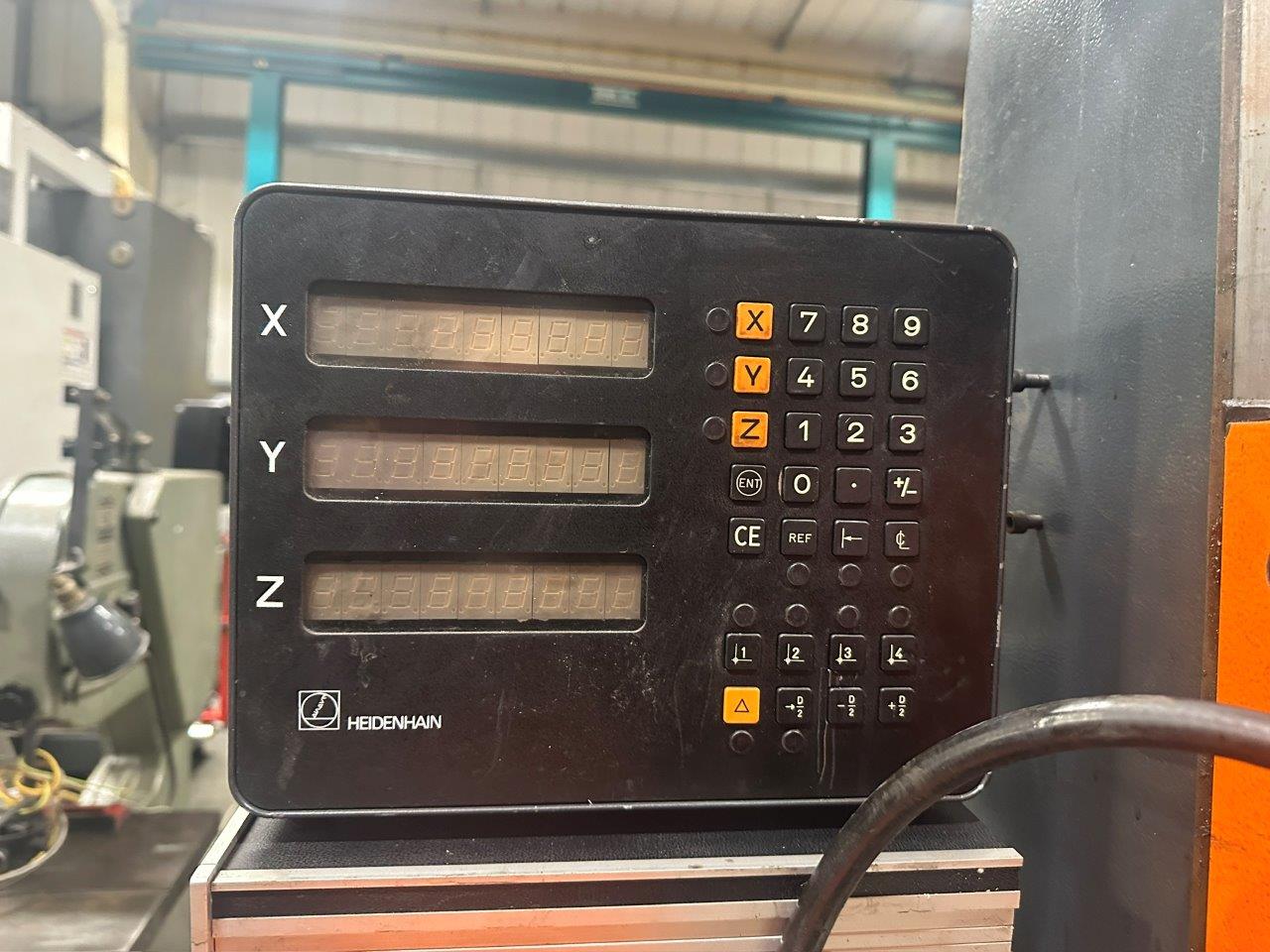

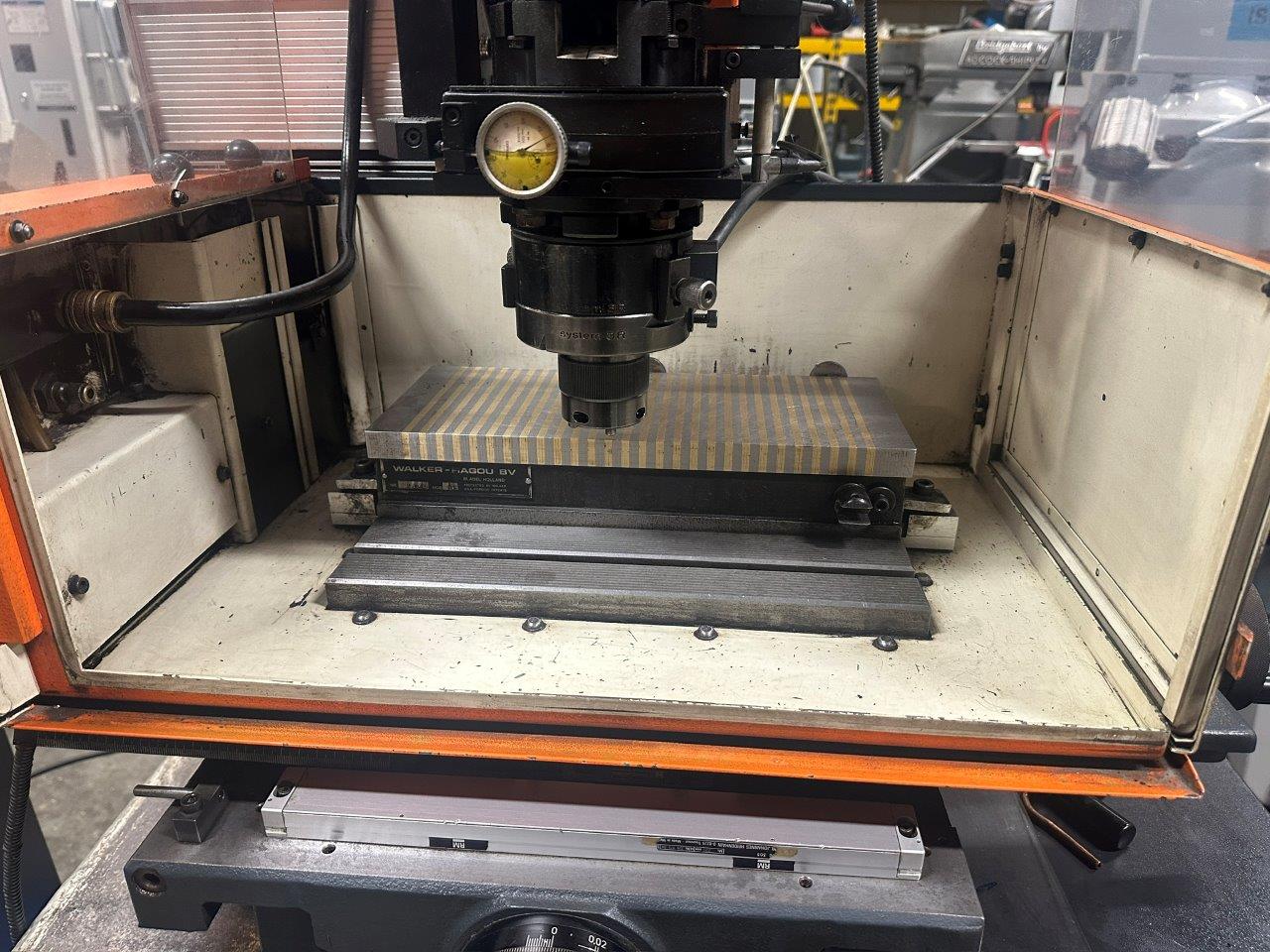

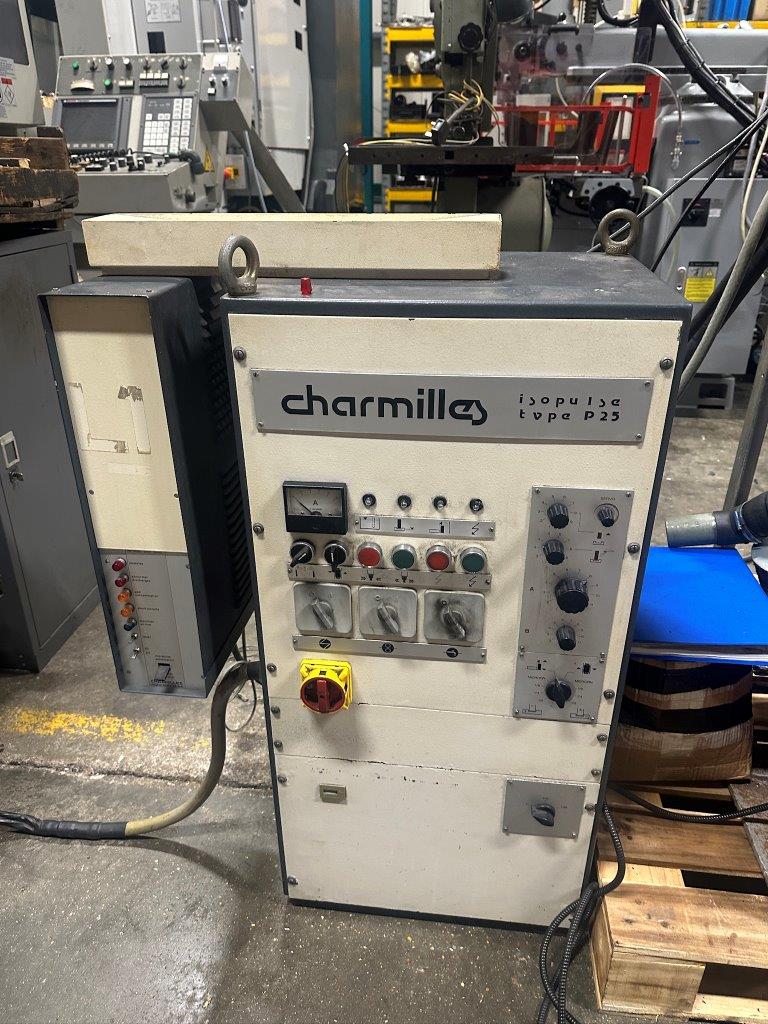

Used Charmilles Eleroda 110 Spark Eroder, s/n TBA , Table dimensions 350 x 230mm, Travels X-200 x Y-120 x Z-240mm, Quill travel 100mm, Distance from head to table 110 to 450mm, Tank size (inside) 520 x 350 x 180mm high (dielectric level), Generator P25A, 25 amp, Intensity levels 1/32, 1/16, 1/8, 1/4, 1/2 , 1. Power input (for generator) 2.1kVA, Floor space 1,500 x 800mm Power input (without Generator) 1kVA, Supply voltage 380V, 3 phase, 50Hz, c/w Magnetic chuck, DRO
LODI
08752
Max table longitudinal stroke 700 mm
Max table cross stroke 350 mm
Grinding length mm 600
Grinding width 350 mm
Worktop dimensions mm 600x300
Distance between table and spindle axis 600 mm
Grinding wheel dimensions 350x40x127 mm
Automatic ...
ZMM
09415
Center height mm 290
Swing diameter on the bed mm 580
Swing diameter on the carriage mm 380
Bed width mm 400
Distance between centers mm 1500
Spindle bore mm 72
Spindle speed rpm 2000
Main motor power kW 7.5 (11)
Carriage stroke mm 315
Cros...
When it comes to turning/holding smaller diameter parts Abbott’s precision master plate and segment system is an ideal choice for high changeover and short running jobs. Due to the system’s high repeatability, it is an excellent alternative to mo...
